LONG LASTING FUN.

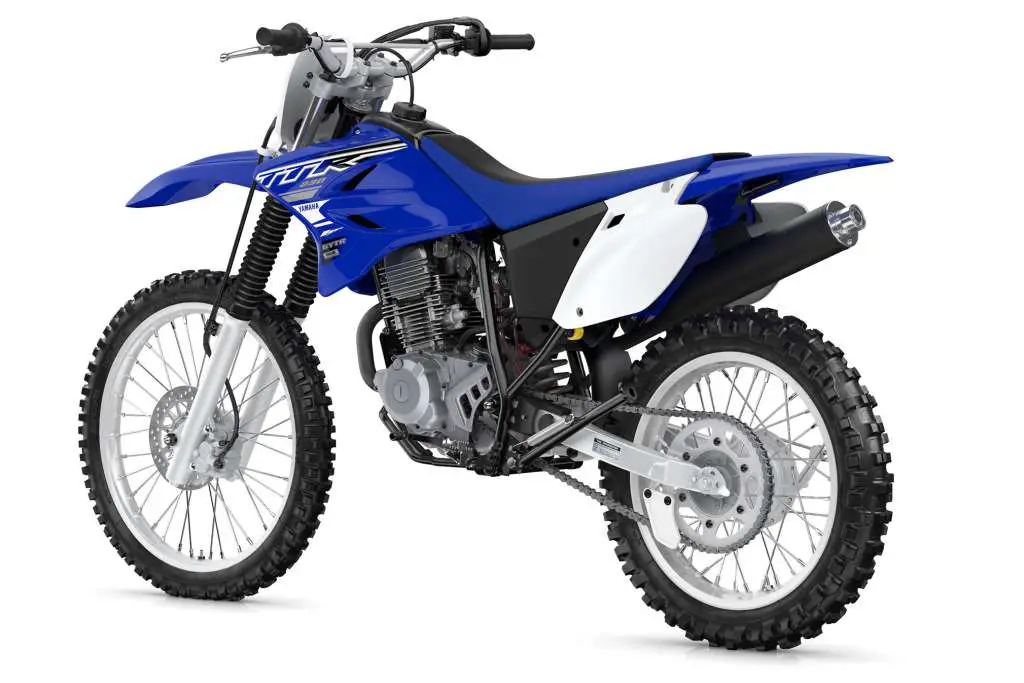

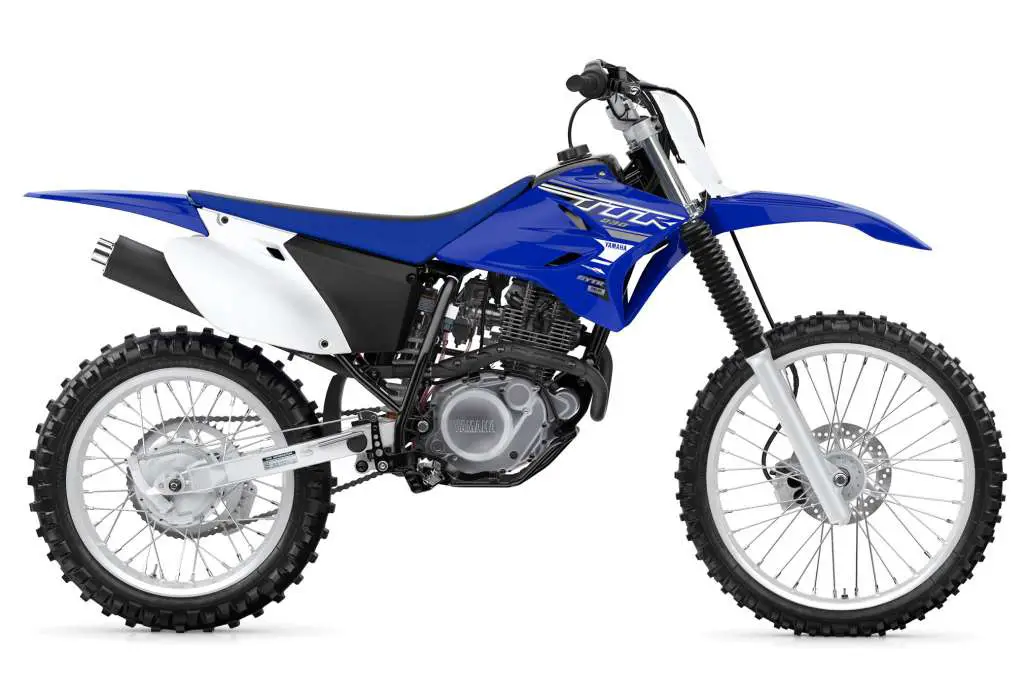

2019 Yamaha TT-R230:

Light, simple and proven, the trail bike that delivers decades of low maintenance performance.

Riders of all skill levels will have a blast riding the easy-to-use, easy-to-start and easy-to-maintain TT-R230! The low seat height and smooth, torquey power are perfect for beginners and more experienced riders alike.

///Power

A peppy, air-cooled, 223 cc, SOHC, 2-valve, 4-stroke powerplant produces predictable power aimed at easing both beginner and intermediate riders into the fun and excitement of off-road riding.

///Frame

The TT-R230’s diamond-type steel frame features a compact, 1,385 mm (54.5″) wheelbase to ensure superb manoeuvrability and responsive handling.

2019 Yamaha TT-R230 Totalmotorcycle.com Key Features

Top Features

• Broad, Accessible Powerband
  YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power, make the TT-R230 a great choice for beginner and intermediate riders.
• Racing-Derived Ergonomics
  Competition-style flat seat/tank junction for great rider mobility.
• Convenient Electric Start
  Electric start makes getting started a simple pushbutton exercise.
• Trail-Ready Dimensions
  A low seat height on top of a long-travel suspension and 11.6 inches of ground clearance make this a serious trailbike that’s also accessible to a wide range of riders.
• Robust, Compact Frame
  Steel, diamond-type-design frame means great handling and strength.

2019 Yamaha TT-R230 Totalmotorcycle.com Features and Benefits

Engine

• Broad, Accessible Powerband
  Super-reliable, electric start, 223cc air-cooled, SOHC four-stroke puts out smooth, widespread power perfectly suited for all kinds of trails and riders.
• 6-Speed Transmission
  Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.
• Digital Ignition
  CDI magneto ignition system is ultra-reliable and nearly maintenance free.
• Free-Flowing Intake
  YZ-type air filter for easy maintenance and maximum airflow.
• Forestry-Friendly Exhaust
  Lightweight exhaust with quiet muffler and USFS-approved spark arrestor.
• Low Maintenance Engine
  Automatic cam chain tensioner means minimal maintenance and longer engine life.

Chassis/Suspension

• Robust, Compact Frame
  Steel frame with compact wheelbase and low seat height combines accessibility to new or smaller riders with superb maneuverability and super-responsive handling.
• Advanced Rear Suspension
  Linkage-mounted adjustable rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling.
• Trail-Ready Front Fork
  36mm front fork with 9.4 inches of wheel travel provides plush, confidence-inspiring control over rough terrain.
• Generous Ground Clearance
  11.6 inches of ground clearance should be enough to deal with almost any trail.
• Lightweight Swingarm
  Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
• Dual Disc Braking System
  Front 220mm disc and 130mm rear drum brakes for powerful, confident stops.
• MX-Style Wheels and Tires
  Full-size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.

Additional Features

• Comfortable Saddle
  Long gripper seat is low, comfortable, and allows easy rider movement.
• Racy Styling
  Team Yamaha-inspired colors, graphics and front and side number plates create distinctive styling.
• Grippy Footpegs
  Large, folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions.
• Fork Protection
  Durable fork boots provide excellent fork seal and stanchion tube protection.

2019 Yamaha TT-R230 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4399 USD
Canada MSRP Price: $5099 CDN
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU

MSRP*

$4,399 – Team Yamaha Blue – Available from November 2018

Engine

Engine Type

223cc air-cooled SOHC 4-stroke; 2 valves

Bore x Stroke

70.0mm x 58.0mm

Compression Ratio

9.5:1

Fuel Delivery

Carburetor

Ignition

CDI

Transmission

Constant-mesh 6-speed; multiplate wet clutch

Final Drive

Chain

Chassis

Suspension / Front

Telescopic fork; 9.4-in travel

Suspension / Rear

Single shock; 8.7-in travel

Brakes / Front

Hydraulic single disc, 220mm

Brakes / Rear

Drum, 130mm

Tires / Front

80/100-21

Tires / Rear

100/100-18

Dimensions

L x W x H

81.3 in x 31.5 in x 46.5 in

Seat Height

34.3 in

Wheelbase

54.5 in

Rake (Caster Angle)

27.0°

Trail

4.4 in

Ground Clearance

11.6 in

Fuel Capacity

2.1 gal

Fuel Economy**

n/a

Wet Weight

251 lb

Other

Warranty

90 Day (Limited Factory Warranty)

*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.

2019 Yamaha TT-R230 – Totalmotorcycle.com Canada Specifications/Technical Details

2019 Yamaha TT-R230 – Totalmotorcycle.com European Specifications/Technical Details

2019 Yamaha TT-R230 – Totalmotorcycle.com Australian Specifications/Technical Details

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
