2020 BMW C400X Guide

2020 BMW C400X

2020 BMW C400X 2020 BMW C400X 2020 BMW C400X 2020 BMW C400X

2020 BMW C400X : MAKE MORE OF YOUR CITY..

2020 BMW C400X Guide.

The C 400 X gives you the opportunity to take advantage of everything that the city has to offer while you’re on the move. It’s a mid-size scooter that easily overcomes the challenges of travel in a city. Just take your favorite songs with you on the scooter and experience the city to your own personal soundtrack. You can make plans with friends on your connected smartphone without dismounting while you cruise comfortably through the metropolis. With the C 400 X, your city and routes become an open space of your own.

BMW C 400 X: the dynamic BMW Motorrad mid-size scooter for maximum riding fun in an urban setting.

BMW Motorrad established its new product category in the area of urban mobility in 2011 with the debut of the BMW C 600 Sport and the BMW C 650 GT as premium vehicles for the maxi scooter segment. Now BMW Motorrad goes one step further and presents the new BMW C 400 X – a premium vehicle for the mid-size scooter segment.

But the new BMW C 400 X is not just a smart mid-size scooter designed to avoid constant urban traffic congestion and allowing faster movement through the traffic jungle from A to B: the new mid-size scooter also demonstrates that urban mobility can be a lot of fun, too. In short, the new BMW C 400 X transforms a ride into the city or to the workplace from a lowlight to a highlight: in fact instead of choosing a sensible shortcut, the rider will be tempted to take the long way round – purely for the extra riding fun.







2020 BMW C400X Totalmotorcycle.com Key Features
  • Efficiency-optimised single-cylinder engine with a capacity of 350 cc, high torque and CVT gearbox.
  • Highly compact design with wet sump lubrication.
  • 25 kW (34 hp) at 7 500 rpm and 35 Nm at 6 000 rpm.
  • Electronic fuel injection, digital engine control and ASC.
  • Suspension with rugged tubular steel frame.
  • Torsionally stiff drivetrain swing arm with innovative swing arm bearing for minimum vibration.
  • Telescopic fork at front and two spring struts at rear with ample spring travel.
  • Powerful braking system with ABS as standard.
  • LED lighting technology as standard.

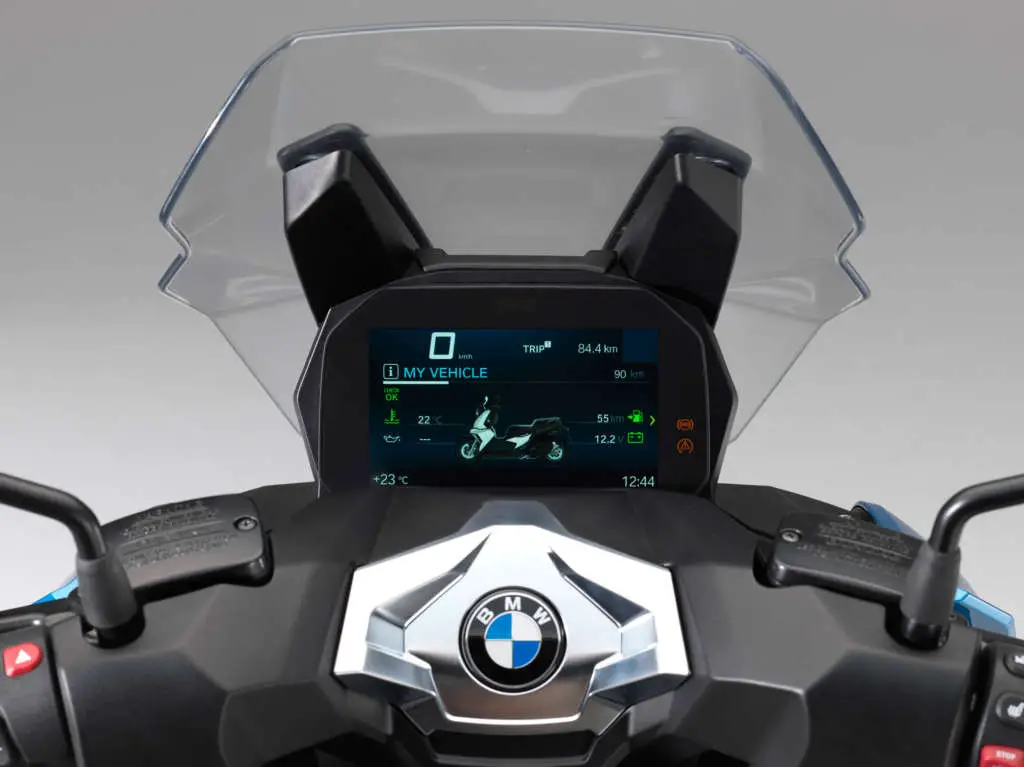

  • Connectivity: Multifunctional instrument cluster with 6.5-inch full-colour TFT screen and numerous features as an ex-works option.
  • Distinctive, dynamic design.
  • Excellent wind and weather protection and sophisticated ergonomics.
  • Generous storage space with two storage compartments and Flexcase.
  • Attractive paint finishes with distinctive character qualities.









2020 BMW C400X Totalmotorcycle.com Features and Benefits

Powerful, efficiency-optimised single-cylinder engine combined with CVT transmission, vibration decoupling and ASC.

In terms of drive technology, the BMW C 400 X provides this new dynamic access to the urban environment by means of a newly developed efficiency-optimised single-cylinder engine with an output of 34 hp (25 kW). Power transmission is via a CVT (Continuously Variable Transmission) gearbox and a torsionally stiff drivetrain swing arm with innovative swing arm bearing for minimum vibration and therefore maximum comfort. Automatic Stability Control ASC ensures increased safety during acceleration, especially on slippery surfaces.

Rugged tubular steel frame, telescopic fork and high-performance brake system with ABS as standard.

In the chassis area, the new BMW C 400 X sports a rugged tubular frame made of steel. Suspension and damping are taken care of by a telescopic fork at the front and two spring struts at the rear. The set-up and spring travel have been selected so as to ensure that sporty, dynamic riding fun is combined with a very high level of comfort. Supreme brake performance and outstanding safety are provided by the twin disc brake at the front in conjunction with a single disc brake at the rear, along with ABS as standard.

LED lighting technology as standard and BMW Motorrad Connectivity as an ex-works option.

In addition to standard lighting technology in highly luminous LED technology, the new BMW C 400 X also offers a range of highlights in the area of connectivity which is new to the segment. A multifunctional instrument cluster with 6.5‑inch full-colour TFT screen is available as an ex-works option, for example. In conjunction with the further advanced BMW Motorrad Multi-Controller offering integrated operation, this means the rider can access vehicle and connectivity functions quickly and without being distracted from what is happening on the road. In addition to the convenience of being able to use the phone and listen to music during travel, there is also the benefit of effortless navigation by means of a practical system of arrows.

Modern, innovative design with excellent wind and weather protection as well as an ingenious storage concept including Flexcase.

In terms of its styling, the new BMW C 400 X can be instantly identified as a member of the BMW Motorrad C family: its appearance is modern, future-oriented and functional. Viewed from the front, the dominant feature is its iconically styled LED headlight with distinctive daytime riding light design (optional) in the form of fibre optic elements. This sets the new BMW Motorrad mid-size scooter clearly apart from its competitors, giving it a particularly sporty and dynamic look. With excellent wind and weather protection, a carefully conceived storage concept comprising two integrated compartments and the Flexcase under the comfortable, single-section seat, the new mid-size scooter offers everything that is needed to meet the demands of everyday practicality and touring suitability.

Attractive paint finishes for distinctive character qualities.

There is a choice of two paint finishes for the new BMW C 400 X. Zenith Blue metallic gives the new BMW C 400 X a pronounced modern appearance and underscores its athletic properties. In the paint finish Alpine White non-metallic, the distinctive styling of the new BMW C 400 X comes into its own, making it look more technical, compact and light. The contrasting single seats in grey-black or red-black emphasise the BMW Motorrad mid-size scooter’s dynamic appearance, as well as underscoring its additional strengths of agility, easy accessibility and effortless handling.









2020 BMW C400X – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $ See Dealer USD
Canada MSRP Price: from $7,450 CDN
Europe/UK MSRP Price: from £6,545 GBP (On The Road inc 20% Vat)

Engine

Type

Liquid cooled, 4-stroke single cylinder engine, four valves, single overhead camshaft, wet sump lubrication

Bore x stroke

80 mm x 69.6 mm

Capacity

350 cc

Rated output

34 hp (25 kW) at 7,500 rpm

Max. torque

26 lb-ft (35 Nm) at 6,000 rpm

Compression ratio

11.5 : 1

Mixture control / engine management

Electronic fuel injection

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-4

Performance / fuel consumption

Maximum speed

86 mph

Fuel consumption

67 mpg (WMTC)

Fuel type

Premium Unleaded

Electrical system

Alternator

Three Phase 316 W generator

Battery

12 V / 9 Ah, maintenance-free

Power transmission

Clutch

Centrifugal clutch

Gearbox

CVT gearbox

Drive

Two step spur gearing

Chassis / brakes

Frame

Tubular steel with die-cast aluminum sections

Front wheel location / suspension

Telescopic front fork, Ø 35 mm

Rear wheel location / suspension

Two sided aluminum swingarm, double spring struts, adjustable preload

Suspension travel front / rear

4.3″ / 4.4″ (110 mm / 112 mm)

Wheelbase

61.6″ (1,565 mm)

Castor

3.2″ (81 mm)

Steering head angle

63.6°

Wheels

Cast aluminum wheels

Rim, front

3.50 x 15″

Rim, rear

4.25 x 14″

Tires, front

120/70 R 15

Tires, rear

150/70 R 14

Brake, front

Double disc brake, diameter 265 mm, 4-piston fixed calipers

Brake, rear

Single disc brake, diameter 265 mm, single piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Length

87″ (2,210 mm)

Width (incl. mirrors)

32.8″ (835 mm)

Height (excl. mirrors)

51.4″ (1,305 mm)

Seat height, unladen weight

Standard Seat: 30.5″, Low Seat: 29.9″

Inner leg curve, unladen weight

Standard Seat: 69.3″, Low Seat: TBD

Unladen weight, road ready, fully fueled

450 lbs (204 kg)

1)

Permitted total weight

893 lbs (405 kg)

Payload (with standard equipment)

443 lbs (201 kg)

Usable tank volume

3.4 gal (12.8 l)

Reserve

Approx. 1 gal (4 l)

1) According to guideline 93/93/EWG with all fluids, fueled with at least 90% of usable tank volume









2020 BMW C400X – Totalmotorcycle.com Canada Specifications/Technical Details



Engine

Type

Air/oil-cooled flat twin (‘Boxer’) 4-stroke engine, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft

Bore x stroke

101 mm x 73 mm

Capacity

1,170 cc

Nominal load capacity

81 kW (110 HP) at 7,750 rpm

Max. torque

116 Nm at 6,000 rpm

Compression ratio

12.0:1

Mixture control

Electronic intake pipe injection / digital engine management with overrund cutoff, twin-spark ignition

Emission control

Controlled 3-way catalytic converter, exhaust emission standards EU-4

Riding performance / consumption

Maximum speed

Over 200 km/h

Consumption w.r.t WMTC for 100km

5.3 l

CO2 emission based on WMTC

123 g/km

Fuel type

Unleaded petrol, 95-98 octane (RON) (nominal load capacity with 98 octane (RON))

Electrical system

Alternator

Three-phase alternator 720 W

Battery

12 V / 12 Ah, maintenance-free

Power transmission

Clutch

Hydraulically operated single-disc dry clutch

Gearbox

Claw-shifted six-speed transmission with helical-cut splines

Secondary drive

Shaft drive

Suspension / brakes

Frame

Four-section frame made up of front and three-section rear subframes, load-bearing engine/gearbox, pillion frame can be removed for solo riding

Front wheel location / suspension

Upside-down telescopic forks, 46 mm fixed-fork-tube diameter

Rear suspension / spring elements

Cast aluminium single-sided swing-arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically and steplessly adjustable via handwheel, adjustable rebound damping

Spring travel, front/rear

120 mm / 120 mm

Wheelbase

1,487 mm

Castor

107.9 mm

Steering head angle

63.2°

Wheels

Spoke wheels

Rim dimensions, front

3.50 x 17″

Rim dimensions, rear

5.50 x 17”

Tire, front

120/70 ZR 17

Tire, rear

180/55 ZR 17

Brake, front

Twin disc brakes, floating discs, diameter 320 mm, four-piston radial brake calipers

Brake, rear

Single disc brake, diameter 265 mm, double-piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Length

2,110 mm

Width (incl. mirrors)

900 mm

Height (incl. mirrors)

1,240 mm

Seat height, unladen

805 mm (Custom front-seat (accessory): 795 mm)

Rider step length, unladen

1,785 mm (Custom front-seat (accessory): 1,775 mm)

Unladen weight, fully fuelled/road-ready: 209 kg

222 kg

1)

Unladen weight, road ready, fully fuelled 1)

222 kg

Max. load (with standard equipment)

208 kg

Usable tank capacity

17 l

of which reserve

approx. 3 l

1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fuelled with at least 90% of usable tank volume







2020 BMW C400X – Totalmotorcycle.com European Specifications/Technical Details

Engine

Type

Water-cooled single cylinder 4 stroke engine, 4 valves per cylinder, overhead camshaft with rocker arm, wet sump lubrication













Bore x stroke

80 mm x 69,6 mm

Capacity

350 ccm

Rated output

25 kW (34 hp) at 7.500 rpm













Max. torque

35 Nm at 6.000 rpm

























Compression ratio

11,5:1

Mixture control / engine management

BMS-E2 digital engine management

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-4







CO2 emission based on WMTC









81 g/km









Performance / fuel consumption

Maximum speed

139 km/h

Fuel consumption per 100 km based on WMTC

3,5 l

Fuel type

Unleaded super 95 (ROZ), E10 compatible







Electrical system

Alternator

Permament Magnet generator 316 W













Battery

12 V / 9 Ah, maintenance-free

Starter

500 Watt

Power transmission

Clutch

Centrifugal dry clutch













Gearbox

Stepless CVT gearbox

Secondary Drive

Gearwheel set













Chassis / brakes

Frame

Steel tube construction with aluminum die cast unit

Front wheel location / suspension

Telescopic front fork Ø 35 mm













Rear wheel location / suspension

Double aluminum swingarm, double springs struts, adjustable preload













Suspension travel, front / rear

110 mm / 112 mm







Wheelbase

1.565 mm







Castor

81 mm







Steering head angle

63,6°







Wheels

Aluminum cast wheels







Rim, front

3.50 x 15″

Rim, rear

4.25 x 14″

Tyre, front

120/70 ZR 15

Tyre, rear

150/70 ZR 14

Brake, front

Double disc brake, rigid, diameter 265 mm, 4-piston calipers

Brake, rear

Single disc brake, diameter 265 mm, 1-piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Seat height

775 mm







Inner leg curve

1.760 mm







Usable tank volume

12,8 l

Reserve

4 l

Length (over mark carrier)

2.210 mm







Height (over windshield, at unladen weight (DIN))

1.305 mm







Width (incl. mirrors)

835 mm







Unladen weight, road ready, fully fuelled

204 kg (dry weight 193 kg)

1)

Permitted total weight

405 kg







Payload (with standard equipment)

201 kg







1) According to guideline 93/93/EWG with all fluids, fuelled with at least 90% of usable tank volume







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
