NOW YOU CAN REALLY HAVE IT ALL.

2020 Harley-Davidson CVO Tri Glide:

2020 Harley-Davidson CVO Tri Glide Totalmotorcycle.com Key Features

The CVO tradition of giving customers the ultimate in Harley-Davidson styling, innovation and performance continues in 2020 with the CVO Limited, the CVO Street Glide and the CVO Tri Glide models. Each model offers its owner a fully customized, limited-edition motorcycle straight from the factory with a two-year unlimited warranty.

Engine

Twin-Cooled™ Milwaukee-Eight™ 117

Engine Torque

125 ft-lb

Weight, As Shipped

1,239 lb.

Seat Height, Unladen

25.9 in.

NEW HARLEY-DAVIDSON® CVO™ TRI-GLIDE® MOTORCYCLE IS THE ULTIMATE TRIKE

MY20 CVO™ Motorcycle Line Includes Updated CVO Limited and CVO Street Glide®

The new CVO^™ Tri Glide^® model joins the CVO^™ Limited and CVO^™ Street Glide^® models in the 2020 portfolio of limited-production, super-premium motorcycles from the Harley-Davidson® Custom Vehicle Operations™ program. Designed to be the ultimate touring trike, the 2020 CVO Tri-Glide model is the first three-wheel motorcycle to wear a ‘CVO’ badge.

Since its creation in 1999, the Harley-Davidson Custom Vehicle Operations™ program has created exclusive motorcycle models for the most-discerning customers, often using finishes, materials, technology and accessories that are only available on a CVO model. The Milwaukee-Eight® 117 powertrain – the most displacement and power offered from the H-D factory – is exclusive to CVO models.

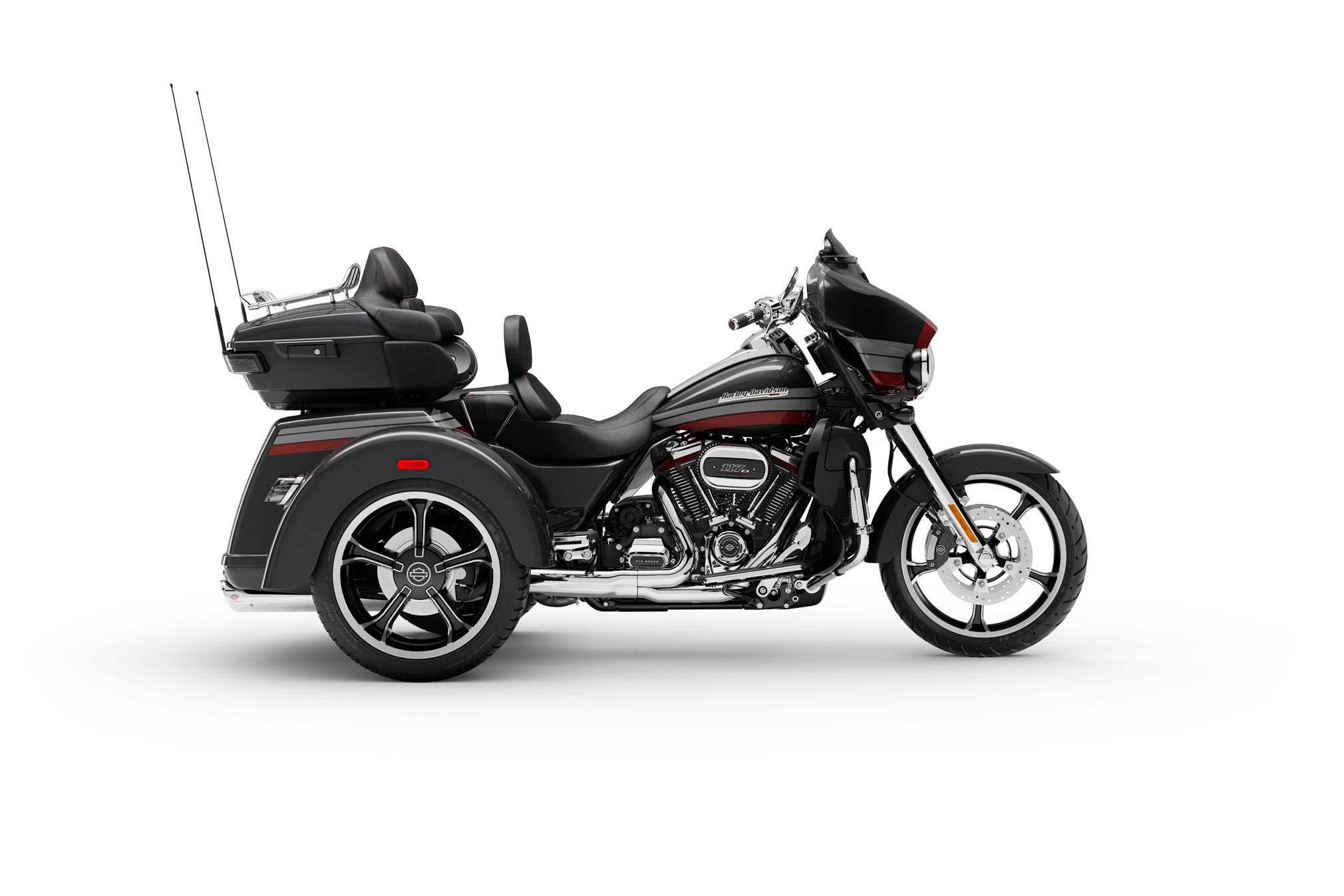

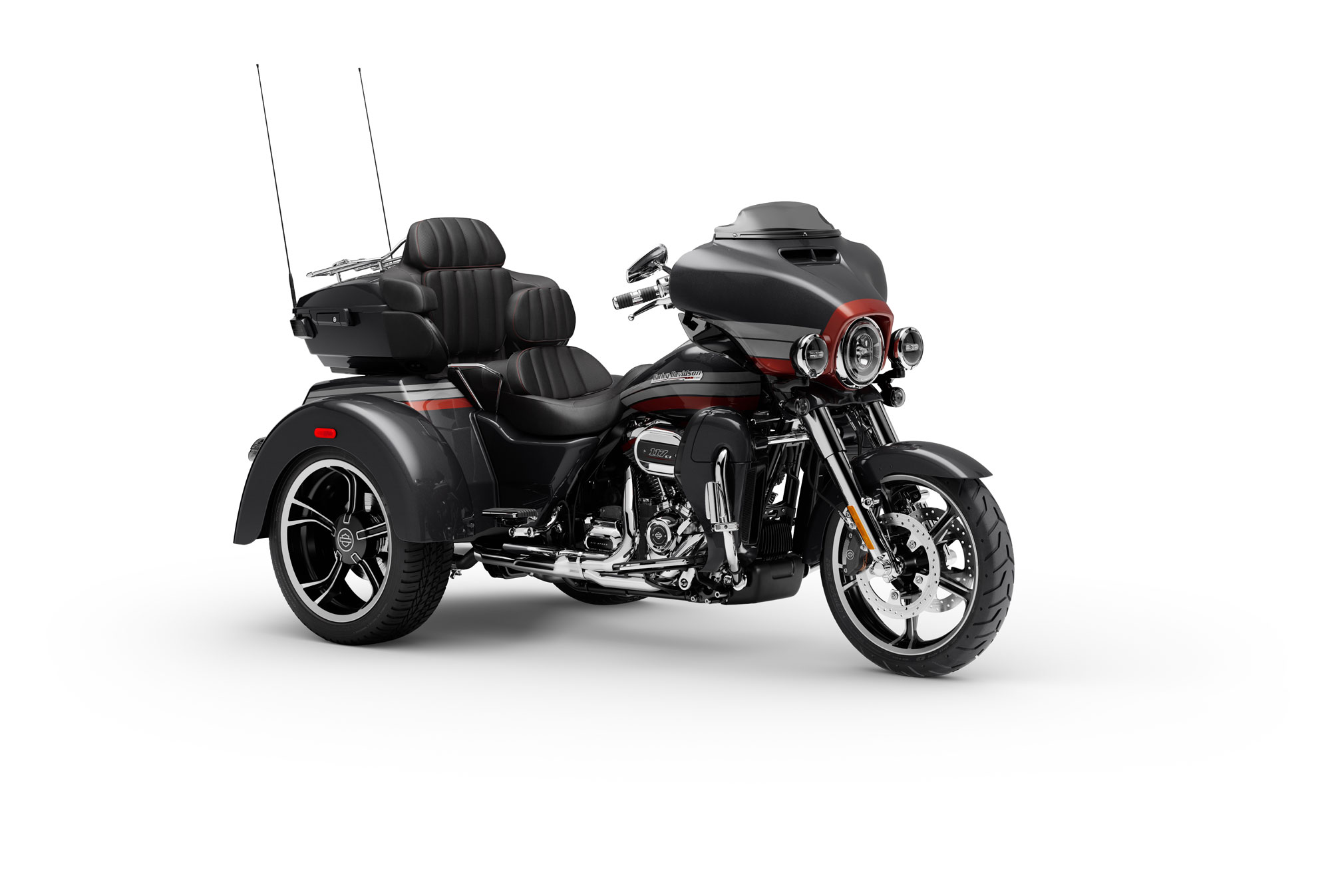

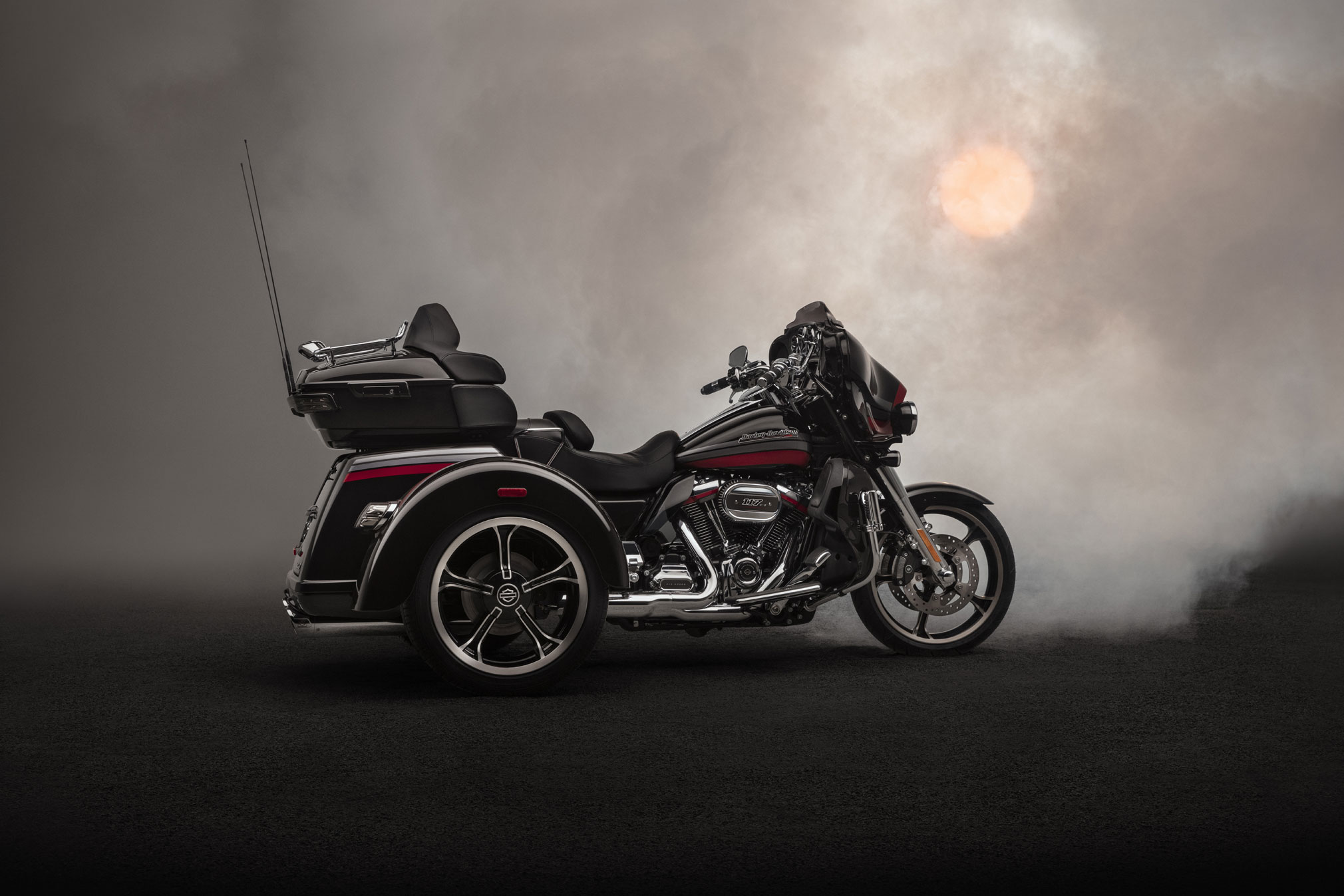

CVO TRI-GLIDE MODEL

The first CVO Tri-Glide model is a super-premium trike that screams “ultimate 3-wheeler” and offers distinctive style, powerful performance and long-haul touring capability. Designed from the wheels up for a three-wheeled motorcycle, the Tri-Glide chassis delivers confident stability, a comfortable ride and easy handling. The premium touring suspension features front forks with dual- bending valve internal technology and emulsion technology rear suspension with a single-knob pre-load adjustment to dial in the ride to match luggage and passenger load. An integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity and is topped by a Tour-Pak^® luggage carrier. The CVO Tri-Glide model is equipped with the Trike-specific Reflex^™ Defensive Rider Systems (RDRS).

Select custom features of the CVO Tri-Glide model include:

• Tomahawk® Contrast Cut cast aluminum wheels (front 19-inch and rear 18-inch diameter)
• Kahuna^™Collection accessories: heated rider grips, pegs, rider and passenger floorboards, and muffler tips
• All LED Lighting: Daymaker®headlamp, fog lamps, tail/brake lamps and signals
• Color-matched painted fairing duct
• Low-Profile windshield
• Clean front fender is trimmed to expose more of the custom front wheel
• Power locking trunk with interior light
• Heated rider and passenger seat covers
• Ventilator air cleaner and air cleaner insert
• Lighted hand controls
• Tour-Pak carrier dome light
• Tour-Pak carrier rack
• CVO^™motorcycle custom-fit luggage and a trunk organizer
• CB radio

The CVO Tri-Glide is offered in two paint options:

• Blizzard White with a three-stripe graphic pattern, Gray Contrast Cut wheels and Bright Chrome finishes.
• Black Stardust with a three-stripe graphic pattern, Gloss Black Contrast Cut wheels and Bright Chrome finishes.

Base price for the 2020 CVO Tri-Glide is $48,999*.

2020 Harley-Davidson CVO Tri Glide Totalmotorcycle.com Features

NEW CVO MOTORCYCLE TECHNOLOGY

H-D™ Connect Service**: Standard on all 2020 CVO models, the H-D Connect service introduces subscription-based cellular connectivity to equipped Harley-Davidson motorcycles to keep riders connected to their motorcycle through their smart phone using the latest version of the Harley-Davidson^® App.

Reflex™ Defensive Rider Systems (RDRS): Standard equipment on all 2020 CVO models, RDRS is a new collection of technology designed to match motorcycle performance to available traction during acceleration, deceleration and braking, utilizing the latest chassis control, electronic brake control and powertrain technology.

Daymaker Adaptive LED Headlamp: Standard on the CVO Limited and CVO Street Glide models, the Daymaker Adaptive headlamp features patented sensors and electronics integrated into the headlamp control 12 additional LED lights that activate based on the lean of the bike to project light into corners, illuminating areas of the road that are unlit by traditional LED headlamps. The adaptive light feature works in both the high- and low-beam functions. The projector-style LED beam pattern is focused on the road ahead and is engineered to reduce wasted light that can impact oncoming traffic. A signature LED light outer ring operates as a position lamp.

Wireless Headset: All 2020 CVO models are shipped a single Boom!^™ Audio 30K Bluetooth^® Helmet Headset designed for cordless interface with the Boom!™ Box GTS infotainment system. This new headset features Mesh Intercom^™ Network wireless communication technology –. The protocol automatically connects to a number of riders while in public mode.The headset can connect with up to 16 riders in private mode up to 5 miles (8.05 km), and enables the same functions as a wired headset (CB, phone, navigation prompts, radio and audio, with voice commands) and fulfills the Apple Car Play microphone requirement for the Boom! Box GTS. A Quick Charge feature can provide up to five hours of additional talk time with a 20-minute charge.

PREMIUM BOOM!™ AUDIO

CVO Street Glide model: Boom! Box GTS infotainment system with four Boom! Stage II bi-amplified three-way speakers, 150 watts RMS power handling per speaker; each pair of speakers is powered by its own 4-channel, 300-watt amplifier for 600 watts of total power – an outrageous Harley-Davidson^® audio system designed to surround the rider in rich, clear sound.

CVO Limited model: Boom! Box GTS infotainment system with four Boom! Stage I two-way speakers (located in fairing and Tour-Pak luggage carrier), powered by a single, 4-channel, 300-watt RMS amplifier.

CVO Tri Glide model: Boom! Box GTS infotainment system with four Boom! Stage I 2-way speakers (located in fairing and Tour-Pak luggage carrier), powered by a single, 4-channel, 300-watt RMS amplifier.

EXCLUSIVE MILWAUKEE-EIGHT 117 ENGINE POWER

The largest-displacement factory-installed engine available from Harley-Davidson, the Milwaukee-Eight 117 engine (117 CID; 1923cc) is rated at 125 ft. lbs. of torque.

• A high-performance camshaft is matched to displacement and air flow
• A high-performance intake flows more air into the engine

* Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.

** The H-D™ Connect service is not available in all markets. Market availability will vary.

2020 Harley-Davidson CVO Tri Glide – Totalmotorcycle.com  American Specifications/Technical Details
US MSRP Price from: $48999 USD
Canada MSRP Price from: $59999 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

Pricing

• Custom Color $48,999
• ABS Option Standard
• Reflex™ Defensive Rider System (RDRS) Standard
• Security System Option Standard
• Cruise Control Option Standard
• Premium Radio Option Standard
• California Emissions $200
• Freight $435

Engine

• Engine² Twin-Cooled™ Milwaukee-Eight™ 117
• Bore 4.075 in.
• Stroke 4.5 in.
• Displacement 117 cu in
• Compression Ratio 10.2:1
• Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with slash cut mufflers

Dimensions

• Length 105.1 in.
• Seat Height, Unladen 25.9 in.
• Ground Clearance 5.1 in.
• Rake (steering head) (deg) 26
• Trail 3.94 in.
• Wheelbase 65.7 in.
• Tires, Front Specification 130/60B19 M/C 61H
• Tires, Rear Specification P215/45R18 83T
• Fuel Capacity 6 gal.
• Oil Capacity (w/filter) 5 qt.
• Weight, As Shipped 1,239 lb.
• Weight, In Running Order 1,269 lb.
• Luggage Capacity -Volume 6.8 cu ft

Performance

• Engine Torque Testing Method J1349
• Engine Torque³ 125 ft-lb
• Engine Torque (rpm) 3,750
• Fuel Economy Testing Method Estimated City/Hwy
• Fuel Economy 40 mpg

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 10.534
• Gear Ratios (overall) 2nd 7.302
• Gear Ratios (overall) 3rd 5.423
• Gear Ratios (overall) 4th 4.392
• Gear Ratios (overall) 5th 3.741
• Gear Ratios (overall) 6th 3.157

Chassis

• Wheels, Optional Style Type Charcoal Grey with Contrast Satin Tomahawk
• Wheels, Front Type⁷ Gloss Black and Contrast Clear Tomahawk
• Wheels, Rear Type Gloss Black and Contrast Clear Tomahawk
• Brakes, Caliper Type Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake

Electric

• Lights (as per country regulation), Indicator Lamps⁶ High Beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, low fuel warning, reverse, park brake, fog/aux lamp indicator, traction control, security/fault indication, coolant temp, turn signal, ABS, TPMS
• Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure

Infotainment

• Infotainment system Boom!™ Box GTS
• Type Full Color TFT
• Watts Per Channel 75
• Speakers 4
• Speaker Size Stage I
• Headset Specifications (if equipped) Boom Audio Wireless Headset
• AM Standard
• FM Standard
• Weather Band (WB) Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• SiriusXM Presets 20 – P&A Upgrade (USA & Canada only)
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

2020 Harley-Davidson CVO Tri Glide – Totalmotorcycle.com  Canadian Specifications/Technical Details

Pricing

• Custom Color $ 59,999
• ABS Option Standard
• Reflex™ Defensive Rider System (RDRS) Standard
• Security System Option Standard
• Cruise Control Option Standard
• Premium Radio Option Standard

Engine

• Engine¹ Twin-Cooled™ Milwaukee-Eight™ 117
• Bore 104 mm
• Stroke 114 mm
• Displacement 1,923 cc
• Compression Ratio 10.2:1
• Fuel System³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with slash cut mufflers

Dimensions

• Length 2,670 mm
• Seat Height, Unladen 715 mm
• Ground Clearance 130 mm
• Rake (steering head) (deg) 26
• Trail 100 mm
• Wheelbase 1,670 mm
• Tires, Front Specification 130/60B19 M/C 61H
• Tires, Rear Specification P215/45R18 83T
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.7 l
• Weight, As Shipped 563 kg
• Weight, In Running Order 577 kg
• Luggage Capacity -Volume 0.19 m3

Performance

• Engine Torque Testing Method J1349
• Engine Torque² 170 nm
• Engine Torque (rpm) 3,750
• Horsepower N/A
• Lean Angle, Right (deg.) N/A
• Lean Angle, Left (deg.) N/A
• Fuel Economy Testing Method Estimated City/Hwy
• Fuel Economy⁵ 5.9 l/100 km (40 mpg)

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 10.534
• Gear Ratios (overall) 2nd 7.302
• Gear Ratios (overall) 3rd 5.423
• Gear Ratios (overall) 4th 4.392
• Gear Ratios (overall) 5th 3.741
• Gear Ratios (overall) 6th 3.157

Chassis

• Wheels, Optional Style Type Charcoal Grey with Contrast Satin Tomahawk
• Wheels, Front Type⁹ Gloss Black and Contrast Clear Tomahawk
• Wheels, Rear Type Gloss Black and Contrast Clear Tomahawk
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps⁸ High Beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, low fuel warning, reverse, park brake, fog/aux lamp indicator, traction control, security/fault indication, coolant temp, turn signal, ABS, TPMS
• Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure

Infotainment

• Infotainment system Boom!™ Box GTS
• Type Full Color TFT
• H-D™ Connect Service Supported
• Watts Per Channel 75
• Speakers 4
• Speaker Size Stage I
• Headset Specifications (if equipped) Boom Audio Wireless Headset
• FM Standard
• MW Standard
• LW Standard
• SD Card, Flash Drive and MP3 – via USB Connection Standard
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
