2020 Harley-Davidson Road Glide Limited Guide

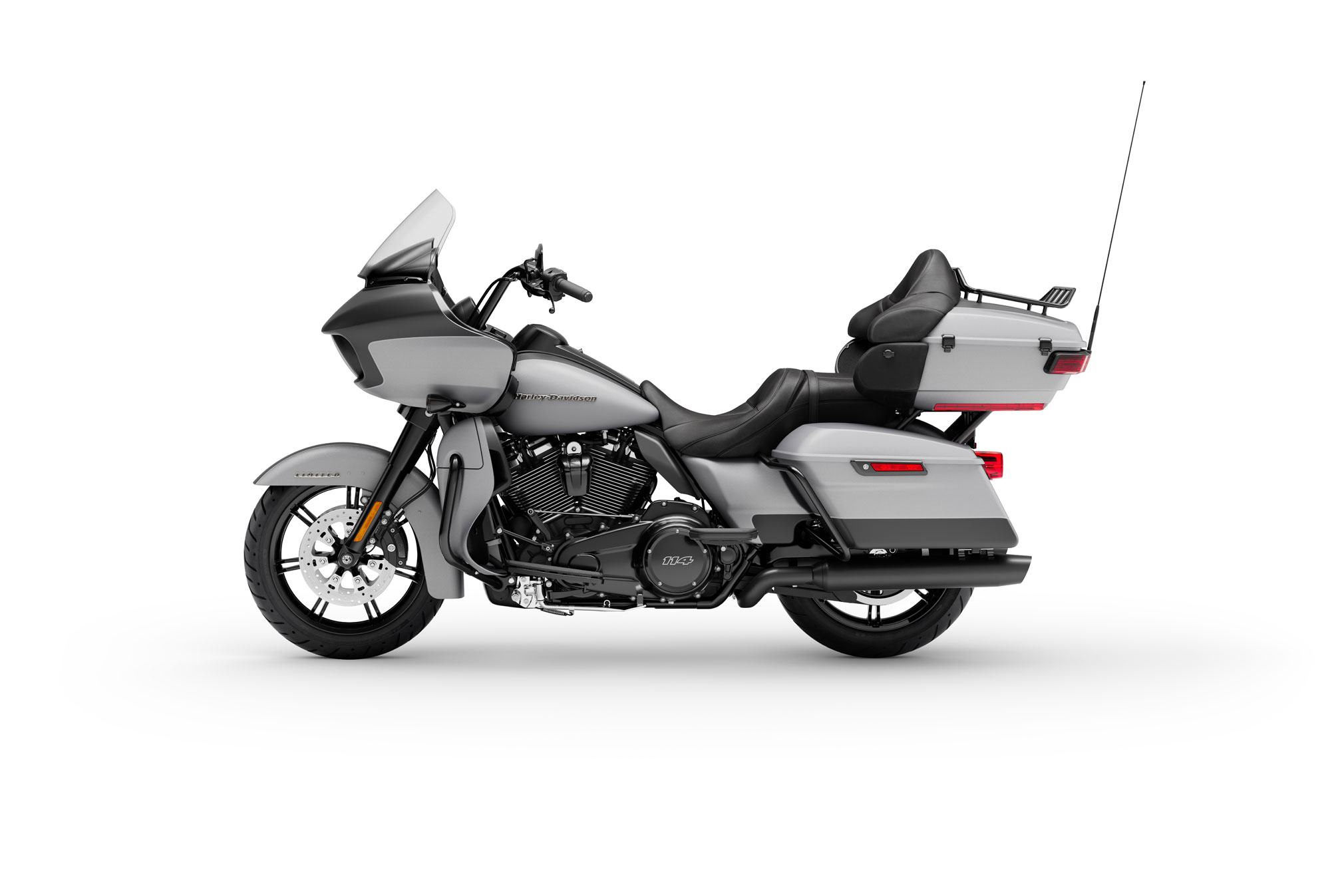

2020 Harley-Davidson Road Glide Limited

2020 Harley-Davidson Road Glide Limited 2020 Harley-Davidson Road Glide Limited 2020 Harley-Davidson Road Glide Limited 2020 Harley-Davidson Road Glide Limited 2020 Harley-Davidson Road Glide Limited

GOES ALL THE WAY.

2020 Harley-Davidson Road Glide Limited:

A fully loaded Grand Touring machine with 114 cubic inches of power and new premium finishes. Enjoy the ride to the fullest. You get a frame-mounted shark-nose fairing, a 13.5-inch windscreen and dual Daymaker® Reflector LED headlamps. There’s all-new painted pinstriping, a gloss-finish inner fairing, heated hand grips and Slicer II Contrast Bright wheels. Decide between a cool Chrome finish or a bold blacked-out finish straight from the factory. And to top off all that styling, help yourself to a new tank and front-fender medallions. The Twin-Cooled™ Milwaukee-Eight® 114 V-Twin engine puts loads of power at your command. The H-D Connect Service will give you peace of mind no matter how far you are from it. The responsive frame and suspension, the electronic Reflex™ Linked Brembo® brakes with ABS, the roomy Tour-Pak® carrier, the BOOM!™ Box GTS infotainment and all the rest let you enjoy the ride to the fullest.

A fully loaded Grand Touring machine with 114 cubic inches of power and new premium finishes. Enjoy the ride to the fullest.

New Road Glide® Limited and Touring Model Options

The new Road Glide Limited model replaces the Road Glide Ultra model for 2020 and offers new premium luxury-touring features, including painted pin striping, a gloss-finish inner fairing, heated rider hand grips, Slicer II Contrast Bright wheels and new tank, front and rear fender medallions. The Road Glide Limited model is a long-haul, two-up touring specialist featuring the distinctive aerodynamic Road Glide shark-nose fairing with triple split stream vents that limit rider head buffeting. The standard Milwaukee-Eight 114 engine delivers smooth, powerful touring performance while dual Daymaker® LED headlamps offer outstanding night visibility.

Premium Touring suspension includes an easy-adjust rear shock pre-load for a smooth, confident ride. Reflex Electronic Linked Brakes with ABS deliver confident braking performance. The Boom! Box GTS infotainment system with color touch screen offers navigation, communication and entertainment options.

The new Black Finish Option for the 2020 Ultra Limited and Road Glide Limited models gives these models a sinister blacked-out look direct from the factory. The Black Finish package includes: Slicer II cast aluminum wheels finished in Gloss Black, fuel tank, front and rear fender medallions with a Gloss Black fill surrounded by a Charcoal border, Gloss Black powdercoat powertrain, covers and exhaust plus black Tour-Pak® luggage carrier hinges, latches and rack, a black console, footboards, handlebar, gauge trim rings, hand control levers, mirrors, and foot controls, black LED Daymaker headlamp, trim ring and LED fog lamps (Ultra Limited only), and black fork lowers, fork covers, engine guard and saddlebag guards.

New standard Antilock Braking System (ABS): The Reflex™ Brembo® electronic linked Antilock Braking System (ABS) that was previously optional on some Touring models is now standard on all 2020 Touring motorcycles. ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight line.



2020 Harley-Davidson Road Glide Limited Totalmotorcycle.com Key Features

There’s a wide-open world to experience out there. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson® Touring machine. no one builds them better.

Engine

Twin-Cooled™ Milwaukee-Eight® 114

Engine Torque

164 Nm

Weight, As Shipped

407 kg

Seat Height, Unladen

735 mm







2020 Harley-Davidson Road Glide Limited Totalmotorcycle.com Features

Milwaukee-Eight® 114 Engine

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

H-D™ Connect Service

H-D™ Connect service enables you to remotely connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. You can see your bike’s vitals, track its location, get security alerts, and more.



Reflex™ Linked Brembo® Brakes With Standard ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

Reflex™ Defensive Rider Systems (Optional)

A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.



BOOM!™ Box GTS Infotainment System

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.







2020 Harley-Davidson Road Glide Limited – Totalmotorcycle.com  American Specifications/Technical Details
US MSRP Price from: $28299
USD
Canada MSRP Price from: $32599 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

PRICING

  • Vivid Black $28,299
  • Color $28,899
  • Two-Tone $29,349
  • Custom Color $29,599
  • Two-Tone Custom Color $30,499
  • Black Finish Option $1,900
  • ABS Option Standard
  • Reflex™ Defensive Rider System (RDRS) $995
  • Security System Option Standard
  • Cruise Control Option Standard
  • Premium Radio Option Standard
  • California Emissions $200
  • Freight $435

Engine

  • Engine2 Twin-Cooled™ Milwaukee-Eight® 114
  • Bore 102 mm
  • Stroke 114 mm
  • Displacement 1,868 cc
  • Compression Ratio 10.5:1
  • Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Dimensions

  • Length 2,595 mm
  • Seat Height, Unladen 735 mm
  • Ground Clearance 130 mm
  • Rake (steering head) (deg) 26
  • Trail 170 mm
  • Wheelbase 1,625 mm
  • Tires, Front Specification BW 130/70B18 63H
  • Tires, Rear Specification BW 180/55B18 80H
  • Fuel Capacity 22.7 l
  • Oil Capacity (w/filter) 4.7 l
  • Weight, As Shipped 407 kg
  • Weight, In Running Order 423 kg
  • Luggage Capacity -Volume 0.132 m3

Performance

  • Engine Torque Testing Method EC 134/2014
  • Engine Torque3 164 Nm
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 31.9
  • Lean Angle, Left (deg.) 31.8
  • Fuel Economy Testing Method EU 134/2014
  • Fuel Economy 6.3 l/100 km
  • CO2 Emissions Testing Method EU 134/2014
  • CO2 Emissions 146 g/km CO2

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.593
  • Gear Ratios (overall) 2nd 6.65
  • Gear Ratios (overall) 3rd 4.938
  • Gear Ratios (overall) 4th 4
  • Gear Ratios (overall) 5th 3.407
  • Gear Ratios (overall) 6th 2.875

Chassis

  • Wheels, Optional Style Type Gloss Black Slicer II
  • Wheels, Front Type7 Slicer II cast aluminum with clear coat
  • Wheels, Rear Type Slicer II cast aluminum with clear coat
  • Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

  • Lights (as per country regulation), Indicator Lamps6 High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS.
  • Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

  • Infotainment system Boom!™ Box GTS
  • Type Full Color TFT
  • Watts Per Channel 25
  • Speakers 4
  • Speaker Size 5.25 inch standard
  • Headset Specifications (if equipped) 16-64 ohms
  • FM Standard
  • SD Card, Flash Drive and MP3 – via USB Connection Supported
  • Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Hands-free Mobile Phone – via Bluetooth Standard
  • Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
  • Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • USB Phone/Media Supported
  • Bluetooth Phone/Media Supported







2020 Harley-Davidson Road Glide Limited – Totalmotorcycle.com  Canadian Specifications/Technical Details

PRICING

  • Vivid Black $ 32,599
  • Color $ 33,199
  • Two-Tone $ 33,799
  • Custom Color $ 34,099
  • Two-Tone Custom Colour $ 35,099
  • Black Pearl Trim Option $ 1,230
  • ABS Option Standard
  • Reflex™ Defensive Rider System (RDRS) Standard
  • Security System Option Standard
  • Cruise Control Option Standard
  • Premium Radio Option Standard

Engine

  • Engine1 Milwaukee-Eight® 114
  • Bore 102 mm
  • Stroke 114 mm
  • Displacement 1,868 cc
  • Compression Ratio 10.5:1
  • Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

  • Length 2,595 mm
  • Seat Height, Unladen 735 mm
  • Ground Clearance 130 mm
  • Rake (steering head) (deg) 26
  • Trail 170 mm
  • Wheelbase 1,625 mm
  • Tires, Front Specification 130/60B19 61H
  • Tires, Rear Specification BW 180/55B18 80H
  • Fuel Capacity 22.7 l
  • Oil Capacity (w/filter) 4.7 l
  • Weight, As Shipped 407 kg
  • Weight, In Running Order 423 kg
  • Luggage Capacity -Volume 0.132 m3

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque2 166 Nm
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 31.9
  • Lean Angle, Left (deg.) 31.8
  • Fuel Economy Testing Method 5.5 l/100 km

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.593
  • Gear Ratios (overall) 2nd 6.65
  • Gear Ratios (overall) 3rd 4.938
  • Gear Ratios (overall) 4th 4
  • Gear Ratios (overall) 5th 3.407
  • Gear Ratios (overall) 6th 2.875

Chassis

  • Wheels, Front Type9 Enforcer II Cast Aluminum
  • Wheels, Rear Type Enforcer II Cast Aluminum
  • Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

  • Lights (as per country regulation), Indicator Lamps8 High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, speakers, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
  • Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

  • Infotainment system Boom!™ Box GTS
  • Type Full Color TFT
  • Watts Per Channel 25
  • Speakers 4
  • Speaker Size 5.25 inch standard
  • Headset Specifications (if equipped) 16-64 ohms
  • FM Standard
  • MW Standard
  • LW Standard
  • SD Card, Flash Drive and MP3 – via USB Connection Supported
  • Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Hands-free Mobile Phone – via Bluetooth Standard
  • Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
  • Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • USB USB/MTP/iPod/iPhone
  • Bluetooth Phone/Media Supported











Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
