2020 Harley-Davidson Road King Guide

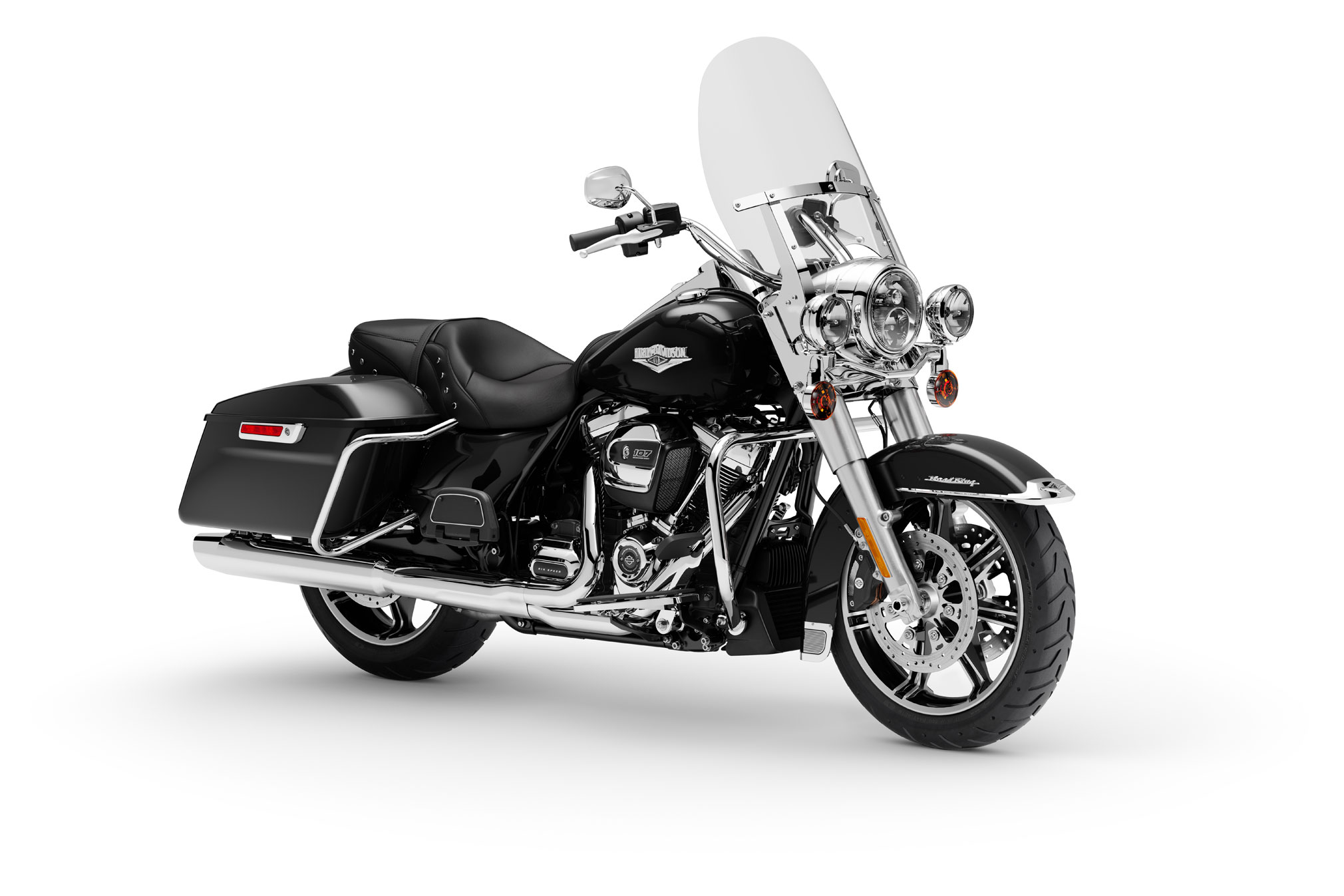

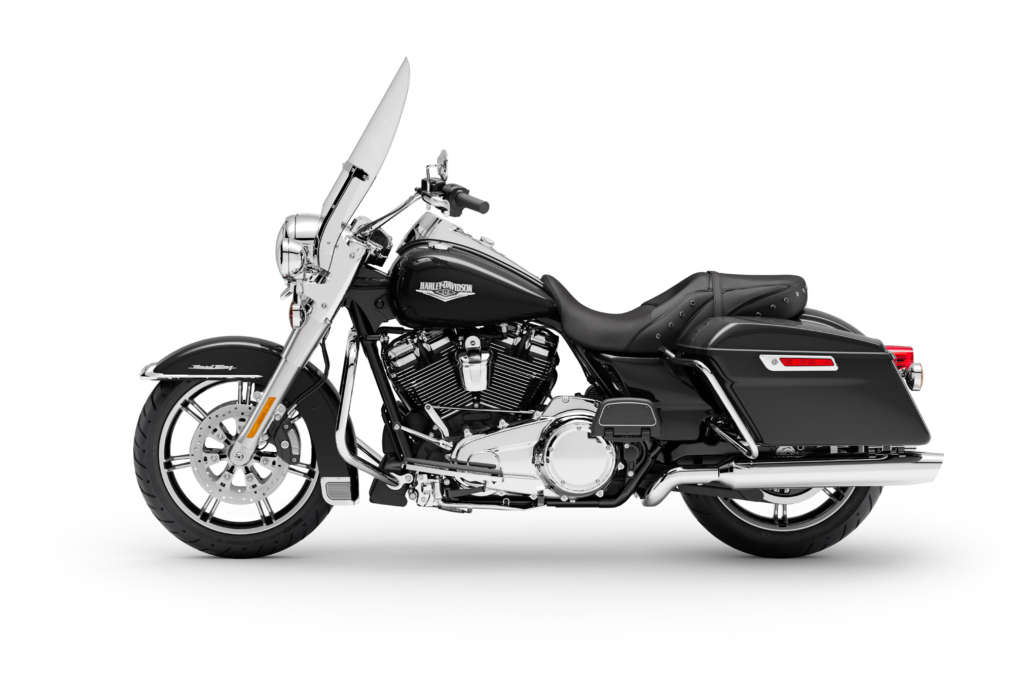

2020 Harley-Davidson Road King

2020 Harley-Davidson Road King 2020 Harley-Davidson Road King 2020 Harley-Davidson Road King 2020 Harley-Davidson Road King 2020 Harley-Davidson Road King

STYLE THAT SPEAKS OF DECADES OF LOVE FOR THE OPEN ROAD.

2020 Harley-Davidson Road King:

The Hiawatha headlamp and nacelle were born in the ‘60s, but the power of the Milwaukee-Eight® 107 engine on the Road King® brings it all into right now, fast. The Showa® dual-bending valve front suspension and rear emulsion shocks put riders in control for a plush ride. And riders get cast Impeller wheels and one-touch bags. It’s a modern classic.

The stripped-down nostalgic style was born in the ‘60s, but the power of the Milwaukee-Eight® 107 engine brings it all into the right now, fast.





2020 Harley-Davidson Road King Totalmotorcycle.com Key Features

There’s a wide-open world to experience out there. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson® Touring machine. no one builds them better.

Engine

Milwaukee-Eight® 107

Engine Torque

111 ft-lb

Weight, As Shipped

794 lb.

Seat Height, Laden

26.3 in.







2020 Harley-Davidson Road King Totalmotorcycle.com Features

Milwaukee-Eight® 107 Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.



Reflex™ Linked Brembo® Brakes with Standard ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

Reflex™ Defensive Rider Systems (Optional)

A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.



Hiawatha Headlamp and Nacelle

Born in the ’60s, when chrome ruled the streets. Big and commanding, it’s built with the latest in materials and technology for a long distance high beam and wide low beam.



Responsive Suspension

High-performing front and rear suspension, with easily hand-adjustable rear shocks put you in control of a plush ride.



Slicer II Cast Aluminum

A 18-inch front and 18-inch rear Slicer II wheel to match in the back are stunning and lightweight.



One-Touch Opening Saddlebags

Tight on the outside, roomy on the inside. The hinges are simple and clean and the lids open with one touch of one hand.







2020 Harley-Davidson Road King – Totalmotorcycle.com  American Specifications/Technical Details
US MSRP Price from: $19499
USD
Canada MSRP Price from: $23699 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

PRICING

  • MSRP Vivid Black $19,499
  • Color $19,949
  • Two-Tone $20,299
  • Custom Color $20,499
  • ABS Option Standard
  • Reflex™ Defensive Rider System (RDRS) $995
  • Security System Option Standard
  • Cruise Control Option Standard
  • California Emissions $200
  • Freight $435

Engine

  • Engine1 Milwaukee-Eight® 107
  • Bore 3.937 in.
  • Stroke 4.374 in.
  • Displacement 1,746 cc (107 cu in)
  • Compression Ratio 10.0:1
  • Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

  • Length 96.5 in
  • Seat Height, Laden7 26.3 in.
  • Ground Clearance 5.3 in.
  • Rake (steering head) (deg) 26
  • Trail 6.7 in.
  • Wheelbase 64 in.
  • Tires, Front Specification BW 130/70B18 63H
  • Tires, Rear Specification BW 180/55B18 80H
  • Fuel Capacity 6 gal.
  • Oil Capacity (w/filter) 5.2 qt.
  • Weight, As Shipped 794 lb.
  • Weight, In Running Order 828 lb.
  • Luggage Capacity -Volume 2.3 cu ft

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque2 111 ft-lb
  • Engine Torque (rpm) 3,250
  • Lean Angle, Right (deg.) 32
  • Lean Angle, Left (deg.) 32
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy5 45 mpg

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.593
  • Gear Ratios (overall) 2nd 6.65
  • Gear Ratios (overall) 3rd 4.938
  • Gear Ratios (overall) 4th 4
  • Gear Ratios (overall) 5th 3.407
  • Gear Ratios (overall) 6th 2.875

Chassis

  • Wheels, Front Type9 Slicer II Cast Aluminum
  • Wheels, Rear Type Slicer II Cast Aluminum
  • Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

  • Lights (as per country regulation), Indicator Lamps8 High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, battery, security system, low fuel warning, cruise control, ABS, Gear/RPM display, miles to empty display
  • Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.







2020 Harley-Davidson Road King – Totalmotorcycle.com  Canadian Specifications/Technical Details

PRICING

  • Vivid Black $ 23,699
  • Colour $ 24,299
  • Two-Tone $ 24,899
  • Custom Colour $ 25,199
  • ABS Option Standard
  • Reflex™ Defensive Rider System (RDRS) $ 600
  • Security Option Standard
  • Cruise Control Option Standard

Engine

  • Engine1 Milwaukee-Eight® 107
  • Bore 100 mm
  • Stroke 111 mm
  • Displacement 1,746 cc
  • Compression Ratio 10.0:1
  • Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

  • Length 96.5 mm
  • Seat Height, Unladen 705 mm
  • Ground Clearance 135 mm
  • Rake 26
  • Trail 170 mm
  • Wheelbase 1,625 mm
  • Tires, Front Specification BW 130/70B18 63H
  • Tires, Rear Specification BW 180/55B18 80H
  • Fuel Capacity 22.7 l
  • Oil 4.9 l
  • Weight, As Shipped 360 kg
  • Weight, In Running Order 375 kg
  • Luggage Capacity -Volume 0.064 m3

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque2 151 Nm
  • Engine Torque (rpm) 3,250
  • Lean Angle, Right (deg.) 32
  • Lean Angle, Left (deg.) 32
  • Fuel Economy: Estimated City/Hwy5 5.2 l/100 km

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.593
  • Gear Ratios (overall) 2nd 6.65
  • Gear Ratios (overall) 3rd 4.938
  • Gear Ratios (overall) 4th 4
  • Gear Ratios (overall) 5th 3.407
  • Gear Ratios (overall) 6th 2.875

Chassis

  • Wheels, Front Type9 Slicer II Cast Aluminum
  • Wheels, Rear Type Slicer II Cast Aluminum
  • Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

  • Lights (as per country regulation), Indicator Lamps8 High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, battery, security system, low fuel warning, cruise control, ABS, Gear/RPM display, miles to empty display
  • Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.











Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
