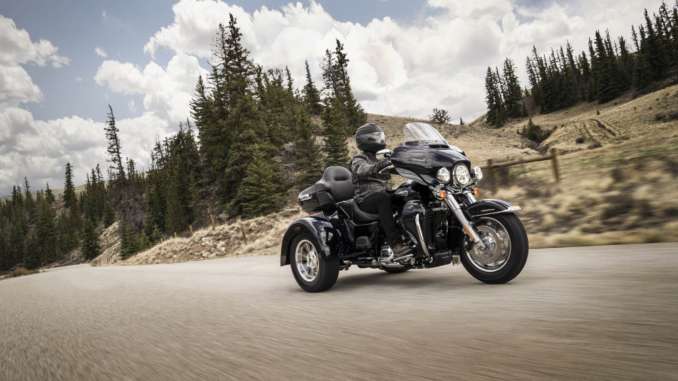

2020 Harley-Davidson Tri Glide Guide

2020 Harley-Davidson Tri Glide

2020 Harley-Davidson Tri Glide 2020 Harley-Davidson Tri Glide 2020 Harley-Davidson Tri Glide 2020 Harley-Davidson Tri Glide 2020 Harley-Davidson Tri Glide

PREMIUM H-D® TOURING ON THREE WHEELS.

2020 Harley-Davidson Tri Glide:

Now riders have the confidence that comes from all-new traction control on the Tri Glide® Ultra. It sends power where riders need it to help maintain control. It also has Milwaukee-Eight® 114 power, Reflex™ linked brakes with ABS, an all-new 4-speaker BOOM!™ GTS infotainment system, electronic cruise control and 6.8 cubic feet of storage space.

Get all the premium features, starting with a Twin-Cooled™ Milwaukee-Eight® 114 engine, the BOOM!™ Box GTS infotainment system and enough storage space so you can pack enough to go for a good, long time.





2020 Harley-Davidson Tri Glide Totalmotorcycle.com Key Features

Custom touring style and easy handling features that lets you roll with confidence for longer. It’s everything you love about H-D Touring, just on three wheels. The new premium touring front and rear suspension is calibrated specifically for trike models. Easy tool-free preload adjusting, new cornering enhanced linked brake system with ABS and Traction Control, and luxurious seating put you in control of an unmatched ride. Incorporates an Antilock Braking System (ABS) and Traction Control System (TCS) that work together to provide enhanced cornering capability. In addition, the Milwaukee-Eight® 114 engine gives you passing and horizon-chasing power.

Engine

Twin-Cooled™ Milwaukee-Eight® 114

Engine Torque

164 Nm

Weight, As Shipped

1,204 lb.

Seat Height, Laden

27.1 in.







2020 Harley-Davidson Tri Glide Totalmotorcycle.com Features

Twin-Cooled™ Milwaukee-Eight® 114 Engine

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

H-D™ Connect Service

With subscription-based cellular connectivity, you can connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. Check your bike’s vitals including fuel level, get tamper alerts and stolen-vehicle tracking, and more.



Reflex™ Defensive Rider Systems (RDRS)

A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.



Reflex™ Linked Brembo® Brakes with Standard ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.



BOOM!™ Box GTS Infotainment System

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.



High Performance Suspension

Premium Harley-Davidson® touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.



6-Speed Cruise Drive® Transmission

Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.



Trunk and King Tour-Pak® Storage

The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak® luggage carrier keeps things classy and neat with soft woven-nylon luggage liner and plenty of storage pockets.



Daymaker® LED Headlamp and LED Foglamps

Darkness–defying headlight so you can see and be seen.



Batwing Fairing & Splitsteam Air Vent

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.







2020 Harley-Davidson Tri Glide – Totalmotorcycle.com  American Specifications/Technical Details
US MSRP Price from: $34999
USD
Canada MSRP Price from: $42999 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

Pricing

  • Vivid Black $34,999
  • Color $35,849
  • Two-Tone $36,349
  • Custom Color $36,749
  • ABS Option Standard
  • Security System Option Standard
  • Cruise Control Option Standard
  • Premium Radio Option Standard
  • California Emissions $200
  • Freight $856

Engine

  • Engine1 Twin-Cooled™ Milwaukee-Eight® 114
  • Bore 4.016 in.
  • Stroke 4.5 in.
  • Displacement 1,868 cc (114 cu in)
  • Compression Ratio 10.5:1
  • Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

  • Length 105.1 in.
  • Seat Height, Laden7 27.1 in.
  • Seat Height, Unladen 28.9 in.
  • Ground Clearance 4.9 in.
  • Rake (steering head) (deg) 26
  • Trail 3.94 in.
  • Wheelbase 65.7 in.
  • Tires, Front Specification MT90B16 72H
  • Tires, Rear Specification P205/65R15 92T
  • Fuel Capacity 6 gal.
  • Oil Capacity (w/filter) 5 qt.
  • Weight, As Shipped 1,204 lb.
  • Weight, In Running Order 1,243.41 lb.
  • Luggage Capacity -Volume 6.8 cu ft

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque2 164 Nm
  • Engine Torque (rpm) 3,250
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy5 42 mpg

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 10.534
  • Gear Ratios (overall) 2nd 7.302
  • Gear Ratios (overall) 3rd 5.423
  • Gear Ratios (overall) 4th 4.392
  • Gear Ratios (overall) 5th 3.741
  • Gear Ratios (overall) 6th 3.157

Chassis

  • Wheels, Front Type9 Black, 7-spoke Cast Aluminum
  • Wheels, Rear Type Black, 7-spoke Cast Aluminum
  • Brakes, Caliper Type Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake

Electric

  • Lights (as per country regulation), Indicator Lamps8 High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
  • Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

Infotainment

  • Infotainment system Boom!™ Box GTS
  • Type Full Color TFT
  • Watts Per Channel 25
  • Speakers 4
  • Speaker Size 5.25 inch/6.5 inch P&A Upgrade
  • Headset Specifications (if equipped) 16-64 ohms
  • AM Standard
  • FM Standard
  • Weather Band (WB) Standard
  • SD Card, Flash Drive and MP3 – via USB Connection Supported
  • SiriusXM Presets 20 – P&A Upgrade (USA & Canada only)
  • Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Hands-free Mobile Phone – via Bluetooth Standard
  • Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • Rider/Passenger Intercom Standard
  • Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
  • Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
  • USB USB/MTP/iPod/iPhone
  • Bluetooth Phone/Media Supported







2020 Harley-Davidson Tri Glide – Totalmotorcycle.com  Canadian Specifications/Technical Details

Pricing

  • Vivid Black $ 42,999
  • Colour $ 43,999
  • Two-Tone $ 44,549
  • Custom Colour $ 45,099
  • ABS Option Standard
  • Security System Option Standard
  • Cruise Control Option Standard
  • Premium Radio Option Standard

Engine

  • Engine1 Twin-Cooled™ Milwaukee-Eight® 114
  • Bore 102 mm
  • Stroke 114 mm
  • Displacement 1,868 cc
  • Compression Ratio 10.5:1
  • Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

  • Length 2,670 mm
  • Seat Height, Unladen 735 mm
  • Ground Clearance 125 mm
  • Rake (steering head) (deg) 26
  • Trail 100 mm
  • Wheelbase 1,670 mm
  • Tires, Front Specification MT90B16 72H
  • Tires, Rear Specification P205/65R15 92T
  • Fuel Capacity 22.7 l
  • Oil Capacity (w/filter) 4.7 l
  • Weight, As Shipped 546 kg
  • Weight, In Running Order 564 kg
  • Luggage Capacity -Volume 0.19m3

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque2 164 Nm
  • Engine Torque (rpm) 3,250
  • Fuel Economy: Estimated City/Hwy5 5.6 l/100 km

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 10.534
  • Gear Ratios (overall) 2nd 7.302
  • Gear Ratios (overall) 3rd 5.423
  • Gear Ratios (overall) 4th 4.392
  • Gear Ratios (overall) 5th 3.741
  • Gear Ratios (overall) 6th 3.157

Chassis

  • Wheels, Front Type9 Black, 7-spoke Cast Aluminum
  • Wheels, Rear Type Black, 7-spoke Cast Aluminum
  • Brakes, Caliper Type Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake

Electric

  • Lights (as per country regulation), Indicator Lamps8 High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
  • Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator

Infotainment

  • Infotainment system Boom!™ Box GTS
  • Type Full Color TFT
  • H-D™ Connect Service Supported
  • Watts Per Channel 25
  • Speakers 4
  • Speaker Size 5.25 inch/6.5 inch P&A Upgrade
  • Headset Specifications (if equipped) 16-64 ohms
  • AM Standard
  • FM Standard
  • SD Card, Flash Drive and MP3 – via USB Connection Supported
  • SiriusXM Presets 20 – P&A Upgrade (USA & Canada only)
  • Languages English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese
  • Hands-free Mobile Phone – via Bluetooth Standard
  • Voice Recognition Languages: Phone functions only English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese
  • Voice Recognition Languages: Tuner/Media/Navigation English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese
  • Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
  • Text-to-Speech (TTS) Languages English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese
  • USB USB/MTP/iPod/iPhone
  • Bluetooth Phone/Media Supported
  • H-D™ Connect Service Supported











Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
