2020 Indian Roadmaster: MADE FOR THE SELF-MADE.

Introducing the 2020 Indian Roadmaster.

The Indian Motorcycle Roadmaster® is an expertly crafted, powerful and well-balanced touring bike, fully loaded with the most extensive package of touring amenities that Indian Motorcycle offers.





2020 Indian Roadmaster Totalmotorcycle.com Key Features





2020 Indian Roadmaster Totalmotorcycle.com Features and Benefits

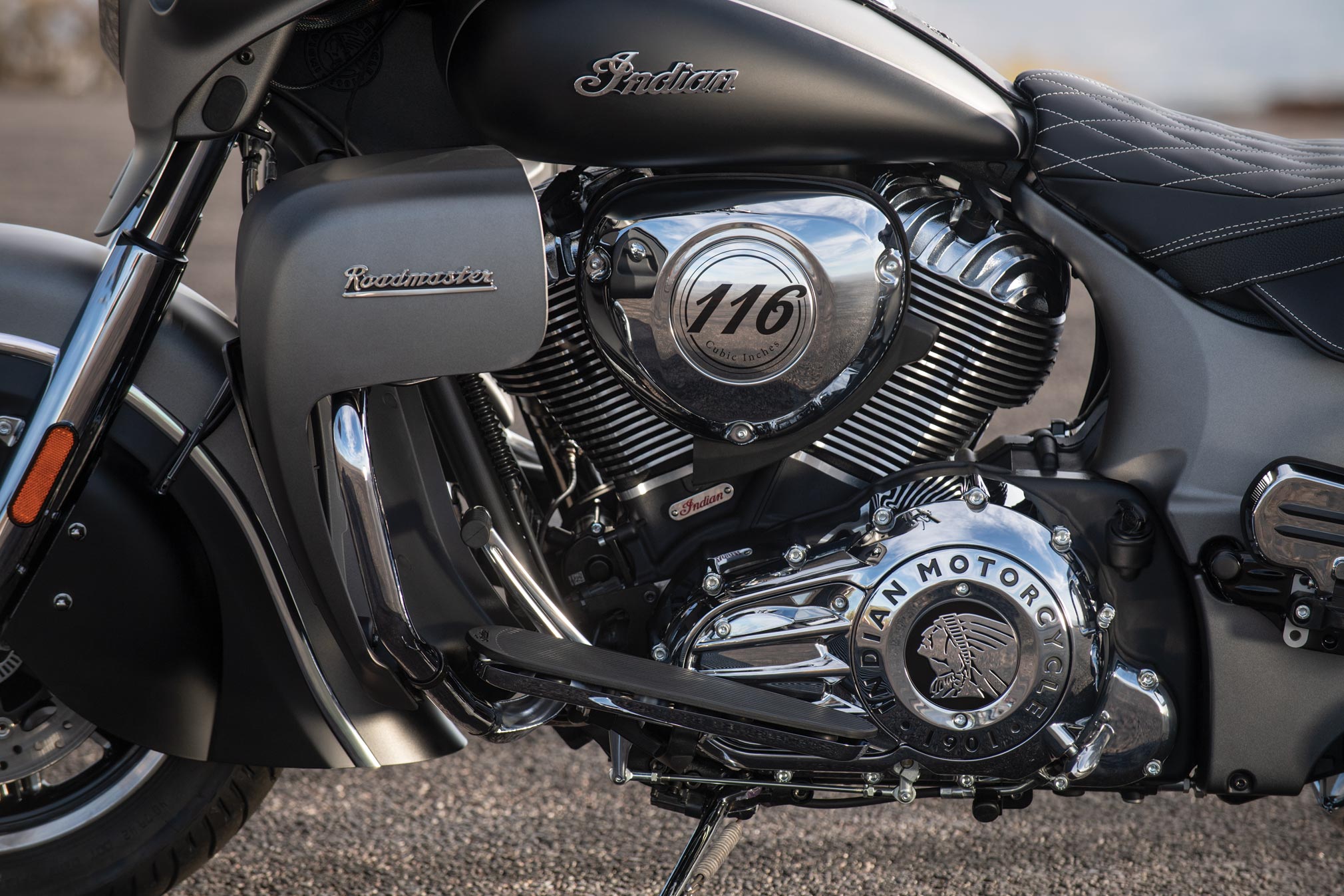

THUNDER STROKE 116 V-TWIN ENGINE
The Thunder Stroke 116 engine produces 126 ft-lb of torque for exceptional power at low RPM and a smooth ride at any speed.

RIDE WITH CONFIDENCE
Outstanding steering geometry and a lightweight cast aluminum frame come together to provide responsive handling and agile cornering.

INDIAN MOTORCYCLE RIDE COMMAND
The largest, fastest, most customizable system on two wheels, it features turn-by-turn navigation with intuitive destination search capabilities, Bluetooth connectivity, vehicle information, plus connected traffic and weather overlays to keep you on the road longer.

RIDE IN COMFORT
The road may be long, but it doesn’t have to feel like it. No matter how far you ride, the Roadmaster is equipped to get you there in style and comfort.

37+ GALLONS OF CARGO SPACE
Protect your cargo from the elements in weatherproof storage with remote-locking saddlebags, trunk, and easy access storage in the lowers.

OPTIMIZED AIRFLOW VENTS
New redesigned lowers gives the rider significantly more cooling airflow for superior riding comfort.

PREMIUM TOURING SEAT
A plush 2-up seat with independent heat controls for both the passenger and driver guarantee you’ll go further in comfort.

IN IT FOR THE LONG HAUL
The Roadmaster comes with an array of modern touring amenities that enhance every ride.

PREMIUM AUDIO
High-output speakers in the fairing and trunk deliver 200-watts of crystal-clear audio. It also sports a dynamic equalizer that automatically adjusts for road, wind and engine noise.

A HIGHER STANDARD
Top-of-the-line riding amenities include LED lighting, keyless ignition, cruise-control, tire pressure monitoring, and heated grips.

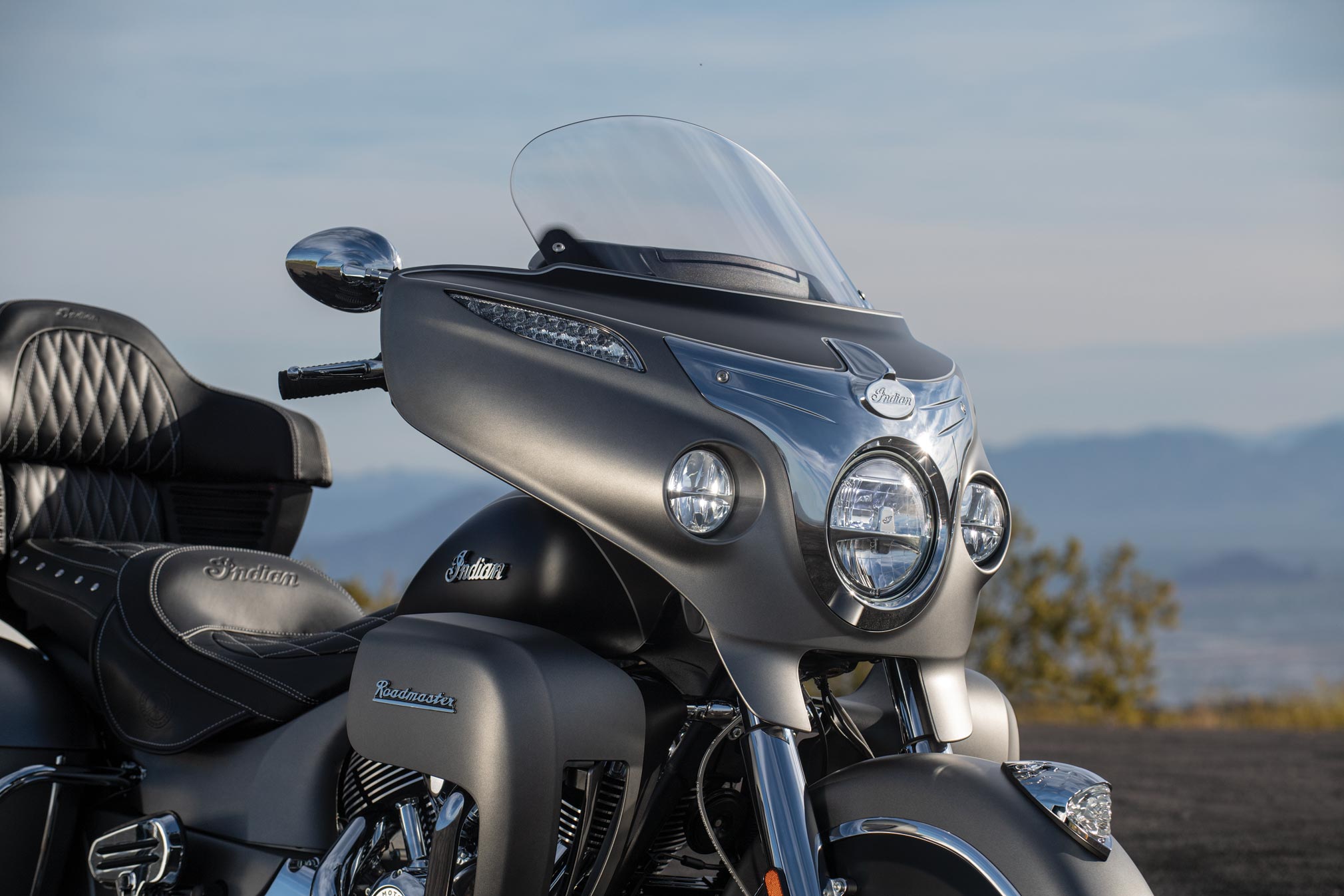

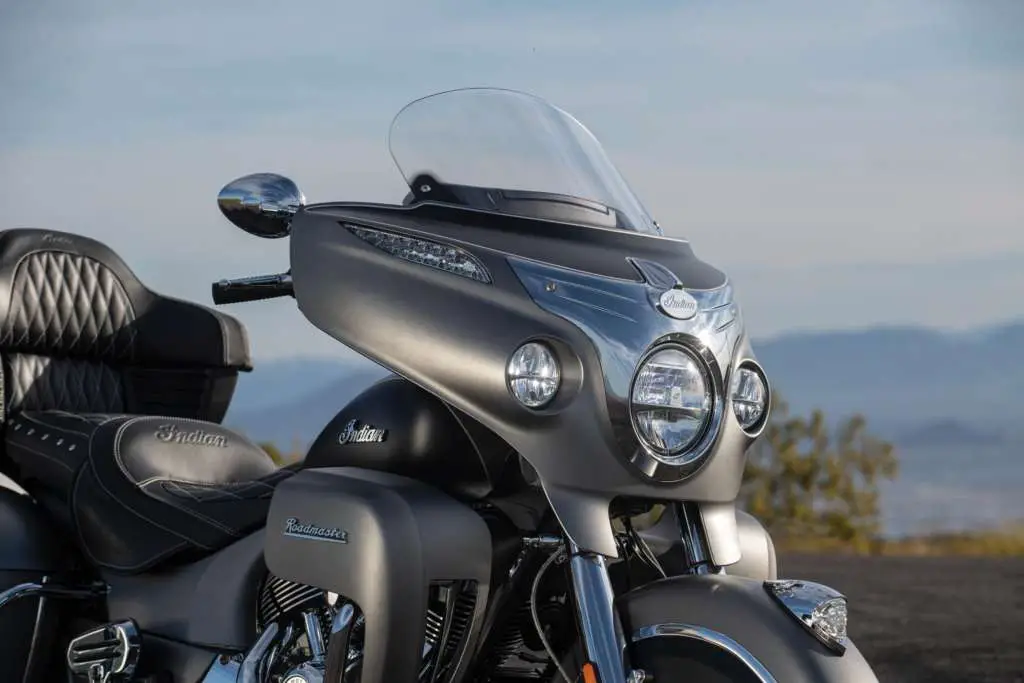

PUSH-BUTTON POWER WINDSHIELD
A push-button power windshield allows you to easily change the height. Keep it low for wind in your face or raise it up to cruise in comfort.

RIDE COMMAND CONTROLS IT ALL
With the industry-leading Ride Command system, you control every aspect of your ride on a glove-compatible touchscreen with new connectivity to adjust for traffic and weather, easy-to-use interface, customizable vehicle information screens, and two-finger pinch-to-zoom.

RIDE MODES
Choose between three ride modes, Tour, Standard, and Sport, for an experience that’s customized to your riding style.

STOP-AND-GO WITH EASE
Rear Cylinder Deactivation automatically shuts off the rear cylinder when the bike is stopped for enhanced comfort in slow-moving traffic. As soon as you hit the throttle, the rear cylinder seamlessly reactivates for full power.

BLUETOOTH CONNECTIVITY
Wirelessly connect your phone to the Ride Command display with Bluetooth to enjoy your favorite music on the open road. You can also pair a headset and receive calls and texts.







2020 Indian Roadmaster – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $29999
USD
Canada MSRP Price: $36499 CDN
Europe/UK MSRP Price: £ 26199 GBP (On The Road inc 20% Vat)

Engine and Drivetrain

Bore x Stroke

4.063″ x 4.449″ (103.2mm x113mm)

Compression Ratio

11:1

Displacement

116 cu in

Drive/Driven Clutch

Wet, Multi-Plate

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Thunder Stroke® 116

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

126 ft-lb (168 Nm)

Peak Torque RPM

2,900 RPM

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.5 in (140 mm)

Lean Angle

31°

Overall Height

58.7 in (1,491 mm)

Overall Length

104.6 in (2,656 mm)

Overall Width

39.4 in (1,000 mm)

Rake/Trail

25° / 5.9 in (150 mm)

Seat Height (Laden)

26.5 in (673 mm)

Weight (Empty Tank / Full of Fuel)

893 lbs / 926 lbs (405 kg / 420 kg)

Wheelbase

65.7 in (1668 mm)

Brakes

Front Brakes

Dual / 300 mm Floating Rotor / 4 Piston Caliper

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires and Wheels

Front Tires

Dunlop® Elite 3 130/90B16 73H

Front Wheel

Cast 16 in x 3.5 in

Rear Tires

Dunlop® Elite 3 Multi-Compound 180/60R16 80H

Rear Wheel

Cast 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color / Graphics

Thunder Black Pearl, Burgandy Metallic, Pearl White Over Titanium Metallic, Titanium Smoke Over Thunder Black Smoke

Factory Warranty

2 Years, Unlimited Miles

Gauges

Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MHP or km/h unit designation.

Infotainment

Ride Command with connected services on 2020 model year bikes includes a complimentary 2-year trial for connected features from the vehicle sales date (after which, fees apply). 7″ Ride Command® touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout.

Lights

LED Headlamp / Driving / Tail / Brake / Turn Signal

Standard Equipment

7″ Ride Command® Touchscreen Display with Navigation; Power Windshield; Driving Lights; Highway Bars; Vinyl Seats (Separate Rider/Passenger Heat Controls); Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband





2020 Indian Roadmaster – Totalmotorcycle.com Canada Specifications/Technical Details

Engine and Drivetrain

Bore x Stroke

4.063″ x 4.449″ (103.2mm x113mm)

Compression Ratio

11:1

Displacement

116 cu in

Drive/Driven Clutch

Wet, Multi-Plate

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Thunder Stroke® 116

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

126 ft-lb (168 Nm)

Peak Torque RPM

2,900 RPM

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.5 in (140 mm)

Lean Angle

31°

Overall Height

58.7 in (1,491 mm)

Overall Length

104.6 in (2,656 mm)

Overall Width

39.4 in (1,000 mm)

Rake/Trail

25° / 5.9 in (150 mm)

Seat Height (Laden)

26.5 in (673 mm)

Weight (Empty Tank / Full of Fuel)

893 lbs / 926 lbs (405 kg / 420 kg)

Wheelbase

65.7 in (1668 mm)

Brakes

Front Brakes

Dual / 300 mm Floating Rotor / 4 Piston Caliper

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires and Wheels

Front Tires

Dunlop® Elite 3 130/90B16 73H

Front Wheel

Cast 16 in x 3.5 in

Rear Tires

Dunlop® Elite 3 Multi-Compound 180/60R16 80H

Rear Wheel

Cast 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color / Graphics

Thunder Black Pearl, Burgandy Metallic, Pearl White Over Titanium Metallic, Titanium Smoke Over Thunder Black Smoke

Factory Warranty

2 Years, Unlimited Miles

Gauges

Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MHP or km/h unit designation.

Infotainment

Ride Command with connected services on 2020 model year bikes includes a complimentary 2-year trial for connected features from the vehicle sales date (after which, fees apply). 7″ Ride Command® touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout.

Lights

LED Headlamp / Driving / Tail / Brake / Turn Signal

Standard Equipment

7″ Ride Command® Touchscreen Display with Navigation; Power Windshield; Driving Lights; Highway Bars; Vinyl Seats (Separate Rider/Passenger Heat Controls); Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband







2020 Indian Roadmaster – Totalmotorcycle.com European Specifications/Technical Details

Engine
Engine Type Thunder Stroke® 116
Displacement 1890 cc (116 cu in)
Bore x Stroke 103 mm x 113 mm
Compression Ratio 11.0:1
Electronic Fuel Injection System Closed loop fuel injecion /54mm bore
Performance
Peak Torque RPM 2800 rpm
Peak Torque 168 Nm
Drivetrain
Primary Drive Gear Drive Wet Clutch
Drive/Driven Clutch Wet, Multi-Plate
Final Drive 2.2 : 1
Gear Ratio (Overall)
1st 9.403 : 1
2nd 6.411 : 1
3rd 4.763 : 1
4th 3.796 : 1
5th 3.243 : 1
6th 2.789 : 1
Suspension
Suspension: Front – Type/Travel Telescopic Fork / 119 mm
Suspension: Rear – Type/Travel Single Shock w/ Air Adjust / 114 mm / 46 mm ride in
Chassis
Brakes/Front Dual / 300 mm Floating Rotor / 4 Piston Caliper
Brakes/Rear Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires/Front Dunlop® Elite 3 130/90B16 73H
Tires/Rear Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Wheels
Exhaust Split dual exhaust w/ cross-over
Dimensions
Wheelbase 1668 mm
Seat Height 673 mm
Ground Clearance 140 mm
Overall Length 2656 mm
Overall Height 1490 mm
Overall Width 1000 mm
Rake 25°
Trail 150.0 mm
Fuel Capacity 20.8 L
GVWR 628 kg
Weight (Empty tank / full of fuel) 405 kg / 420 kg
eatures
Color / Graphics

Standard
Standard Equipment Thunder Stroke 116 Engine, 7″ Ride Command Touchscreen Display with Navigation, Premium 200-Watt Audio System w/ Bluetooth®, Power Windshield, LED Lighting, Remote-Locking Saddlebags & Trunk, Genuine Leather Heated Seats, Heated Grips, Ride Modes (Tour, Standard, Sport), Rear Cylinder Deactivation, Tire Pressure Monitoring, ABS, Cruise Control, Keyless Ignition

Electrical
Gauges Fairing mounted instrument cluster featuring electronic speedometer, tachometer, and fuel gauge with odometer, dual tripmeters with distance and time, instantaneous and average fuel economy; fuel range; real-time clock; compass; ambient air temperature; gear position display; front and rear tire pressure; engine hours of operation; engine oil life percentage; average speed; battery voltage; radio information display; vehicle trouble code readout; heated grip level (if heated grips installed); and 15 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
