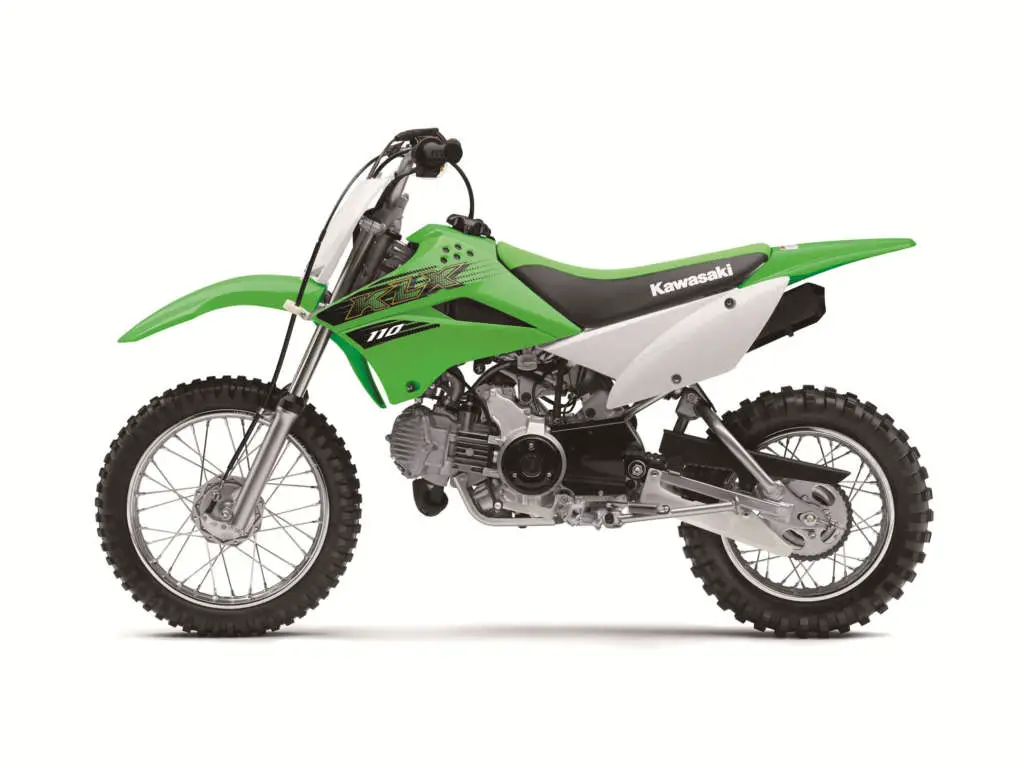

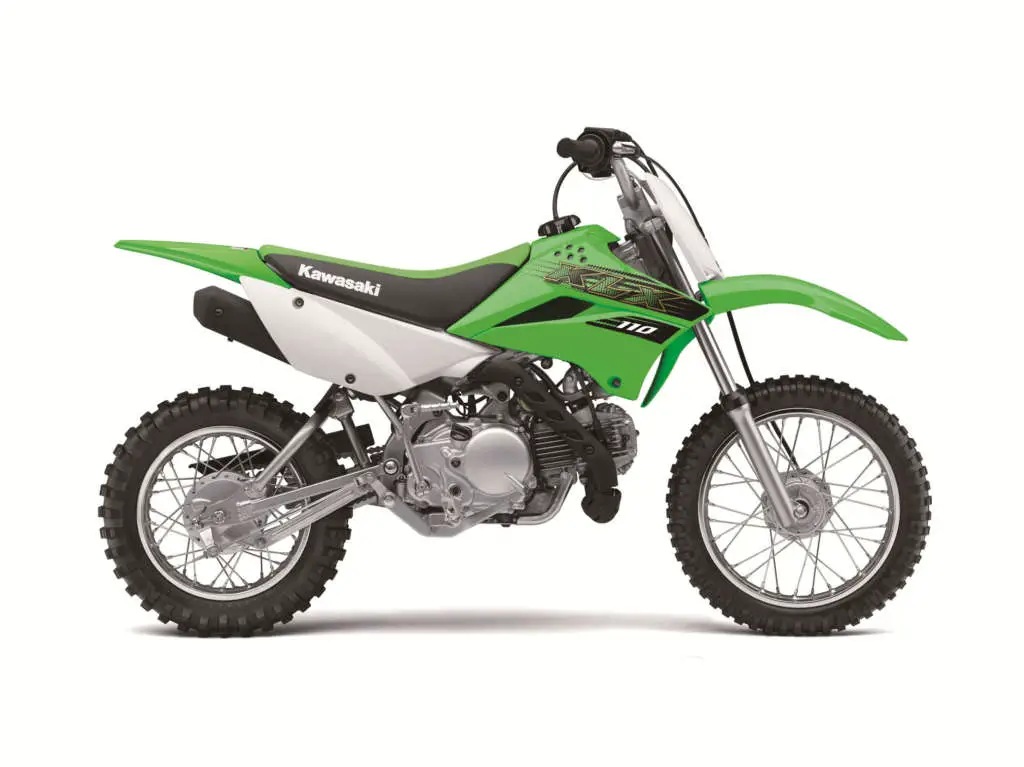

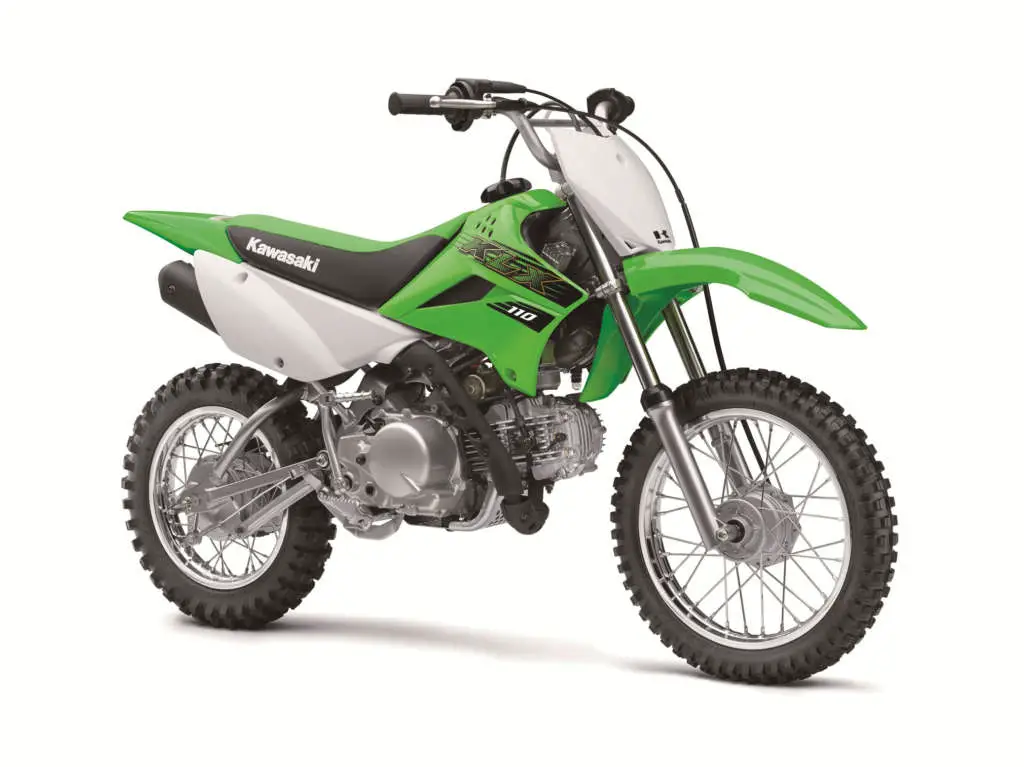

2020 Kawasaki KLX110 Guide

2020 Kawasaki KLX110

2020 Kawasaki KLX110 2020 Kawasaki KLX110 2020 Kawasaki KLX110 2020 Kawasaki KLX110


2020 Kawasaki KLX110:

Small bike equals big fun in the KLX110. This is where the adventure starts. The KLX110 is a versatile off-road bike with a low seat height, plush suspension and an automatic clutch for a fun, confidence-inspiring ride.

The biggest challenge in enjoying the KLX110 or KLX110L’s amazing off-road capabilities is figuring out who’s going to ride it first – because its compact dimensions, simple-to-use features, and choice of 2 models were designed for a wide range of beginning riders aged 13 and up.



2020 Kawasaki KLX110 Totalmotorcycle.com Key Features

The Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while on trails. The five models consist of two engine configurations and are built to suit a variety of riders.

The KLX®250 dual-purpose motorcycle is built to take riders to new places. Borrowing notes from the KX™ line and Kawasaki’s racing heritage, this 2020 street legal, dual purpose motorcycle is designed to cut through the busy traffic of an inner city or climb up a back trail to see the city from a more beautiful view.

The KLX®140 motorcycle is available in three model variations, and is designed to provide a natural terrain experience with memories to last a lifetime. The powerful 144cc, four-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and five-speed transmission to offer an efficient and user-friendly feel. The KLX140 uses a 17” front and 14” rear wheel, while the mid-sized KLX®140L motorcycle is equipped with a 19” front and 16” rear wheels to accommodate taller riders, providing extra ground clearance on the KLX140L. The KLX®140G comes equipped with full-size off-road wheels and tires, using a 21” front and 18” rear.

The KLX®110 is a great motorcycle for a new rider who is looking to experience dirt for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine. The bigger KLX®110L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110), longer suspension travel and an extra 1.9” of ground clearance and a four-speed transmission with a manual clutch.



2020 Kawasaki KLX110 Totalmotorcycle.com Features and Benefits
  • Low 26.8-inch seat height
  • Sporty styling
  • Four-speed transmission with automatic clutch


Factory Styling

Sporty styling featuring Lime Green bodywork for race-inspired good looks

Easy Operation

Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.

4-Speed Transmission

4-speed transmission with automatic clutch for stall-free shifting.

Compact, Reliable Engine

The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.



2020 Kawasaki KLX110 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2299 USD
Canada MSRP Price: $2749 CDN
Europe/UK MSRP Price: £2299 GBP (On The Road inc 20% Vat)



4-stroke, 1-cylinder, SOHC, air-cooled



Bore x Stroke

53.0 x 50.6mm

Compression Ratio


Fuel System

Keihin PB18




4-speed, return shift, centrifugal clutch

Final Drive



Front Suspension / Wheel Travel

30mm hydraulic telescopic fork/4.3 in

Rear Suspension / Wheel Travel

Swingarm with single hydraulic shock/4.3 in

Front Tire


Rear Tire


Front Brakes

Mechanical Drum

Rear Brakes

Mechanical Drum


Frame Type

Backbone frame, high-tensile steel


24.8°/2.0 in

Overall Length

61.4 in

Overall Width

25.6 in

Overall Height

37.6 in

Ground Clearance

8.5 in

Seat Height

26.8 in

Curb Weight

167.5 lb**

Fuel Capacity

1.0 gal


42.3 in

Color Choices

Lime Green


6 Months

Kawasaki Protection Plus™ (optional)

12, 24, or 36 months


**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Read Owner’s Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.




2020 Kawasaki KLX110 – Totalmotorcycle.com  Canadian Specifications/Technical Details


Displacement 112cc
Type 4-stroke, Single
Bore and stroke 53.0 x 50.6 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves
Fuel system Keihin PB18 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Starting Electric & Primary Kick


Front: type Drum (90 mm)
Rear: type Drum (110 mm)


Overall length 1,560 mm (61.4 in.)
Overall width 650 mm (25.6 in.)
Overall height 955 mm (37.6 in.)
Wheelbase 1,075 mm (42.3 in.)
Ground clearance 215 mm (8.5 in.)
Seat height 680 mm (26.8 in.)
Curb mass** 76 kg (167.6 lbs.)
Fuel capacity 3.8 litres (0.8 gal.)


Transmission 4-speed, constant mesh, return shift
Final drive Chain
Primary reduction ratio 3.409 (75/22)
Gear ratio: 1st 3.000 (36/12)
Gear ratio: 2nd 1.938 (31/16)
Gear ratio: 3rd 1.350 (27/20)
Gear ratio: 4th 1.087 (25/23)
Final reduction ratio 2.923 (38/13)
Clutch Centrifugal, wet multi-disc


Type Hgh-tensile steel backbone
Wheel travel: front 110 mm (4.3 in.)
Tire: front 2.50-14 4PR
Wheel travel: rear 110 mm (4.3 in.)
Tire: rear 3.00-12 4PR
Caster (rake) 24.8°
Trail 50 mm (2.0 in.)
Steering angle (left/right) 45° / 45°


Maximum Power 5.4 kW {7.3 PS} @ 7,500 rpm
Maximum Torque 8.0 N·m {0.82 kgƒ·m} @ 4,000 rpm


Suspension, front 30 mm telescopic fork
Suspension, rear Single shock


Warranty 6 months warranty




2020 Kawasaki KLX110 – Totalmotorcycle.com European Specifications/Technical Details


Engine type

Air-cooled, 4-stroke Single


112 cm³

Bore x stroke

53 x 50.6 mm

Compression ratio


Valve system

SOHC, 2 valves

Fuel system

Carburettor: PB18 (Keihin)


Digital DC-CDI

Starting System

Electric & Kick


Forced lubrication, wet sump

Performance & Transmission

Maximum power

5.4 kW {7.3 PS} / 7,500 rpm

Maximum torque

8.0 N•m {0.82 kgƒ•m} / 4,000 rpm



Final drive


Primary Reduction Ratio

3.409 (75/22)

Primary Reduction Ratio

3.409 (75/22)

Gear Ratios 1st

3.000 (36/12)

Gear Ratios 2nd

1.938 (31/16)

Gear Ratios 3rd

1.350 (27/20)

Gear Ratios 4th

1.087 (25/23)

Final reduction ratio

2.923 (38/13)


Centrifugal, wet multi-disc

Brakes & Suspension

Brakes, front

Drum (Ø 90 mm)

Brakes, rear

Drum (Ø 110 mm)

Suspension, front

30 mm telescopic fork

Suspension, rear

Single shock

Suspension, rear

Single shock

Frame & Dimensions

Frame type

Backbone, Steel


50 mm

Wheel travel front

110 mm

Wheel travel rear

110 mm

Tyre, front

2.50-14 4PR

Tyre, rear

3.00-12 4PR

Steering angle, left / right

45° / 45°

L x W x H

1,560 x 650 x 955 mm


1,075 mm

Ground clearance

215 mm

Fuel capacity

3.6 litres

Seat height

680 mm

Curb mass

76 kg



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
