2020 URAL GearUp Guide

2020 URAL GearUp

2020 URAL GearUp 2020 URAL GearUp 2020 URAL GearUp 2020 URAL GearUp 2020 URAL GearUp

2020 URAL GearUp : ON DEMAND 2 Wheel Drive.

Introducing the 2020 URAL GearUp.

Goodbye Backpack, Hello Trunk.

Every Ural comes standard with a lockable and water tight sidecar trunk. It’s the perfect size for extra gear, supplies, and whatever else your adventures may need.



New For 2020

19” aluminum rims from Italcerchio S.R.L.

Forged brake caliper brackets

One-piece forged alternator adapter shaft

Bi-metal piston pin bushing

Updated swing arm and fork leg design incorporates dust seals to prolong bearing life

Improved rear sidecar body mounts “snowmen” incorporate an internal spring for increased load capacity









2020 URAL GearUp Guide Totalmotorcycle.com Key Features

Standard Accessories
• LED Sidecar Fog Lights (Gear Up)
• Sidecar Power Outlet
• Sidecar Tonneau Cover
• Jerry Can (Gear Up)
• Folding Utility Shovel (Gear Up)
• Luggage Rack (Gear Up)
• Universal Spare Wheel – Fits All 3 Positions

749cc
Our bikes are happy cruising between 65 and 75 mph. Our 749cc engine combined with powerful low end torque is the perfect size to compliment the steering dynamics of our all steel sidecar.

Reverse Gear
In addition to a 4 speed transmission, every Ural comes with a mechanical reverse gear. Reverse can be engage by the foot pedal to the right of the rear brake.







2020 URAL GearUp Guide Totalmotorcycle.com Features and Benefits

STANDARD COLOR OPTIONS
Burgundy Satin

Slate Grey

OD Green

CAMO PATTERN (+$1,750)
Urban Camo

Woodland Camo

PREMIUM COLOR OPTIONS (+$1,000)
Burgundy Metallic

Cascade Green

Grey Metallic

Bronze

Rainier White

Sahara

Taiga

Terracotta Metallic

Baikal Blue





2020 URAL GearUp Guide – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ 17549 USD
Canada MSRP Price: $21999 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

Engine and Transmission

  • Displacement, cc: 749

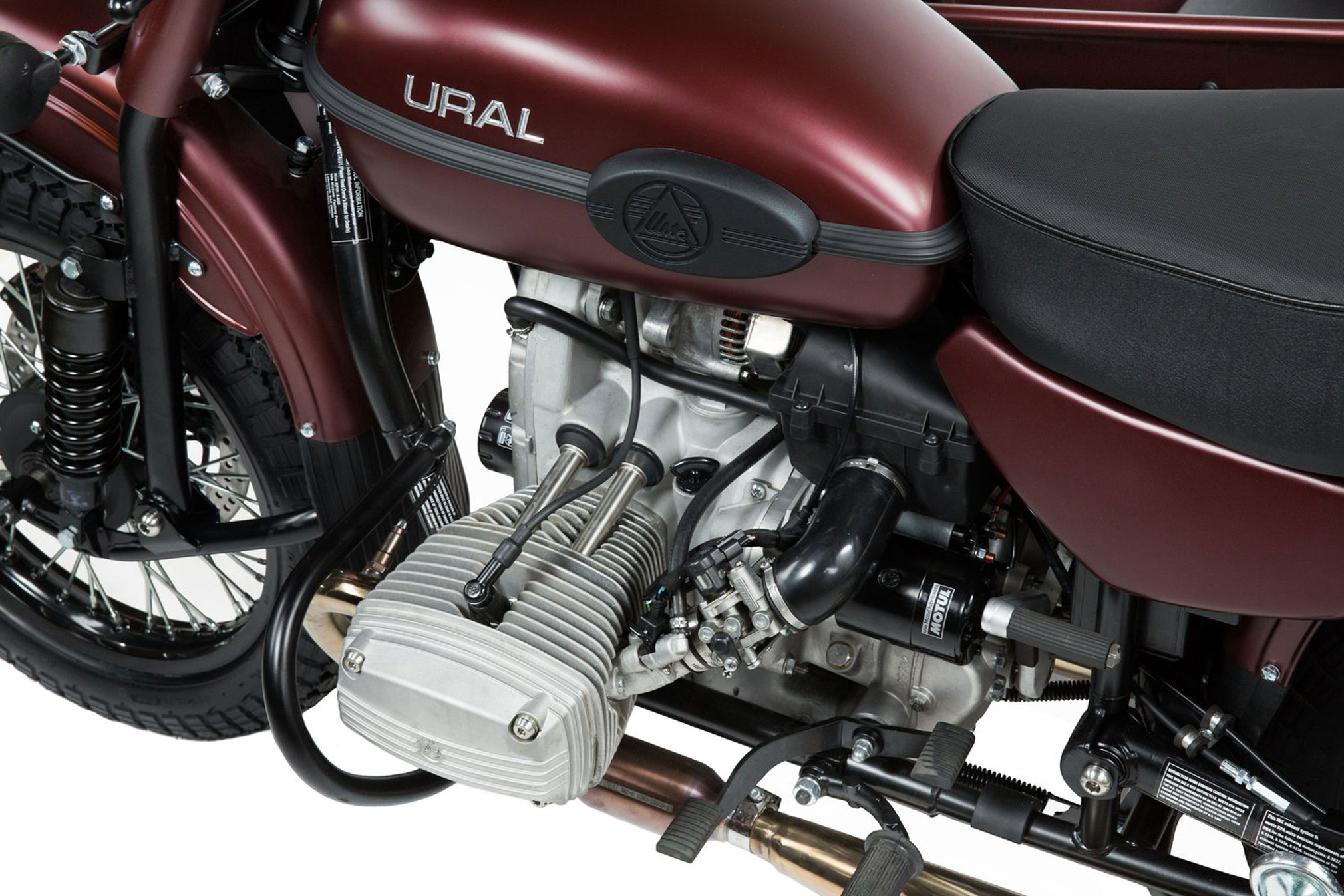

  • Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
  • Valve per cylinder: 2
  • Bore and stroke (mm x mm): 78 x 78
  • Max output (hp): 41 @ 5500 rpm
  • Max torque (ft-lbs): 42 @ 4300 rpm
  • Compression: 8.6:1
  • Fuel system: Throttle body EFI
  • Starting: Electric & Kickstart
  • Clutch Double-disc dry
  • Transmission type: Manual
  • Speeds: 4 forward 1 reverse
  • Primary drive (rear wheel): Driveshaft
  • Final drive ratio: 4.62
  • Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements

  • Overall length, inch.: 98.8
  • Overall heights, inch.: 54.3
  • Overall width, inch.: 63.6
  • Seat height, (unladen), inch.: 32.0
  • Ground clearance (unladen),inch.: 6.8
  • Dry weight, lbs: 730

Electrical

  • Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
  • Battery: FAYTX20HL (12V, 20A)
  • Headlight: H4
  • Spark plugs: NGK BPR6HS



Chassis

  • Front suspension: IMZ leading link fork
  • Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 7x adjustable
  • Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 7x adjustable
  • Wheels: 2.15X19 Aluminum rims with steel spokes
  • Tires: Duro HF-308, 4.0×19″
  • Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
  • Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
  • Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor

Misc.

  • Fuel grade: 91 Octane, unleaded
  • Fuel tank capacity, gallons: 5.0
  • Reserve, gallons: app. 1
  • Estimated fuel economy, mpg: 31-37
  • Estimated range, miles: 155-185
  • Recommended max cruising speed, mph: 70
  • Max permissible weight, lbs:1325
  • Trunk volume, cubic ft.: 2.9

Warranty

  • 2-years parts and labor unlimited mileage.

*MSRP Excludes tax, license, registration, delivery, set-up, and dealer-installed options. Bike may be shown with additional options. Dealer prices may vary. Due to regulations in California, additional cost may apply to bikes purchased in California. Model shown 2019 Gear Up*









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
