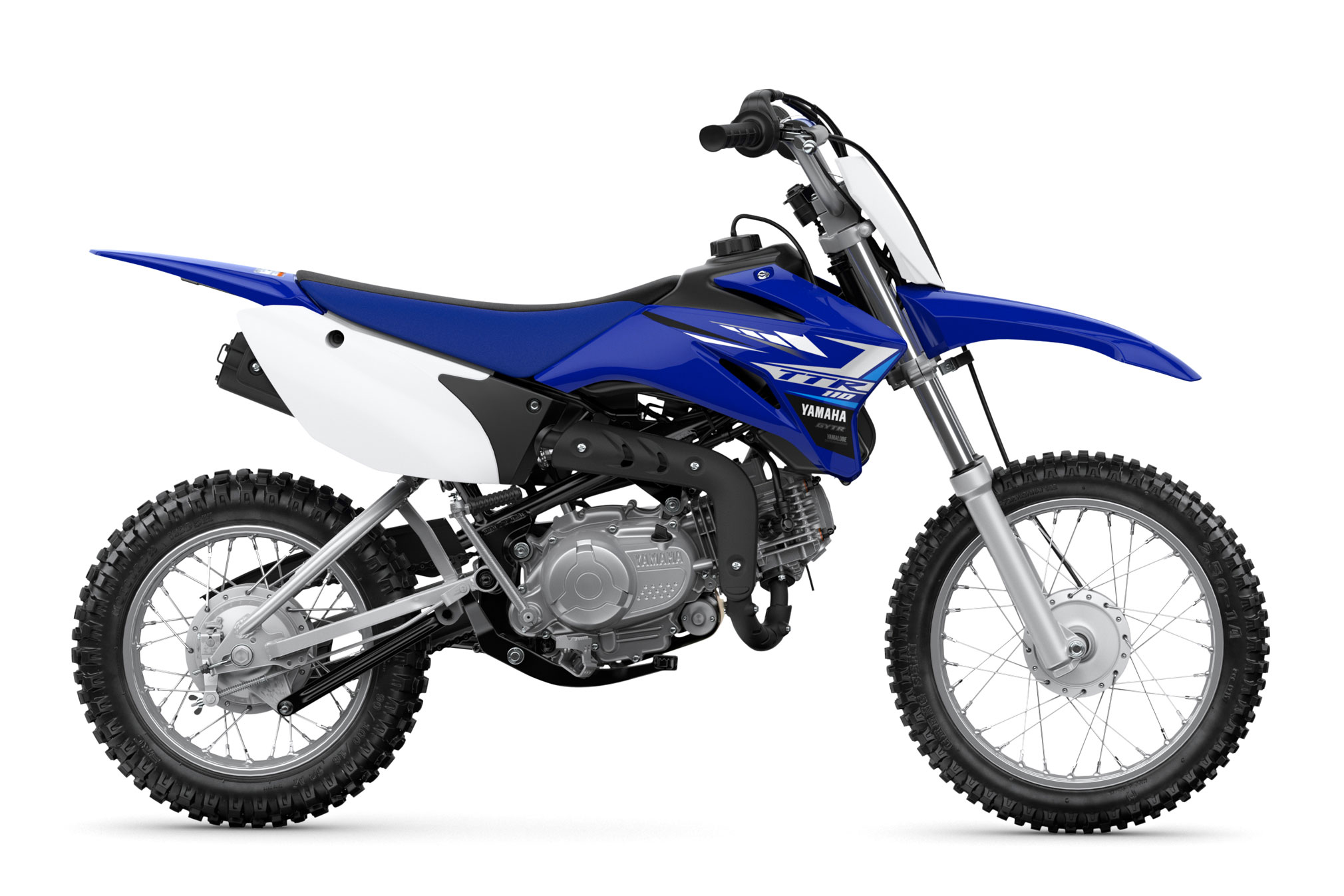

2020 Yamaha TT-R110E Guide

2020 Yamaha TT-R110E

2020 Yamaha TT-R110E 2020 Yamaha TT-R110E 2020 Yamaha TT-R110E

SMALL PACKAGE ‑ BIG FUN.

2020 Yamaha TT-R110E:

The bike that produces big fun for both young and old and everyone in between.

Spark your kids’ 2-wheel passion with a TT-R110E! Learning is a snap with electric start, smooth power delivery and automatic clutch design for easy shifting.

POWER
The TT-R110E’s air-cooled, 110 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice-friendly power.

EASY TO RIDE
The mid-size, steel, backbone-type frame features a compact 1,080 mm (42.5″) wheelbase for easy, agile handling with a low, confidence-inspiring seat height. The convenient push-button electric start makes it easier to get going!





2020 Yamaha TT-R110E Totalmotorcycle.com Key Features







2020 Yamaha TT-R110E Totalmotorcycle.com Features and Benefits

ENGINE

  • Air-cooled, 110 cc, SOHC, 2-valve, 4-stroke engine produces smooth, reliable, novice-friendly power.
  • Push-button electric starting backed up by a manual kick starter too.
    • electric starting makes learning to ride more fun
  • Lightweight aluminum cylinder features a cast iron liner.
    • cylinder can be “bored out” in the event of a problem
  • Single overhead camshaft
    • utilizes easy to adjust conventional rocker arms & screw type tappet adjusters
  • Flat top piston and lightweight crankshaft
    • 9.3:1 compression ratio
    • proven, reliable design
    • lightweight means faster engine response
  • Automatic cam chain adjuster
    • reduces maintenance & mechanical engine noise
  • 16mm Mikuni carburetor
    • crisp throttle response
    • good fuel economy
    • carburetor features nickel silver needle valve assembly & chromate treatment on the inner float bowl to counter act the negative effects of E10 (10% ethanol) fuels
    • easy access “paddle-style” choke
  • 4-speed, semi-automatic transmission
    • eases beginners into the basics of shifting, without the complications of a hand-operated clutch
    • allows rider to concentrate on developing riding skills and balance
    • easier & more fun learning experience
  • Maintenance-free capacitor discharge ignition (CDI).
    • produces a strong spark for fast starts
    • provides precise ignition timing/mapping for optimum engine performance at all rpm
  • Easy-access washable foam air filter
    • re-usable design reduces maintenance costs
  • Lightweight exhaust system with heat shields
    • quiet design
    • “cleanable” screen-type spark arrestor
    • heat shields protect young riders from hot components
  • Rugged steel engine protector plate for those rough trails.

DETAILS

    • Handlebar with reinforcing crossbar & protective foam pad
    • Upper and lower plastic chain guards reduce chain splatter and help protect young riders
    • Front and rear reflectors for added visibility
    • E10 compatible fuel system components
    • Low maintenance, sealed battery won’t leak in the event of a tip-over (battery should be charged during winter storage)

IMPORTANT NOTE: Adult supervision, a helmet & proper protective riding gear are a must when a youngster is operating a TT-R110E.





2020 Yamaha TT-R110E – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2,299 – Team Yamaha Blue
Canada MSRP Price: $2,999 CDN
Europe/UK MSRP Price: £See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU

Engine Type 110cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke 51.0mm x 54.0mm
Compression Ratio 9.3:1
Fuel Delivery Mikuni® VM16 carburetor
Ignition CDI
Transmission Constant-mesh 4-speed; multiple wet clutch
Final Drive Chain
Suspension / Front 31mm telescopic fork; 4.5-in travel
Suspension / Rear Monocross® shock; 4.3-in travel
Brakes / Front Drum, 95mm
Brakes / Rear Drum, 110mm
Tires / Front 2.50-14-4PR
Tirres / Rear 3.00-12-4PR
L x W x H 61.6 in x 26.8 in x 36.3 in
Seat Height 26.4 in
Wheelbase 42.5 in
Rake (Caster Angle) 26.0°
Trail 2.4 in
Maximum Ground
Clearance
7.1 in
Fuel Capacity 1.0 gal
Fuel Economy** n/a
Wet Weight*** 159 lb
Warranty 90 Day (Limited Factory Warranty)
Color Team Yamaha Blue
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.





2020 Yamaha TT-R110E – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
Engine
4-stroke, air-cooled, SOHC, 2-valve, single
Displacement
110cc
Bore and Stroke
51 x 54mm
Compression Ratio
9.3:1
Maximum Torque
0.8 kg-m (5.8 ft-lb) @ 4,000 rpm
Fuel Delivery
Mikuni VM16
Lubrication
Wet sump
Ignition / Starting
CDI / Electric & kick
Transmission
Constant mesh, 4-speed
Final Drive
Chain
CHASSIS
Suspension (Front)
31 mm fork / 115mm (4.5″) wheel travel
Suspension (Rear)
Monocross, single shock / 110 mm (4.3″) wheel travel
Brakes (Front)
Drum
Brakes (Rear)
Drum
Tires (Front)
2.50-14 4PR
Tires (Rear)
3.00-12 4PR
CRITICAL DATA
Length
1,565 mm (61.6″)
Width
680 mm (26.8″)
Height
920 mm (36.2″)
Wheelbase
1,080 mm (42.5″)
Ground Clearance
180 mm (7.1″)
Seat Height
670 mm (26.4″)
Fuel Capacity
3.8 litres (0.8 imp. gallons)
Wet Weight
72 kg (159 lb)
Colour(s)
Yamaha Racing Blue







2020 Yamaha TT-R110E – Totalmotorcycle.com European Specifications/Technical Details

NA







2020 Yamaha TT-R110E – Totalmotorcycle.com Australian Specifications/Technical Details



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
