2021 BMW M1000RR : RACING LIKE NO OTHER.
Introducing the 2021 BMW M1000RR…
Your competitive spirit drives you. Your passion dominates and challenges you. The search for more defines every millisecond: pure motorsport. High performance, high-tech materials, the highest-quality workmanship and exclusivity down to the last detail: The M RR is the first M model from BMW Motorrad. Its genes come directly from professional racing. The M RR and M RR with M Competition package offers pure racing technology for the highest performance demands in motorsport and for adrenalin-driven perfectionists on the road. Because #NeverStopChallenging is more than a promise. It’s a commitment.
BMW Motorrad already introduced the successful M vehicle offer strategy at the end of 2018 for motorcycles and has been offering M optional equipment and M performance parts ever since. With the new BMW M 1000 RR – in the following referred to as M RR in short – the first M model from BMW Motorrad based on the S 1000 RR (RR for short) is now celebrating its world premiere. BMW Motorrad follows the philosophy of the strongest letter in the world: M stands worldwide for success in motor racing and the fascination of high-performance BMW models and is aimed at customers with particularly high demands relating to performance, exclusiveness and individuality.
With an engine output of 156 kW (212 HP), a DIN vehicle kerb weight of only 192 kg and a suspension and aerodynamics designed for maximum race track performance, the new M RR meets the main expectations in the top segment of Superbikes.
2021 BMW M1000RR Totalmotorcycle.com Key Features
• M RR four-cylinder engine based on the RR engine for racing sport. Even more peak power, higher torque in the medium range and 500 rpm more maximum speed.
• 156 kW output at 14 500 rpm and thus 4 kW more than in the RR. Maximum torque of 113 Nm at 11 000 rpm.
• New 2-ring forged piston 12 g lighter, adapted combustion chamber and compression increased to 13.5. In addition, slimmer and lighter rocker arms.
• Fully machined intake ports with new duct geometry and BMW ShiftCam technology for varying the valve control time and valve lift.
• Titanium valves, on the exhaust side with new spring assembly, slimmer and 6 % lighter rocker arms and optimized camshafts.
• Very light, compact engine block with longer and 85 g lighter titanium connecting rods from Pankl for reduced friction power and less weight.
• Anti-hopping clutch without self-reinforcing for optimum Launch Control.
• Optimized differentiated intake system with shorter intake funnels for optimized gas exchange at high rotational speeds.
• New, 3,657 g lighter exhaust system with exhaust manifold, front silencer and rear silencer made of titanium.
• M winglets and high windscreen: Braking later and accelerating earlier and more stability when cornering thanks to the aerodynamic downforce without any reduction in maximum speed.
• “Rain”, “Road”, “Dynamic”, “Race”“ and “Race Pro1-3” riding modes and the latest generation of the Dynamic Traction Control (DTC) and DTC wheelie function with 6-axle sensor box.
• Two adjustable characteristic throttle curves for optimum response characteristics. Engine brake with threefold adjustable engine drag torque in “Race Pro” mode.
• Shift assistant Pro for shifting gears up and down without clutch. Simple reversibility of the shift pattern for race track use.
• Launch Control for perfect race starts and Pit-Lane-Limiter for precise speed in the pit lane.
• Hill Start Control Pro for convenient starting on slopes.
• Chassis design trimmed for race track use with modified geometry, optimized wheel load distribution and extended adjustability of the swinging arm pivot point.
• Optimized upside-down fork and revised central spring strut with Full Floater Pro kinematics.
• M brakes for the first time at BMW Motorrad: The M RR with maximum braking performance for the race track.
• M carbon wheels: Classy high-tech components for maximum performance on race track and road.
• Instrument cluster with large, perfectly readable 6.5-inch TFT display, starting animation with M logo and OBD interface that can be used with activation code for the M GPS data logger and M GPS laptrigger.
• Lightweight M battery, USB charging socket in the rear, powerful LED interior light units, electronic adaptive cruise control and heated grips.
• M design and dynamic form language indicate ultimate race track performance.
• M competition package with M GPS laptrigger and activation code, M milled parts package, M carbon package, silver, 220 g lighter swinging arm, DLC-coated M endurance chain and passenger package including tail-hump cover.
• Comprehensive optional accessories and optional equipment ex works.
2021 BMW M1000RR Totalmotorcycle.com Features and Benefits
M RR four-cylinder engine based on the RR engine for racing sport. More peak power and increased maximum engine speed.
The new M RR uses a water-cooled four-cylinder in-line engine based on the RR power train with BMW ShiftCam technology for varying valve timing and valve lift that has been modified comprehensively in the direction of a racing sport engine. It achieves its peak output of 156 kW (212 HP) at 14,500 rpm. The maximum torque of 113 Nm is applied at 11,000 rpm. In addition to a maximum speed increased to 15,100 rpm, the M RR engine has extensive technical optimisations such as new 2-ring forged pistons from Mahle, adapted combustion chambers, compression increased to 13.5, longer and lighter titanium connecting rods from Pankl, slimmer and lighter rocker arms, fully machined intake ports with new duct geometry as well as optimisations on camshafts and intake area. The lightweight exhaust system is also made of titanium. The new M RR engine is even more powerful than the RR power train in the range from 6,000 rpm to 15,100 rpm, a range that is particularly relevant for race track driving dynamics, but without losing its qualities as a fascinating source of power for sporty driving on country roads.

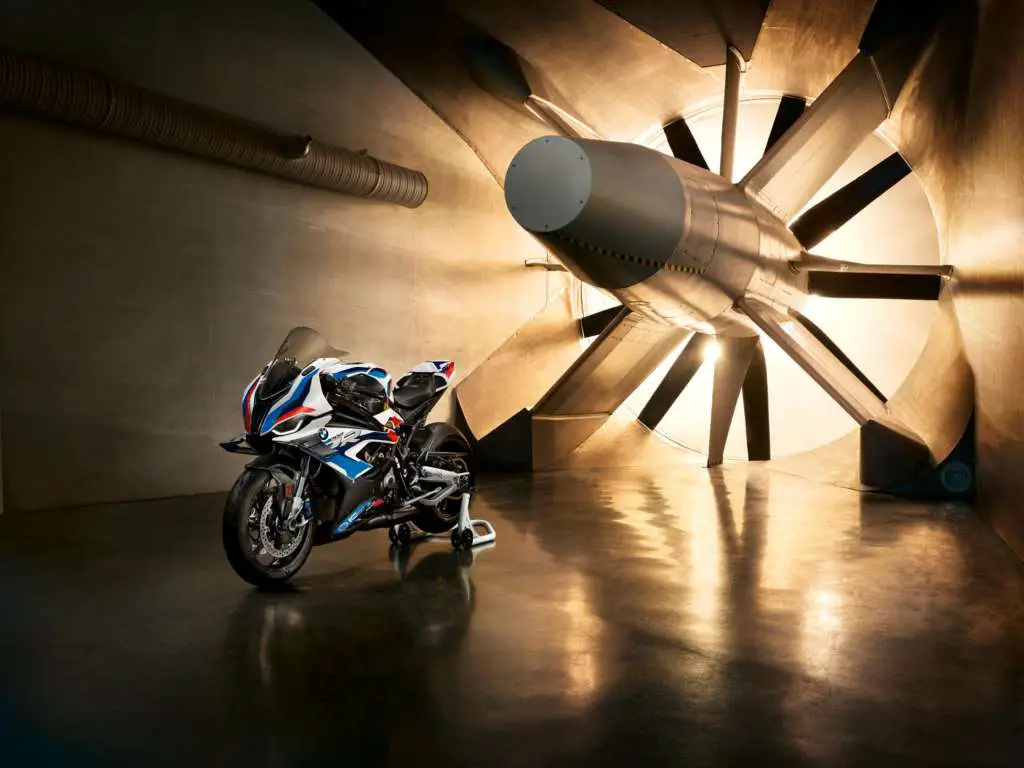

M winglets and high windscreen: Braking later and accelerating earlier thanks to the aerodynamic downforce without any reduction in maximum speed.
The aerodynamics were a decisive point in the technical specifications for development work of the M RR. In addition to a maximum speed that is as high as possible and absolutely necessary for winning races, there was another objective in the technical specifications of the M RR: to establish the best possible contact of the wheels with the road – especially when accelerating. The M winglets on the trim front, which were developed during intensive testing on the race track and in the BMW Group’s wind tunnel and are made of clear-coat carbon, take this into account as they produce aerodynamic downforce and thus additional wheel loads according to the speed. The additional wheel load on the front wheel counteracts wheelie inclination, traction control regulates less, more driving power is converted into acceleration and the driver achieves faster lap times. The effect of the winglets is also noticeable in curves and when braking, the downforce allows later braking and ensures increased cornering stability.
Chassis design trimmed for race track use with modified geometry, optimized wheel load distribution and extended adjustability of the swinging arm pivot point.
The chassis of the new M RR is based on the RR with the bridge frame made of aluminium at its centrepiece. It has an optimized upside-down fork as well as a revised central spring strut with blue spring and Full Floater Pro kinematics. The primary objective of the chassis design was to achieve the best possible lap times on the race track. The chassis of the M RR is therefore uncompromisingly designed for the race track, but also convinces with qualities for country roads. Special attention was paid to optimising drivability, the braking and anti-squat control as well as the best possible feeling of the driver for the front and rear wheel.
M brakes for the first time at BMW Motorrad as well as M carbon wheels as standard.
With the new M RR, there is a BMW motorcycle with an M brake for the first time – like the M vehicles of BMW M GmbH. It was developed directly from the experience with the racing brakes of BMW Motorrad company racing machines in the Superbike World Championship and provides maximum fading stability and controllability. Externally, the M brake callipers have a blue anodized coating in combination with the M logo. With the M carbon wheels, the new M RR has more high-tech components for maximum performance on the race track and road.
Instrument cluster with perfectly readable 6.5-inch TFT display and OBD interface that can be used with activation code for the M GPS data logger and M GPS laptrigger.
The instrument cluster of the new M RR has the same basic design as the RR and has an M start animation. As part of the optional equipment, an activation code (contents of M competition package) can be used to provide comprehensive data material for the use of the M GPS laptrigger and M GPS data logger (Original BMW Motorrad Accessories) via the OBD interface of the instrument cluster.
Born for racing: M design and dynamic form language of the M RR indicate ultimate race track performance.
The new M RR emphasizes its racing genes with the light white solid paint/M Sport colour scheme in the basic colours light blue, dark blue and red. Further features of the M RR are the engine covers in granite grey and the fuel filler cap painted black.
Uncompromising in design and technology: The M RR with M competition package.
For those who are still not satisfied with the new M RR in standard trim, the M competition package provides a fascinating mixture of classy components for the racing technology gourmet and the aesthete at the same time. In addition to the M GPS laptrigger software and the corresponding activation code, the M competition package also includes the M milled parts package, the M carbon package as well as a silver 220 g lighter swinging arm, the friction-optimized, maintenance-free and DLC-coated M Endurance chain and the passenger package including tail-hump cover.
Pure will to win
The assembly of the M RR has been developed in sports racing and perfected for the road. For this purpose, we have increased the power of the four-cylinder in-line engine from the RR: For a higher torque in the mid-range. And we have increased the maximum speed by 500 rpm to 15,100 rpm. The titanium connecting rods are lighter, the rocker arms are 1.5 mm narrower, the airbox funnel has been shortened for better load changes: Millimetre work for milliseconds. In addition, there are 2-ring forged pistons with cross-ribbing and cylinder heads with new channel geometry and reinforced bearing brackets. Overall result: More dynamics and reduced mass inertia. For a shorter ratio, even the sprocket has been given a tooth and the chain itself and the wheelbase have also been lengthened. The anti-hopping clutch works without self-reinforcement – for the perfect launch control.
More pressure: the M Winglets
The contact pressure also determines victory or defeat. The M winglets made of carbon generate a downforce of 16.3 kg. In combination with the high windscreen, you can convert more power into pure propulsion. Before the curve, in the curve, and when accelerating out of the curve. The front wheel pulls straight into the apex and the fork keeps contact with the ground; the DTC has to intervene less. And you save the wheelie for the finish line.
We see the M RR in side view.
Intuitive, clear, honest, direct – this is how feedback should be
Only what you feel will drive you forward. The chassis and geometry of the M RR are trimmed for the racetrack. For more performance on the track and in the pits. The drivability, braking and starting pitch compensation provide more feeling for the front and rear wheel. Even on country roads. The longer wheelbase makes the M RR much more comfortable. The easily adjustable pivot point has been rescaled and enlarged. And the new rear axle – also thanks to the adapted brake piston – allows quick rear-wheel changes. This is where the pit lane meets your will to perfection.
Uncompromising acceleration – but the other way round
We have developed the best brake piston on the market for us. One result, three words: Best in class. We have optimised the fluid balance for greater pressure point stability. In addition to the standard brake pad, you can also choose a different one. This comes from the Endurance World Championship and is intended exclusively for the racetrack. Together with the ideally combined operating element and saddle, this results in maximum brake stability and feedback, as well as superb coordination with the RACE ABS. The M brake is therefore an ideal reference.
Two versions, one goal: Pure performance
Every M RR stands for absolute dedication and the will to perform. In its basic version, it is made for racing – and working on grams and milliseconds. With the M Competition Package, it boasts M milled parts and M carbon parts and highlights the sporty look.
Circuits know no end – neither does perfection
Can perfection be increased? Decide for yourself: The M RR is available as a basic version and optionally as an M RR with the Competition Package. In addition, we offer you numerous M Performance Parts to customise your M RR. Many of the parts can be installed quickly, turning your street version of the M RR into a racetrack machine in minutes. But even here there is room for improvement: the M RR with M Performance Race Parts – here only the racetrack counts.
The strongest letter in the world
M is synonymous worldwide with success in racing and is aimed at riders with particularly high demands regarding performance, exclusivity and individuality. Find out more about the M RR and the M family here.
2021 BMW M1000RR – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ TBA USD
Canada MSRP Price: starting at $42,400 CDN
Europe/UK MSRP Price: from £30,935 GBP (On The Road inc 20% Vat)
Engine
Type Water/oil-cooled 4-cylinder with 4-stroke in-line engine, four titanium valves per cylinder and BMW ShiftCam
Bore / stroke 80 mm x 49.7 mm
Capacity 999 cc
Rated output 205 hp at 13,000 rpm
Max. torque 83 lbs-ft at 11,000 rpm
Compression ratio 13.5 : 1
Mixture control Electronic injection, variable intake pibe
Emission control Closed-loop 3-way catalytic converters, EU-5 norm
Performance / fuel consumption
Maximum speed 189 mph
Fuel consumption per 100 km based on WMTC 6.5 l
CO2 emission based on WMTC 151 g/km
Fuel type Unleaded super(premium), octane number 95 – 98 (RON)
(knock control; rated output at 98 RON)
Electrical system
Alternator 450 Watt
M Lightweight Battery 12 V / 5 Ah, Lithium-ion
We see a section of the LED headlights and the left front of the M RR.
Power transmission
Clutch Multiplate clutch in oil bath, slipper clutch
Gearbox Constant-mesh 6-speed gearbox with straight cut gears
Drive Chain 525 17/46
Traction Control BMW Motorrad DTC
Chassis / brakes
Frame Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension Upside-down telescopic fork with a diameter of 45 mm, adjustable compression and rebound stage, adjustable preload
Rear wheel location / suspension Aluminium swing arm, compression and rebound damping adjustable, adjustable preload
Suspension travel, front / rear 4.7“ / 4.6“
Wheelbase 57.4”
Caster 3.9”
Steering head angle 66.4°
Wheels M Carbon Wheels
Rim dimensions, front 3.50 x 17″
Rim dimensions, rear 6.00 x 17″
Tire, front 120/70 ZR 17
Tire, rear 200/55 ZR 17
Brake, front Twin disc brake, M Brake 4-piston fixed caliper, 5 mm diameter 320 mm
Brake, rear Single disc brake, 2-piston fixed caliper, diameter 220 mm
ABS BMW Motorrad Race ABS Pro (part-integral), modes to select
ABS Pro ABS Pro settings for RAIN, ROAD, DYNAMIC mode, no ABS Pro in RACE and Race Pro 1-3 mode
Dimensions / weights
Seat height 32.8”
Inner leg curve 72.6”
Usable tank volume 4.4 gallons
Reserve approx. l 1.1 gallons
Length 81.6”
Height (excl. mirrors) 47.1”
Width (excl. mirrors) 33.4”
Dry weight 375 lbs. (M Competition Package 374 lbs.) without battery
Unladen weight, road ready, fully fuelled 423 lbs. (M Competition Package 423 lbs.) 1)
Permitted total weight 897 lbs.
Payload (with standard equipment) 467 lbs.
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable tank capacity.
2021 BMW M1000RR – Totalmotorcycle.com Canada Specifications/Technical Details
Engine
Type Water/oil-cooled 4-cylinder with 4-stroke in-line engine, four titanium valves per cylinder and BMW ShiftCam
Bore / stroke 80 mm x 49.7 mm
Capacity 999 cc
Ratet output 156 kW (212 hp) at 14,500 rpm
Max. torque 113 Nm at 11,000 rpm
Compression ratio 13.5 : 1
Mixture control Electronic injection, variable intake pibe
Emission control Closed-loop 3-way catalytic converters, EU-5 norm
Performance / fuel consumption
Maximum speed 306 km/h
Fuel consumption per 100 km based on WMTC 6.5 l
CO2 emission based on WMTC 151 g/km
Fuel type Unleaded super(premium), octane number 95 – 98 (RON)
(knock control; rated output at 98 RON)
Electrical system
Alternator 450 Watt
M Lightweight Battery 12 V / 5 Ah, Lithium-ion
We see a section of the LED headlights and the left front of the M RR.
Power transmission
Clutch Multiplate clutch in oil bath, anti-hopping clutch, with self-reinforcement
Gearbox Constant-mesh 6-speed gearbox with straight cut gears
Drive Chain 525 17/46
Traction Control BMW Motorrad DTC
Chassis / brakes
Frame Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension Upside-down telescopic fork with a diameter of 45 mm, adjustable compression and rebound stage, adjustable preload
Rear wheel location / suspension Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable preload
Suspension travel, front / rear 120 mm / 117
Wheelbase 1,457 mm
Castor 99.8 mm
Steering head angel 66.4°
Wheels M Carbon Wheels
Rim dimensions, front 3.50 x 17″
Rim dimensions, rear 6.00 x 17″
Tire, front 120/70 ZR 17
Tire, rear 200/55 ZR 17
Brake, front Twin disc brake, M Brake 4-piston fixed caliper, 5 mm diameter 320 mm
Brake, rear Single disc brake, 2-piston fixed caliper, diameter 220 mm
ABS BMW Motorrad Race ABS Pro (part-integral), modes to select
ABS Pro ABS Pro settings for RAIN, ROAD, DYNAMIC mode, no ABS Pro in RACE and Race Pro 1-3 mode
Dimensions / weights
Seat height 832 mm
Inner leg curve 1,845 mm
Usable tank volume 16.5 l
Reserve approx. 4 l
Length 2,073 mm
Height (excl. mirrors) 1,197 mm
Width (excl. mirrors) 848 mm
Dry weight 170 kg (M Competition Package 169.8 kg) without battery
Unladen weight, road ready, fully fuelled 192 kg (M Competition Package 191.8 kg) 1)
Permitted total weight 407 kg
Payload (with standard equipment) 212 kg
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable tank capacity.
2021 BMW M1000RR – Totalmotorcycle.com European Specifications/Technical Details
Engine
Type Water/oil-cooled 4-cylinder with 4-stroke in-line engine, four titanium valves per cylinder and BMW ShiftCam
Bore / stroke 80 mm x 49.7 mm
Capacity 999 cc
Ratet output 156 kW (212 hp) at 14,500 rpm
Max. torque 113 Nm at 11,000 rpm
Compression ratio 13.5 : 1
Mixture control Electronic injection, variable intake pibe
Emission control Closed-loop 3-way catalytic converters, EU-5 norm
Performance / fuel consumption
Maximum speed 306 km/h
Fuel consumption per 100 km based on WMTC 6.5 l
CO2 emission based on WMTC 151 g/km
Fuel type Unleaded super(premium), octane number 95 – 98 (RON)
(knock control; rated output at 98 RON)
Electrical system
Alternator 450 Watt
M Lightweight Battery 12 V / 5 Ah, Lithium-ion
We see a section of the LED headlights and the left front of the M RR.
Power transmission
Clutch Multiplate clutch in oil bath, anti-hopping clutch, with self-reinforcement
Gearbox Constant-mesh 6-speed gearbox with straight cut gears
Drive Chain 525 17/46
Traction Control BMW Motorrad DTC
Chassis / brakes
Frame Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension Upside-down telescopic fork with a diameter of 45 mm, adjustable compression and rebound stage, adjustable preload
Rear wheel location / suspension Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable preload
Suspension travel, front / rear 120 mm / 117
Wheelbase 1,457 mm
Castor 99.8 mm
Steering head angel 66.4°
Wheels M Carbon Wheels
Rim dimensions, front 3.50 x 17″
Rim dimensions, rear 6.00 x 17″
Tyre, front 120/70 ZR 17
Tyre, rear 200/55 ZR 17
Brake, front Twin disc brake, M Brake 4-piston fixed caliper, 5 mm diameter 320 mm
Brake, rear Single disc brake, 2-piston fixed caliper, diameter 220 mm
ABS BMW Motorrad Race ABS Pro (part-integral), modes to select
ABS Pro ABS Pro settings for RAIN, ROAD, DYNAMIC mode, no ABS Pro in RACE and Race Pro 1-3 mode
Dimensions / weights
Seat height 832 mm
Inner leg curve 1,845 mm
Usable tank volume 16.5 l
Reserve approx. 4 l
Length 2,073 mm
Height (excl. mirrors) 1,197 mm
Width (excl. mirrors) 848 mm
Dry weight 170 kg (M Competition Package 169.8 kg) without battery
Unladen weight, road ready, fully fuelled 192 kg (M Competition Package 191.8 kg) 1)
Permitted total weight 407 kg
Payload (with standard equipment) 212 kg
1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable tank capacity.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
