2021 Harley-Davidson LiveWire: THE UNIQUE STARTER BIKE.

Introducing the 2021 Harley-Davidson LiveWire…

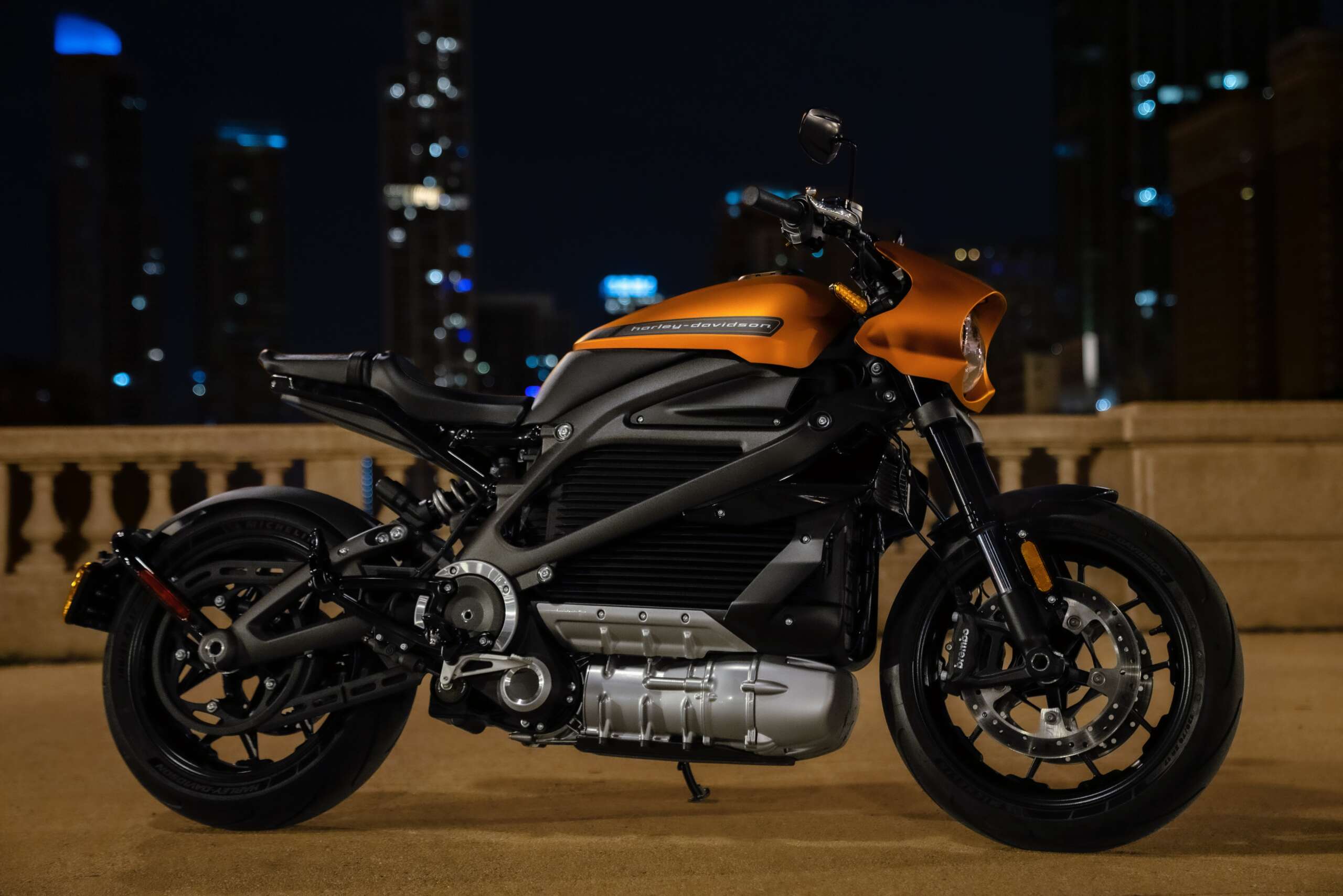

The Harley-Davidson® LiveWire™ is an all-new, all-electric motorcycle; an exhilarating and evocative new model designed to offer the rider a high-performance motorcycling experience infused with a new level of technology, and the premium look and feel of a Harley-Davidson product.







2021 Harley-Davidson LiveWire Totalmotorcycle.com Key Features

HARLEY-DAVIDSON DEALERSHIPS LEAD THE FUTURE OF ELECTRIC TWO-WHEELERS

Harley-Davidson® authorized dealers play an integral role in the launch of the LiveWire motorcycle with more than 250 authorized dealers globally offering the LiveWire motorcycle, including 150 in the United States. As its portfolio of electric two-wheelers grows, Harley-Davidson expects to gradually expand the number of global Harley-Davidson dealers offering electric two-wheelers with the goal of placing them in all interested dealerships by 2022.

Dealership support aligns with the company’s commitment to build the next generation of Harley-Davidson riders, in part by leading the electrification of the motorcycle market. Electric two-wheelers represent an exciting new opportunity for Harley-Davidson and its dealers, and those dealers participating in electrification are ready to capture the passion of innovation and technology and incorporate it into an excellent purchase and service experience.



LIVEWIRE MOTORCYCLE SERVICE SUPPORT

Authorized Harley-Davidson dealers preparing to offer the LiveWire motorcycle are required to have a specially trained Harley-Davidson Master Motorcycle Technician on staff to provide exemplary service. Dealer technicians become familiar with the technology, safety and service specific to the LiveWire through a series of Harley-Davidson University digital training sessions, followed by a two-day hands-on LiveWire seminar through Harley-Davidson University. At least one sales associate from each dealership offering the LiveWire model will also attend special training courses through Harley-Davidson University.



CHARGING INFRASTRUCTURE

Each authorized Harley-Davidson dealership offering the LiveWire model has installed at least one 24kW DC Fast Charge (DCFC) charging station at their facility. The LiveWire motorcycle may be charged through a SAE J1772 connector (or CCS2 – IEC type 2 charging connector in European and some other international markets) at any compatible DC fast charging station. DC Fast Charge technology provides a 0-80 percent of battery charge in 40 minutes or 0-100 percent charge in 60 minutes. The LiveWire motorcycle is equipped with an on-board Level 1 charger that plugs into a standard household outlet using a special power cord designed to fit under the seat.





HARLEY-DAVIDSON LIVEWIRE BECKONS A NEW MOTORCYCLING EXPERIENCE

The Harley-Davidson® LiveWire is an all-new, all-electric motorcycle; an exhilarating and evocative new model designed to offer the rider a high-performance motorcycling experience infused with a new level of technology, and the premium look and feel of a Harley-Davidson product.

Propelled by the immediate torque of the H-D Revelation all-electric powertrain, the LiveWire motorcycle is capable of rapid acceleration with just a twist of the throttle – no clutching or gear shifting required. An optimized center of gravity, rigid aluminum frame and premium adjustable suspension components give the LiveWire motorcycle dynamic handling. With up to 146 miles of range, performance is optimized for the urban street-rider.

The LiveWire model is the first in a broad portfolio of electric two-wheelers designed to establish Harley-Davidson as the leader in the electrification of motorcycles. Its debut is a significant part of the More Roads to Harley-Davidson plan to accelerate building the next generation of riders through new products in additional motorcycle segments, broader access and a commitment to strengthen dealers globally.

The LiveWire motorcycle will be available in 2019 through select authorized Harley-Davidson dealerships in the United States, Canada and most European countries where Harley-Davidson conducts business, with expanding global availability planned for 2020 through 2021. LiveWire MSRP is $29,799*.



THE LIVEWIRE MOTORCYCLE RIDING EXPERIENCE

The LiveWire model offers an all-new motorcycling experience – accessible to new riders and thrilling for accomplished motorcyclists. The LiveWire motorcycle radically alters many of the sensations that have previously defined motorcycling; the H-D Revelation powertrain delivers extreme power in a seamless rush while the simplicity of operation allows the rider to focus more completely on the real thrill of motorcycling – the dynamic sensations of acceleration and motion.

  • Amazing acceleration: The instant torque provided by the H-D Revelation powertrain delivers exhilarating acceleration from a stop; the LiveWire motorcycle can rush from 0 to 60 mph (0 to 100 kph) in 3.0 seconds and 60 to 80 mph (100 to 129 kph) in 1.9 seconds. Because maximum torque is always on tap, roll-on acceleration for passing from any speed is outstanding.
  • Twist-And-Go: Electric power requires no clutch and no gear shifting, greatly simplifying operation for new riders. All riders will also appreciate the braking effect of the power regeneration mode as it adds charge to the battery, especially in urban traffic that often requires a lot of slow-rolling and stop-and-go riding.
  • Minimal NVH (Noise/Vibration/Harshness): The H-D Revelation electric powertrain produces minimal vibration, very little heat, and minimal noise, all of which enhance rider comfort. When the rider activates the LiveWire motorcycle powertrain, the electric motor will produce a subtle pulsing of torque, a heartbeat sensation designed to let the rider know the bike has come to life and is ready to ride. The pulsing ceases when the motorcycle begins to move, and resumes when the motorcycle comes to a stop. The LiveWire model is designed to produce a mechanical signature Harley-Davidson sound as it accelerates and gains speed; a new sound that represents the smooth, electric power of the LiveWire motorcycle.
  • Ease of Maintenance: The LiveWire motorcycle is convenient to own because many of the routine maintenance items required of a motorcycle powered by an internal combustion engine are eliminated: there’s no engine oil to change, and no spark plugs, air filter or primary drive to service. Electric power also eliminates maintenance issues associated with ethanol-blend gasoline and off-season storage. The LiveWire motorcycle does require inspection or service of some mechanical and consumable items, such as the drive belt tension, gearbox oil, brake fluid and brake pads, and tires, at recommended intervals and pre-ride. The high-voltage battery has a five-year, unlimited-mileage warranty.
  • Performance and Range Optimized for the Urban Rider: The high-voltage battery provides 146 miles (235 km) of city range or 95 miles (152 km) of combined stop-and-go and highway range as measured using the MIC City and MIC Combined tests** and 98 miles (158 km) using World Motorcycle Test Cycle (WMTC)***. DC Fast Charge (DCFC) technology provides a 0-80 percent of battery charge in 40 minutes or 0-100 percent charge in 60 minutes.
  • Leading in Electrification: Harley-Davidson has committed to lead in the electrification of motorcycling and creation of a strong network of charging stations globally is part of that commitment. Harley-Davidson is focused on providing ample opportunities for riders to charge their motorcycles – at home, at authorized Harley-Davidson dealerships, and at other convenient places. All participating authorized Harley-Davidson dealers selling the LiveWire model will offer a DCFC charging station at their dealership.
  • High-Performance Handling and Control: The LiveWire motorcycle is designed to deliver nimble, agile handling for confident control on urban streets and a thrilling ride on curving backroads.
  • The center of gravity has been optimized to enhance traction, braking, and cornering performance.
  • A lightweight cast aluminum frame is extremely rigid and contributes to the precise, responsive handling that makes the LiveWire model exciting to ride in any situation.
  • Premium high-performance SHOWA®BFRC (Balanced Free Rear Cushion-lite) mono-shock rear suspension is fully adjustable and designed to deliver a comfortable ride and precise handling.
  • Premium SHOWA®SFF-BP® (Separate Function front Fork-Big Piston) front suspension matches the performance and adjustability of the rear shock and delivers exceptional low-speed damping control – ideal for composed control in typical urban riding conditions.
  • Brembo® Monoblock front brake calipers grip dual 300 mm-diameter rotors and deliver outstanding power with a crisp feel for confident braking performance.
  • Premium co-branded H-D®/Michelin®Scorcher Sport tires (180mm rear and 120mm front widths) are designed specifically to enhance the handling performance of the LiveWire model.



LIVEWIRE MOTORCYCLE TECHNOLOGY

The LiveWire motorcycle is equipped with a full suite of electronic rider aids and interfaces for a completely connected experience. (See a separate release for more LiveWire Technology details)

  • The Reflex Defensive Rider Systems (RDRS) utilize Cornering Enhanced Anti-lock Braking System (C-ABS), Cornering Enhanced Traction Control System (C-TCS) and Drag-Torque Slip Control System (DSCS) to give the rider more confidence and control in less-than-ideal situations.
  • A 4.3-inch color TFT touchscreen (thin-film-transistor, a type of liquid-crystal display noted for high image quality and contrast) located above the handlebar offers the rider a wide range of information on a display that’s bright and easy to read.
  • Seven selectable Ride Modes electronically control the performance characteristics of the motorcycle and the level of RDRS intervention.
  • A Daymaker®LED headlamp cleanly illuminates the road with brilliant light. LED signal, brake and tail lamps are bright and conspicuous in traffic.
  • H-DConnect service technology provides cellular connectivity that can link a LiveWire owner with their motorcycle through their smart phone using the latest version of the Harley-Davidson™ App.



LIVEWIRE MOTORCYCLE STYLING/DESIGN

The LiveWire model creates a design foundation for coming Harley-Davidson electric vehicles that projects authentic Harley-Davidson styling.

  • The LiveWire follows a key Harley-Davidson styling dictum: the focus is on the motor. Just as the engine is the most eye-catching element – the crown jewel – of every previous Harley-Davidson motorcycle, the H-D Revelation electric motor is the first-look focus of the LiveWire motorcycle. Its bright case and mechanical, muscular shape is meant to convey the power it contains.

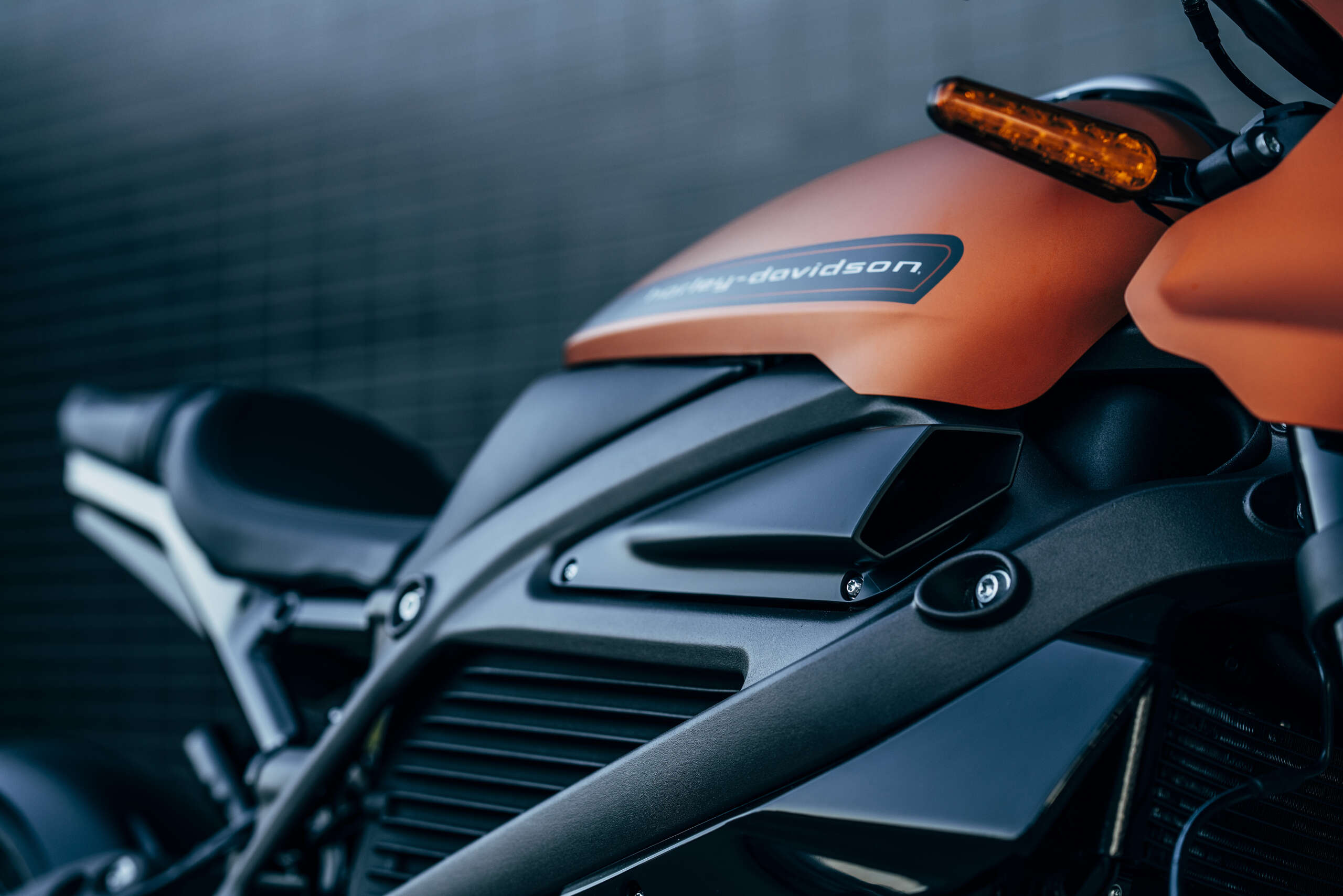

  • The cast-aluminum case for the high-voltage battery has been deliberately, highly styled with functional cooling fins that suggest the attractive, repetitive horizontal cooling fins on an air-cooled engine.
  • The rear fender hugs and moves with the wheel so that it almost disappears from sight. This permits the high, wasp-like contour of the tail section below the seat.
  • A paint treatment was selected to reflect the advanced technology of the LiveWire motorcycle. The tone of this paint finish gives it the look of anodized metal and is available in two exclusive colors: Yellow Fuse, and Orange Fuse. The LiveWire model is also available in Vivid Black.
  • A selection of new accessories specific to the LiveWire motorcycle will available at launch, including a two-up seat and tail section, a speed screen blade, decorative trim, hand and foot controls and a motorcycle cover with a charging cord port. Many existing Harley-Davidson®Genuine Motor Parts & Accessories, including hand and foot controls, mirrors and Spectra Glo decorative lighting, may also be used to customize the LiveWire model.



* Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.

**Riding range estimates provided following SAE J2982 Riding Range Test Procedure and are based on expected performance of a fully-charged battery when operated under specified conditions.  Actual range will vary depending on riding habits, ambient weather and equipment conditions.

 ***Test per WMTC Per EEC 134/2014 Annex VII Appendix 3.3





HARLEY-DAVIDSON LIVEWIRE EQUIPPED WITH RIDE-ENHANCING TECHNOLOGY

The Harley-Davidson® LiveWire motorcycle is equipped with a full suite of electronic rider aids and interfaces designed to allow the owner to create a personalized and fully connected riding experience. Those features include the following:



H-D™ CONNECT CELLULAR CONNECTIVITY

The LiveWire motorcycle is equipped with H-D Connect service technology that provides cellular connectivity that can link a LiveWire owner with their motorcycle through their smart phone using the latest version of the free Harley-Davidson App. The H-D App is available in the iOS and Android app stores and core functions (turn-by-turn directions, ride planning, dealer and event locations) of the app are included with the free download. H-D Connect transmits key vehicle health information through the H-D App and provides the owner with the reassurance of being able to remotely monitor their motorcycle’s security, including tamper alerts on the H-D App and stolen-vehicle assistance.

H-D Connect utilizes a cellular telematics control unit (TCU) that functions as an LTE-enabled modem connecting LiveWire motorcycles to the cloud. The H-D Connect service will be offered for a one-year free trial period after the purchase of a new LiveWire motorcycle and available with a subscription charge following the initial free period. H-D Connect will be available beginning in Fall 2019 in the United States, Canada, Puerto Rico and most EU countries. In late August 2020, service will be available in Australia, Brazil, Mexico and Japan. Subscription details can be found on H-D.com/connect.

Motorcycle status: With H-D Connect and the H-D App, the LiveWire motorcycle owner will be able to check key vehicle health information on the H-D App at any time and from any location where sufficient cellular signal is available. Information available through H-D Connect includes high-voltage battery charge status, available range and 12-volt battery charge status. For example, as the LiveWire motorcycle is charging, the owner can check the charge status, including charge level and time to completion, without having to be near the motorcycle.

Tamper alerts and stolen vehicle tracking service: To ensure that an owner’s bike is safe and secure, H-D connect indicates the location of the parked motorcycle on a map in the Harley-Davidson App at any time and in any location where sufficient cellular signal is available. H-D Connect will send an alert to the owner’s phone if the security system is activated because the motorcycle has been bumped or is being tampered with. Another alert will be sent to the owner’s phone if the motorcycle is moved out of the geo-fenced area, and GPS-enabled stolen-vehicle tracking provides peace of mind should the owner need to locate their motorcycle.

Service reminders and notifications: Automated reminders about upcoming vehicle service requirements and other vehicle care notifications will be provided to the rider through the H-D App, which will also offer a Charge Station Location Finder.



COLOR TOUCHSCREEN

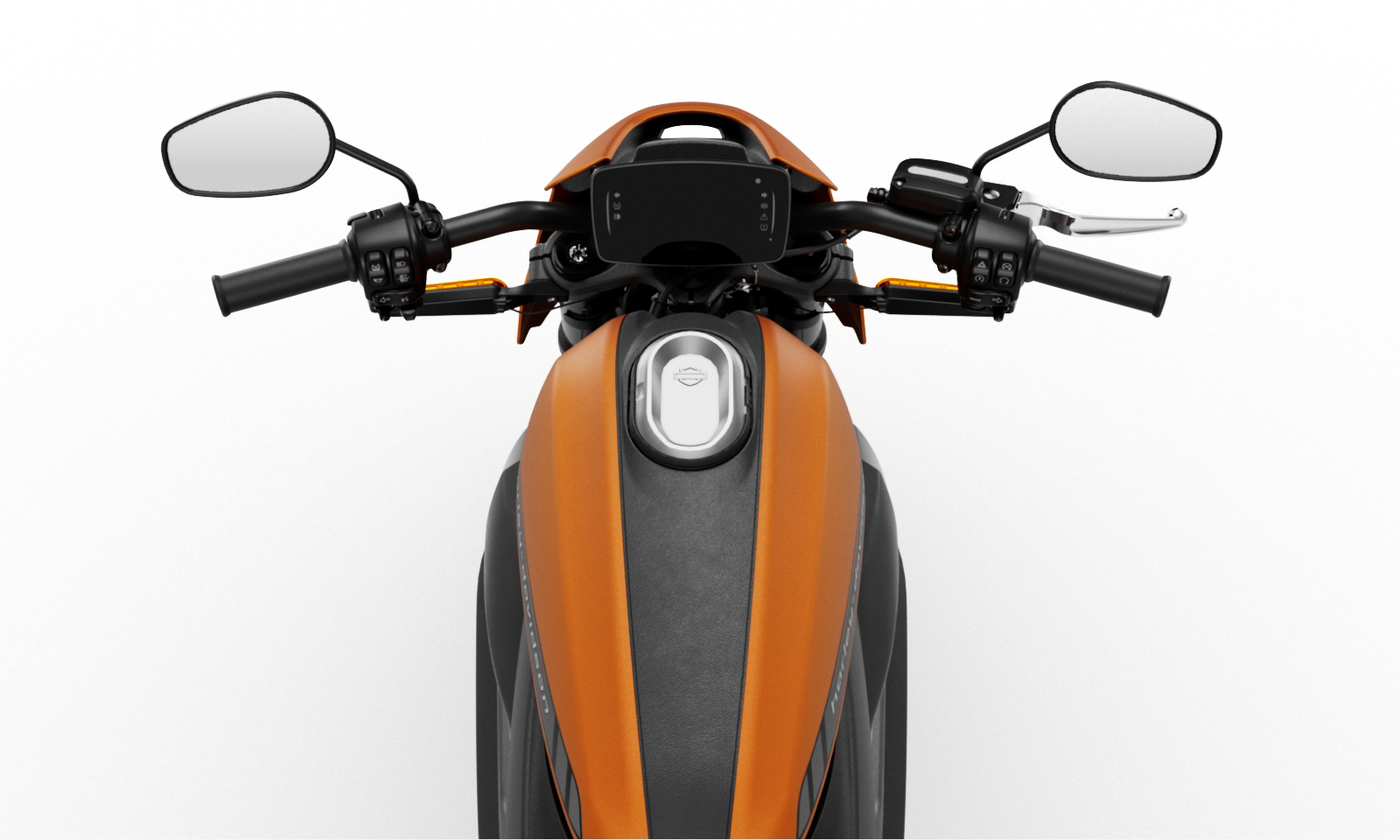

A 4.3-inch color TFT touchscreen (thin-film-transistor, a type of liquid-crystal display noted for high image quality and contrast) located above the handlebar offers the rider a wide range of information on a display that’s bright and easy to read. The display unit is tilt-adjustable to afford most riders an optimal viewing angle and the screen brightness adjusts automatically. The touchscreen only functions when the motorcycle is not moving but many of the display options can be changed using the hand control joysticks while riding.

  • A speedometer, range and high-voltage battery status (percent remaining) are always displayed, as required by motor vehicle regulations.
  • The screen display can be customized with several rider-selectable “widgets.” Some include:
    • A power meter that indicates how much of the available power is being used as the motorcycle is being ridden
    • Ride Mode indicator (displays which mode is active)
    • Charging status (showing time remaining to full charge)
    • Alert information keyed to the tell-tale warning lights (turn signals, ABS active, Traction Control active, Check Engine/Battery Overheat, etc.)
    • Active Bluetooth®connection and available functions
  • The LiveWire motorcycle offers Bluetooth®connectivity for use with a smartphone and a wireless headset through the touchscreen. The rider can listen to music files stored on the smartphone, accept incoming calls, and hear turn-by-turn navigation instructions provided by the Harley-Davidson App. Music file and incoming call information is displayed on the screen. The rider can control music and phone functions with the joystick hand controls.
  • Tell-tale lights or indicators are located on each side of the display frame: Turn signals, high/low beam headlamp, ABS active, traction control active, fault warning.



REFLEX™ DEFENSIVE RIDER SYSTEMS

The LiveWire model is equipped with Reflex Defensive Rider Systems (RDRS), a collection of technology designed to match motorcycle performance to available traction during acceleration, deceleration and braking. The systems are designed to aid the rider in controlling the vehicle while accelerating and braking in a straight line or while in a turn. A rider may find the systems most helpful when riding in adverse road conditions and in urgent situations. The systems are electronic and utilize the latest chassis control, electronic brake control and powertrain technology.

Disclaimer: Available traction is determined by the road/tire interface. The systems bundled into the RDRS are only able to adjust brake pressure or powertrain torque in an attempt to keep the forces at the tire from exceeding available grip. These technologies do not have the ability to increase grip, or to intervene when the rider has not made a brake or throttle application (e.g. coasting through a corner with the clutch disengaged). RDRS is not a system to directly influence vehicle direction. This is a key difference between motorcycle RDRS and Automotive Stability Control. The rider is ultimately responsible for steering and path corrections.

Cornering Enhanced Antilock Braking System (C-ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation. ABS operates independently on front and rear brakes to keep the wheels rolling and prevent uncontrolled wheel lock. Cornering Enhanced Antilock Braking System (C-ABS) is a variant of ABS that takes into consideration the lean angle of the motorcycle. The brake pressure required to limit wheel slip when cornering is typically lower than the pressure required under straight line operation. Rear-wheel Lift Mitigation utilizes the C-ABS sensors and the six-axis inertial measurement unit (IMU) to manage rear-wheel lift during heavy braking and further balance deceleration and rider control.

Cornering Enhanced Traction Control System (C-TCS)
Traction control is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating, and enhances rider control and confidence, especially in wet weather. The Cornering Enhanced Traction Control System (C-TCS) is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering. C-TCS can improve rider confidence when available traction is compromised by wet weather, a sudden unanticipated change in the surface, or when riding on an unpaved road. The action of C-TCS is also tailored when cornering based on lean angle. Each pre-programed ride mode has a specific level of C-TCS. In the customizable ride modes, the rider can select from three levels of C-TCS intervention. With the exception of Rain mode, the rider can deactivate C-TCS when stopped. C-TCS can be re-activated with the push of a button on the left-hand control when the motorcycle is stopped or underway.

C-TCS is also designed to support Front-Wheel Lift Mitigation to reduce the height and duration of front-wheel lift (wheelie). The height and duration of front-wheel lift is tied to the rider-selected C-TCS mode, with Rain being the most-restrictive and Sport being the least-restrictive. Front-Wheel Lift Mitigation is turned off when C-TCS is turned off.

Drag-Torque Slip Control System (DSCS)
Drag-Torque Slip Control (DSCS) is designed to manage rear-wheel slip and prevent rear-wheel lock due to regenerative braking, which typically occurs when the rider decelerates on wet or slippery road surfaces. DSCS functions at speeds over 10 mph (about 17 kph) and works in concert with the ABS system to balance motorcycle deceleration and rider control. DSCS is integral to rear wheel ABS performance.



RIDE MODES

The LiveWire model offers seven selectable Ride Modes that electronically control the performance characteristics of the motorcycle and the level of electronic intervention. Four of the modes are pre-programmed and three are customizable by the owner. Each Ride Mode consists of a specific combination of power (which dictates the maximum rate of acceleration), regeneration (felt as a braking effect when off-throttle), throttle response, and traction control settings.

The rider uses the MODE button on the right-hand controller to change the active ride mode, and the active mode may be displayed as a widget symbol on the color touchscreen. The rider can change ride modes at any time, while riding the motorcycle or when stopped.

  • Sport Mode:Delivers the full performance potential of the motorcycle in a direct and precise manner, with full power and the quickest throttle response on tap. Traction control is set to its lowest level of intervention, and regeneration offers a significant off-throttle braking effect. Sport Mode maximizes the rider connection to the motorcycle for a direct and visceral performance riding experience.
  • Road Mode:Delivers balanced performance with an intuitive blend of technology for daily use, with Anti-lock Braking System (ABS) and Traction Control System (TCS) intervention that offers peace of mind. In Road Mode, the LiveWire motorcycle response will feel more similar to an ICE-powered (Internal Combustion Engine) motorcycle.
  • Range Mode:Offers a blend of settings that results in smooth and judicious response to throttle input with a high level of regeneration to get the most riding distance out of a battery charge.
  • Rain Mode:This mode offers restrained acceleration and limited regeneration with higher levels of electronic intervention to give the rider greater confidence when riding in the rain or when traction is otherwise limited. The Rain Mode is also an appropriate setting for riders to use as they become familiar with an electric motorcycle, and to build riding confidence.Note: The rider may choose to turn off the Traction Control System (TCS) when the motorcycle is stopped. When TCS is turned off, it will not be active in Sport, Road or Range Mode. TCS is a default in Rain Mode, however, and will be active whenever Rain Mode is selected. Anti-lock Braking System (ABS) is always active and may not be turned off by the rider.
  • Custom Modes:With the motorcycle off, the rider can create up to three Custom Modes, displayed as A, B and C on the touchscreen mode widget. Custom Modes allow the rider to select their own combined preference of Power, Regeneration, Throttle Response and Traction Control levels within specific ranges. Power, Regeneration and Throttle Response can be adjusted from 0 to 100 percent in 1 percent increments, and Traction Control can be set to Low, Medium or High intervention. So, for example, the rider could create a mode with 100 percent power and throttle response (as is pre-programmed Sport Mode) but with a lower level of Regeneration than is offered in the pre-programmed Sport Mode. The rider can create a Custom Mode tailored to personal preference or for use in special circumstances, such as track days.





H-D REVELATION ELECTRIC POWERTRAIN SIGNALS A NEW ERA OF HARLEY-DAVIDSON PERFORMANCE

The Harley-Davidson® LiveWire motorcycle features an all-new, all-electric powertrain utilizing contemporary motor and energy-storage technology.



THE H-D REVELATION™ ELECTRIC MOTOR

The LiveWire motorcycle is powered by the all-new H-D Revelation™ permanent-magnet electric motor rated at 105 horsepower (78 kW) and producing 86 ft. lbs. of torque. Unlike an internal combustion engine (ICE), the H-D Revelation can produce 100 percent of its rated torque the instant the throttle is twisted, and 100 percent of that torque is always available, resulting in incredible, seamless acceleration for an exhilarating ride. The LiveWire can accelerate from 0-60 mph in 3.0 seconds, and 60-80 mph in 1.9 seconds. And the high-voltage battery provides 146 miles (235 km) of city range or 95 miles (152 km) of combined stop-and-go and highway range as measured using the MIC City and MIC Combined tests**

The H-D Revelation motor is cooled by a water jacket, with coolant circulated through a small radiator, and is positioned longitudinally and low in the chassis to lower the motorcycle’s center of gravity, and aid maneuverability.

Because there is no traditional transmission, and no clutch; riding the LiveWire motorcycle is an accessible and thrilling “twist-and-go” proposition. A gearset is required to turn the output 90 degrees to align the drive belt sprocket with the rear wheel which contributes to LiveWire’s distinctive sound. The motor output shaft mates to a gearbox containing a 9.71:1 gear reduction running in an oil bath. A final-drive belt transfers power from the gearbox output pulley to the rear wheel, with a 3:1 ratio between the output pulley and the wheel pulley. The gearset is designed to produce a signature Harley-Davidson sound as the LiveWire motorcycle accelerates and gains speed; a new sound that represents the smooth, electric power of the LiveWire motorcycle.



LIVEWIRE MOTORCYCLE POWER STORAGE

The LiveWire motorcycle is powered by a 15.5kWh high-voltage battery (or RESS; Rechargeable Energy Storage System) composed of lithium-ion cells, positioned in the center of the motorcycle and surrounded by the motorcycle’s cast-aluminum frame. The RESS is enclosed in a cast-aluminum housing which also acts as a heat-sink to help cool the cells. The sides of the RESS housing are finned and exposed to the air and are visible within the motorcycle frame. Small air scoops on the motorcycle bodywork duct cooling air to the upper portion of the RESS housing. The RESS housing is attached to the frame at several points and contributes to the over-all rigidity of the chassis. The LiveWire motorcycle is also equipped with a 12-volt lithium-ion accessory battery that provides power for start-up and key fob recognition.

Power regeneration is accomplished through the drivetrain when the LiveWire motorcycle is coasting “off-throttle,” as the motor becomes a generator putting charge back into the RESS. The rider will feel the regeneration process as an engine-braking effect. The level of regeneration is programmed as an element of each of the four Ride Modes, and the regeneration setting can also be adjusted by the rider as an element of multiple custom Ride Modes.

The RESS has a five-year, unlimited-mileage warranty.



LIVEWIRE MOTORCYCLE CHARGING OPTIONS

The LiveWire motorcycle is equipped with an on-board Level 1 charger that plugs into a standard 120-volt (or 240-volt) household outlet with a special power cord that stores below the motorcycle seat. Level 1 RPH (range per hour) of charging time is 13 miles for each hour of charging; and the LiveWire motorcycle will get a full charge overnight with Level 1 charging.

The latest in DC Fast Charge (DCFC) technology is standard on the LiveWire, and may be used to charge the motorcycle through a SAE J1772 connector (or CCS2 – IEC type 2 charging connector in European and some other international markets). DC Fast Charge RPH (range per hour) of charging time is 192 miles for each hour of charging. That is 0-80 percent DC Fast Charge in 40 minutes. 0-100 percent DC Fast Charge in 60 minutes.

The LiveWire motorcycle may be charged with a Level 2 charging station, but it will charge at the Level 1 rate. The charging port is located below a cap in the bodywork forward of the motorcycle seat.

All participating authorized Harley-Davidson dealers selling the LiveWire model will offer a public DCFC charging station at their dealership. U.S. LiveWire customers will receive free charging on ChargePoint stations at participating LiveWire dealers for the first two years. Additionally, Harley-Davidson will provide U.S. LiveWire owners with 500 kWh of free charging service at Electrify America DCFC charging stations.



**Riding range estimates provided following SAE J2982 Riding Range Test Procedure and are based on expected performance of a fully-charged battery when operated under specified conditions.  Actual range will vary depending on riding habits, ambient weather and equipment conditions.







2021 Harley-Davidson LiveWire Totalmotorcycle.com Features and Benefits

We’re bringing the thrill of riding into the future. Get ready for a lineup of electric motorcycles that will inspire new ways to ride.





2021 Harley-Davidson LiveWire – Totalmotorcycle.com  Specifications/Technical Details
US MSRP Price: $ (Limited Edition)
USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Model ELW LiveWire™ Notes
D I M E N S I O N S
Length 84.1 in. (2135 mm)
Overall Width 32.7 in. (830mm)
Overall Height 42.5 in. (1080 mm)
Seat Height: 30.0 in. (761 mm) 2
• Laden 30.7 in. (780 mm)
• Unladen
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 24.5°
Trail 4.3 in. (108 mm)
Wheelbase 58.7 in. (1490 mm)
Tires (Michelin® Scorcher® “Sport”):
• Front – Scorcher® “Sport” 120/70 ZR17 58W
• Rear – Scorcher® “Sport” 180/55 ZR17 73W
Transmission Capacity .34 qt. (0.32 l)
Coolant Capacity .8 qt. (0.72 l)
Weight: 553 lb. (251 kg)
• As Shipped 553 lb. (251 kg)
• In Running Order 953 lb. (432 kg)
• Gross Vehicle Weight Rating 434 lb. (197 kg)
• Gross Axle Weight Rating 580 lb. (263 kg)
• Front
• Rear
D R I V E T R A I N
Primary Drive Spiral bevel gear, 55/17 ratio
Final Drive Belt, 3/1 ratio 6
Transmission Single Speed
Gear Ratios (overall): U.S.
• 1st 9.71
C H A S S I S
Frame Aluminum cast
Swingarm Aluminum cast
Front Forks SHOWA® 43 mm Inverted Separate Function Forks – Big Piston (SFF-BP®), fully adjustable
Rear Shocks SHOWA® Balance Free Rear Cushion Lite (BFRC-lite®), fully adjustable
Wheels: Black, Split 5-Spoke Cast Aluminum 7
• Front 17 in. x 3.5 in. (432 mm x 89 mm)
• Rear 17 in. x 5.5 in. (432 mm x 140 mm)
Brakes: Dual 4-piston monoblock radial mount front, dual-piston rear
• Caliper Type
Brakes (cont’d): • Rotor Type (diameter x width): Dual floating rotors (front), floating rotor (rear)
• Front (dual) 11.8 in. x 0.2 in. (300 mm x 5 mm)
• Rear 10.2 in. x 0.20 in. (260 mm x 5 mm)
• Anti-Lock Braking System Standard
Suspension Travel: 4.5 in. (115 mm)
• Front Wheel 4.5 in. (115 mm)
• Rear Wheel
P E R F O R M A N C E
Lean Angle (per J1168): Right 45°/ Left 45°
E L E C T R I C
Battery Lithium Ion, 12.8V , 24 Wh, 120 A
Charging Onboard DC to DC conversion
Lights (as per country regulation):
• Headlamp All LED, low beam, high beam and signature position lamp LED with light pipe tail
• Tail/Stop Lights LED (front). LED, Amber (rear)
• Turn Signal Lights High beam, turn signals, ABS, traction control, EV fault
• Indicator Lamps
Gauges 4.3” WQVGA 480×272 TFT Color Display with Ambient Light Sensor, 9 warning lights, Real Time Clock and Integrated Bluetooth
Connectivity to a Smartphone to provide infotainment features including turn-by-turn navigation, telephone, music, and voice recognition
Electric Power Outlet USB C-type; output 5V at 3A
EV SPECIFIC CONTENT – MOTOR
Torque 86 ft-lb (116 Nm) 3
RPM Max 15,000
Type Internal Permanent Magnet Synchronous Motor with Water Jacket cooling
Motor Name H-D Revelation™
Inverter Type IGBT
Pole Count 6
Power 105 HP (78 kW)
Diameter 6.69 in. (170 mm)
Stack Length 3.94 in. (100 mm)
EV SPECIFIC CONTENT – RESS
Type Lithium Ion
Capacity Capacity 15.5kWh total (13.6kWh min usable)
EV SPECIFIC CONTENT – CHARGING 4
Charge Plug Type SAE J1772 Combo Inlet (CCS1) / IEC 62196 Combo Inlet (CCS2)
On-board Charger, charge rate 1400W
Charging Time – MIC city cycle (not verified):
• AC Wall Charging Capable of 13.8 miles/hour (22.2 km/hour) charge rate
-RESS from 10 hours / 12.5 hours
0%–80% / 0%–100% Capable of 221.2 miles/hour (356 km/hour) charge rate 40 minutes / 1.0 hours
• DC Fast Charging
-RESS from
0%–80% / 0%–100%
DC to DC Conversion 450W at 14.2V
EV SPECIFIC CONTENT – RANGE 5
MIC City 146 mi (235 km)
Highway (70 mph sustained) 70 mi (113 km)
Combined 95 mi (152 km)
WMTC (World Motorcycle Test Cycle) 98 mi (158 km)
I N F O TA I N M E N T
Hands-free Mobile Phone (via Bluetooth) Standard
Voice Recognition Languages:
• Phone Functions Only Via paired iOS or Android device Via paired iOS or Android device
• Tuner/Media/Navigation
USB USB Type-C
Bluetooth Phone/media supported
Telematics Standard
WA R R A N T Y
Warranty (unlimited mileage) Vehicle – 24 months HV Battery – 5 years 6
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter 7

Footnotes 1Vehicles depicted may differ from the vehicle manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may change or discontinue other available models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information regarding available models and accessories. All models feature integrated Longitudinal Permanent Magnet Motor, controller, and single speed gear box with a 2-year unlimited mileage vehicle and 5-year unlimited mileage battery limited warranty. 2Measurement reflects 180 lb. (81.7 kg) operator weight. 3Values shown are nominal. Performance may vary by country and region. 4Charging rate varies based on output of the charge unit and ambient/vehicle temperature. 5Range estimates are based on expected performance on a fully-charged battery and are derived from SAE J2982 Riding Range. Test Procedure data on a sample motorcycle under ideal laboratory conditions. Your actual range will vary depending on your personal riding habits, road and driving conditions, ambient weather, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). 6See Motorcycle Owner’s Manual for complete details. 7Recommended service interval: First 1000 miles (1,600 km) and every 20,000 miles (40,000 km) thereafter.





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
