2021 Harley-Davidson Street Glide Special Guide

20212021 Harley-Davidson Street Glide Special

20212021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special 2021 Harley-Davidson Street Glide Special

2021 Harley-Davidson Street Glide Special: AUTHORITATIVE POWER.

Introducing the 2021 Harley-Davidson Street Glide Special…

A factory-custom bagger with highway-shredding power offered with new two-tone paint options, and with a choice of a blacked-out or bright chrome styling treatments, giving the customer a choice of a look that’s dark and sinister, or brilliant and more traditional. All Special models are now equipped with the high-performance Ventilator air cleaner with a washable filter element, and a new low-profile engine guard, the Milwaukee-Eight 114 V-Twin engine and Prodigy wheels. The original hot rod bagger rolls behind the classic Harley-Davidson batwing fairing. Authoritative power meets long-haul comfort and custom style. Bright white Daymaker LED headlamp pushes out an impressive punch that lights up the road and makes the motorcycle more conspicuous in daytime.

The original hot rod bagger rolls behind the classic Harley-Davidson batwing fairing. Authoritative power meets long-haul comfort and custom style.

Touring – Go the distance and discover the wide-open world in the most epic way possible.

A factory-custom bagger with highway-shredding power, in a blacked-out or chrome finish.





2021 Harley-Davidson Street Glide Special Totalmotorcycle.com Key Features

THIS IS THE RIGHT BIKE FOR
Milwaukee-Eight® 114 V-Twin engine and Prodigy™ wheels
Never before offered two-tone paint schemes
Bright white Daymaker® LED headlamp
Upright riding position
Floorboards
Passenger seat
Saddlebags
Fork mounted fairing
Infotainment
RDRS optional

New Features for 2021

  • Chrome Option: The Street Glide Special model may be ordered with either Chrome or Dark styling. Chrome replaces these black components: Powertrain covers and trim, front end, handlebar, exhaust, tank console and other details. When the Chrome option is selected, the Prodigy wheels are finished in Gloss Black with machined highlights.

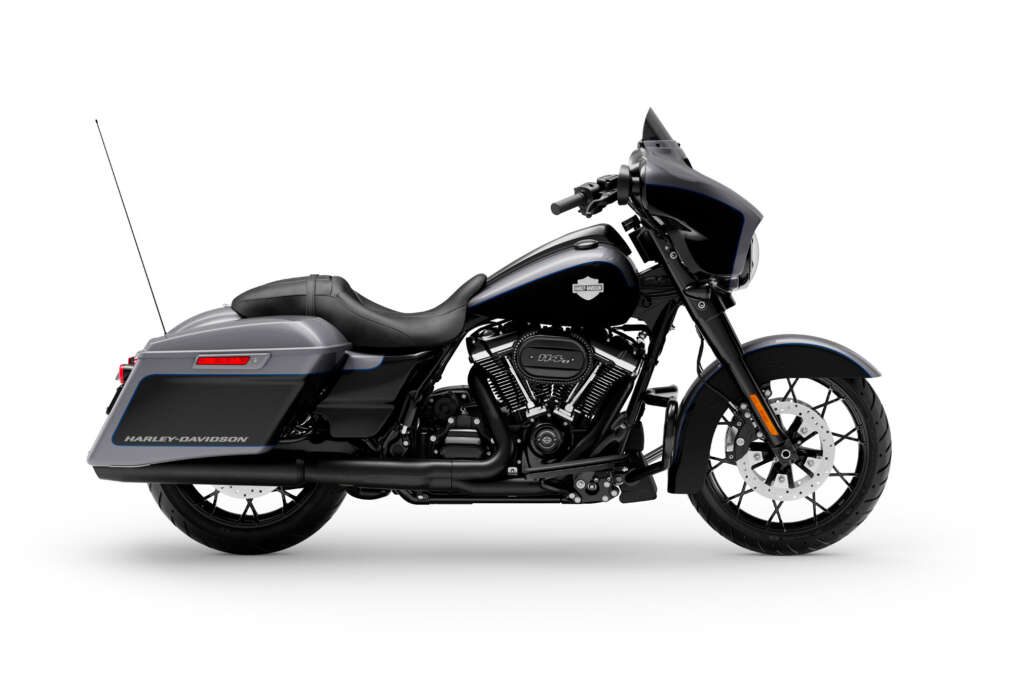

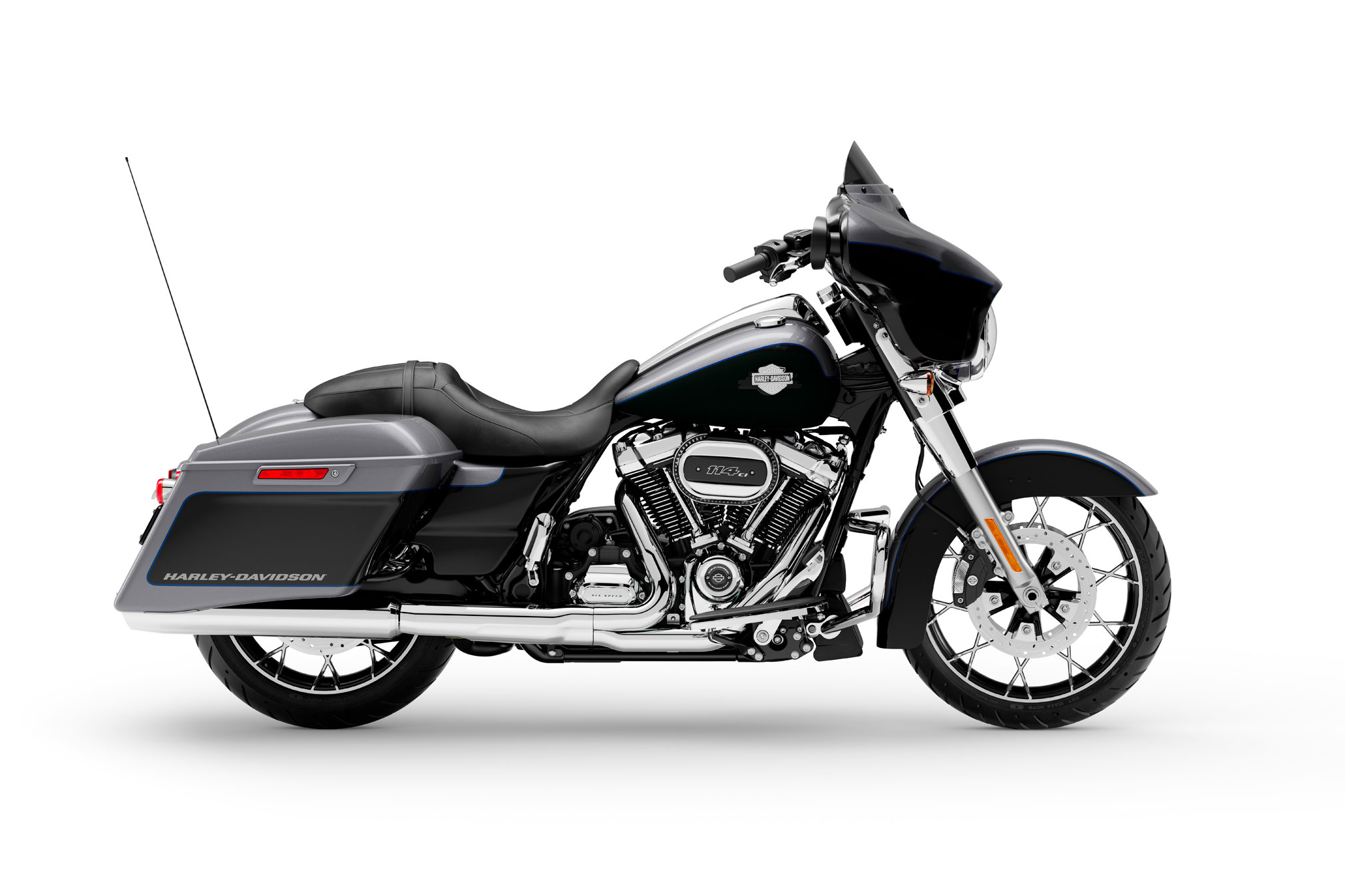

  • Two-Tone Paint Option: For the first time a two-tone paint option is available for the Street Glide Special model: Gauntlet Gray Metallic / Vivid Black with either Chrome or Dark styling. Other color options include:

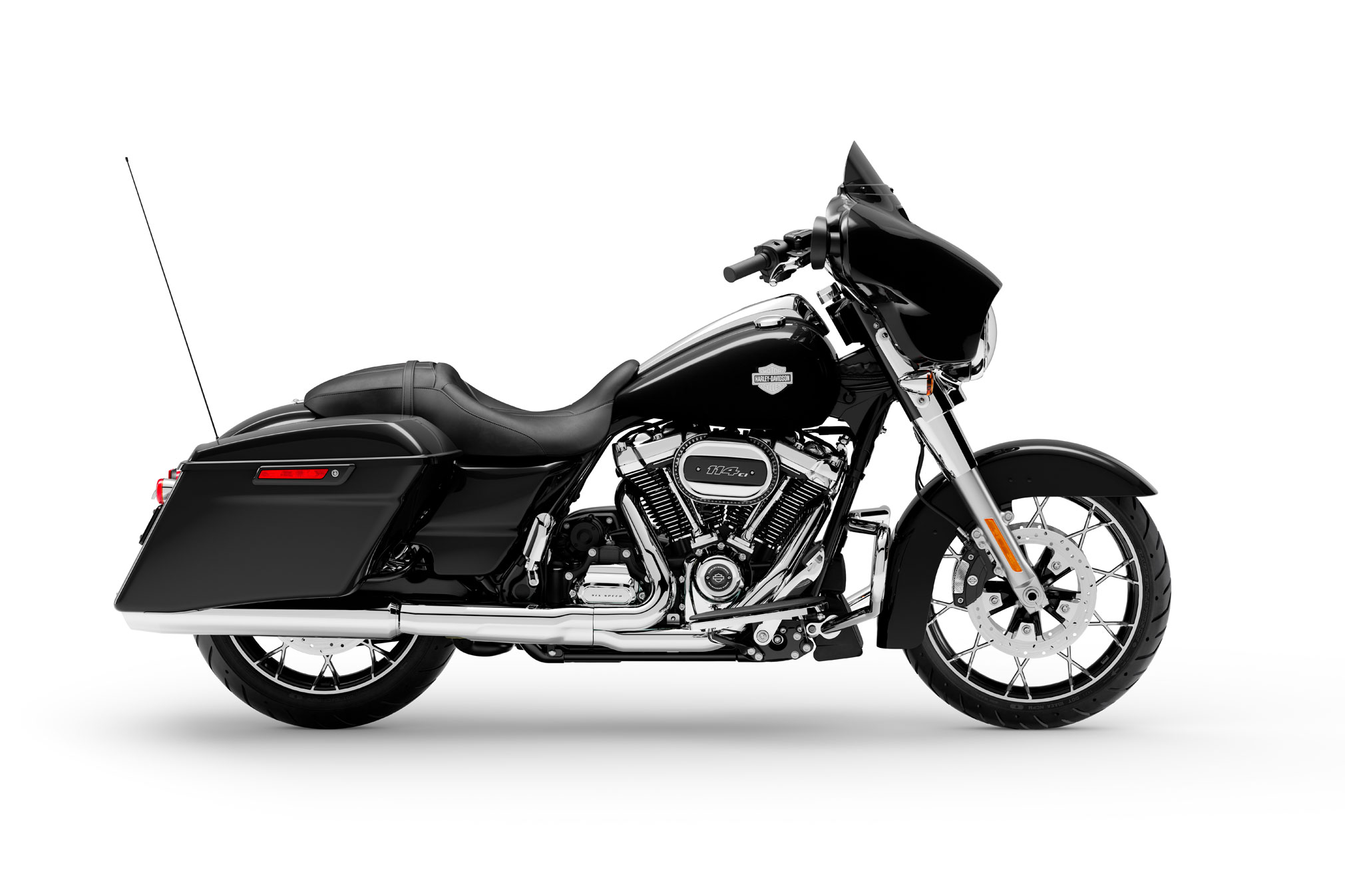

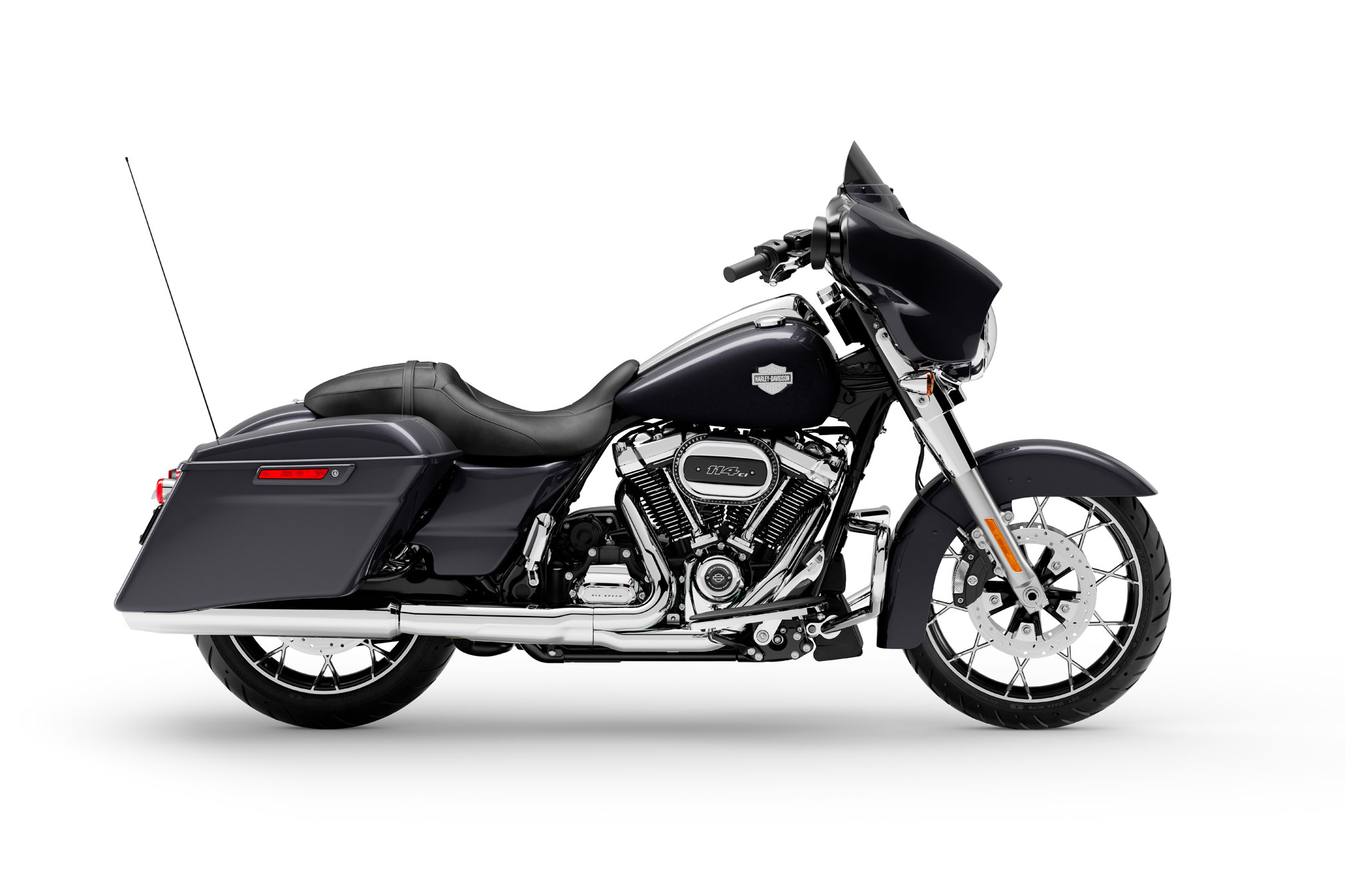

  • Chrome Styling (Gloss Black Prodigy wheels with machined highlights)

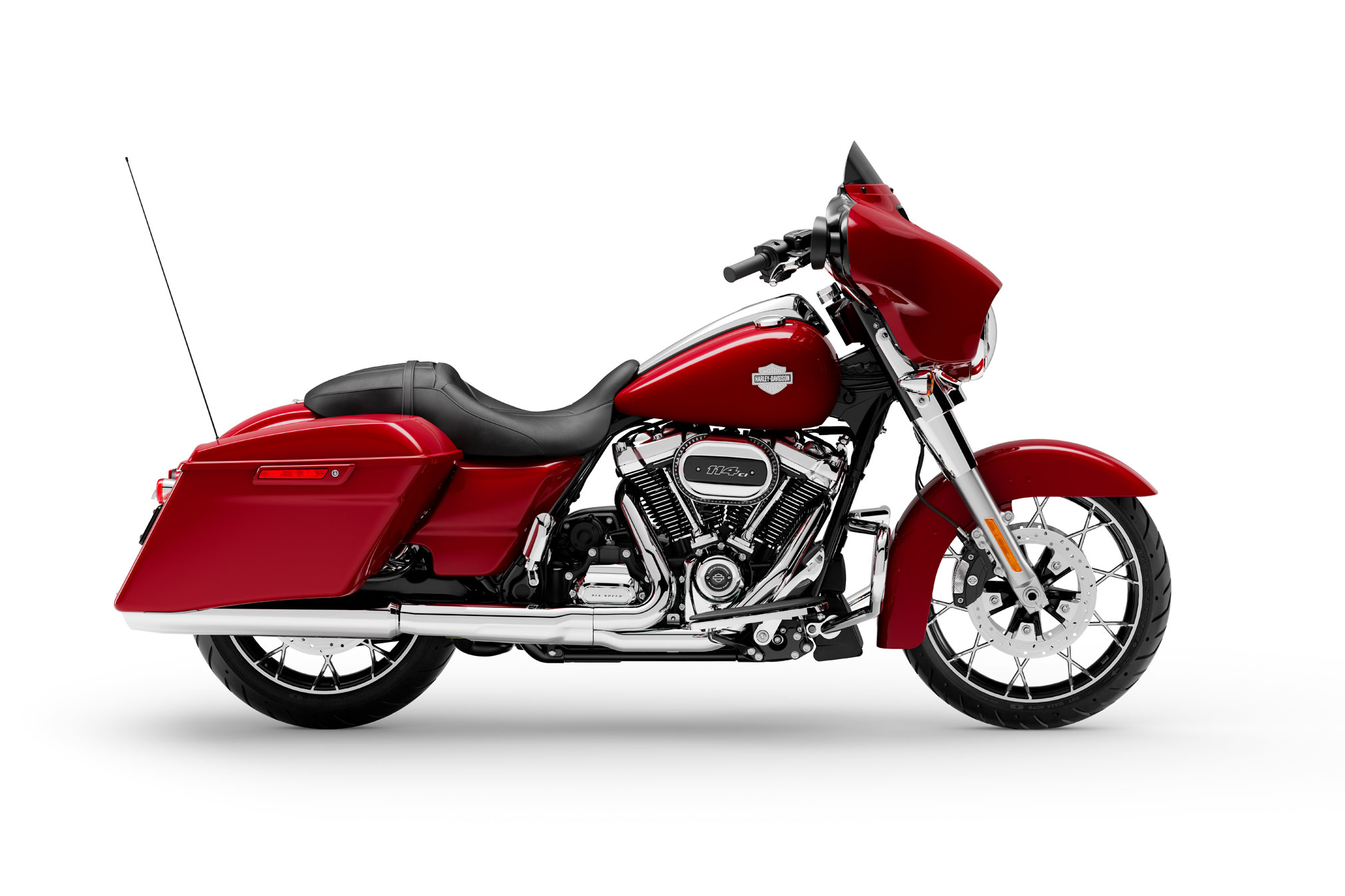

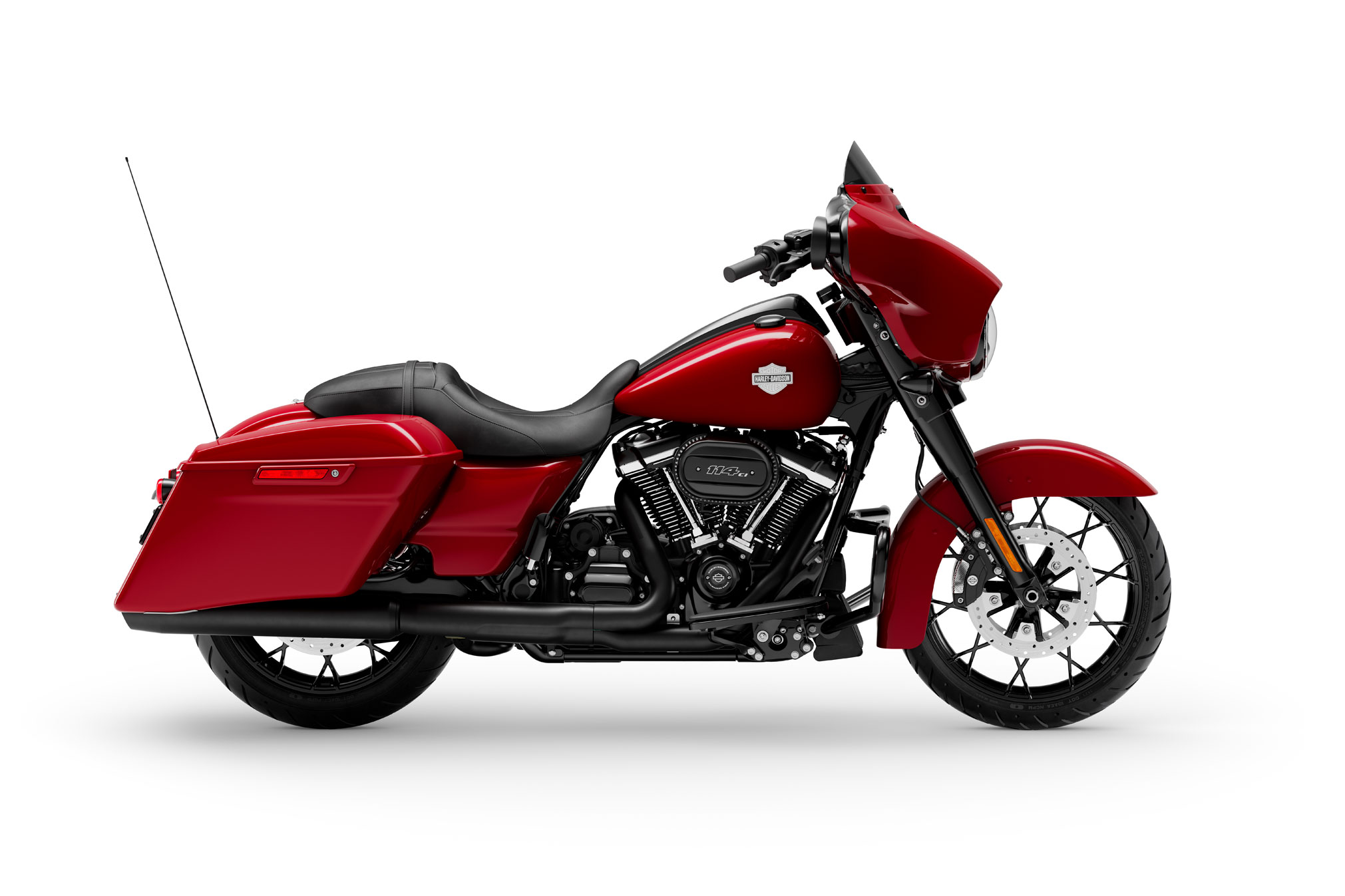

    Solid Color: Vivid Black, Black Jack Metallic, Billiard Red
    Custom Color: Snake Venom

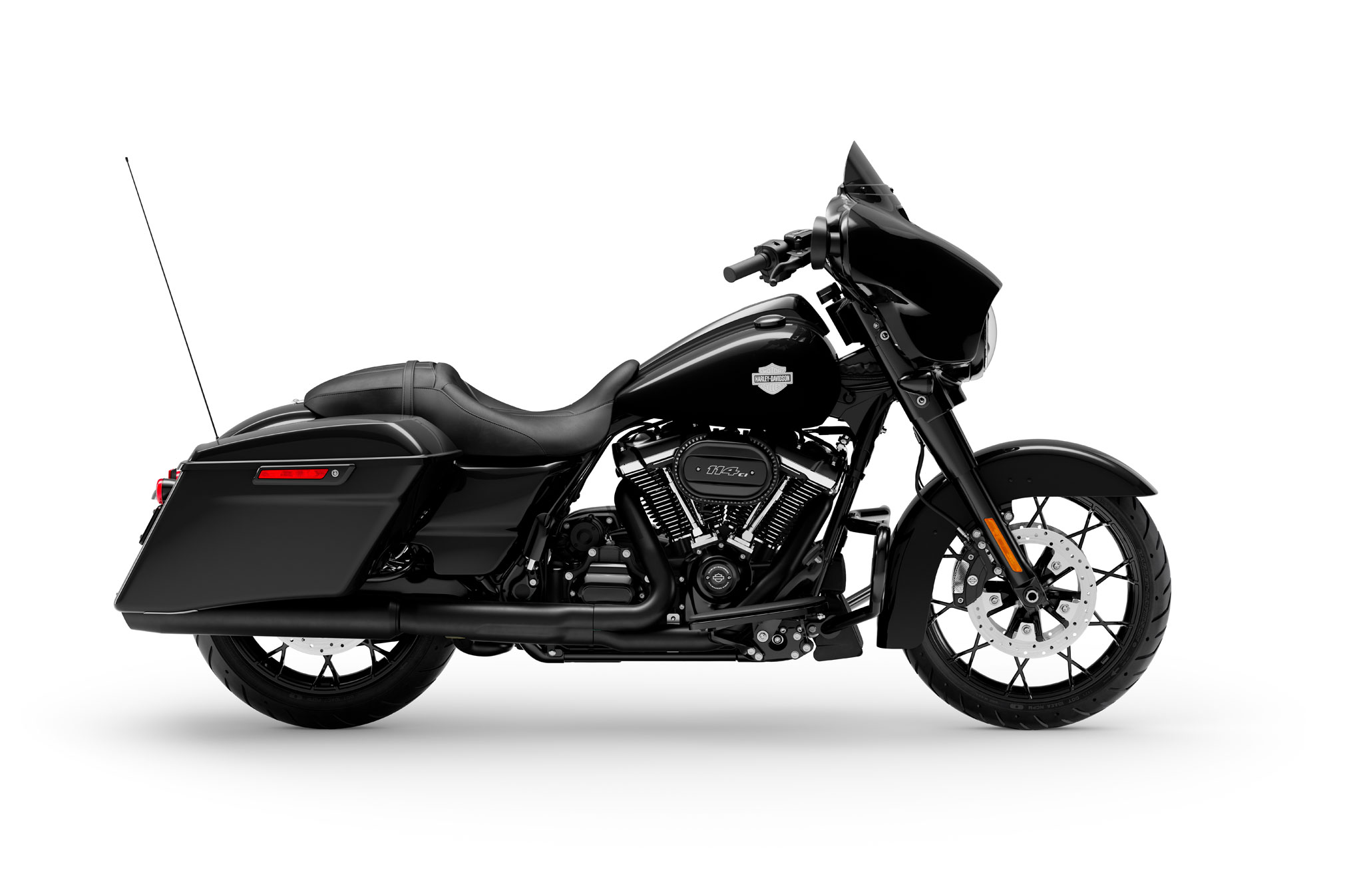

  • Dark Styling (Gloss Black Prodigy wheels)

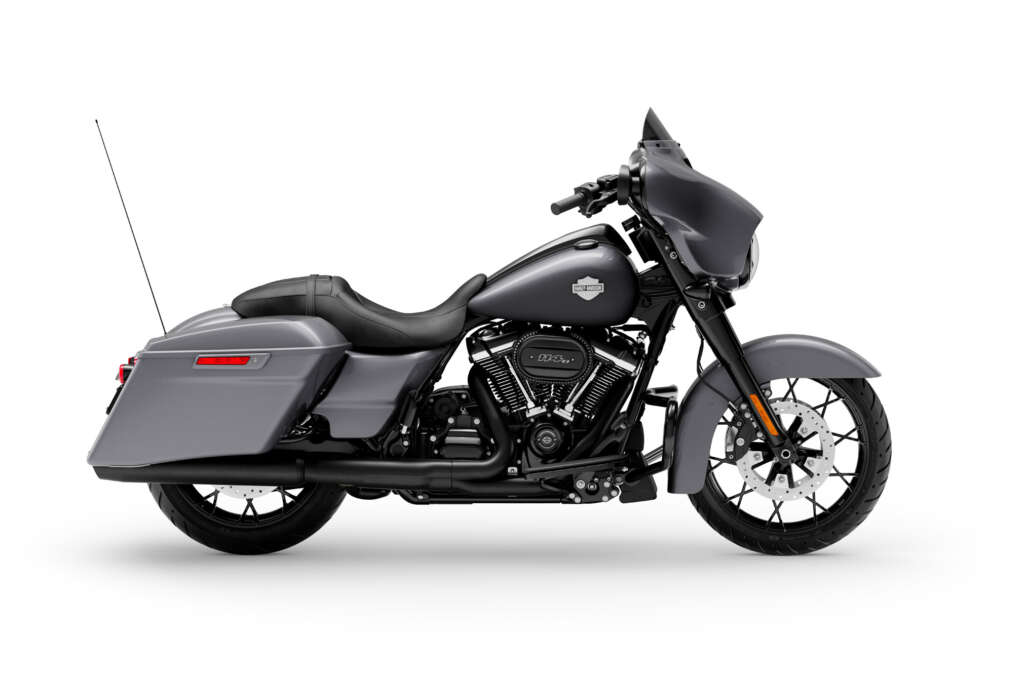

    Solid Color: Vivid Black, Gauntlet Gray Metallic, Billiard Red, Deadwood Green Denim
    Custom Color: Snake Venom
  • Low Profile Engine Guard: Designed to emphasize the slammed, low lines of the Street Glide Special model, this 1.25-inch diameter engine guard mounts 11 inches lower than the standard Touring engine guard and features a slightly forward sweep that provides plenty of room around the brake and shift levers.
  • LED Headlamp: The Street Glide Special model is now equipped with a Daymaker LED headlamp, replacing the previous dual-halogen headlamp. The  Daymaker LED headlamp pushes out an impressive punch with a bright-white beam that lights up the road and makes the motorcycle more conspicuous in daytime.
  • Console: A new low-profile center console tops a new 6-gallon fuel tank with a side fuel fill, to further lower the motorcycle profile and distinguish the Street Glide Special from standard Touring models.
  • Tank Medallion: A new tank medallion is based on the Bar & Shield logo.



Key Features

  • Batwing Fairing with a splitstream vent to reduce head buffeting, and a low-profile sport windshield.
  • Stretched locking saddlebags extend below the mufflers to lower the motorcycle profile. One-Touch latches are easy to open with one hand.
  • One-piece, two-up seat shaped for long-range rider comfort.
  • Exclusive Special details: Color-matched inner fairing, fascia panels between the saddlebags and rear fenders, and a low-profile front fender.
  • Low-profile license plate holder and combination stop/tail/turn rear lighting.
  • Boom! Box GTS infotainment system with color touch screen, advanced navigation, hand and voice commands (when paired with compatible headset), and two-speaker audio.Android Auto™ application compatibility is new a feature of the Boom!™ Box GTS system, which also supports Apple CarPlay software compatibility. With a wired connection to a compatible smartphone the rider may access media, streaming services, communication and navigation on the road while minimizing distractions. (Apple CarPlay functionality requires use with optional Harley-Davidson Genuine Motor Accessories headsets). Android Auto™ and Apple CarPlay are not available in all countries and regions.



NEW STYLE CHOICES AND FEATURES FOR HARLEY-DAVIDSON HOT ROD BAGGERS

New Chrome Finish and Two-Tone Paint Options for Road Glide Special and Street Glide Special Models

A trio of hot rod baggers with fresh swagger and new features is part of the collection of special Harley-Davidson motorcycles for 2021. With a slammed stance and muscular Milwaukee-Eight 114 power, the Road King Special, Road Glide Special and Street Glide Special models combine commanding street presence with the long-haul capabilities of the Harley-Davidson Touring chassis. These bikes are designed to rule the boulevard on Friday night and run for the border at daybreak.

For 2021, the Street Glide Special and Road Glide Special models are offered with new two-tone paint options, and with a choice of a blacked-out or bright chrome styling treatments, giving the customer a choice of a look that’s dark and sinister, or brilliant and more traditional. All Special models are now equipped with the high-performance Ventilator air cleaner with a washable filter element, and a new low-profile engine guard.



Milwaukee-Eight 114 Power

Each Special model is powered by the Milwaukee-Eight 114 V-Twin engine, the most displacement and power offered from the factory for Harley-Davidson Touring model motorcycles. In the Touring chassis, the rubber-mounted and counter-balanced Milwaukee-Eight 114 engine delivers inspiring performance and classic Harley-Davidson look-sound-feel.

  • Displacement: 114 cu in (1,868 cc)
  • Compression Ratio: 10.5:1
  • Torque: 118 ft. lb. @ 3250 RPM
  • Four valve cylinder heads (two exhaust and two intake valves per head, eight total); improved airflow through the engine contributes to power output.
  • Dual spark plugs for more complete combustion of the air/fuel charge and maximized power and efficiency.
  • Single camshaft reduces mechanical noise so a richer exhaust tone can predominate.
  • Advanced cylinder head design, dual knock sensors, and precision cooling allow a higher compression ratio for increased torque output and strong acceleration.
  • V-Twin design with 45-degree cylinder angle maintains classic Harley-Davidson look-sound-feel.
  • 6-Speed Cruise Drive transmission reduces engine RPM at highway speeds to enhance fuel economy and rider comfort.
  • New Ventilator high-performance air cleaner with a washable filter element improves air flow to the engine and adds performance styling.



Harley-Davidson Touring Chassis

The Harley-Davidson Touring frame is designed for the long haul, with a rigid backbone design to sustain the weight of passengers and luggage and to support current engine power.

  • Front suspension with dual bending valve internal technology for linear damping performance and a smooth ride.
  • Emulsion technology rear shocks are calibrated for touring and feature a single-knob pre-load adjustment that does not require tools or maintenance.
  • Lowered rear suspension gives Special models a slammed stance.
  • Prodigy cast-aluminum wheels (19-inch front, 18-inch rear) are exclusive to Special models.
  • Standard Reflex™ Linked Brembo Brakes with ABS (Antilock Braking System) is designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to help prevent uncontrolled wheel lock in urgent situations.
  • Optional RDRS Safety Enhancements (formerly known as RDRS) – A collection of technologies designed to match motorcycle performance to available traction during acceleration, deceleration and braking. Includes linked braking, ABS, traction control, drag-torque slip control, tire pressure monitoring system, and vehicle hold control.



Street Glide Special Model

The original hot rod bagger rolls behind the classic Harley-Davidson batwing fairing. Authoritative power meets long-haul comfort and custom style.

New Features for 2021

  • Chrome Option: The Street Glide Special model may be ordered with either Chrome or Dark styling. Chrome replaces these black components: Powertrain covers and trim, front end, handlebar, exhaust, tank console and other details. When the Chrome option is selected, the Prodigy wheels are finished in Gloss Black with machined highlights.
  • Two-Tone Paint Option: For the first time a two-tone paint option is available for the Street Glide Special model: Gauntlet Gray Metallic / Vivid Black with either Chrome or Dark styling. Other color options include:
  • Chrome Styling (Gloss Black Prodigy wheels with machined highlights)
    Solid Color: Vivid Black, Black Jack Metallic, Billiard Red
    Custom Color: Snake Venom
  • Dark Styling (Gloss Black Prodigy wheels)
    Solid Color: Vivid Black, Gauntlet Gray Metallic, Billiard Red, Deadwood Green Denim
    Custom Color: Snake Venom
  • Low Profile Engine Guard: Designed to emphasize the slammed, low lines of the Street Glide Special model, this 1.25-inch diameter engine guard mounts 11 inches lower than the standard Touring engine guard and features a slightly forward sweep that provides plenty of room around the brake and shift levers.
  • LED Headlamp: The Street Glide Special model is now equipped with a Daymaker LED headlamp, replacing the previous dual-halogen headlamp. The  Daymaker LED headlamp pushes out an impressive punch with a bright-white beam that lights up the road and makes the motorcycle more conspicuous in daytime.
  • Console: A new low-profile center console tops a new 6-gallon fuel tank with a side fuel fill, to further lower the motorcycle profile and distinguish the Street Glide Special from standard Touring models.
  • Tank Medallion: A new tank medallion is based on the Bar & Shield logo.



Key Features

  • Batwing Fairing with a splitstream vent to reduce head buffeting, and a low-profile sport windshield.
  • Stretched locking saddlebags extend below the mufflers to lower the motorcycle profile. One-Touch latches are easy to open with one hand.
  • One-piece, two-up seat shaped for long-range rider comfort.
  • Exclusive Special details: Color-matched inner fairing, fascia panels between the saddlebags and rear fenders, and a low-profile front fender.
  • Low-profile license plate holder and combination stop/tail/turn rear lighting.
  • Boom! Box GTS infotainment system with color touch screen, advanced navigation, hand and voice commands (when paired with compatible headset), and two-speaker audio.Android Auto™ application compatibility is new a feature of the Boom!™ Box GTS system, which also supports Apple CarPlay software compatibility. With a wired connection to a compatible smartphone the rider may access media, streaming services, communication and navigation on the road while minimizing distractions. (Apple CarPlay functionality requires use with optional Harley-Davidson Genuine Motor Accessories headsets). Android Auto™ and Apple CarPlay are not available in all countries and regions.







2021 Harley-Davidson Street Glide Special Totalmotorcycle.com Features and Benefits

MILWAUKEE-EIGHT® 114 ENGINE
The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

BOOM!™ BOX GTS INFOTAINMENT SYSTEM
An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

GLOSS BLACK PRODIGY WHEELS
Black, glossy 19” inch front and 18” rear aluminum wheels so you can roll in with style and attitude.

STRETCHED SADDLEBAGS
Designed to accentuate the long and low profile for an iconic, custom look.

BLACKED-OUT EVERYTHING
Blacked-out front forks, handlebars, tank console and exhaust for an aggressive, modern look.

RESPONSIVE SUSPENSION
High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.

There’s a wide-open world to experience out there. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson Touring machine. No one builds them better.



HARLEY-DAVIDSON® RDRS SAFETY ENHANCEMENTS DESIGNED TO BOOST MOTORCYCLE RIDER CONFIDENCE

Motorcycle-Specific Technology Matches Performance to Available Traction

Harley-Davidson® RDRS Safety Enhancements (formerly known as RDRS) is a collection of technology designed to enhance rider confidence during unexpected situations or poor road conditions. RDRS Safety Enhancements are designed to match motorcycle performance to available traction during acceleration, deceleration and braking, in a straight line or while in a turn. The systems are electronic and utilize the latest chassis control, electronic brake control and powertrain technology.

“RDRS Safety Enhancements are technologies developed by Harley-Davidson and designed to make motorcycling more intuitive,” said VP Marketing Theo Keetell. “Our intent is to assist riders of every skill level in an unanticipated moment when electronic intervention may react more quickly, and with more precision, than our own reflexes can react. A situation that activates an RDRS Safety Enhancement may be rare, but if it occurs, this technology may be invaluable.”

Introduced for many 2020 Harley-Davidson® motorcycles, RDRS Safety Enhancements are standard on all 2021 Harley-Davidson CVO™, Tri Glide® Ultra, Freewheeler®, and LiveWire® models. RDRS Safety Enhancements are optional on all 2021 Touring models in the U.S. The RDRS Safety Enhancements are bundled together, except where noted.



Important Note: Available traction is determined by the road/tire interface. RDRS Safety Enhancements on motorcycles are only able to adjust brake pressure or powertrain torque in an attempt to keep the forces at the tire from exceeding available grip. These technologies do not have the ability to increase grip, or to intervene when the rider has not made a brake or throttle application (e.g. coasting through a corner with the clutch disengaged). RDRS Safety Enhancements on motorcycles do not have the ability to directly influence vehicle direction. This is a key difference between motorcycle RDRS Safety Enhancements and automotive stability control. The rider is ultimately responsible for speed, steering and path corrections.



Cornering Enhanced RDRS Safety Enhancements

Some RDRS Safety Enhancements may be “cornering enhanced,” technology that is motorcycle-specific and a key difference between RDRS Safety Enhancements and automotive traction/stability control systems. Harley-Davidson motorcycles equipped with RDRS Safety Enhancements have an inertial measurement unit, or IMU, that measures and reports the lean angle of two-wheel motorcycles, or the lateral acceleration of a Trike (three-wheel motorcycle), as it navigates a turn. Because many motorcycles have different size front and rear tires, when the motorcycle leans into a turn the wheels begin to rotate at slightly different speeds. The tire traction patch – the part of the tire actually touching the pavement – also changes as the motorcycle leans in a turn. Cornering enhanced technology takes this into account and for optimal performance intervenes differently when the motorcycle is leaned compared to when the motorcycle is upright.



RDRS Safety Enhancements



Cornering Enhanced Electronic Linked Braking (C-ELB)

This technology applies braking effort to both wheels when the rider uses either the hand lever (front) or foot pedal (rear) brake control, which can help many riders achieve better braking performance. The C-ELB system provides more responsiveness and allows for more balanced front and rear braking under a wide variety of brake applications. The system provides more linking when the rider is applying heavier braking and reduces or eliminates linking for light braking and low speeds. When linked, applying the front brake lever alone will cause the system to also dynamically apply an amount of braking to the rear. Applying the rear brake pedal alone will cause the system to also apply an amount of braking to the left front caliper. C-ELB takes into account the motorcycle lean angle or Trike lateral acceleration. C-ELB will alter the proportioning of brake pressure between the front and rear brakes when braking while cornering in an attempt to improve the ability of the bike to maintain the rider’s intended path.

This technology is standard on all 2020-later CVO™ models and optional on most 2020 Touring models.



Cornering Enhanced Antilock Braking System (C-ABS)

ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation. ABS operates independently on front and rear brakes to keep the wheels rolling and prevent uncontrolled wheel lock. Cornering Enhanced Antilock Braking System (C-ABS) is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically lower than the pressure required under straight line operation.

This technology is standard on 2020-later LiveWire and CVO models and optional on most 2020-later Touring models.



Cornering Enhanced Traction Control System (C-TCS)

The Cornering Enhanced Traction Control System (C-TCS) is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering. C-TCS can improve rider confidence when available traction is compromised by wet weather, a sudden unanticipated change in the surface, or when riding on an unpaved road. The rider may select one of two traction control modes: Standard Mode is optimized for dry surfaces; Rain Mode is optimized for wet surfaces. The system can also be turned off. The action of C-TCS is also tailored when cornering based on lean angle.

This technology is standard on all 2020-later LiveWire and CVO models and optional on most  2020-later Touring models.



Drag-Torque Slip Control System (DSCS)

Cornering Enhanced Drag-Torque Slip Control System (C-DSCS)

Drag-Torque Slip Control (DSCS) is designed to reduce excessive rear-wheel slip under deceleration, which typically occurs when the rider makes an abrupt down-shift gear change or decelerates abruptly on wet or slippery road surfaces. When DSCS detects excessive rear wheel slip under deceleration it will adjust engine torque delivery to better match rear-wheel speed to road speed. On models equipped with C-DSCS the action of DSCS may be tailored when cornering, based on detected lean angle (two-wheel motorcycles) or lateral acceleration (Trike models).

DSCS is standard on all 2020-later CVO models and optional on most 2020-later Touring models.  C-DSCS is standard on all 2020-later Trike models.



Vehicle Hold Control (VHC)

Vehicle Hold Control (VHC) applies and holds brake pressure when activated and prevents the motorcycle from rolling after the rider has released the brake controls. The primary function of VHC is to prevent the motorcycle from rolling when it is stopped, for example at a stop sign on a hill, in stop-and-go traffic on a slope, or on a steep decline out of a parking structure. VHC is designed to make it easier to ride away with confidence by minimizing the number of controls needed to pull away smoothly. The system applies brake pressure until the rider actuates the throttle and clutch to pull away. VHC may also be engaged when the motorcycle is stopped on a flat surface if the rider wants to maintain position without applying pressure to a brake control.

The rider activates VHC by momentarily applying extra pressure to either the front-brake hand lever or the rear-brake foot control after the motorcycle has come to a complete stop. If rider brakes very hard to a stop, and holds the brake pressure after stopping, VHC may also set without any added squeeze. A VHC indicator light will illuminate to confirm that the rider has activated VHC, and the ABS system will hold brake pressure after the rider releases the brake control. VHC is disengaged automatically as the rider begins to pull away from a stop, or if the rider applies and releases either brake control.

VHC is not to be used as a parking brake, so it will also disengage if the rider lowers the side stand (on models with a side-stand sensor, not a feature in all markets) or shifts into neutral on models without a side-stand sensor, or if the engine is turned off. In most situations after five minutes the indicator light will flash and the VHC will release if there is no rider action.

This feature is standard on 2020-later CVO™ models and optional on most  2020-later Touring models.  VHC is not intended as a substitute for a parking brake in any situation.



Tire Pressure Monitoring System (TPMS)

TPMS alerts the rider to low tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life. The TPMS displays current front and rear tire pressure on the Boom!™ Box GTS screen (or on the odometer on Road King® models) and displays an indicator to alert the rider when tire pressure is low, and the pressure should be checked.

TPMS is part of the collection of RDRS Safety Enhancements and is also available as a stand-alone accessory through Harley-Davidson® Genuine Motor Parts & Accessories for 2020-later Touring models (except Japan) equipped with original equipment or accessory wheels that accept a TPMS sensor.



RDRS Safety Enhancements for Trike Models

Harley-Davidson® Freewheeler® and Tri Glide® Ultra models are equipped with Trike-specific RDRS Safety Enhancements. These include Cornering Enhanced Electronic Linked Braking (C-ELB), Cornering Enhanced ABS (C-ABS), Cornering Enhanced Traction Control System (C-TCS) and Cornering Enhanced Drag-Torque Slip Control System (C-DSCS). The CVO™ Tri Glide® model adds TPMS to the Trike-specific RDRS Safety Enhancements.





2021 Harley-Davidson Street Glide Special – Totalmotorcycle.com  Specifications/Technical Details
US MSRP Price: $ 27099 to $29199
USD
Canada MSRP Price: $32999 to $35699 CDN
Europe/UK MSRP Price: £ 24495 to 26885 GBP (On The Road inc 20% Vat)

PRICING 6
VIVID BLACK
$27,099
COLOR
$27,599
TWO-TONE
$28,099
CUSTOM COLOR
$28,299
VIVID BLACK W/BLACK FINISH
$27,999
COLOR W/BLACK FINISH
$28,499
TWO-TONE W/BLACK FINISH
$28,999
CUSTOM COLOR W/BLACK FINISH
$29,199
ABS OPTION
Standard
REFLEX™ DEFENSIVE RIDER SYSTEM (RDRS)
$995
SECURITY OPTION
Standard
CRUISE CONTROL OPTION
Standard
PREMIUM RADIO OPTION
Standard
CALIFORNIA EMISSIONS
$200
FREIGHT
$435

VIVID BLACK
$32,999
COLOUR
$33,599
TWO-TONE
$34,199
CUSTOM COLOUR
$34,499
VIVID BLACK W/BLACK FINISH
$34,199
COLOUR W/ BLACK FINISH
$34,799
TWO-TONE W/BLACK FINISH
$35,399
CUSTOM COLOUR W/BLACK FINISH
$35,699
ABS OPTION
Standard
REFLEX™ DEFENSIVE RIDER SYSTEM (RDRS) OPTION
Standard
SECURITY OPTION
Standard
CRUISE CONTROL OPTION
Standard
PREMIER RADIO OPTION
Standard

PRICING 1
VIVID BLACK
£24,495
COLOUR
£24,845
TWO-TONE
£25,245
CUSTOM COLOUR
£25,635
VIVID BLACK W/BLACK FINISH
£25,745
COLOUR W/ BLACK FINISH
£26,095
TWO-TONE W/BLACK FINISH
£26,495
CUSTOM COLOUR W/BLACK FINISH
£26,885
ABS OPTION
Standard
REFLEX™ DEFENSIVE RIDER SYSTEM (RDRS) OPTION
Standard
SECURITY OPTION
Standard
CRUISE CONTROL OPTION
Standard
PREMIER RADIO OPTION
Standard

Model FLHXS Street Glide® Special Notes
Dimensions
Length 95.5 in. (2,425 mm)
Overall Width 37.8 in. (960 mm)
Overall Height 52.6 in. (1,335 mm)
Seat Height, Laden 26.1 in. (664 mm) 2
Seat Height, Unladen 27.2 in. (690 mm)
Ground Clearance 4.9 in. (125 mm)
Rake (steering head) (deg) 26
Fork Angle (deg) 29.25
Trail 6.8 in. (173 mm)
Wheelbase 64 in. (1,625 mm)
Tires, Type Dunlop® Harley-Davidson Series, bias blackwall front and rear
Tires, Front Model D408F
Tires, Front Specification 130/60B19 61H
Tires, Rear Model D407T
Tires, Rear Specification 180/55B18 80H
Fuel Capacity 6 gal. (22.7 l)
Reserve Fuel Capacity, Fuel Injection (warning light) 1 gal. (3.8 l)
Oil Capacity (w/filter) 5.2 qt. (4.9 l)
Transmission Capacity 1 qt. (.95 l)
Primary Chain Case Capacity 1.1 qts. (1 l)
Coolant Capacity N/A
Weight, As Shipped 792 lb. (359 kg)
Weight, In Running Order 827 lb. (375 kg)
Gross Vehicle Weight Rating 1,360 lb. (617 kg)
Gross Axle Weight Rating, Front 500 lb. (227 kg)
Gross Axle Weight Rating, Rear 927 lb. (420 kg)
Luggage Capacity -Volume 2.5 cu ft (0.071 m3)
Engine
Engine Milwaukee-Eight™ 114
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder
Bore 4.016 in. (102 mm)
Stroke 4.5 in. (114 mm)
Displacement 114 cu in (1,868 cc)
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI) 3
Air Cleaner Paper, washable
Exhaust 2-1-2 dual exhaust with tapered mufflers
Lubrication System Pressurized, dry-sump with oil cooler
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Mechanically actuated 10 plate wet, Assist and Slip
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall) 1st 9.593
Gear Ratios (overall) 2nd 6.65
Gear Ratios (overall) 3rd 4.938
Gear Ratios (overall) 4th 4
Gear Ratios (overall) 5th 3.407
Gear Ratios (overall) 6th 2.875
Chassis
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded.
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded.
Front Fork 49mm Dual Bending Valve
Rear Shocks Premium Low Hand-Adjustable Rear Suspension
Wheels, Front Type Gloss Black Prodigy 4
Wheels, Front Width 3.5 in. (89 mm)
Wheels, Front Height 19 in. (483 mm)
Wheels, Rear Type Gloss Black Prodigy 4
Wheels, Rear Width 5 in. (127 mm)
Wheels, Rear Height 18 in. (457 mm)
Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
Brakes, Rotor Type Dual floating rotors (front), fixed rotor (rear)
Brakes, Front Diameter 11.8 in. (300 mm)
Brakes, Front Thickness 0.2 in. (5.1 mm)
Brakes, Front is dual Yes
Brakes, Rear Diameter 11.8 in. (300 mm)
Brakes, Rear Thickness 0.28 in. (7.1 mm)
Brakes, Anti-Lock Braking System (ABS) Standard
Suspension Travel, Front 4.6 in. (117 mm)
Suspension Travel, Rear 2.15 in. (54.6 mm)
Performance
Engine Torque Testing Method J1349
Engine Torque 118 ft-lb (160 Nm) 5
Engine Torque (rpm) 3,250
Lean Angle Testing Method J1168
Lean Angle, Right (deg.) 32
Lean Angle, Left (deg.) 31
Fuel Economy Testing Method Estimated City/Hwy
Fuel Economy 43 mpg (5.5 l/100 km) 6
Electric
Battery Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating)
Charging Three-phase, 48-amp system (600W @ 13V, 2000 rpm, 625W max power @ 13V)
Starting 1.6 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation), Headlamp LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam
Lights (as per country regulation), Tail/Stop 8W/28W
Lights (as per country regulation), Front Signal Lights 8W/28W
Lights (as per country regulation), Indicator Lamps High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator 7
Lights, Rear Turn Signals 8W/28W
Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Auxiliary Lamps N/A
Electric Power Outlet Electric power accessory port in fairing
GPS System Boom!™ Box 6.5GT audio system with GPS and touchscreen
Reverse Gear N/A
Warranty And Service
Warranty 24 months (unlimited mileage) 8
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter 9

Footnotes1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. 2Measurement reflects 180 lb. (81.7 kg) operator weight. 3Recommended 91 octane or higher fuel (R+M)/2. 4Standard and optional wheels may vary by country and region. 5Values shown are nominal. Performance may vary by country and region. 6The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary. 7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren. 8See motorcycle owner’s manual for complete details. 9Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10133 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
