2021 Husqvarna TE250i Guide

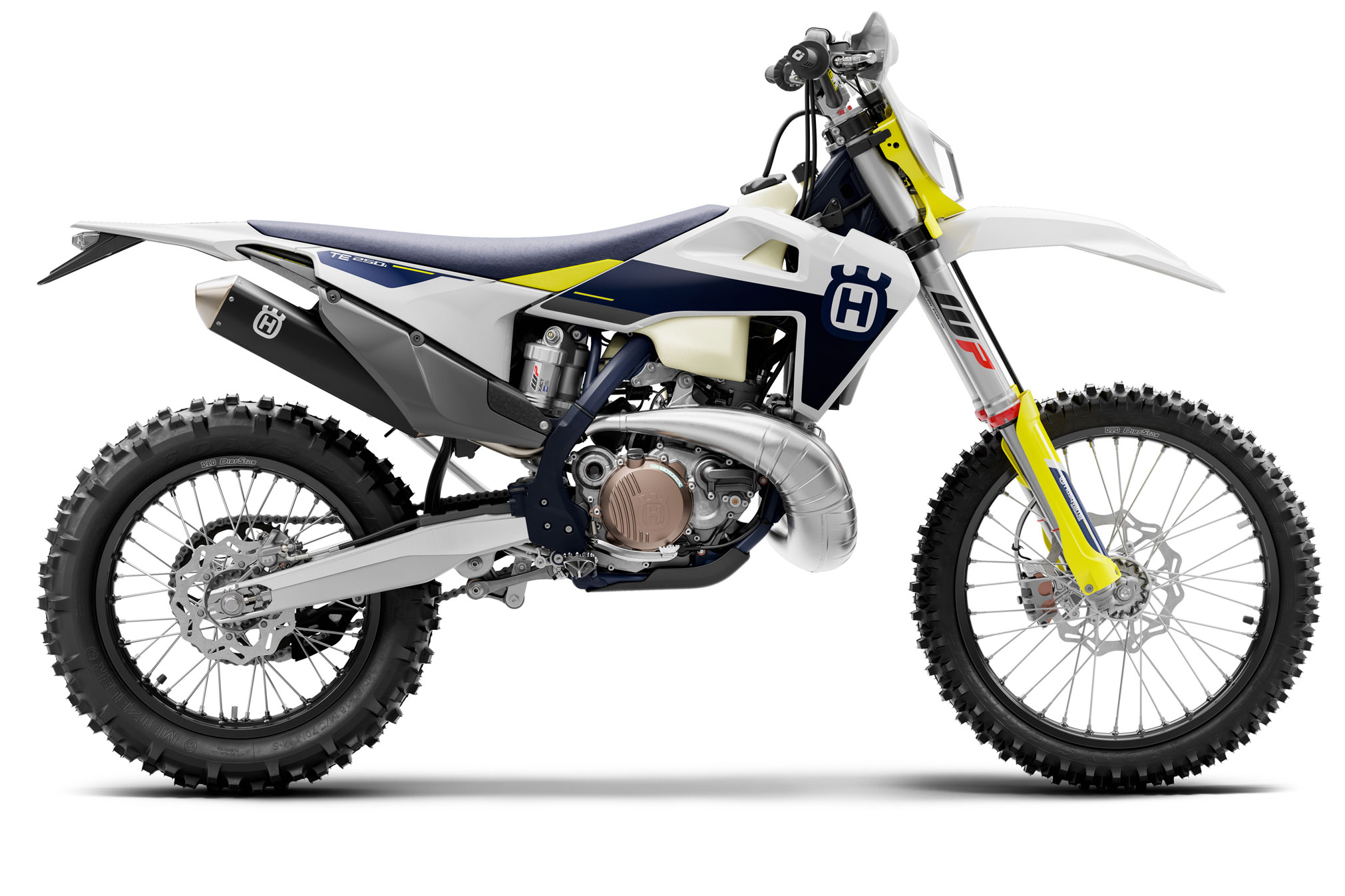

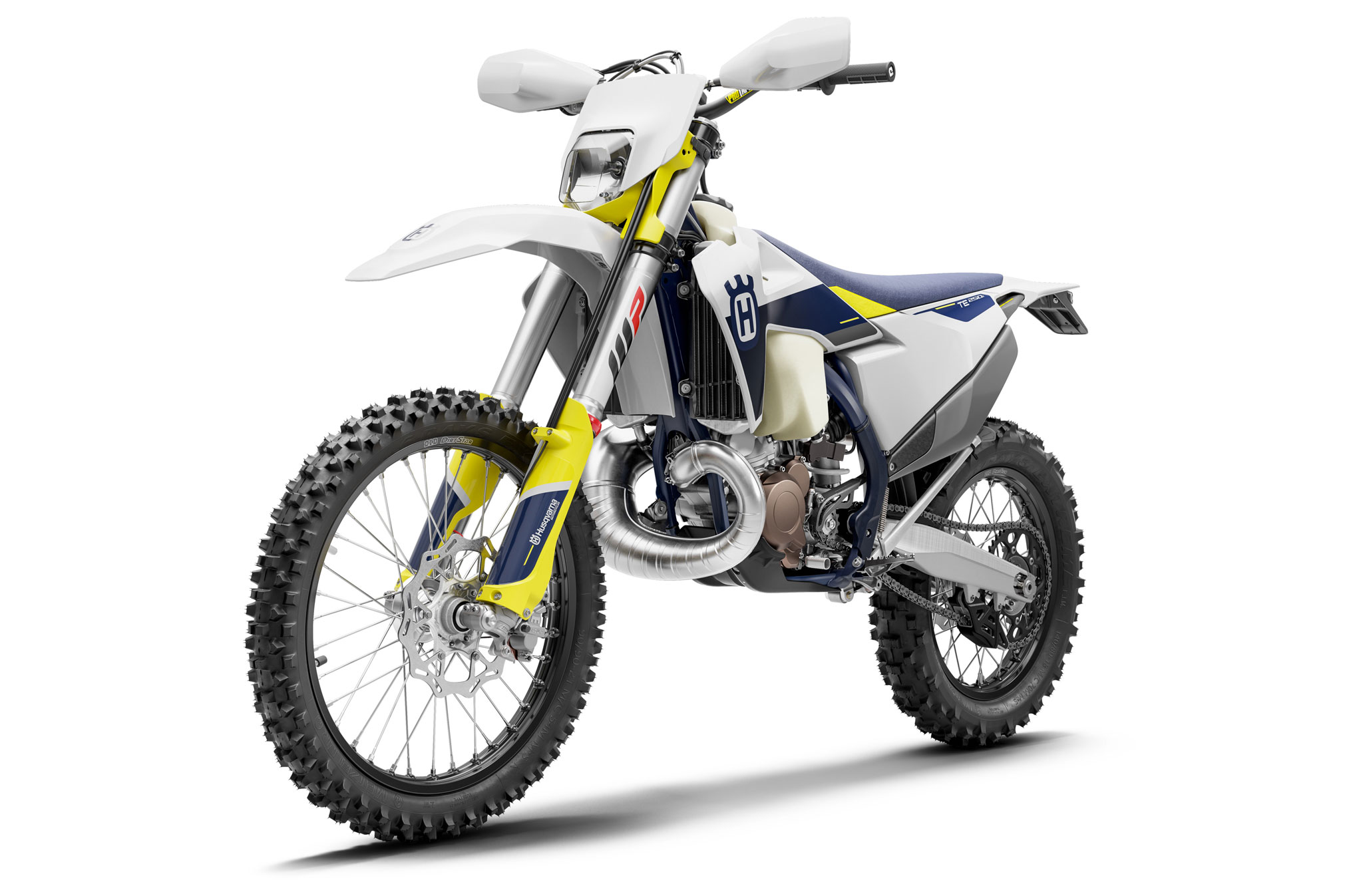

2021 Husqvarna TE250i

2021 Husqvarna TE250i 2021 Husqvarna TE250i 2021 Husqvarna TE250i

2021 Husqvarna TE250i : REVOLUTIONARY 2-STOKE.

Introducing the 2021 Husqvarna TE250i…

The TE 250i takes the low maintenance simplicity of a 2-stroke and makes it even simpler with the aid of electronic fuel injection. This means that fuelling is self-adjusted, removing the need for jetting changes, while 2-stroke oil is pumped independently at regulated ratios, eliminating the need to pre-mix fuel. Whether you are riding at different altitudes, in varying terrain or changing temperatures, fuel injection ensures a perfectly controlled power delivery every time. With the class-leading engine, frame, bodywork and suspension, this nimble lightweight handler is the intelligent choice for conquering the toughest terrain.









2021 Husqvarna TE250i Totalmotorcycle.com Key Features

Husqvarna Motorcycles is pleased to launch the new MY21 TE and FE enduro range – a complete line-up of 2-stroke and 4-stroke machines that have been carefully designed and crafted. Continuing to set the benchmark, each model provides ultimate enduro specific power, handling and enjoyment.

Husqvarna Motorcycles’ drive to constantly refine and improve all machines brings an extensive programme of improvements and updates into the MY21 FE and TE range, a comprehensive line-up of enduro models that will allow riders of all abilities to hit the trails with absolute confidence. From the TE 150i, to the TE 250i, TE 300i, FE 250, FE 350, FE 450 and FE 501, the entire enduro model range features unparalleled attention to detail and a fresh and vibrant, three-colour restyling.

The latest Husqvarna Motorcycles enduro range delivers advanced performance and an ongoing commitment to ensuring all machines come with high-quality components for true riding experiences. Featuring adjustable engine mapping as standard as well as electric starter systems, all 2-stroke and 4-stroke engines benefit from the latest fuel injection technology.

Husqvarna Motorcycles’ TE and FE range feature numerous enduro specific technical highlights. WP XPLOR forks and WP XACT shock combined with the chromium-molybdenum steel frame, progressive bodywork and innovative 2-piece carbon composite subframe to ensure consistent damping, precise handling and superior rider comfort.

From the TE 150i to the Erzbergrodeo winning TE 300i, Husqvarna Motorcycles’ 2-stroke range features the latest fuel injection technology, electric starters as standard and chassis that offers precise flex characteristics.

Offering a generous supply of torquey, manageable power, Husqvarna Motorcycles’ 4-stroke range ensures both versatility and performance. From the nimble FE 250 and its ability to shine in tough and technical terrain to the larger displacement FE 450 and FE 501, each model is finished with high-quality components.

Underlining the true performance of Husqvarna Motorcycles’ 2021 enduro range, Rockstar Energy Husqvarna Factory Racing’s Billy Bolt recently secured the 2020 FIM SuperEnduro World Championship title aboard his FE 350.

  • Chromium-molybdenum steel frame featuring precisely engineered flex characteristics
  • Innovative 2-piece carbon composite subframe design
  • WP XPLOR fork with advanced mid-valve piston delivering consistent damping function
  • WP XACT shock with integrated pressure balance offers superior rider comfort and handling
  • Progressive bodywork for optimal ergonomics
  • CNC machined triple clamps
  • MAGURA hydraulic clutch system offering perfect action in every condition
  • MAGURA brake calipers and high-performance GSK discs combining superior stopping power with unsurpassed sensitivity and modulation
  • Adjustable engine mappings on all models and state-of-the-art traction control (4-strokes)
  • Electric starter for easy starting when time is critical
  • Lightweight Li-ion battery
  • ProTaper handlebar
  • Progressive throttle mechanism and ODI grips → adjustable throttle progression and easy grip mounting
  • Laser engraved D.I.D. wheels
  • Gearboxes produced by Pankl Racing Systems

Ensuring all enduro riders can fully enjoy their next ride, Husqvarna Motorcycles offers the Functional Offroad Apparel Collection 2020 – a range of high-performance gear and protective equipment that takes into account the unique challenges of offroad riding. In addition, Husqvarna Motorcycles’ Technical Accessories provide an extensive line-up of performance engine and suspension components, protective parts and tools that allow further customisation and personalisation of all TE and FE machines.







2021 Husqvarna TE250i Totalmotorcycle.com Features and Benefits

High performance
Engine

Arguably the best combination of power and weight, the TE 250i engine is a longstanding favorite with enduro riders. While technological advancements mean the TE 250i features a pioneering fuel injection system, it remains a low maintenance workhorse of an engine. Additionally, the TE 250i engine has an advanced construction featuring shaft arrangements precisely positioned for greater mass centralization, a counter balancer shaft reducing vibration and a twin-valve controlled power valve for smoother power delivery.

Cylinder

The 66.4 mm bore cylinder in the TE 250i features a twin valve-controlled power valve system which delivers smooth and controlled power throughout the RPM range. Exhaust port timing has been improved with the combination of an optimized, adjustable power valve drive. The cylinder also features two inlet positions at the rear of the cylinder where a pair of fuel injectors are mounted. This ensures efficient combustion resulting in reduced fuel consumption and emissions.

CRANKCASES

Designed for minimal weight, the die-cast crankcases on the TE 250i engine feature a thin-wall design. To centralize mass, the shaft arrangement has been precisely positioned to harness oscillating masses at the ideal center of gravity. The counter balancer shaft is also specifically integrated, making for a compact design. Additionally, a new water pump casing improves cooling by optimizing the flow of coolant.

EXHAUST

Tailored specifically using an innovative 3D design process, the header pipe on the TE 250i offers further improvements in geometry and performance. This allows for improved ground clearance, while a corrugated surface makes the header pipe resistant to impact out on the trail. The muffler also features a new aluminum mounting bracket, new internals and less dense packing material for improved noise damping and weight saving.

STATE OF THE ART CHASSIS
FRAME

The chromium molybdenum steel frame is expertly crafted using laser-cut, robot-welded, hydro-formed tubes, ensuring the highest level of precision and quality. The specifically crafted geometry utilises advanced longitudinal and torsional flex characteristics, for unparalleled rider feedback, energy absorption and exceptional straight-line stability. The cylinder head mountings are made of forged aluminium, improving handling and comfort. The premium blue powder coated frame features standard frame protectors, providing extra durability.

Composite carbon fibre subrame

The carbon composite subframe is unique to Husqvarna Motorcycles and showcases pioneering technology and innovation. Using 70% polyamide and 30% carbon fiber, the new 2-piece subframe saves 250 g for a total weight of just over 2.2 lbs. Light, robust and now 50 mm longer, the new subframe delivers improved rigidity, handling and rider comfort.

OIL TANK AND PUMP

An electronic oil pump feeds vital 2-stroke oil into the engine. It is located just below the oil tank and feeds the oil via the throttle body, meaning the oil is only mixed with air at this stage. The pump is controlled by the EMS and delivers the optimal amount of oil according to the current RPM and engine load. The oil tank is connected to a filler hose which runs through the upper tube of the frame to a filler cap conveniently located for easy refills. The tank capacity is 0.7 l and is connected to a low-level sensor which illuminates when the tank needs refilling.

INTEGRATED COOLING AND RADIATORS

The radiators are expertly crafted using high-strength aluminium with CFD (computational fluid dynamics) to channel air through the radiators more efficiently. The cooling system is intelligently integrated into the frame, eliminating the need for additional hoses. The large centre tube running through the frame reduces pressure at this point, allowing for a consistent coolant flow. Additionally, the radiators are mounted close to the centre of gravity for improved handling agility. An optional radiator fan can be fitted and is available in the Husqvarna accessories catalogue.

RACE-WINNING SETUP
WP XPLOR FRONT FORK

The WP XPLOR 48 front fork is designed specifically for enduro riding. Its open cartridge layout has a spring in each leg with split damping functions. Compression damping in the left leg and rebound damping in the right. Adjustment is via easy-to-access clickers (30 clicks) on the top of each fork leg. The standard preload adjusters allow for easier adjustment without the use of tools. The fork’s mid-valve piston delivers consistent damping, while the setting allows the fork to operate higher in the stroke for exceptional rider feedback and bottoming resistance.

WP XACT REAR SHOCK

The WP XACT shock provides advanced damping characteristics to the range. The compact and lightweight shock features a pressure balance inside, ensuring consistent damping and superior rider comfort. Using the same linkage progression found in the Husqvarna Motocross range, the rear end sits low for improved control in extreme enduro conditions. The fully adjustable component delivers 300 mm rear wheel travel, as well as unrivalled traction, feeling and energy absorption.

Magura braking system

The Magura braking system is designed for high sensitivity, providing a modulated feel while delivering superior stopping power. GSK wave disks (260 mm disc front and 220 mm rear) complete the high-quality braking package for complete confidence.

BODYWORK

The TE 250i features a bodywork which clearly showcases Husqvarna Motorcycles’ progressive approach to offroad motorcycles while striking dark blue and electric yellow graphics stylishly adorn the Swedish inspired design. The ergonomics are specifically tailored to deliver great comfort and control. As a result of extensive testing, the slim contact points make shifting between riding positions easier and allow the rider to flow with movement. The flat seat profile, together with the seat cover texture, deliver superior comfort and control in all conditions.

PREMIUM TECHNOLOGY
MAP SWITCH

By using the MAP SELECT SWITCH, the engine characteristics can be tailored to modify the power delivery according to rider preference, conditions and terrain. It has two settings which can be toggled on the fly, namely, Map 1, for standard and full power, and Map 2, for softer power and delayed ignition timing for terrain with less traction.

THROTTLE BODY

The TE 250i uses a 39 mm throttle body which regulates the amount of air entering the engine via a butterfly operated by dual throttle cables connected to a new handlebar throttle assembly. 2-stroke oil is mixed with the air and enters the engine to lubricate the crankshaft, cylinder & piston. Additionally, a throttle position sensor (TPS) relays airflow data to the ECU which in turn calculates the amount of oil and fuel delivered to the engine while a bypass screw regulates the idling speed and a cold start device opens a bypass providing more air for cold starts.

ELECTRIC START AND WIRING HARNESS

All TE models come standard with an electric starter. The system uses a compact and lightweight Li-Ion battery which is 1 kg lighter than a conventional battery. With several years of experience of developing and perfecting electric starting, the proven reliability on the Husqvarna enduro range is second to none, ensuring a quick and seamless start in any condition. Additionally, the wiring harness concentrates all needed electrical components into a common area below the seat for easy accessibility.

ENGINE MANAGEMENT SYSTEM

The TE 250i features an electronic control unit (ECU) which is responsible for a number of functions. The unit determines the ignition timing, the amount of fuel & oil injected into the cylinder and additionally, translates the information received from various sensors to adapt values and make corrections for automatic temperature and altitude compensation. This means the engine always runs at the optimum fuel/air mixture at any altitude.









2021 Husqvarna TE250i – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $10099 USD
Canada MSRP Price: $11399 CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Engine
Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore/stroke 66.4/72 mm
Compression ratio
Starter/battery Electric starter / 12V 2.2 Ah
Transmission 6 gears
Fuel system  TPI, Dellorto throttle body Ø 39 mm
Control Exhaust control TVC
Lubrication Elctronically regulated oil injection
Gear ratios 14:32  16:26  20:25  22:23  25:22  26:20
Primary ratio 26:73
Final drive 14:50 (13:50)
Cooling Liquid cooling
Clutch DDS wet multi-disc clutch,
MAGURA hydraulics
Ignition Continental EMS
Chassis
Frame Central double-cradle-type 25CrMo4
Subframe Carbon fibre reinforced polyamide
Handlebar ProTaper, Aluminium Ø 28/22 mm
Front suspension WP USD XPLOR 48
Rear suspension WP XACT-Monoshock with linkage
Suspension travel front/rear 300/300 mm
Front/rear brakes Disc brake Ø 260/220 mm
Front/rear rims 1.60 x 21”; 2.15 x 18” DID
Front/rear tyres 90/90-21”; 140/80-18”
Chain X-Ring 5/8×1/4″
Silencer Aluminium
Steering head angle 63.5°
Triple clamp offset 22 mm
Wheel base 1,487±10 mm
Ground clearance 360 mm
Seat height 950 mm
Tank capacity, approx. 8.5l
Competition weight:
(without fuel)
106.2 kg



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
