2021 Kawasaki Ninja H2 Carbon : AWE-INSPIRING, SUPERCHARGED POWER.

Introducing the new 2021 Kawasaki Ninja H2 Carbon…

The Ninja H2™ and Ninja H2™ Carbon motorcycles amount to pure street legal hypersport.

performance. Featuring a 998cc inline four-cylinder engine, proprietary supercharger, lightweight trellis frame, compact superbike dimensions, aerodynamic bodywork, and a rigid single-sided swingarm. Both models feature high-spec Brembo Stylema® brake calipers, Kawasaki Quick Shifter (KQS), Kawasaki Traction Control (KTRC-9 modes) and Kawasaki’s highly durable self-healing paint. In the cockpit, a TFT (thin-film transistor) color instrumentation display with four selectable display modes, as well as Bluetooth Smartphone Connectivity (using RIDEOLOGY THE APP*). Bringing all this power and technology to the pavement are Bridgestone RS11 tires. The Ninja H2 Carbon was developed as a special, limited edition model that features beautiful, strong and lightweight carbon fiber front bodywork and special insignia. The 2021 Ninja H2 is available in Mirror Coated Spark Black with an MSRP of $29,500, while the 2021 Ninja H2 Carbon is offered in Mirror Coated Matte Spark Black / Candy Flat Blazed Green with its clear coated raw carbon fiber fairing on display and an MSRP of $33,000.

The Kawasaki Ninja H2™is designed to be the ultimate performance street-legal motorcycle, built using state of the art technologies with cooperative development across Kawasaki’s high-performance motorcycle, aerospace and gas turbine divisions.







2021 Kawasaki Ninja H2 Carbon Totalmotorcycle.com Key Features

• KAWASAKI PROPRIETARY SUPERCHARGED TECHNOLOGY DELIVERS EXCEPTIONAL POWER AND TORQUE FOR THE ULTIMATE RIDING EXPERIENCE
• TRELLIS FRAME OPTIMIZES HANDLING AND EFFECTIVELY VENTS ENGINE HEAT
• OHLINS TTX36 SHOCK
• AEROSPACE-DESIGNED BODYWORK HELPS CREATE DOWNFORCE
• HIGH-TECH TFT COLOR INSTRUMENTATION IS EASIER TO READ
• SMARTPHONE CONNECTIVITY ENABLES RIDERS TO CONNECT TO THE MOTORCYCLE WIRELESSLY









2021 Kawasaki Ninja H2 Carbon Totalmotorcycle.com Features and Benefits

ENGINE

The Kawasaki Ninja H2 engine had to be compact and produce high horsepower for intense acceleration. A supercharger was deemed necessary, but not just any existing supercharger would do. The collaborative effort across Kawasaki’s engineering divisions resulted in a highly-efficient supercharger that didn’t require an intercooler to reduce the temperature of the air being fed to the engine.

  • Engine designed to handle stresses 1.5-2 times greater than a naturally aspirated engine of the same size.
  • Crankshaft inertial moment was made as low as possible and combined with a lightweight flywheel for quick engine response. The relatively light rotational mass also contributes to quick handling characteristics.
  • Dual secondary balancers assure extremely low engine vibration.
  • Connecting rods balance strength and weight, and have a large big-end and bolt diameter for strength and durability in the high-output environment.
  • Cast pistons offer better strength over forged pistons for the very high temperatures generated by the engine. The unique casting process creates hollow areas to achieve idealized thickness with reduced weight.
  • A V-groove on the second piston ring land prevents top ring fluttering for reduced blow-by and oil consumption.
  • Two oil jets per cylinder help cool the pistons. One nozzle sprays the entire underside of the piston dome, while the other concentrates spray on the exhaust side of the dome bottom.
  • Large, deep-sump oil pan helps cool oil. Oil pan design ensures the oil pump is always surrounded by oil to prevent cavitation. Additionally, the unique angled shape and position of the oil strainer also helps prevent cavitation during strong acceleration and deceleration.
  • High-flow oil pump contributes to oil cooling and has a high flow rate to provide optimum lubrication to the engine and transmission.
  • Flat piston crown and combustion chamber design applied from Kawasaki’s Gas Turbine & Machinery Company to prevent knocking.
  • One-piece cylinder/upper crankcase utilizes dummy cylinder head during honing process for more precise cylinder dimensions, which allows use of low-tension piston rings to reduce mechanical loss and boost engine response.
  • Machine-formed combustion chamber helps achieve high power and helps prevent engine knock due to precisely controlled chamber volume.
  • The cylinder head has a water jacket between the exhaust ports of each cylinder, large cooling passages around the spark plug holes and valve seats, and a large coolant outlet for optimum cooling performance.
  • High-lift camshafts with wide valve overlap timing help increase performance.
  • Exhaust valves have heads made of Inconel, an extremely heat-resistant alloy, and heat-resistant tapered stems. Stainless steel is used for the intake valves.
  • Polished intake ports with idealized shape combined with straight exhaust ports that do not converge in head help boost power.



Supercharger

  • Kawasaki designed and built centrifugal type supercharger has a pumping capacity of more than 200 liters of air per second with intake air reaching speeds of up to 328 feet per second, at a maximum 2.4 times atmospheric pressure.
  • Planetary gear gets driving force from the crankshaft and spins a 69mm impeller, specially designed using Kawasaki Gas Turbine and Aerospace technology, up to nearly 130,000 rpm.
  • Since the supercharger design is highly efficient, compressed intake air is minimally heated so no intercooler is necessary.
  • Ram air intake duct feeds the supercharger fresh air in as straight a line as possible to help provide high output.
  • Aluminum intake chamber between supercharger and throttle bodies helps radiate heat to keep intake air cool. Stainless steel nets positioned over the intake funnels promote fuel misting from the secondary fuel injectors to further cool the intake charge and increase filling efficiency.
  • ECU-controlled blow-off valve regulates pressure gain in intake chamber when throttle is closed to prevent impeller surging and abnormal vibration.
  • 45mm stainless steel header pipes taper from eliptical-shape which match dual straight exhaust ports to round, and combine with the double walled, under-engine pre-chamber to reduce exhaust noise with a small volume.



Digital Fuel Injection

  • 50mm throttle valves operate with high precision to help provide smooth engine response. The system also enhances input to S-KTRC and accommodates the Kawasaki Launch Control and Kawasaki Engine Brake Control features.
  • A high-pressure fuel pump is utilized to enhance high output from supercharger.



Kawasaki Quick Shifter (KQS)

  • Downshift function within the Kawasaki Quick Shift (KQS) system which allows clutchless downshifts when the throttle is fully closed.
  • Contact-less potentiometer-type quick shifter for quick upshifts that enable seamless acceleration.



Transmission

  • Hydraulic clutch actuation achieved through Brembo radial pump master cylinder for smooth actuation and superb linearity.
  • Cassette-style transmission facilitates quick gearing changes.
  • Dog-ring transmission uses MotoGP technology in which the gears are fixed to the input transmission shafts and rings move to engage the gears on the output shaft. The result is lighter shifting, improved feel and quicker shifts.
  • Transmission oil jets at every gear mesh and shift fork position provide direct cooling and exceptional lubrication for high durability.



Assist & Slipper Clutch

  • Using the rotational forces of the clutch hub and pressure plate, the clutch is forced together during acceleration (Assist function) so that fewer and lighter clutch springs can be used for a lighter feel at the lever. During high back-torque, such as when too low of a gear is selected during downshifting, the Slipper function allows some clutch slippage to help prevent engine lock-up, stalling and rear wheel hop.
  • Judder spring component helps prevent judder when the clutch is disengaged.



ELECTRONIC CONTROLS

KAWASAKI NEXT LEVEL ELECTRONICS FOR THE TRACK

  • Kawasaki’s cutting-edge electronics have always excelled on the track due to the highly sophisticated programming that gives the ECU an accurate, real-time picture of what the chassis is doing using minimal software. With a Bosch IMU and the latest evolution of Kawasaki’s proprietary dynamic modeling software, the Ninja H2’s electronic management technology is next level, changing from setting-type and reaction-type systems to feedback-type systems. This greater capacity helps assist riders experience the Ninja H2’s full potential, on the track.



Inertial Measurement Unit (IMU)(KP)

  • The IMU measures inertia along 5 axes: acceleration along longitudinal, transverse and vertical axes, roll rate, and pitch rate. The yaw rate is calculated by the ECU using Kawasaki’s patented software to provide six-axis chassis attitude input of lean angle and acceleration/deceleration force for more precise management of the electronic riding aids.
  • The IMU allows KTRC to incorporate more feedback to help maximize acceleration when exiting corners on the track.
  • Unlike competitors’ systems that have pre-set limits, Kawasaki’s proprietary race-developed software enables the Ninja H2 to have a dynamic system that has a higher level of chassis awareness and adapts to changing track conditions such as rider inputs, vehicle attitude, and pavement conditions.



Kawasaki Cornering Management Function

  • Corner Management Function uses both KIBS and KTRC to assist racers trace their intended line through a corner on the track by suppressing the tendency for the bike to stand up while braking in a turn. The IMU helps the system maintain optimum hydraulic pressure based on the bike’s lean and pitch angles.



Kawasaki Launch Control Mode (KLCM)

  • Designed to assist the rider by optimizing acceleration from a stop, KLCM electronically controls engine output to help prevent wheelspin and thereby minimize front end lift when launching from a standstill.
  • Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to launch from a stop with maximum throttle operation.



Kawasaki Traction Control (KTRC)

  • Multi-level modes offer riders a greater number of settings to choose from, with each mode providing a different level of intrusion to suit riding conditions and rider preference, and all modes are designed to manage output when a sudden slip occurs. The system offers both enhanced sport riding performance and the peace of mind to negotiate slippery surfaces with confidence.
  • Riders can choose from nine modes, each offering a progressively greater level of intrusion, best suited for circuit, street or wet pavement riding conditions. Riders may also elect to turn the system off.
  • Modes 1 and 2 are tailored for circuit riding, while Mode 3 settings were optimized for more slippery conditions. Each mode has three sub-settings that allows fine tuning for specific riding conditions.
  • Using complex analysis, the system monitors traction conditions. By acting before slippage exceeds the range for optimum traction, drops in power can be minimized, resulting in ultra-smooth operation.





Kawasaki Engine Brake Control

  • The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer.
  • When Kawasaki Engine Brake Control is activated (by selecting “LIGHT” in the settings), the effect of engine braking is reduced.



Smartphone Connectivity

  • A Bluetooth chip built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
  • Vehicle Info: information such as fuel gauge, odometer, maintenance schedule, etc can be viewed via the smartphone.
  • Riding Log: route and rpm can be can be viewed via the smartphone.
  • Telephone notices: when a call, text or mail is received by the smartphone, this is indicated on the instrument display.
  • General Settings: general instrument display settings (such as preferred units, date, date format, etc) can be adjusted via the smartphone.
  • When riding (with the app ON), the bike and smartphone are always connected. Once the engine is turned off, or the phone is out of range of the instrument’s Bluetooth chip, the latest riding information is stored by the app and may be viewed on the phone. Any changes made via the app while the engine is off, or while out of range, will not be implemented until the ignition is turned on and the phone is within range with the app ON.



CHASSIS

The chassis design had to have the strength to harness the great engine power while being able to handle external disturbances at track speeds. Additionally, a relatively short wheelbase was required to maintain sharp handling and performance. Finally, the chassis had to help dissipate the heat produced by such a high-output powerplant.

  • Trellis frame is made of high-tensile steel with pipe diameter, thickness and bend of each piece carefully selected to obtain the necessary stiffness for that part.
  • Ideal rigidity balance enables high-speed track riding while providing the ability to absorb external disturbances to facilitate stability.
  • Slim frame design and horizontal mounting of the die-cast aluminum rear sub-frame helps keep seat narrow and contributes to an easy reach to the ground for the rider’s legs.
  • Open design of trellis frame allows air to pass through it to help dissipate engine heat.
  • Swingarm mounting plate is bolted to the back of the engine to make it part of the frame. This eliminates frame cross members to help keep the frame light and enables the chain tension generated by the high-output engine to be efficiently transferred to the rigid engine block.



Suspension

  • Uni-Trak® linkage rear suspension system provides progressive action to the rear shock so that small bumps are damped lightly and large bumps get heavy damping for a smoother ride and better steering and handling.
  • The H2 utilizes a single-sided swingarm. Composed of forged and pressed aluminum parts, it is highly rigid and light weight. It allows more room on the right side of the motorcylce for optimized exhaust shape.



Öhlins Shock

  • Equipped with an Ohlins TTX36 shock featuring a machined cylinder body, TTX GP-style damping adjusters and remote preload adjuster. The shock enhances cornering performance, is supple for riding comfort and sporty handling, contributes to a planted front end feel, and provides superb feedback from the road.
  • The patented shock features a unique concentric twin tube design and a solid main piston that only moves the oil in the shock cylinder. Damping generating components are all located at the top of the shock cylinder between the cylinder head and reservoir. The simple construction allows shock components to be lighter and more compact, ensures very consistent damping performance and prevents cavitation.





  • Since the shock construction makes it difficult for cavitation to occur, gas pressure is about half that of a standard shock so that lower tension seals can be used for reduced friction and smoother shock action.
  • Separate channels connect the compression and rebound valves to their corresponding side of the main piston, allowing completely separated adjusters for compression and rebound damping. This helps with suspension set-up since changing one damping setting will not affect the other.
  • Compression and rebound damping are each 22-way adjustable using the high-quality, machined finish TTX GP-style adjuster knobs that can be turned by hand or with an Allen key.
  • Remote hand-turn preload adjuster makes it easy to adjust settings without using tools.



Kayaba AOS-II Forks

  • Fully adjustable with compression and rebound damping and preload adjusters, all located on the fork caps for easy setting changes.
  • Kayaba AOS-II (Air-Oil Separate) 43mm fork features twin chambers to separate the damping oil from air for more stable damping performance. The fork provides smooth initial action and strong bottoming resistance at the end of the stroke.
  • DLC (Diamond-Like Carbon) coating on the inner tubes reduces stiction for improved fork response and helps prevent wear.



Electronic Steering Damper (ESD)

  • Steering damping characteristics are changed electronically. At low speeds, the settings were chosen so that damping does not interfere with the bike’s intrinsic lightweight handling. At higher speeds, damping increases to provide enhanced stability. Using input from the rear wheel speed sensor (provided via the engine ECU) the electronic steering damper’s ECU determines the vehicle’s speed as well as the degree the bike is accelerating or decelerating to provide just the right amount of damping.
  • When entering low-speed corners, steering is light and neutral. When making steering inputs to execute U-turns or changing lanes, handling is light and easy. Entering high-speed corners on the track, ideal damping levels that help riders to set the bike on the line of their choosing.
  • The enhanced feeling offered by the electronic steering damper helps reduce rider fatigue on long rides.
  • During strong acceleration or deceleration, damping is increased to provide enhanced performance.
  • Features Öhlins’ special twin-tube design that ensures stable damping performance even under racing conditions, and provides superb kickback absorption.
  • The damper’s high precision construction and use of an integrated clamp help minimize friction as the damper piston moves so that initial motion is very smooth.





Brembo® Brakes with Kawasaki Intelligent anti-lock Brake System (KIBS)

  • Radial mounted 4-piston front brake calipers.
  • Front brakes feature Brembo Stylema monoblock calipers with four opposed 30mm pistons that clamp huge 330mm Brembo discs for superb braking force. The outer edges of the discs have grooves down the center of the outer edges to help dissipate heat.
  • Brembo radial pump master cylinder and reservoir are calibrated so that very little lever movement achieves strong front brake force.
  • Rear brake features Brembo caliper with two 32mm pistons that clamp a 250mm disc.
  • KIBS high-precision anti-lock brake system provides smooth feedback and minimal lever movement for added braking confidence.
  • The engine ECU communicates with the compact ABS ECU (which monitors wheel speed and front caliper hydraulic pressure) to provide highly precise brake pressure control. The high precision control means brake performance is not reduced due to excessive pressure drops and there is a more consistent lever feel instead of sharp lever pulses felt with conventional ABS systems.
  • Cast aluminum wheels are specifically designed to enhance handling and are shod with high-performance street tires.



Aerodynamic Bodywork

  • Functional design enhances stability and maximizes engine cooling performance.
  • Upper cowl incorporates a chin spoiler to help create downforce for added high-speed stability. Air scooped by the chin spoiler is deflected to the sides through special air passages to reduce drag.
  • Downforce is also created by the airflow over the mirror stays with Guerney Flaps on the trailing edges, designed by Kawasaki’s aerospace division.
  • Compact side cowls leave the engine almost entirely exposed and when combined with the trellis frame makes it easy for hot air to escape for better heat dissipation.
  • Stepped front fender design helps direct airflow to the radiator to help cooling.
  • River Mark emblem on the front of the cowling represents Kawasaki performance heritage and the combined efforts of the Kawasaki Akashi Group on this ultimate motorcycle.



Highly Durable Paint

  • Kawasaki’s Highly Durable paint has a special coat that allows minor scratches to self-repair to help the paint maintain its high-quality finish.
  • Soft and hard segments in the paint work together like a chemical spring, creating a trampoline effect that absorbs impacts.



  •  In some cases, it takes about one week for the paint to recover.
  •  The paint will not recover from scratches caused by a key, coins, zippers or snaps.



Accessory ERGO-FIT Handlebars

  • ERGO-FIT raised handlebar kit is available as an accessory and has a reduced downward angle, positioning the handle grips 20 mm higher than the standard clip-ons. For shorter riders or those who prefer a more upright riding position, the kit offers increased comfort.



TFT Color Instrumentation

  • High-grade full color multi-meter display features TFT (thin-film transistor) technology to ensure a level of visibility previously unattainable. The screen’s background color is selectable (black or white), and screen brightness adjusts automatically to suit available light.
  • Display functions include: odometer, dual trip meters, current mileage, average mileage, fuel consumption, bank angle display and bank angle recording function, coolant temperature, boost indicator, boost (intake air chamber) temperature, clock, Economical Riding Indicator, and IMU indicator.
  • In addition to these scrollable multi-function windows, four display modes offer a choice of how information is presented.



  •  Type 1: Easy-to-read layout offers a substantial amount of information at a glance.
  •  Type 2: Important information is prioritized and presented graphically: G-force (based on information from IMU), boost indicator and throttle application are illustrated graphically instead of numerically.
  •  Type 3: Important information is prioritized and presented graphically: G-force (based on information from IMU), boost indicator and brake force application are illustrated graphically instead of numerically.
  •  Type 4: Important information is prioritized and presented graphically: G-force (based on information from IMU) only is illustrated graphically instead of numerically.
  • Handlebar control switches put all mode selection and display options at the rider’s fingertips.



Cockpit

  • Riding position optimized for high-speed circuit riding. Compared to the Ninja® ZX™-10R, there is less forward lean, slightly wider handlebars and 10mm more forward-positioned footpegs.
  • Solo seat is tapered at the front to facilitate touching the ground and wider at the rear for rider support and comfort. Compact rear cowl has adjustable side hip supports to help brace the rider during intense acceleration.
  • Advanced, fully digital meter design and analog tachometer with rpm numbers that light up to chase the tachometer needle as it moves. All meter functions are controlled from the compact handlebar switches.









2021 Kawasaki Ninja H2 Carbon – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $33000 USD
Canada MSRP Price: $37000 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Engine Type 4-Stroke, 4-Cylinder, Liquid-Cooled, DOHC, 4 Valve Cylinder Head, Supercharged
Displacement 998 cc
Bore & Stroke 76.0 x 55.0 mm
Maximum Torque TBA
Compression Ratio TBA
Fuel System DFI® with Dual Injectors
Ignition TCBI with Digital Advance
Transmission 6-Speed, Dog-Ring
Final Drive Sealed Chain
Rake/Trail 24.5° / 4.1 in.
Front Wheel Travel 4.7 in.
Rear Wheel Travel 5.3 in.
Front Tire Size 120/70-17
Rear Tire Size 200/55-17
Wheelbase 57.1 in.
Front Suspension 43mm Inverted AOS-II Fork with Adjustable Compression and
Rebound Damping, Spring Preload Adjustability, and Top-Out Springs
Rear Suspension New Uni-Trak®, Ohlins TTX36 Shock with 22-way Compression
and Rebound Damping and Hand-Turn Preload Adjustability
Front Brake Type Dual Semi-Floating 330mm Discs with
Radial-Mount, Opposed 4-Piston Calipers
Rear Brake Type 250mm Disc with Opposed 2 Pistion Caliper
Fuel Tank Capacity 4.5 gal.
Seat Height 32.7 in.
Curb Weight= 524.8 lbs.
Warranty 12 months
Kawasaki Protection Plus™ 12, 24, 36 or 48 months
(Specifications subject to change without notice.)
= Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied).
(KP) = See Kaw-Pedia section for more details.





2021 Kawasaki Ninja H2 Carbon – Totalmotorcycle.com  Canadian Specifications/Technical Details
Engine 998cc, liquid-cooled, 4-stroke DOHC 16-valve in-line four
Bore x Stroke 76.0 x 55.0 mm
Compression Ratio 8.5:1
Fuel System Fuel injection: ø50 mm x 4 with dual injection
Intake System Kawasaki Supercharger
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump with oil cooler
Transmission 6-speed, return, dog-ring
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Trellis, high-tensile steel, with Swingarm Mounting Plate
Front Suspension / Wheel Travel ø43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs / 120 mm (4.7 in)
Rear Suspension / Wheel Travel New Uni Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring / 135 mm (5.3 in)
Rake / Trail 24.5° / 103 mm
Steering Angle (L/R) 27° / 27°
Front Tire 120/70ZR17M/C (58W)
Rear Tire 200/55ZR17M/C (78W)
Front Brakes Dual semi-floating ø330 mm Brembo discs with radial-mount, Brembo Stylema monobloc, opposed 4-piston calipers
Rear Brake ø250 mm disc with Brembo, opposed 2-piston caliper
Dimensions (L x W x H) 2,085 x 770 x 1,125 mm (82.1 x 30.3 x 44.3 in)
Wheelbase 1,455 mm (57.3 in)
Road Clearance 130 mm (5.1 in)
Seat Height 825 mm (32.5 in)
Curb Mass** 238 kg (525 lb)
Fuel Capacity 17 litres
Instrumentation Analogue-style tachometer + full-colour TFT screen with digital speedometer, gear position indicator, odometer, dual trip meters, current mileage, average mileage, fuel consumption, bank angle display and max bank angle recording function, average speed, total time, coolant temperature, boost indicator, boost (intake air chamber) temperature, clock, and Economical Riding Indicator
Warranty 12 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

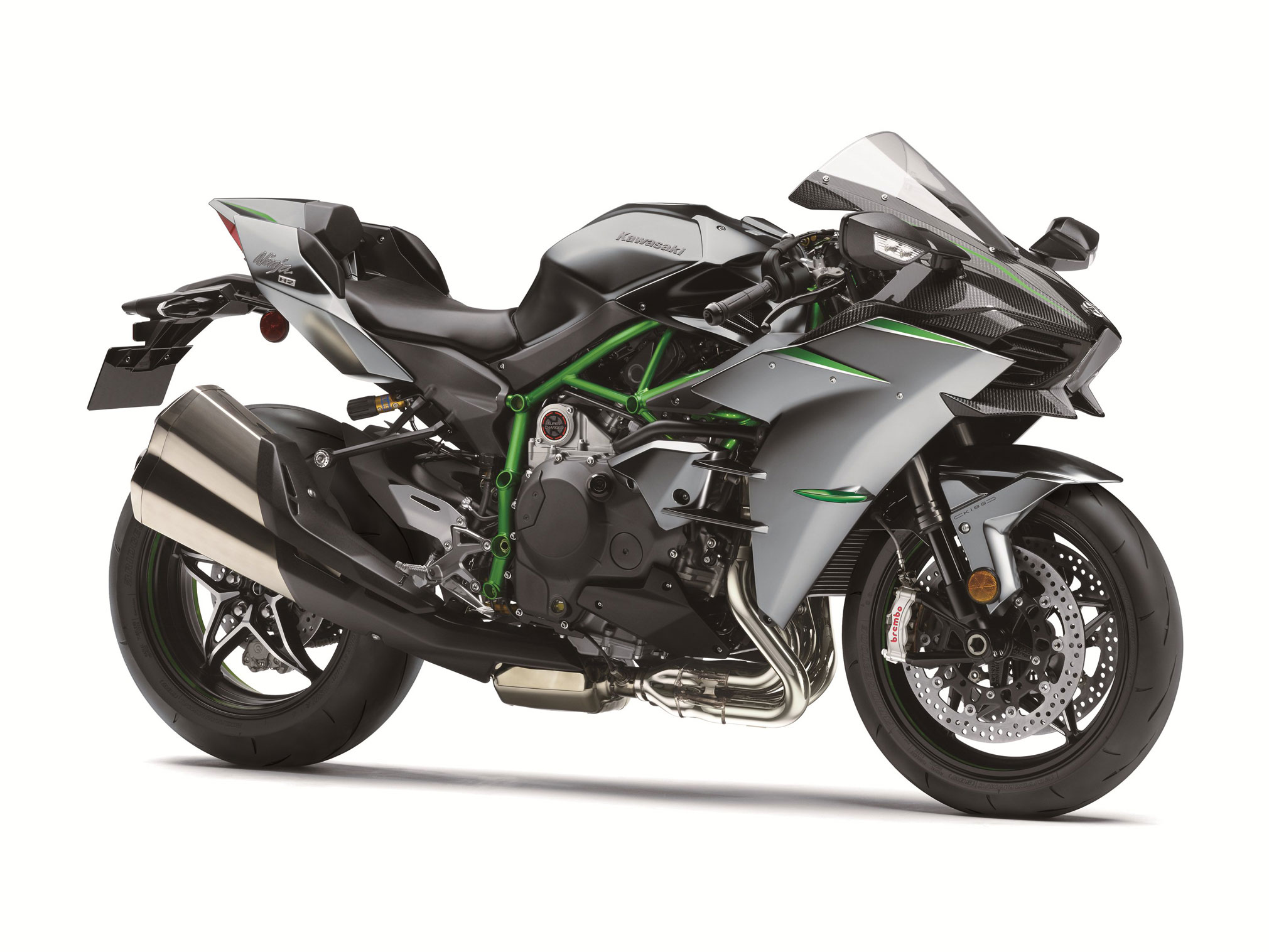

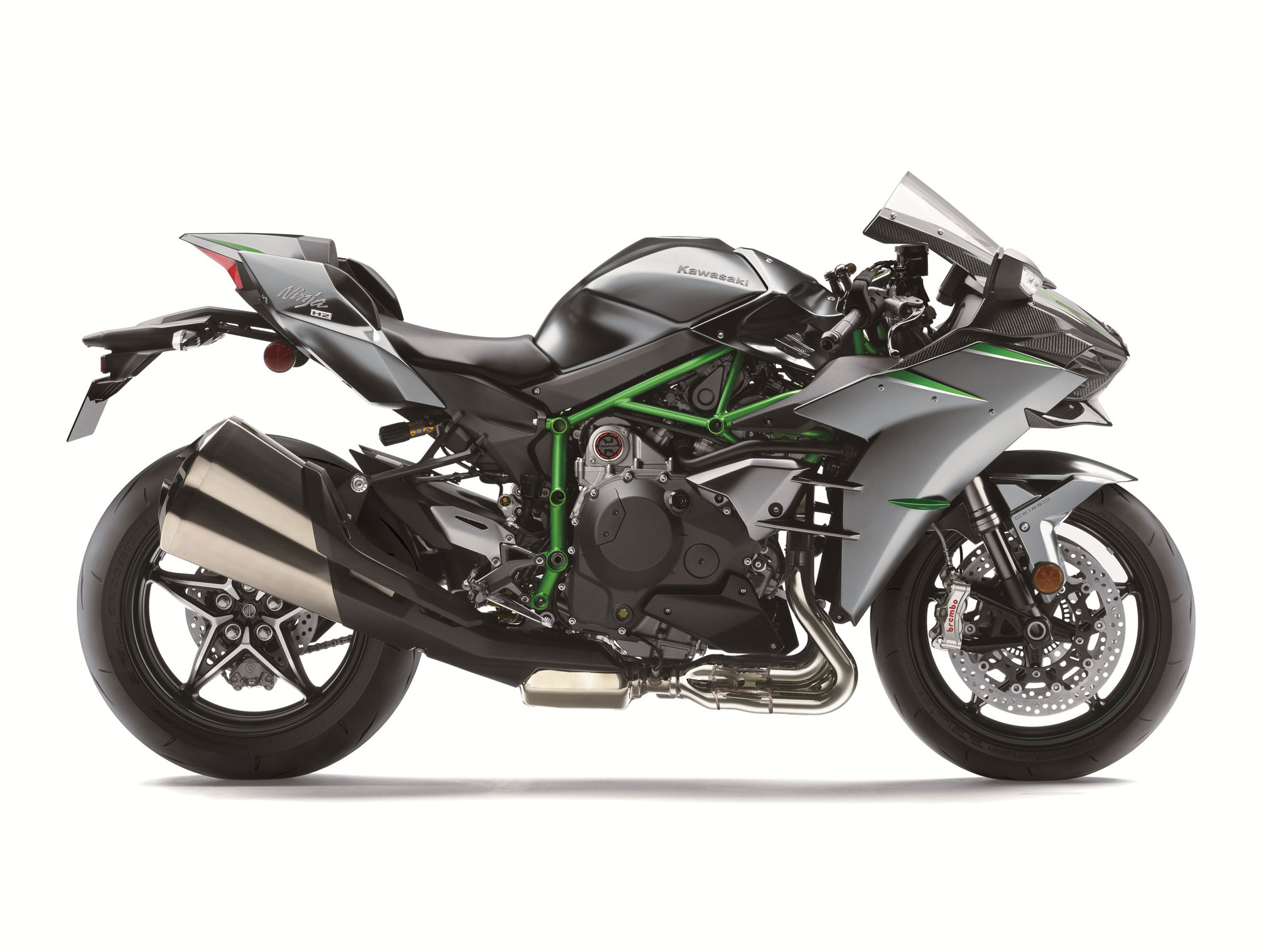

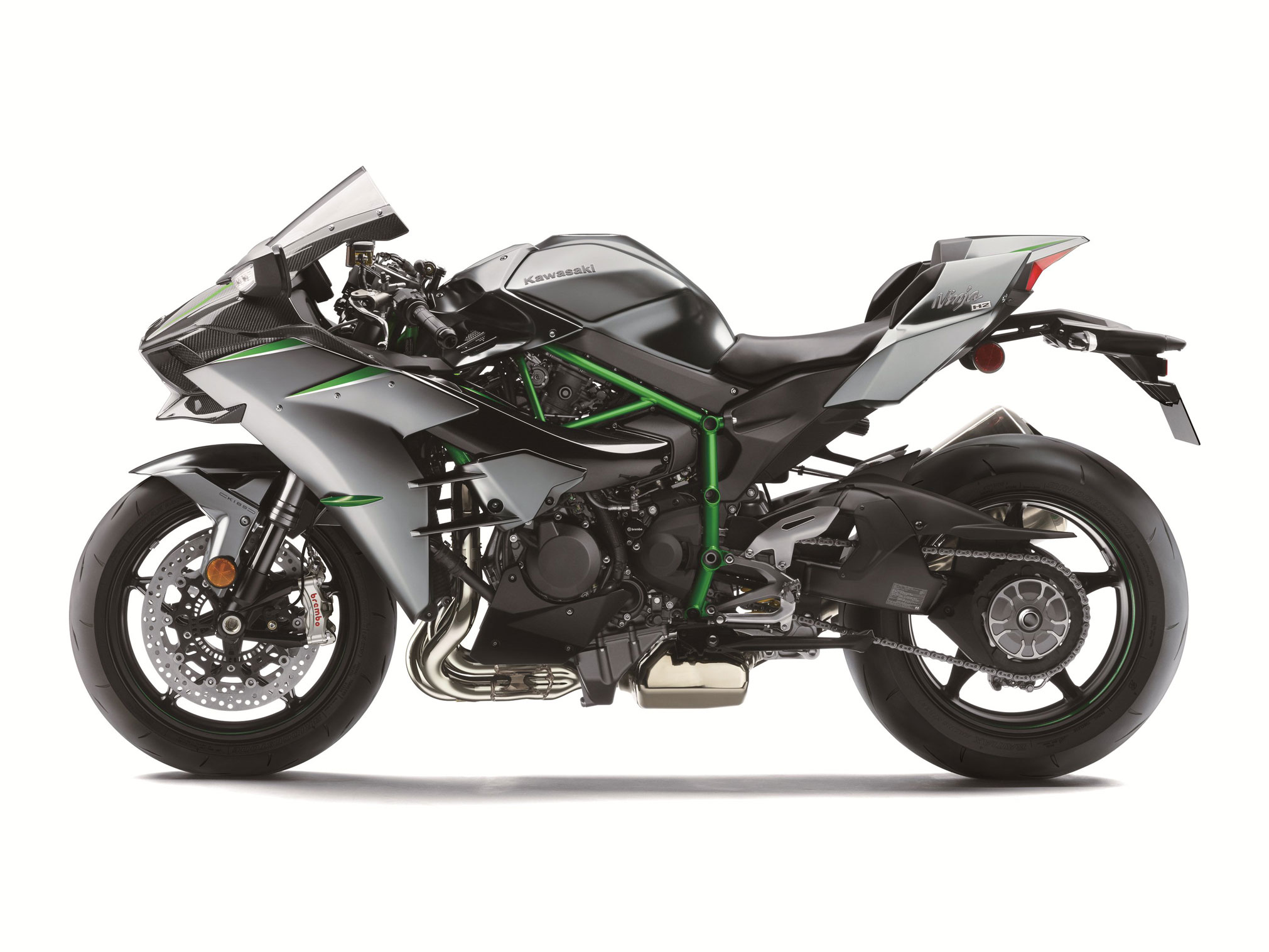

2021 Kawasaki Ninja H2 Carbon – Totalmotorcycle.com European Specifications/Technical Details

NA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10138 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
