2021 KTM 250 SX Guide

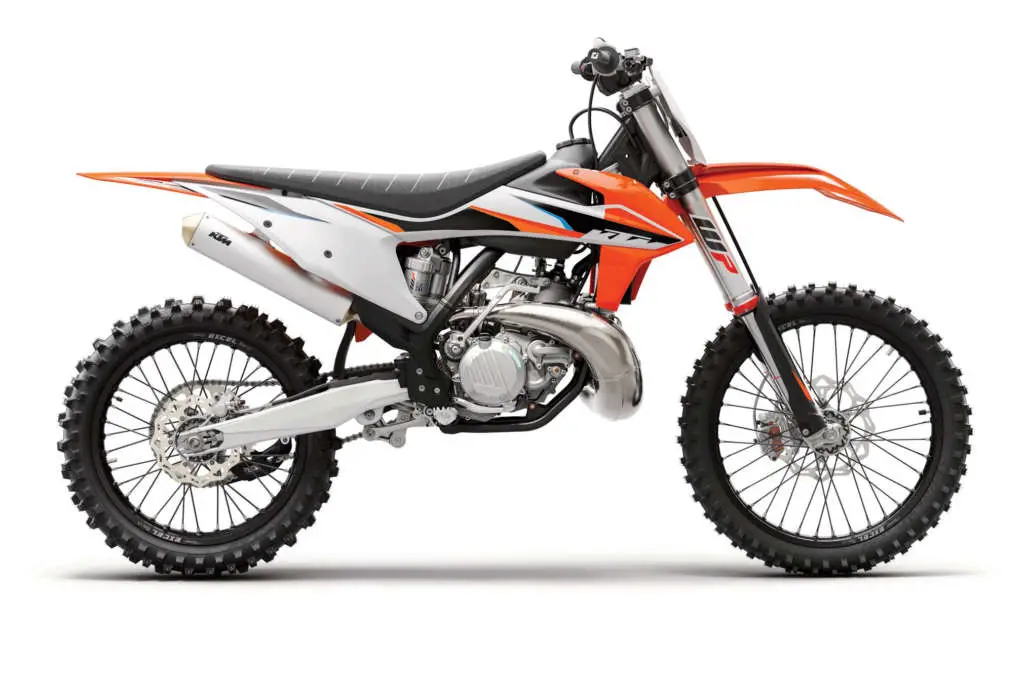

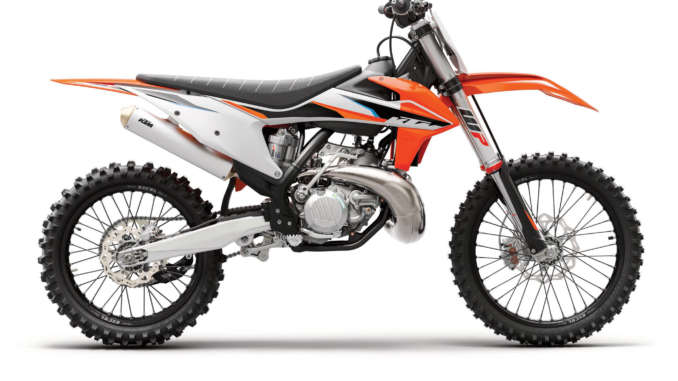

2021 KTM 250 SX

2021 KTM 250 SX

2021 KTM 250 SX : EXHILARATING POWER AND CONTROL.

Introducing the 2021 KTM 250 SX…

Whether its power-to-weight or power and control, the KTM 250 SX is the perfect combination of all that counts. Featuring a high-performance 2-stroke engine fitted within a state-of-the-art chassis, this powerhouse is undoubtedly the fastest 250 cc 2-stroke on track. This proven race weapon is the right choice for those who thrive on that glorious 2-stroke sound while smashing out one hot lap after the next.





2021 KTM 250 SX Totalmotorcycle.com Key Features







2021 KTM 250 SX Totalmotorcycle.com Features and Benefits

Exhaust

When it comes to power delivery and performance, the exhaust plays a key role and packs a punch that is hard to beat. In addition, its narrow shape provides slimmer ergonomics while still operating safely within the noise limits for racing.

Engine

The engine of the KTM 250 SX features the latest 2-stroke technology, with a counter-balance shaft for low engine vibration, as well as a reliable hydraulically operated DDS clutch. It has a twin-valve controlled power valve, which contributes massively to making the KTM 250 SX engine the most competitive 2-stroke in its class. Powering through its 5-speed transmission truly is an exhilarating experience.

Airbox

The airbox on the KTM 250 SX ensures optimal flow dynamics, and together with its intake snorkels, leads to maximum power and quick throttle response. Despite the obvious performance advantages, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools – a standard, original feature from KTM.

Frame

The frame is professionally crafted from hydroformed chromium molybdenum steel tubes that are robot welded, ensuring the highest levels of consistent quality. The stiffness has been precisely tailored for the most dynamic handling, and works in perfect harmony with the suspension to provide nimble agility without losing high-speed stability. The frame also features “no dirt” footpegs, which have a simple but effective self-cleaning system that ensures the footpegs return to their original position, providing complete control in all conditions. All SX frames feature the same highly durable powder coating as the KTM Factory machines and come with standard frame protectors. The subframe is made from lightweight aluminum, providing rear fender stability and strong support for the rider at little extra weight.

Footpegs

Sophisticated ´no-dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the 2019 EXC models, which are 6 mm higher than the SX versions.

Seat

All KTM SX models feature a seat that perfectly matches the range’s dynamic performance-oriented ergonomics. The seat cover features silicone strips that provide better feel and grip for the rider. The seat is conveniently fixed to the bike using one long, lateral screw, making it secure and easy to handle.

Handlebar

All full-size KTM SX models are equipped with the same high-strength aluminum tapered handlebar, made by NEKEN. The handlebar is fixed in rubber damped mountings, which allow for two different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. They also feature a bar-pad with a cover that can be attached and removed with little effort.

Footpegs

Sophisticated ´no-dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the 2019 EXC models, which are 6 mm higher than the SX versions.

Seat

All KTM SX models feature a seat that perfectly matches the range’s dynamic performance-oriented ergonomics. The seat cover features silicone strips that provide better feel and grip for the rider. The seat is conveniently fixed to the bike using one long, lateral screw, making it secure and easy to handle.





2021 KTM 250 SX – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $8399 USD
Canada MSRP Price: $ 9399 CDN
Europe/UK MSRP Price: £ 7699 (On The Road inc 20% Vat)

ENGINE

  • TRANSMISSION5-speed
  • STARTERKickstarter
  • STROKE72 mm
  • BORE66.4 mm
  • CLUTCHWet, DDS multi-disc clutch, Brembo hydraulics
  • DISPLACEMENT249 cm³
  • EMSKokusan

CHASSIS

  • WEIGHT (WITHOUT FUEL)87.5 kg
  • TANK CAPACITY (APPROX.)7.5 l
  • FRONT BRAKE DISC DIAMETER260 mm
  • REAR BRAKE DISC DIAMETER220 mm
  • FRONT BRAKEDisc brake
  • REAR BRAKEDisc brake
  • CHAIN5/8 x 1/4″
  • FRAME DESIGNCentral double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSIONWP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE375 mm
  • REAR SUSPENSIONWP XACT Monoshock with linkage
  • SEAT HEIGHT850 mm
  • STEERING HEAD ANGLE63.9 °
  • SUSPENSION TRAVEL (FRONT)310 mm
  • SUSPENSION TRAVEL (REAR)300 mm





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
