2022 BMW K1600 Grand America: EXPERIENCE MORE TOGETHER.
Introducing the 2022 BMW K1600 Grand America…
Travelling in pairs means experiencing every kilometer twice. Makes sense, right? However, with the K 1600 Grand America you will always experience more. Its superior six-cylinder engine lets you casually cruise towards the horizon: perfectly equipped with footboards, topcase featuring backrest and high windscreen. As a result, it won’t be easy to say which was the most beautiful moment of the tour at the end of each day. Still, the stories about every kilometer will feel at least twice as good.
You will experience every kilometer more intensively with the K 1600 Grand America. And yet you’ll never get enough: thanks to the standard additional headlight and the full LED headlight with adaptive headlight, you can now travel more safely and confidently than ever before, even at night. Thanks to its swivel function, the light cone remains constant and adapts seamlessly when you lean into corners. After all, what’s better than never losing sight of the horizon even in the dark? The standard audio system 2.0 also opens up new dimensions. Apart from intuitive menu navigation and numerous sound profiles, there is not much to see: the antennas have been concealed. This makes enjoying the music all the more impressive. Just what you expect!
2022 BMW K1600 Grand America Totalmotorcycle.com Key Features
- 10,25” TFT Display with ConnectedRide Navigation and Connectivity
- Smartphone compartment (Incl. USB-C Charging interface – cable required)
- LED Headlight (Incl. Adaptive headlight and Daytime Riding Light)
- Configurable Favourite buttons
- Intelligent Emergency Call and Teleservices
- USB-A Charging Interface in the topcase
- Reverse gear
- Dynamic ESA
- Dynamic Traction Control
- Tyre Pressure Control
- Cruise Control
- 2 x 12V Sockets
- Hill Start Control Pro
- Dynamic Engine Brake Control (MSR)
- Powertrain Black
- Heated Seat and grips
- Centre Stand
- Grand America Package (Audio System 2.0, High Sound Speaker System, Engine Protection Bars, LED Additional Fog Lights, Floorboards, High Windshield)
- Comfort Package (Gearshift Assist Pro, Central Locking System, Keyless Ride and Anti-Theft Alarm)
STANDARD FEATURES
- Revised six-cylinder in-line engine meeting EU-5 regulations and new BMS-O engine control.
- Two knock sensors and four lambda probes (previously two).
- Power: 160 hp (unchanged) at 6,750 rpm (previously 7,750 rpm).
- Torque: 133 lb-ft at 5,250 rpm (previously 129 lb-ft).
- Improved acceleration across the entire speed range thanks to increased torque.
- Knock sensors for optimized riding capability.
- Engine drag torque control (MSR) – standard.
- Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation – standard.
- New full LED adaptive headlight – standard.
- Connectivity: New full-color 10.25-inch TFT multifunctional instrument cluster with numerous features such as easy-to-use telephone with extended smartphone connection – standard.
- 4 programmable “favorite” buttons – standard.
- New optional audio system 2.0.
- One standard color, one style variant and one Option 719 variant each.
- Option 719 “Midnight” for K 1600 B and K 1600 Grand America: Paintwork in meteoric dust II metallic with “Galaxy” theme applied by water transfer printing method.
- Extended range of optional equipment and original BMW Motorrad accessories.
The Grand America model is an optional package for the 2022 BMW K 1600 B.
Six-cylinder in-line engines have been in integral part of BMW’s motorcycle line-up since the introduction of the original K 1600 in 2010, The BMW K 1600 represents the ultimate interpretation of high-performance, luxurious touring and cruising. The K 1600 GT represents the agile, dynamic variant of the six-cylinder lineup, while the K 1600 GTL with its more comfortable ergonomics and standard top case focuses more on longer distance riding.
The K 1600 B provides low-slung “streamliner” bagger styling accompanied by its moto “The Spirit of the Open Road”. It represents elegance, power and luxury on two wheels to allows the rider to experience every road, every tour and every moment. Derived from the K 1600 B, the K 1600 Grand America combines the superior performance of the six-cylinder in-line engine with exclusive equipment features that make long-distance rides an experience that is as comfortable as it is exhilarating, for both rider and passenger.
K 1600 B and K 1600 Grand America: Standard

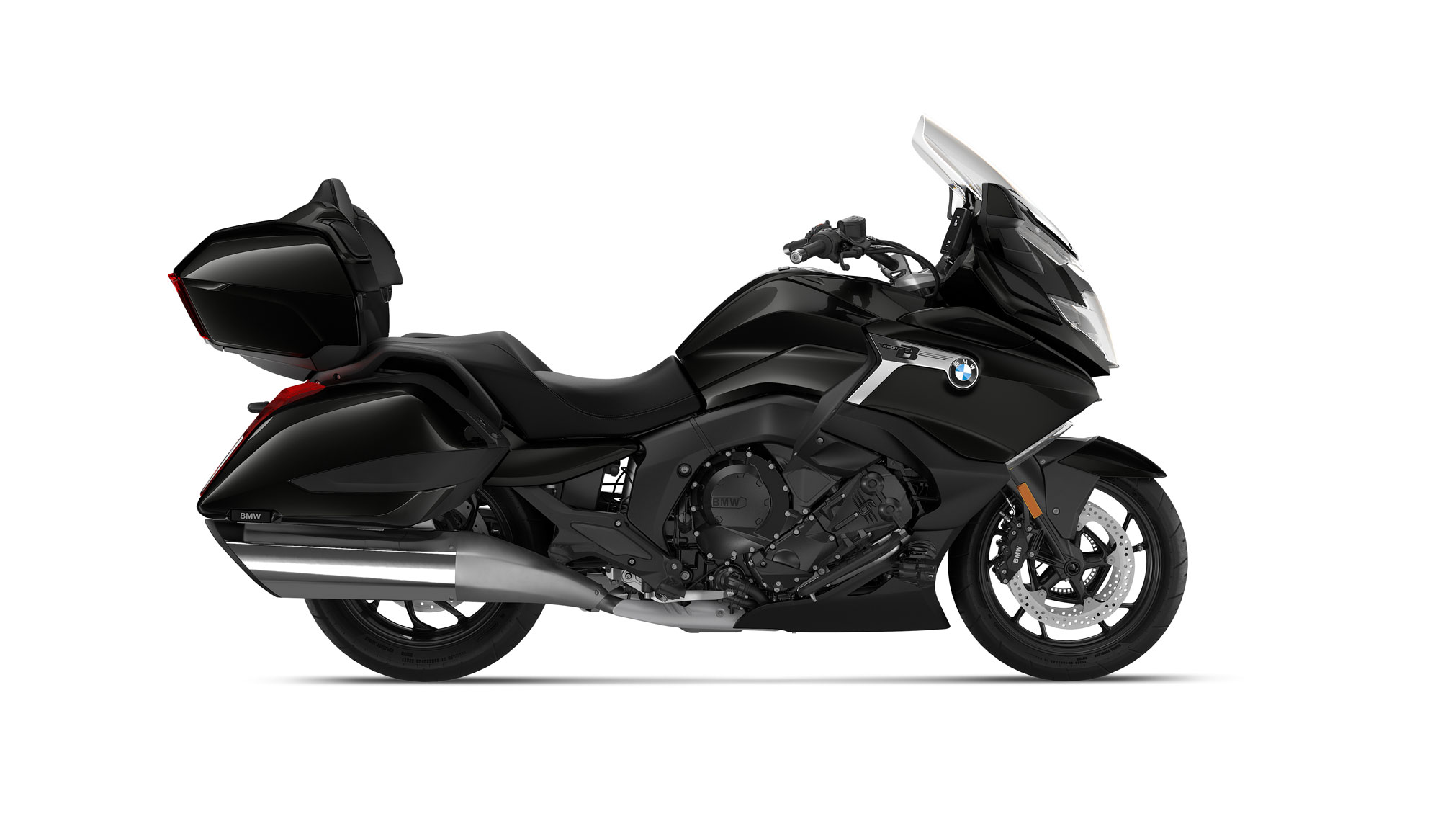

- Black Storm metallic body color.
- Frame in black.
- Engine in black.
- Seat in black.
- Front part of the front fender in black storm metallic.
- Engine spoiler in night black matt.
- Tank center cover in black storm metallic.
- Slipstream deflector trim in black storm metallic.

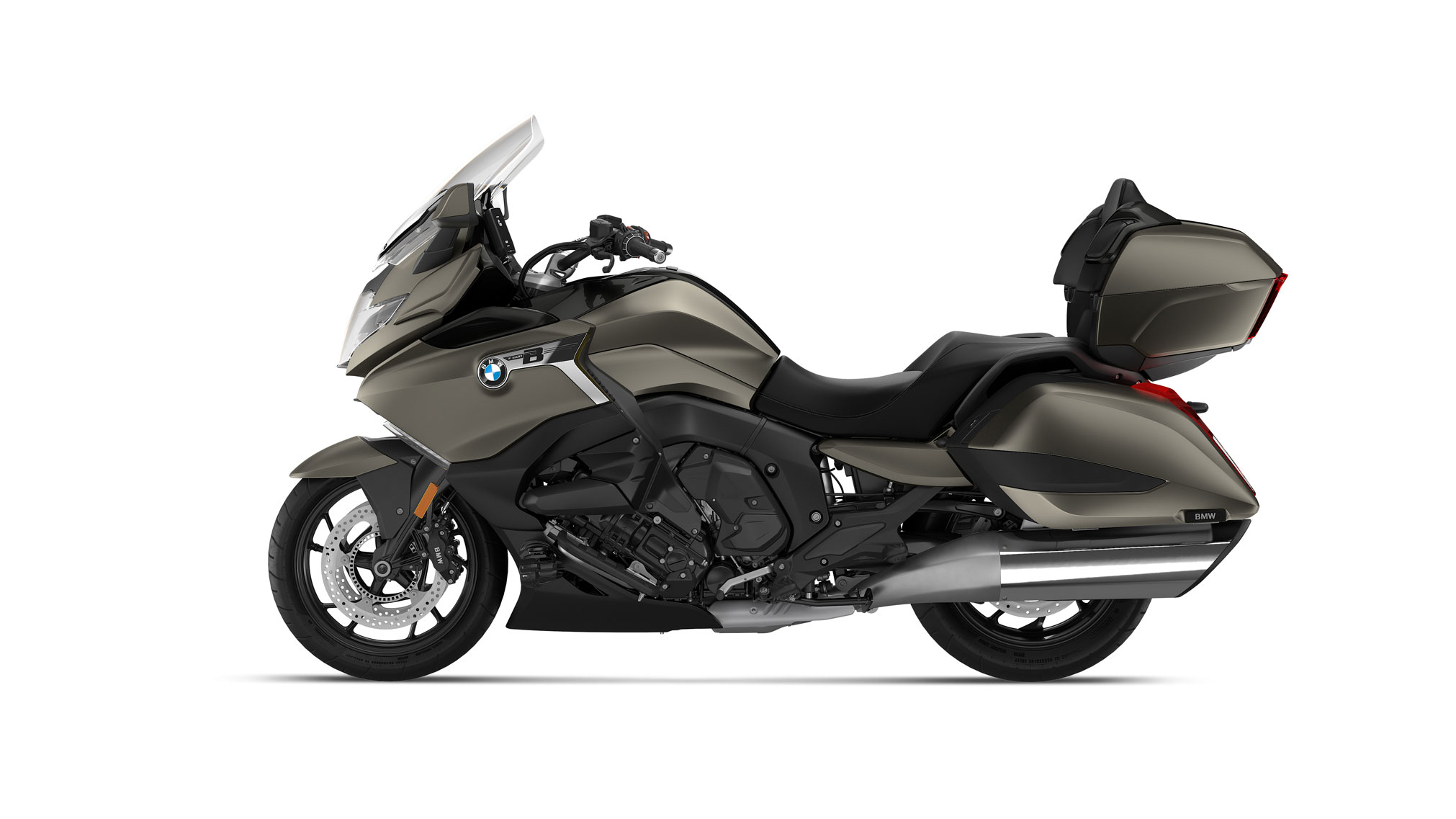

K 1600 B and K 1600 Grand America: Exclusive style.
- Manhattan metallic matt body color.
- Frame in black.
- Engine in black.
- Seat in black.
- Front part of the front fender in Manhattan white metallic.
- Engine spoiler in night black matt.
- Tank center cover in black storm metallic.
- Slipstream deflector trim in black storm metallic.

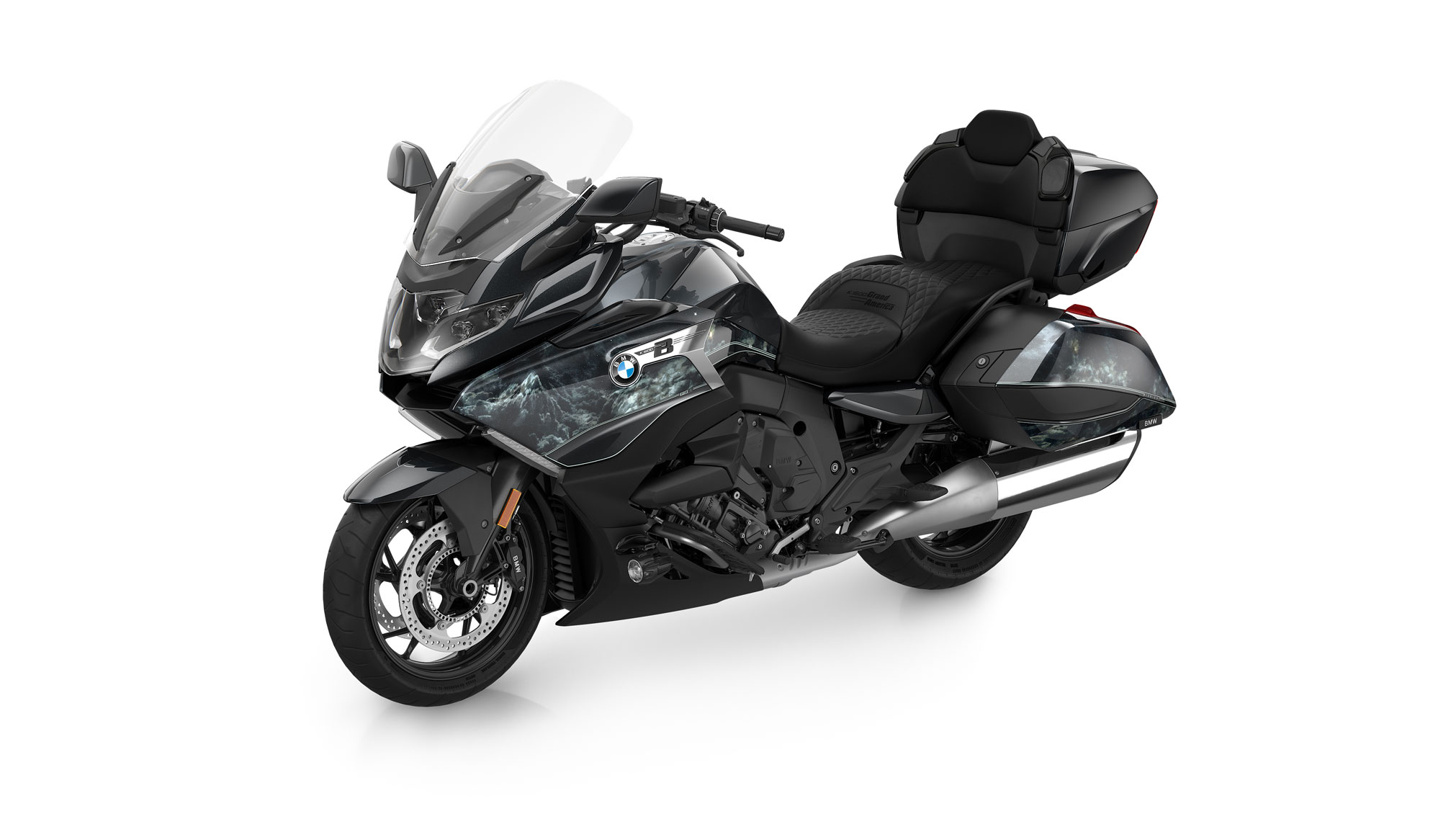

K 1600 B and K 1600 Grand America: Option 719 “Midnight”.
- Meteoric dust II metallic body color with water transfer printing method.
- Frame in black.
- Engine in black.
- Option 719 seat in black with diamond top-stitching and model designation.
- Front part of the front fender in meteoric dust II metallic.
- Engine spoiler in night black matt.
- Tank center cover in meteoric dust II metallic.
- Slipstream deflector trim in meteoric dust II metallic.
- “Midnight” badge.
2022 BMW K1600 Grand America Totalmotorcycle.com Features and Benefits
Six-cylinder in-line engine with new engine control, knock sensor system, revised emissions and engine drag torque control.
The heart of the new K 1600 GT, GTL, B and Grand America is the narrowest six-cylinder in-line engine in motorcycle series production, with a width of only 21.9-inches and a weight of 226 lbs. Its displacement remains unchanged at 1,649 cc. In the new six-cylinder models, this engine delivers absolutely superior touring characteristics and riding capability combined with the highest levels of performance.
For use in the new K 1600 GT, GTL, B and Grand America, the six-cylinder engine has been adapted to current EU-5 regulations. From a technical point of view, the use of the BMS engine control, two knock sensors and two additional lambda probes represents the centerpiece of the updates. The two knock sensors are on the rear side of the cylinder bank at cylinders 2 and 5, which enables optimized ignition timing. They also allow the use of fuel of varied quality which is particularly beneficial when travelling in remote corners of our planet.
In addition to the two lambda sensors positioned at each of the junctions of three exhaust manifolds, two further lambda sensors are now located behind the two catalytic converters, which allows for an even more precise determination of the residual oxygen level in the exhaust gas and thus an even more precise mixture of air/fuel and ignition by the engine control.
In addition to drastically improved emission values, there are also noticeable benefits to the power and torque of the six-cylinder engine. The power output of 160 hp is now achieved at 6,750 rpm – 1,000 rpm sooner than before. Maximum torque increases from 129 lb-ft to 133 lb-ft at 5,250 rpm. This improves acceleration – especially in the riding-relevant range from 3,500 to 7,000 rpm.
The engine drag torque control (MSR) is also new. With MSR, undesirable riding conditions, which can develop when down-shifting for example, due to excessive rear-wheel slip can be avoided. In these cases, the engine drag torque control opens the throttle valves to level the drag torque and stabilize the motorbike.
From a technical point of view, engine drag torque control compares the rotational speeds of the front and rear wheels in the same way as the standard dynamic traction control (DTC) and thus determines the slip or traction capacity at the rear wheel. In addition, heel angle information from the new 6-axis sensor box is used.
The level of control depends on the riding mode: in “Rain” and “Road” riding modes, engine drag torque control ensures maximum riding stability. In “dynamic” riding mode, on the other hand, the control permits slightly more rear wheel slip.
Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation.
The BMW Motorrad Dynamic ESA “Next Generation” (Electronic Suspension Adjustment) on the new K 1600 GT, GTL, B and Grand America enables higher levels of riding safety, performance and comfort, because damping is automatically adapted to the riding conditions and riding style. The system includes automatic load level compensation.
The signals from the new 6-axis sensor box and the two sensors at the front and rear enable comprehensive data collection and thus sensitive adjustment of the K 1600 to the riding conditions. Riding conditions such as spring compression, acceleration and deceleration are also recorded and are used to adjust the damping forces on the rear suspension strut and the Duolever front suspension. This adjustment is made by electrically operated control valves within milliseconds. Even in an inclined position, optimum damping comfort and stability are achieved.
In the standard configuration for “Rain” and “Road” riding modes (for K 1600 B and K 1600 Grand America: “Cruise” and “Road”) Dynamic ESA “Next Generation” is preset to the “Road” damping characteristics. By pressing a button on the handlebar, the rider can switch to the “Dynamic” damping characteristics and thus a firmer damping setting for these riding modes. In “Dynamic” riding mode, the firmer “Dynamic” damping option is preset, and it is possible to switch to the “Road” damping option by pressing a button.
New full LED adaptive headlight for exceptional illumination of the road.
BMW Motorrad has been a pioneer for decades in terms of motorcycle safety. Accordingly, the new K 1600 GT, GTL, B and Grand America provide LED lighting as standard. The new full LED headlight illuminates the road with a bright, clear light and consists of an LED module with a total of nine LEDs for the low-beam headlight and four more LED modules with two LEDs for the two high-beam headlight modules.
The standard turning “adaptive headlight” function features a low-beam LED headlight which turns into the curve according to the heel angle. Curves are thus almost fully illuminated because the light is where the K 1600 is heading. Due to the enhanced turning function of ± 35° (previously ± 24°) the horizon of the light remains constant and is adapted seamlessly to the leaning position. In addition, by turning the entire headlight unit up or down ±2° during acceleration and braking, optimum illumination is ensured at all times.
New “Welcome”, “Good-bye” and “Follow me home” light functions.
New light functions make the experience with the new six-cylinder K 1600 models even more comfortable and practical. For example, when the ignition is switched on, a welcome light function is activated. The headlight and rear light remain on for a short time and then fade to the waiting state before the engine starts. The transitions are dimmed in stages in the process.
After switching off the ignition, the front and rear lights are also automatically activated briefly for the “Good-bye” function which illuminates the area around the motorcycle.
Another new function is the “Follow me home” function which, after switching off the ignition, allows the rider to activate the lights by briefly pressing the high-beam headlight button. The ignition and other functions not used for orientation and light sources remain switched off. This light function provides optimum visibility at night, for example when maneuvering in parking spaces or opening the garage at home.
The optional floor lighting not only increases attention – it can also be a practical aid, for example when parking the K 1600 in the dark using the side or center stand, for a better assessment of the condition of the ground. Anything that is dropped can also be quickly found.
New standard 10.25-inch TFT color display with integrated map navigation, easy-to-use route planning and comprehensive connectivity.
The new K 1600 GT, GTL, B and Grand America are equipped with a standard new 10.25-inch TFT color display with integrated map navigation and connectivity. Thanks to excellent readability, clear menu navigation and a highly integrated operating concept, means that the new K 1600 remains at the forefront of its motorcycle segment. The new 10.25-inch color display allows a navigation map to be displayed on the instrument cluster, eliminating the need for a stand-alone navigation unit.
For protection against the elements, the display is equipped with a hardened and thus extremely tough glass cover. For optimum viewing, it is anti-reflective and protected against dirt by a fingerprint-resistant coating. The display features full HD resolution in 1920 x 720 pixels.
In the “full screen” view, the full capability of the display becomes visible. The alternative “split screen” view allows several functional areas to be shown simultaneously and clearly and controlled using the multi-controller. The speedometer and tachometer as well as the basic functions and the selection menu are displayed on the main “Pure Ride Screen”. Alternatively, the navigation map is displayed if navigation is active via the BMW Motorrad Connected app. Either the instrument cluster, the on-board computer, arrow navigation, a current phone call or radio / media are displayed on the additional split screen.
The “My vehicle”, “Navigation”, “Radio”, “Media”, “Telephone” and “Settings” menus can be selected via displayed tiles. Features such as cruise control, riding modes and audio / radio are seamlessly integrated into the display, making them easy to use.
The display has two radio antennas for connections such as to the helmet or smartphone. One antenna is available for Bluetooth and another one enables data exchange both via W-LAN and also Bluetooth.
Vehicle functions such as “Settings”, “Navigation” or “Communication” are controlled using the standard multi-controller. The “favorite button” was developed with the aim of simple and intuitive operation based on the rider’s needs. The unit of four buttons is located on the left side of the fairing panel below the handlebars and enables access to 18 functions such as “audio” or “heated grips” using two-stage buttons, making it easier to select and operate the functions. Two-stage buttons mean that when pressed gently, information is provided on what function is available at that button and what can be set. If the button is pressed beyond the resistance point, the function behind it becomes operable. The buttons can be configured individually and are not preset from the factory.
With the new 10.25-inch TFT color display, the new K 1600 GT, GTL, B and Grand America also provide an integrated platform for the use navigation through the BMW Motorrad Connected app with a fully interactive map view. The navigation map is mirrored on the display via WLAN and navigation options can be controlled using the multi-controller. The smartphone-based architecture means navigation is always on board, and changes to the route during a coffee break or sharing the route with friends becomes simple.
With the smartphone app, the rider also continuously receives the latest software for navigation. In addition, the app enables maximum flexibility during planning. This means planning can be carried out in the app itself and you can apply planned routes e.g. from base camp or download route suggestions from an internet portal.
The BMW Motorrad Connected app can be obtained free of charge from the Google and Apple app stores. It contains further attractive additional functions, such as recording driven routes or displaying riding statistics and information. Recorded routes can be shared directly with other bikers via the Rever Community.
Easy-to-use extended smartphone connection and use is also available. A smartphone can be safely accommodated in a splash-proof and electrically ventilated storage compartment above the TFT display, and its battery can be charged via a USB-C cable.
The smartphone is protected from unwanted removal by the windscreen that – like with the predecessor – automatically moves to the lower position after the ignition is switched off. The charging storage compartment cannot be locked. To remove it, it is sufficient to switch on the ignition and press the release button. The windscreen immediately raises, and the lid of the charging storage compartment opens in a cushioned manner as soon as the windscreen reaches the topmost position.
Inside the storage compartment the smartphone is firmly held via a flexible bracket. A charging current of up to 1,500 mA at 5 V (equivalent to a charging capacity of 7.5 W) can be transferred, which also enables quick charging, depending on the type of smartphone. This means there is always sufficient energy during active navigation, for example. Ventilation by an electric fan reduces the heat generated when operating the smartphone and a seal on the storage compartment cover provides reliable protection against splashing water.
Audio system 2.0 – a new digital sound dimension.
With standard audio system 2.0, the new K 1600 GTL and Grand America provide an intensive sound experience. The audio system is available as optional for the K 1600 GT and K 1600 B. A striking feature of the new audio system 2.0 is that the antennas for radio reception are now integrated into the bodywork.
Whereas the previous audio system was connected to the motorcycle as a primarily independent system, the new audio system 2.0 is integrated into the electrical system. Menu control and setting options as well as the unique display screens make the audio experience a seamless listening experience.
The highlights of the new audio system include:
- Studio profile: optimized for listening experience without helmet audio.
- Bass-boost, treble-boost, voice and balanced profiles: optimized for maximum listening experience with in-helmet audio.
- Highly flexible sound architecture (treble/bass) with a wide range, even at high speeds.
- Standard SiriusXM satellite radio with 1-year subscription.
Colors, exclusive styles and Option 719 variants.
The new K 1600 GT, GTL, B and Grand America are available in three attractive color options each: a standard color, a style variant and with Option 719. Option 719 “Midnight” is particularly noteworthy, which is only available for K 1600 B and K 1600 Grand America. The highlight of this variant is the paint finish in meteoric dust II metallic with the “Galaxy” theme depicted using the water transfer printing method. This is a method with which objects can be fully or partially coated with a pattern or graphic.
Backing films, which are activated in a water bath, are used as the medium for the later pattern or graphic. The object to be coated is pressed on to the film in the water bath and immersed. During this process, the pattern or graphic on the backing film is transferred to the object. Finally, a coat of two-component clear is applied for sealing. As this is done by hand only, each Option 719 “Midnight” is truly unique.
2022 BMW K1600 Grand America – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $277495 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: from £24410 GBP (total selling price)
Engine
Type Oil/water-cooled, six-cylinder, four-stroke, in-line engine with four valves per cylinder
Bore x stroke 72 mm x 67.5 mm
Capacity 1,649 cc
Rated output 160 hp at 6,750 rpm
Max. torque 132.7 lbs-ft at 5,250 rpm
Compression ratio 12.2 : 1
Mixture control Electronic intake pipe injection digital engine management system: BMS-O with throttle-by-wire
Emission control Closed-loop 3-way catalytic converter, emission standard EU-5
Performance / fuel consumption
Maximum speed 100 mph
Fuel type Unleaded super (max. 15 % Ethanol, E15) / ROZ 95 / 90 AKI
Electrical system
Alternator Three-phase alternator with 700 W (nominal power)
Battery 12 V / 16 Ah, maintenance-free
Side cover of the K 1600 Grand America in Manhattan metallic matt.
Power transmission
Clutch Multiple-disc clutch in oil bath
Gearbox 6-speed, helical, gearbox
Drive Shaft drive
Chassis / brakes
Frame Bridge-type frame, cast aluminum, load-bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension Cast aluminum single-sided swing arm with BMW Motorrad Paralever; central spring strut
Suspension travel, front / rear 4.5” / 5.3”
Wheelbase 63.7”
Castor 4.2”
Steering head angel 62.2°
Wheels Cast aluminum wheels
Rim, front 3.50 x 17“
Rim, rear 6.00 x 17“
Tire, front 120/70 ZR 17
Tire, rear 190/55 ZR 17
Brake, front Dual disc brake, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 320 mm, double-piston caliper
ABS BMW Motorrad Integral ABS Pro (part-integral, slant-layer-optimized)
Dimension / weights
Seat height 29.5”
Inner leg curve 69.3”
Usable tank volume approx. 7 gal.
Reserve approx. 1 gal.
Length (over top case) 100.8”
Height (at windshield) 56.7” – 62.2”
Width (incl. side cases) 39.4”
Unladen weight, road ready, fully fueled 1) 809.1 lbs. 1)
Permitted total weight 1,234.6 lbs.
Payload (with standard equipment) 425.5 lbs
1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fueled with at least 90% of usable tank volume.
EQUIPMENT
Standard equipment
10.25-Inch Color-TFT display with connectivity and integrated map-navigation (by BMW Motorrad Connected App)
Audio system 2.0 (e.g. with sound profiles)
Charging storage for mobile phones (USB-C)
Fully LED headlight with light icon and adaptive cornering light
Double tone fanfare
4 configurable favorite button cluster
Dynamic traction control (DTC)
3 Ride modes: Rain, Road and Dynamic
Engine brake control (MSR)
Dynamic ESA (electronic suspension adjustment with automatic load leveling)
Hill Start Control (HSC Pro)
Tire Pressure Monitor (TPM)
Heated grips
Seat heating
Side cases
Top case incl. USB-A and additional speaker
LED auxiliary head lamp
Engine protection guard
Floorboards
Windscreen high
Optional equipment
Comfort-package (consisting of Keyless Ride, central locking system, Shift Assistant Pro and anti-theft alarm)
Ground-level lighting
Seat high
Option 719 seat
Option 719 classic forged wheels
Forged handlebars
Center stand
Optional accessories
Armrest for passenger
Liner for top case and side case
Tank bag
Chrome parts
2022 BMW K1600 Grand America – Totalmotorcycle.com Canada Specifications/Technical Details
2022 BMW K1600 Grand America – Totalmotorcycle.com European Specifications/Technical Details
Engine
Type Oil/water-cooled, six-cylinder, four-stroke, in-line engine with four valves per cylinder
Bore x stroke 72 mm x 67.5 mm
Capacity 1,649 cc
Rated output 118 kW (160 hp) at 6,750 rpm
Max. torque 180 Nm at 5,250 rpm
Compression ratio 12,2 : 1
Mixture control Electronic intake pipe injection digital engine management system: BMS-O with throttle-by-wire
Emission control Closed-loop 3-way catalytic converter, emission standard EU-5
Performance / fuel consumption
Maximum speed 162 km/h
Fuel consumption per 100 km based on WMTC 5,9 l
CO2 emission based on WMTC 137 g/km
Fuel type Unleaded super (max. 15 % Ethanol, E15) / ROZ 95 / 90 AKI
Electrical system
Alternator Three-phase alternator with 700 W (nominal power)
Battery 12 V / 16 Ah, maintenance-free
Side cover of the K 1600 Grand America in Manhattan metallic matt.
Power transmission
Clutch Multiple-disc clutch in oil bath
Gearbox 6-speed, helical, gearbox
Drive Shaft drive
Chassis / brakes
Frame Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut
Suspension travel, front / rear 115 mm / 125 mmm
Wheelbase 1,618 mm
Castor 106.4 mm
Steering head angel 62.2°
Wheels Cast aluminium wheels
Rim, front 3.50 x 17“
Rim, rear 6.00 x 17“
Tyre, front 120/70 ZR 17
Tyre, rear 190/55 ZR 17
Brake, front Dual disc brake, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 320 mm, double-piston caliper
ABS BMW Motorrad Integral ABS Pro (part-integral, slant-layer-optimized)
Dimension / weights
Seat height 750 mm
Inner leg curve 1,760 mm
Usable tank volume approx. 26.5 l
Reserve approx. 4 l
Length (over topcase) 2,560 mm
Height (at windshield) 1,440 – 1,580 mm
Width (incl. side cases) 1,000 mm
Unladen weight, road ready, fully fuelled 1) 367 kg 1)
Permitted total weight 560 kg
Payload (with standard equipment) 193 kg
1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fuelled with at least 90% of usable tank volume.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
