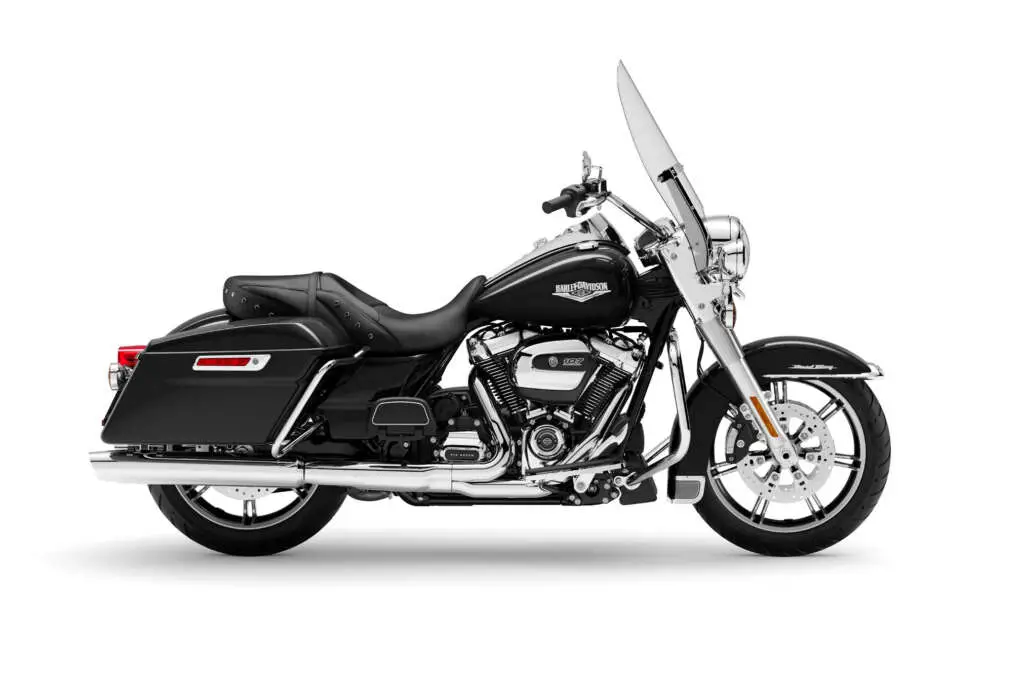

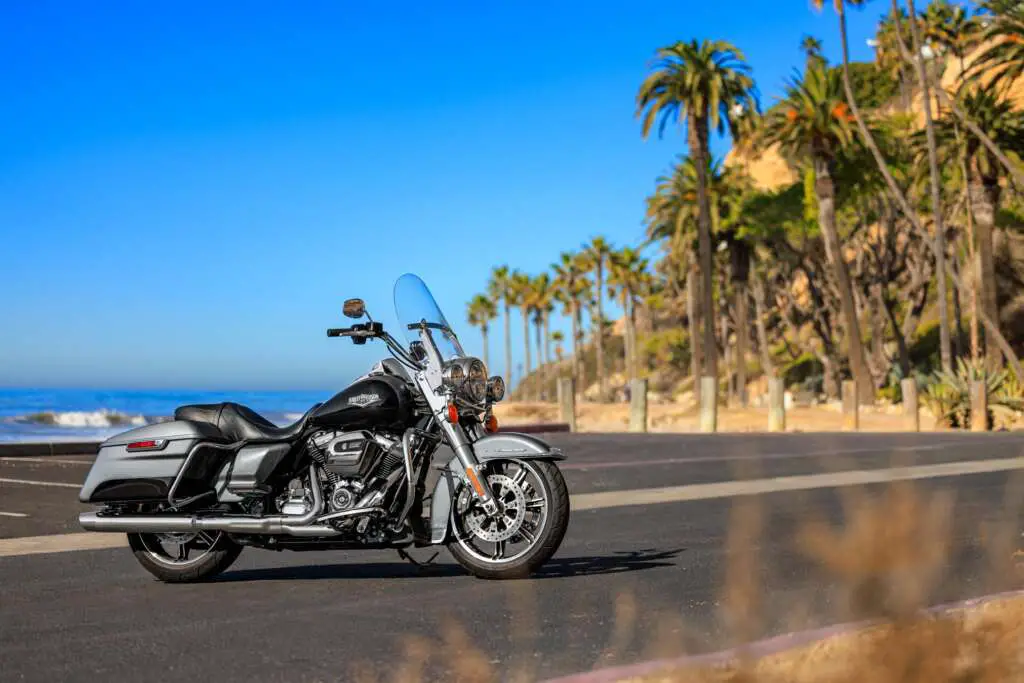

2022 Harley-Davidson Road King: A HIGHWAY LEGEND.
Introducing the 2022 Harley-Davidson Road King…
A stripped-down highway legend with neo-classic chrome styling and modern touring performance. Powered by Milwaukee-Eight 107 engine.
The Hiawatha headlamp and nacelle were born in the ‘60s, but the power of the Milwaukee-Eight® 107 engine on the Road King® brings it all into right now, fast. The Showa® dual-bending valve front suspension and rear emulsion shocks put riders in control for a plush ride. And riders get cast Impeller wheels and one-touch bags. It’s a modern classic.
2022 Harley-Davidson Road King Totalmotorcycle.com Key Features
GRAND AMERICAN TOURING
The category we’ve created from the ground up. Go the distance, in style. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson® motorcycle.
Harley-Davidson designs its Grand American Touring models for riders forever seeking that next adventure. Grand American Touring models take riders beyond the horizon with the comfort and convenience that makes the journey spectacular, from the company that started the cross-country experience. All Harley-Davidson Grand American Touring models are powered by a smooth-running Milwaukee-Eight® V-Twin engine. Emulsion-technology rear shock absorbers feature a single knob to hydraulically adjust pre-load for optimal ride and control. The 49mm forks with dual bending valve suspension technology deliver linear damping characteristics for a smooth ride. Reflex™ linked Brembo® brakes with ABS are a standard feature on each Touring model.
Cornering Rider Safety Enhancements by Harley-Davidson, an option for all Touring models, will assist the rider in maintaining the rider’s intended path through a curve. The option package provides the following enhancements: Electronically Linked Brakes, Cornering-ABS, Cornering-Traction Control with standard and rain mode, Drag Torque Slip Control, Vehicle Hold Control, and Tire Pressure Monitoring (TPMS).
For 2022 these Grand American Touring models feature exciting new paint color options.
- Upright riding position
- Floorboards
- Passenger seat
- Saddlebags
- Rider safety enhancements available
THIS IS THE RIGHT BIKE FOR
- Riders looking to burn through miles with authority
- Neo-classic style with Hiawatha headlamp and nacelle
- Milwaukee-Eight® 107 V-Twin engine and one-touch saddlebags
2022 Harley-Davidson Road King Totalmotorcycle.com Features and Benefits
MILWAUKEE-EIGHT® 107 ENGINE
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.
REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.
HIAWATHA HEADLAMP AND NACELLE
Born in the ’60s, when chrome ruled the streets. Big and commanding, it’s built with the latest in materials and technology for a long distance high beam and wide low beam.
RESPONSIVE SUSPENSION
High-performing front and rear suspension, with easily hand-adjustable rear shocks put you in control of a plush ride.
ONE-TOUCH OPENING SADDLEBAGS
Tight on the outside, roomy on the inside. The hinges are simple and clean and the lids open with one touch of one hand.
2022 Harley-Davidson Road King – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: from $19,929 (Black), $20429 (Color), $20754 (Two Tone) USD
Canada MSRP Price: from $23,999 (Black), $24599 (Color), $25099 (Two Tone) CDN
Europe/UK MSRP Price: from £21,395 (Black), £21895 (Color), £22245 (Two Tone) GBP (On The Road inc 20% Vat)
| Dimensions | FLHR Road King® | Notes |
| Length | 96.5 in. (2,450 mm) | |
| Overall Width | 37.8 in. (960 mm) | |
| Overall Height | 56.3 in. (1,430 mm) | |
| Seat Height, Laden | 26.3 in. (667 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen | 27.8 in. (705 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance | 5.3 in. (135 mm) | |
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 26 | |
| Fork Angle (deg) | 29.25 | |
| Trail | 6.7 in. (170 mm) | |
| Wheelbase | 64 in. (1,625 mm) | |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear | |
| Tires, Front Model | D408F | |
| Tires, Front Specification | BW 130/70B18 63H | |
| Tires, Rear Model | D407T | |
| Tires, Rear Specification | BW 180/55B18 80H | |
| Fuel Capacity | 6 gal. (22.7 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5.2 qt. (4.9 l) | |
| Transmission Capacity | 1 qt. (.95 l) | |
| Primary Chain Case Capacity | 1.1 qts. (1 l) | |
| Coolant Capacity | N/A | |
| Weight, As Shipped | 794 lb. (360 kg) | |
| Weight, In Running Order | 828 lb. (375 kg) | |
| Gross Vehicle Weight Rating | 1,360 lb. (617 kg) | |
| Gross Axle Weight Rating, Front | 500 lb. (227 kg) | |
| Gross Axle Weight Rating, Rear | 927 lb. (420 kg) | |
| Luggage Capacity -Volume | 2.3 cu ft (0.064 m3) |
| Engine | FLHR Road King® | Notes |
| Engine | Milwaukee-Eight® 107 | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder | |
| Bore | 3.937 in. (100 mm) | |
| Stroke | 4.374 in. (111.1 mm) | |
| Displacement | 107 cu in (1,745 cc) | |
| Compression Ratio | 10.0:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Paper, washable | |
| Exhaust | Chrome, 2-1-2 dual exhaust with tapered mufflers | |
| Lubrication System | Pressurized, dry-sump with oil cooler |
| Drivetrain | FLHR Road King® | Notes |
| Primary Drive | Chain, 34/46 ratio | |
| Final Drive | Belt, 32/68 ratio | |
| Clutch | Mechanically actuated 10 plate wet, Assist and Slip | |
| Transmission | 6-Speed Cruise Drive® | |
| Gear Ratios (overall) 1st | 9.593 | |
| Gear Ratios (overall) 2nd | 6.65 | |
| Gear Ratios (overall) 3rd | 4.938 | |
| Gear Ratios (overall) 4th | 4 | |
| Gear Ratios (overall) 5th | 3.407 | |
| Gear Ratios (overall) 6th | 2.875 |
| Chassis | FLHR Road King® | Notes |
| Frame | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded. | |
| Swingarm | Mild steel; two-piece drawn and welded section; forged junctions; MIG welded. | |
| Front Fork | 49 mm Dual Bending Valve | |
| Front Fork, Optional | ||
| Rear Shocks | Premium standard height hand-adjustable rear suspension | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Slicer II Cast Aluminum | 4 |
| Wheels, Front Width | 3.5 in. (89 mm) | |
| Wheels, Front Height | 18 in. (457 mm) | |
| Wheels, Rear Type | Slicer II Cast Aluminum | 4 |
| Wheels, Rear Width | 5 in. (127 mm) | |
| Wheels, Rear Height | 18 in. (457 mm) | |
| Brakes, Caliper Type | 32 mm, 4-piston fixed front and rear | |
| Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.2 in. (5.1 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 11.8 in. (300 mm) | |
| Brakes, Rear Thickness | 0.28 in. (7.1 mm) | |
| Front brake lever free travel | N/A | |
| Rear brake pedal free travel | N/A | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 4.6 in. (117 mm) | |
| Suspension Travel, Rear | 3 in. (76 mm) |
| Performance | FLHR Road King® | Notes |
| Engine Torque Testing Method | J1349 | |
| Engine Torque | 111 ft-lb (151 Nm) | 5 |
| Engine Torque (rpm) | 3,250 | |
| Power (Hp/kW) | 93 HP / 69 kW @ 5020 rpm | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 32 | |
| Lean Angle, Left (deg.) | 32 | |
| Maximum hill-starting ability | N/A | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 43 mpg (5.5 l/100 km) | 6 |
| CO₂ Emissions Testing Method | N/A | |
| CO₂ Emissions | N/A |
| Electric | FLHR Road King® | Notes |
| Battery | Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating) | |
| Charging | Three-phase, 48-amp system (600W @ 13V, 2000 rpm, 625W max power @ 13V) | |
| Starting | 1.6 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam with switchable 26 watt 440 lumen halogen fog lights. Total of 986 lumen output at low beam with fog lights. | |
| Lights (as per country regulation), Tail/Stop | 8W/28W | |
| Lights (as per country regulation), Front Signal Lights | 8W/28W | |
| Lights, Rear Turn Signals | 28W | |
| Gauges | Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators. | |
| Auxiliary Lamps | Two @ 30W each (except where prohibited by law) | |
| Electric Power Outlet | Electric power accessory connector under left side cover | |
| GPS System | N/A | |
| Reverse Gear | N/A |
| Warranty And Service | FLHR Road King® | Notes |
| Warranty | 24 months (unlimited mileage) | 7 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 8 |
Notes
- Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- Recommended 91 octane or higher fuel (R+M)/2.
- Standard and optional wheels may vary by country and region.
- Values shown are nominal. Performance may vary by country and region.
- The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
- See motorcycle owner’s manual for complete details.
- Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
