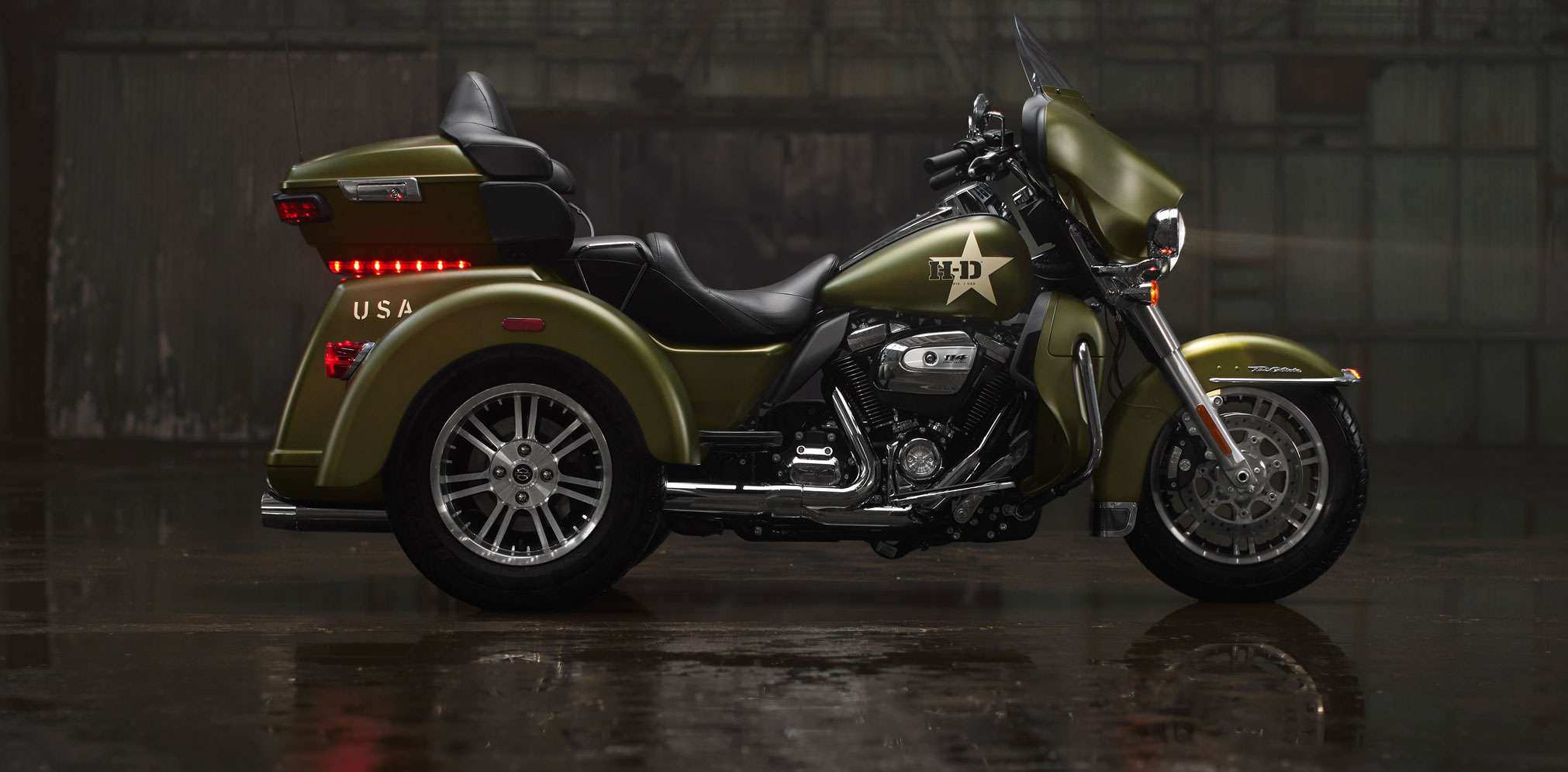

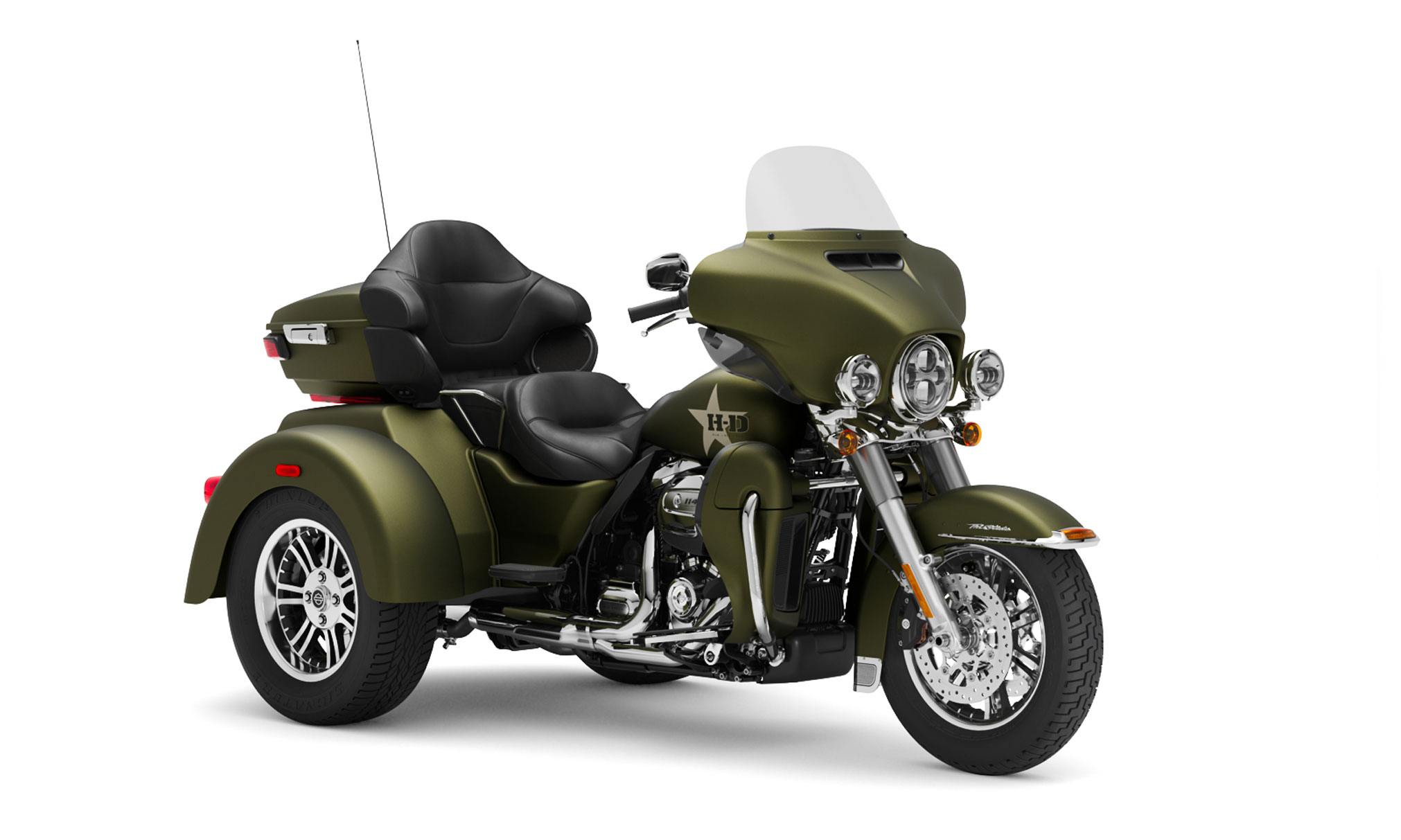

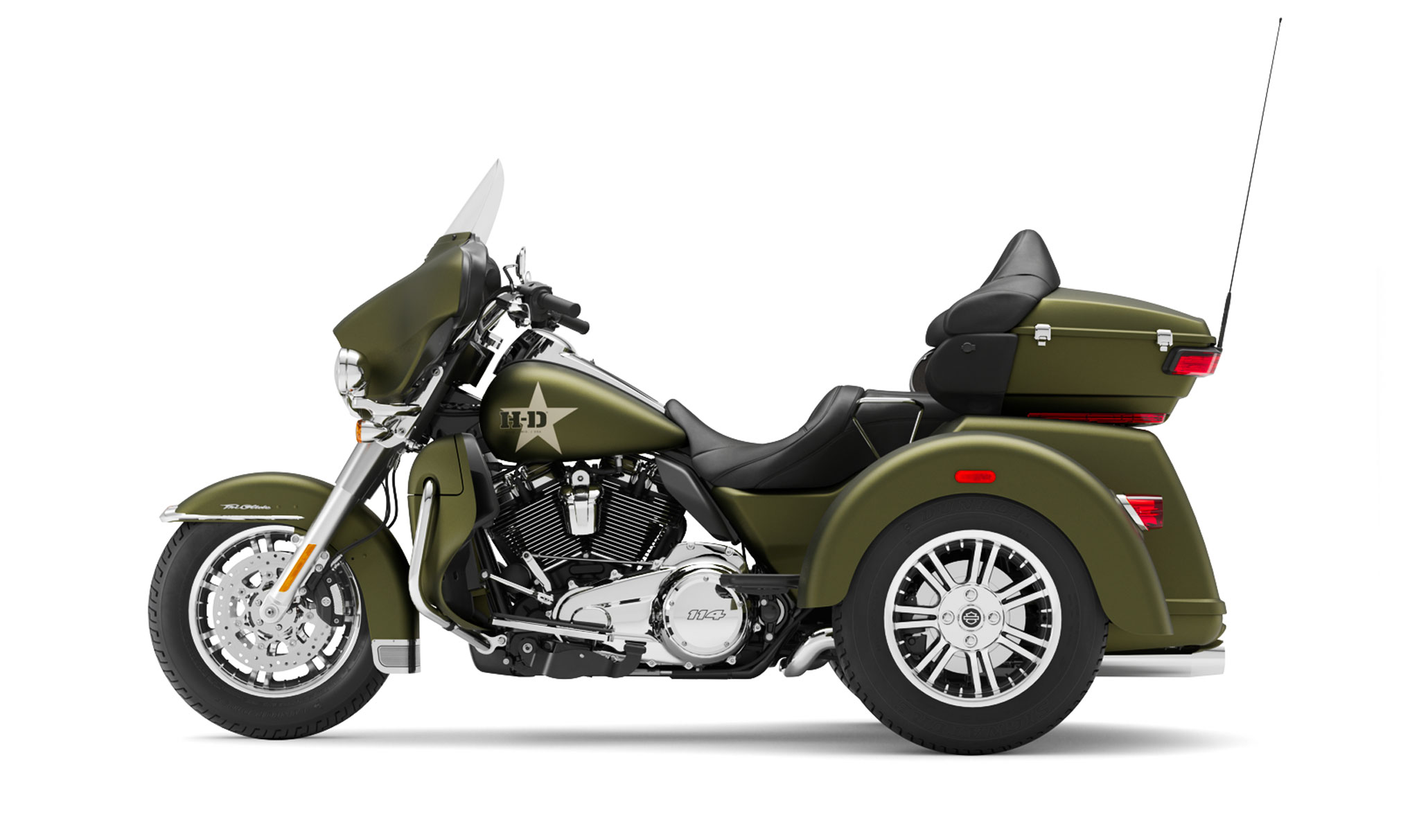

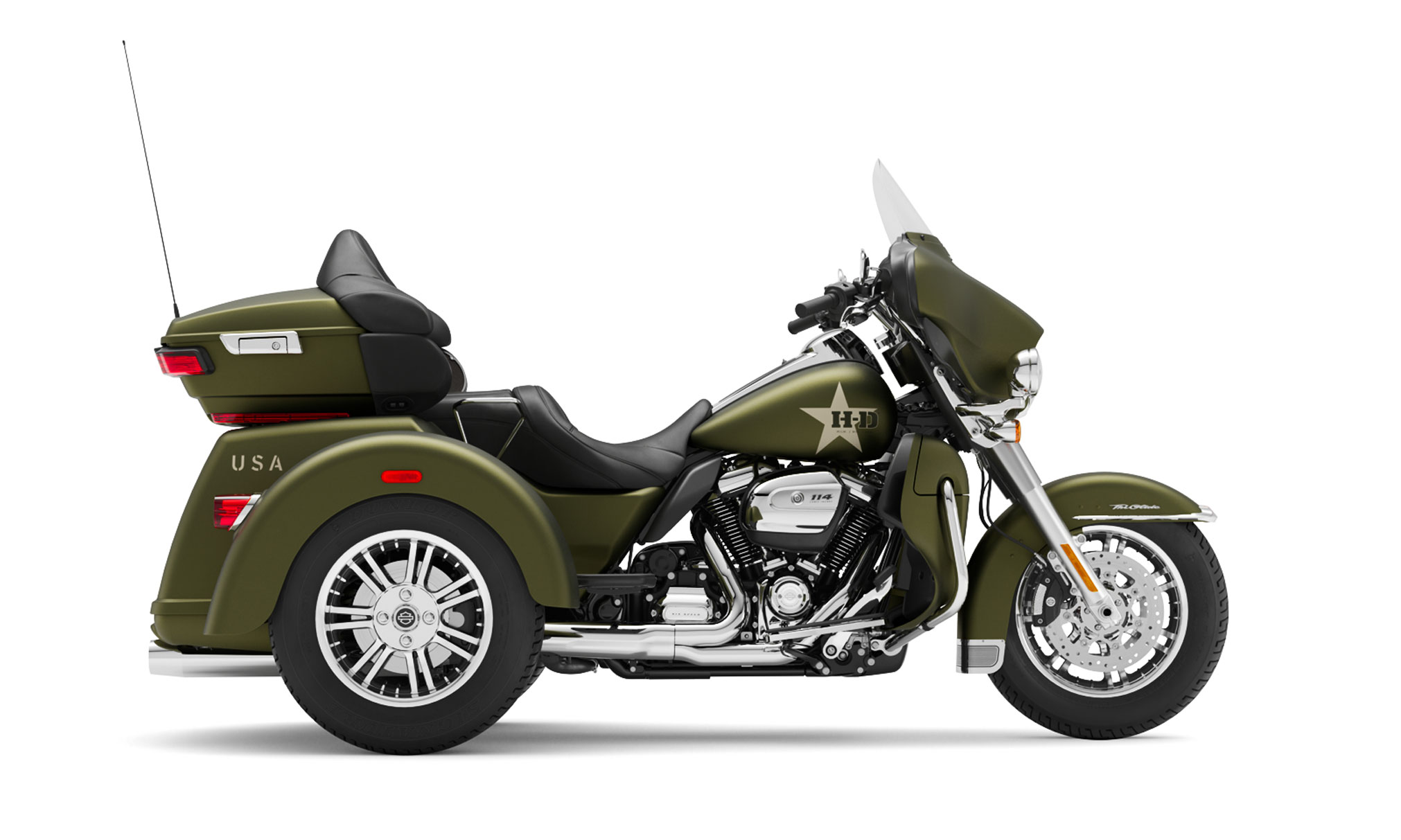

2022 Harley-Davidson Tri Glide Ultra G.I.: LAND OF THE BRAVE.
Introducing the 2022 Harley-Davidson Tri Glide Ultra G.I….
The Tri Glide Ultra G.I. is a modern-day military tribute to independence and personal expression, honoring Harley-Davidson’s community of riders who have and continue to serve in the US Armed Forces. Draped in stunning Mineral Green Denim Deluxe paint with military inspired graphics, this limited-edition model is for those who value the riding comfort, performance, and ample storage space that three wheels deliver for the long haul.
A long-haul American touring trike, the Tri Glide Ultra model is designed to go the distance with comfort, torque and style. Features include Tomahawk custom wheels, premium Boom! Box GTS infotainment system, trunk and King Tour-Pak luggage carrier, Daymaker LED headlamp, standard Cornering Rider Safety Enhancements by Harley-Davidson and the Twin Cooled Milwaukee-Eight 114 engine.
2022 Harley-Davidson Tri Glide Ultra G.I. Totalmotorcycle.com Key Features
- Upright riding position
- Floorboards
- Passenger seat with backrest
- Trunk
- Fork mounted fairing
- Infotainment
- Rider safety enhancements available
THIS IS THE RIGHT BIKE FOR
- Riders seeking a one-of-a-kind 3-wheel touring experience
- Bold styling with premium paint and Tomahawk wheels
- Twin-Cooled Milwaukee-Eight 114 engine and premium tech
TRI GLIDE ULTRA G.I. FEATURES
- Mineral Green Denim Deluxe paint
- Special graphics
- Mechanical features identical to Tri Glide Ultra model
- Enthusiast Collection and Harley-Davidson on rear of Tour Pak luggage carrier

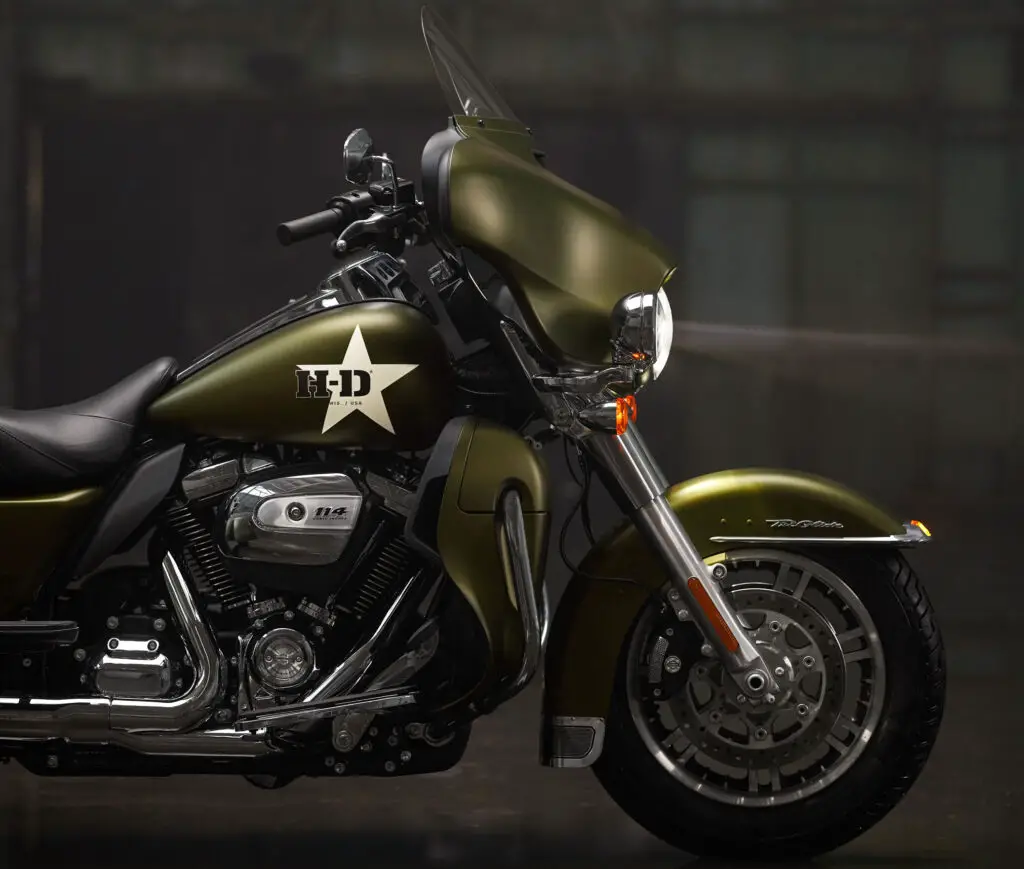

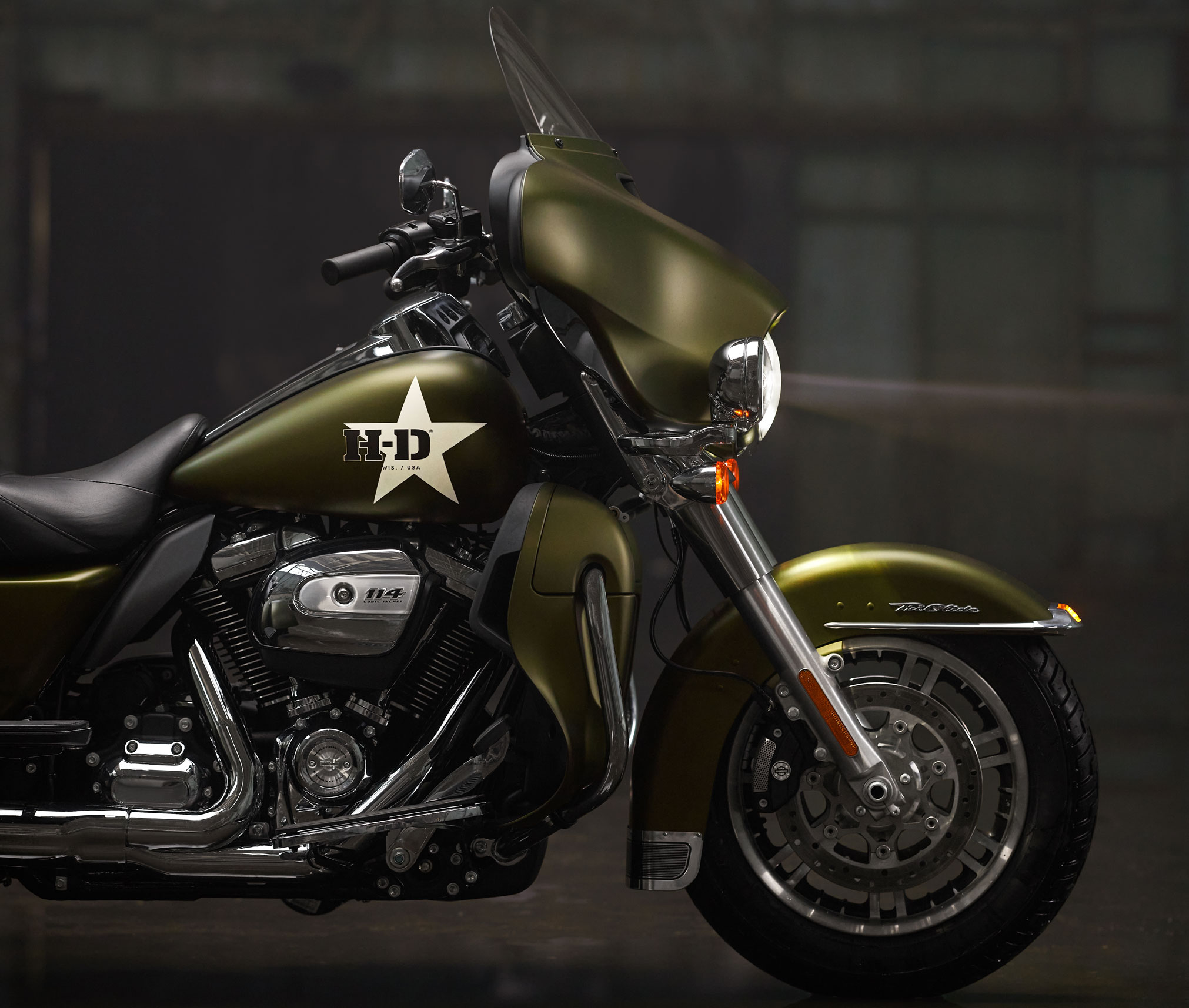

- White Star with H-D graphic on tank sides

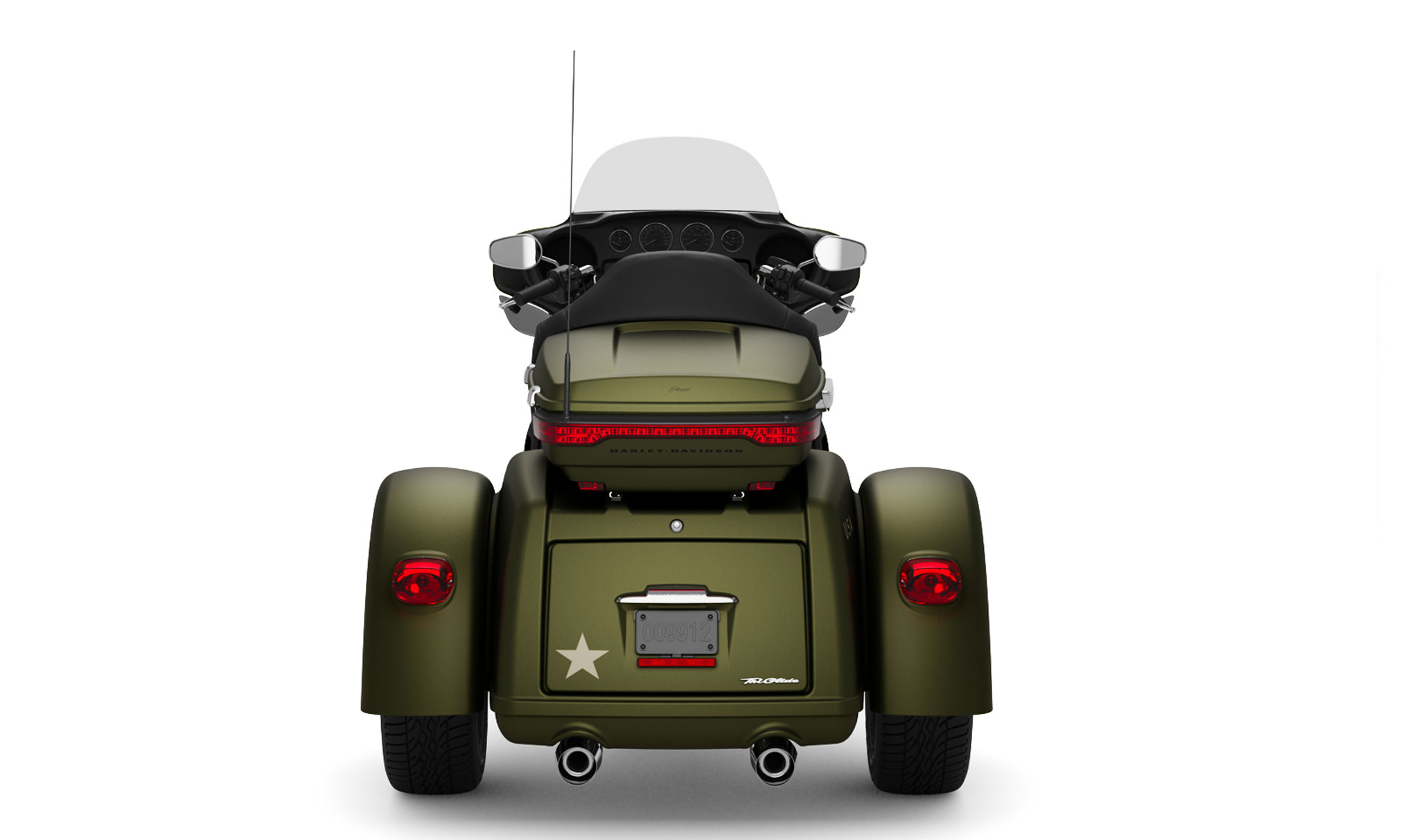

- White Star on trunk door
Honoring those who have served
The 2022 G.I. Enthusiast Collection
The G.I. Enthusiast Collection honors Harley-Davidson’s longstanding community of riders who have and continue to serve in the US Armed Forces. These limited-edition motorcycles are draped in a stunning Mineral Green Denim Deluxe paint with graphics exclusively featured on the Pan America 1250 Special and Tri Glide Ultra.
Inspired by Our Community of Passionate Riders
The Enthusiast Collection
An ongoing collection of Harley-Davidson motorcycles inspired by our community of passionate riders, the Enthusiast Collection celebrates the diversity of our community and the unique backgrounds and interests of the people within it. Launched annually, each series pays tribute to a subset of our broader community of riders, available in limited quantities across a selection of models.
NEW HARLEY-DAVIDSON ENTHUSIAST COLLECTION INSPIRED BY STORIES AND EXPERIENCES WITHIN THE HARLEY-DAVIDSON COMMUNITY
2022 G.I. Enthusiast Collection Celebrates Service of U.S. Armed Forces Members
MILWAUKEE (June 21, 2022) – Harley-Davidson today introduced its new Enthusiast Collection, an ongoing series of Harley-Davidson motorcycles featuring special-edition paint created to celebrate the unique backgrounds and special interests of riders within the Harley-Davidson community. Each Enthusiast Collection design will be launched annually, available in limited quantities across a curated selection of motorcycle models.
“The Enthusiast Collection motorcycles are inspired by Harley-Davidson riders and their unique stories,” explained Jochen Zeitz, Chairman, President and CEO Harley-Davidson. “Harley-Davidson is proud to launch this program with the G.I. Enthusiast Collection, which honors the legacy of Harley-Davidson riders who have served or actively serve in the U.S. Armed Forces.”
To commemorate the launch, two U.S. veterans, Gary Wetzel, and Brian “Amarok” Critton, will be awarded G.I. Enthusiast Collection models. Wetzel is a Medal of Honor recipient for his heroic actions in the Vietnam War after his U.S. Army helicopter was shot down and came under heavy enemy fire. Severely wounded, he continued to fight back and help other injured soldiers. He is an avid Harley-Davidson rider and veteran issues activist. Critton served for a decade in the U.S. Army, including a tour of duty in Iraq, and now is active with veterans service organizations like Wounded Warrior Project (WWP). In March, he was riding a Harley-Davidson motorcycle to a Muay Thai meeting in Jacksonville designed to help combat veterans deal with PTSD when he saw smoke billowing from a vehicle involved in a three-vehicle accident that happened moments earlier. His instincts turned into action while others watched as he pulled a woman from the burning car. These two Harley-Davidson riders exemplify the spirit of Harley-Davidson Enthusiasts.
2022 Enthusiast Collection Features
The G.I. Enthusiast Collection is draped in stunning Mineral Green Denim Deluxe paint, an all-new color created specifically for this collection, and completed with service-inspired graphics. The G.I. Enthusiast Collection is available only as factory-installed for the Pan America 1250 Special and Tri Glide Ultra models, in limited quantities primarily for the U.S. market.
“The new Mineral Green Denim Deluxe paint pays homage to the Olive Drab paint used on Harley-Davidson WLA models,” said Brad Richards, Harley-Davidson Vice President of Design. “This color features a metallic effect resulting in a subtle gold highlight, allowing the color travel to be more dramatic and show off the shape of the surfacing.
“The tank graphic celebrates the iconic white five-point star, which was used during WWII on military vehicles,” adds Richards. “The tank graphic also features a stenciled ‘H-D’ and a location of Milwaukee, Wisconsin abbreviated, inspired from the spec tags found on government-issued military equipment. The stenciled approach is a treatment often found on military vehicles as lettering was frequently done in the field. Here we’re calling out the birthplace of the Harley-Davidson Motor Company and the original WLA model.”
2022 Harley-Davidson Tri Glide Ultra G.I. Totalmotorcycle.com Features and Benefits
TWIN-COOLED MILWAUKEE-EIGHT 114 ENGINE
The most displacement in standard H-D Touring models. You get 114 cubic inches of passing and horizon-chasing power.
REFLEX LINKED BREMBO BRAKES WITH STANDARD ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.
BOOM! BOX GTS INFOTAINMENT SYSTEM
An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.
HIGH PERFORMANCE SUSPENSION
Premium Harley-Davidson touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.
6-SPEED CRUISE DRIVE TRANSMISSION
Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.
TRUNK AND KING TOUR-PAK STORAGE
The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak luggage carrier adds an addtional 2.4 cubic feet storage capacity, combined giving you 6.8 cubic feet of storage.
BATWING FAIRING & SPLITSTEAM AIR VENT
Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front.
2022 Harley-Davidson Tri Glide Ultra G.I. – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $38,099 USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
| Dimensions | Tri Glide® Ultra G.I. | Notes |
| Length | 105.1 in. (2,670 mm) | |
| Overall Width | 54.7 in. (1,390 mm) | |
| Overall Height | 56.3 in. (1,430 mm) | |
| Seat Height, Laden | 27.1 in. (688 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen | 28.9 in. (735 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance | 4.9 in. (125 mm) | |
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 26 | |
| Fork Angle (deg) | 32 | |
| Trail | 3.94 in. (100 mm) | |
| Wheelbase | 65.7 in. (1,670 mm) | |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear | |
| Tires, Front Model | D402F | |
| Tires, Front Specification | MT90B16 72H | |
| Tires, Rear Model | Signature | |
| Tires, Rear Specification | P205/65R15 92T | |
| Fuel Capacity | 6 gal. (22.7 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) | |
| Transmission Capacity | 1.1 qt. (1 l) | |
| Primary Chain Case Capacity | 1.1 qt. (1 l) | |
| Coolant Capacity | 0.8 qt. (0.75 l) | |
| Weight, As Shipped | 1,204 lb. (546 kg) | |
| Weight, In Running Order | 1,243 lb. (564 kg) | |
| Gross Vehicle Weight Rating | 1,700 lb. (771 kg) | |
| Gross Axle Weight Rating, Front | 511 lb. (232 kg) | |
| Gross Axle Weight Rating, Rear | 1,189 lb. (539 kg) | |
| Luggage Capacity -Volume | 6.8 cu ft (0.19 m3) |
| Engine | FLHTCUTG Tri Glide® Ultra | Notes |
| Engine | Twin-Cooled Milwaukee-Eight® 114 | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder | |
| Bore | 4.016 in. (102 mm) | |
| Stroke | 4.5 in. (114.3 mm) | |
| Displacement | 114 cu in (1,868 cc) | |
| Compression Ratio | 10.5:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Paper, washable | |
| Exhaust | 2-1-2 dual exhaust with tapered mufflers | |
| Lubrication System | Pressurized, dry-sump |
| Drivetrain | FLHTCUTG Tri Glide® Ultra | Notes |
| Primary Drive | Chain, 34/46 ratio | |
| Final Drive | Belt, 30/70 ratio | |
| Clutch | Mechanically actuated 10 plate, wet Assist & Slip | |
| Transmission | 6-Speed Cruise Drive | |
| Gear Ratios (overall) 1st | 10.534 | |
| Gear Ratios (overall) 2nd | 7.302 | |
| Gear Ratios (overall) 3rd | 5.423 | |
| Gear Ratios (overall) 4th | 4.392 | |
| Gear Ratios (overall) 5th | 3.741 | |
| Gear Ratios (overall) 6th | 3.157 |
| Chassis | FLHTCUTG Tri Glide® Ultra | Notes |
| Frame | Mild steel, square-section backbone with twin downtubes | |
| Swingarm | Mild steel, rectangular tube sections with plate junctions; MIG welded | |
| Front Fork | 49mm dual bending valve | |
| Front Fork, Optional | ||
| Rear Shocks | Hand-adjustable emulsion rear suspension | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Black, 7-spoke Cast Aluminum | 4 |
| Wheels, Front Width | 3 in. (76 mm) | |
| Wheels, Front Height | 16 in. (406 mm) | |
| Wheels, Rear Type | Black, 7-spoke Cast Aluminum | 4 |
| Wheels, Rear Width | 5.5 in. (140 mm) | |
| Wheels, Rear Height | 15 in. (381 mm) | |
| Brakes, Caliper Type | Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake | |
| Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.2 in. (5.1 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 10.6 in. (270 mm) | |
| Brakes, Rear Thickness | 0.24 in. (6 mm) | |
| Front brake lever free travel | N/A | |
| Rear brake pedal free travel | N/A | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 4.6 in. (117 mm) | |
| Suspension Travel, Rear | 3 in. (76 mm) |
| Performance | FLHTCUTG Tri Glide® Ultra | Notes |
| Engine Torque Testing Method | J1349 | |
| Engine Torque | 121 ft-lb (164 Nm) | 5 |
| Engine Torque (rpm) | 3,250 | |
| Power (Hp/kW) | 93 HP / 69 kW @ 5020 rpm | |
| Lean Angle Testing Method | N/A | |
| Lean Angle, Right (deg.) | N/A | |
| Lean Angle, Left (deg.) | N/A | |
| Maximum hill-starting ability | N/A | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 42 mpg (5.6 l/100 km) | 6 |
| CO₂ Emissions Testing Method | N/A | |
| CO₂ Emissions | N/A |
| Electric | FLHTCUTG Tri Glide® Ultra | Notes |
| Battery | Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating) | |
| Charging | Three-phase, 48-amp system (600W @ 13V, 2000 rpm, 625W max power @ 13V) | |
| Starting | 1.6 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights. | |
| Lights (as per country regulation), Tail/Stop | Incandescent | |
| Lights (as per country regulation), Front Signal Lights | Incandescent | |
| Lights, Rear Turn Signals | Incandescent | |
| Gauges | Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator | |
| Auxiliary Lamps | LED fog | |
| Electric Power Outlet | Electric power accessory port in fairing | |
| GPS System | Boom! Box GTS audio system with GPS and touchscreen | |
| Reverse Gear | Electric reverse actuated by handlebar mounted hand controls |
| Warranty And Service | FLHTCUTG Tri Glide® Ultra | Notes |
| Warranty | 24 months (unlimited mileage) | 7 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 8 |
Notes
- Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- Recommended 91 octane or higher fuel (R+M)/2.
- Standard and optional wheels may vary by country and region.
- Values shown are nominal. Performance may vary by country and region.
- The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
- See motorcycle owner’s manual for complete details.
- Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
