2022 Honda Shadow Phantom Guide

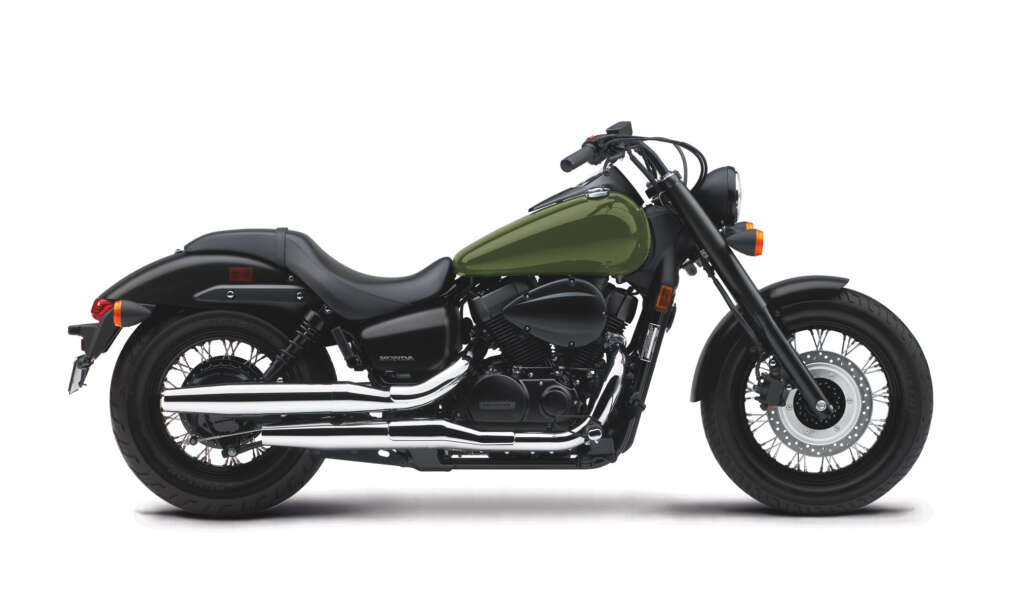

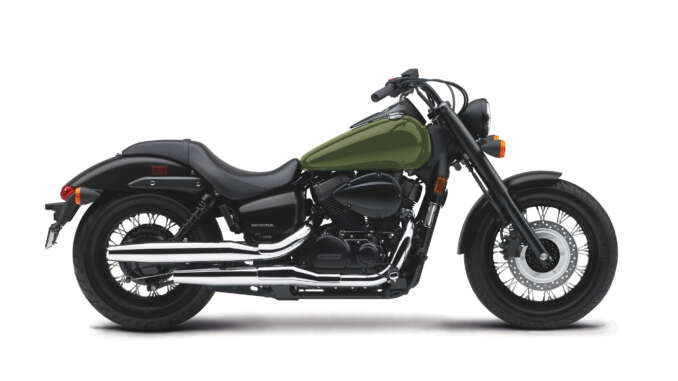

2022 Honda Shadow Phantom

2022 Honda Shadow Phantom 2022 Honda Shadow Phantom

2022 Honda Shadow Phantom: STEALTH PERFORMANCE.

Introducing the 2022 Honda Shadow Phantom…

Honda’s Shadow Phantom makes a point of standing out by not trying to stand out. In a world of look-at-me noise, its understated, confident style is a perfect match for what this bike is all about: performance, ride quality, practical muscle, and above all straight-up riding fun. Subtle visual highlights include spoked wheels, black rims, bobbed fenders and matte black accents. Then there’s the engine, a blacked-out 745cc V-twin with a throaty twin exhaust, built to deliver the wide torque spread every cruiser rider wants. New colors this year keep it fresh, and the low seat height and pullback handlebar keep it comfortable. Pure Honda, pure performance, pure cool. The Shadow Phantom is exactly what you want from a modern cruiser.

When it comes to cruisers, sometimes simpler is better—take Honda’s classic Shadow Phantom, a minimalist, bobber-inspired V-twin whose uncluttered looks are highlighted by a blacked-out engine, short fenders, and black wheels with spokes. At the same time, practical considerations are always welcome, and the Shadow Phantom has them in spades, with programmed fuel injection, a comfortable seating position, low center of gravity and Honda reliability topping the list. No wonder it’s such a popular staple in Honda’s lineup.





2022 Honda Shadow Phantom Totalmotorcycle.com Key Features

ENGINE / DRIVETRAIN

  • 745cc liquid-cooled V-twin engine produces impressive power over a broad rpm range.
  • Crankshaft features long-stroke design to produce strong V-twin feel and low-rpm torque peak.
  • Three-Valve Dual-Plug Combustion Chamber.
  • Wide-ratio five-speed transmission.
  • Programmed Fuel Injection (PGM-FI) for good throttle response and fuel efficiency.

CHASSIS / SUSPENSION

  • Bobber-inspired styling with extensive blacked-out and matte finishes.
  • Minimalist front fender.
  • Handlebar shape enhances bobber styling.
  • Sturdy and responsive 41mm fork features large-diameter matte-finished shrouds and large billet-aluminum triple clamp for a distinctive look, and delivers confident, neutral handling.
  • Dual-shock rear suspension features five-position spring preload adjustability for a smooth ride.
  • Single front disc brake with twin-piston caliper grips a 296mm drilled rotor between sintered metal pads. Rear brake is drum type.
  • Shaft final-drive system provides smooth and reliable low-maintenance operation.
  • Spoke black wheels and hubs feature a 120/90-17 front tire and 160/80-15 rear tire to complete the overall custom look.
  • Low 25.8 inch seat height.
  • Sleek, one-piece gunfighter-type seat.
  • Tank-mounted speedometer in a stylish 3.7 gallon fuel tank.

Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

HONDA ACCESSORIES

Boulevard Screen (smoke), Custom Rider Seat, Solo Rider Rear Carrier, Backrest (tall/low), Rear Carrier, Backrest/Rear Carrier Mounting Brackets, Tank Belt (plain/studded), Saddlebags, Saddlebag Supports, Saddlebag Liner Set, Touring Bag (plain/studded/fringed), Front Pouch (plain/studded), Cycle Cover

WARRANTY: Because we are so confident in the quality of each of our Honda Accessories, we are pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

  • Meets current CARB and EPA standards.
  • California version differs slightly due to emissions equipment.









2022 Honda Shadow Phantom Totalmotorcycle.com Features and Benefits

PERFORMANCE

V-TWIN ENGINE

Nothing pumps out the torque like a bold V-twin. The Phantom’s power makes it perfect for around-town cruising, commutes and casual weekend-long rides.

STYLE

STYLISH FINISH

Bobber-inspired styling with extensive blacked-out and matte finishes.

SHORTY FRONT FENDER

Minimalist front fender gives the Shadow Phantom a lighter, cleaner, more progressive look.

SPOKED WHEELS

Spoked black wheels and hubs feature a 120/90-17 front tire and 160/80-15 rear tire to complete the overall custom look.





COMFORT

LOW SEAT HEIGHT

Skimming the pavement at just 25.8 inches, the Phantom’s low seat height makes flat-footing it at stoplights or in parking lots a breeze. And the Phantom’s narrow seat/tank junction makes it feel even lower.

GUNFIGHTER SADDLE

Sleek, one-piece gunfighter-type seat is comfortable and looks great too.

DRIVETRAIN

SHAFT FINAL DRIVE

Clean, efficient, proven, low-maintenance. Shaft final drive is the perfect choice for a machine like this, and for riders who pile on the miles. You never have to worry about lubrication or adjustment out on the road. And an added plus: it helps keep your bike cleaner, too.

2-INTO-2 EXHAUST SYSTEM

Sleek pipes feature bullet-style mufflers for that classic cruiser style of yesteryear. Large-diameter head pipes and 2-into-2 system design combine to put out true, V-twin cruiser sound.

FIVE-SPEED TRANSMISSION

Wide-ratio five-speed transmission lets you cruise the boulevard at a low, unhurried pace, yet allows you hop on the highway without revving the engine through the roof.

PROGRAMMED FUEL INJECTION (PGM-FI)

Forget about fiddling with a choke—the Shadow’s fuel injection system means no-hassle startups on cold mornings or at high altitudes, and optimal performance in any condition.

THREE-VALVE DUAL-PLUG COMBUSTION CHAMBER

It’s the best of both worlds: The three-valve combustion chambers used on many of our V-twin cruisers feature two intake valves and one exhaust, helping them breathe efficiently to boost both horsepower and torque.





ENGINEERING

FRONT-DISC BRAKE

If there’s one place you don’t want retro performance, it’s your brakes. That’s why we gave the Shadow Phantom a 296mm front disc for distinctly modern stopping power.











2022 Honda Shadow Phantom – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $7899 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £  GBP (On The Road inc 20% Vat)
Model

VT750C2B

ENGINE


Type 745cc liquid-cooled 52º V-twin
Valve Train SOHC; three valves per cylinder
Bore x Stroke 79.0 mm x 76.0 mm
Compression Ratio 9.6:1
Induction PGM-FI w/ automatic enrichment, one 34 mm throttle body
Ignition Digital w/ 3D mapping, two spark plugs per cylinder
Starter Electric
Transmission Wide-ratio 5-speed
Clutch Multiplate wet
Final Drive Shaft

SUSPENSION


Front 41 mm telescopic fork; 4.6 in. travel
Rear Dual shocks w/ five-position spring preload adjustability; 3.5
in. travel
BRAKES
Front Single 296 mm disc w/ twin-piston caliper
Rear 180 mm drum

TIRES


Front 120/90-17
Rear 160/80-15

MEASUREMENTS


Rake (Caster Angle) 34°
Trail 161 mm (6.3 in.)
Length 94.3 in.
Width 32.5 in.
Height 42.9 in.
Seat Height 25.8 in.
Ground Clearance 5.1 in.
Wheelbase 64.6 in.
Fuel Capacity 3.7 gal., incl. 0.9-gal. reserve
Color Matte Black Metallic; Adventure Green
Curb Weight* 549 lbs.





2022 Honda Shadow Phantom – Totalmotorcycle.com Canada Specifications/Technical Details

NA





2022 Honda Shadow Phantom – Totalmotorcycle.com European Specifications/Technical Details

NA



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
