2022 Indian Springfield Guide

2022 Indian Springfield

2022 Indian Springfield 2022 Indian Springfield 2022 Indian Springfield 2022 Indian Springfield 2022 Indian Springfield

2022 Indian Springfield: FISTS IN THE WIND BABY, YA.

Introducing the 2022 Indian Springfield…

Inspired by the look of custom bikes, the Springfield Dark Horse keeps your fists in the wind and eyes on you.

This is a stylish, confident, supremely comfortable, and powerful bike that’s perfect for weekend drives and has the storage you need for even longer trips.





2022 Indian Springfield Totalmotorcycle.com Key Features

This is a stylish, confident, supremely comfortable, and powerful bike that’s perfect for weekend drives and has the storage you need for even longer trips.



Air-Cooled V-Twin

The award-winning Thunderstroke power plant delivers exceptional torque. And three ride modes—Tour, Standard, and Sport—give your bike the feel that’s right for you.

Classic American Styling

Whether you choose to cover the bike in chrome or black out the finishes, the Indian Springfield embraces the legacy of America’s first motorcycle company.



Superior Handling

With the Indian Springfield’s cast aluminum frame, low seat height, and ergonomic controls, riders will be instantly comfortable—and inspired.



Secure Storage

The hard saddlebags are sturdy and nearly bottomless. Plus, there’s remote locking, so you can know your stuff is always safe.





Thunderstroke and PowerPlus Models

            Models

Indian Motorcycle Thunderstroke and PowerPlus-equipped motorcycles range from baggers to touring models – each offering heritage-inspired design or blacked-out, modern style. Air-cooled baggers and touring models, including Springfield, Chieftain and Roadmaster lineups, pack the Thunderstroke motor, while Challenger models deliver a class-leading 122 horsepower with the liquid-cooled PowerPlus engine. With high-displacement motors, Indian Motorcycle bagger and touring models were engineered to dominate the road. Saddlebags and the Roadmaster tour trunk provide plenty of storage for riding gear and cargo, while wind protection, comfortable ergonomics, floorboards, amenities, and a comfortable two-up seat make these models the ultimate long-distance machines.

This year’s 2022 bagger and touring lineup receives fresh new paint colors across each lineup. Colors like Quartz Gray on the Chieftain Dark Horse and the all-new Spirit Blue over Black Metallic on the Challenger Limited add to each bike’s attitude.



Accessories

To accommodate additional storage needs on longer rides, Indian Motorcycle has released its Spirit Lake Luggage Collection, which includes a Rack Bag, Day Bag and Touring Bag. Each piece features a shoulder strap for convenient carrying off the bike and attaches securely to luggage racks, sissy bars, or the rear of the passenger backrest. Each piece is sold separately but designed as a cohesive collection.

In addition, bagger and touring riders can add personalized style and add visibility to other motorists with all-new rear LED saddlebag lights. Designed to seamlessly integrate with the standard lighting, these Pathfinder Auxiliary LED Saddlebag Lights do not require any drilling, but rather feature a convenient peel-and-stick adhesive for easy and quick install.

New for 2022, Indian Challenger riders can add wind protection with the addition of Hard Lower Fairings. Designed specifically for Challenger models, the Hard Lower Fairings are compatible with all 2020-2022 model year offerings. Riders also have the option to add PowerBand Audio or additional storage compartments within the Hard Lower Fairings.





2022 Indian Springfield Totalmotorcycle.com Features and Benefits

EVERY ROAD IS YOURS.
With a combination of the renowned power from the Thunderstroke 116 V-Twin Engine, world class engineering, and premium touring features, the Indian Springfield is built for the long haul.

CLASSIC V-TWIN STYLE
Classic American style abounds with an iconic lit headdress adorning the valanced front fender. Premium, jewel-like chrome details and finishes command attention.

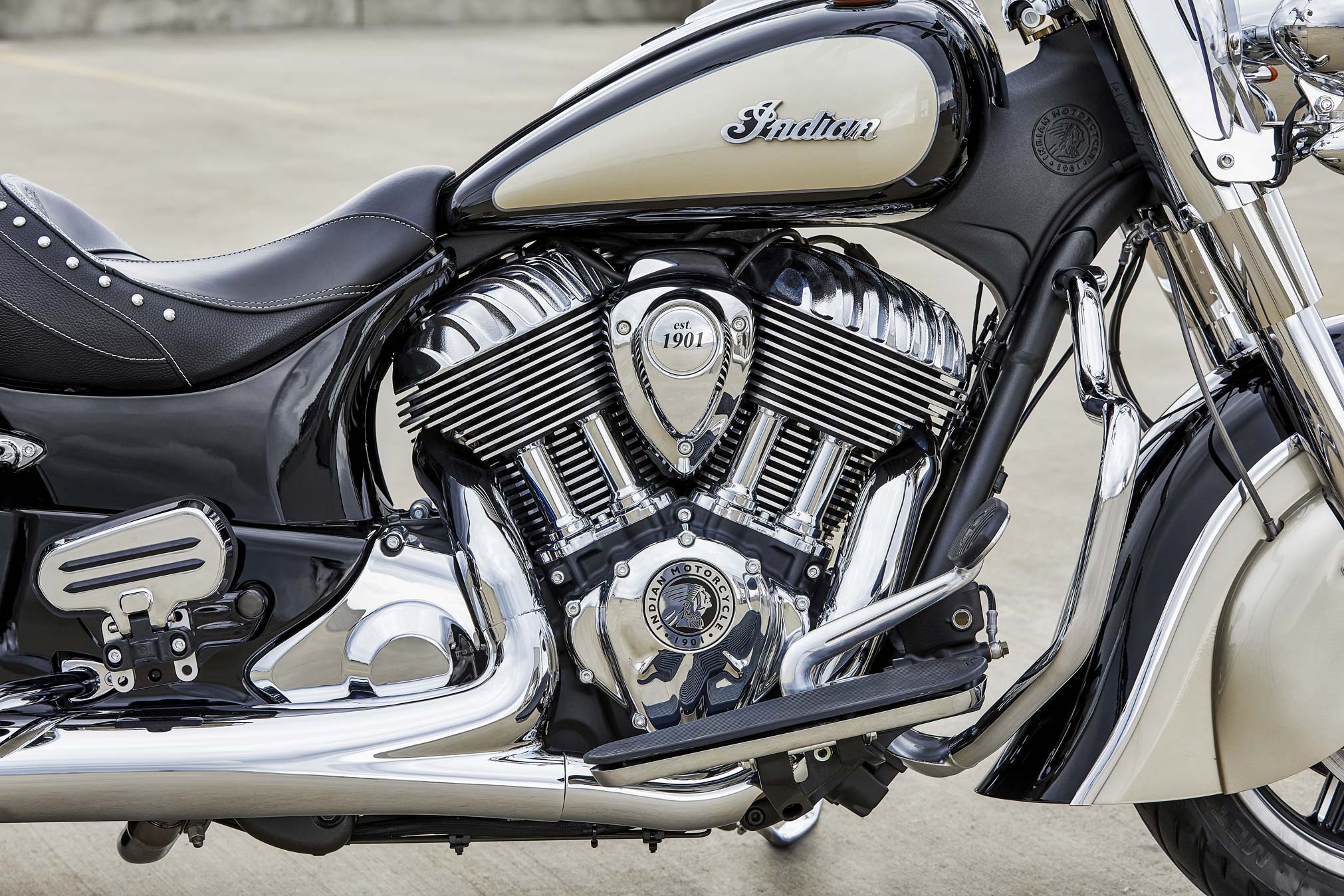

THUNDERSTROKE 116 V-TWIN ENGINE
Powered by the award-winning air-cooled Thunderstroke 116, delivering 171 Nm of torque for impressive acceleration and passing power.

KEEP IT. AND KEEP IT GOING.
Remote-locking hard saddlebags provide secure storage for weekend getaways or quick trips around town. The frame is trunk-compatible to add extra storage if needed.



HIT THE ROAD IN STYLE
With modern tech, a long list of premium features and accessories, the Springfield was designed for traveling in style and comfort.

RIDE YOUR WAY
Quick-release clear windshield manages airflow and reduces fatigue but detaches in seconds to preserve the bike’s clean and classic look. Chrome highway bars provide even more comfort on longer trips.

FEATURES GALORE
A long list of modern amenities like keyless ignition, cruise control and USB charging mean no compromises to function in a timeless design.

CUSTOMISABLE RIDE
Choose between three ride modes – Tour, Standard, and Sport – for an experience that’s customised to your riding style.









2022 Indian Springfield – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $21999 USD
Canada MSRP Price: $25999 CDN
Europe/UK MSRP Price: £22595 GBP (On The Road inc 20% Vat)

Engine & Drivetrain

Bore x Stroke

3.976 in x 4.449 in (101 mm x 113 mm)

Compression Ratio

9.5:1

Displacement

111 cu in (1,811 cc)

Drive/Driven Clutch

Wet, Multi-Plate, Assist

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Air-cooled Thunderstroke 111

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

119 ft-lbs

Peak Torque RPM

3,000 rpm

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.6 in (142 mm)

GVWR

1385 lbs / 628 kg

Lean Angle

31°

Overall Height

56.6 in / 1439 in

Overall Length

101.7 in (2,583 mm)

Overall Width

42.5 in (1,080 mm)

Rake/Trail

25° / 5.2 in (133 mm)

Seat Height

26 in / 660 mm

Weight (Empty Tank / Full of Fuel)

797 lbs / 829 lbs (362 kg / 376 kg)

Wheelbase

67.0 in (1,701 mm)

Brakes

Front Brakes

Dual 300mm floating rotors with 4-piston calipers

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Cruisetec 130/80B17 65H

Front Wheel

Highlight Machine Tour 17 in x 3.5 in

Rear Tires

Metzeler Cruisetec 180/60R16 80H

Rear Wheel

Highlight Machine Tour 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork/4.7 in (119 mm)

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color/graphics

Maroon Metallic / Crimson Metallic, Black Metallic / Dirt Track Tan

Factory Warranty

2 Years, Unlimited Miles

Gauges

Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator

Infotainment

N/A

Lights

Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal

Standard Equipment

Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge; 12v Charging Port









2022 Indian Springfield – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Bore x Stroke

3.976 in x 4.449 in (101 mm x 113 mm)

Compression Ratio

9.5:1

Displacement

111 cu in (1,811 cc)

Drive/Driven Clutch

Wet, Multi-Plate, Assist

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Air-cooled Thunderstroke 111

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

119 ft-lbs

Peak Torque RPM

3,000 rpm

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.6 in (142 mm)

GVWR

1385 lbs / 628 kg

Lean Angle

31°

Overall Height

56.6 in / 1439 in

Overall Length

101.7 in (2,583 mm)

Overall Width

42.5 in (1,080 mm)

Rake/Trail

25° / 5.2 in (133 mm)

Seat Height

26 in / 660 mm

Weight (Empty Tank / Full of Fuel)

797 lbs / 829 lbs (362 kg / 376 kg)

Wheelbase

67.0 in (1,701 mm)

Brakes

Front Brakes

Dual 300mm floating rotors with 4-piston calipers

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Cruisetec 130/80B17 65H

Front Wheel

Highlight Machine Tour 17 in x 3.5 in

Rear Tires

Metzeler Cruisetec 180/60R16 80H

Rear Wheel

Highlight Machine Tour 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork/4.7 in (119 mm)

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color/graphics

Maroon Metallic / Crimson Metallic, Black Metallic / Dirt Track Tan

Factory Warranty

2 Years, Unlimited Miles

Gauges

Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator

Infotainment

N/A

Lights

Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal

Standard Equipment

Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge; 12v Charging Port









2022 Indian Springfield – Totalmotorcycle.com Europe Specifications/Technical Details

Engine
Engine Type Thunderstroke 116
Displacement 1890 cc
Bore x Stroke 103.2mm x 113mm
Compression Ratio 11.0:1
Electronic Fuel Injection System Closed loop fuel Injection / 54mm bore
Performance
Peak Torque RPM 3000 rpm
Peak Torque 171 Nm

Drivetrain
Primary Drive Gear Drive Wet Clutch
Clutch Wet, Multi-Plate, Assist
Gear Ratio (Overall)
1st 9.403 : 1
2nd 6.411 : 1
3rd 4.763 : 1
4th 3.796 : 1
5th 3.243 : 1
6th 2.789 : 1
Final Drive 2.2 : 1

Suspension
Suspension: Front – Type/Travel Telescopic Fork / 119 mm
Suspension: Rear – Type/Travel Single Shock w/Air adjust / 114mm / 45.7mm ride in
Chassis
Brakes/Front Dual / 300 mm Floating Rotor / 4 Piston Caliper
Brakes/Rear Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires/Front Metzeler Cruisetec 130/80B17 65H
Tires/Rear Metzeler Cruisetec 180/60R16 80H
Wheels Highlight Machined Tour 17″ x 3.5″ / 16″ x 5″
Exhaust Split dual exhaust w/ cross-over

Dimensions
Wheelbase 1701 mm
Seat Height 660 mm
Ground Clearance 142 mm
Overall Length 2583 mm
Overall Width 1080 mm
Overall Height 1439 mm
Lean Angle 31°
Rake 25°
Trail 133 mm
Fuel Capacity 20.8 liters
GVWR 628 kg
Weight (Empty tank / full of fuel) 362kg / 376 kg

Features
Color / Graphics Maroon Metallic / Crimson Metallic, Black Metallic / Dirt Track Tan
Standard
Standard Equipment Quick Release Windshield; Vinyl Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge
Electrical
Gauges Tank-mounted electronic speedometer with odometer; dual trip meters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
