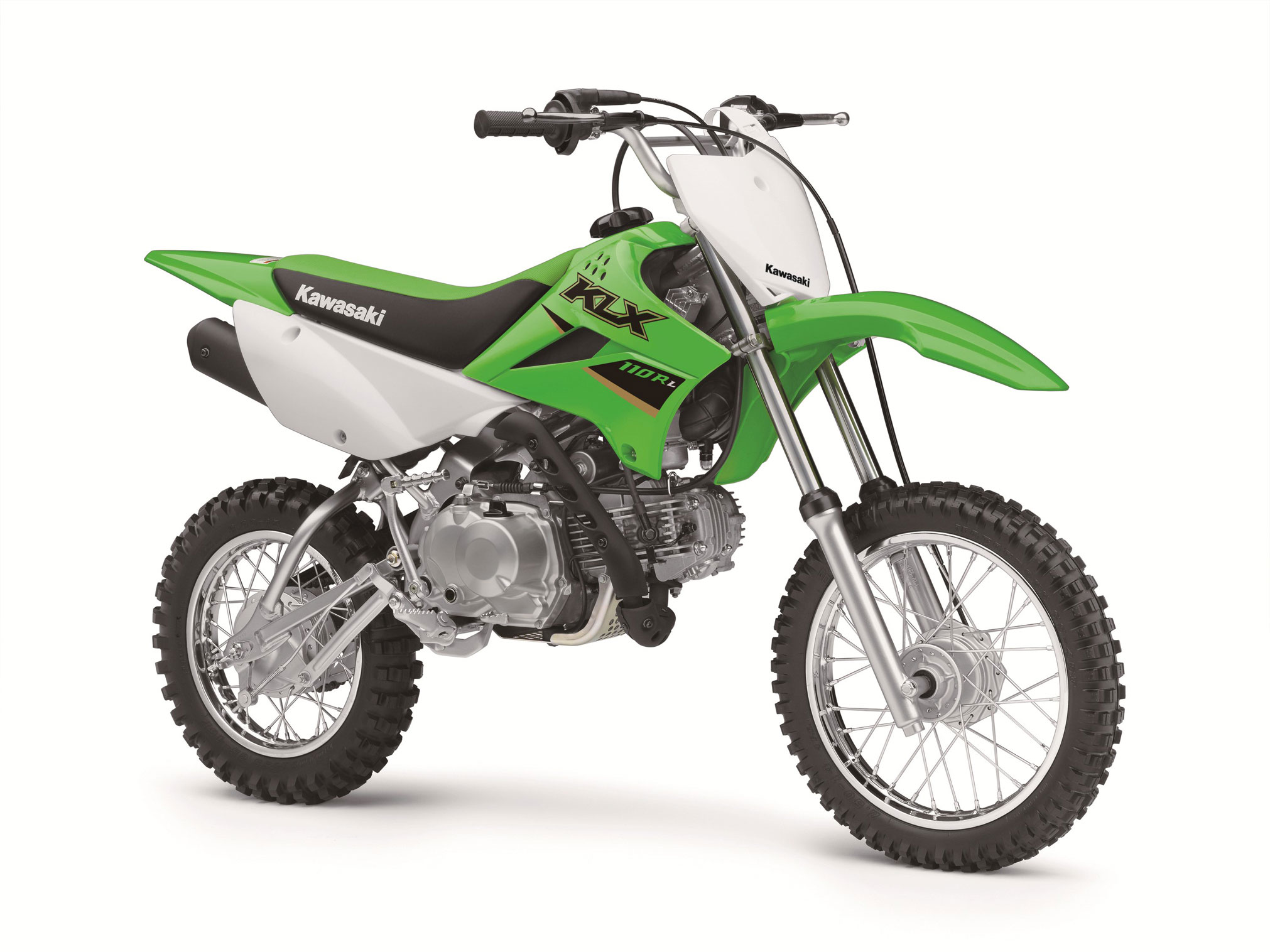

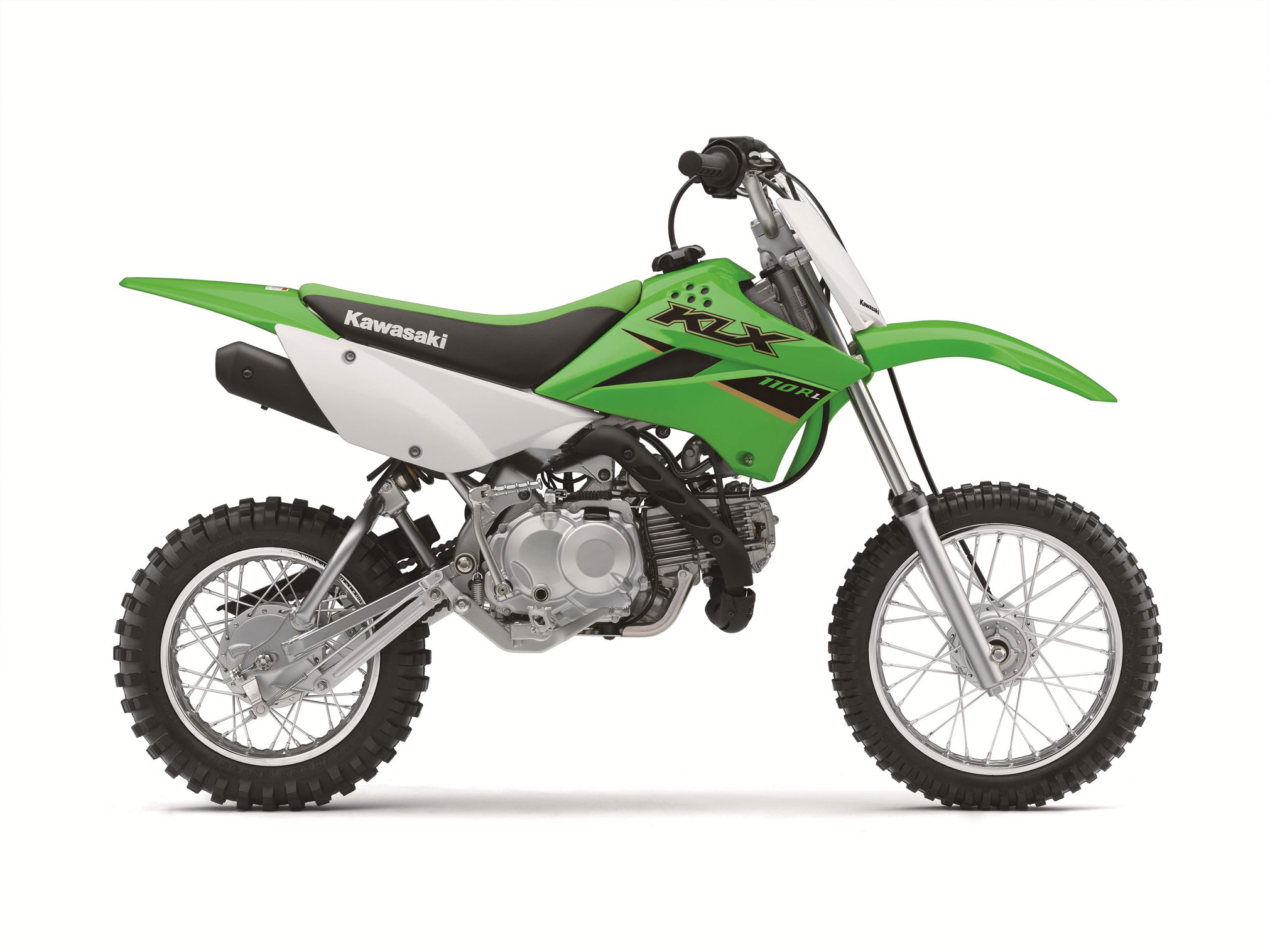

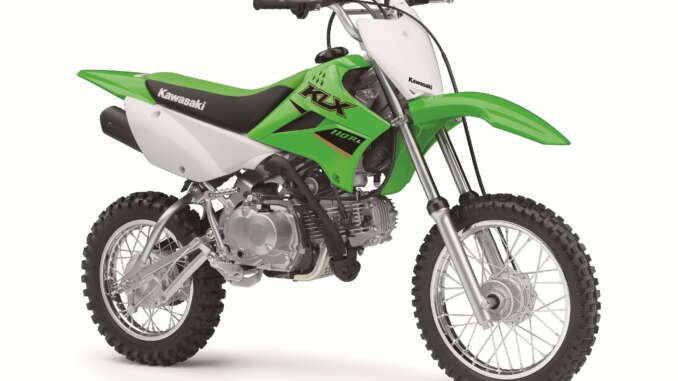

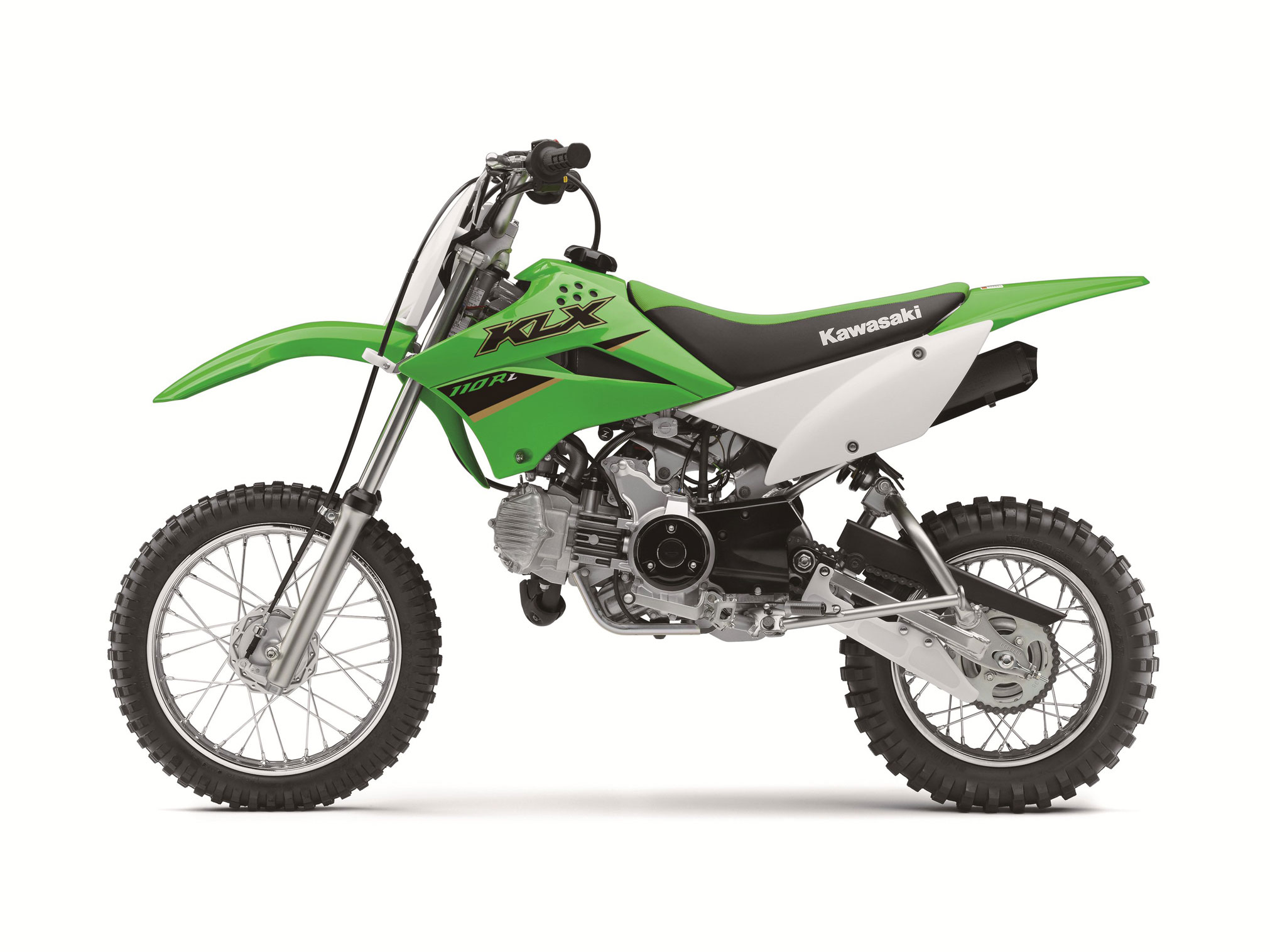

2022 Kawasaki KLX110RL: HEIGHTEN THE ENJOYMENT.
Introducing the 2022 Kawasaki KLX110RL…
Kawasaki’s KLX110R/RL offers two ways for riders to get started in off-road riding: the base KLX110R model with a low seat height and automatic clutch, and the KLX110RL with longer suspension travel, nearly two-inch taller seat height and manual clutch.
The KLX110R is available in two model variations and is a great motorcycle for new riders looking to experience off-road for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine. The larger KLX110RL motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110R), longer suspension travel, an extra 1.9” of ground clearance and a four-speed transmission with a manual clutch. No matter your size or skill level, there is a KLX model motorcycle to allow you to get out and play with Kawasaki.
Small bike equals big fun in the KLX110R. This is where the adventure starts.
2022 Kawasaki KLX110RL Totalmotorcycle.com Key Features
- TALLER SEAT AND HIGHER GROUND CLEARANCE
- FOUR-SPEED TRANSMISSION WITH AUTOMATIC CLUTCH
- ELECTRIC START
- THROTTLE LIMITER
- 4-SPEED TRANSMISSION WITH AUTOMATIC (KLX®110R) OR MANUAL (KLX®110R L) CLUTCH
2022 Kawasaki KLX110RL Totalmotorcycle.com Features and Benefits
GET OUT AND PLAY
The Kawasaki KLX family of off-road motorcycles are widely popular with their easy-to-ride character, incredible capabilities while on trails and their low maintenance needs. The eight off-road models consist of four engine configurations and are built to suit a wide variety of riders.
Compact, Reliable Engine
The 112cc air-cooled, 4-stroke engine provides smooth power and rock solid reliability.
Easy Operation
Shape of the shift pedal, brake pedal and kick start pedal offer easy operation and minimise unintended actuation. Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.
Factory Styling
Sporty styling featuring Lime Green bodywork for race-inspired good looks
4-Speed Transmission
4-speed transmission with automatic clutch for stall-free shifting.
2022 Kawasaki KLX110RL – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2599 USD
Canada MSRP Price: $3099 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
POWER
Engine 4-stroke single, SOHC, air-cooled
Displacement 112cc
Bore x Stroke 53.0 x 50.6mm
Compression Ratio 9.5:1
Fuel System 18mm Keihin carburetor and screw type throttle limiter on grip housing
Ignition DC-CDI
Transmission 4-speed, return shift, wet multi-disc manual clutch
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 30mm hydraulic telescopic fork/5.5 in
Rear Suspension / Wheel Travel Swingarm with single hydraulic shock/5.2 in
Front Tire 2.50×14
Rear Tire 3.00×12
Front Brakes 90mm mechanical drum, cable actuated
Rear Brakes 110mm mechanical drum, rod actuated
DETAILS
Frame Type Backbone frame, high-tensile steel
Rake/Trail 24.2°/1.9 in
Overall Length 61.4 in
Overall Width 25.6 in
Overall Height 39.0 in
Ground Clearance 10.4 in
Seat Height 28.7 in
Curb Weight 167.5 lb*
Fuel Capacity 1.0 gal
Wheelbase 42.3 in
Color Choices Lime Green
Warranty 6 Months
Kawasaki Protection Plus™ (optional) 12, 24, or 36 months
2022 Kawasaki KLX110RL – Totalmotorcycle.com Canadian Specifications/Technical Details
POWER
Engine 112cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 53.0 x 50.6 mm
Compression Ratio 9.5:1
Fuel System Carburettor: Keihin PB18
Ignition Digital DC-CDI
Starting Electric & kick
Lubrication Forced lubrication, wet sump
Transmission 4-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain
PERFORMANCE
Frame Backbone, steel
Front Suspension / Wheel Travel ø30 mm telescopic fork / 140 mm (5.5 in)
Rear Suspension / Wheel Travel Single shock / 132 mm (5.2 in)
Rake / Trail 24.2° / 47 mm
Steering Angle (L/R) 45° / 45°
Front Tire 2.50-14 4PR
Rear Tire 3.00-12 4PR
Front Brake Drum (ø90 mm)
Rear Brake Drum (ø110 mm)
DETAILS
Dimensions (L x W x H) 1,560 x 650 x 990 mm (61.4 x 25.6 x 39.0 in)
Wheelbase 1,075 mm (42.3 in)
Road Clearance 265 mm (10.4 in)
Seat Height 730 mm (28.7 in)
Curb Mass** 76 kg (168 lb)
Fuel Capacity 3.6 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months
2022 Kawasaki KLX110RL – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
