2022 Kawasaki KLX140RL: TALLER RIDER TICKET .

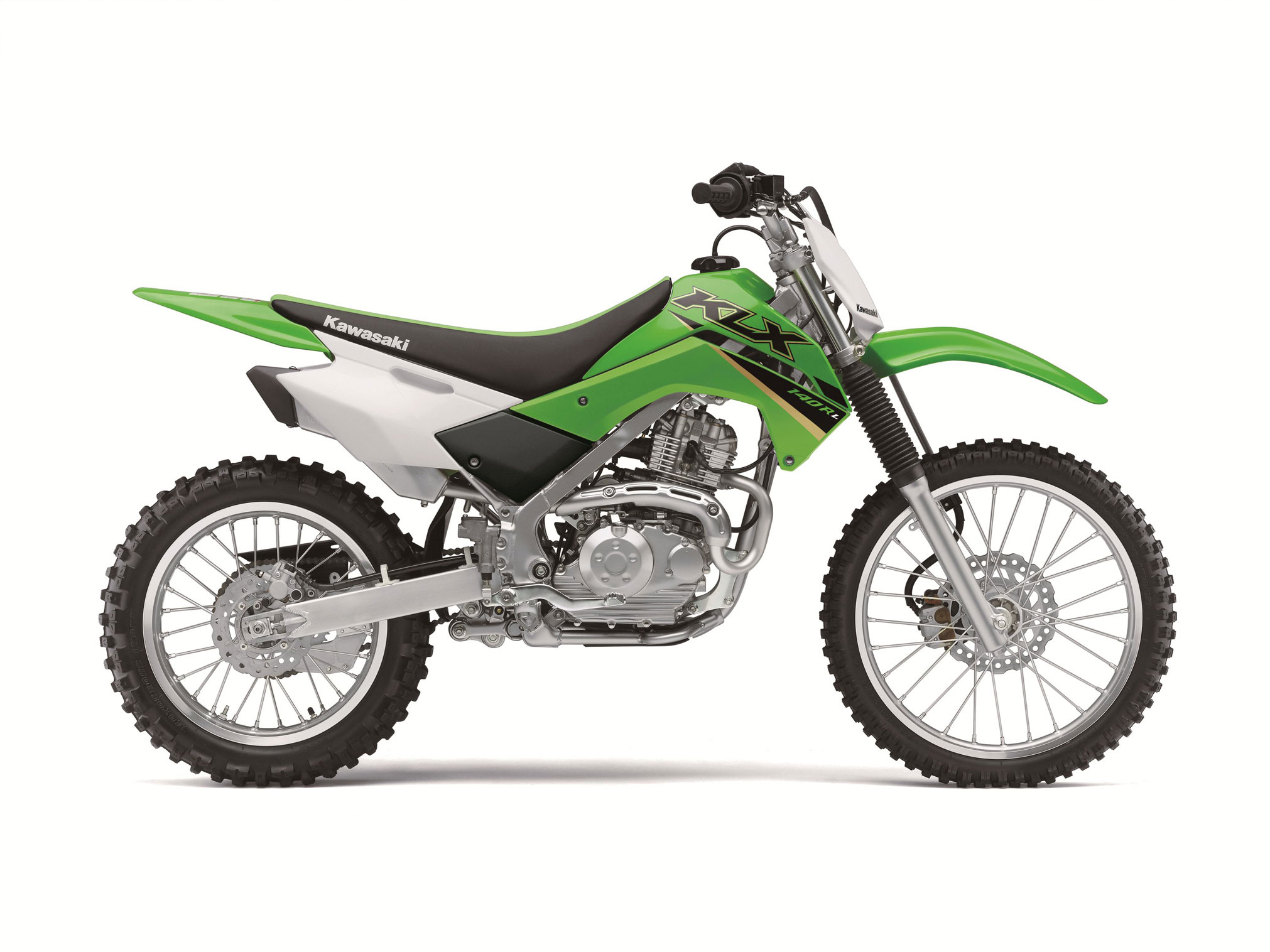

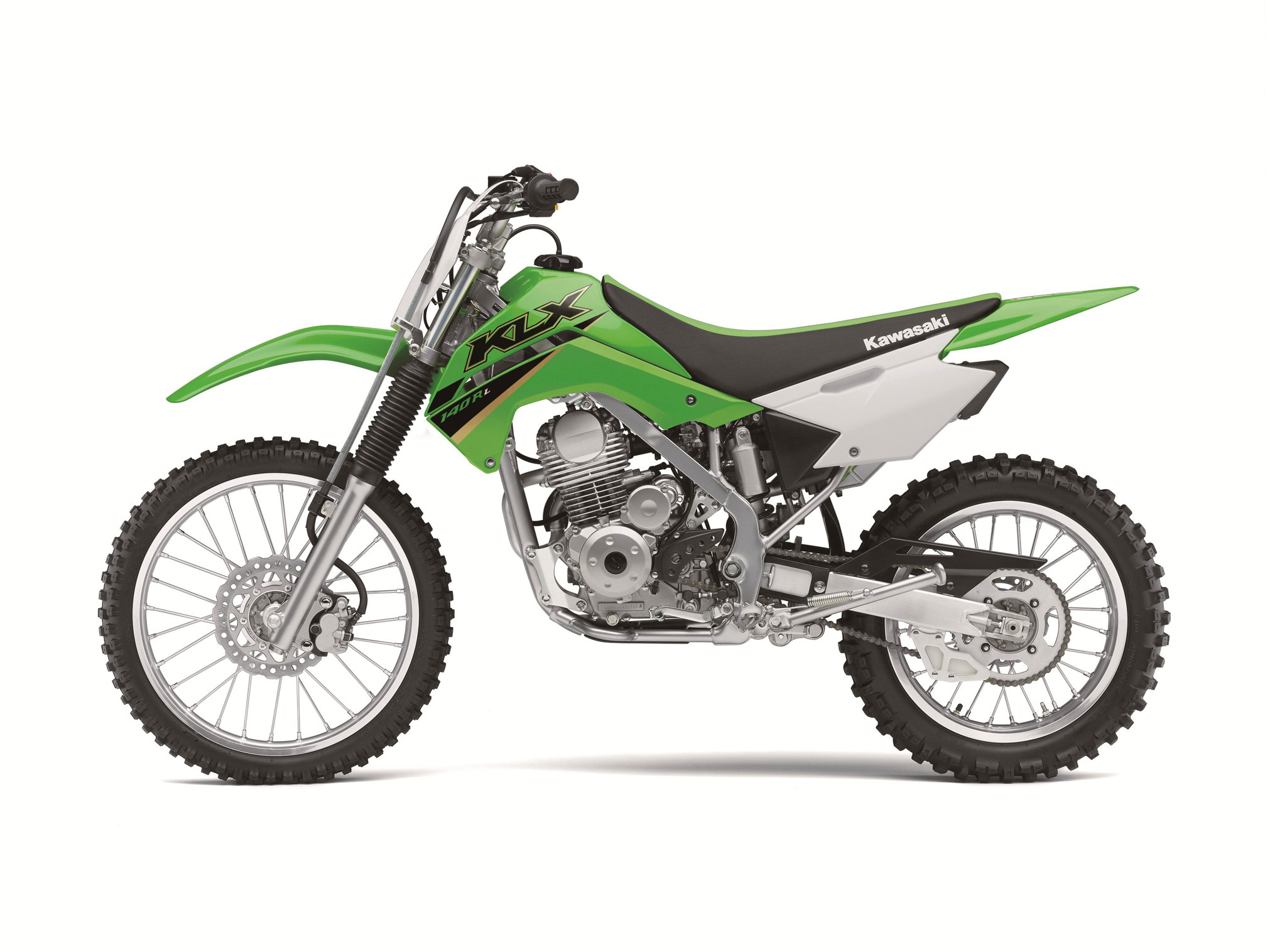

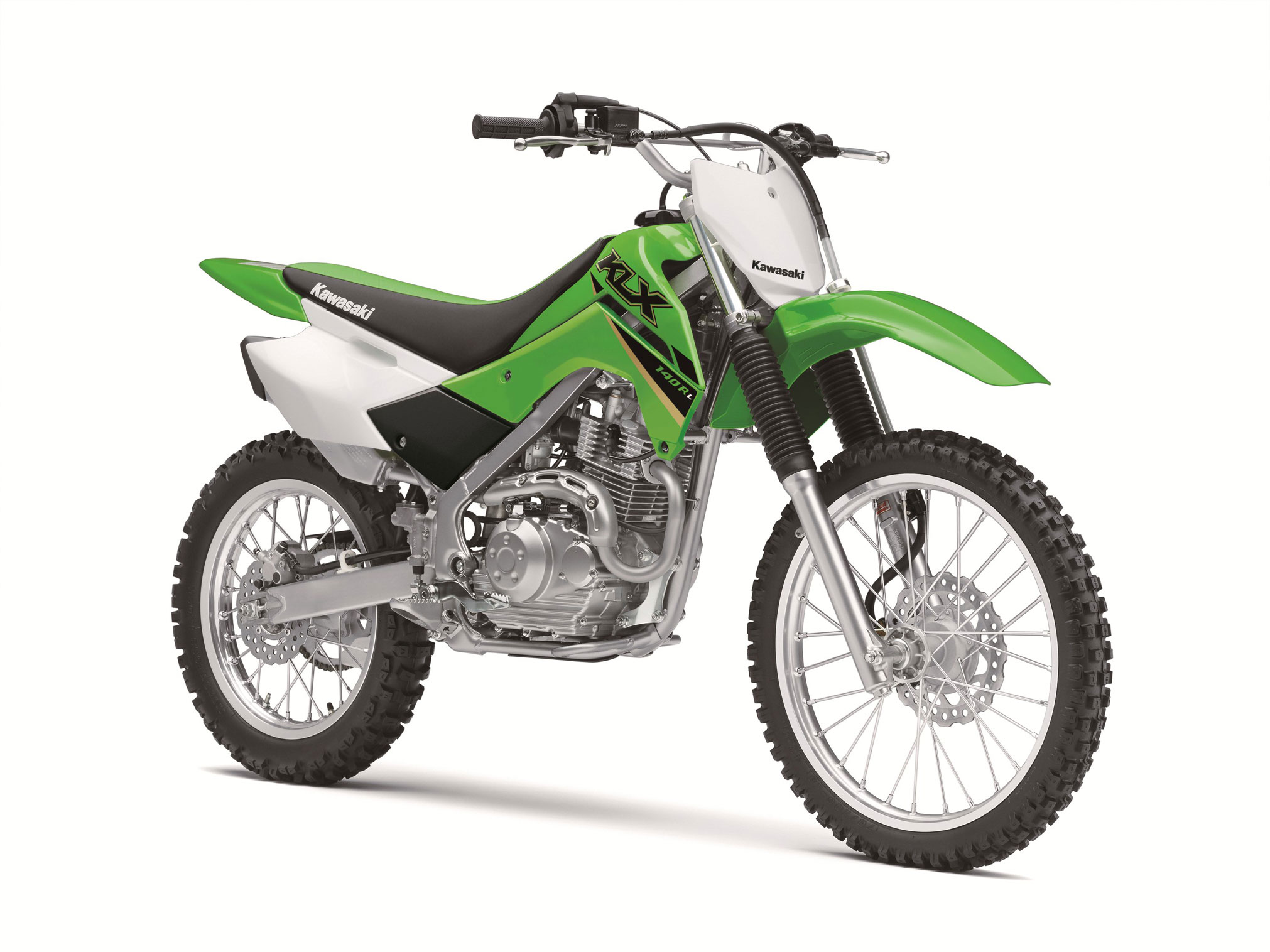

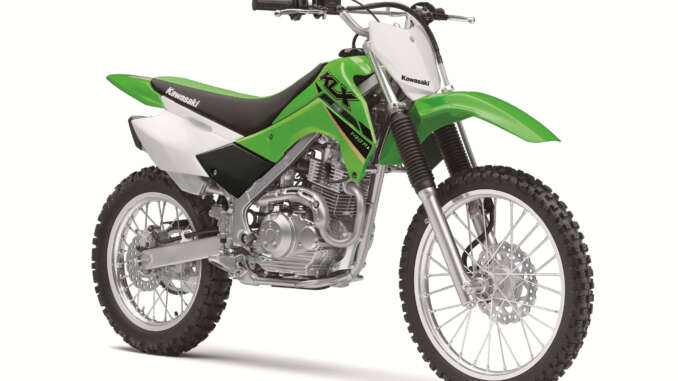

Introducing the 2022 Kawasaki KLX140RL…
The KLX140R motorcycle is available in three model variations and is designed to provide an off-road experience with memories to last a lifetime. The powerful 144cc, four-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and five-speed transmission to offer an efficient and user-friendly feel. The KLX140R uses a 17” front and 14” rear wheel, while the mid-sized KLX140R L motorcycle is equipped with a 19” front and 16” rear wheels to accommodate taller riders, providing extra ground clearance.
2022 Kawasaki KLX140RL Totalmotorcycle.com Key Features
- LARGER WHEELS AND TALLER SEAT HEIGHT
- FRONT AND REAR DISC BRAKES
2022 Kawasaki KLX140RL Totalmotorcycle.com Features and Benefits
GET OUT AND PLAY
The Kawasaki KLX family of off-road motorcycles are widely popular with their easy-to-ride character, incredible capabilities while on trails and their low maintenance needs. The eight off-road models consist of four engine configurations and are built to suit a wide variety of riders.
2022 Kawasaki KLX140RL – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3499 USD
Canada MSRP Price: $4299 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Engine Type 4-Stroke, Air-Cooled, SOHC, Single, 2-Valve Cylinder Head
Displacement 144 cc
Bore & Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Carburetor Keihin PB20
Ignition Digital DC-CDI
Transmission 5-Speed
Rake/Trail 27˚/3.3 in. (KLX140R) 27˚/3.8 in. (KLX140R L) 27˚/4.6 in. (KLX140R F)
Front Tire Size 70/100-17 (KLX140R); 70/100-19 (KLX140R L); 2.75 x 21 (KLX140R F)
Rear Tire Size 90/100-14 (KLX140R); 90/100-16 (KLX140R L); 4.10 x 18 (KLX140R F)
Front Suspension 33 mm Telescopic Forks
Front Suspension Travel 7.1 in. (KLX140R/R L); 7.5 in. (KLX140R F)
Rear Suspension Uni-Trak, Single Shock w/5-way preload adjustment (KLX140R);
Single shock w/piggyback reservoir, threaded preload, 4-way compression and
22-position rebound damping adjustment (KLX140R L/R F)
Rear Suspension Travel 7.1 in. (KLX140R/R L); 7.9 in (KLX140R F)
Wheelbase 49.6 in. (KLX140R); 50.6 in. (KLX140R L); 52.4 in. (KLX140R F)
Front Brake Type 220mm Petal Disc
Rear Brake Type 186mm Petal Disc
Fuel Tank Capacity 1.5 gal.
Ground Clearance 9.3 in. (KLX140R); 10.0 in. (KLX140R L); 12.4 in. (KLX140R F)
Seat Height 30.7 in. (KLX140R); 31.5 in. (KLX140R L); 33.9 (KLX140R F)
Curb Weight= 205 lb. (KLX140R); 209 lb. (KLX140R L); 218 lb. (KLX140R F)
Warranty 6 months
Kawasaki Protection Plus™ 12, 24, or 36 months
Specifications subject to change without notice.
Ask about Kawasaki’s Team Green™ amateur rider support program.
(KP) = See Kaw-Pedia section for more details.
* = Changes from previous model year.
= = Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied).
2022 Kawasaki KLX140RL – Totalmotorcycle.com Canadian Specifications/Technical Details
POWER
Engine 144cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Fuel System Carburettor: Keihin PB20
Ignition Digital DC-CDI
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 5-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain
PERFORMANCE
Frame Perimeter, box-section, high-tensile steel
Front Suspension / Wheel Travel ø33 mm telescopic fork / 180 mm (7.1 in)
Rear Suspension / Wheel Travel Uni Trak, single shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload / 180 mm (7.1 in)
Rake / Trail 27.0° / 96 mm
Steering Angle (L/R) 41° / 41°
Front Tire 70/100-19 42M
Rear Tire 90/100-16 52M
Front Brake Single ø220 mm petal disc with dual-piston caliper
Rear Brake ø186 mm petal disc with single-piston caliper
DETAILS
Dimensions (L x W x H) 1,895 x 790 x 1,075 mm (74.6 x 31.1 x 42.3 in)
Wheelbase 1,285 mm (50.6 in)
Road Clearance 255 mm (10.0 in)
Seat Height 800 mm (31.5 in)
Curb Mass** 95 kg (209 lb)
Fuel Capacity 5.8 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months
2022 Kawasaki KLX140RL – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
