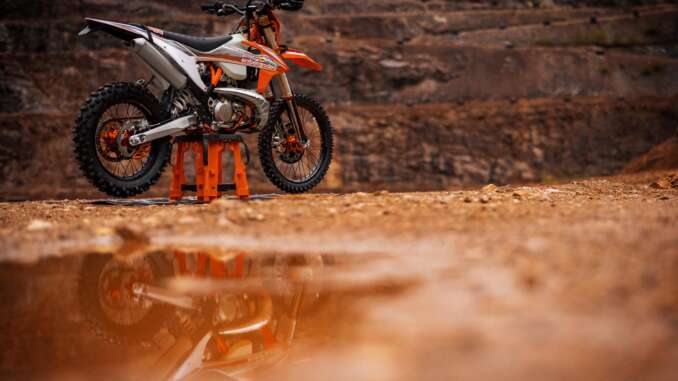

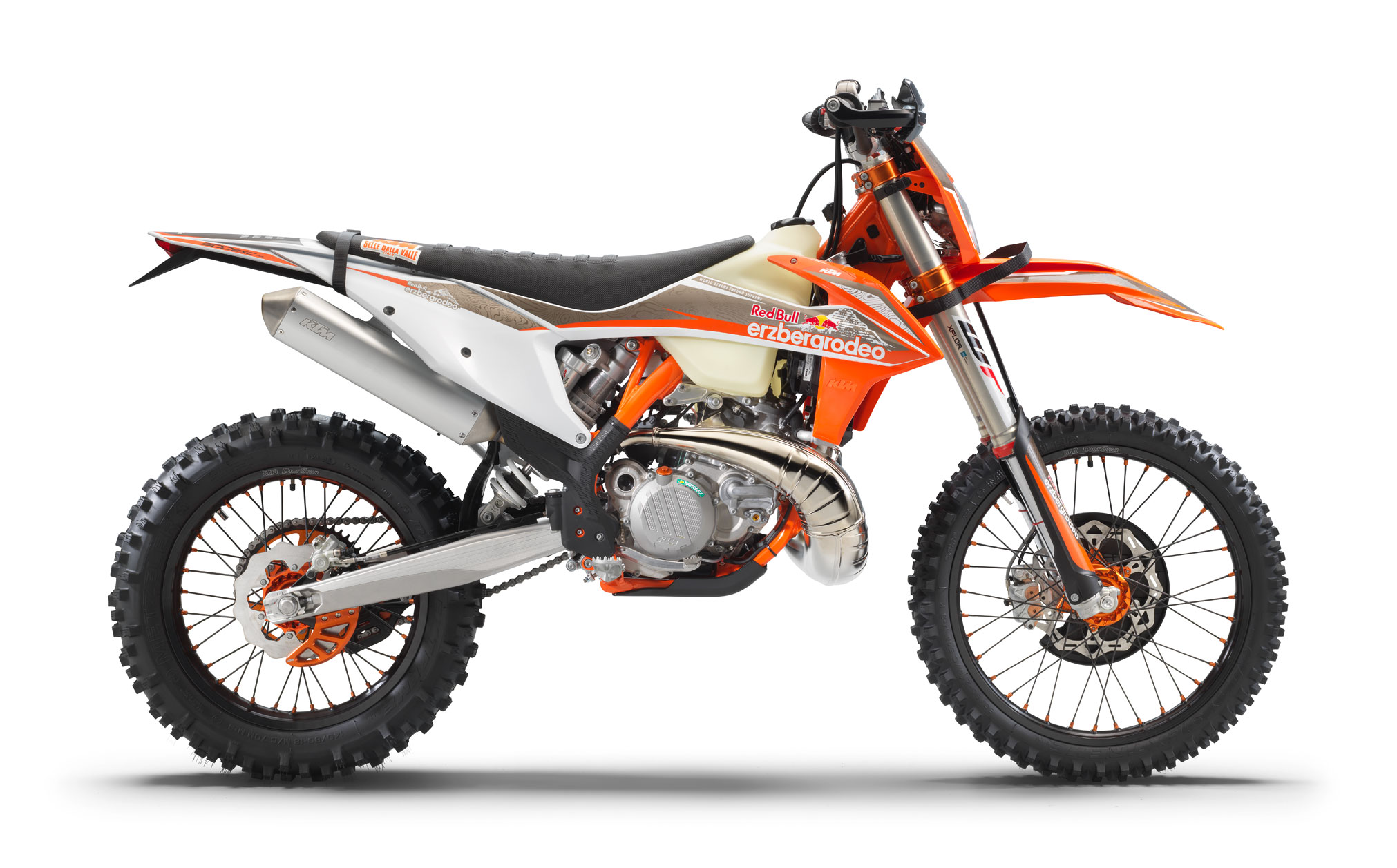

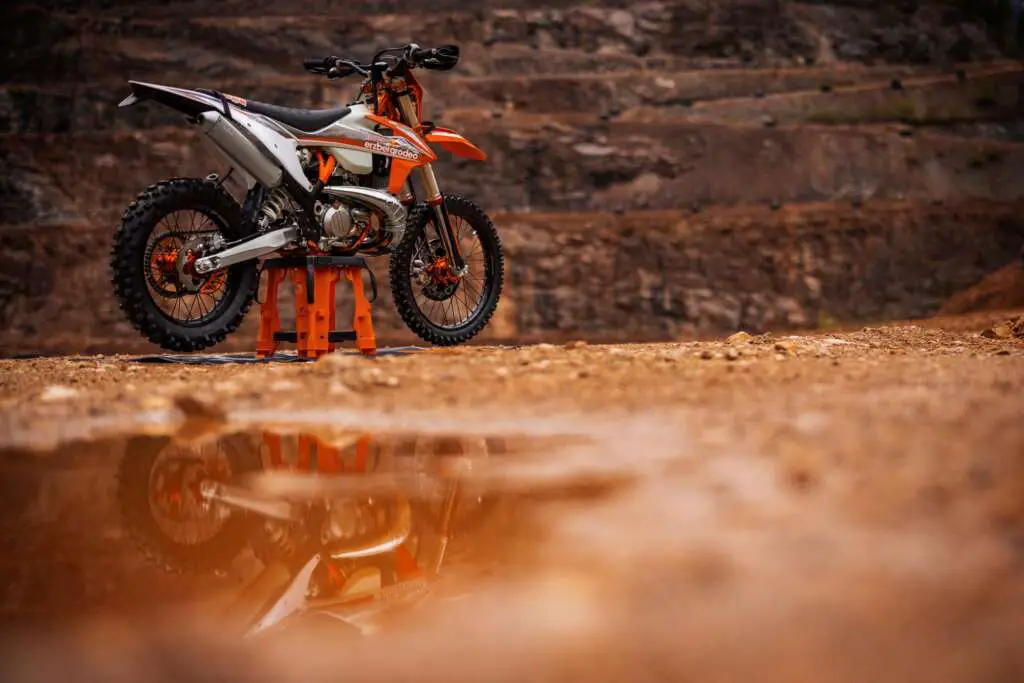

2022 KTM 300 XC-W TPI Erzbergrodeo: MASTER OF THE MOUNTAIN.

Introducing the 2022 KTM 300 XC-W TPI Erzbergrodeo…

The KTM 300 XC-W TPI ERZBERGRODEO limited edition is a force to be reckoned with – not unlike the Iron Giant itself. This nimble, lightweight all-terrain master fears no obstacle, making it the ultimate extreme enduro machine. Packed with a select series of KTM PowerParts and a unique graphics kit to commemorate this special event, the KTM 300 XC-W TPI ERZBERGRODEO is all the enduro motorcycle you will ever need to conquer the world’s most extreme enduro race.



2022 KTM 300 XC-W TPI Erzbergrodeo Totalmotorcycle.com Key Features




2022 KTM 300 XC-W TPI Erzbergrodeo Totalmotorcycle.com Features and Benefits

Engine & Exhaust



When it comes to power delivery and performance, the exhaust plays a key role and packs a punch that is hard to beat. The 250 cc and 300 cc models feature HD exhaust pipes (heavy-duty) made by using an innovative 3D stamping process which produces a ribbed surface finish. This makes the pipe much stronger, with better resistance against rocks, while also helping to reduce noise drastically. The silencer features a compact shape and end cap with internal designs individually developed for each model, while it is mounted using an aluminum mounting bracket. In addition, the exhaust’s shape provides slim ergonomics and more ground clearance, while a perforated inner silencer tube works with lighter damping material for efficient and durable noise reduction.



A legend in its own right, the KTM 300 cc 2-stroke engine has long been a favorite when it comes to enduro weaponry. This is largely down to its exceptional power, low-down torque and overall light weight. Thanks to state-of-the-art engineering, innovative 2-stroke design, and revolutionary TPI fuel injection technology, this powerplant has become a truly refined unit.



The cylinder on the KTM 300 XC-W TPI ERZBERGRODEO has a bore of 72 mm and is fitted with a sophisticated power valve, providing ultra-smooth and controllable power characteristics. Being fuel-injected, the cylinder features two lateral domes which hold the fuel injectors, supplying fuel to the rear transfer ports. The downstream injection guarantees excellent atomization of the fuel with the upstreaming air. Thus, the loss of unburnt fuel is minimal for fewer emissions, more efficient combustion, and reduced fuel consumption. The cylinder also features a state-of-the-art power valve unit with a sophisticated mechanism for the lateral support exhaust ports. The exhaust port layout increases engine performance, while the upper contour of the exhaust port has been machined to ensure more accurate port timing.


Crankcases and engine covers

These compact engine cases are manufactured using a high-pressure die-cast production process which helps with weight reduction but maintains strength and durability. This design also allows for optimal shaft arrangements close to the center of gravity, resulting in ideal mass centralization and ride-ability. The KTM 300 XC-W TPI ERZBERGRODEO edition also makes use of a CNC KTM PowerParts oil plug and smart surface structure on the engine covers, meaning it will continue to look as fresh after the race, as it did lining up.



The KTM 300 XC-W TPI ERZBERGRODEO is fitted with a robust 6-speed transmission made by PANKL RACING SYSTEMS. The gears are made of a strong, forged raw material, ensuring the highest durability and reliability level. Another highlight of the 300 XC-W TPI ERZBERGRODEO transmission is the no-dirt gear shifter. Similar to the footpeg design, it prevents the build-up of dirt and ensures the next gear is always available, no matter what the conditions.


Engine management system

The engine management system (EMS) of all 2-stroke XC-W TPI models features a control unit located below the seat. The ECU defines the ignition timing while the amount of fuel to inject is based on several sensor readings such as intake air pressure, throttle position, water temperature , and ambient air pressure. Thanks to altitude and temperature compensation, re-jetting is a thing of the past, meaning more time twisting throttles and less time turning screws. Should the rider decide to mount a radiator fan from the KTM PowerParts, it will be controlled directly by the EMS without needing to add an additional thermal switch.


Balancer shaft

The KTM 300 XC-W TPI engine design allows for the implementation of a lateral balancer shaft in order to keep engine vibrations to a minimum. This means riders can focus on the obstacles ahead of them, with out distraction. After all, more comfort equals less fatigue.



The KTM 300 XC-W TPI ERZBERGRODEO employs the KTM-developed DDS clutch (damped diaphragm steel) with a wear-free steel basket, extremely heat resistant clutch plates and nitrated steel liners. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction, but without compromising durability. Light operation and a ‘telepathic’ level of control come standard with this hydraulic Brembo actuated clutch. Additionally, this model comes with clutch slave cylinder protection.


Oil pump

Pre-mixing 2-stroke fuel is a thing of the past for KTM XC-W TPI owners. The 2-stroke enduro range is fitted with a frame-mounted oil tank featuring flexible mountings, which greatly improves durability and reliability. In addition, a mesh filter preventss dirt from getting into the oil pumpand into the fuel. This works in conjunction with the oil pump, that delivers the lubricant directly to the throttle body, where it is mixed with the incoming air to lubricate the piston and crankshaft. Using engine speed and throttle position sensor data, the engine management’s precise electronic control of the oil pump ensures that the ideal amount of oil for any given conditions is used. With an average fuel-to-oil ratio of 1:80, an oil capacity of about 0.7 liters is sufficient for at least five tanks of fuel.


Throttle body

The KTM 300 XC-W TPI engine is fitted with a 39 mm throttle body made by Dell`Orto. These regulate the airflow via a butterfly connected with a twin-cable throttle cam, which is operated by the handlebar throttle assembly, supported by a throttle position sensor that provides airflow data to the control unit. What all this means is, riders can precisely set the idle speed via the bypass screw, as well as easier cold starts.


TPI Alternator

In order to accommodate the power requirements of the engine management system, all KTM XC-W TPI models are fitted with a powerful 196 W alternator and voltage regulator to ensure all systems are always powered up.



Keeping the engine cool when the going gets tough comes courtesy of a pair of radiators, mounted close to the center of gravity. These make use of CFD technology (Computational Fluid Dynamics) and clever coolant circuit routing, achieving optimum engine temperature for the highest performance, in all conditions. Above all, the delta distributor, integrated into the frame triangle, features a large center tube for highly efficient coolant flow. The radiators also benefit from plastic protection fins that serve as protection from flying rocks and debris, as well as a brace that disperses energy around the radiators in the event of an impact.





The easy-access airbox on the KTM 300 XC-W TPI ERZBERGRODEO ensures optimal flow dynamics, thanks to specially designed intake snorkels. This means air is force-fed into the motor, resulting in the perfect balance of power and throttle response. Keeping the air clean, is a large Twin-Air air filter fitted to a rigid cage for ideal placement at all times.



All KTM XC-W models feature high-tech, lightweight Chromoly steel frames with race-derived geometry, optimal stiffness, and unparalleled feedback for the rider. This translates into a playful handling character, with remarkable stability at speed. The subframe is made of extra-light and ultra-stable aluminum profiles, weighing less than 2 pounds providing rear fender stability and durability in the event of a loop out.



The KTM 300 XC-W TPI ERZBERGRODEO features a one-piece aluminum swingarm, which is manufactured using a gravity die-cast production process. This results in exeptional strength at the lowest possible weight and the perfect flex behavior.



The KTM 300 XC-W TPI ERZBERGRODEO edition makes use of the highest quality CNC machined factory wheels with anodized orange hubs. Besides looking the part, these wheels keep the weight down. And thanks to a set of Dunlop Geomax AT81 rubber, even in the toughest, most slippery conditions are dispatched effortlessly.



For 2022, all KTM XC-W models have received a suspension update, with a firmer factory setting focusing on performance and improved consistency across different terrains.


Front suspension

The KTM 300 XC-W TPI ERZBERGRODEO is fitted with the latest 48 mm diameter WP XPLOR upside-down forks. For 2022, these have undergone a small update, with refined firmer factory settings focussed on performance, as well as new slots in the outer fork tube, which feed more oil to the bushes and reduce friction and heat build-up. The fork springs have also been updated with a polished surface finish, which improves consistency as well as wear resistance. A new valve design also improves rebound damping performance. The forks retain their adjustability, with compression damping on the left and rebound on the right. The ERZBERGRODEO edition also comes with CNC machined triple clamps that combine perfectly with the WP XPLOR fork.


Rear suspension

The race-proven and fully adjustable WP XPLOR shock absorber has received a re-tune, with factory settings making it firmer, and new conical bushing between the positions to improve bottoming reserves. This has resulted in reduced fade and improved wear, taking the PDS rear suspension design even further in its quest for podiums.



Made to conquer the long downhill drops at the Iron Giant, these high-tech Brembo brakes are combined with lightweight wave brake discs, including a solid disk on the rear for maximum feel and ultimate stopping power. The KTM 300 XC-W TPI ERZBERGRODEO edition also provides extra brake protection with a front and rear brake-disc guard, as well as a rear brake safety wire as standard.


Fuel tank

All KTM enduro models are fitted with lightweight polyethylene tank, with a ¼‐turn bayonet-style filler cap makes for quick and easy operation. The integrated fuel pump ensures a direct feed to the injectors, while a 90° connector provides protection against damage. The tank is also manufactured using see‐through plastic, riders are able to gauge fuel levels at a glance and on the go.


Ergonomics & Comfort


Tailored to meet the needs of the world’s fastest backsides, this durable seat offers great comfort, helping you master the most challenging terrain all day long.



All KTM XC-W models are equipped with adjustable, high-strength aluminum tapered handlebars made by NEKEN. These can be mounted in four different positions. Standard with ODI vulcanized grip on the right side and a comfortable ODI lock-on grip on the left, your only worry is hanging on, and letting rip. Addionally, the KTM 300 XC-W TPI ERZBERGRODEO is equipped with a handlebar map select switch, which lets you select between a standard and advanced power curve.


Bodywork & Graphics


Sophisticated ´No-Dirt´ footpegs prevent clogging up the pegs, even when digging in deep ruts. The pegs on the Enduro models are 6 mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.


Software & Electronics



All engines are fitted with the proven electric starter, which is a major benefit for any offroad activity. It is powered by a super lightweight 2 Ah lithium-ion starter battery which provides safe, reliable starting. The wiring harness has most of the electrical components carefully positioned into a common area below the seat, making them more easily accessible and reliable.





2022 KTM 300 XC-W TPI Erzbergrodeo – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $11899 USD
Canada MSRP Price: $13149 CDN
Europe/UK MSRP Price: £ See Dealer (On The Road inc 20% Vat)

 Transmission 6-speed
 Starter Electric starter
 Stroke 72mm
 Bore 72mm
 Clutch Wet, DDS multi-disc clutch, Brembo hydraulics
 Displacement 293.2cm³
 EMS Continental EMS
 Design 1-cylinder, 2-stroke engine


 Front brake disc diameter 260mm
 Rear brake disc diameter 220mm
 Front brake Disc brake
 Rear brake Disc brake
 Chain X-Ring 5/8 x 1/4″
 Frame design Central double-cradle-type 25CrMo4 steel
 Front suspension WP XPLOR-USD, Ø 48 mm
 Rear suspension WP Xplor PDS shock absorber
 Steering head angle 63.5°


Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
