2022 Suzuki DR-Z400S Guide

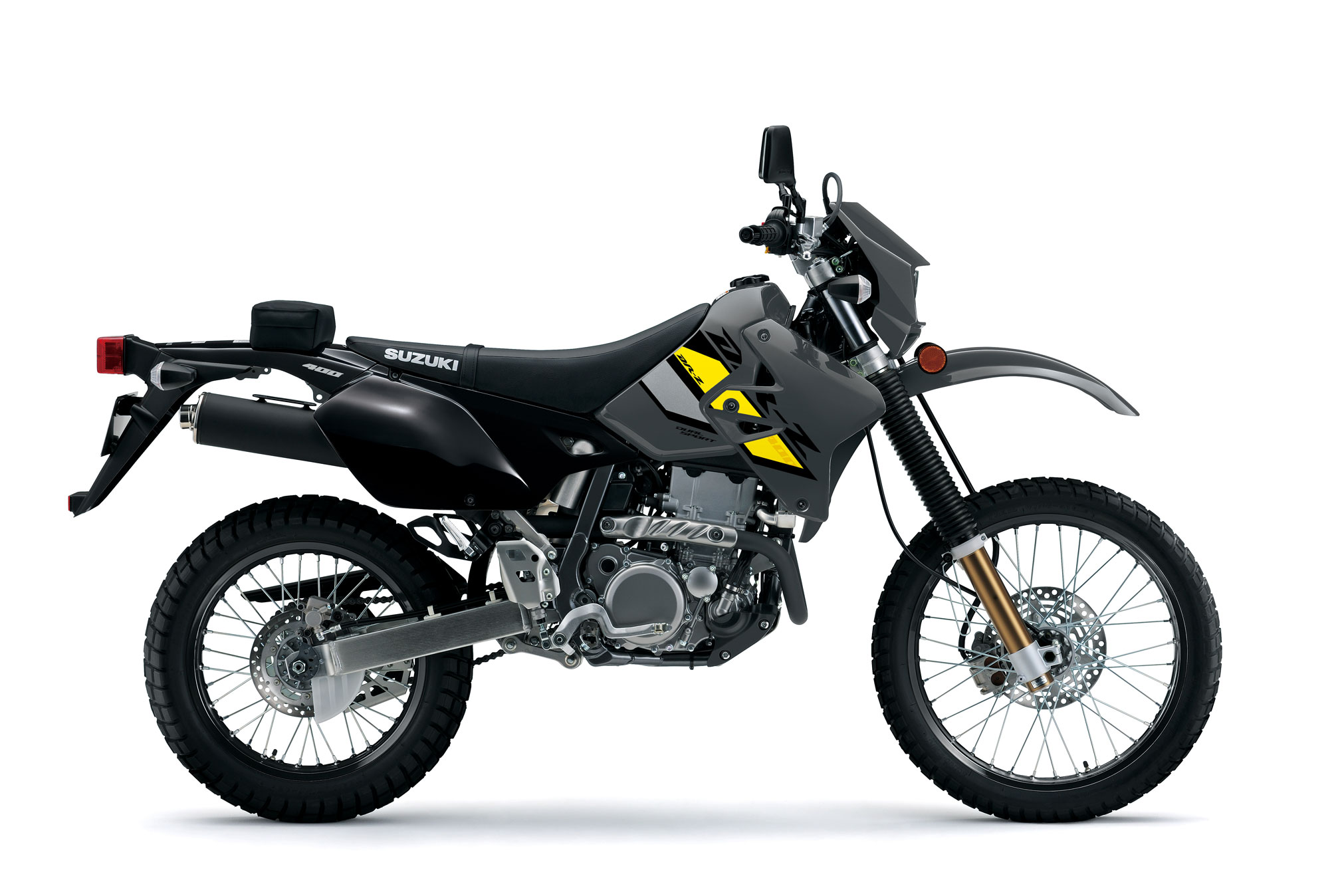

2022 Suzuki DR-Z400S

2022 Suzuki DR-Z400S 2022 Suzuki DR-Z400S 2022 Suzuki DR-Z400S

2022 Suzuki DR-Z400S: THE ESSENCE OF SUPERMOTARD RIDING.

Introducing the 2022 Suzuki DR-Z400S…

Suzuki’s 2022 SuperMoto DR-Z400SM is based on the proven DR-Z400S. So it combines Supermotard style and features in a narrow, lightweight, street-legal package. This bike brings off-road soul and fun to paved roads. It’s not uncommon to take the SuperMoto down a twisty forest road, around tight canyon corners, or through commuter traffic.

Its 398cc, liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. Key differences between the DR-Z400SM and the DR-Z400S are the inverted front fork, wide, spoke-style wheels, and 300mm diameter floating front brake rotor. The inverted fork contributes to less unsprung weight and improved overall handling, while the large brake and wider rims with high-grip tires offer an exhilarating sportbike experience.

The DR-Z400SMM2 welcomes you to the exhilarating world of SuperMoto riding with cutting-edge dual-purpose bike design and stylish, functional top-grade equipment that captures the essence of free-spirited street riding pleasure. The Suzuki DR-Z400SM is a street-legal bike for serious dirt bike enthusiasts. It’s not uncommon to take the SuperMoto down twisty forest trails as well as tight canyon corners. Its 398cc liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. The key difference between the DR-Z400SMM2 and the DR-Z400SM2 is the inverted forks. Inverted front forks contribute to less unsprung weight and improved overall handling. Fun to ride whatever street, avenue or highway you’re headed for.





2022 Suzuki DR-Z400S Totalmotorcycle.com Key Features

Suzuki’s Supermotard model, based on the proven DR-Z400S, combines Supermotard style and features in a narrow, lightweight, street-legal package

Versatile and strong, 398cc, DOHC, liquid-cooled, dry-sump engine has push-button starting

SuperMoto boasts fully adjustable MX-style suspension plus high-grip sportbike tires on strong spoke wheels featuring anodized, aluminum Excel rims

Solid Black or Solid Special White No. 2 bodywork with angular graphics complement the motorcycle’s styling



A COMPACT DESIGN
A compact design, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong low-rpm power. Its compact, four-valve cylinder head features large 36mm intake valves and 29mm exhaust valves to help produce broad, tractable power and torque that’s ready for any terrain.

DC-CDI SYSTEM
Digitally-mapped DC-CDI system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.

ALUMINUM PISTON
Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.

PAIR SYSTEM
The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.

TRANSMISSION
Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.

STOPPING POWER
Sure stopping power is supplied by a 250mm front disc with a dual-piston calliper and a 220mm rear disc brake with a single-piston calliper.

CARTRIDGE-STYLE FORKS
Long travel (11.3-inch), 49mm cartridge-style fork has protective rubber boots plus adjustable compression/rebound damping and adjustable spring preload for smooth performance on all types of on- and off-road terrain.

REAR SHOCK ABSORBER
Rear shock absorber features 11.6 inches of travel, compression damping/preload adjustments, and connects to a lightweight aluminum swingarm through a progressive linkage system.

WHEELS
Spoke-style 21-inch front and 18-inch rear wheels with new blacked-out aluminum rims are fitted with Dunlop D208 dual-purpose tires. The wheels are sized perfectly to accept popular dual sport tires and are set up to accept rim-locks when a more aggressive tread pattern is used.

NARROW FRAME
A narrow frame combines thin chrome-moly steel tubes for exceptional torsional rigidity with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank. A bolt-on aluminum sub-frame helps reduce weight and simplify maintenance.

COMPACT DIGITAL INSTRUMENT
Digital instrument includes speedometer, odometer, dual tripmeters with addition/subtraction functions, clock and stopwatch.

LIGHTING
On-road legal lighting includes bright 60/55-watt H4 halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.

ADDITONAL FEATURES
A pouch on the rear fender carries the tool kit, owner’s manual, or other cargo.









2022 Suzuki DR-Z400S Totalmotorcycle.com Features and Benefits

ENGINE FEATURES
Lightweight, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable power.

Compact, four-valve cylinder head has 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle, and shim-under-bucket valve adjustment system.

Simple electric starting is powered via a lightweight starter motor with an automatic mechanical decompression system.

SCEM-plated cylinder (nickel-silicon-phosphorus) is lighter and more durable than an iron liner and has excellent heat transfer properties.

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.

Fed by a six-liter air box, the Mikuni™ 36mm carburetor incorporates a deceleration enrichener circuit to help provide smooth throttle response when accelerating or engine braking.

The left side body cover has quick-release fasteners for easy access to the air filter.

The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.

Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic.

Magnesium-alloy clutch, magneto, and cylinder head covers contribute to the bike’s low weight.

TRANSMISSION FEATURES
Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.

Low-maintenance, long-life, sealed O-ring type drive chain produces minimal sounds when riding.

CHASSIS FEATURES
Wide, black-anodized RK Excel aluminum rims with stainless steel spokes are fitted with sporty radial tires: 120/70-R17 front and 140/70-R17 rear.

Strong braking performance is supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus a 240mm rear disc brake with a single-piston caliper.

Long travel, Showa inverted front fork is derived from the RM250 and features adjustable compression/rebound damping and a special coating on inner tube surfaces for smooth action.

A fully adjustable rear shock absorber with high/low speed compression damping adjuster and a tapered RM-inspired aluminum swingarm combine for precise rear wheel control.

Renthal tapered aluminum handlebar has an aggressive look, reduces vibration, and has a great bend for spirited riding.

Chrome-moly steel frame tuned for Supermotard style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank.

A bolt-on aluminum sub-frame helps reduce weight, simplify maintenance, and contributes to the trim rear fender appearance.

Front and rear axle sliders, and specially designed mirrors that rotate, help protect against damage in the case of a tip-over.

Derived from the off-road DR-Z400, the black or white bodywork features angular graphics for a race-ready appearance.

A pouch on the rear fender carries the tool kit, owner’s manual, or other cargo.

ELECTRICAL FEATURES
Compact, digital instrument cluster includes speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, and stopwatch functions.

On-road legal lighting includes bright 60/55-watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.

Electrical systems, including the easy-push button starter, are powered by a compact, 6.5-amp, maintenance-free battery.

ADDITIONAL FEATURES
12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.

A variety of Genuine Suzuki Accessories for DR-Z400SM owners are available, including a low-profile seat, cargo rack, handguard set, and a large selection of Suzuki logo apparel.







2022 Suzuki DR-Z400S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ 7599 USD
Canada MSRP Price: $ 7799 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

Engine398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke90.0 mm x 62.6 mm (3.54 in. x 2.44 in.)
Compression Ratio11.3:1
Fuel SystemMikuni BSR36, single carburetor
StarterElectric
LubricationSemi-dry sump

Transmission5-speed constant mesh
ClutchWet multi-plate
Final DriveChain, RK520KZ0, 110 links

uspension FrontInverted telescopic, coil spring, oil damped, adjustable damping force
Suspension RearLink type, coil spring, oil damped, adjustable spring preload and damping force
Brakes FrontDisc brake, single floating rotor
Brakes RearDisc brake, single rotor
Tires Front120/70 R17 M/C 58H, tube type
Tires Rear140/70 R17 M/C 66H, tube type
Fuel Tank Capacity10.0 L (2.6 US gal.) / 9.5 L (2.5 US gal.) CA model
ColorSolid Black or Solid Special White No. 2

IgnitionElectronic ignition (CDI)
Spark PlugNGK CR8E or DENSO U24ESR-N
Headlight12V 60/55W (H4)
Tail Light12V 21/5W

Overall Length2225 mm (87.6 in.)
Overall Width855 mm (33.7 in.)
Overall Height1200 mm (47.2 in.)
Wheelbase1460 mm (57.5 in.)
Ground Clearance260 mm (10.2 in.)
Seat Height890 mm (35.0 in.)
Curb Weight146 kg (322 lb.)

Warranty12-month limited warranty
ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)







2022 Suzuki DR-Z400S – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE
Type 4-stroke, liquid-cooled, single cylinder, DOHC
Displacement 398cc
Bore x Stroke 90.0mm x 62.6mm (3.5in x2.5in)
Compression Ratio 11.3 : 1
Fuel System Carbureted
Starter Electric
Lubrication Dry-Sump|Dry-Sump
Ignition Electronic ignition (CDI)
DRIVE TRAIN
Transmission 5-speed constant mesh
CHASSIS
Length 2310 mm (90.9 in)
Width 875 mm (34.4 in)
Height 1230 mm (48.4 in)
Wheelbase 1485 mm (58.5 in)
Seat Height 935 mm (36.8 in)
Curb Mass 144 kg (317 lbs)
Suspension Front Telescopic, coil Spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc
Brakes Rear Disc
Tires Front 80/100-21 M/C 51P, tube type
Tires Rear 120/90-18 M/C 65P, tube type
Fuel Tank 10.0L (2.6 US gal)
WARRANTY
12 Month unlimited mileage limited warranty







2022 Suzuki DR-Z400S – Totalmotorcycle.com European Specifications/Technical Details

NA





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
