2022 Triumph Bonneville T120 Gold Line: BEAUTIFULLY EVOLVED.
Introducing the 2022 Triumph Bonneville T120 Gold Line…
A distinctive special edition for the definitive British motorcycle icon – hand-painted, beautifully evolved.
Being the very latest specification Bonnevilles, the T120 and T120 Black Gold Line Editions feature all of the Bonneville’s torque-rich 1200cc twin performance, with 79HP peak power at 6,550rpm and 77 LB-FT peak torque at 3,500rpm. Their sophisticated chassis set-up with 41mm cartridge forks, preload-adjustable twin RSUs and twin Brembo front calipers with ABS delivers a dynamic, agile and neutral ride.

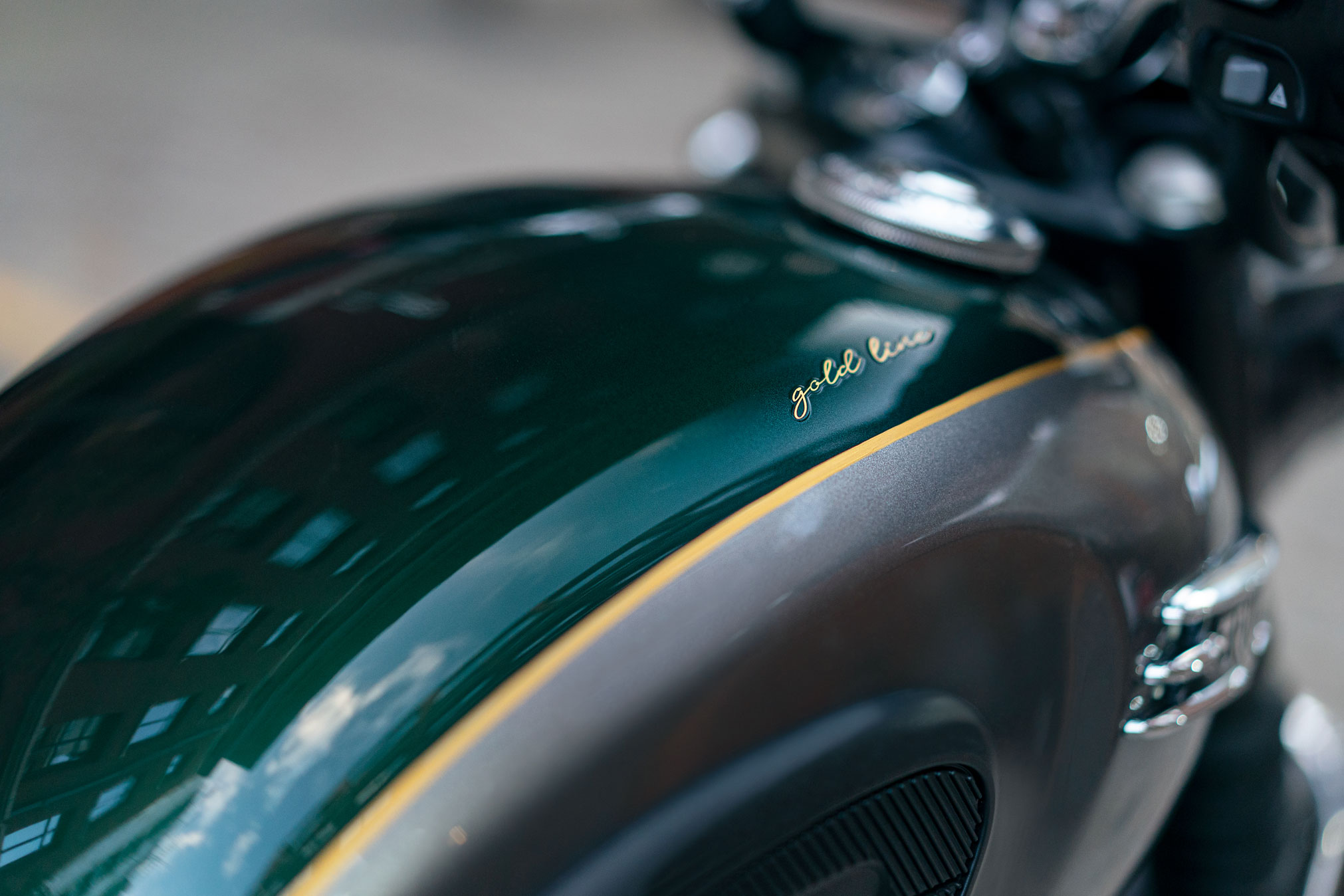

The Bonneville T120 Gold Line Edition comes in a wonderful Competition Green and Silver Ice color scheme. The classic Competition Green infill on the tank is edged with a hand-painted gold line and the subtle ‘gold line’ logo, while the side panels carry a stripe graphic, with a unique white and gold Bonneville T120 logo and hand-painted gold lining.
The mudguards are finished in Silver Ice and there’s an accessory fit matching Silver Ice flyscreen available too.
The Bonneville T120 Black Gold Line Edition, instead, has a darker edge thanks to the sophisticated Matt Sapphire Black paint scheme running across the tank, front and rear mudguards, headlamp bowl and side panels.
The tank infill is Matt Silver Ice, hand-edged with gold line detailing, as are the side panel stripe graphics, which feature a unique new black and gold logo design. The scheme perfectly complements the blacked-out engine, black exhaust system and the wealth of blacked-out details that give the Bonneville T120 Black its characteristic mean and moody attitude.
Both versions of the T120 feature all of the latest generation updates, such as the lightweight aluminum wheels, cruise control and enhanced riding modes, making the T120 and T120 Black Gold Line Editions even more premium and desirable.
2022 Triumph Bonneville T120 Gold Line Totalmotorcycle.com Key Features
Showcasing the hand-painted gold lining skills of Triumph’s expert paint shop and reflecting customer demand for brighter and more custom-inspired schemes, the new Bonneville Gold Line Editions bring a unique style and premium hand-painted detail to eight motorcycles in Triumph’s renowned Modern Classic range.
All available for one year only, the Gold Line Editions feature all of the recent updates of the new Bonneville generation, including enhanced capability and performance, and more beautiful style.
Following the success of the Street Twin Gold Line Edition launched earlier in 2021, which sold out within the season, the new range of eight Bonneville Gold Line Editions takes the latest generation models and adds a unique and exquisite hand-painted ‘gold line’ colour scheme to each.
Perfectly illustrating the quality and attention to detail that Triumph is renowned for, and only available for one year, these new Gold Line Editions are premium, desirable and exclusive.
The Art of Gold Lining
The industry-leading hand-painted gold lining expertise of Triumph’s paint shop is a skill that takes incredible patience, years of experience and the steadiest of hands.
Many of the new Gold Line Edition designs start with a two-colour base scheme, where the joining point between the two colours is flattened down. The gold line is then carefully hand-applied, usually in one continuous stroke by the artist, using a very specialised soft-bristled sword-liner brush. Once the pin stripe is in place, it’s sealed against the elements with a final clear coat of lacquer.
The paints used for the gold lining are specially formulated by mixing a powered colour with a cellulose lacquer for exactly the right consistency, as normal automotive paint is too thin for brush work.
Just like every hand-lined Triumph, the artist adds the finishing detail to each Gold Line Edition by signing their work with their initials, providing a personal touch that makes every hand-painted Triumph special.
2022 Triumph Bonneville T120 Gold Line Totalmotorcycle.com Features and Benefits
- Silver Ice fuel tank with Competition Green tank infill edged with hand-painted gold lining
and elegant ‘gold line’ logo - Silver Ice mudguards and side panels with Competition Green side panel stripes, unique new
white and gold Bonneville T120 logo and hand-painted gold lining - Accessory fit matching Silver Ice flyscreen available
NEW BONNEVILLE GOLD LINE EDITIONS
EIGHT UNIQUE CUSTOM-INSPIRED DESIGNS, AVAILABLE FOR ONE YEAR ONLY
Showcasing the hand-painted gold lining skills of Triumph’s expert paint shop and reflecting customer demand for brighter and more custom-inspired schemes, the new Bonneville Gold Line Editions bring a unique style and premium hand-painted detail to eight motorcycles in Triumph’s renowned Modern Classic range.
All available for one year only, the Gold Line Editions feature all of the recent updates of the new Bonneville generation, including enhanced capability and performance, and more beautiful style.
2022 Triumph Bonneville T120 Gold Line – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13100 USD
Canada MSRP Price: $14500 CDN
Europe/UK MSRP Price: £ 11,800 (On The Road inc 20% Vat)
ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 11.0:1
Max Power EC 64.1 HP @ 7400 RPM
Max Torque EC 59 LB-FT @ 3750 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed stainless steel 2 into 2 exhaust system with twin silencers
Final Drive Chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 5 speed
CHASSIS
Frame Tubular steel, twin cradle frame
Swingarm Twin sided fabrication
Front Wheel Aluminium rimmed 32 spoke 2.75” x 18”
Rear Wheel Aluminium rimmed 32 spoke, 4.25” x 17”
Front Tire 100/90-18
Rear Tire 150/70 R17
Front Suspension Ø41mm cartridge forks
Rear Suspension Twin RSU’s with pre-load adjustment
Front Brakes Single Ø310mm floating disc, Brembo 2 piston axial caliper, ABS
Rear Brakes Single Ø255mm disc, Nissin 2 piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 30.7 in (780 mm)
Height Without Mirror 43.7 in (1100 mm)
Seat Height 31.1 in (790 mm)
Wheelbase 57.1 in (1450 mm)
Rake 25.5 º
Trail 4.1 in (105.2 mm)
Tank Capacity 3.8 US gal (14.5 litres)
Wet Weight 520 lb (236 kg)
FUEL CONSUMPTION
Fuel Consumption 60.1 mpg (4.7 l/100km)
CO2 Figures 107 g/km “EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.”
2022 Triumph Bonneville T120 Gold Line – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 11.0:1
Max Power EC 64.1 HP @ 7400 RPM
Max Torque EC 59 LB-FT @ 3750 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed stainless steel 2 into 2 exhaust system with twin silencers
Final Drive Chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 5 speed
CHASSIS
Frame Tubular steel, twin cradle frame
Swingarm Twin sided fabrication
Front Wheel Aluminium rimmed 32 spoke 2.75” x 18”
Rear Wheel Aluminium rimmed 32 spoke, 4.25” x 17”
Front Tire 100/90-18
Rear Tire 150/70 R17
Front Suspension Ø41mm cartridge forks
Rear Suspension Twin RSU’s with pre-load adjustment
Front Brakes Single Ø310mm floating disc, Brembo 2 piston axial caliper, ABS
Rear Brakes Single Ø255mm disc, Nissin 2 piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 30.7 in (780 mm)
Height Without Mirror 43.7 in (1100 mm)
Seat Height 31.1 in (790 mm)
Wheelbase 57.1 in (1450 mm)
Rake 25.5 º
Trail 4.1 in (105.2 mm)
Tank Capacity 3.8 US gal (14.5 litres)
Wet Weight 520 lb (236 kg)
FUEL CONSUMPTION
Fuel Consumption 60.1 mpg (4.7 l/100km)
CO2 Figures 107 g/km “EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.”
2022 Triumph Bonneville T120 Gold Line – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 11.0:1
Max Power EC 65 PS / 64.1 bhp (47.8 kW) @ 7400 rpm
Max Torque EC 80 Nm @ 3750 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed stainless steel 2 into 2 exhaust system with twin silencers
Final Drive Chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 5 speed
CHASSIS
Frame Tubular steel, twin cradle frame
Swingarm Twin sided fabrication
Front Wheel 32 spoke 18 x 2.75 inches
Rear Wheel 32 spoke, 17 x 4.25 inches
Front Tyre 100/90-18
Rear Tyre 150/70 R17
Front Suspension Ø41mm cartridge forks
Rear Suspension Twin RSU’s with pre-load adjustment
Front Brakes Single Ø310mm floating disc, Brembo 2 piston axial caliper, ABS
Rear Brakes Single Ø255mm disc, Nissin 2 piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 780 mm
Height Without Mirror 1100 mm
Seat Height 790 mm
Wheelbase 1450 mm
Rake 25.5 º
Trail 105.2 mm
Tank Capacity 14.5 L
Wet Weight 236 kg
FUEL CONSUMPTION
Fuel Consumption 60.1 mpg (4.7 l/100km)
CO2 Figures 107 g/km “EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.”
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
