2022 Yamaha WR250F: PLAY FAST.
Introducing the new 2022 Yamaha WR250F…
Born from the Supercross‑dominating YZ250F, then tuned for enduro riding to offer the fastest way through tight singletrack.
Based on the championship winning YZ250F, the new 2022 WR250F is tuned with enduro specific settings to bring the fun and provide the fastest way through technical single-track. With features like Yamaha’s revolutionary front-intake, rear-exhaust, liquid-cooled, DOHC 4-stroke power plant, wide ratio transmission and a range of off-road features, the WR250F is equally at home on the trail or at the racetrack!
BUILD & PRICE YOURS NOW
2022 Yamaha WR250F Totalmotorcycle.com Key Features
NEW FOR 2022
- High-Tech Quarter-Liter Enduro Racer
The new 2022 WR250F™ builds on Yamaha’s exceptional motocross race platforms—the YZ250F™—with added features and unique settings designed to optimize the WR for enduro riding. - Strong and Compact Electric Start Engine
A high-compression cylinder head, forged piston, new cam profiles, new intake port and much more work together to give WR250F riders a broad spread of useable thrust with excellent high-rpm power. All available with the convenient push-button starting that features a compact starter motor system battery. - Advanced Alloy Frame
A new bilateral beam aluminum frame is derived straight from the YZ250F but tuned for enduro riding. The control-filled frame centralizes mass and provides an ideal balance between cornering feel and straight-line confidence. - Robust Transmission and Clutch
The WR250F’s wide-ratio 6-speed transmission features a new cam shift design for smoother gear shifting and provides the optimized gear for tight technical terrain, as well as wide open fire roads. The clutch system has a specific friction plate combination for heat dissipation and easy clutch lever effort. - 270mm Front Brake
Redesigned 270mm front disc brake coupled with aggressive pad material offers outstanding braking performance and machine control with exceptional stopping power. - MX Developed Features
As well as using the YZ250Fs engine and chassis as a platform, the new 2022 WR250F also features the latest MX model’s footpegs, bars, bar holders, lightweight front axle and more to offer the full VictorYZone experience. - Multi-Function Enduro Meter

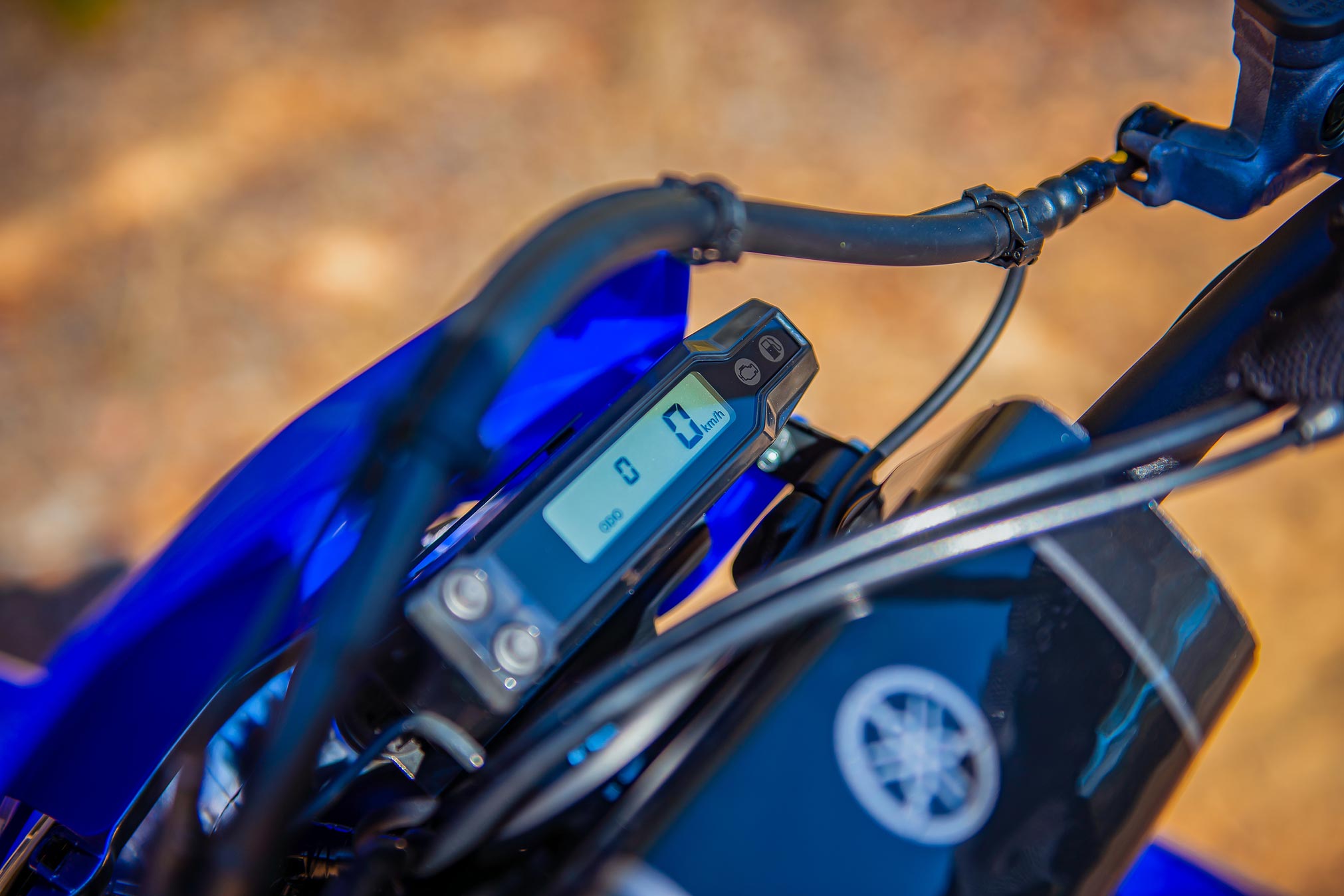

The newly designed compact meter has a higher contrast liquid crystal display with a fuel consumption indicator. The meter features two modes: Standard and Race. Standard mode displays the speedometer, two trips meters and clock functions while Race mode features average speed, timer and trip functionality along with low fuel and engine warning lights.
- Class-Leading Suspension
The Yamaha WR250F uses KYB® spring-type forks with industry-leading functionality and easy tuneability for a wide range of conditions. - EPA-Compliant Emissions
Thanks to carefully balanced ECU tuning and a Forestry Service-compliant spark arrestor-type muffler, the WR250F is ready to go where you want, when you want.
2022 Yamaha WR250F Totalmotorcycle.com Features and Benefits
ENGINE
- Rearward-Slanted Cylinder Design
The WR250F’s distinct rearward-slanted cylinder design—complete with rear exhaust and forward-mounted intake system—features a cylinder head that works with the frame geometry for optimized weight distribution. Inside, the engine features all of the updates found in the race-focused YZ250F: a straight intake tract, aggressive cam profiles, high-compression “box bridge” piston design with DLC-coated piston pin and more. - Enduro Engine Tuning
WR250F-specific ignition and fuel injection maps are optimized for enduro riding and racing, for exceptionally smooth and controllable midrange power with longer-lasting pulling power in the top-end. - Unique Intake and Exhaust Systems
The WR250F features a two-piece air filter that works in conjunction with the tuned intake tract length and a WR-specific muffler to boost the linear feeling of traction and drive. Not only is the WR250F muffler completely mechanical—eliminating the need to repack—it integrates a U.S. Forestry Service-compliant spark arrestor too. - High-Capacity Radiator
The WR250F uses a large radiator with excellent cooling capacity shared with the YZ250F motocrosser, complete with a cooling fan for consistent performance during the toughest enduro rides. - Electric Starter System
The WR250F features a lead acid battery powered compact electric starter system to simplify restarts on the trail and add convenience everywhere else. - Advanced Fuel Injection
The engine breathes through a 44mm Mikuni® throttle body fed by a high-pressure electric pump to ensure optimum fuel atomization and power for a wide range of riding elevations and conditions.
CHASSIS/SUSPENSION
- YZ250F-Derived Bilateral Beam Frame
Yamaha’s refined aluminum frame provides high performance on technical, aggressive terrain sections and comfort for those long days in the saddle, with frame spars and engine mounts developed alongside the YZ250FX cross country racer to centralize mass for the best possible balance of bump absorption, stiffness and rider feel. - Compact Body and Seat Design
The WR250F features stylish bodywork from tip to tail, including a large 2.15 gallon, mass-centralized fuel tank. The body design is narrow for more comfortable knee grip and control, while the seat gives the rider additional room to move. Even the rear fender is designed for added rigidity to make moving the machine easier. - Class-Leading Suspension
The WR250F’s industry-leading, fully adjustable KYB® coil spring-type fork with speed sensitive damping provides exceptional balance between handling and bump absorption, with mid-speed valving tuned for improved feel at slower fork speeds. - Cross Country Wheels and Tires
The WR250F features an 18-inch rear wheel to help prevent pinch flats and provide additional comfort across rough, broken terrain.
ADDITIONAL FEATURES
- Enduro-Ready Detailing
The WR250F includes a range of enduro-specific upgrades compared to the YZ250F motocrosser, including a wide, full-coverage composite engine guard, 18-inch rear wheel, large 2.15-gallon fuel tank, radiator fan, sealed O-ring chain, fuel level and engine warning lights, steel rear sprocket, and a high-mounted folding aluminum kickstand. - Compact Headlight Unit
The WR250F’s updated headlight fairing and compact taillight unit centralize mass and improve the racy, agile styling of the machine. - Embedded Graphics
Yamaha’s unique embedded graphics are built into the bodywork for extended durability, resisting both peeling and damage.
2022 Yamaha WR250F – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8799 USD
Canada MSRP Price: $10399 CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Bore x Stroke 77.0mm × 53.6mm
Compression Ratio 13.8:1
Fuel Delivery Mikuni® fuel injection, 44mm
Transmission Wide-ratio 6-speed; wet multiplate clutch
Final Drive O-ring chain
Suspension / Front KYB® Speed-Sensitive System inverted fork;
fully adjustable, 12.2-in travel
Suspension / Rear KYB® single shock; fully adjustable, 12.5-in
travel
Brakes / Front Hydraulic single disc brake, 270mm
Brakes / Rear Hydraulic single disc brake, 245mm
Tires / Front 80/100-21 Dunlop® MX3S
Tires / Rear 110/100-18 Dunlop® MX3S
L x W x H 85.6 in x 32.5 in x 50.0 in
Seat Height 37.6 in
Wheelbase 58.3 in
Rake (Caster Angle) 27.2°
Trail 4.6 in
Maximum Ground
Clearance
12.6 in
Fuel Capacity 2.15 gal
Wet Weight 254 lb
Warranty 30 Day (Limited Factory Warranty)
Color Team Yamaha Blue
2022 Yamaha WR250F – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
ENGINE Liquid-cooled, DOHC, 4-valve (titanium), single
DISPLACEMENT 250 cc
BORE AND STROKE 77 x 53.6 mm
COMPRESSION RATIO 13.8:1
FUEL DELIVERY 44 mm Keihin throttle body F.I.
LUBRICATION Wet Sump
IGNITION / STARTING TCI / Electric
TRANSMISSION Constant mesh, 6-speed
FINAL DRIVE Chain
CHASSIS
SUSPENSION (FRONT) Fully adjustable 48 mm inverted fork / 310 mm (12.2″) wheel travel
SUSPENSION (REAR) Fully adjustable Monocross / 317 mm (12.5″) wheel travel
BRAKES (FRONT) 270 mm, floating wave disc / twin piston caliper
BRAKES (REAR) 245 mm wave disc / single piston caliper
TIRES (FRONT) 80/100-21
TIRES (REAR) 110/100-18
CRITICAL DATA
LENGTH 2,175 mm (85.6″)
WIDTH 825 mm (32.5″)
HEIGHT 1,270 mm (50″)
WHEELBASE 1,480 mm (58.3″)
GROUND CLEARANCE 320 mm (12.6″)
SEAT HEIGHT 955 mm (37.6″)
FUEL CAPACITY 7.9 litres (1.7 Imp. gallons)
WET WEIGHT 115 kg (254 lb)
COLOUR(S) Team Yamaha Blue
2022 Yamaha WR250F – Totalmotorcycle.com European Specifications/Technical Details
NA
