2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition Guide

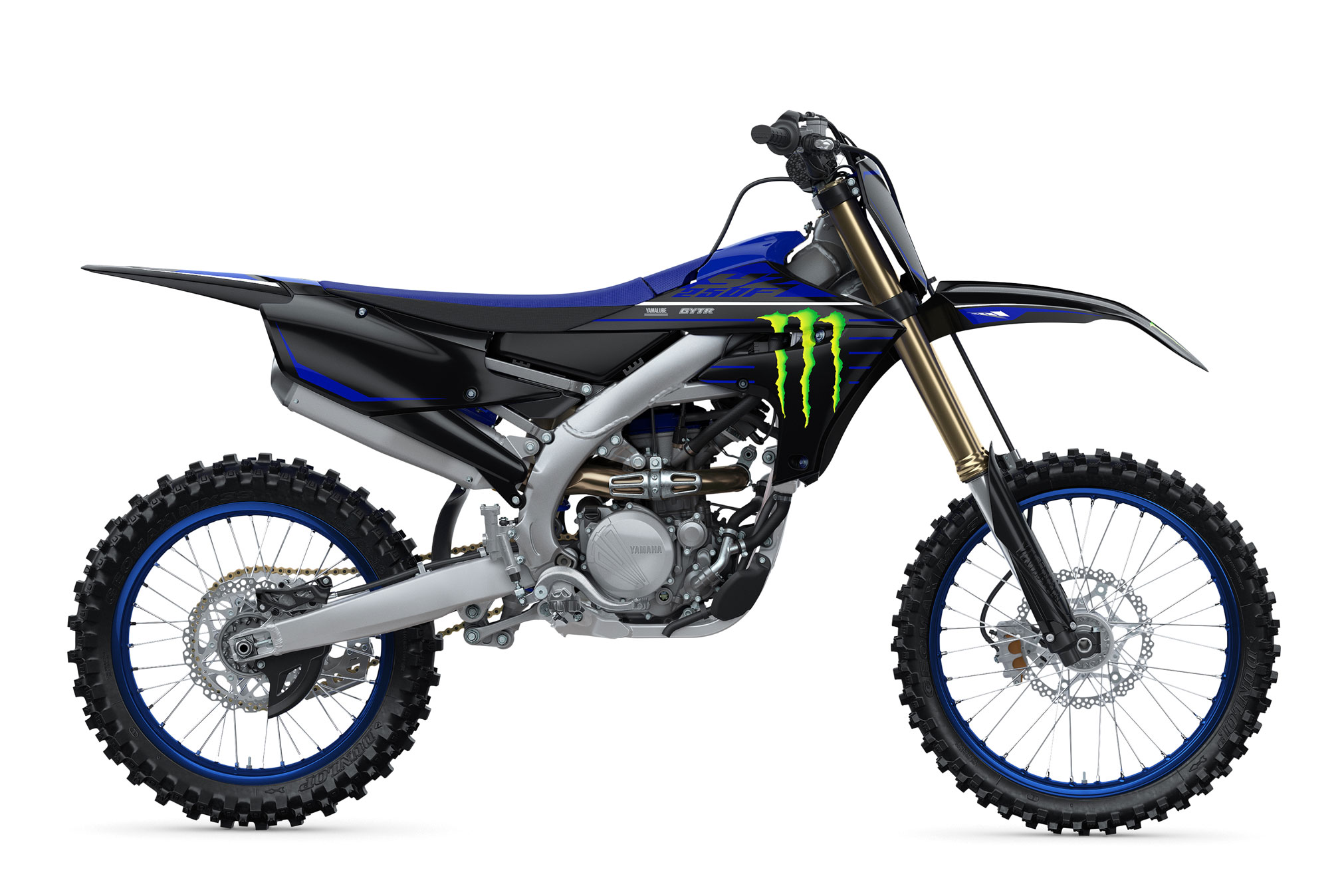

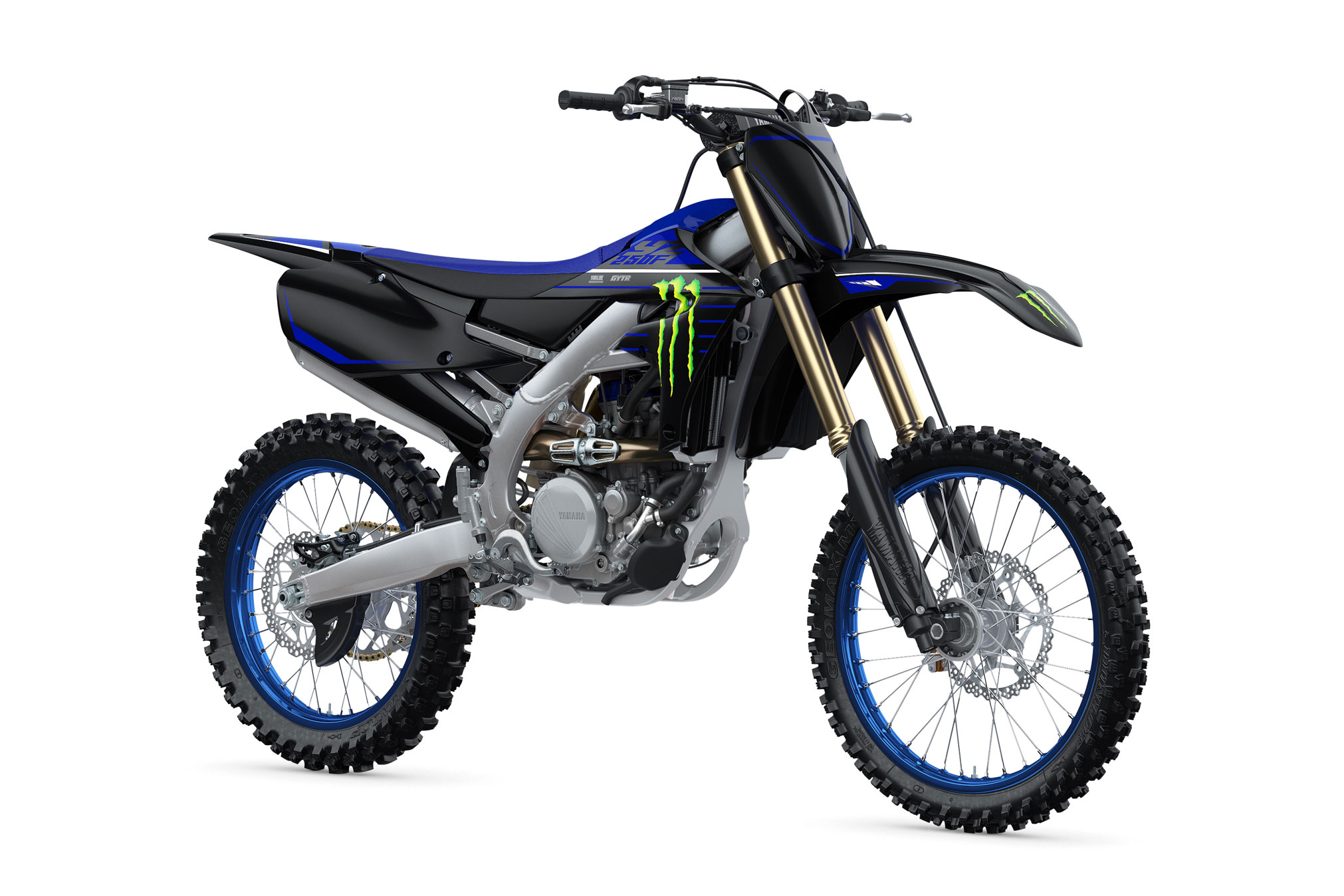

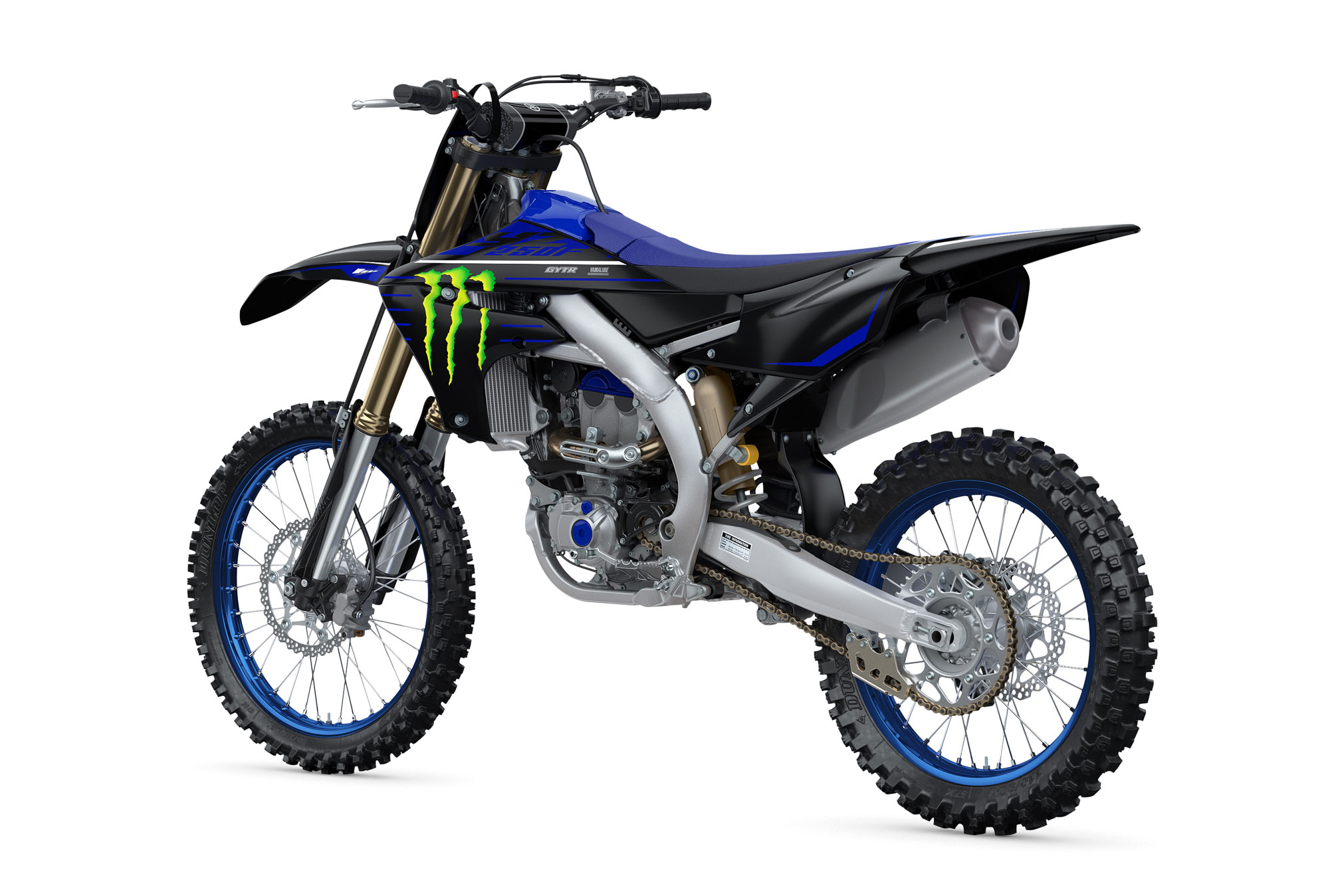

2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition

2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition 2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition 2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition 2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition 2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition

2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition : THE RIDE STARTS HERE.

Introducing the new 2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition…

The look of a full factory ride with the performance of a multi‑time Supercross and Motocross champion. Your Monster Energy‑inspired moto weapon of choice awaits.

Fresh off dominating the 2021 Supercross season, the new 2022 Yamaha YZ250F sees a handful of key updates to make the benchmark-setting motocrosser even better. Beginning with the rear wheel, a new 2.15-inch wide rear rim pairs with a premium 110-width Dunlop® Geomax MX33 tire to serve up a wider footprint, increased traction and better bump absorption under hard acceleration and cornering. In a first on a Yamaha off-road competition model, a new three-cross spoke pattern on the rear wheel further improves impact absorption and overall feel. The rear wheel hub has been reengineered to be thinner and lighter while still retaining strength. Together with a new lightweight rear sprocket design and new lightweight drive chain, unsprung weight and driveline inertia is reduced for more responsive handling.

The YZ250F’s class-leading suspension takes another step forward with revised suspension settings aimed at striking the perfect balance between the wider rear tire and lightened rear wheel assembly. That means increased stability on corner entry/exit and improved bump reaction, further enhancing the game-changing performance of the YZ250F’s advanced, fully adjustable KYB® suspension. Also new for 2022, an updated premium graphics scheme features aggressive Yamaha Blue and dark blue embedded graphics, both highlighting the YZ’s competitive intentions and providing excellent durability and scratch resistance. Blacked-out radiator louvers further add to the aggressive new look.

Updates add to the long list of race-ready features that make the YZ250F a consistent top pick in the ultra-competitive 250cc class. The advanced liquid-cooled four-stroke powerplant features a forward-positioned straight downdraft intake with symmetrical intake ports, high-spec piston, aggressive cam profiles and reversed cylinder head layout, providing broad, useable powerband and class-leading low-end and mid-range torque. Helping racers dial in the perfect power delivery for different track conditions, Yamaha’s industry-leading free-of-charge Power Tuner app puts the flexibility and precision tunability of the GYTR® Power Tuner into your smartphone. Make fueling and ignition timing changes instantly and upload them to the bike for ultimate track-side tuning. A convenient handlebar-mounted map switch then allows the rider to quickly select between two uploaded maps for immediate on-the-fly adjustments.

The YZ250F’s highly refined chassis is based on a lightweight aluminum bilateral beam frame with main spars, engine mounts and mounting position designed to centralize mass and provide an ideal balance between cornering feel and straight-line rigidity. Exceptional braking power and feel is achieved through the same high performance braking components fitted to its open-class YZ450F sibling. It all adds up to an extremely capable and well-rounded package that gives racers the edge right out of the gate.







2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition Totalmotorcycle.com Key Features
  • Monster Energy® Yamaha Racing Edition
    Inspired by the multi-championship winning YZ250F raced by Monster Energy® Star Yamaha Racing’s pro Supercross and Motocross teams, the Monster Energy® Yamaha Racing Edition features a striking color and graphics package that stands out at the track or on the trail.
  • Advanced 250cc Four-Stroke Engine
    Featuring a high-spec piston, aggressive cam profiles and reversed cylinder head layout, the YZ250F’s advanced four-stroke engine is known for its broad, useable powerband and class-leading low-end and mid-range torque.
  • Innovative Yamaha Power Tuner App
    Yamaha’s industry-leading Power Tuner app puts the flexibility and precision tunability of the GYTR® Power Tuner into your smartphone. Make fueling and ignition timing changes instantly and upload them to the bike for ultimate track-side tuning. Best of all, it’s free-of-charge.
  • Advanced Bilateral Aluminum Frame
    The YZ250F’s aluminum bilateral beam frame features main spars, engine mounts and mounting position that are designed to centralize mass and provide an ideal balance between cornering compliance and straight-line stability.
  • High Performance Braking System
    Rigid front caliper, large-diameter pistons and large 270mm front brake rotor is the same system fitted to the YZ450F. Compact rear caliper works with a 240mm rotor and aggressive pad material for exceptional stopping power and braking control.
  • Electric Starter System
    Utilizing a compact starter motor and ultra-lightweight lithium battery, the YZ250F brings the convenience of push-button starting to the racetrack for effortless restarts under pressure and relaxed riding when the clock isn’t ticking.



NEW FOR 2022

  • Wider Rear Wheel
    New 2.15-inch wide rear rim paired with premium 110-width Dunlop® Geomax MX33 tire serves up increased traction and better bump absorption under hard acceleration and cornering.
  • Reduced Unsprung Weight
    New lightweight rear hub, rear sprocket and drive chain reduce unsprung weight and driveline inertia, contributing to more agile handling.
  • Three-Cross-Spoke Pattern Wheel
    A first on a Yamaha off-road competition model, the new three-cross-spoke pattern on the rear wheel further improves impact absorption and overall feel.
  • New Suspension Settings
    The YZ250F’s class-leading suspension performance takes another step forward with revised suspension settings aimed at striking the perfect balance between the wider rear tire and lightened rear wheel assembly. That means increased stability on corner entry/exit and improved bump reaction.





Yamaha Motor Corporation, USA, is proud to introduce the new 2022 lineup of advanced, industry-leading four-stroke motocross and cross country motorcycles—bikes designed to offer cutting-edge performance for the highest levels of competition, along with the type of refinement and rideability that brings out the best in every rider. Highlights for 2022 include exciting updates to the class-defining YZ250F and YZ450F competition motocross models and a wide range of improvements to the highly capable YZ250FX cross country model.

For the YZ250FX, improved engine performance, new optimized fuel injection maps, frame and chassis refinements, and updated brake components all add to the dynamic abilities of the ultimate 250-class cross country racer. For the YZ250F and YZ450F, targeted reductions in unsprung weight aim to further enhance the motocross models’ already celebrated handling and suspension character. Across the board, Yamaha four-strokes offer an unmatched level of off-road performance and reliability.

“Yamaha has always been at the forefront of four-stroke off-road motorcycle design and we are thrilled to see that continue with the new 2022 lineup of high performance four-strokes,” said Derek Brooks, Yamaha Motorsports Motorcycle Product Line Manager. “Building on the race-proven success of the YZ450F and YZ250F, key improvements to the 2022 models look to raise that bar even higher. And on the cross country side, extensive changes to the already potent YZ250FX will position this model as a natural choice for riders looking to dominate XC2 competition.”

Welcome to the victorYZone
Yamaha’s off-road competition bikes offer the very latest in technology with performance features designed to help racing enthusiasts reach their maximum potential, win races and stand on top of the podium.





2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition Totalmotorcycle.com Features and Benefits

ENGINE

  • Advanced 250cc Four-Stroke Engine
    The YZ250F’s liquid-cooled, DOHC 4-valve, fuel-injected powerplant features a forward-positioned straight downdraft intake with symmetrical intake ports, high-spec piston, aggressive cam profiles and reversed cylinder head layout. The advanced four-stroke engine is known for its broad, useable powerband and class-leading low-end and mid-range torque.
  • Innovative Yamaha Power Tuner App
    The free-of-charge Yamaha Power Tuner app brings the power of the GYTR® Power Tuner to your iOS® or Android® device. Using wireless connectivity to talk to the bike’s onboard CAN-bus network, the app allows owners to adjust air/fuel mixture and ignition timing maps to tune engine performance for track conditions, record race log information and monitor a range of data such as maintenance and system diagnosis, engine run time and more.
  • Adjustable Engine Maps
    Two-mode adjustable engine mapping allows the rider to adjust engine character with the push of a button, making it easy to make immediate adjustments to changing track or weather conditions.
  • Piston, Rod and Crankshaft Balance
    A flat-top forged piston features a bridge-box design for additional strength with minimal weight. The piston, rings and DLC-coated piston pin, along with the offset cylinder configuration, all reduce friction loss and contribute to quick response. The engine’s intake ports, cam profiles, high-strength connecting rod and optimized crank and counter-balancer all work together to produce potent high-rpm power with user-friendly delivery and exceptional reliability.
  • Advanced Fuel Injection
    The adjustable fuel injection system uses a 44mm throttle body, fed by a high-pressure electric fuel pump, to inject fuel through a 12-hole Denso® injector. This ensures optimum fuel atomization and air/fuel calibration for excellent rideability in a wide range of riding conditions.
  • Wraparound Rear-Positioned Exhaust Layout
    An innovative exhaust pipe design improves mass centralization and power development characteristics. This layout moves the rear end of the exhaust pipe farther forward and positions the muffler closer to the bike’s center of mass.
  • Durable Transmission
    The transmission gears, dogs and shift mechanisms are designed to smooth gear changes and improve durability under the heavy demands of motocross racing. The YZ250F also features a large-diameter clutch to boost reliability even further under high-heat conditions.



CHASSIS/SUSPENSION

  • Advanced Bilateral Aluminum Frame
    The bilateral aluminum frame features flex characteristics that give riders the ultimate combination of precise cornering performance and handling stability. Large upper frame bracing improves rigidity and durability. The wider rear frame spars, and the YZ250F-specific engine mounts centralize mass for the best possible balance of impact absorption, stiffness and feeling of grip.
  • Class-Leading Suspension
    Fully adjustable KYB® coil spring-type fork with speed-sensitive damping provides exceptional balance between handling and bump absorption for championship-winning performance. The linkage-type rear suspension features a KYB® shock with revised settings aimed at striking the perfect balance between the wider rear tire and lightened rear wheel assembly. That means less pitch on corner entry/exit and improved stability.
  • High Performance Braking System
    Rigid front caliper, large-diameter pistons and large 270mm front brake rotor is the same system fitted to the YZ450F. Compact rear caliper works with a 240mm rotor and aggressive pad material for exceptional stopping power and braking control.
  • Compact Body and Seat Design
    The YZ250F utilizes compact bodywork from tip to tail, including a narrow fuel tank specifically designed for motocross demands. In addition to shaving weight, the body design provides more comfortable knee grip for better control, with a seat shaped to give the rider additional room to move aboard the machine.
  • Enhanced Mass-Centralization
    The compact engine, wraparound exhaust and fuel tank are strategically positioned to enhance mass centralization for a lightweight handling feeling on the track. The wide 55mm foot pegs help lower the rider’s center of gravity for improved balance, control and rider comfort.
  • Strong, Lightweight Wheels
    Careful computer-aided refinement of each wheel’s cross-sectional profile shaves valuable weight without sacrificing durability. In a first for Yamaha off-road competition models, the YZ250F’s rear wheel comes laced up with a new three-cross-spoke pattern for improved impact absorption and feel.



ADDITIONAL FEATURES

  • Race-Winning Details
    The YZ250F boasts top-spec details including 1-1/8-inch aluminum tapered handlebars secured to four-position adjustable handlebar mounts, wide 55mm foot pegs, a quick-adjust clutch perch, stylish blue rims and a lightweight gold drive chain.
  • Simplified Servicing
    Sleek air cleaner cover provides tool-free access to the air filter, positioned at the front of the bike to avoid roost from the rear wheel.





  • Supercross championship winning performance is track-ready straight out of the box
  • Advanced four-stroke engine featuring high-spec piston, aggressive cam profiles and reversed cylinder head layout is known for its broad, useable powerband and class-leading low-end and mid-range torque
  • Industry-leading Yamaha Power Tuner app allows instant fueling and ignition timing changes on your smartphone for ultimate track-side tuning
  • Two-mode adjustable engine mapping allows rider to select between two tuneable engine maps at the push of a button
  • Aluminum bilateral beam frame centralizes mass and provides an ideal balance between cornering compliance and straight-line stability
  • New lightweight rear hub, rear sprocket and drive chain reduce unsprung weight and driveline inertia, contributing to more agile handling
  • Rigid front caliper, large-diameter pistons and large 270mm front brake rotor and 240mm rear rotor work with aggressive pad material for exceptional stopping power and braking control
  • New 2.15-inch wide rear rim paired with a premium 110-width Dunlop® Geomax MX33 tire serves up increased traction and improved bump absorption under hard acceleration and cornering
  • Fully adjustable KYB® coil spring-type fork with speed-sensitive damping and linkage-type KYB® shock offer best-in-class suspension performance
  • Revised suspension settings strike the perfect balance between the wider rear tire and lightened rear wheel assembly for increased stability on corner entry/exit and improved bump reaction
  • New three-cross-spoke pattern on the rear wheel further improves impact absorption and overall feel
  • Convenient push-button electric start provides effortless restarts
  • Sleek air cleaner cover provides tool-free access to the air filter
  • Large-diameter clutch to boost reliability under high-heat conditions
  • Lightweight aluminum tapered handlebar
  • Four-position adjustable handlebar mounts
  • Compact bodywork including a narrow fuel tank and comfortable knee grip for better control
  • New premium Yamaha Blue and dark blue graphics scheme is embedded to provide excellent durability and scratch resistance



2022 Monster Energy® Yamaha Racing Edition YZ250F & YZ450F

Yamaha brings the factory ride look back for 2022 with the return of the Monster Energy® Yamaha Racing Edition YZ250F and Monster Energy® Yamaha Racing Edition YZ450F. With a sharp, race-team-inspired color and graphics package, riders can stand out from the crowd with the livery of Yamaha’s championship-winning Supercross and Motocross teams.









2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8699 USD
Canada MSRP Price: $NA CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

Engine Type 250cc liquid-cooled DOHC 4-stroke; 4 valves
Bore x Stroke 77.0mm × 53.6mm
Compression Ratio 13.8:1
Fuel Delivery Mikuni® fuel injection, 44mm
Transmission Constant-mesh 5-speed; multiplate wet clutch
Final Drive Chain
Engine Type 450cc liquid-cooled DOHC 4-stroke; 4 titanium
valves
Bore x Stroke 97.0mm × 60.8mm
Compression Ratio 13.0:1
Fuel Delivery Mikuni® fuel injection, 44mm
Transmission 5-speed; multiplate wet clutch
Final Drive Chain
Suspension / Front KYB® Speed-Sensitive System inverted fork;
fully adjustable, 12.2-in travel
Suspension / Rear KYB® single shock; fully adjustable, 12.5-in
travel
Brakes / Front Hydraulic disc, 270mm
Brakes / Rear Hydraulic disc, 240mm
Tires / Front 80/100-21 Dunlop® Geomax MX33F
Tires / Rear 110/90-19 Dunlop® Geomax MX33
Suspension / Front KYB® spring-type fork with speed sensitive
damping; fully adjustable, 12.2-in travel
Suspension / Rear KYB® single shock; fully adjustable, 12.5-in
travel
Brakes / Front Hydraulic disc, 270mm
Brakes / Rear Hydraulic disc, 240mm
Tires / Front 80/100-21 Dunlop® Geomax MX33F
Tires / Rear 120/80-19 Dunlop® Geomax MX33
L x W x H 85.6 in x 32.5 in x 50.6 in
Seat Height 38.2 in
Wheelbase 58.1 in
Rake (Caster Angle) 26.8°
Trail 4.7 in
Maximum Ground
Clearance
13.2 in
Fuel Capacity 1.6 gal
Wet Weight 234 lb
L x W x H 86.0 in x 32.5 in x 50.6 in
Seat Height 38.0 in
Wheelbase 58.5 in
Rake (Caster Angle) 26.9°
Trail 4.7 in
Maximum Ground
Clearance
13.0 in
Fuel Capacity 1.6 gal
Wet Weight 245 lb
Warranty 30 Day (Limited Factory Warranty)
Warranty 30 Day (Limited Factory Warranty)
Color Monster Energy Yamaha Racing Edition



*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.



2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE
ENGINE Liquid-cooled, DOHC, 4-valve (titanium), single
DISPLACEMENT 450 cc
BORE AND STROKE 97 x 60.8 mm
COMPRESSION RATIO 13.0:1
FUEL DELIVERY Mikuni 44 mm throttle body F.I.
LUBRICATION Wet sump
IGNITION / STARTING TCI / Electric
TRANSMISSION Constant mesh, 5-speed
FINAL DRIVE Chain

CHASSIS
SUSPENSION (FRONT) Fully adjustable 48 mm inverted KYB fork / 310 mm (12.2 in.) wheel travel
SUSPENSION (REAR) Fully adjustable linkage-type / 318 mm (12.5 in.) wheel travel
BRAKES (FRONT) 270 mm, floating disc / twin-piston caliper
BRAKES (REAR) 240 mm, disc / single-piston caliper
TIRES (FRONT) 80/100-21
TIRES (REAR) 120/90-18

CRITICAL DATA
LENGTH 2,175 mm (85.6 in.)
WIDTH 825 mm (32.5 in.)
HEIGHT 1,280 mm (50.4 in.)
WHEELBASE 1,480 mm (58.3 in.)
GROUND CLEARANCE 320 mm (12.6 in.)
SEAT HEIGHT 955 mm (37.6 in.)
FUEL CAPACITY 8.2 litres (1.8 Imp. gal.)
WET WEIGHT 115.2 kg (254 lb)
COLOUR(S) Yamaha Racing Blue





2022 Yamaha YZ250F Monster Energy Yamaha Racing Edition – Totalmotorcycle.com European Specifications/Technical Details

Engine
Engine type Liquid-cooled;Rear ward slanting single cylinder;4-
stroke;4-valves;DOHC
Displacement 450cc
Bore x stroke 97.0 × 60.8 mm
Compression ratio 13,0 : 1
Lubrication system Wet sump
Clutch type Wet;Multiple Disc
Ignition system TCI
Starter system Electric
Transmission system 5-speed;Constant Mesh
Final transmission Chain
Fuel system Fuel Injection
Chassis
Frame Semi double cradle
Caster angle 26° 55′
Trail 120 mm
Front suspension system Upside-down telescopic fork
Rear suspension system Swingarm;(link suspension)
Front travel 310 mm
Rear travel 317 mm
Front brake Hydraulic Single Disc, Ø270 mm
Rear brake Hydraulic Single Disc, Ø240 mm
Front tyre 80/100-21 51M Tube type
Rear tyre 120/80-19 63M Tube type
Dimensions
Overall length 2185 mm
Overall width 825 mm
Overall height 1285 mm
Seat height 965 mm
Wheel base 1485 mm
Minimum ground clearance 330 mm
Wet weight (including full oil and fuel tank) 111 kg
Fuel tank capacity 6.2 L
Oil tank capacity 0.9 L





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
