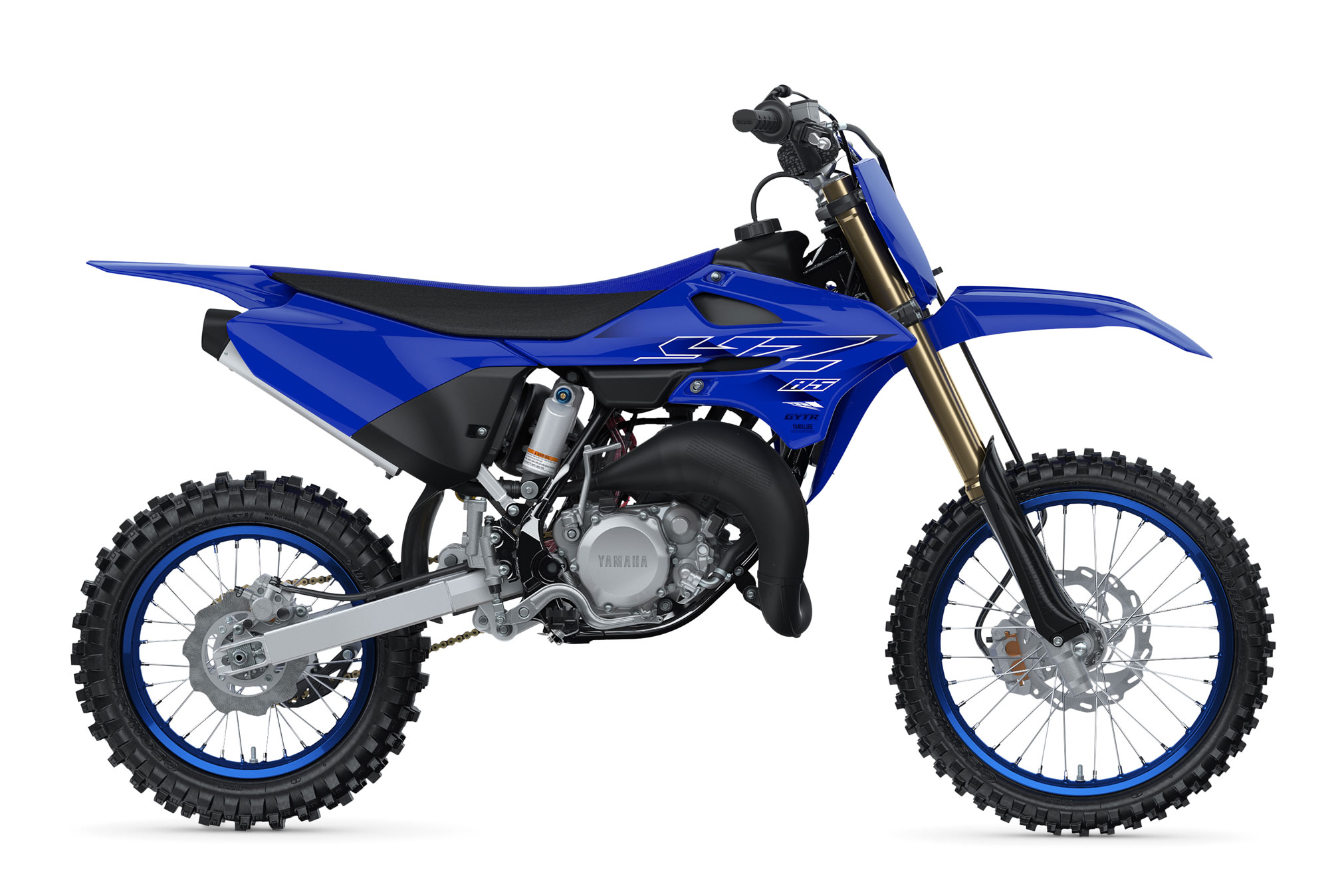

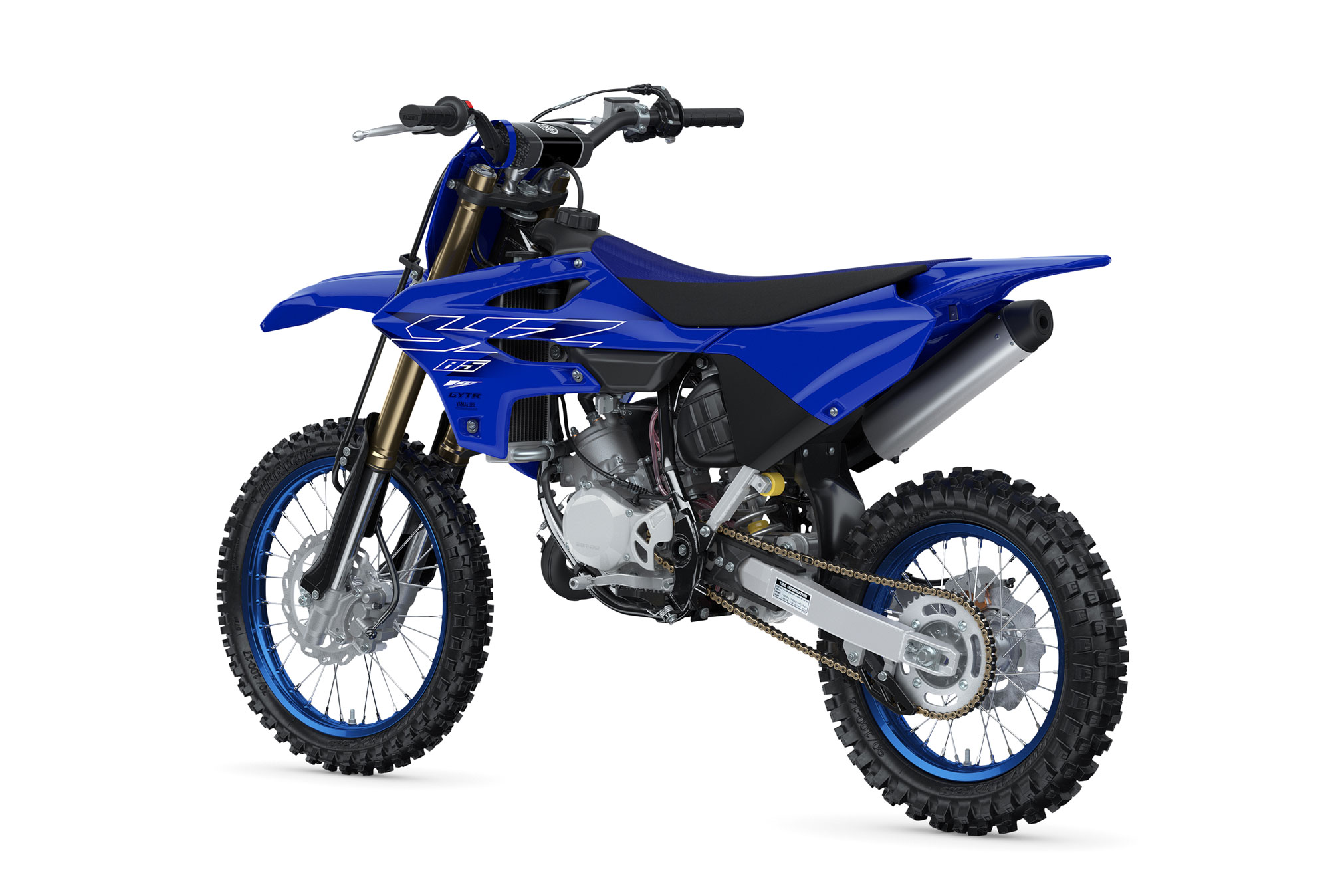

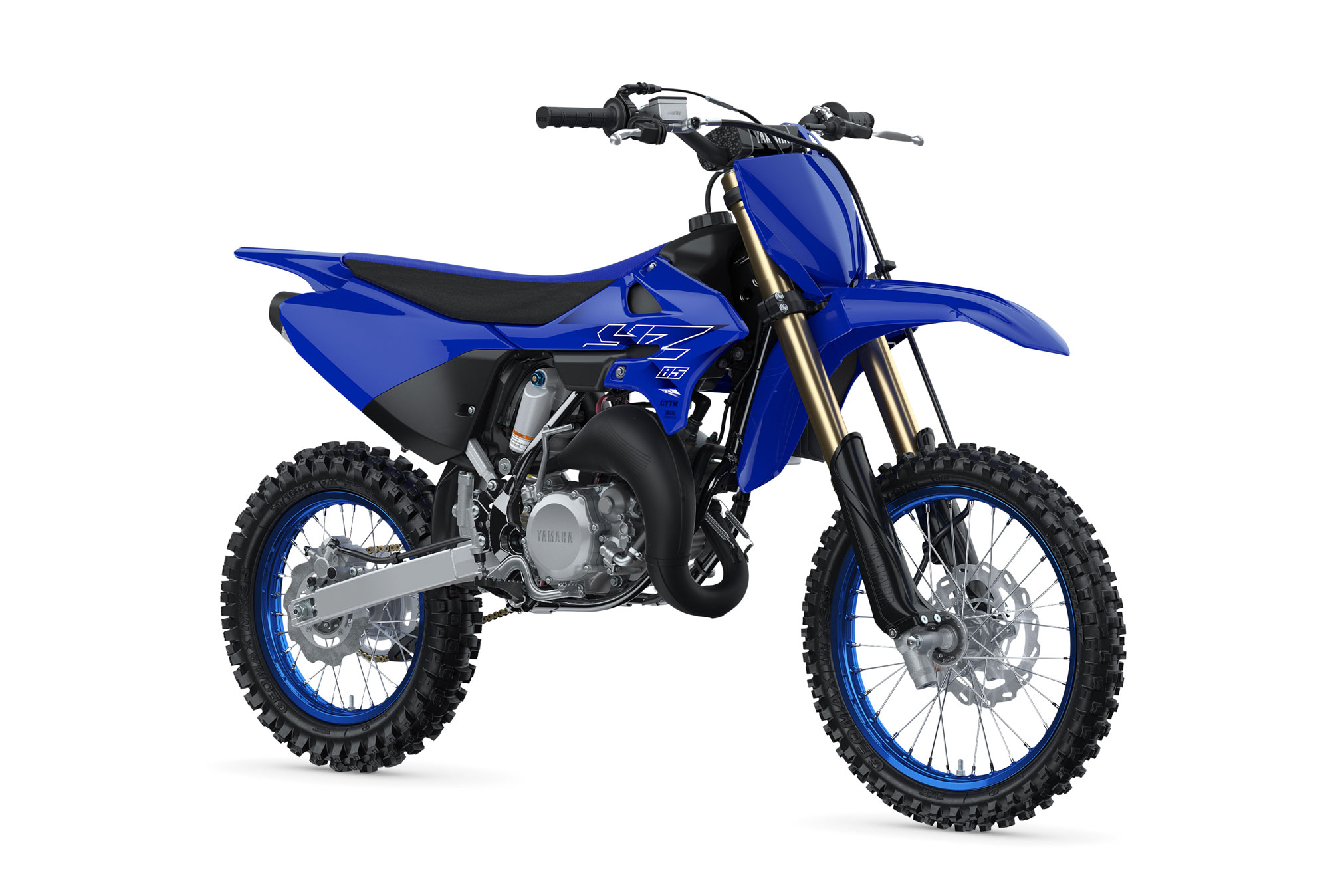

2022 Yamaha YZ85 : VICTORY: NEVER GIVEN, ALWAYS EARNED.
Introducing the new 2022 Yamaha YZ85…
Built for fun. Built to win. The updated YZ85 serves up big‑bike specs in a small‑bike package.
Built for fun. Built to win. The updated YZ85 serves up big-bike specs in a small-bike package. Featuring the Yamaha Power Valve System (YPVS), fully-adjustable suspension, six-speed transmission and adjustable ergonomics, the 2022 YZ85 is ready to win races straight off the dealership floor.
Victory. Never given, always earned.
You’ve developed your skills and refined your style on smaller bikes – and now you’re moving on to the next stage. Choosing the right motocross bike is an important decision. And when you take a look at what the new YZ85 has to offer, it’s clear that this is the way to go. Yamaha has been building winning 2-strokes for decades – and the new YZ85 has been built using all of the knowledge gained over many years racing at Grand Prix level.
Equipped with a new lightweight aluminum rear frame as well as a revised aluminum swingarm, new rear brake system and high-efficiency air intake, this bike has got what it takes to win.
And with a dynamic new slimline bodywork and improved ergonomics, together with a punchy and reliable 85cc 2-stroke engine with YPVS, the YZ85 is the bike that can turn your dreams into reality and show the world you’re serious about winning.
Ready to raise your game? This is the bike that is ready to power you to another level. Equipped with dynamic new slimline bodywork and featuring an enhanced chassis, improved riding position and a re ned braking system, the sharp new YZ85 is built for the victorYZone.
Many of today’s pro riders started their careers on the YZ85. And when you take a look at what the new model has you can see why. Its high performance 85cc liquid-cooled 2-stroke engine is equipped with Yamaha’s race-bred YPVS that gives you race-winning performance. And its adjustable suspension systems are built to master the toughest tracks.
The YZ85 also comes with a new, lightweight aluminum rear frame as well as a revised aluminum swingarm, new rear brake system and revised high-efficiency air intake – just like the bigger YZ125.
For maximum rider control there’s a new atter seat, a slimmer body and a redesigned fuel tank. And with a duo-tone Icon Blue colour scheme and revised graphics completing the looks, the YZ85 is ready to power you to the next level.
New 2022 YZ85 & YZ85LW:
As an important entry into the world of competitive motocross, the YZ85 has long been the mini race bike of choice for future champions. Light, nimble and fun with a high performance two‑stroke engine and top shelf suspension, it serves up big-bike spec in a small bike package. Along with its proven liquid-cooled YPVS-equipped 85cc powerplant, fully adjustable suspension and large diameter brakes, the new 2022 YZ85 boasts numerous enhancements to expand its overall performance.
Rider ergonomics have been improved by way of a new, more narrow tank design, flatter seat, new side covers and slimmer, symmetrically sized radiator shrouds. This enables greater freedom of movement for smooth shifting of body weight and better machine control. Along with the new bodywork, a sharp, new premium graphics scheme inspired by its YZ125 sibling highlights its distinctive race-bred YZ DNA. The redesigned seat and rear bodywork also enable an updated rear-positioned straight-through intake for an improved feeling of power in the low rpm range.
For demanding junior racers, the new YZ85 has been enhanced in several key chassis areas to optimize strength and rigidity, including revisions to the main frame, swingarm and rear wheel axle. The aluminum swingarm was redesigned to enhance balance between longitudinal and torsional rigidity for improved handling stability. A new removable rear subframe constructed from lightweight, high-strength aluminum reduces weight. The rear brake master cylinder now has a built-in sub-reservoir providing more linear brake response and increased control.
New for 2022, the YZ85 Large Wheel (LW) model takes the race-winning YZ85 formula and enhances off-road capability even more with the addition of a larger 19-inch front wheel and 16-inch rear wheel wrapped in high performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tires. A longer swingarm accommodates the larger rear wheel and increases handling stability. The YZ85LW is designed to be the ideal transition between the standard YZ85 and the full size YZ125, perfect for those advanced 85cc riders looking for a more “big-bike” feel.
2022 Yamaha YZ85 Totalmotorcycle.com Key Features
- YPVS™ Two-Stroke Power
The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System for increased low- and mid-range power without losing peak power at high rpms—improving rideability and reducing the need for frequent shifting. - Fully-Adjustable Suspension
Lightweight 36mm KYB® inverted cartridge fork features low-friction outer tubes, external compression and rebound damping adjustability, paired with a race-proven fully-adjustable KYB® rear shock. Both offer loads of suspension travel to tackle serious off-road competition. - High-Spec Wheels and Brakes
Stylish blue, lightweight 17-inch front and 14-inch rear rims are durable, reduce unsprung weight for optimal suspension performance, and come wrapped in Dunlop® MX3S tires for exceptional traction. Big 220mm and 190mm disc brakes offer precise control and one-finger stopping power.
NEW FOR 2022
- Improved Rider Ergonomics
A new flatter seat and more narrow fuel tank design, along with smoothly integrated body panels and slimmer shroud width, combine to enable greater freedom of movement forward and back, allowing the rider to easily shift body weight for increased control and confidence. - New Air Intake Design
Updated intake design allows for a straighter, more efficient draw of air into the intake tract. - Chassis Enhancements
For demanding junior racers the new YZ85 has been enhanced in several key chassis areas to optimize strength, rigidity and overall handling stability. Enhancements include the main frame, swingarm and rear wheel axle. The aluminum swingarm was redesigned to refine balance between longitudinal and torsional rigidity. A new removable rear subframe constructed from lightweight, high-strength aluminum reduces weight. - Redesigned Rear Master Cylinder
New rear brake master cylinder design now has built-in sub-reservoir to provide more linear brake response and increased control. - Sharp New Graphics Scheme
Inspired by its YZ125 sibling, a new graphics scheme highlights the YZ’s unmatched racing pedigree. Premium Yamaha Blue and dark blue graphics are now embedded to provide excellent durability and scratch resistance.
Yamaha Announces Expanded Lineup of 2022 Two-Stroke Motocross Bikes -Updated Two-Strokes Include New YZ125, New Large-Wheel YZ85 And Monster Energy® Yamaha Racing Editions
Yamaha Motor Corporation, USA, is proud to announce the expansion of its benchmark-setting two-stroke motocross lineup, highlighted by a new version of the race-bred YZ125. Features include a powerful new 125cc two-stroke engine, improved suspension, updated brakes, enhanced ergonomics, and new modern YZ styling including updated bodywork with premium embedded graphics. This marks the first full model change for the revered YZ125 in more than 15 years and positions it back at the top of the 125cc two-stroke class by offering the perfect blend of race-winning performance and real-world usability.
Other notable changes to Yamaha’s lineup of race-ready two strokes include an improved YZ85 and a new-for-2022 YZ85LW (Large Wheel) model, offering enhanced off-road performance and a more “big-bike” feel through the addition of a larger 19-inch front wheel, 16-inch rear wheel and longer swingarm. Both 2022 YZ85 models feature enhanced rider ergonomics, a more efficient intake design, lightweight aluminum subframe and swingarm, updated rear brake master cylinder, and new modern seat and plastics with premium graphics reflecting the YZ’s unmatched racing heritage.
Additionally, Yamaha’s flagship YZ250 two-stroke receives an enhanced lightweight braking system, updated suspension settings, improved ergonomic design with updated, modern YZ styling and new premium graphics. Yamaha is also proud to extend the popular Monster Energy® Yamaha Racing Editions to the two-stroke lineup with the new 2022 Monster Energy® Yamaha Racing Edition YZ250 and 2022 Monster Energy® Yamaha Racing Edition YZ125, offering two-stroke aficionados the opportunity to sport the Yamaha factory look of our championship-winning Monster Energy® Star Yamaha Racing team.
“At Yamaha, two-strokes are in our blood. That’s why we continue to develop and offer a full range of off-road two-strokes, and why we are so excited about these important new updates to our lineup” said Derek Brooks, Yamaha Motorcycle Product Line Manager. “These bikes are all about providing the fun and exhilaration of a lightweight, powerful two-stroke to the next generation of riders. We feel that Yamaha YZ two-strokes will continue to play an integral role in developing young riders and building future champions.”
Welcome to the victorYZone
Yamaha’s off-road competition bikes offer the very latest in technology with performance features designed to help racing enthusiasts reach their maximum potential, win races and stand on top of the podium.
2022 Yamaha YZ85 Totalmotorcycle.com Features and Benefits
ENGINE
- Potent YPVS™ Two-Stroke Engine
The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System for broad power across the rev range without losing peak power at high rpms—improving rideability and reducing the need for frequent shifting. - Tuned Crankcase and Intake
The crankcase design features a spacer-style reed valve intake for improved air/fuel flow, which inhales through a 28mm Hitachi Astemo® Keihin flat-slide carburetor for seamless throttle response. - Tuned Expansion Chamber
Carefully matched to suit the YPVS™-equipped engine, the exhaust expansion chamber optimizes gas flow for enhanced power delivery, especially in the low- and mid-range. - Durable Transmission
The transmission features oversized gears to provide enhanced engagement and smoother shifts. Threaded portion of the clutch shaft diameter has also increased from 12mm to 14mm. - High Capacity Radiator
Lightweight radiator has large cores and louvers. Water pump features a cast aluminum (vs. resin) impeller for maximum cooling efficiency. - High-Flow Airbox
Airbox design ensures excellent air filter performance and easy maintenance.
CHASSIS/SUSPENSION
- Fully-Adjustable Fork
The lightweight 36mm KYB® inverted cartridge fork features 10.8 inches of travel with compression and rebound damping adjustability. Complete with low-friction outer tubes and internals, the damping settings offer enhanced performance across a range of conditions and rider abilities. - Fully-Adjustable Shock
Rear suspension features fully adjustable KYB® link-type shock with race-tested valving and 11.1 inches of travel. The progressive linkage-type design improves bottoming resistance, allowing racers to charge harder and improve lap times. - Chassis Enhancements
The YZ85 has been enhanced in several key chassis areas to optimize strength and rigidity. Enhancements include the main frame, swingarm and rear wheel axle. The aluminum swingarm was redesigned to refine balance between longitudinal and torsional rigidity for improved handling stability. A new removable rear subframe constructed from lightweight, high-strength aluminum reduces weight. - Large-Diameter Brakes
Big wave-style brake discs offer improved self-cleaning and cooler-running performance. The 220mm front disc and 190mm rear disc deliver strong, precise stopping power. - Lightweight Wheels
Lightweight 17-inch front and 14-inch rear rims are durable and reduce unsprung weight for optimal suspension performance. - High Performance Tires
Dunlop® MX3S tires provide exceptional traction on a variety of tracks and terrain.
ADDITIONAL FEATURES
- Adjustable Rider Ergonomics
The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the handlebar position to suit their size and preferences. New flat seat and narrow fuel tank design, along with smoothly integrated body panels and slimmer shroud width, combine to enable greater freedom of movement for increased control and confidence.
- Improved rider ergonomics with a more narrow tank, flatter seat and slimmer, symmetrical shrouds offering greater freedom of movement
- New straight intake design improves feeling of power in the low rpm range
- New removable lightweight aluminum rear subframe is 570g lighter than previous steel frame
- Redesigned aluminum swingarm improves longitudinal and torsional rigidity
- New rear brake master cylinder design with built-in sub-reservoir provides more linear brake response
- New premium graphics are now embedded for improved durability and scratch resistance
- New lightweight handlebar is 40g lighter than previous model
- Four-position handlebar mounts adjust to suit rider preference
- Advanced 85cc two-stroke engine features the Yamaha Power Valve System for broad power delivery
- Crankcase design features a spacer-style reed valve intake for improved air/gas flow
- Hitachi Astemo® Keihin PWK28 flat-slide carburetor offers seamless throttle response
- Race-proven KYB® inverted cartridge fork and KYB® rear shock are fully adjustable
- Big 220mm and 190mm wave-rotor disc brakes offer precise control and one-finger stopping power
- Transmission features oversized gears for enhanced engagement and smoother shifts
- Blue lightweight rims are stylish, durable, reduce unsprung weight and come wrapped in high performance Dunlop® MX3S tires
- High-capacity lightweight radiator has large cores for efficiency and new blacked-out louvers for a more aggressive look
2022 Yamaha YZ85 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4799 USD
Canada MSRP Price: $6499 CDN
Europe/UK MSRP Price: £ 4599 GBP (On The Road inc 20% Vat)
Engine Type 85cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke 47.5mm x 47.8mm
Compression Ratio 8.2~9.6:1
Fuel Delivery Hitachi Astemo® Keihin PWK28 carburetor
Transmission 6-speed; multiplate wet clutch
Final Drive Chain
Suspension / Front Inverted fork; fully adjustable, 10.8-in travel
Suspension / Rear Single shock; fully adjustable, 11.1-in travel
Brakes / Front Hydraulic disc, 220mm
Brakes / Rear Hydraulic disc, 190mm
Tires / Front 70/100-17 Dunlop® Geomax MX3SF
Tires / Rear 90/100-14 Dunlop® Geomax MX3S
L x W x H 71.7 in x 29.9 in x 44.7 in
Seat Height 33.1 in
Wheelbase 49.4 in
Rake (Caster Angle) 26.3°
Trail 3.5 in
Maximum Ground
Clearance
12.6 in
Fuel Capacity 1.3 gal
Wet Weight 161 lb
Warranty 30 Day (Limited Factory Warranty)
Color Team Yamaha Blue
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2022 Yamaha YZ85 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
ENGINE 2-stroke, liquid-cooled, crankcase-reed-valve single with YPVS
DISPLACEMENT 85cc
BORE AND STROKE 47.5 x 47.8 mm
COMPRESSION RATIO 8.2-9.6:1
FUEL DELIVERY Keihin PWK28
IGNITION / STARTING CDI / Kick
TRANSMISSION Constant mesh, 6-speed
FINAL DRIVE Chain
CHASSIS
SUSPENSION (FRONT) Fully adjustable KYB 36 mm inverted fork / 275 mm (10.8 in) wheel travel
SUSPENSION (REAR) Fully adjustable KYB shock / 282 mm (11.1 in) wheel travel
BRAKES (FRONT) 220 mm disc / twin-piston caliper
BRAKES (REAR) 190 mm disc / single-piston caliper
TIRES (FRONT) 70/100-17 Geomax MX3SF
TIRES (REAR) 90/100-14 Geomax MX3S
CRITICAL DATA
LENGTH 1,820 mm (71.7 in)
WIDTH 760 mm (29.9 in)
HEIGHT 1135 mm (44.7 in)
WHEELBASE 1255 mm (49.4 in)
GROUND CLEARANCE 320 mm (12.6 in)
SEAT HEIGHT 840 mm (33.1 in)
FUEL CAPACITY 5 litres (1.1 imp. gal.)
WET WEIGHT 73 kg (161 lb)
COLOUR(S) Yamaha Racing Blue
2022 Yamaha YZ85 – Totalmotorcycle.com European Specifications/Technical Details
Engine
Engine type Liquid-cooled;Single cylinder;Reed valve with YPVS;2-
stroke
Displacement 85cc
Bore x stroke 47.5 × 47.8 mm
Compression ratio 8,2 – 9,6 : 1
Lubrication system Premix
Clutch type Wet;Multiple Disc
Ignition system CDI
Starter system Kick
Transmission system Constant Mesh;6-speed
Final transmission Chain
Fuel system Keihin PWK28/1
Chassis
Frame Semi double cradle
Caster angle 26° 00′
Trail 99 mm
Front suspension system Telescopic fork
Rear suspension system Swingarm;(Link type suspension)
Front travel 275 mm
Rear travel 287 mm
Front brake Hydraulic Single Disc, Ø220 mm
Rear brake Hydraulic Single Disc, Ø190 mm
Front tyre 70/100-19 42M Tube type
Rear tyre 90/100-16 52M Tube type
Dimensions
Overall length 1895 mm
Overall width 760 mm
Overall height 1175 mm
Seat height 885 mm
Wheel base 1285 mm
Minimum ground clearance 360 mm
Wet weight (including full oil and fuel tank) 75 kg
Fuel tank capacity 5.0 L
Oil tank capacity 0.5 L
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
