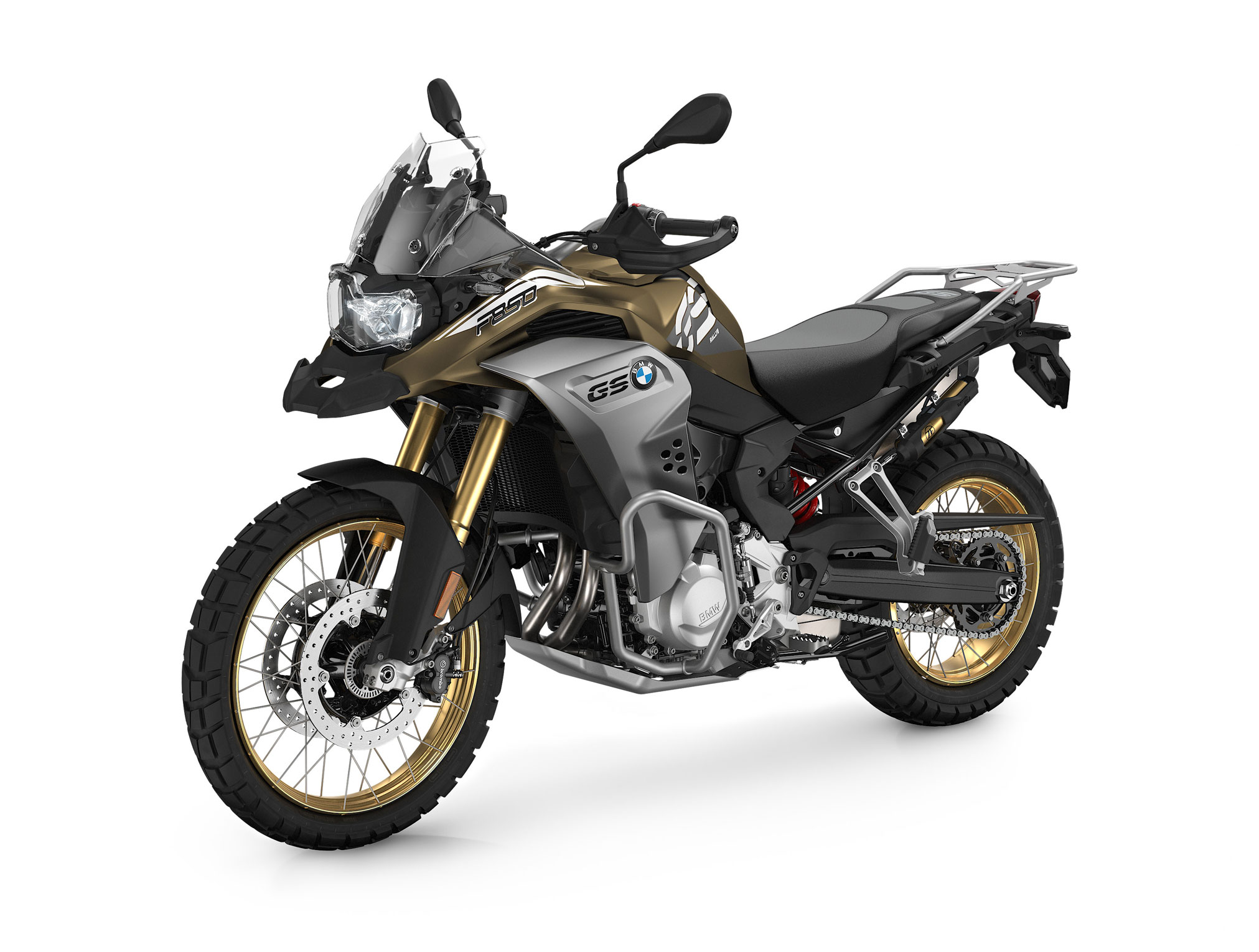

2023 BMW F850GS Adventure Guide

2023 BMW F850GS Adventure

2023 BMW F850GS Adventure 2023 BMW F850GS Adventure 2023 BMW F850GS Adventure 2023 BMW F850GS Adventure 2023 BMW F850GS Adventure

2023 BMW F850GS Adventure: RALLYE KALAMATE STYLE.

Introducing the 2023 BMW F850GS Adventure…

THE WORLD BECOMES THE ADVENTURE

This bike was created for long trips and demanding terrains: The F 850 GS Adventure is at home in the world – and it is clear to see. With standard equipment like the TFT display and BMW Motorrad Connected, the USB charge port as well as ABS Pro and DTC, this dual-sport motorcycle is prepared for long tours around the globe. Experience the #SpiritOfGS with a companion that lets your curiosity run free – regardless of where your travels take you.

The F 850 GS Adventure was made for your next adventure, whether it’s on or off road. Its extra large tank and variety of seat heights underline its suitability for long-distance travel.







2023 BMW F850GS Adventure Totalmotorcycle.com Key Features

Standard equipment:

  • 6,5″ TFT colour display with connectivity
  • BMW Motorrad ABS
  • Riding modes Rain / Road
  • LED headlights and LED indicators
  • Adjustable touring windshield
  • 12 V power outlet and USB socket
  • Engine guard
  • Hand protectors
  • Stainless steel luggage rack
  • Dynamic ESA
  • ABS Pro and DTC now standard
  • A big tank for big plans
  • Optional Ride Modes Pro
  • Adjustable touring windshield and USB charging port

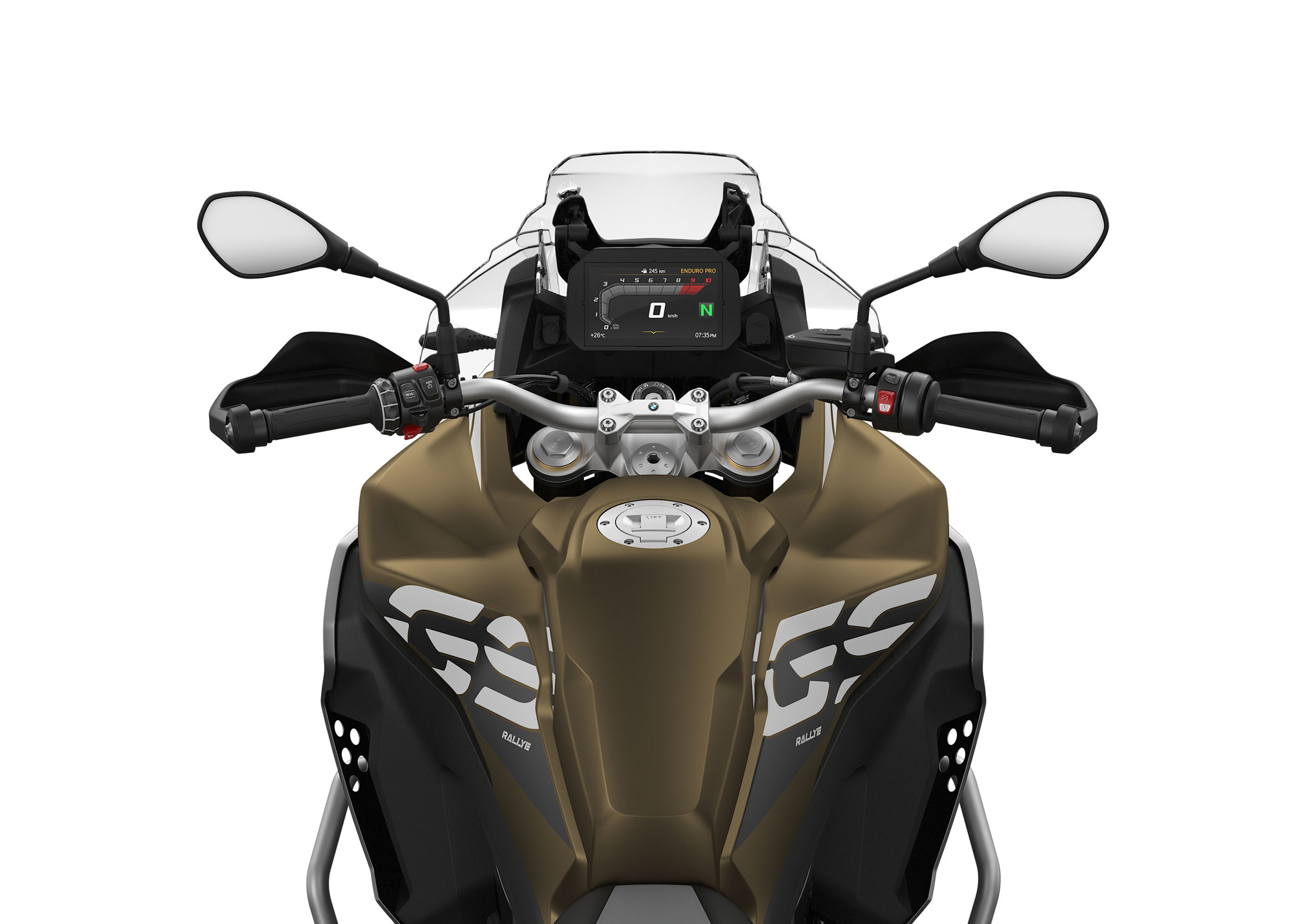

  • Everything in view with BMW Motorrad Connectivity and 6.5” TFT color display

Gold anodized rims
Comfortably on the go with the Comfort seat

A good feeling – on every mile
This GS is ready for every terrain you want to cross. The standard engine protection bars make it robust without limiting your riding freedom. If you are planning a longer trip, simply increase your storage space using the available aluminum cases.

3 year warranty
Ride on & on & on.

THE DRIVE FOR YOUR DRIVE TO DISCOVER.

  • 90hp (max. engine power at 8,000 rpm
    63lb-ft max. torque at 6,250 rpm
    Off-road experience with the new BMW F 850 GS Adventure
    853cc capacity
    6.1 gallon fuel tank capacity



Optional equipment:

  • Dynamic ESA (Electronic Suspension Adjustment)
  • Riding modes Pro (Dynamic / Enduro)
  • LED auxiliary headlights
  • Gear shift assistant Pro
  • Keyless Ride
  • TPC (tire pressure control)Optional Accessories:
  • Aluminium luggage system
  • Tank bag
  • Bag for pillion seat
  • BMW Motorrad Navigator
  • Touring windshield tinted





2023 BMW F850GS Adventure Totalmotorcycle.com Features and Benefits

HIGHLIGHTS FOR TRUE GLOBETROTTERS
Ready for a journey into the unknown: On asphalt or off road, the F 850 GS Adventure overcomes almost every surface. Its new standard features and extensive optional equipment give you the opportunity to individualize this GS however you see fit.

Power for every off-road challenge
This bike wants to get out into the world: The powerful, parallel twin engine with 90 hp gives you and your thirst for discovery the right drive. The engine will impress you with its powerful sound, strong performance of 90 hp at 8,250 rpm and smooth running. With a torque of 63 lb-ft at 6,250 rpm, this dual-sport motorcycle has enough power for most any off-road challenge – wherever you want to take it.

Equipped for every challenge
Now it’s on you: Design the F 850 GS Adventure to your own preferences. We have a suggestion for true globetrotters – and put together two additional variants for you. Be inspired and make the F 850 GS Adventure your own bike.

  • Comfort turn indicator can be switched off in the menu of the instrument cluster.
  • RDC available worldwide (all vehicles with Keyless Ride).
  • RDC only with Keyless Ride (RDC-Function in Keyless-Ride-Control unit integrated, 2nd wheel set possible).
  • M Endurance Chain is content of comfort package (not for BR).
  • New Style Rallye Kalamata metallic matt with Tape color white and radiator protector Mineral grey metallic matt.
  • Colors
    • Style Rallye Kalamata Matte Metallic 2 replaces Mineral Grey Matte Metallic.
    • Style Triple Black with Black Storm Metallic 2 remains unchanged.
    • Light White remains unchanged.

    Equipment

    • RDC real-time gradient tire pressure monitoring added.
    • Comfort turn indicator can be switched off in the menu for the instrument cluster.

    All US F 850 GS Adventure models automatically add Premium Package.

    ZPP Premium Package – GPS Prep, Cruise Control, LE Aux. Lights, LED Headlight, Gear Shift Assist Pro, Ride Modes Pro, Heated Grips,  Aluminum Side Case Holders, Keyless Ride, TPM tire pressure monitor, MSR Dynamic Engine Brake Control and Dynamic ESA.

    Individual Options – M Endurance Chain, Low Suspension, Off-Road Tires, Center Stand(not available with low suspension), Double Seat, Rallye Seat and Low Seat.









2023 BMW F850GS Adventure – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13,595 USD
Canada MSRP Price: $16,745 CDN
Europe/UK MSRP Price: from £11,750 GBP (total selling price)

Engine

Type

Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke

84 mm x 77 mm

Capacity

853 cc

Rated output

90 hp (66 kW) at 8,000 rpm

Max. torque

63 lb-ft (86 Nm) at 6,250 rpm

Compression ratio

12.7 : 1

Mixture control / engine management

Electronic fuel injection

Emission control

Closed-loop 3-way catalytic converter

Performance / fuel consumption

Maximum speed

122 mph

Fuel type

Premium Unleaded

Electrical system

Alternator

Three-phase 416 W generator

Battery

12 V / 10 Ah

Power transmission

Clutch

Multi-plate wet clutch, mechanically operated

Gearbox

Constant-mesh 6-speed gearbox with straight cut gears

Drive

Chain drive

Chassis / brakes

Frame

Tubular steel space frame , load bearing engine

Front wheel location / suspension

Upside-down telescopic fork, Ø 43 mm

Rear wheel location / suspension

Cast aluminum 2-sided swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable

Suspension travel front / rear

9.1″ / 8.5″ (230 mm / 215 mm)

Wheelbase

62.7″ (1593 mm)

Caster

4.9″ (125 mm)

Steering head angle

62°

Wheels

Wire spoke wheels

Rim, front

2.15 x 21″

Rim, rear

4.25 x 17″

Tires, front

90/90 – 21 54V

Tires, rear

150/70 – 17 69V

Brake, front

Dual floating disc brakes, dual-piston floating calipers, diameter 12.0″ (305 mm)

Brake, rear

Single disc brake, diameter 10.4″ (265 mm), single-piston floating caliper

ABS

BMW Motorrad ABS (can be switched off)

Dimensions / weights

Length

90.6″ (2,300 mm)

Width (incl. mirrors)

37.0″ (939 mm)

Height (excl. mirrors)

56.6″ (1,437 mm)

Seat height, unladen weight

Standard Seat: 34.4″

Inner leg curve, unladen weight

Standard Seat: 76.8″

Unladen weight, road ready, fully fueled

538 lbs (244 kg) 1)

1)

Permitted total weight

1,003 lbs (455 kg)

Payload (with standard equipment)

465 lbs (211 kg)

Usable tank volume

6.1 gal (23 l)

Reserve

Approx. 0.9 gal (3.5 l)

1) With all operating fluids, with standard equipment and refueled with min. 90% of the usable fuel tank capacity.







2023 BMW F850GS Adventure – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Rated output

70 kW (95 hp) at 8,250 rpm

Emission control

Closed-loop 3-way catalytic converter

Type

Water-cooled, 2-cylinder, four-stroke engine with four cam-operated valves per cylinder, two overhead camshafts and dry-sump lubrication

Bore x stroke

84 mm x 77 mm

Capacity

853 cc

Max. torque

67.9 lbs-ft at 6,250 rpm

Compression ratio

12.7 : 1

Mixture control

Electronic intake pipe injection / digital engine management system: BMS-X with throttle-by-wire

Exhaust emission standards

EU 5

Performance / fuel consumption

Maximum speed

over 200 km/h

Fuel consumption per 100 km based on WMTC

4.2 l

Fuel type

Super unleaded (max. 15% ethanol, E15), 95 ROZ/RON, 90 AKI

CO2 emission based on WMTC

99 g/km

Electrical system

Alternator

Permanent magnet alternator with 416 W (nominal power)

Battery

12 V / 10 Ah, maintenance-free

Power transmission

Clutch

Multiplate clutch in oil bath, anti-hopping clutch

Gearbox

Claw-shifted 6-speed gearbox integrated in the transmission housing

Drive

Endless O-ring chain with shock damping in rear wheel hub

Chassis / brakes

Frame

Bridge-type frame, steel shell construction

Front wheel location / suspension

Upside-down telescopic fork, diameter 43 mm

Rear wheel location / suspension

Aluminum twin-sided swingarm, central shock absorber, spring pre-load hydraulically adjustable, rebound damping adjustable

Suspension travel, front / rear

230 mm / 215 mm (OE suspension lowering kit 210 mm / 195 mm)

Wheelbase

1,593 mm

Castor

124.6 mm

Steering head angle

62°

Wheels

Cross spoke wheels

Rim, front

2.15 x 21″

Rim, rear

4.25 x 17″

Tire, rear

150/70 R17

Brake, front

Twin disc brake, floating brake discs, diameter 305 mm, 2-piston floating caliper

Brake, rear

Single disc brake, diameter 265 mm, 1-piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Seat height at unladen weight

34.4″ (lowering: 31.7″; seat extra low: 32.5″; seat low: 32.8″; double seat: 33.8″; rallye seat: 35.0″)

Inner leg curve at unladen weight

77″ (lowering: 71.3″; seat extra low: 73″; double seat low: 74″; double seat 75.2; rallye seat: 78″)

Usable tank volume

23 l

Reserve

approx. 3.5 l

Length

2,300 mm (over license plate holder)

Height

1,437 mm (above windshield, at DIN unladen weight)

Width

939 mm (over hand guard)

Unladen weight, road ready, fully fuelled

248 kg

1)

Permitted total weight

455 kg

Payload (with standard equipment)

207 kg

1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.







2023 BMW F850GS Adventure – Totalmotorcycle.com European Specifications/Technical Details

Engine

Type

Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke

84 mm x 77 mm

Capacity

853 ccm

Rated output

70 kW (95 hp) at 8,250 rpm

OE output reduction 35 kW (48 hp) at 6,500 rpm

OE RON91 unleaded regular fuel: 66 kW (90 hp) at 8,000 rpm

Max. torque

92 Nm at 6,250 rpm
SA power reduction 63 Nm at 4,500 rpm

SA ROZ91 Normal unleaded petrol: 86 Nm at 6,250 rpm

Compression ratio

12.7 : 1

Mixture control

Electronic injection

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-4

Mileage / consumption

Maximum speed

197 km/h

Closed-loop 3-way catalytic converter, emission standard EU-4

4,2 l

CO2 emission based on WMTC

99 g/km

Fuel type

Unleaded super, minimum octane number 95 (RON)

OE unleaded regular fuel, minimum octane number 91 (RON)

Electrical system

Alternator

permanent magnetic alternator 416 W (nominal power)

Battery

12 V / 10 Ah, maintenance-free

Power transmission

Clutch

Multiple-disc wet clutch (anti hopping), mechanically operated

Gearbox

Constant mesh 6-speed gearbox integrated in crankcase

Drive

Endless O-ring chain with shock damping in rear wheel hub

Suspension / Brakes

Frame

Bridge-type steel frame in shell construction

Front suspension / spring elements

Upside-down fork, Ø 43 mm

Rear suspension / spring elements

Aluminium, stereo swing-arm, directly hinged WAD central strut, spring-based hydraulically adjustable, rebound-stage damping adjustable

Travel, front/rear

230 mm / 215 mm (SA low-slung 210 mm / 195 mm)

Wheelbase

1.593 mm

Castor

124,6 mm

Steering head angle

62°

Wheels

Cross-spoke wheels

Rim dimensions, front

2,15 x 21″

Rim dimensions, rear

4,25 x 17″

Tyre, front

90/90 21

Tyre, rear

150/70 R17

Brake, front

Double disc brake, floating brake discs, Ø 305 mm, 2-piston floating calipers

Brake, rear

Single disc brake, Ø 265 mm, single-piston floating calliper

ABS

BMW Motorrad ABS (switchable)

Dimensions / weight

Seat height, unladen

875 mm (SA low-slung: 815 mm, SA double seat low: 835 mm, SA double seat: 860 mm, SZ rally seat: 890 mm)

Rider step length, unladen

1,950 mm (SA lowering: 1,830 mm, SA double low seat: 1,870 mm, SA double seat 1,910mm, SZ rally seat: 1,980 mm)

Usable tank capacity

23 l

of which reserve

approx. 3.5 l

Length

2.300 mm

Height (excluding mirrors)

1.437 mm

Width (including mirrors)

939 mm

Unladen weight, fully fuelled/road-ready (1)

244 kg

1)

Max. permitted weight

455 kg

Max. load (with standard equipment)

211 kg

1) According to directive VO (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
