2023 BMW S1000RR: 100% PERFORMANCE & RIDING PLEASURE.

Introducing the 2023 BMW S1000RR…

BMW Motorrad USA is proud to announce the new, updated, 2023 BMW S 1000 RR with meaningful enhancements to the chassis, suspension, aerodynamics and electronic assist systems. First introduced in 2009, the BMW S 1000 RR has become the standard for its segment in terms of performance and rider safety features.

“With an advanced suspension and chassis, the new Brake Slide Assist and DTC Slide Control assistance systems as well as optimized aerodynamics with winglets and a redesigned rear end, we are able to raise the RR’s performance to a new level.” Wolfgang Wallner, Project Manager S 1000 RR

Genuinely made for the race track but also suitable for everyday road traffic. For all sports enthusiasts who are always looking for a new challenge. The RR guarantees sporty riding pleasure and 100% performance through consistent optimizations where it really matters.

SUPERBIKE OF SUPERLATIVES

The RR is now even more focused and more precisely geared towards pure performance. For those who increasingly demand more. More from themselves. More each lap. And more from their RR. Simply put: #NeverStopChallenging. Leading the way is a matter of millimeters, especially in the circles the RR has always been a part of. That’s why we have streamlined and evolved the RR where it matters most: from the new steering angle sensor with Brake Slide Assist and Slide Control as well as the integration of M components and improvements to the electronics and crucial processes for modifying the bike for the race track. And all this with a clear goal in mind – claiming the pole position over and over again.

It’s hard to imagine the race track without it – and the RR is also intrinsically linked to it
Depending on the speed, composite plastic winglets generate up to 37.7 lbs aerodynamic downforce at 186 mph. This downforce counteracts the tendency of the front wheel to lift off the road surface when accelerating: the fork maintains contact with the ground and DTC isn’t forced to intervene as much. This allows you to noticeably and even more directly convert drive power into acceleration.

More performance on screen
Off to pit lane after laps around the race track: the last screen is now always displayed after having switched the ignition off/on. This will keep your concentration levels high and you focused on your mode. One Pure Ride Screen and three different Core Screens are available depending on your preference. The system displays an appropriate maximum speed when the engine is cold. Thanks to the flashing gearshift indicator, the tachometer now flashes as an additional indicator.







2023 BMW S1000RR Totalmotorcycle.com Key Features

  • Shorter secondary gear ratio for more traction at the rear wheel.
  • Advanced “Flex Frame” with more flex.
  • Chassis geometry with new steering head angle, offset, caster and wheelbase.
  • M Chassis Kit with adjustable swinging arm pivot point and raised rear end.
  • Dynamic Traction Control DTC with new Slide Control function for drifts while accelerating using steering angle sensor.
  • ABS Pro with new Brake Slide Assist function using steering angle sensor for braking drifts when approaching corners.
  • ABS Pro Setting “Slick”
  • Optimized aerodynamics with new front section, winglets, high windshield and partitioning off of the lower triple clamp.
  • M lightweight battery as standard.
  • USB charging port in the rear section.
  • Redesigned rear section and shorter license plate holder.
  • Redesigned wiring harness for easier removal of the license plate frame.
  • Clutch and generator cover in black.
  • Easier rear wheel assembly removal due to loss-proof axle bushings, chamfered brake pads and brake anchor plate.
  • M GPS Mouse Adapter as part of the BMW Motorrad original accessory range.
  • New GoPro holder as part of the BMW Motorrad original accessory range.

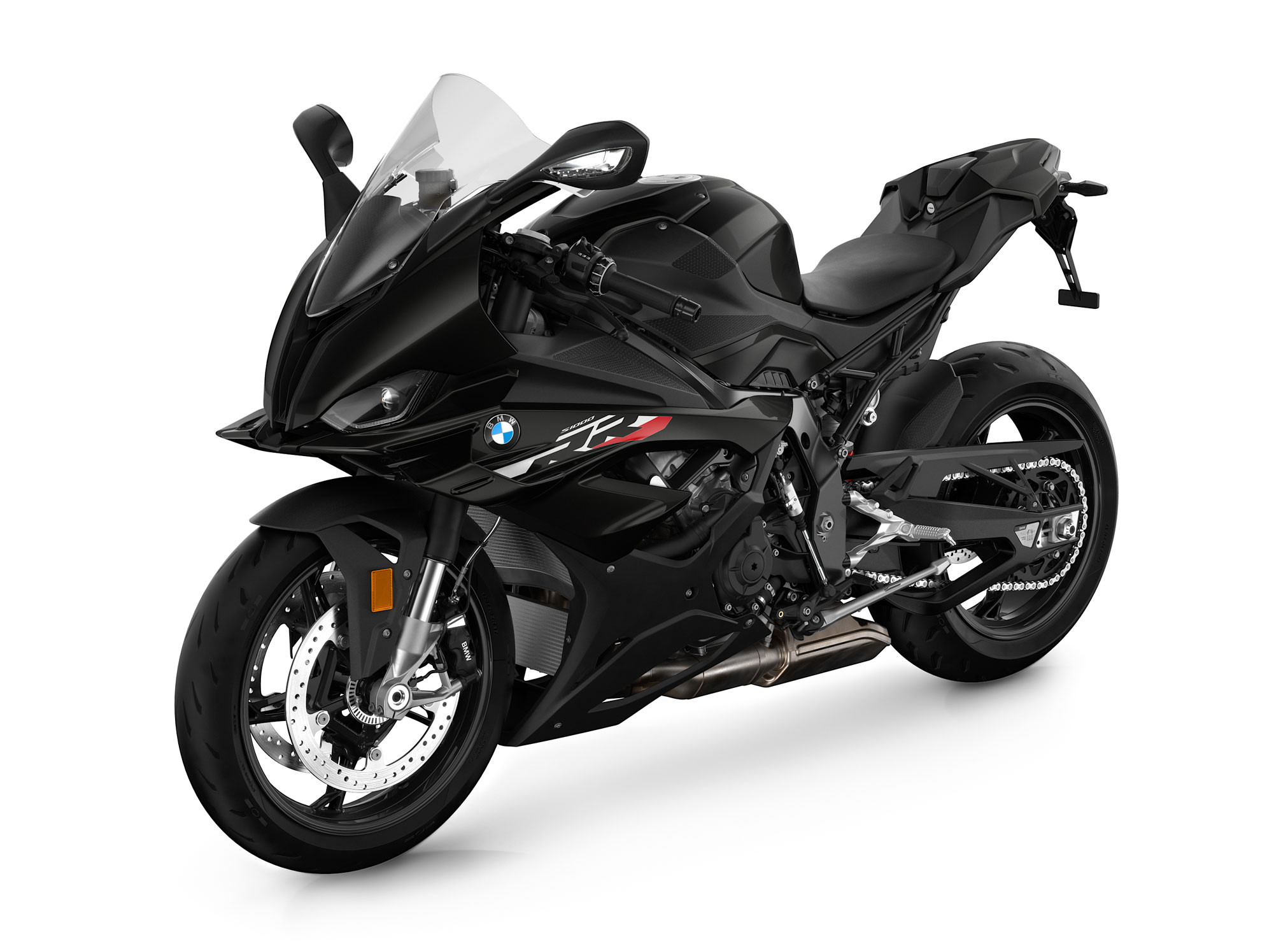

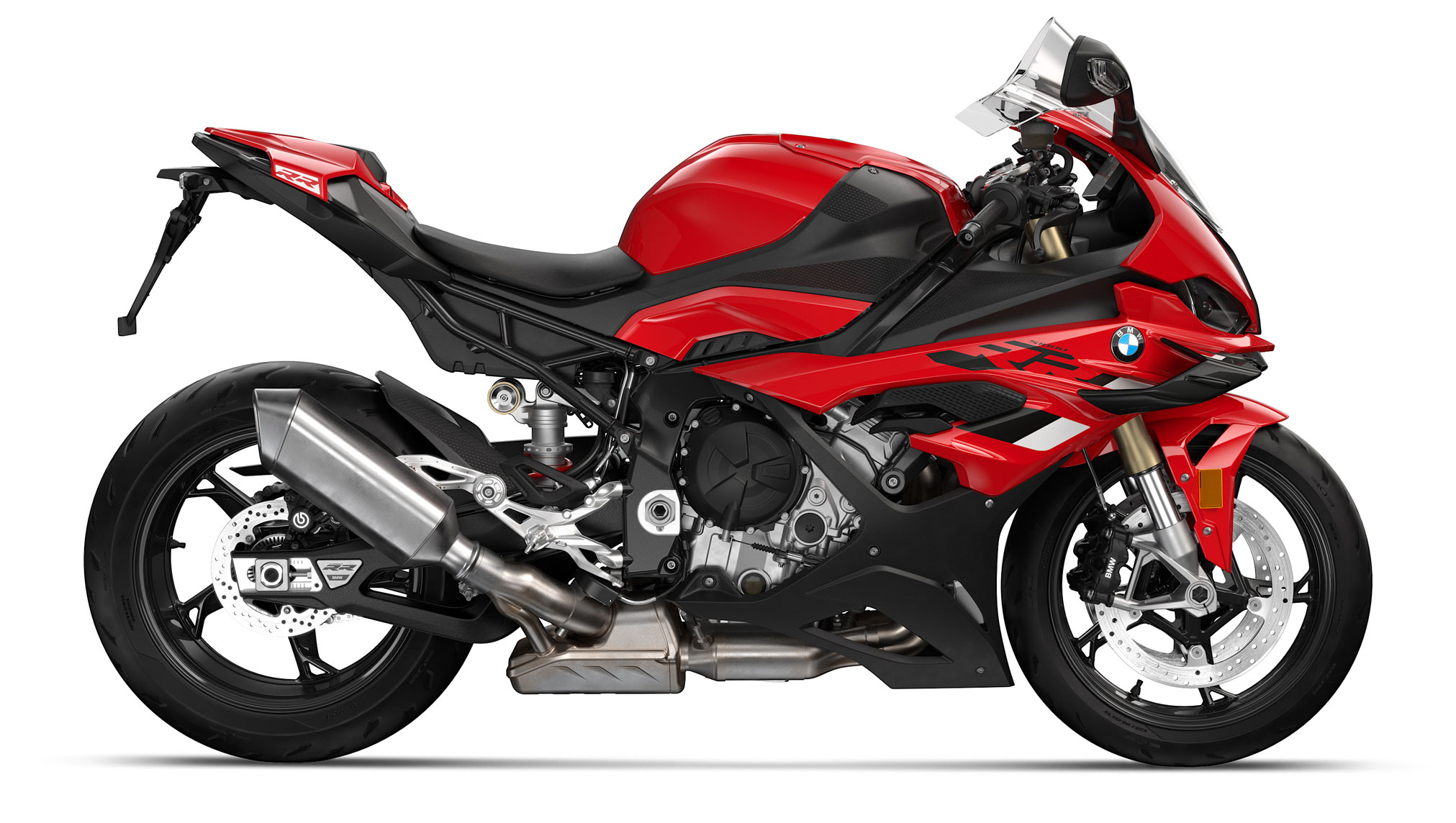

  • Three paintwork finishes: Blackstorm metallic, Style Passion in Racing Red non-metallic and Lightwhite non-metallic/BMW M.







2023 BMW S1000RR Totalmotorcycle.com Features and Benefits

Engine and drivetrain

The new RR features a revised 4-cylinder in-line engine and delivers 205 hp at 13,000 rpm  and a maximum torque of 83 lb-ft. at 11,000 rpm, unchanged in the U.S. from the outgoing model’s power and torque figures. The maximum engine speed is 14,600 rpm. Increased rear wheel traction in all gears is provided by a shorter secondary gear ratio through the use of a sprocket with 46 instead of 45 teeth.

The cylinder head with new intake port geometry is modelled on the M RR engine. With the aim of achieving optimum power delivery across the entire rev range, the intake ducts have been redesigned as well. They feature the advanced channel geometry as used in the M RR but have a cast surface instead of milled as on the M RR.

BMW ShiftCam Technology

The advanced RR engine is equipped with BMW ShiftCam Technology for varying the valve timing and the valve stroke on the intake side. This is a three-part intake shift camshaft that has two cams mounted on a shift segment for each valve to be actuated: a torque cam and a power cam, each with optimally designed cam geometry. The shift speed of the BMW ShiftCam of the new RR is 9,000 rpm, same as before.

By means of an axial displacement of the cam segment, the inlet valves are shifted from either the torque cam or the power cam in just 10 milliseconds, depending on the load and speed. The axial displacement of the cam segment and thus the use of torque or power cam is affected via two shift cams on the cam segment and two electromechanical actuators. The different design of the cam geometry is used to vary the timing and the valve lift. While the full-load cam provides maximum valve lift, the partial-load cam delivers reduced valve lift.

The benefits of BMW ShiftCam Technology include:

  • Increased torque in the low and medium speed range while preserving peak output.
  • Optimum design of partial-load cam geometry for the low to medium load and engine speed range.
  • Reduced load change loss in the partial load range.
  • Reduced exhaust emissions and optimized sound.

Improved Airbox

The new RR powerplant is equipped with a new airbox with variable intake funnels. The intake funnels have been shortened, as found in the M RR engine, in order to optimize the air charge and thus power generation, especially at higher engine speeds.

As before, the length of the intake funnels is varied in two stages via a map-controlled servomotor mounted on the airbox. The shorter intake passages are opened from 11,900 rpm since these are more favorable in terms of achieving maximum output.

Ride modes and Dynamic Traction Control (DTC) with new Slide Control

The 2023 BMW S 1000 RR features two distinct sets of riding modes: For street and for the track. The four standard modes include “Rain”, “Road”, “Dynamic” and “Race”, while the optional “Pro Modes” offers “Race Pro 1”, “Race Pro 2” and “Race Pro 3”. The latest generation of Dynamic Traction Control (DTC) with 6-axis sensor cluster, lean angle sensor and fine adjustment for even more safety and performance when accelerating are also standard.

The new feature of Dynamic Traction Control DTC is the Slide Control function. The central component of Slide Control is the steering angle sensor. Based on its signal, together with the wheel speeds and the sensor box signals, the slip angle at the rear wheel (“drift angle”) is estimated.

Depending on the characteristics of the rear tire, the road surface and the drive slip allowed by the slip control, a slip angle is established. This is so small in the stable driving condition that it is not noticed by the rider. Slide Control compares the current slip angle and comes up with a set value dependent on the DTC setpoint. If it looks as if this setpoint is going to be exceeded,  Slide Control initiates a reduction of the drive slip.

When slick tires are used on the track, the rider is assisted in controlling power slides that occur in combination with the appropriate riding style and DTC setting. For this purpose, the new RR has two different settings with separately stored drift angles: DTC settings 3 and 2. These enable very experienced riders to make the best possible use of the rear tire’s potential and to influence the bike’s racing line at the exit of the bend by using the throttle grip and the “drift angle”. Analogous to this new Slide Control function, the steering angle sensor makes it possible to use the new Brake Slide Control function.

As before, the DTC has four fixed basic settings for the respective riding modes “Rain”, “Road”, “Dynamic” and “Race”. In the “Race Pro” riding modes, fine adjustment (+/- Shift) is also available. The “Pro Modes” option offers an adjustable DTC Wheelie function for the first time. It allows wheelies to be suppressed or limited with the aim of achieving maximum acceleration via front wheel lift-off detection.

Throttle mapping

 The new RR features two standard throttle maps which are linked to the riding modes “Rain”, “Road”, “Dynamic” and “Race”.

  • Rain: soft throttle response, reduced drive torque in the lower gears.
  • Road: optimal throttle response, reduced drive torque in the lower gears.
  • Dynamic: optimal throttle response, reduced drive torque in the lower gears.
  • Optimum throttle response, maximum drive torque in all gears.
  • In Race Pro 1 to 3 mode, the rider can select two additional combinations of throttle response and drive torque.
    • Smooth throttle response and full drive torque.
    • Direct throttle response and full drive torque.
  • As another element of the “Pro Modes” option, Engine Brake also offers a three-stage adjustment of engine drag torque during coasting.

Hill Start Control and Hill Start Control Pro

The new RR offers standard Hill Start Control to facilitate starting on gradients. The optional Hill Start Control Pro goes beyond Hill Start Control by providing the additional function Auto HSC. The settings menu allows this additional function to be individualized in such a way that the brake is automatically activated on a gradient (greater than +/- 5 %) when the hand or foot brake lever has been activated, shortly after the motorcycle comes to a standstill.

Advanced Shift Assistant Pro

As before Shift Assistant Pro enables upshifting without clutch actuation and thus offers acceleration almost without interrupting traction. It also allows downshifting without clutch or throttle actuation in the load and speed ranges relevant for riding. This allows very fast gear changes and reduces clutch use to a minimum.

For use in the new RR, the Shift Assistant Pro has been improved. The rider’s shift request is now implemented via a torque model and thus enables shifts in all operating ranges. At the same time, the reaction time to so-called claw or jaw hits has been optimized and the load change damping after gear changes has been improved. For use on the track, the conventional shifting pattern (first gear down) can be changed in a few simple steps to first gear up.

Launch Control

The new RR also offers the rider Launch Control for active support on race starts. Activation is done during standstill with the engine idling by pressing the start button for more than three seconds. The relevant information is displayed on the instrument cluster. From the technical point of view, Launch Control also limits engine torque so that the maximum transferable drive torque is available at the rear wheel when setting off in first gear. When the rider shifts into second gear, the engine torque is corrected in line with the change in ratio so that the maximum transferable drive torque continues to be available at the rear wheel during this phase.

Pit Lane Limiter

The Pit Lane Limiter enables the RR rider to limit speed when passing through the pit lane, regardless of the riding mode. The pit lane limiter is audibly perceptible and thus increases safety in the pit lane.

Suspension

 “Thanks to the further developed Flex Frame as well as the new chassis geometry, the new RR offers even better riding precision, accuracy and feedback from the front wheel.” Sebastian Epp, Project Engineer Chassis

The RR was not only improved in terms of overall performance, but also with regard to the chassis and suspension. A revised main frame, modified chassis geometry as well as the new Brake Slide Assist system and the additional “Slick” ABS Pro Setting contribute significantly to the increased performance of the chassis and suspension.

 Advanced “Flex Frame”

The heart of the chassis of the new RR is still the aluminum bridge frame, which is a welded construction of four gravity die-cast parts and integrates the engine, which is inclined forward by 32 degrees as before, as a supporting element. With the aim of optimizing lateral flexibility, the main frame of the new RR was given several openings in the side areas.

What has remained are the advantages of the frame due to its very narrow design. This significantly reduces the width of the bike in the area that is relevant for good knee contact, and it was possible to make the RR only about 0.8 inches wider than a V4 engine in this area. The rider benefits from being able to keep their thighs together closer to the bike and thus in a more relaxed riding posture.

Improved Chassis Geometry

Focus was also given to increasing riding precision when developing the new chassis of the RR. The steering head angle has been flattened out by 0.5 degrees (23.6 degrees instead of the previous 23.1 degrees and the offset of the triple clamps has been reduced by 0.1 inches. The castor was increased from 3.7 inches to 3.9 inches. At the same time, the wheelbase was extended to 57.4 inches, an increase of 0.7 inches. The adjustability of the swing arm pivot point and the height of the rear end is due to the use of the standard M Chassis Kit which allows for chassis geometric adjustments on the track. The new chassis geometry is accompanied not only by better riding precision, but also by increased accuracy and improved feedback from the front wheel.

Easier removal of rear wheel

As before, rear wheel control is ensured by a gravity die cast swing arm derived from racing. Suspension and damping is provided by a central spring and shock with adjustable spring base, damping, rebound and compression. The rebound and compression can still be adjusted by means of a ten-click scaling. The shock is now height-adjustable for enhanced tuning. For easier removal and installation of the rear wheel, the axle bushings on the rear wheel on the right side are now mounted to prevent loss and the brake pads and the brake anchor plate are chamfered. The total rear suspension travel is 4.6 inches.

Fully adjustable upside-down 45 mm telescopic fork

As in the predecessor model, the upside-down fork with 45 mm slide tubes offers a high degree of brake stability, as well as a stable response and feedback.

The upside-down fork is fitted with closed-cartridge inserts, i.e. separate hydraulic piston-cylinder systems, and is fitted with adjustment options for the spring rest as well as the damping rebound and compression stage. The total front suspension travel is 4.7 inches.

Dynamic Damping Control DDC

The new version of the legendary RR can be equipped with an optional electronically controlled Dynamic Damping Control DDC suspension.

The basic settings of the DDC are linked to the riding modes “Rain”, “Road”, “Dynamic” and “Race”. In “Rain” and “Road” mode, the DDC’s tuning focus is on damping which can be best described as sporty-comfortable. “Road” is tuned for urban environments with poor to good asphalt surfaces.

The “Dynamic” riding mode, on the other hand, is intended for smooth road surfaces.

In the “Race” riding mode, the basic damping is increased for track use.

In the “Race Pro” riding modes, the individually adjustable “Race” DDC damping characteristic optimally supports track riding and provides an even firmer shock setting over “Race.” Here, the springs and shocks provide the rider with optimum and exacting feedback at all times with regard to the respective riding situation.

In addition, suspension tuning can be individualized in all riding modes. In the same way as with the mechanical adjustments, the customer can make the suspension softer or firmer simply by clicking in the configuration menu.

ABS Pro with new Brake Slide Assist and ABS Pro “Slick” setting

Like its predecessor, the new RR has a brake system that is supremely effective on the road and on the track. At the front there are two radially mounted 4-piston fixed calipers in conjunction with 320 mm / 12.6-inch steel brake discs which are 4.5 mm / 0.18 inches thick (5.5 mm / 0.22 inches thick with forged and carbon fiber wheels). At the rear, deceleration is taken care of by a single-piston floating caliper with a 220 mm / 8.7-inch steel brake disc.

ABS Pro is standard on the new BMW S 1000 RR. In contrast to conventional ABS systems, ABS Pro offers extra safety when braking in turns. Even when braking hard in a leaning position, ABS Pro is able to prevent the wheels from locking, thereby reducing the risk of falling when leaning – even in the event of panic braking. In the “Race Pro” modes, the ABS function can be set to five different levels, with the ABS Pro function linked accordingly. A new feature of the current RR is the ABS Pro Setting “Slick” as part of the optional Ride Modes Pro. This setting adjusts for the use of slick track tires.

The new Brake Slide Assist function is an important and very helpful innovation for track riders. As in the new DTC Slide Control function, this new system is based on steering angle sensors and allows the rider to set a specific drift angle for so-called braking drifts while sliding into corners at a maintained speed.

From a technical point of view, a slip angle (drift angle) is set using the steering angle sensor response by limiting the brake pressure at the rear wheel by the ABS Pro system and by controlling the rear wheel slip by the engine drag torque control (MSR).

Due to their position on the motorcycle and the application of force via the handlebars, the rider has considerable influence on the drift behavior during braking. Brake Slide Assist provides support to the rider for this partially unstable riding condition of drifting.

As a component of the “Pro Modes” option, DBC Dynamic Brake Control provides the rider with additional support during braking. DBC increases safety when braking, even in difficult situations, by avoiding unintentional throttle activation. As soon as the sensor cluster supplies a certain deceleration value during braking, any simultaneous desire to accelerate on the part of the rider is detected as implausible and throttle valve opening is suppressed. This keeps the motorcycle stable and shortens the braking distance.

Electronic Systems

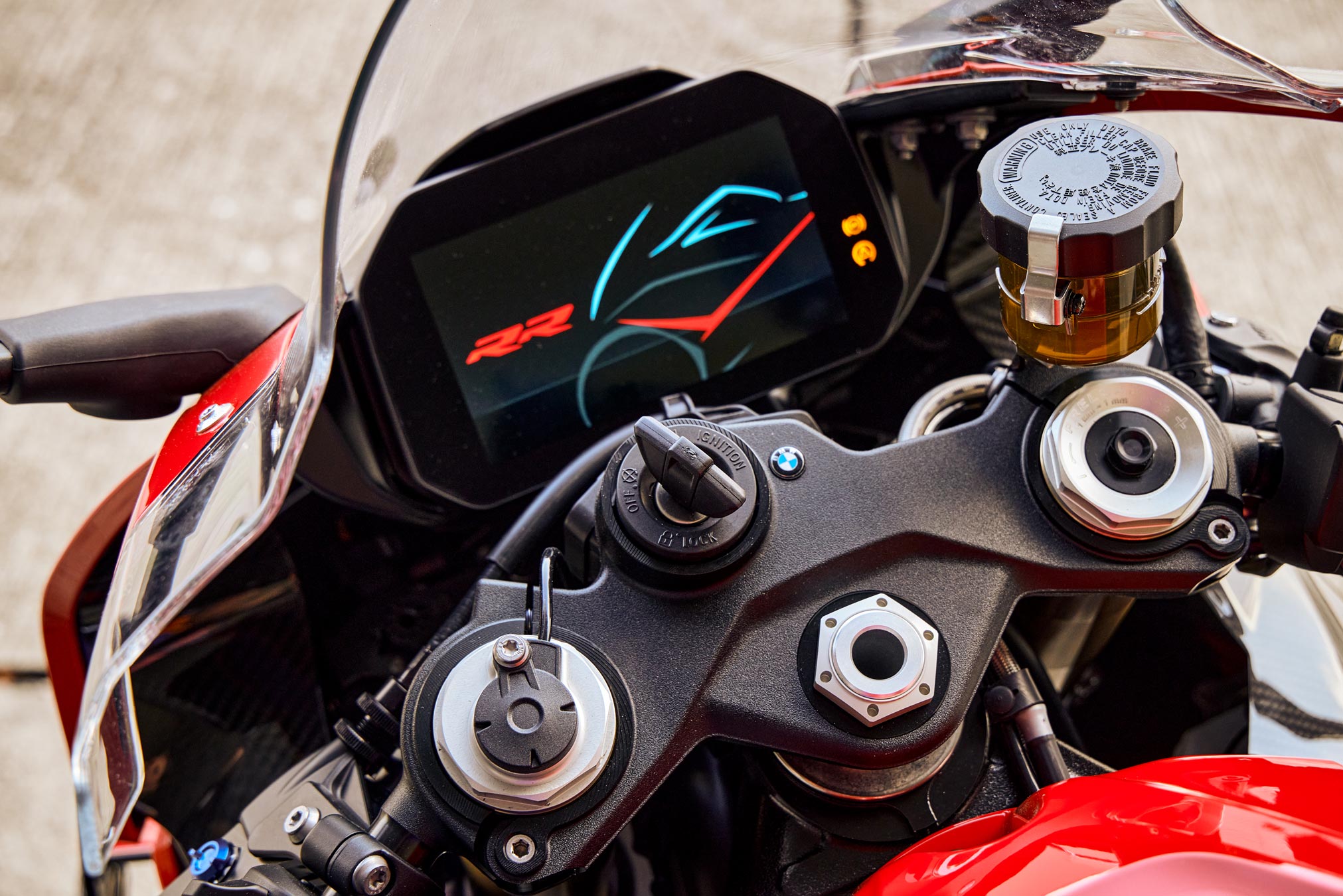

The 6.5-inch TFT instrument cluster of the new RR has four available screen layouts (Pure Ride with the main details and 3 Core screens) and riders can choose what is displayed to suit their needs as before.

As a new comfort function, the last selected screen display appears after turning on the ignition again. The entire display is designed with a focus on sport riding and its breadth of information, display quality and, last but not least, user-friendliness are still unrivalled in the supersports segment.

In addition to a wide range of functions and information, the BMW Motorrad developers placed particular emphasis on the best possible readability of the 6.5-inch TFT display. It is linked to the Multi Controller on the left-hand handlebar panel and can be operated quickly, safely and conveniently from here.

The rider can choose between customized screen displays for various purposes. The Pure Ride screen, for example, provides all the necessary information for normal operation on the road, while the three Core screen displays are designed for the track and provide a corresponding range of information. In addition, the rev counter is displayed here both in analogue form (Core 1 and 2) and in the form of a bar graph (Core 3).



In the course of the development of the RR, several new functions were added. For example, the new instrument cluster features an optimized display of the rev counter. It now has a dashed area and a solid red area that is directly controlled by the engine control unit. The dashed area is to be avoided in continuous operation, but can be approached briefly, whereas the continuous red area is blocked. This new display scheme applies, for example, to a reduced warm-up rpm limit, speed limitation due to diagnosed faults, Launch Control or when the engine is not yet at operating temperature. Another new function of the rev counter is that it flashes together with the shift light.

Further new functions of the instrument cluster are preselection of a riding mode as well as navigation and entertainment as part of “Driving Modes Pro”.

Alongside the digital display of speed, revolutions per minute, selected mode, settings for ABS Pro, DTC and DDC and the menus, it is also possible to access the following wide range of information on the screen (depending on the options fitted), for example:

  • Current left/right lean angle.
  • Maximum left/right lean angle.
  • Current deceleration achieved in m/s2.
  • Maximum deceleration achieved in m/s2.
  • Torque reduction through DTC.
  • Speed warning (display “SPEED” if a predefined speed is exceeded).
  • Average speed.
  • Average fuel consumption.
  • Trip 1 and 2.
  • Odometer.
  • Fuel level.
  • Remaining range.

For riders using their new RR on the track, the new instrument cluster offers additional and highly usable data which can be accessed in a variety of screen display formats:

  • Lap time and lap distance.
  • Lap specific speeds (min, max, average).
  • Active riding mode per lap.
  • DTC setting value per lap.
  • Lean angle left/right.
  • Lean angle maximums left/right per lap.
  • Maximum DTC torque reduction per lap.
  • Maximum deceleration per lap.
  • Number of gear shifts per lap.
  • Average throttle grip position per lap.
  • Total laps, total riding time and total distance.
  • Best-ever lap time.

Quicker removal of license plate bracket,  M battery and USB charging socket

As before, the license plate bracket, the turn signals and license plate lights form one unit and the functions of the brake and taillights are integrated into the turn signals. The extremely compact grouping makes it easy to get the RR ready for track use in a few simple steps. Thanks to a modified wiring harness, which is now equipped with an LWS connector, disassembly is now even quicker and easier.

Compared to the predecessor model, the standard equipment has also been expanded to include the previous optional extras – A lightweight M battery and a USB charging socket.

Aerodynamics and Design

“With the winglets, we were able to achieve an optimum balance of downforce and drag and thus improve the RR’s performance once again.” Johann Sievers-Paulsen, Body Development S 1000 RR

When it was launched in 2009, the RR immediately stood out thanks to its extremely compact layout and super-sporty design. This has not changed, and the new RR delivers a perfect harmony of super-sporty design, every-day usability and focused track use.

A newly designed rear section with pillion cover make the current RR look even sportier. The shorter license plate bracket is new as is the Endurance seat, which is available as part of the original BMW Motorrad accessory range. The rear pillion cover is available as an optional extra for the pillion seat.

Winglets

One of the main areas of focus in the development of the RR was aerodynamics. This area has played a central role in both MotoGP and in the Superbike World Championship for several years now, with the aim of improving lap times even further. While for decades the developers of racing motorcycles concentrated almost exclusively on aerodynamic resistance (“drag”) and thus essentially on the best achievable top speed, today the focus is on other aerodynamic aspects for Superbikes and MotoGP bikes with outputs of well over 200 hp.

The new BMW S 1000 RR (09/2022)

In addition to achieving the highest possible maximum speed, which is absolutely necessary for race victories, another goal, especially with these extremely powerful machines, is to achieve the best possible contact between the tires and the road – especially during acceleration.

Wheelies are absolutely undesirable from a racing dynamics point of view, as the drive force in a wheelie is not converted 100 percent into forward propulsion but into the rising of the front end of the motorbike. Accordingly, the traction control kicks in to prevent wheelies and thus maximize the forward driving force. Valuable tenths of a second are saved here.

The winglets on the front fairing of the new RR take this scenario into account as they generate up to 22 lbs. of aerodynamic downforce and thus an additional front wheel load depending on the speed. The additional wheel load on the front wheel counteracts the wheelie tendency during acceleration, thus the traction control system has to regulate less, making more drive power available for acceleration and leading to improved lap times.

The BMW Motorrad developers countered the slightly increased aerodynamic resistance caused by the small additional frontal area and shape of the winglets with a newly designed high windshield. This helps improve the flow around the rider’s helmet. A further aerodynamic improvement was achieved by partitioning off the lower triple clamp.

The dynamic design of the RR featuring a color scheme with three individual characters: The basic variants of Blackstorm metallic, Style Passion in Racing Red non-metallic and the racing-oriented Lightwhite non-metallic/BMW M. The now black covers for the alternator and clutch are featured in all three paintwork finishes.

Option Packages

M Package – Light White paint with M graphics and new clear coat, M Sport seat, M Forged wheels or optional M Carbon wheels, M footrest system, black fuel filler cap.

Premium Package – combines contents of Dynamic Package and Race Package – M titanium rear silencer with carbon fiber end cap or optional M Titanium exhaust system, M Endurance, chain, Heated grips, Cruise control, Ride Modes Pro, DDC Dynamic Damping Control.

Carbon Package -M Carbon front and rear wheel covers, M Carbon chain guard, M Carbon top fairing side trim, M Carbon sprocket cover.

M Billet Package –Milled, anodized aluminum folding clutch and front brake levers, plus handbrake lever protector.

Individual Options

  • Alarm system (dealer installed accessory)
  • Pillion seat cover
  • TPM Tire Pressure Monitor
  • Design Option wheels
  • Passenger Kit

M Performance Parts.

  • M axle protectors.
  • M Carbon airbox cover.
  • M Carbon rear wheel.
  • M Carbon front wheel.
  • M Carbon chain guard.
  • M Carbon rear wheel cover.
  • M Carbon front wheel cover.
  • M Carbon sprocket cover.
  • M Carbon fuel tank trim.
  • M Carbon fairing side panel top.
  • M Datalogger.
  • M GPS Lap Trigger.
  • M rider footrests.
  • M rider footrest system.
  • M seat.
  • M seat high.
  • M seat low.
  • M passenger footrests.
  • M folding handbrake lever.
  • M folding handbrake lever with remote adjustment.
  • M handbrake lever protector.
  • M chain tensioner.
  • M folding clutch lever.
  • M clutch lever protector.
  • M lithium-ion battery.
  • M rear assembly stand mounting spools.
  • M engine protectors.
  • M oil fill cap.
  • M cover kit.
  • M fork clamp for stub handlebars.
  • M forged wheel, rear.
  • M forged wheel, front.
  • M Endurance seat.
  • M tire warmers.

Storage

  • Folding rucksack.
  • Rear bag, 20-liter.
  • Tank bag, 1.5-liter.
  • Pouch for smartphone.
  • Tank bag, 10-liter.
  • Bag for passenger seat, 10-liter.

Ergonomics and comfort

  • Passenger seat.
  • Windscreen tinted.
  • Windshield, high.
  • Windshield, high, tinted.
  • Action camera/accessory mount.

Protection

  • Tank pad.
  • Radiator and oil cooler guard.
  • Protective film for TFT display.













2023 BMW S1000RR – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $17,895 USD
Canada MSRP Price: from $20,395 CDN
Europe/UK MSRP Price: from £17,150 GBP (total selling price)

Engine   Liquid-cooled inline 4-cylinder
Capacity cc 999
Bore x stroke mm 80.0 x 49.7
Power hp 205 @ 13,000 rpm
Torque lb-ft. 83 @ 11,000 rpm
Max. engine speed rpm 14,600
Compression ratio   13.3:1
Fuel   Power rated at 98 RON. 95-98 RON knock control
Valvetrain   DOHC, valve actuation via single cam followers

BMW ShiftCam variable intake cam control

Valves per cylinder   4
Intake / Exhaust valve diameter mm 33.5 / 27.2
Throttle body diameter mm 48
Engine control   BMS-0
Emission control   Closed-loop three-way catalytic converter

Alternator watts 450
Battery Volta / Ah M lightweight battery 12v / 5 Ah
Headlamp   LED free-form twin low-beam, LED free-form high-beam
Starter kW 0.8

Clutch   Self-reinforcing multi-plate anti-hopping oil bath clutch,

mechanically operated

Gearbox   6-speed, constant-mesh
Primary ratio   1.652
Transmission gear ratios I   2.647
II   2.091
III   1.727
IV   1.500
V   1.360
VI   1.261
Secondary ratio   2.706
Rear wheel drive type   Chain

Frame construction type   Aluminum composite bridge frame, engine self-supporting
Front suspension   Upside-down telescopic fork, 45 mm slide tube diameter

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Rear suspension   Aluminum underslung double-sided swingarm

Central spring and shock absorber

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Suspension travel front / rear inches 4.7 / 4.6
Wheel castor inches 3.9
Steering head angle degrees 23.6

Brakes, front   Twin 320 mm / 12.6-inch floating disks

4-piston fixed calipers

Brakes, rear   Single 220 mm / 8.7-inch, single-piston floating caliper
ABS   BMW Motorrad ABS Pro, partially integral, disengageable
Traction control   BMW Motorrad DTC
Wheels   Standard die-cast aluminum wheels

Optional M forged aluminum or M Carbon wheels

Wheels, front / rear inches 3.50 x 17 / 6.00 x 17
Tires, front / rear   120/70 ZR17 / 190/55 ZR17

200/55 ZR17 rear with M wheels


Length x width x height inches 81.6 x 33.3 x 47.4
Wheelbase inches 57.4
Seat height inches 32.8 at curb weight
Curb weight lbs. 434.3 standard trim, 426.6 with M Package
Dry weight lbs. 385.8 standard trim, 382.0 with M Package (no battery)
Permitted total weight lbs. 897
Fuel tank capacity gallons 4.35

Acceleration, 0-60 mph seconds 3.1
Top speed mph 188







2023 BMW S1000RR – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Type

4-cylinder, 4-stroke in-line engine (BMW ShiftCam)

Bore x stroke

80 mm x 49.7 mm

Capacity

999 ccm

Rated output

210 hp at 13,750 rpm

Max. torque

113 Nm at 11,000 rpm

Compression ratio

13.3 : 1

Mixture control

Electronic injection, variable intake pibe

Emission control

Closed-loop 3-way catalytic converter

Performance / fuel consumption

Maximum speed

303 km/h

Fuel consumption per 100 km based on WMTC

6.4 l

CO2 emission based on WMTC

149 g/km

Fuel type

Premium unleaded (max. 5 % ethanol, E5), 98 ROZ/RON, 93 AKI

Electrical system

Alternator

450 W

Batterie

12 V / 5 Ah, lithium-ion

Power transmission

Clutch

Multiplate clutch in oil bath, anti-hopping clutch, with self-reinforcement

Gearbox

Claw-shifted 6-speed gearbox with straight cut gears

Drive

Chain 525 17/46

Traction control

DTC, slide control

Chassis / brakes

Rahmen

Bridge-type frame, cast aluminium, co-supporting engine

Front wheel location / suspension

Upside-down telescopic fork, diameter 45 mm, spring preload, rebound and compression stages adjustable

Rear wheel location / suspension

Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload

Suspension travel, front / rear

120 mm / 117 mm

Wheelbase

1,457 mm

Castor

99.8 mm

Steering head angle

66.2°

Wheels

Aluminium cast wheels

Rim, front

3.50 x 17″

Rim, rear

6.00 x 17″

Tyre, front

120/70 ZR17

Tyre, rear

190/55 ZR17 (with M wheels: 200/55 ZR17)

Brake, front

Twin disc brake, diameter 320 mm, 4.5 mm, 4-piston fixed caliper (5 mm M wheels)

Breake, rear

Single disc brake, diameter 220 mm, 1-piston floating caliper

ABS

BMW Motorrad Race ABS (partial integral), Brake-Slide-Assist

ABS Pro

BMW Motorrad ABS Pro (settings for RAIN, ROAD, DYNAMIC, RACE mode)

Dimensions / weights

Seat height at unladen weight

824 mm

Inner leg curve at unladen weight

1,845 mm

Usable tank volume

16.5 l

Reserve

approx. 4 l

Length

2,073 mm

Height

1,205 mm

Width

848 mm

Dry weight

175 kg (M Package 173.3 kg) without battery

Unladen weight, road ready, fully fuelled

197 kg (M Package 193.5 kg)

1)

Permitted total weight

407 kg

Payload (with standard equipment)

210 kg

1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.











2023 BMW S1000RR – Totalmotorcycle.com European Specifications/Technical Details

Engine

Type

4-cylinder, 4-stroke in-line engine (BMW ShiftCam)

Bore x stroke

80 mm x 49.7 mm

Capacity

999 ccm

Rated output

154 kW (210 hp) at 13,500 rpm

Max. torque

113 Nm at 11,000 rpm

Compression ratio

13.3 : 1

Mixture control

Electronic injection, variable intake pibe

Emission control

Closed-loop 3-way catalytic converter

Performance / fuel consumption

Maximum speed

303 km/h

Fuel consumption per 100 km based on WMTC

6.4 l

CO2 emission based on WMTC

149 g/km

Fuel type

Premium unleaded (max. 5 % ethanol, E5), 98 ROZ/RON, 93 AKI

Electrical system

Alternator

450 W

Battery

12 V / 5 Ah, lithium-ion

Power transmission

Clutch

Multiplate clutch in oil bath, anti-hopping clutch, with self-reinforcement

Gearbox

Claw-shifted 6-speed gearbox with straight cut gears

Drive

Chain 525 17/46

Traction control

DTC, slide control

Chassis / brakes

Frame

Bridge-type frame, cast aluminium, co-supporting engine

Front wheel location / suspension

Upside-down telescopic fork, diameter 45 mm, spring preload, rebound and compression stages adjustable

Rear wheel location / suspension

Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload

Suspension travel, front / rear

120 mm / 118 mm

Wheelbase

1,456 mm

Castor

101.4 mm

Steering head angle

66.2°

Wheels

Aluminium cast wheels

Rim, front

3.50 x 17″

Rim, rear

6.00 x 17″

Tyre, front

120/70 ZR17

Tyre, rear

190/55 ZR17 (with M wheels: 200/55 ZR17)

Brake, front

Twin disc brake, diameter 320 mm, 4.5 mm, 4-piston fixed caliper (5 mm M wheels)

Breake, rear

Single disc brake, diameter 220 mm, 1-piston floating caliper

ABS

BMW Motorrad Race ABS (partial integral), Brake-Slide-Assist

ABS Pro

BMW Motorrad ABS Pro (settings for RAIN, ROAD, DYNAMIC, RACE mode)

Dimensions / weights

Seat height at unladen weight

832 mm

Inner leg curve at unladen weight

1,845 mm

Usable tank volume

16.5 l

Reserve

approx. 4 l

Length

2,073 mm

Height

1,205 mm

Width

848 mm

Dry weight

175 kg (M Package 173.3 kg) without battery

Unladen weight, road ready, fully fuelled

197 kg (M Package 193.5 kg)

1)

Permitted total weight

407 kg

Payload (with standard equipment)

210 kg

1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 8449 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 23 great years. Total Motorcycle is my pride and joy and being able to reach out 375 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
