Contents: Review – Key Features – Features & Benefits – Specifications
Contents: Review – Key Features – Features & Benefits – Specifications
2023 Ducati Multistrada V2S: MORE COMFORTABLE & MORE FUN.
Introducing the new 2023 Ducati Multistrada V2S…
The ideal bike to fully enjoy every route, versatile in everyday use and in the city, always with the sportiness and unmistakable style that characterize every Ducati.
Your everyday wonder
The Ducati Multistrada family continues its evolution with the presentation of the new Multistrada V2: the ideal bike to fully enjoy every route, versatile in everyday use and in the city, always with the sportiness and unmistakable style that characterize every Ducati.
The new twin-cylinder of the family of Ducati dual bikes is a 360° bike, increasingly intuitive, comfortable, fun and accessible. Multistrada V2 is a technologically advanced motorcycle, with a sophisticated cycling and an extremely complete electronic package, without forgetting the engine, the latest evolution of the 937 cc Testastretta 11° unit, and represents the perfect gateway to the Ducati tourer universe.
During the development phases of this bike the main points of focus were ergonomics, weight reduction, engine updates and a series of upgrades that follow the philosophy of “continuous improvement”.
A 360° Multistrada
Thanks to the careful ergonomic study, the weight reduction, the chassis-engine-electronics technology package, the Multistrada V2 is extremely versatile: perfect for touring, also with passenger and side bags, is also ideal for everyday urban use. The 19″ front wheel ensures a smooth, comfortable ride, always with the right level of reactivity and precision. Combined with the Ducati Skyhook Suspension EVO semi-active suspension system (standard on the S version) can absorb roughness and unevenness of the ground and always guarantee the ideal set-up of the vehicle, improving safety and comfort.
More comfortable, more fun, easier to ride
2023 Ducati Multistrada V2S Totalmotorcycle.com Key Features
DESIGN
Unmistakeably Multistrada design, with imposing, streamlined shapes. New refined graphics, that show the name of the bike on both sides for an elegant and sporty look at the same time.
CHASSIS
Agile and intuitive, the 19″ front wheel ensure maximum versatility: a smooth, rounded and relaxing ride that is also precise and effective when needed.
ELECTRONICS
The electronic equipment is extremely complete, especially in the S version. The latest generation of driver assistance systems are effective and never invasive, ensuring safety and comfort in every condition.
ERGONOMICS
Ergonomics have been revised to provide greater accessibility in terms of seat height (32.6 in – 31.1 in) and inseam arch.
ENGINE
The 937 cc Testastretta 11° engine has been lightened and updated in the gearbox and clutch to ensure smoother and more precise running. Now also available in a 35 kW version for A2 licence holders.
WEIGHT REDUCTION
11 lb less than the Multistrada 950 thanks to new engine and vehicle components.
2023 Ducati Multistrada V2S Totalmotorcycle.com Features and Benefits
Ergonomics
The height has been reduced to 32.7 in, with a redesigned shape of the saddle which is now narrower and more compact between the rider’s legs to allow you to easily touch the ground with your feet thanks to an inseam arch of only 70.5 in.
These changes provide safety when the bike is stationary and improve confidence when manoeuvring at low speed even with a passenger and full cases. Furthermore, in the Ducati Performance catalogue a low seat and a lowered suspension kit are available which, combined, allow you to reach a height of 31 in (available starting from the beginning of 2022).
In addition, the distance from the seat to the rider’s footrest has been increased to 19.3 in, in order to provide more room for taller riders, who can now ride more comfortably for many hours.
Weight reduction
The weight reduction work conducted on the bike has made it possible to obtain a final dry weight of 438 lb (445 lb for the S version), 11 lb less than the Multistrada 950. The engine has lost about 4.4 lb. Among the vehicle components, the new rims stand out (-3.7 lb), together with the Multistrada V4 mirrors (-1.4 lb) and the front brake disc flanges, now in aluminum (-1.1 lb). In addition, with regard to the wheel rims, new spoked rims are also available as an accessory, also significantly lighter (available starting from the beginning of 2022). The reduction in weight of the wheel rims guarantees a marked improvement in vehicle dynamics.
Frame
The scheme adopted for the chassis of the Multistrada V2 includes a front trellis frame together with two cast side frames, closed off by a rear load-bearing element made of techno-polymer loaded with glass fibre for maximum torsional rigidity, with the addition of the double-sided swingarm made in shell cast aluminum.
Suspensions and brakes
The Multistrada V2 is equipped with a 1.9 in diameter upside-down front fork with 6.7 in travel, dedicated cast end caps, adjustable in spring preload and hydraulic brake in rebound and compression.
The spring is progressive, with a consequent increase in riding comfort even with the vehicle fully loaded. The rear wheel travel is 6.7 in. In the S version, Multistrada V2 è dotata di serie anche del Ducati Skyhook Suspension EVO semi-active suspension system, which is based on a 48 mm SACHS fork and a SACHS rear shock absorber, both electronic, with the possibility of adjusting the hydraulic brake in compression and extension in a continuous manner according to a semi-active control approach capable of guaranteeing the ideal set-up of the vehicle, improving safety and comfort.
The entire Multistrada V2 family is equipped with Brembo brakes with ABS Cornering function. The front system features Brembo M4-32 monobloc radial calipers with four 32 mm diameter pistons and two pads, radial pump with adjustable levers and double 12.6 in front disc with aluminum flanges. At the rear we can find a single 10.4 in diameter disc on which a floating caliper, also Brembo, works.
Power and torque always under control
The Multistrada V2 is driven by the last evolution of the well-known and much-loved 937 cc Ducati Testastretta 11° twin-cylinder with desmodromic distribution, that delivers 113 horsepower at 9.000 rpm.
The engine has been lightened and updated in the gearbox and clutch, in order to guarantee greater fluidity and precision in shifting, also facilitating the engagement of neutral. Reliable and strong, Testastretta 11° has extended maintenance intervals, with oil change every 9,300 Miles and valve clearance check every 18,600 miles
Testastretta 11°
The engine of the Multistrada V2 is the last evolution of the twin-cylinder Ducati Testastretta 11° da 937 cc with desmodromic distribution. This engine, four valves per cylinder, water-cooled, delivers 113 horsepower, features an excellent level of reliability and the ability to combine performance and adrenaline with a regular and always manageable power delivery, putting a sports bike that is never aggressive in the hands of the rider.
Clutch and gearbox
New 8-disc hydraulic clutch and an updated gearbox, which guarantees greater fluidity and precision in shifting, also facilitating the engagement of neutral. An even more appreciable progress in use in conjunction with the quick shifter, now with a further optimized operating strategy.
Weight reduction
The interventions on the gearbox and clutch, together with the introduction of new connecting rods and new covers, have also brought about a reduction in the total weight of the engine of about 4.4 lb.
Uncompromising electronics and control
Safety, comfort and performance of the Multistrada V2 are also guaranteed by state-of-the-art electronic assistance systems. In the S version, the journey becomes 5-star thanks to a benchmark full-optional package for the segment to which it belongs.
The Multistrada V2 features four Riding Modes (Sport, Touring, Urban, Enduro) that act on the riding aid systems, engine mapping and Skyhook suspension (for the S version), making the character of the bike completely customisable.
The Bosch’s 6-axis inertial platform IMU (Inertial Measurement Unit) allows for the Cornering operation of the ABS, i.e. variable depending on the bend angle.

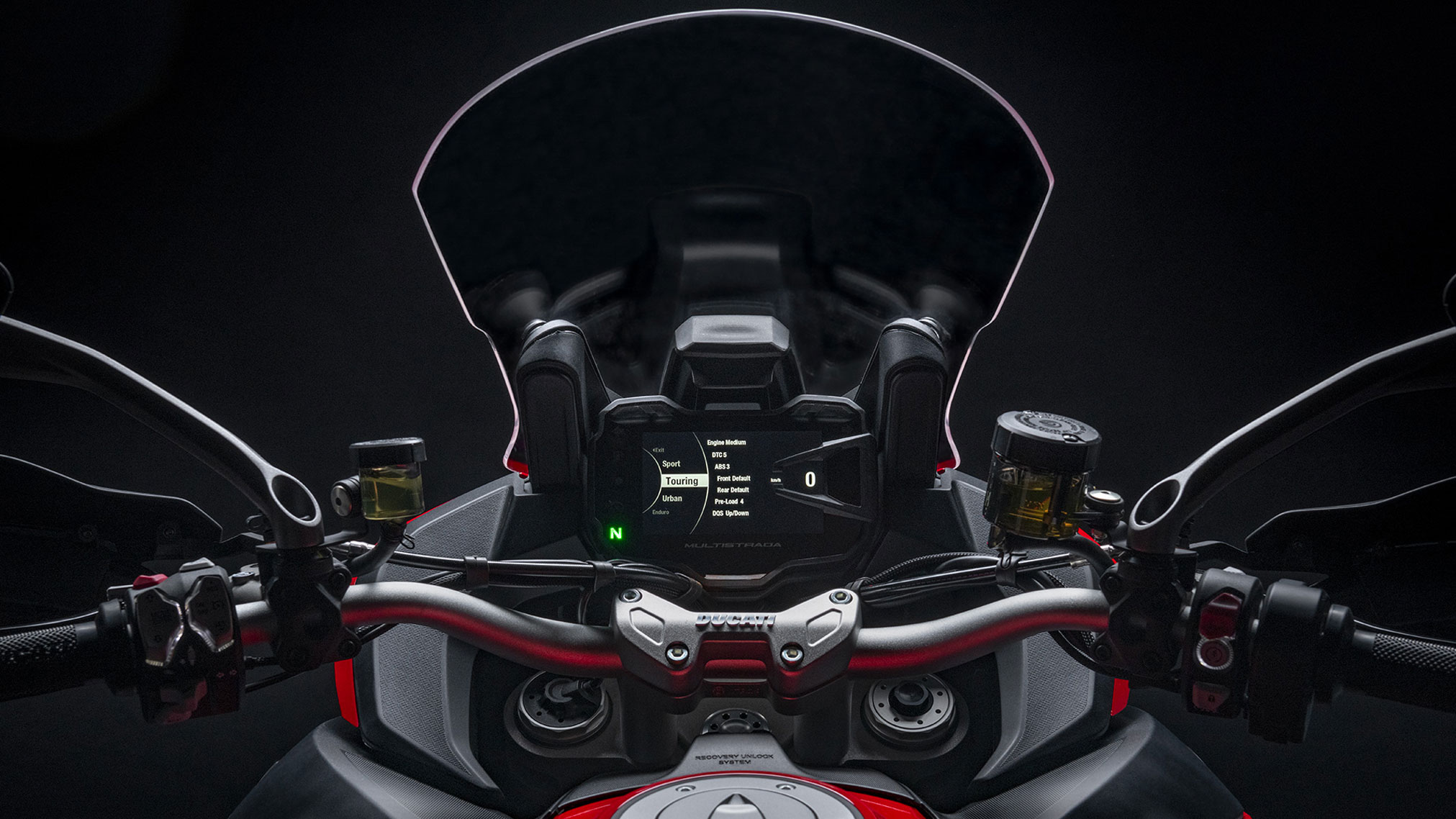

The dashboard of the Multistrada V2 consists of a large, high-visibility LCD. The S version, on the other hand, features a high resolution 5″ color TFT display, with an intuitive interface that makes it easy to navigate the menu. Both versions integrate with the Ducati Multimedia System.
The Multistrada V2 sports an aggressive design lamp front headlight, typical of the motorcycles of the Multistrada family. At the rear there is an LED tail-light, which uses the Ducati Brake Light system (already developed on the Multistrada V4): in the event of violent braking, this system automatically activates the flashing of the rear light in order to appropriately signal an abrupt slowdown to the following vehicles, thus contributing to the overall safety of the motorcycle.
The Ducati Traction Control (DTC) of the Multistrada V2 is adjustable on eight levels, while ABS Cornering is adjustable on three and at level 1 it offers “only front” (non-cornering) functionality. The Vehicle Hold Control (VHC) system helps the rider in uphill starting phases. It activates when the user, with the motorcycle stationary and with the side stand retracted, applies high pressure on the front brake lever or on the rear brake pedal and is able to keep the vehicle stationary by actively intervening on the rear brake.
2023 Ducati Multistrada V2S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $18,895 USD
Canada MSRP Price: from $21,395 CDN
Europe/UK MSRP Price: from £15,395 GBP (On The Road inc 20% Vat)
Type
Ducati Testastretta, L-Twin cylinder, Desmodromic valvetrain, 4 valves per cylinder, Liquid cooled
Displacement
937 cc (57.2 cu in)
Bore x Stroke
94 x 67.5 mm
Compression Ratio
12.6 : 1
Power
113 hp (83 kW) @ 9,000 rpm
Torque
96 Nm (9.8 kgm, 71 lb ft) @ 7,750 rpm
Fuel Injection
Electronic fuel injection system, Ø 53 mm throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel single muffler, Catalytic converter and 2 lambda probes
Gearbox
6 speed with Ducati Quick Shift up/down
Primary drive
Straight cut gears, ratio 1.84 : 1
Ratio
1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24
Final drive
Chain, Front sprocket Z15, Rear sprocket Z43
Clutch
Slipper and self-servo wet multiplate clutch with hydraulic control
Frame
Tubular steel trellis frame
Front suspension
Ø 48 mm fully adjustable usd fork, Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension Evo
Front Wheel
Light alloy cast 3.0″ x 19″
Front Tire
Pirelli Scorpion Trail II 120/70 ZR 19
Rear suspension
Fully adjustable monoshock, Electronic compression, rebound damping and spring pre-load adjustment with Ducati Skyhook Suspension Evo, Aluminium double-sided swingarm
Rear Wheel
Light alloy cast 4.5″ x 17″
Rear Tire
Pirelli Scorpion Trail II 170/60 ZR 17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 320 mm aluminum flange semi-floating discs, Radially mounted Brembo monobloc 4-piston 2-pad callipers, Radial Master Cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, 2-piston Brembo floating calliper, Cornering ABS
Instrumentation
5″ TFT colour display
Dry Weight
202 kg (445 lb)
Curb Weight
225 kg (496 lb)
Seat Height
830 mm (32.7 in)
(850 mm (33.5 in) with high seat accessory,
810 mm (31.9 in) with low seat accessory,
790 mm (31.1 in) with low seat + low suspension kit accessory)
Wheelbase
1,594 mm (62.8 in)
Rake
25°
Trail
106 mm (4.2 in)
Fuel Tank Capacity
20 l (5.3 US Gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Cornering Lights, Ducati Brake Light, Vehicle Hold Control
Standard Equipment
Ducati Skyhook Suspension Evo, Ducati Quick Shift up/down, Cruise control, Hands-Free, Backlit handlebar switches, 5″ TFT colour display, Full LED headlight, Self cancelling turn indicators
Ready for
Ducati Multimedia System, Tyre Pressure Monitoring System, Antitheft system
Warranty
24 months, Unlimited mileage.
Maintenance Service Intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
30,000 km (18,000 miles)
Notes
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
2023 Ducati Multistrada V2S – Totalmotorcycle.com Canada Specifications/Technical Details
Type
Ducati Testastretta, L-Twin cylinder, Desmodromic valvetrain, 4 valves per cylinder, Liquid cooled
Displacement
937 cc (57.2 cu in)
Bore x Stroke
94 x 67.5 mm
Compression Ratio
12.6 : 1
Power
113 hp (83 kW) @ 9,000 rpm
Torque
96 Nm (9.8 kgm, 71 lb ft) @ 7,750 rpm
Fuel Injection
Electronic fuel injection system, Ø 53 mm throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel single muffler, Catalytic converter and 2 lambda probes
Gearbox
6 speed with Ducati Quick Shift up/down
Primary drive
Straight cut gears, ratio 1.84 : 1
Ratio
1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24
Final drive
Chain, Front sprocket Z15, Rear sprocket Z43
Clutch
Slipper and self-servo wet multiplate clutch with hydraulic control
Frame
Tubular steel trellis frame
Front suspension
Ø 48 mm fully adjustable usd fork, Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension Evo
Front Wheel
Light alloy cast 3.0″ x 19″
Front Tire
Pirelli Scorpion Trail II 120/70 ZR 19
Rear suspension
Fully adjustable monoshock, Electronic compression, rebound damping and spring pre-load adjustment with Ducati Skyhook Suspension Evo, Aluminium double-sided swingarm
Rear Wheel
Light alloy cast 4.5″ x 17″
Rear Tire
Pirelli Scorpion Trail II 170/60 ZR 17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 320 mm aluminum flange semi-floating discs, Radially mounted Brembo monobloc 4-piston 2-pad callipers, Radial Master Cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, 2-piston Brembo floating calliper, Cornering ABS
Instrumentation
5″ TFT colour display
Dry Weight
202 kg (445 lb)
Curb Weight
225 kg (496 lb)
Seat Height
830 mm (32.7 in)
(850 mm (33.5 in) with high seat accessory,
810 mm (31.9 in) with low seat accessory,
790 mm (31.1 in) with low seat + low suspension kit accessory)
Wheelbase
1,594 mm (62.8 in)
Rake
25°
Trail
106 mm (4.2 in)
Fuel Tank Capacity
20 l (5.3 US Gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Cornering Lights, Ducati Brake Light, Vehicle Hold Control
Standard Equipment
Ducati Skyhook Suspension Evo, Ducati Quick Shift up/down, Cruise control, Hands-Free, Backlit handlebar switches, 5″ TFT colour display, Full LED headlight, Self cancelling turn indicators
Ready for
Ducati Multimedia System, Tyre Pressure Monitoring System, Antitheft system
Warranty
24 months, Unlimited mileage.
Maintenance Service Intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
30,000 km (18,000 miles)
Notes
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
2023 Ducati Multistrada V2S – Totalmotorcycle.com European Specifications/Technical Details
Type
Ducati Testastretta, L-Twin cylinder, Desmodromic valvetrain, 4 valves per cylinder, Liquid cooled
Displacement
937 cc (57.2 cu in)
Bore x Stroke
94 x 67.5 mm
Compression Ratio
12.6 : 1
Power
113 hp (83 kW) @ 9,000 rpm
Torque
94 Nm (9.6 kgm, 69 lb ft) @ 6,750 rpm
Fuel Injection
Electronic fuel injection system, Ø 53 mm throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel single muffler, Catalytic converter and 2 lambda probes
Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.84 : 1
Ratio
1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24
Final drive
Chain, Front sprocket Z15, Rear sprocket Z43
Clutch
Slipper and self-servo wet multiplate clutch with hydraulic control
Frame
Tubular steel trellis frame
Front suspension
Ø 48 mm fully adjustable usd fork
Front Wheel
Light alloy cast 3.0″ x 19″
Front Tyre
Pirelli Scorpion Trail II 120/70 ZR 19
Rear suspension
Fully adjustable monoshock, Remote spring preload adjustment, Aluminium double-sided swingarm
Rear Wheel
Light alloy cast 4.5″ x 17″
Rear Tyre
Pirelli Scorpion Trail II 170/60 ZR 17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 320 mm aluminum flange semi-floating discs, Radially mounted Brembo monobloc 4-piston 2-pad callipers, Radial Master Cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, 2-piston Brembo floating calliper, Cornering ABS
Instrumentation
LCD Display
Dry Weight
199 kg (439 lb)
Kerb Weight
222 kg (489 lb)
Seat Height
830 mm (32.7 in)
(850 mm (33.5 in) with high seat accessory,
810 mm (31.9 in) with low seat accessory)
Wheelbase
1,594 mm (62.8 in)
Rake
25°
Trail
106 mm (4.2 in)
Fuel Tank Capacity
20 l (5.3 US Gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Brake Light, Vehicle Hold Control
Standard Equipment
Self cancelling turn indicators
Ready for
Ducati Quick Shift up/down, Ducati Multimedia System, Antitheft system
Warranty
48 months, Unlimited mileage.
Maintenance Service Intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
30,000 km (18,000 miles)
Standard
Euro 5
CO2 Emissions
137 g/km
Consumption
5,9 l/100 km
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
