2023 Ducati Multistrada V4 Pike’s Peak: RULE ALL MOUNTAINS.
Introducing the new 2023 Ducati Multistrada V4 Pike’s Peak…
When sportiness is more important to you than anything else.
The Multistrada V4 Pikes Peak was developed to bring the sporty qualities of the Multistrada V4 S to the extreme: a dedicated riding position, 17″ wheels with sports tyres, single-sided swingarm, Öhlins suspension and the new Race Riding Mode.
A bike that is sharp, precise and effective even on the track.
The Multistrada V4 Pikes Peak is not only the sportiest Multistrada ever, it is also the most powerful model in the entire crossover segment.
Exciting and adrenalin-fuelled, it is powered by the V4 Granturismo engine, capable of delivering 170 hp at 10,500 rpm and guaranteeing high performance in sporty riding thanks to new electronic management strategies.
2023 Ducati Multistrada V4 Pike’s Peak Totalmotorcycle.com Key Features
Riding precision is turned into pure performance
The Multistrada V4 Pikes Peak is a technologically advanced motorcycle, designed for those who love the thrill of sporty riding, especially on mountainous twisties or between the kerbs of a race track.
Sharp and precise, it surprises with its ease of closing the line right from corner entry, maintained even when the throttle is applied: the bike literally goes where the rider’s eyes turn.
Hop on and get a taste of the track experience.
RACING STYLE
The 17” front wheel makes the riding responsive and sharp. Rims are forged aluminum and results in a weight reduction that enhances the dynamic behaviour of the vehicle.
CHASSIS
The V4 Pikes Peak is the first Multistrada in history to be equipped with Öhlins electronic suspension tuned to the rider’s riding style
ERGONOMICS
A dedicated riding position has been designed for the Multistrada V4 Pikes Peak to ensure a sporty and effective riding position
ENGINE
The V4 Pikes Peak features the V4 Granturismo with updates to the electronic management system focused on improved performance on the road and track
ELECTRONICS
For the first time a Multistrada features a Race riding mode. Other electronic sport-oriented updates are related to wheelie control, quickshifter and ABS calibration.
DESIGN
New “Pikes Peak” livery is inspired by the colors and graphics of the Desmosedici GP ’21. To emphasise its sporty-oriented attitude it comes with a wide range of components made of carbon fiber and a low dark-smoked windshield
2023 Ducati Multistrada V4 Pike’s Peak Totalmotorcycle.com Features and Benefits
Sharp, fast, effective. And as powerful as ever.
Sharp and responsive. Precise and adrenalin-fuelled.
In the new Multistrada Pikes Peak the alchemy between chassis, ergonomic, electronic solutions and high level componentry gives the rider the maximum expression of the racing character of the 170 HP V4 Granturismo.
170 HP V4 Granturismo engine with racing electronics strategy.
Lighter, more powerful and more reliable than the previous generation of twin-cylinder engines.
With a displacement of 1158 cc, the V4 Granturismo engine ensures top-of-the-segment power and torque levels. The engine delivers 170 hp with a maximum torque of 92.2 lb-ft at 8,750 rpm. The sporty attitude is enhanced by a racing strategy for the rev limiter and the quickshifter that allows faster gear shiftings and extremely aggressive downshifts, as well as the implementation of an even more direct throttle response in High Power Mode.
17″ front wheel with forged rims and dedicated ergonomics.
The 17″ front wheel combined with the adoption of lightened Marchesini aluminum forged rims results in absolute precision between curves and a high speed when reaching the apex. A revised strategy also in the main dimensions and ergonomic elements such as the footpegs and handlebar, to give the rider a more sporty feeling and is dedicated to dynamic riding on asphalt.

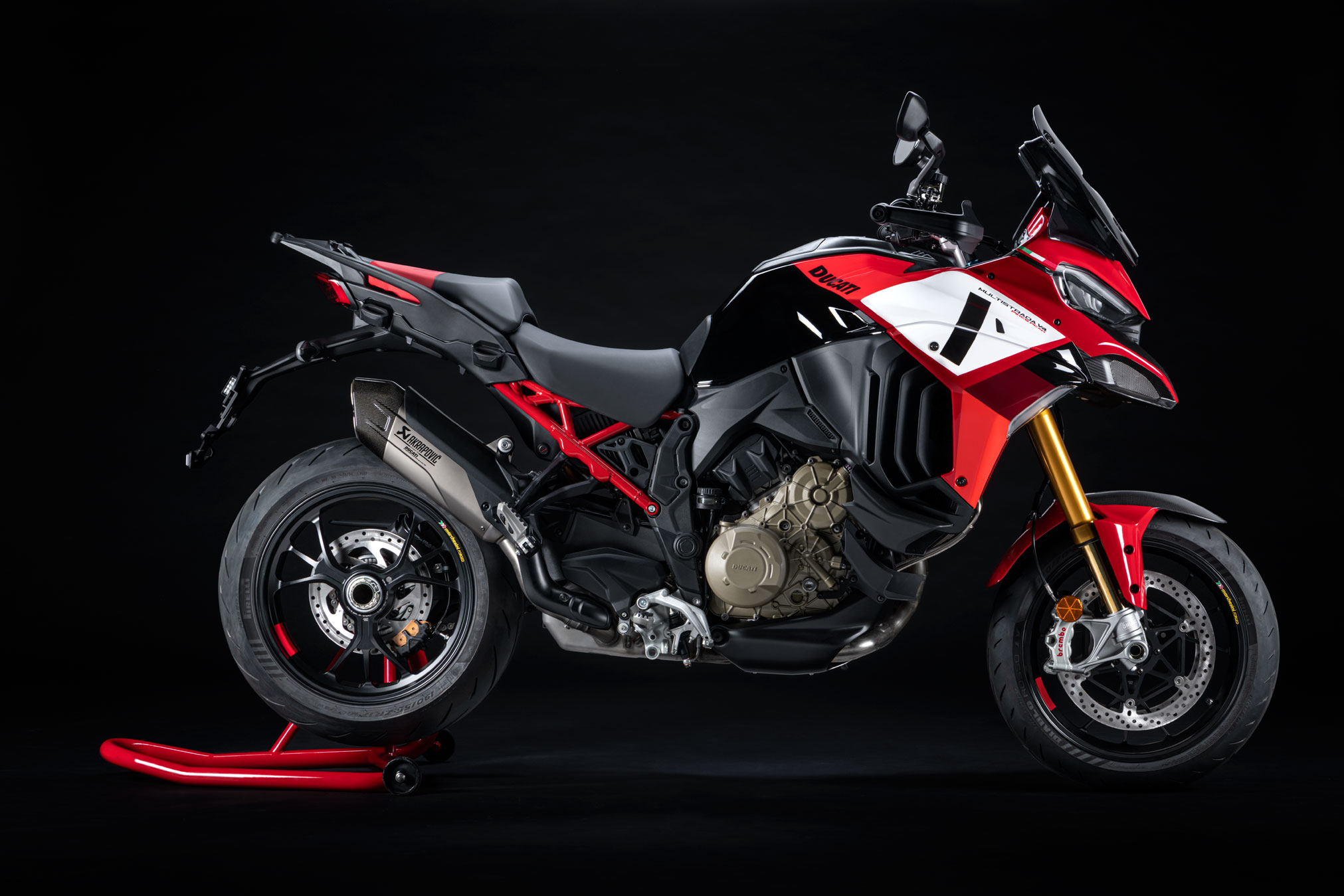

Single-sided swingarm and “Pikes Peak” livery
The stylistic elements typical of the Pikes Peak version such as the 17″ front wheel and the single-sided swingarm are enhanced by the functional elements of the new Multistrada generation. A look that reaches the pinnacle of sportiness thanks to the new livery with number plates on both sides inspired by the graphics of the Desmosedici GP ‘21. The passenger seat is two-tone with the “V4” logo visible from above.
Öhlins Smart EC 2.0 suspension
The V4 Pikes Peak is the first Multistrada ever to be equipped with electronic Smart EC 2.0 Öhlins suspension. The Smart EC 2.0 system is the same adopted by both Panigale V4 S and Streetfighter V4 S. It is a particularly advanced system that allows an “event based” adjustment, according to the rider’s riding style. This technology borrowed from Ducati supersport bikes is combined for the first time with Riding Mode Race, which acts on the electronic controls to express the bike’s racing potential to the full.
170 hp of pure adrenaline. V4 Granturismo
Extremely light, weighing just 147 lb (2.6 lb less than the twin-cylinder Pikes Peak 1260), it is also remarkably compact. With a displacement of 1.158 cc, the V4 Granturismo engine ensures segment-leading power and torque levels and absolute reliability, with valve clearance control programmed to a record 37,000 miles.
17” Marchesini forged aluminum rims
The wheels rims are made of forged aluminum, allowing considerable weight savings on unsprung masses and ensuring a considerable speed of execution and an improvement in the bike’s dynamic behaviour. The V4 Pikes Peak forged rim weight reduction versus Multistrada V4/V4S cast rims is 5.9 lb, that contribute to the total vehicle lightening of around 8.8 lb.
Pirelli Diablo Rosso IV Tires
The new Pirelli Diablo Rosso IV Tires (120/70-17 front 190/55-17 rear) support the sportiness of the Multistrada V4 Pikes Peak and confirms its pure-performance-oriented character.
Chassis dimensions
The rake of the Multistrada V4 Pikes Peak is 25.75° (+ 1.25° vs Multistrada V4). Trail is now 4.7 inches (+0.019 inches vs Multistrada V4) and wheelbase geometry is 0.0627 inces (+0.0011 inches vs Multistrada V4). These new figures give the Multistrada V4 Pikes Peak the riding characteristics typical of sporty bikes, without compromising comfort in every situation.
Class-leading braking system
The braking system of the new V4 Pikes Peak is at the top of the segment and derives directly from that of the Panigale V4. At the front, the system includes 13 inch diameter discs and Brembo Stylema monobloc calipers, like the Multistrada V4 S, to which are added the pads of the Panigale V4. At the rear, the system features a single 10.4 inch diameter disc with a Brembo floating caliper.
Performance-oriented Electronics
The new electronics are inspired from supersport riding. These include the adoption of Riding Mode Race capable of acting on the main electronic systems to deliver maximum performance. These are easily controlled via backlit handlebar controls with joystick and the 6.5-inch TFT dashboard with optical bonding technology for optimum viewing both day and night.
The Multistrada V4 Pikes Peak also inherits the advanced and sophisticated electronics package of the Multistrada V4 S, which includes, among others, radar technology at both front and rear, enabling Adaptive Cruise Control (ACC) and Blind Spot Detection (BSD).
Race Riding Mode
The Multistrada Pikes Peak in race riding mode offers the maximum engine and chassis performance, allowing riders to fully enjoy the 170 HP of the V4 Granturismo engine and the excellence of the Öhlins Smart EC 2.0 suspension. The system exploits an even more direct throttle response in High Power Mode. Ducati Traction Control and Ducati Wheelie Control operations are reduced to a minimum and the cornering ABS is set to level 2, also allowing controlled lifting of the rear wheel and therefore getting the most out of the braking phase, even on the racetrack. The Race Riding Mode is undoubtedly the ideal choice for experienced riders who wish to exploit all the exclusive performance the Multistrada V4 Pikes Peak can offer, also on track.
Sport Riding Mode
The best on road performing Sport Riding Mode provides a thrilling 170 HP together with a sporty suspension set-up. Sport Mode is also characterised by low levels of Ducati Traction Control and Ducati Wheelie Control compared to the Race RM. Furthermore, the ABS is set to level 2, allowing the ABS is set to level 2 allowing controlled lifting of the rear wheel in order to maximize braking performance.
Touring Riding Mode
The best on road performing Sport Riding Mode provides a thrilling 170 HP together with a sporty suspension set-up. Sport Mode is also characterised by low levels of Ducati Traction Control and Ducati Wheelie Control compared to the Race RM. Furthermore, the ABS is set to level 2, allowing the ABS is set to level 2 allowing controlled lifting of the rear wheel in order to maximize braking performance.
Urban Riding Mode
In Urban Riding Mode power output is reduced to a maximum of 115 HP, and suspension is set for optimum agility in case of frequent urban obstacles with corresponding DSS mapping. DTC and DWC are set to high levels for maximum security. ABS is set to level 3.
Cornering ABS
The Multistrada V4 Pikes Peak exploits the Bosch 10.3ME Cornering ABS with corners function, properly calibrated to enhance the sporty features of the bike.
Adjustable on 3 levels each of which is combined as standard with the different Riding Modes, and is a significant element of the Ducati Safety Pack. Thanks to its ABS control processor, the Multistrada Pikes Peak makes use of a combined braking system (Electronic Combined Braking System) that is optimised at level 3 for the Urban and Touring RM.
In Sport and Race modes the ABS is set to level 2. The rider can still further raise the level of sportiness by activating level 1 from the menu, in this case the ABS function (non cornering) is active only on the front axle, and deactivated on the rear wheel, allowing the rear to drift under braking in sportier driving. The V4 Pikes Peak ABS level 1 is mainly oriented to road or racetrack performance while Multistrada V4/V4S ABS level 1 is for off-road application.
Ducati Wheelie Control (DWC)
Ducati Wheelie Control has been developed and set to the sporty characteristics of the Multistrada V4 Pikes Peak, to be even more accurate during impulsive maneuvers common in sporty riding. This system, integrated smoothly with the Ducati Riding Modes, offers 8 setting levels. It analyses the attitude of the bike; it detects any front wheel lift and controls torque and power to maximize acceleration in safety.
Ducati Traction Control (DTC)
A key element of the Ducati Safety Pack, DTC equipping the new Multistrada V4 Pikes Peak is a system constantly updated and now integrates data coming from the IMU platform, to efficiently keep under control grip losses and the lean angle. In just a few thousandths of a second with data coming from the sensors, DTC can detect and control rear wheelspin, boosting performance and active safety significantly. The system allows the user to choose between eight different levels. Each one has been programmed to provide a rear wheelspin tolerance that matches progressive levels of riding ability (classified from 1 to 8).
Vehicle Hold Control
The latest generation Vehicle Hold Control (VHC) system provides riders with easier restarts, even in critical situations like on a gradient; this is because it modulates brake pressure during starts, leaving the user free to focus on throttle and clutch control.
Adaptive Cruise Control
Front radar, perfectly integrated into the Multistrada Pikes Peak, controls the operation of the Adaptive Cruise Control (ACC), which by means of controlled braking and acceleration automatically adjusts the distance (selectable on four levels) from other vehicles when riding at a speed between 18.5 and 99 mph. This car-derived system has been evolved and developed according to the dynamics and ergonomics of a two-wheeled vehicle. In particular, the authority of the system in terms of deceleration and acceleration has been limited to ensure the rider can maintain constant control of the vehicle in any situation. The ACC can be inserted and adjusted using the dedicated buttons located on the left block. Thanks to the DQS Up & Down, the rider can shift up or down without the ACC deactivating during the acceleration and deceleration phases. ACC system allows for more comfortable riding, especially on long motorway journeys.
Blind Spot Detection
Rear radar technology, housed under the headlight, can detect and report vehicles approaching in the so-called blind spot, namely the area not visible either directly by the rider or through the rear-view mirror. The BSD (Blind Spot Detection) system monitors this situation thanks to the LEDs positioned on the rear-view mirrors. The BSD system also signals the approaching from behind of vehicles at high speed. In both cases, if the user activates the direction indicator expressing the intention to change lane, the BSD flashes the LED signalling a potentially dangerous condition. Thanks to the dedicated menu, the user can adjust the brightness of the system on three different levels.
Hands Free ignition
The Multistrada V4 Pikes Peak uses a Hands-Free starting system that guarantees the best safety standards. Thanks to this system the rider can easily keep the key in his pocket and start the engine with the dedicated button positioned immediately behind the steering plate.
Headlight and indicators
The Ducati Multistrada V4 Pikes Peak is equipped as standard with full LED lights and a front headlight with DRL and Cornering Lights. The rear light integrates the Ducati Brake Light function, which in the event of sudden braking automatically activates the flashing of the light in order to appropriately signal the condition of sudden slowdown. The direction indicators, also LED, turn off automatically after use thanks to the auto shut-off system.
2023 Ducati Multistrada V4 Pike’s Peak – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $31,595 USD
Canada MSRP Price: from $35,395 CDN
Europe/UK MSRP Price: from £26,595 GBP (On The Road inc 20% Vat)
Type
V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Displacement
1,158 cc (71 cu in)
Bore x Stroke
83 mm x 53.5 mm
Compression Ratio
14.0:1
Power
170 hp (125 kW) @ 10,500 rpm
Torque
12.7 kgm (125 Nm, 92 lb ft) @ 8,750 rpm
Fuel Injection
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system

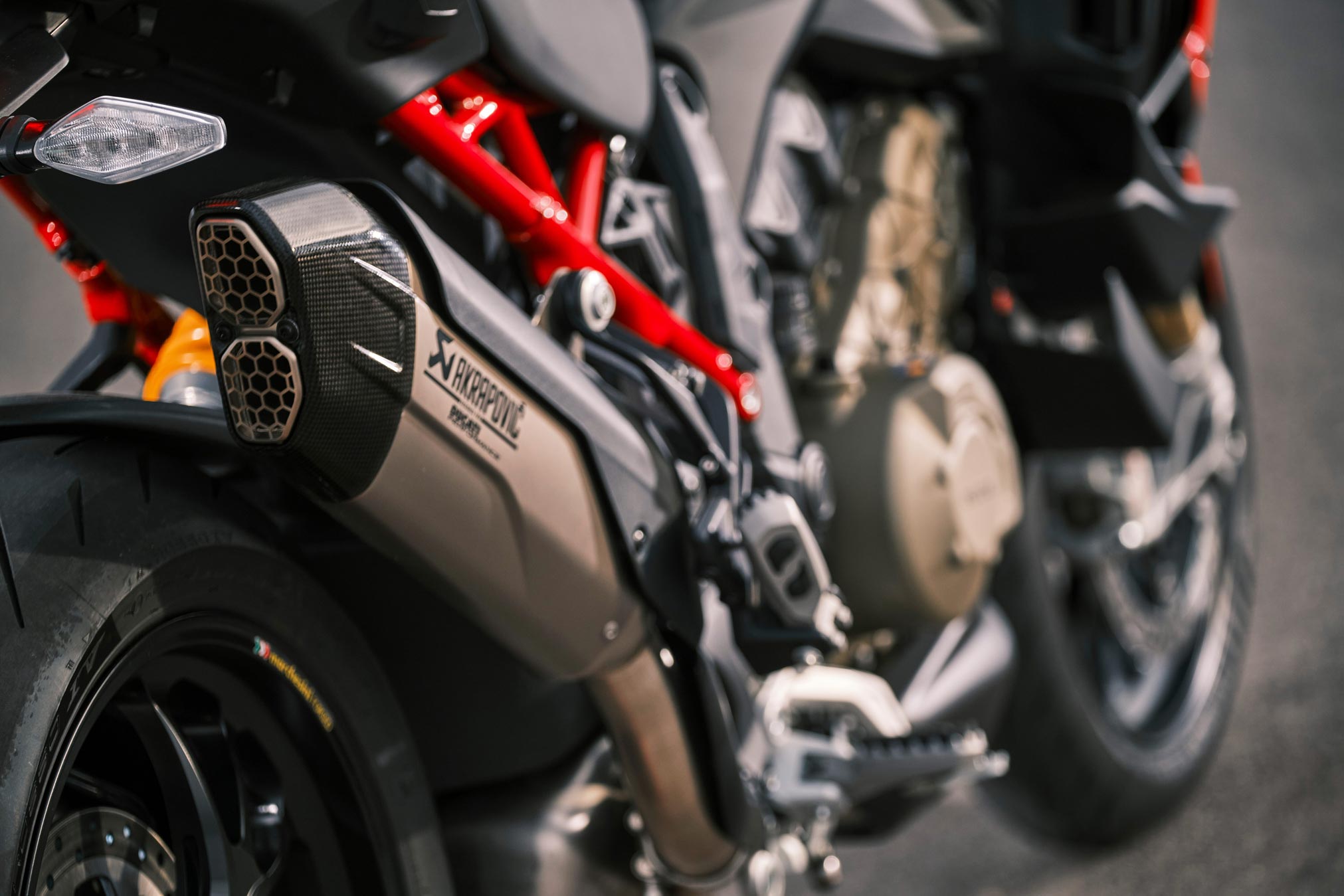

Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Gearbox
6 speed with Ducati Quick Shift (DQS) up/down
Primary drive
Straight cut gears, ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, front sprocket z16, rear sprocket z42
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Frame
Aluminium monocoque frame
Front suspension
Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel
Marchesini light alloy forged, 3.5″ x 17″
Front Tire
Pirelli Diablo Rosso IV 120/70 ZR17
Rear suspension
Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminium single-sided swingarm
Rear Wheel
Marchesini light alloy forged, 6″ x 17″
Rear Tire
Pirelli Diablo Rosso IV 190/55 ZR17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Instrumentation
6.5″ TFT colour display with Ducati Connect and full-map navigation system
Dry Weight
214 kg (472 lb)
Curb Weight
239 kg (527 lb)
Seat Height
Adjustable, 840 mm – 860 mm (33.1 in – 33.9 in)
855 mm – 875 mm (33.7 in – 34.4 in) with high seat accessory
810 mm – 830 mm (31.9 in – 32.7 in) with low seat accessory
Wheelbase
1,595 mm (62.8 in)
Rake
25,75°
Trail
120 mm (4.7 in)
Fuel Tank Capacity
22 l (5.8 US gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control, Blind Spot Detection
Standard Equipment
Öhlins Smart EC 2.0 electronic suspension, Ducati Quick Shift, Adaptive Cruise Control, Hands-free, Backlit handlebar switches, 6.5″ TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fiber front mudguard and beak, Type-approved Akrapovic muffler, Two-tone seat
Warranty
24 months, unlimited mileage.
Maintenance Service Intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
60,000 km (36,000 miles)
Standard
–
Notes
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
2023 Ducati Multistrada V4 Pike’s Peak – Totalmotorcycle.com Canada Specifications/Technical Details
Type
V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Displacement
1,158 cc (71 cu in)
Bore x Stroke
83 mm x 53.5 mm
Compression Ratio
14.0:1
Power
170 hp (125 kW) @ 10,500 rpm
Torque
12.7 kgm (125 Nm, 92 lb ft) @ 8,750 rpm
Fuel Injection
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Gearbox
6 speed with Ducati Quick Shift (DQS) up/down
Primary drive
Straight cut gears, ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, front sprocket z16, rear sprocket z42
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel
Marchesini light alloy forged, 3.5″ x 17″
Front Tire
Pirelli Diablo Rosso IV 120/70 ZR17
Rear suspension
Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminium single-sided swingarm
Rear Wheel
Marchesini light alloy forged, 6″ x 17″
Rear Tire
Pirelli Diablo Rosso IV 190/55 ZR17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad callipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS
Instrumentation
6.5″ TFT colour display with Ducati Connect and full-map navigation system
Dry Weight
214 kg (472 lb)
Curb Weight
239 kg (527 lb)
Seat Height
Adjustable, 840 mm – 860 mm (33.1 in – 33.9 in)
855 mm – 875 mm (33.7 in – 34.4 in) with high seat accessory
810 mm – 830 mm (31.9 in – 32.7 in) with low seat accessory
Wheelbase
1,595 mm (62.8 in)
Rake
25,75°
Trail
120 mm (4.7 in)
Fuel Tank Capacity
22 l (5.8 US gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control, Blind Spot Detection
Standard Equipment
Öhlins Smart EC 2.0 electronic suspension, Ducati Quick Shift, Adaptive Cruise Control, Hands-free, Backlit handlebar switches, 6.5″ TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fiber front mudguard and beak, Type-approved Akrapovic muffler, Two-tone seat
Warranty
24 months, unlimited mileage.
Maintenance Service Intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
60,000 km (36,000 miles)
Valve Clearance Check
60,000 km (36,000 miles)
Notes
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
2023 Ducati Multistrada V4 Pike’s Peak – Totalmotorcycle.com European Specifications/Technical Details
Type
V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Displacement
1,158 cc (71 cu in)
Bore x Stroke
83 mm x 53.5 mm
Compression Ratio
14.0:1
Power
170 hp (125 kW) @ 10,500 rpm
Torque
12.7 kgm (125 Nm, 92 lb ft) @ 8,750 rpm
Fuel Injection
Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
Exhaust
Stainless steel muffler, double catalytic converter and 4 lambda probes
Gearbox
6 speed with Ducati Quick Shift (DQS) up/down
Primary drive
Straight cut gears, ratio 1.8:1
Ratio
1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
Final drive
Chain, front sprocket z16, rear sprocket z42
Clutch
Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Frame
Aluminum monocoque frame
Front suspension
Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Wheel
Marchesini light alloy forged, 3.5″ x 17″
Front Tyre
Pirelli Diablo Rosso IV 120/70 ZR17
Rear suspension
Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminium single-sided swingarm
Rear Wheel
Marchesini light alloy forged, 6″ x 17″
Rear Tyre
Pirelli Diablo Rosso IV 190/55 ZR17
Wheel Travel (Front/Rear)
170 mm / 170 mm (6.7 in / 6.7 in)
Front Brake
2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad callipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS
Instrumentation
6.5″ TFT colour display with Ducati Connect and full-map navigation system
Dry Weight
214 kg (472 lb)
Kerb Weight
239 kg (527 lb)
Seat Height
Adjustable, 840 mm – 860 mm (33.1 in – 33.9 in)
855 mm – 875 mm (33.7 in – 34.4 in) with high seat accessory
810 mm – 830 mm (31.9 in – 32.7 in) with low seat accessory
Wheelbase
1,595 mm (62.8 in)
Rake
25,75°
Trail
120 mm (4.7 in)
Fuel Tank Capacity
22 l (5.8 US gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control, Blind Spot Detection
Standard Equipment
Öhlins Smart EC 2.0 electronic suspension, Ducati Quick Shift, Adaptive Cruise Control, Hands-free, Backlit handlebar switches, 6.5″ TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fiber front mudguard and beak, Type-approved Akrapovic muffler, Two-tone seat
Warranty
48 months, unlimited mileage.
Maintenance Service Intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
60,000 km (36,000 miles)
Valve Clearance Check
60,000 km (36,000 miles)
Standard
Euro 5
CO2 Emissions
162 g/km
Consumption
7.0 l/100 km*
*data under revision
Emission notes
Only for countries where Euro 5 standard applies.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
