2023 Harley-Davidson Fat Boy Anniversary: STEAMROLLER ON 2-WHEELS.

Introducing the 2023 Harley-Davidson Fat Boy Anniversary…

Proof that more is better. The original wide ride on two wheels with steamroller stance takes on a whole new look in celebration of Harley-Davidson’s 120th anniversary.

The original fat custom icon, now with bright chrome finishes. Hot rod riders who like satin chrome and a steamroller stance. Commanding the road with the fattest tires available in the lineup. Milwaukee-Eight 114 V-Twin engine and Lakester disc wheels. You’ll feel the difference the instant you crack the throttle. New for 2023, electronic cruise control is now a standard feature.

More is better. Stand out from the crowd.

Canyon cruiser. Boulevard brawler. The original fat custom icon, now with bright chrome finishes.

2023 Harley-Davidson Fat Boy Anniversary Totalmotorcycle.com Key Features

• Bold 120th anniversary themed paint
• Relaxed riding position
• Floorboards
• Passenger seat
• Low
• Hot rod riders who like bright chrome and a steamroller stance

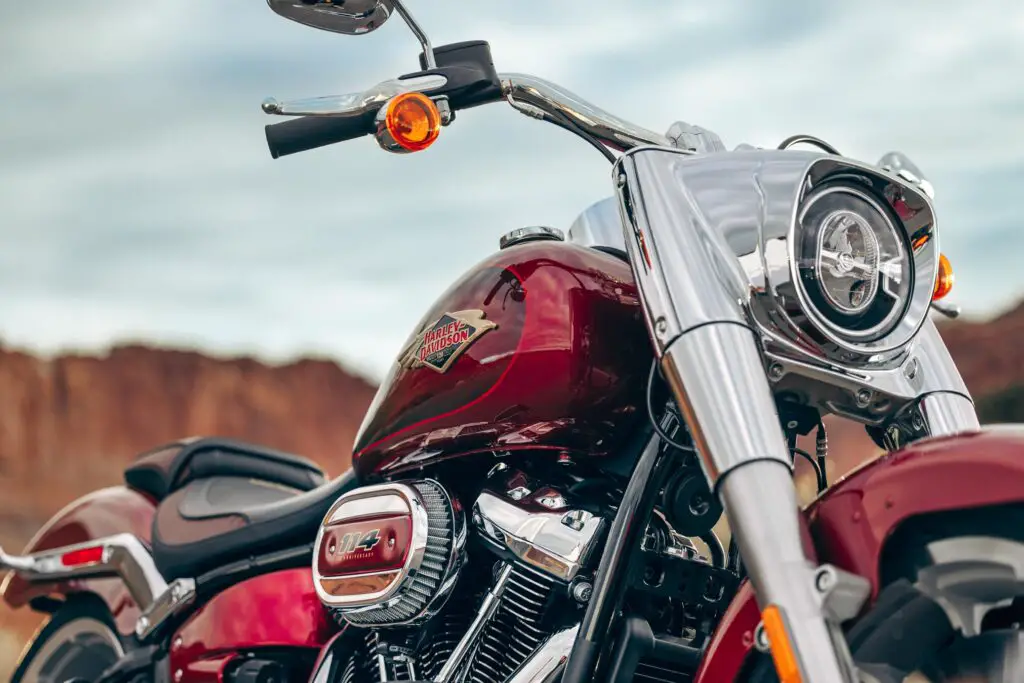

• Commanding the road with fat tires and a squared-up headlamp
• Milwaukee-Eight 114 V-Twin engine and Lakester disc wheels

2023 Harley-Davidson Fat Boy Anniversary Totalmotorcycle.com Features and Benefits

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.

BRIGHT CHROME FINISHES
A healthy serving of sculpted bright chrome gives the Fat Boy motorcycle a look that’ll make a big impact.

STEAMROLLER STANCE
A muscular look thanks to solid-disc Lakester wheels wrapped in the widest front tire we’ve ever offered from the factory at 160mm combined with a rear tire at 240mm.

SIGNATURE LED FORWARD LIGHTING
Darkness-defying lighting that gives you great nighttime visibility.

HIGH PERFORMANCE REAR MONO SHOCK
Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.

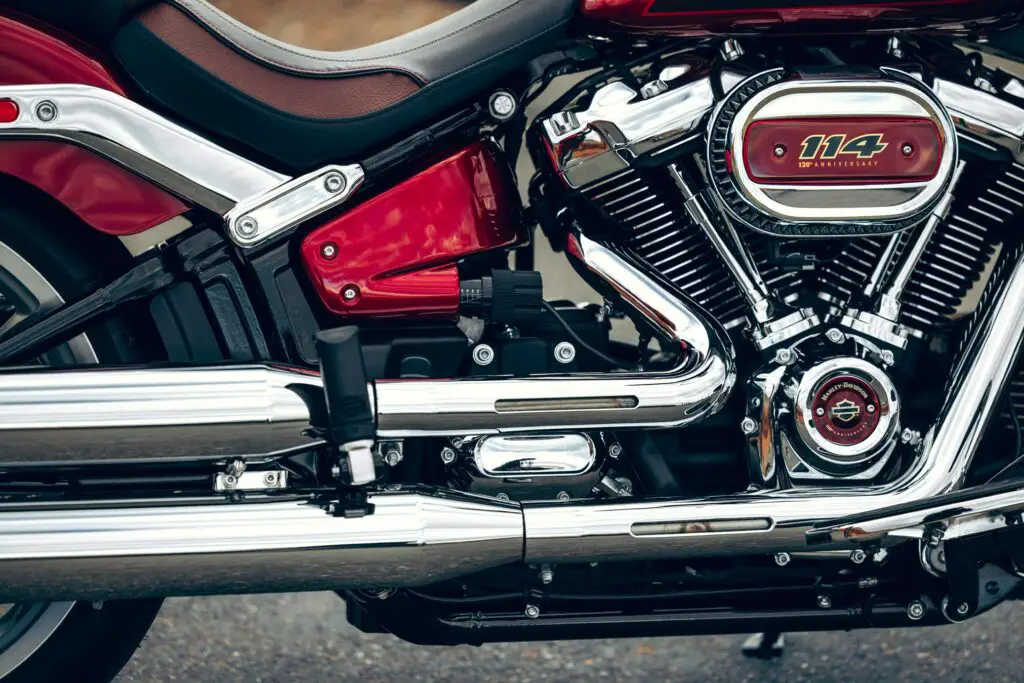

MILWAUKEE-EIGHT 114
Loads of torque for on-demand power you can feel with each twist, along with the familiar H-D sound.

HIGH PERFORMANCE FRONT SUSPENSION
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

2023 Harley-Davidson Fat Boy Anniversary – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $21,699 USD
Canada MSRP Price: $27,599 CDN
Europe/UK MSRP Price: £27,895 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

93.3 in.

SEAT HEIGHT, LADEN ⁷

25.9 in.

GROUND CLEARANCE

4.5 in.

RAKE

30

TRAIL

4.1 in.

WHEELBASE

65.6 in.

TIRES, FRONT SPECIFICATION

160/60R18,70V,BW

TIRES, REAR SPECIFICATION

240/40R18,79V,BW

TIRE, TYPE

Michelin Scorcher “11” front and rear

FUEL CAPACITY

5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

671 lb.

WEIGHT, IN RUNNING ORDER

699 lb.

ENGINE

ENGINE ¹

Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 staggered; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

119 ft-lb

ENGINE TORQUE (RPM)

3000

LEAN ANGLE, RIGHT (DEG.)

25.6

LEAN ANGLE, LEFT (DEG.)

25.6

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁹

Machined, Lakester cast aluminum

WHEELS, REAR TYPE ⁹

Machined, Lakester cast aluminum

BRAKES, TYPE

Front and rear silver, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED bullet front turn signals, Incandescent bullet rear turn signals

GAUGES

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Fat Boy Anniversary – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,370 mm

SEAT HEIGHT, UNLADEN

675 mm

GROUND CLEARANCE

115 mm

RAKE

30

TRAIL

104 mm

WHEELBASE

1,665 mm

TIRES, FRONT SPECIFICATION

160/60R18,70V,BW

TIRES, REAR SPECIFICATION

240/40R18,79V,BW

TIRE, TYPE

Michelin Scorcher “11” front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

304 kg

WEIGHT, IN RUNNING ORDER

317 kg

ENGINE

ENGINE ²

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 staggered; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

161 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

94 HP / 70 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

25.6

LEAN ANGLE, LEFT (DEG.)

25.6

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Machined, Lakester cast aluminum

WHEELS, REAR TYPE ⁴

Machined, Lakester cast aluminum

BRAKES, TYPE

Front and rear silver, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED Bullet Turn Signals

GAUGES

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Fat Boy Anniversary – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,370 mm

SEAT HEIGHT, UNLADEN

675 mm

GROUND CLEARANCE

115 mm

RAKE

30

TRAIL

104 mm

WHEELBASE

1,665 mm

TYRES, FRONT SPECIFICATION

160/60R18,70V,BW

TYRES, REAR SPECIFICATION

240/40R18,79V,BW

TYRE, TYPE

Michelin Scorcher “11” front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

304 kg

WEIGHT, IN RUNNING ORDER

317 kg

ENGINE

ENGINE ²

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 staggered; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

155 Nm

ENGINE TORQUE (RPM)

3250

HORSEPOWER

94 HP / 70 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

25.6

LEAN ANGLE, LEFT (DEG.)

25.6

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

129 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Machined, Lakester cast aluminum

WHEELS, REAR TYPE ⁴

Machined, Lakester cast aluminum

BRAKES, TYPE

Front and rear silver, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED headlamp, low and high beam with signature position lighting, All LED Tail/Stop lamp with signature tail lighting, LED Bullet Turn Signals

GAUGES

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
