2023 Harley-Davidson Heritage Classic 114: PURE ROCK & ROLL.

Introducing the 2023 Harley-Davidson Heritage Classic 114…

The refined finishes, modern edge and reinvigorated ride of the Heritage Classic model take nostalgia ripping into the here and now. The Heritage Classic comes in two finishes from the factory. Make noise with the Milwaukee-Eight 107 with classic chrome style from the engine to the steel laced wheels or the 114 that comes with blacked-out finishes.

Rock and roll on two wheels. A show stopper. Experience endless miles of Milwaukee-Eight V-Twin power.

The quintessential American cruiser. Showstopping vintage details and pure rock and roll style.









2023 Harley-Davidson Heritage Classic 114 Totalmotorcycle.com Key Features

  • Upright riding position
  • Floorboards
  • Passenger seat
  • Saddlebags
  • Detachable windshield



  • Riders ready to chase excitement across state lines
  • Highway riding with full fenders and detachable windscreen
  • Milwaukee-Eight 114 V-Twin engine and steel laced wheels





2023 Harley-Davidson Heritage Classic 114 Totalmotorcycle.com Features and Benefits

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.

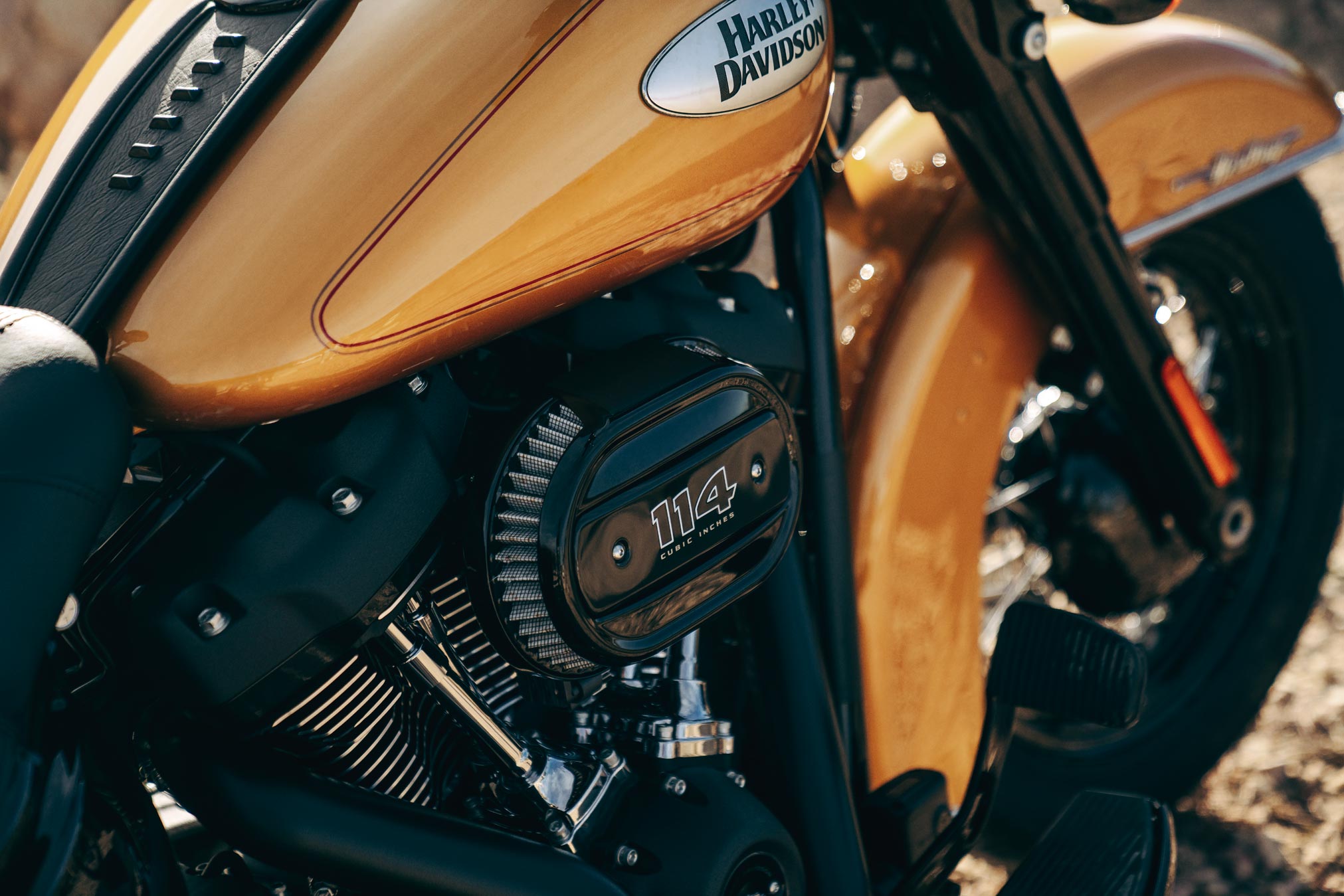

MILWAUKEE-EIGHT V-TWIN ENGINE
A powerful, cool-running engine with crisp throttle response and that classic Harley sound.

HIGH PERFORMANCE REAR MONO SHOCK
Easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look.

DETACHABLE WINDSCREEN
Go from touring to cruising in a heartbeat. Leave the screen on for the long haul or remove it in seconds for a completely new look and ride.

LOCKABLE AND SEALED SADDLEBAGS
Sleek and roomy with enough space to stash your riding essentials.

DAYMAKER SIGNATURE LED FORWARD LIGHTING
A brilliant LED lamp that produces a bright natural daylight color beam that lights up the surroundings.





2023 Harley-Davidson Heritage Classic 114 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $21,199 to $22,949 USD
Canada MSRP Price: $26,499 to $28,799 CDN
Europe/UK MSRP Price: £23,095 to £25,245 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

95.1 in.

SEAT HEIGHT, LADEN 7

26.3 in.

GROUND CLEARANCE

4.7 in.

RAKE

30

TRAIL

5.5 in.

WHEELBASE

64.2 in.

TIRES, FRONT SPECIFICATION

130/90B16,73H,BW

TIRES, REAR SPECIFICATION

150/80B16,77H,BW

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

697 lb.

WEIGHT, IN RUNNING ORDER

728 lb.

LUGGAGE CAPACITY -VOLUME

1.5 cu ft

ENGINE

ENGINE 1

Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM 3

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shorty dual; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE 2

119 ft-lb

ENGINE TORQUE (RPM)

3000

LEAN ANGLE, RIGHT (DEG.)

27.3

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY 5

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment

WHEELS, OPTIONAL STYLE TYPE

Base model: Black or chrome, steel laced (based on trim); Anniversary model: N/A

WHEELS, FRONT TYPE 9

Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum

WHEELS, REAR TYPE 9

Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8

All LED, low beam, high beam and signature position lamp, Incandescent Zeppelin tail lamp, Incandescent bullets, Incandescent bullet light bar

GAUGES

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication



  1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  2. Values shown are nominal. Performance may vary by country and region.
  3. Standard and optional fuel systems may vary by country.
  4. See motorcycle owner’s manual for complete details.
  5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
  6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
  7. Measurement reflects 180 lb. (81.7 kg) operator weight.
  8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
  9. Standard and optional wheels may vary by country and region.





2023 Harley-Davidson Heritage Classic 114 – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,415 mm

SEAT HEIGHT, UNLADEN

680 mm

GROUND CLEARANCE

120 mm

RAKE

30

TRAIL

140 mm

WHEELBASE

1,630 mm

TIRES, FRONT SPECIFICATION

130/90B16,73H,BW

TIRES, REAR SPECIFICATION

150/80B16,77H,BW

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

316 kg

WEIGHT, IN RUNNING ORDER

330 kg

LUGGAGE CAPACITY -VOLUME

0.043 m3

ENGINE

ENGINE 2

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM 3

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shorty dual; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE 3

161 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

94 HP / 70 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

27.3

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY 7

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment

WHEELS, OPTIONAL STYLE TYPE

Base model: Black or chrome, steel laced (based on trim); Anniversary model: N/A

WHEELS, FRONT TYPE 4

Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum

WHEELS, REAR TYPE 4

Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED, low beam, high beam and signature position lamp, Incandescent Zeppelin tail lamp, Incandescent bullets, Incandescent bullet light bar

GAUGES

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication



  1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
  2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  3. Values shown are nominal. Performance may vary by country and region.
  4. Standard and optional wheels may vary by country and region.
  5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
  6. As measured using the MIC City and MIC Combined (115 km/h) tests.
  7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.





2023 Harley-Davidson Heritage Classic 114 – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,415 mm

SEAT HEIGHT, UNLADEN

680 mm

GROUND CLEARANCE

120 mm

RAKE

30

TRAIL

140 mm

WHEELBASE

1,630 mm

TYRES, FRONT SPECIFICATION

130/90B16,73H,BW

TYRES, REAR SPECIFICATION

150/80B16,77H,BW

TYRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

18.9 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

316 kg

WEIGHT, IN RUNNING ORDER

330 kg

LUGGAGE CAPACITY -VOLUME

0.043 m3

ENGINE

ENGINE 2

Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shorty dual; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE 3

155 Nm

ENGINE TORQUE (RPM)

3250

HORSEPOWER

94 HP / 70 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

27.3

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO2 EMISSIONS TESTING METHOD

EU 134/2014

CO2 EMISSIONS

128 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment

WHEELS, OPTIONAL STYLE TYPE 4

Base model: Black or chrome, steel laced (based on trim); Anniversary model: N/A

WHEELS, FRONT TYPE 4

Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum

WHEELS, REAR TYPE 4

Base model: Gloss black, 9-spoke cast aluminum; Anniversary model: Chrome, 9-spoke cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, low beam, high beam and signature position lamp, Incandescent Zeppelin tail lamp, Incandescent bullets, Incandescent bullet light bar

GAUGES

5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication



  1. All prices shown are suggested retail prices only.

    Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

    Please speak with the dealership team for further details and to obtain a final on the road price.

  2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
  3. Values shown are nominal. Performance may vary by country and region.
  4. Standard and optional wheels may vary by country and region.
  5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
