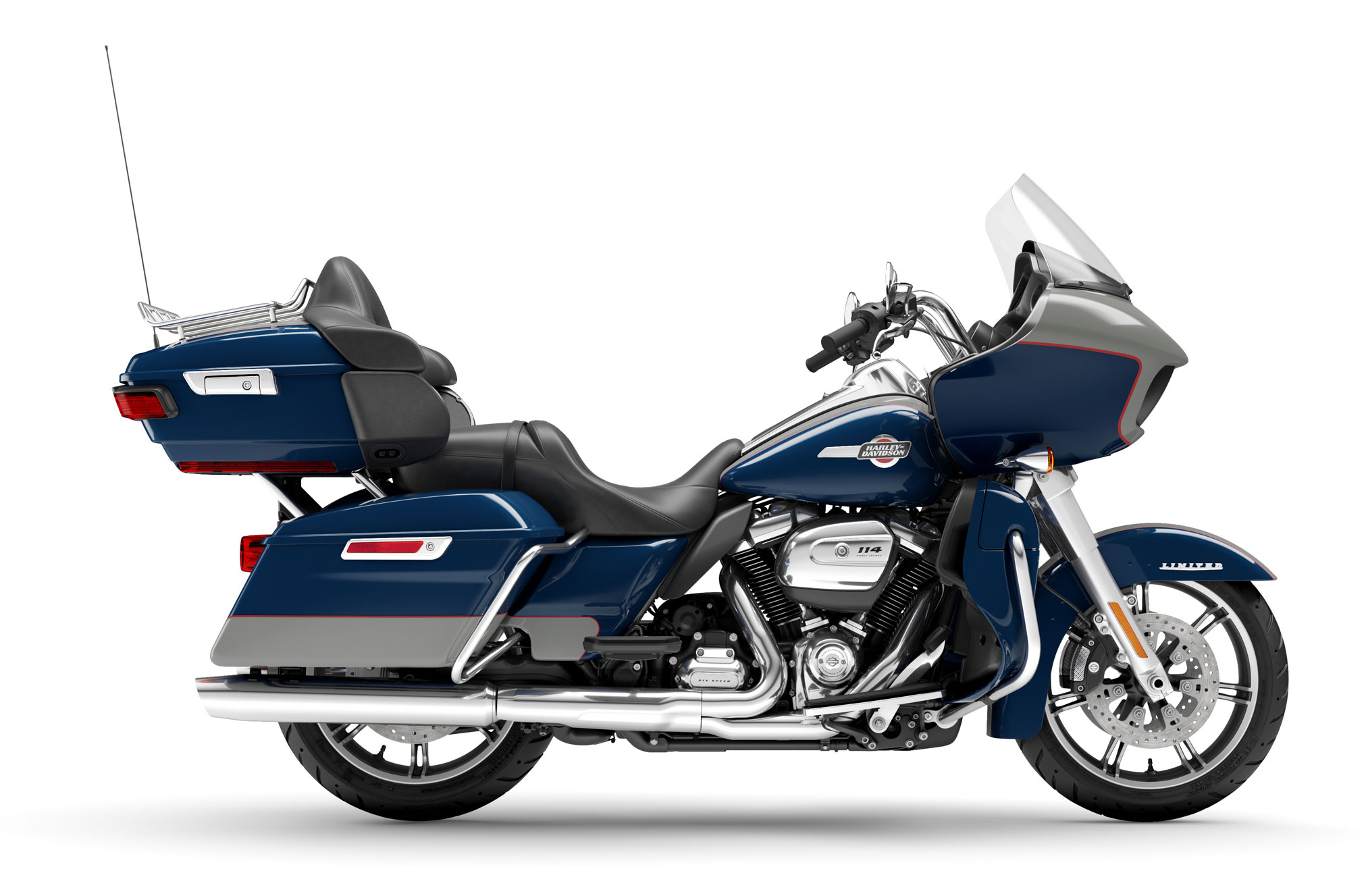

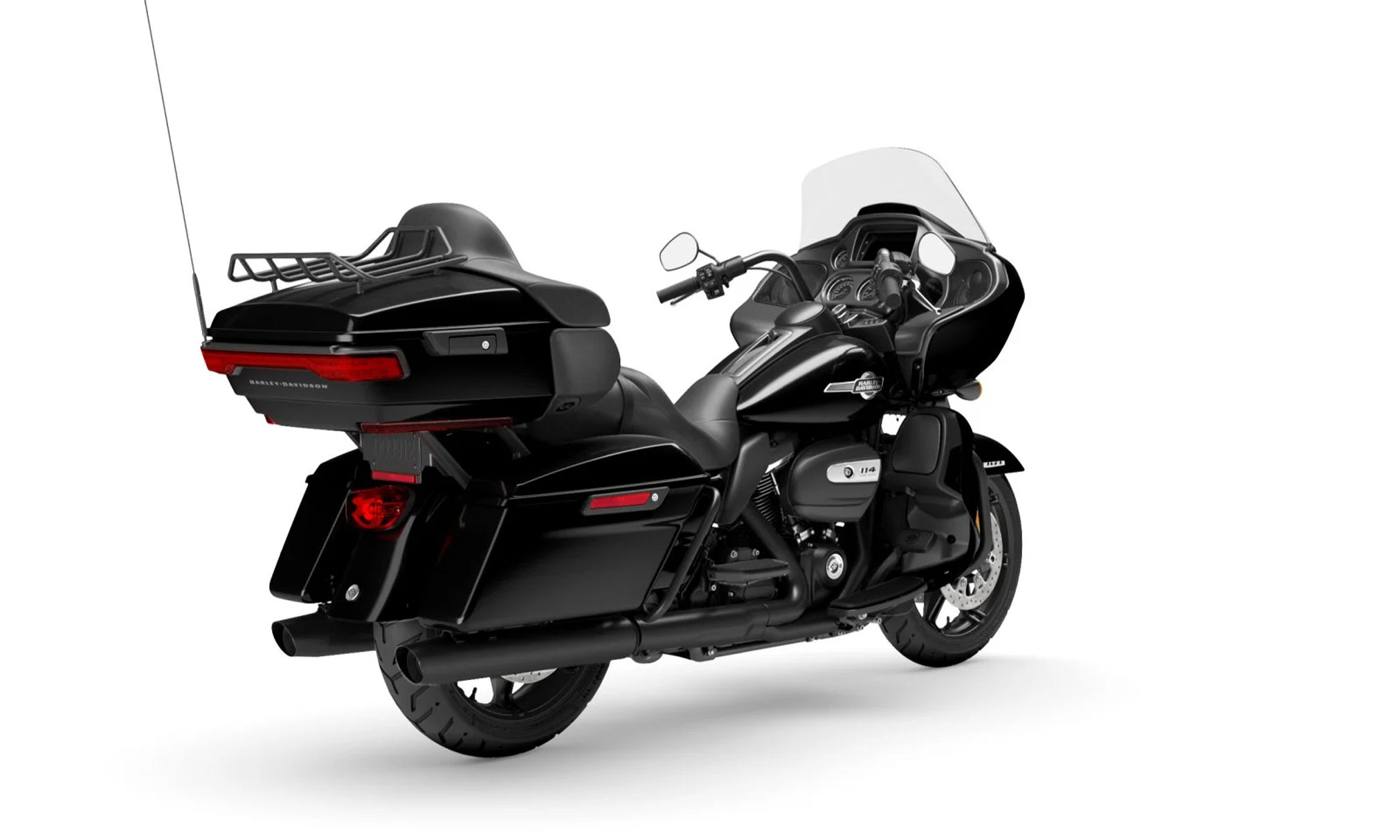

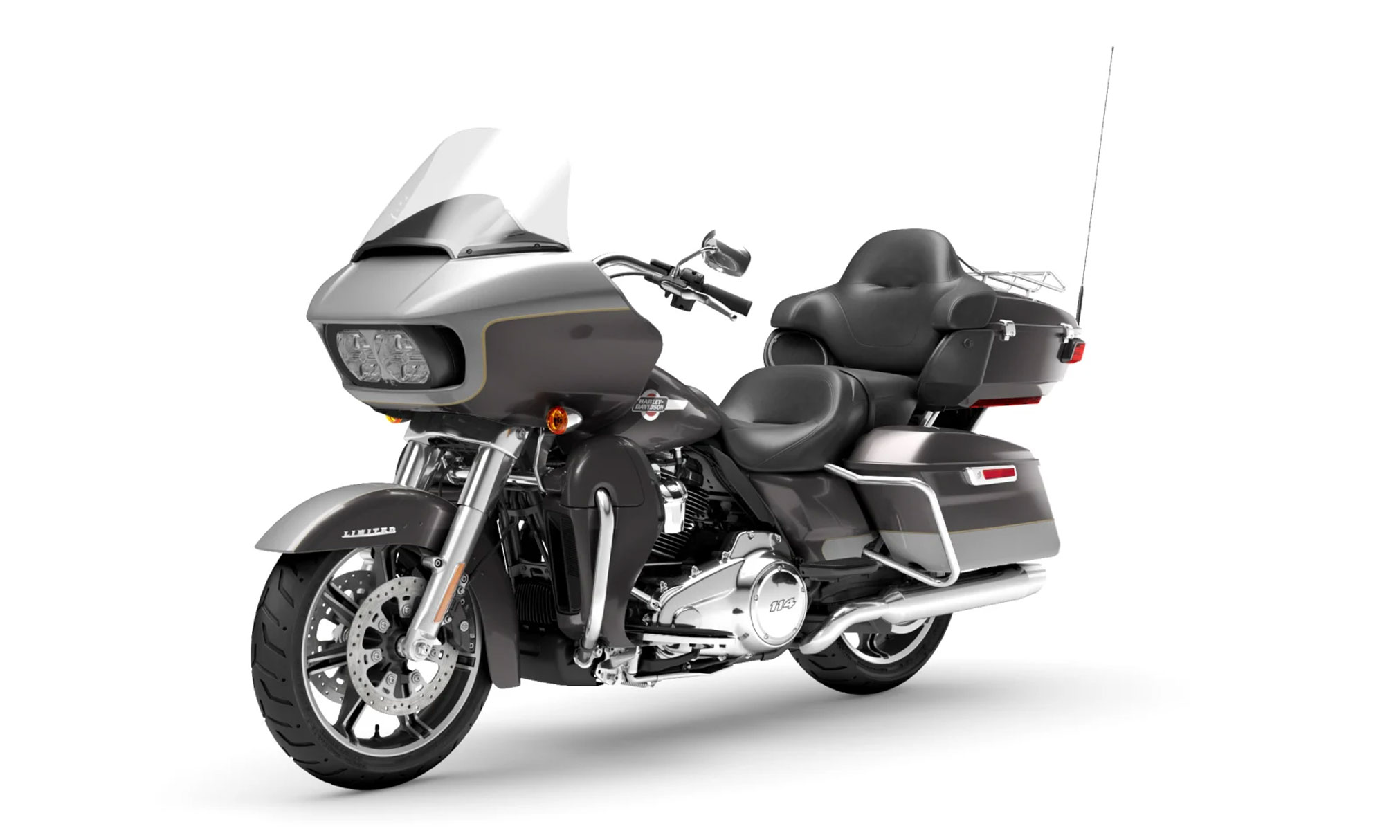

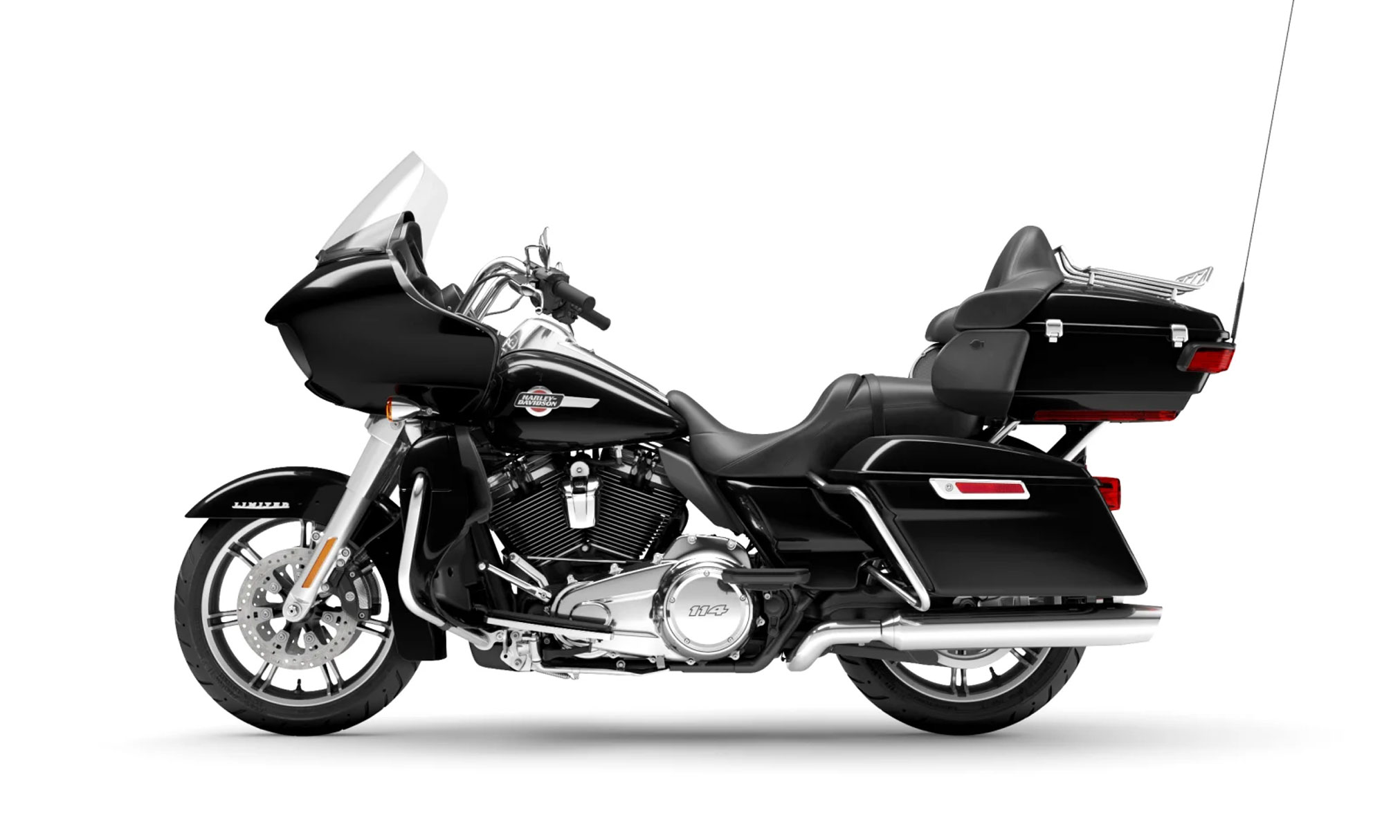

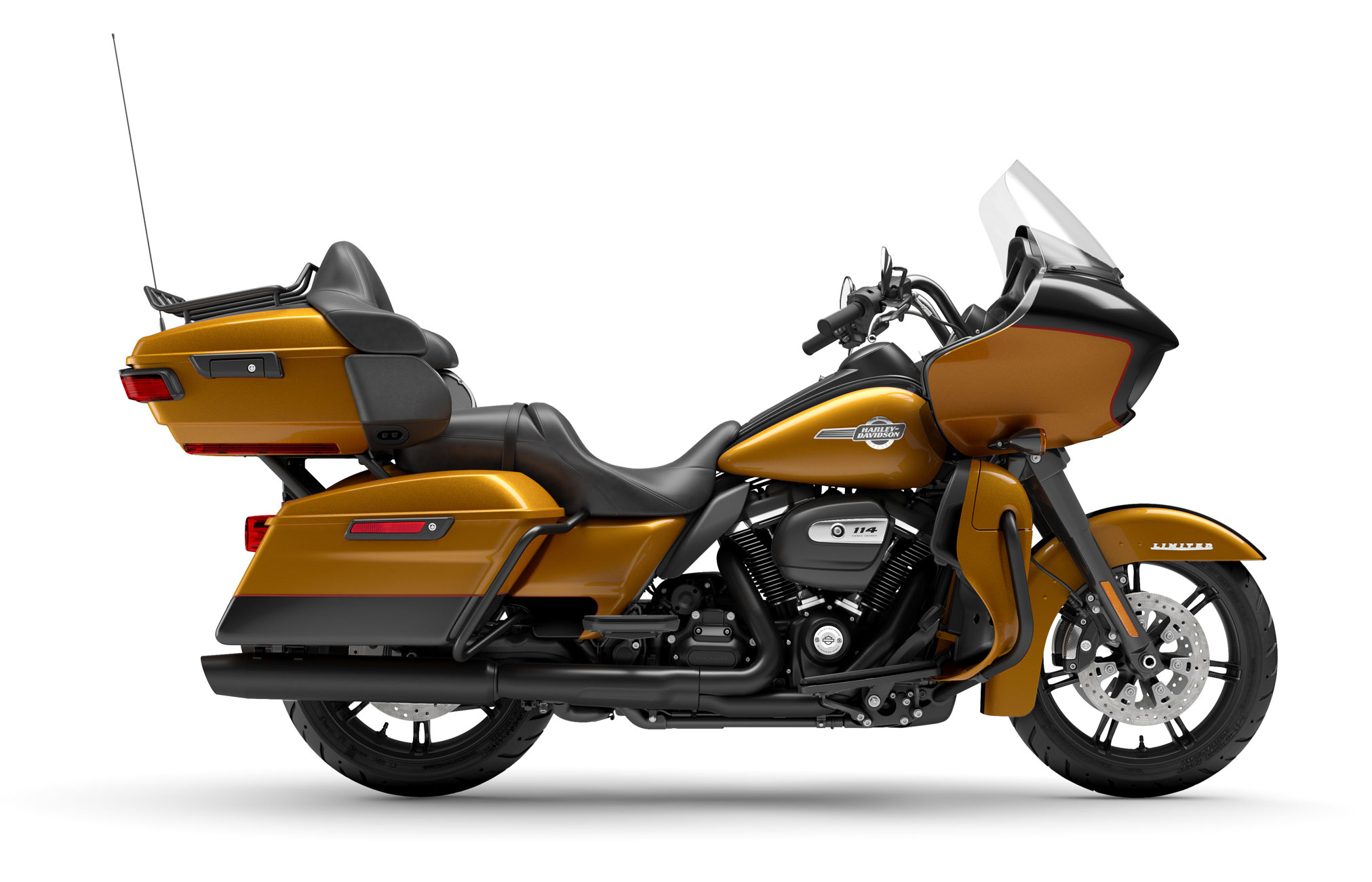

2023 Harley-Davidson Road Glide Limited: CHASE THE HORIZON.
Introducing the 2023 Harley-Davidson Road Glide Limited…
A long-haul, two-up touring specialist featuring the distinctive aerodynamic Road Glide shark-nose fairing with triple split stream vents that limit rider head buffeting. The standard Milwaukee-Eight 114 engine delivers smooth, powerful touring performance while dual Daymaker LED headlamps offer outstanding night visibility. Premium Touring suspension includes an easy-adjust rear shock pre-load for a smooth, confident ride. Reflex Electronic Linked Brakes with ABS deliver confident braking performance. The Boom! Box GTS infotainment system with color touch screen offers navigation, communication and entertainment options.
For adventures meant to be shared. Roam wide-open roads and spacious skies. Ultimate touring comfort and performance.
A masterful touring machine built to chase the horizon in style.
2023 Harley-Davidson Road Glide Limited Totalmotorcycle.com Key Features
- Upright riding position
- Floorboards
- Passenger seat with backrest
- Saddlebags
- Frame mounted fairing
- Infotainment
- Rider safety enhancements available
- Riders seeking fully-loaded comfort and performance
- Covering mile after mile with gear and a passenger
- Milwaukee-Eight 114 V-Twin engine and sharknose fairing
2023 Harley-Davidson Road Glide Limited Totalmotorcycle.com Features and Benefits
The category we’ve created from the ground up. Go the distance, in style. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson motorcycle.
The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.
SHARKNOSE FAIRING
A distinctive aerodynamic, sharknose fairing with triple split stream vents that deliver smooth air flow and reduce head buffeting.
MILWAUKEE-EIGHT 114 ENGINE
The most displacement in standard H-D Touring models. Hold tight for 114 cubic inches of passing and horizon-chasing power.
BOOM! BOX GTS INFOTAINMENT SYSTEM
An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.
PREMIUM TOUR-PAK LUGGAGE CARRIER
A sleek yet spacious Tour-Pak luggage carrier that can easily house both rider and passenger helmets along with extra travel essentials.
PASSENGER SEAT & BACKREST
Long-distance touring comfort and performance for two.
2023 Harley-Davidson Road Glide Limited – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $29,399 to $33,194 USD
Canada MSRP Price: $35,699 to $40,199 CDN
Europe/UK MSRP Price: £28,995 to £31,145 GBP (On The Road inc 20% Vat)
DIMENSIONS
LENGTH
102.2 in.
SEAT HEIGHT, LADEN 7
27.2 in.
GROUND CLEARANCE
5.1 in.
RAKE
26
TRAIL
6.7 in.
WHEELBASE
64 in.
TIRES, FRONT SPECIFICATION
BW 130/70B18 63H
TIRES, REAR SPECIFICATION
BW 180/55B18 80H
TIRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and rear
FUEL CAPACITY
6 gal.
OIL CAPACITY (W/FILTER)
5 qt.
WEIGHT, AS SHIPPED
897 lb.
WEIGHT, IN RUNNING ORDER
932 lb.
LUGGAGE CAPACITY -VOLUME
4.7 cu ft
ENGINE
ENGINE 1
Twin-Cooled Milwaukee-Eight 114
BORE
4.016 in.
STROKE
4.5 in.
DISPLACEMENT
114 cu in
COMPRESSION RATIO
10.5:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2:1:2 dual exhaust with 4 in. tapered mufflers
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 2
122 ft-lb
ENGINE TORQUE (RPM)
3000
LEAN ANGLE, RIGHT (DEG.)
32
LEAN ANGLE, LEFT (DEG.)
32
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 5
43 mpg
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.593
GEAR RATIOS (OVERALL) 2ND
6.65
GEAR RATIOS (OVERALL) 3RD
4.938
GEAR RATIOS (OVERALL) 4TH
4
GEAR RATIOS (OVERALL) 5TH
3.407
GEAR RATIOS (OVERALL) 6TH
2.875
CHASSIS
FRONT FORK
49mm Dual Bending Valve
REAR SHOCKS
Premium standard height hand-adjustable rear suspension
WHEELS, OPTIONAL STYLE TYPE
Gloss Black Slicer II
WHEELS, FRONT TYPE 9
Slicer II cast aluminum with clear coat
WHEELS, REAR TYPE 9
Slicer II cast aluminum with clear coat
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
32 mm, 4-piston fixed front and rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8
LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam, 8W/28W tail/stop and front signal lights, LED rear turn signals
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
WATTS PER CHANNEL
25
SPEAKERS
4
SPEAKER SIZE
5.25 inch standard
HEADSET SPECIFICATIONS (IF EQUIPPED)
16-64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – P&A Upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
RIDER/PASSENGER INTERCOM
Standard (Passenger Headset Sold Separately)
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
HILL HOLD CONTROL (HHC)
Optional
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Optional
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Optional
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Optional
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Optional
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
Optional
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional fuel systems may vary by country.
-
See motorcycle owner’s manual for complete details.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
-
Measurement reflects 180 lb. (81.7 kg) operator weight.
-
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
-
Standard and optional wheels may vary by country and region.
2023 Harley-Davidson Road Glide Limited – Totalmotorcycle.com Canada Specifications/Technical Details
DIMENSIONS
LENGTH
2,595 mm
SEAT HEIGHT, UNLADEN
735 mm
GROUND CLEARANCE
130 mm
RAKE
26
TRAIL
170 mm
WHEELBASE
1,625 mm
TIRES, FRONT SPECIFICATION
BW 130/70B18 63H
TIRES, REAR SPECIFICATION
BW 180/55B18 80H
TIRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and rear
FUEL CAPACITY
22.7 l
OIL CAPACITY (W/FILTER)
4.7 l
WEIGHT, AS SHIPPED
407 kg
WEIGHT, IN RUNNING ORDER
423 kg
LUGGAGE CAPACITY -VOLUME
0.132 m3
ENGINE
ENGINE 2
Twin-Cooled Milwaukee-Eight 114
BORE
102 mm
STROKE
114.3 mm
DISPLACEMENT
1,868 cc
COMPRESSION RATIO
10.5:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2:1:2 dual exhaust with 4 in. tapered mufflers
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 3
166 Nm
ENGINE TORQUE (RPM)
2750
HORSEPOWER
93 HP / 69 kW @ 5020 rpm
LEAN ANGLE, RIGHT (DEG.)
32
LEAN ANGLE, LEFT (DEG.)
32
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 7
5.5 l/100 km
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.593
GEAR RATIOS (OVERALL) 2ND
6.65
GEAR RATIOS (OVERALL) 3RD
4.938
GEAR RATIOS (OVERALL) 4TH
4
GEAR RATIOS (OVERALL) 5TH
3.407
GEAR RATIOS (OVERALL) 6TH
2.875
CHASSIS
FRONT FORK
49mm Dual Bending Valve
REAR SHOCKS
Premium standard height hand-adjustable rear suspension
WHEELS, OPTIONAL STYLE TYPE
Gloss Black Slicer II
WHEELS, FRONT TYPE 4
Slicer II cast aluminum with clear coat
WHEELS, REAR TYPE 4
Slicer II cast aluminum with clear coat
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
32 mm, 4-piston fixed front and rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS
LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam, 8W/28W tail/stop and front signal lights, LED rear turn signals
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
165 mm
WATTS PER CHANNEL
25
SPEAKERS
4
SPEAKER SIZE
5.25 inch standard
HEADSET SPECIFICATIONS (IF EQUIPPED)
16-64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – Parts & Accessories upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
RIDER/PASSENGER INTERCOM
Standard (Passenger Headset Sold Separately)
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
HILL HOLD CONTROL (HHC)
Included
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
Included
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
-
As measured using the MIC City and MIC Combined (115 km/h) tests.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
2023 Harley-Davidson Road Glide Limited – Totalmotorcycle.com Europe Specifications/Technical Details
DIMENSIONS
LENGTH
2,595 mm
SEAT HEIGHT, UNLADEN
735 mm
GROUND CLEARANCE
130 mm
RAKE
26
TRAIL
170 mm
WHEELBASE
1,625 mm
TYRES, FRONT SPECIFICATION
BW 130/70B18 63H
TYRES, REAR SPECIFICATION
BW 180/55B18 80H
TYRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and rear
FUEL CAPACITY
22.7 l
OIL CAPACITY (W/FILTER)
4.7 l
WEIGHT, AS SHIPPED
407 kg
WEIGHT, IN RUNNING ORDER
423 kg
LUGGAGE CAPACITY -VOLUME
0.132 m3
ENGINE
ENGINE 2
Twin-Cooled Milwaukee-Eight 114
BORE
102 mm
STROKE
114.3 mm
DISPLACEMENT
1,868 cc
COMPRESSION RATIO
10.5:1
FUEL SYSTEM
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2:1:2 dual exhaust with 4 in. tapered mufflers
PERFORMANCE
ENGINE TORQUE TESTING METHOD
EC 134/2014
ENGINE TORQUE 3
160 Nm
ENGINE TORQUE (RPM)
3000
HORSEPOWER
87 HP / 65 kW @ 5020 rpm
LEAN ANGLE, RIGHT (DEG.)
32
LEAN ANGLE, LEFT (DEG.)
32
FUEL ECONOMY TESTING METHOD
EU 134/2014
FUEL ECONOMY
6.3 l/100 km
CO2 EMISSIONS TESTING METHOD
EU 134/2014
CO2 EMISSIONS
146 g/km CO2
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.593
GEAR RATIOS (OVERALL) 2ND
6.65
GEAR RATIOS (OVERALL) 3RD
4.938
GEAR RATIOS (OVERALL) 4TH
4
GEAR RATIOS (OVERALL) 5TH
3.407
GEAR RATIOS (OVERALL) 6TH
2.875
CHASSIS
FRONT FORK
49mm Dual Bending Valve
REAR SHOCKS
Premium standard height hand-adjustable rear suspension
WHEELS, OPTIONAL STYLE TYPE 4
Gloss Black Slicer II
WHEELS, FRONT TYPE 4
Slicer II cast aluminum with clear coat
WHEELS, REAR TYPE 4
Slicer II cast aluminum with clear coat
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
32 mm, 4-piston fixed front and rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS
LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam, 8W/28W tail/stop and front signal lights, LED rear turn signals
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
165 mm
WATTS PER CHANNEL
25
SPEAKERS
4
SPEAKER SIZE
5.25 inch standard
HEADSET SPECIFICATIONS (IF EQUIPPED)
16-64 ohms
AM
Standard
FM
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – P&A Upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
RIDER/PASSENGER INTERCOM
Standard (Passenger Headset Sold Separately)
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
HILL HOLD CONTROL (HHC)
Included
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
Included
-
All prices shown are suggested retail prices only.
Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.
Please speak with the dealership team for further details and to obtain a final on the road price.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
