2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine: 41% MORE HORSEPOWER.
Introducing the 2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine…
Harley-Davidson riders craving no-compromise performance have a thrilling new option with the introduction of the Screamin’ Eagle 135ci Stage IV Performance Crate Engine. This complete Milwaukee-Eight engine for 2021-later Touring models is the new benchmark for factory-engineered American V-Twin performance, offering the most displacement, and the most power, ever created by Harley-Davidson for a street-compliant crate engine. Its development was fueled in part by the efforts of the Harley-Davidson Screamin’ Eagle factory racing team competing in the MotoAmerica Mission King of the Baggers roadracing series. To simplify set up of high-performance engines Harley-Davidson offers the new wireless Screamin’ Eagle Pro Street Performance Tuner, the only tuner available to maximize performance while being emissions and warranty compliant.

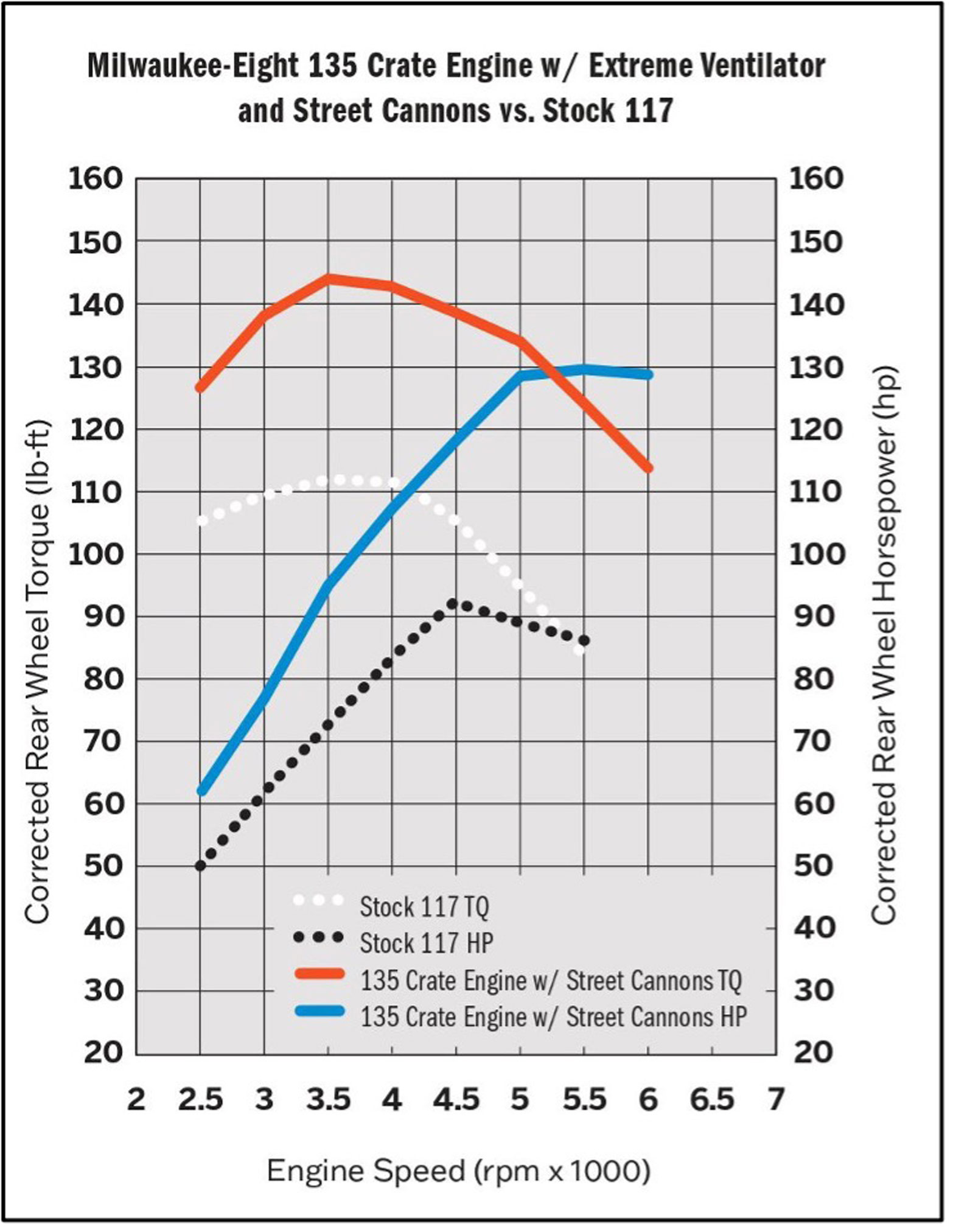

Engineered and tested as a complete collection of high-performance components and assembled from the bottom up at Harley-Davidson Powertrain Operations in Menomonee Falls, Wisconsin, this street-tuned 135-cubic-inch (2212cc) Screamin’ Eagle Crate Engine is designed to run with a wide-open throttle at high engine speeds and provide instant passing power from cruising speed. The engine delivers 143 lb.-ft. of rear-wheel torque at 3500 RPM and 130 rear-wheel horsepower at 5500 RPM – approximately 28 percent more torque and 41 percent more horsepower at the rear wheel than a production Milwaukee-Eight 117 engine.
TMW Correction: We originally posted this as a 2024 model year engine but this is actually a 2023 model year engine, which is even better news for Harley-Davidson owners as you won’t have to wait to buy it!
2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine Totalmotorcycle.com Key Features
This street-ready performance engine features premium Screamin’ Eagle components:
- New 68mm throttle body and matching CNC-machined intake manifold, originally developed for Harley-Davidson Screamin’ Eagle factory racing team engines, to maximize airflow to the engine.
- Screamin’ Eagle Extreme CNC-ported cylinder heads provide significantly improved efficiency of cylinder filling, leading to more explosive power and increased rear-wheel torque when compared to stock. High-performance valve springs remain stable with the high-lift cam and in high-RPM operation.
- Screamin’ Eagle Pro Billet Cam Plate and Oil Pump provides higher pressure when the oil is hot to keep pressure drops to a minimum.
- New 10.7:1 high-compression forged pistons.
- SE8-517 high-lift camshaft, high-performance cam bearing and high-performance tappets.
- Patent-protected 4.31-inch steel sleeve cylinders and new 4 5/8-inch flywheel (bore x stroke is 4.31 x 4.625).
- New high-capacity 6.8 gram/second fuel injectors.
- Screamin’ Eagle Ventilator Extreme Air Cleaner and Screamin’ Eagle Street Cannon mufflers (each sold separately) are not required but are highly recommended for peak performance.
2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine Totalmotorcycle.com Features and Benefits
The Screamin’ Eagle 135ci Stage IV Performance Crate Engine is intended for bolt-in installation in an original equipment-style 2021-later Harley-Davidson Touring chassis. No special fabrication or engine-mount relocation is required. The engine is backed by up to two-year manufacturer’s warranty for unmatched confidence when dealer-installed through the Custom Coverage program.
With an MSRP of $7,999.95 the Screamin’ Eagle 135ci Stage IV Performance Crate Engine is offered in Black or Chrome finish with 135 Stage IV badging on the cylinder heads and timer cover.
Two versions of the engine will be offered: For 2021-later Touring models equipped with Air/Oil-Cooled Milwaukee-Eight engine, and for 2021-later Touring models equipped with a Twin-Cooled™ Milwaukee-Eight engine. The engine does not fit Trike models. Installation requires the separate purchase of Head Pipe P/N 65600177. Air-Cooled models require Oil Cooler Fan Assist P/N 62700204 or Fan for Factory Oil Cooler P/N 26800195. All models require ECM recalibration with Screamin’ Eagle Pro Street Tuner for proper installation. Does not fit California models.
2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7,999.95 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine – Totalmotorcycle.com Canada Specifications/Technical Details
See Above
2023 Harley-Davidson Screamin’ Eagle 135ci Stage IV Engine – Totalmotorcycle.com Europe Specifications/Technical Details
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
