2023 Honda XL750 Transalp: THE MOUNTAINS ARE CALLING.
Introducing the 2023 Honda XL750 Transalp…
Around town or around the world, Honda’s brand-new XL750 Transalp carries the adventure forward from the iconic original, ready for a fresh generation of riders looking to travel wherever the road leads. Its eight-valve, parallel twin-cylinder engine delivers 67.5kW and 75Nm; Throttle By Wire (TBW) serves up 4 default riding modes plus User option, 5-level Honda Selectable Torque Control (HSTC) with integrated Wheelie Control and 3 levels of Engine Braking and Power. The steel frame wears full Showa suspension: 43mm SFF-CATM USD forks and rear shock working through Pro-Link. Dual, two-piston calipers bite hard up front and 21/18-inch wheels wear tubed tyres. The premium specification includes 5-inch colour TFT instrument display, with Honda Smartphone Voice Control, full LED lighting, auto-indicator cancel and Emergency Stop Signals (ESS) technology. An A2 licence option will also be available.
An all-round legend of adventure touring is reborn. With class-leading power and torque, in a chassis that delivers light on-road handling plus off-road control. A fairing and screen built for aerodynamics and wind protection, with the optimal riding position for all-day touring comfort. The new XL750 Transalp asks only one question. How far do you want to go?
2023 Honda XL750 Transalp Totalmotorcycle.com Key Features
Optimised Wind Protection and All-Day Comfort
If you’re spending all day getting somewhere reduced fatigue matters; the Transalp slips through high-speed airflow efficiently, for more relaxed highway cruising.
Advanced Technology for Riding Confidence No Matter the Conditions
Honda Selectable Torque Control (HSTC) monitors front and rear wheel speeds to instantly detect loss of rear traction or front lift, and adjust engine output accordingly. Each riding mode uses a specific HSTC setting, with a set amount of Wheelie Control integrated.
35kW A2 Licence Option Available
You can choose your Transalp with 35kW from new – so it’s A2 licence compatible. And, once you have your full motorcycle licence, a Honda dealer can re-write the ECU to put the full 67.5kW power in your throttle hand. How’s that for planning ahead?
Ready To Ride Rough
It’s good to be prepared. From dirt tracks to green lanes long-stroke Showa suspension absorbs bumps, while the 21/18-inch front and rear wheel combination roll smoothly over rough terrain.
Lightweight Nimble Steering Chassis For Intuitive Handling
At just 18.3kg the steel diamond-style main frame is light and integrates a sturdy rear subframe to support long-range touring loads. A forged aluminium top yoke ensures steering precision, while the aluminium swingarm operates through Pro-Link for supple control.
Colour TFT Display & Full Smartphone Connectivity Loop You In
Honda Smartphone Voice Control system (HSVCs) through the Honda RoadSync app allow you to access your android or iOS device via Bluetooth headset for navigation, calls, messages and music. The 5-inch TFT screen is also customisable with 4 distinct types of display.
Optimised Wind Protection and All-Day Comfort
If you’re spending all day getting somewhere reduced fatigue matters; the Transalp slips through high-speed airflow efficiently, for more relaxed highway cruising.
Advanced Technology for Riding Confidence No Matter the Conditions
Honda Selectable Torque Control (HSTC) monitors front and rear wheel speeds to instantly detect loss of rear traction or front lift, and adjust engine output accordingly. Each riding mode uses a specific HSTC setting, with a set amount of Wheelie Control integrated.
35kW A2 Licence Option Available
You can choose your Transalp with 35kW from new – so it’s A2 licence compatible. And, once you have your full motorcycle licence, a Honda dealer can re-write the ECU to put the full 67.5kW power in your throttle hand. How’s that for planning ahead?
Ready To Ride Rough
It’s good to be prepared. From dirt tracks to green lanes long-stroke Showa suspension absorbs bumps, while the 21/18-inch front and rear wheel combination roll smoothly over rough terrain.
Lightweight Nimble Steering Chassis For Intuitive Handling
At just 18.3kg the steel diamond-style main frame is light and integrates a sturdy rear subframe to support long-range touring loads. A forged aluminium top yoke ensures steering precision, while the aluminium swingarm operates through Pro-Link for supple control.
Colour TFT Display & Full Smartphone Connectivity Loop You In
Honda Smartphone Voice Control system (HSVCs) through the Honda RoadSync app allow you to access your android or iOS device via Bluetooth headset for navigation, calls, messages and music. The 5-inch TFT screen is also customisable with 4 distinct types of display.
The original Transalp, introduced in 1986 with a 583cc V-Twin engine, is something of a legend. And as testament to the sheer quality of its build and timelessness of its design, many can still be seen on Europe’s roads today.
Back then, its focus was as a smooth, comfortable do-it-all crossover that could cope with rougher ground thanks to long-travel suspension and light off-road dynamic. By 2000 the engine had grown to 647cc and, for the last version in 2008 it landed with 680cc, fuel injection and a 214kg kerb weight.
The Adventure segment has expanded massively since the Transalp first turned a wheel. Honda has the superb pocket-adventurer, A2-compatible CB500X plus the dual purpose, super-athletic CRF1100L Africa Twin adventure flagship and its long-range continent-crossing sibling, the Africa Twin Adventure Sports. Which means there is room in the mid-capacity sector of Honda’s range for a model to attract customers with a different set of adventurous aspirations.
This is just what the new XL750 Transalp is built to do, and a legend of adventure touring is thus reborn.
The XL750 Transalp takes inspiration from the original and is perfect for an extended touring trip as well as the urban cut and thrust – and all points in-between. It’s at home both slicing through an Alpine pass or kicking up dust on rough tracks. And it adds to the formula a high-performance engine, all-new design and the kind of top-draw equipment level that modern riders demand.
Simply put, the XL750 Transalp is a brilliant all-rounder and leaves only one question unanswered. How far do you want to go?
Mr. Masatoshi Sato, Transalp Large Project Leader, Honda R&D, Japan:
“With our new Transalp we looked hard at what made the first model so good and wanted to strike the right balance between urban agility, long-distance, on-road touring comfort and off-road ability. In arriving where we are, we have considered all these aspects in a ‘360 degree’ way, and created a bike that gives riders of all experience levels a fresh new option in the Honda range. The look revives the classic Transalp presence in a modern key, the new engine is incredibly strong and versatile, and the bike has an appealingly long and rich specification list. Around town or around the world – our Transalp is ready!”
The Transalp’s design projects an unmistakeable feeling of adventure touring in a package that works superbly on the road. The long-legged stance makes a strong statement of adventurous intent, while the fairing and screen work together to deliver wind protection without bulk. The overall look is sleek, simple and clean.
The engine packs a great deal of Honda’s engineering prowess into a small space and provides strong response across the rev-range – just what’s needed for either solo or two-up touring. The all new 755cc, parallel twin-cylinder unit (shared with the new CB750 Hornet) produces 67.5kW top power and a strong helping of torque right through the rev range, peaking at 75Nm. Refined settings of the Throttle By Wire (TBW) system orientate the engine character towards touring and comfort.
Compact, competition CRF-derived Unicam eight-valve cylinder heads employ downdraft air intakes and Vortex flow duct to ensure optimal combustion. The 270° crank delivers feel and character. Electronic rider aids run via Throttle By Wire (TBW) and include 5 riding modes, 4 of which contain pre-set combinations of Engine Power, Engine Braking, ABS and Honda Selectable Torque Control (HSTC) with integrated Wheelie Control. The 5th ‘User’ mode allows the rider to fix their own preferred combination.
Handling is light, nimble and confidence inspiring. The steel diamond frame is light weight thanks to optimisation of wall/pipe thickness and stiffness. For supple on-road performance and off-road bump absorption, suspension is top quality: Showa 43mm SFF-CA USD forks and rear shock operating through Pro-Link. Dual two-piston calipers provide efficient stopping power while the tyres – 90/90-21/150/70-18 front and rear – deliver versatility on or off-road.
The rich specification list is headlined by a 5-inch TFT colour display which supplies vivid information delivery and management of all systems, as well as the connectivity of Honda Smartphone Voice Control system (HSVCs) for Android and IOS devices. All lighting is LED; the indicators auto-cancel and also include Emergency Stop Signal (ESS) technology to warn other road users of sudden braking.
A range of accessories, including quickshifter, soft and hard luggage, rally/touring equipment and cosmetic enhancements are ready to go for an owner’s preference.
The 23YM XL750 Transalp will be available three striking colour options including, of course, the beautiful Tricolour paying homage to the original XL600V, marking the return of an icon.
Matte Iridium Gray Metallic
Mat Ballistic Black Metallic
Ross White Tricolour
New XL750 Transalp and EM1 e: electric vehicle lead Honda’s full 23YM line-up reveal at EICMA
• The celebrated Transalp name returns to the Honda line-up in a brand new mid-sized adventure package
• Honda’s first electric model for Europe, the EM1 e: is unveiled, powered by the durable and efficient Honda Mobile Power Pack e:
• The new CL500 urban machine mixes retro charm with modern equipment and technology
• The Rebel family expands with the introduction of the new CMX1100T Rebel developed for increased long distance comfort and practicality
• The Forza 125 and Forza 350 get a new look in line with the range-topping Forza 750
• New paint schemes for MSX125 Grom continue raft of new colour updates for 23YM
Having already announced the return of the celebrated Hornet name to its line-up for 23 year model, today at EICMA in Milan, Honda unveiled its full European motorcycle range for the upcoming season.
Highlights include the return of another Honda legend, a totally new urban naked machine, and the unveiling of Honda’s first European EV two wheeler.
2023 Honda XL750 Transalp Totalmotorcycle.com Features and Benefits
Styling & Equipment
- Fairing and bodywork balance aerodynamic wind protection, on-road comfort and off-road ability
- Practicality from 850mm seat height, USB socket and rear carrier
- Premium feel of a 5-inch full colour TFT screen with Honda Smartphone Voice Control system (HSVCs)
- Full LED lighting and Emergency Stop Signal (ESS) technology for the rear indicators
In imagining the perfect lines for the Transalp’s bodywork, the Rome R&D designers’ aim was to strike a balance between aerodynamic performance and wind protection at speed matched to a sense of lightness and freedom at low speeds. The concept tagline used throughout was ‘Friendly Toughness.’
The result is sleek, simple and clean bodywork. It has a purposeful look and feel, with zero excess and is built tough. For open visibility forward – and excellent wind deflection – the screen’s height has been carefully optimised. Its compact width also minimises turbulence from ‘trapped’ air. A tall screen and upper/lower around the front and side of the screen deflectors will be available as accessories.
This bike is built to go the distance, so genuine comfort – also for two – matters. Seat height is low for the class at 850mm (an 820mm low seat is also available as an option) and the riding position is upright for natural control and leverage. The riding geometry also works well when standing up. A rear carrier is standard and there’s a USB socket under the seat.

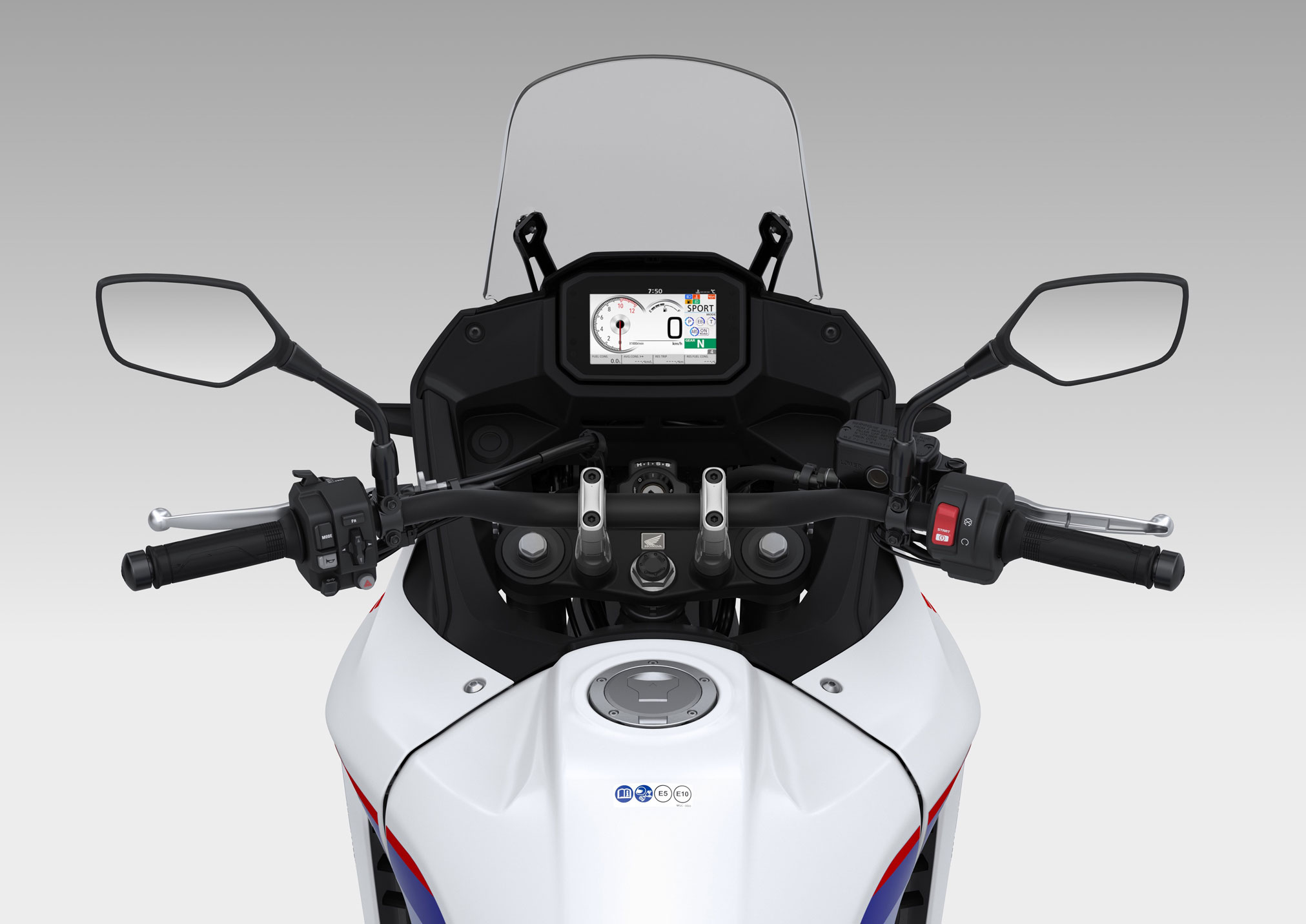

The instruments comprise a 5-inch, full colour high-visibility TFT screen, which offers four types of speed/rpm display – 3 analogue rev-counter styles and 1 bar – according to rider preference – as well as fuel gauge and consumption, riding mode selection and engine parameters, gear selected and customisable shift-up point on the rev-counter. Management is via the screen and switchgear on the left handlebar.
Also incorporated into the interface is the Honda Smartphone Voice Control system, which links the rider to their Android while on the move and allows voice management of phone calls, messages, music and navigation. Several of the HSVCs functions will also be accessible on IOS smartphones. A helmet-mounted headset is needed, and the smartphone connects to the dash via Bluetooth; management of Honda Smartphone Voice control is also possible using buttons the left switchgear.
To simplify and miniaturise the entire electrical system the Transalp uses a Controller Area Network (CAN) alongside a Body Control Unit (BCU). The BCU is sited on the left-hand frame rail, under the fuel tank and collectively processes control signals – from the ABS modulator, TFT screen and switch gear.
All lighting is LED. The rear indicators feature an Emergency Stop Signal (ESS) function. At a minimum speed of 56km/h with either brake working, if negative acceleration of a minimum of 6.0m/s2 is detected, the hazard lights flash to warn other road users a hard stop is in process. At the same speed the threshold is reduced if ABS is activated, to a negative acceleration of a minimum 2.5m/s2.
They also auto-cancel; rather than using a simple timer, the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the situation.
Engine
- 755cc, 8-valve Unicam parallel twin-cylinder engine with 270° crank
- 5kW @ 9,500rpm, 75Nm torque @ 7,250rpm and 35kW A2 licence option
- Transalp-specific TBW mapping for touring focus
- Patented Vortex flow intake ducts and tuned exhaust note
- Assist/slipper clutch
Starting from a clean piece of paper, Honda’s development engineers set out to build a brand new twin-cylinder engine to power both the street fighting CB750 Hornet and adventuresome XL750 Transalp.
The resulting 755c, 8-valve Unicam unit has bore and stroke set at 87 x 63.5mm, with compression ratio of 11.0:1. It produces a hard hit of top end power, with maximum output of 67.5kW @ 9,500rpm. This is accompanied by mountains of usable torque in the low to mid rpm range, rising to a peak of 75Nm @ 7,250rpm. The result is an engine that provides usable, enjoyable performance for rides of all types and all distances, and for riders of all experience levels.
The new engine is extremely compact and lightweight, due in no small part to the Unicam head (as used by the MX competition ready CRF450R) which operates the 35.5mm diameter inlet valves (with 9.3mm lift) via cam, and 29mm diameter exhaust (with 8.2mm lift) by rocker arm.
The compact dimensions are also due to clever packaging: there’s no balancer drive gear since the primary drive gear doubles up duties and also spins the balance shaft; the water pump is tucked away inside the lefthand engine cover and there’s no need for a water-cooled oil-cooler.
For razor-sharp pick-up and throttle response, patented Vortex flow ducts create a more uniform distribution from the side scoops into the airbox, which then feeds downdraft intakes and 46mm diameter throttle bodies. The cylinders use a Ni-SiC (Nickel-Silicon Carbide) coating, as used on the CRF450R and CBR1000RR-R Fireblade, to increase the engine’s efficiency.
The crank uses a 270° firing order for characterful, twin-cylinder pulse feeling. The exhaust note is tuned for a pleasing low-end beat and raucous top-end howl.
While mechanically identical, the Transalp’s engine TBW settings are tuned differently to focus on an engine ‘flavour’ in keeping with the long distance, touring work for which the Transalp will be the ideal machine.
An assist/slipper clutch – with F.C.C Leaning Segment (FLS) discs – reduces clutch drag torque by 30%, for a lighter lever load and easier up shifts. It also manages rear wheel hop under hard braking and rapid down changes.
Fuel consumption of 23.km/l (WMTC mode) offers a potential range of 390km from the 16.9L fuel tank. And just like the Hornet, a 35kW, A2 licence option will also be available through a quick ECU remap at a Honda dealer.
Engine Electronics
- Four default rider modes; SPORT, STANDARD, RAIN and GRAVEL
- USER customisation option between all levels
- Four levels of Engine Power and three of Engine Brake
- Five stage Honda Selectable Torque Control with integrated Wheelie Control
- Off-road ABS brake setting allows rear caliper to be switched off in USER mode
Throttle By Wire (TBW) engine control offers four default riding modes: SPORT, STANDARD, RAIN and GRAVEL, adjusting the engine’s performance delivery and feel to suit conditions and the rider’s intent; they’re easily switched and managed between the left handlebar mode and TFT screen. There is also a specific USER mode that allows the rider to fine tune their own personal settings
There are 4 levels of Engine Power (EP), 3 levels of Engine Brake (EB), 2 levels of ABS, and 5 levels of Honda Selectable Torque Control (HSTC) available; HSTC and rear ABS can also be switched off. The riding modes offer different combinations of each parameter. Wheelie Control is also standard and integrated to HSTC.
SPORT mode offers maximum performance and uses level 4 EP, level 2 ABS and level 1 EB and HSTC to deliver strong acceleration with minimum intervention.
STANDARD mode is a mid-way setting for urban riding that uses level 3 setting for EP and HSTC, with level 2 EB and ABS.
RAIN mode is designed for challenging on-road conditions and employs the lowest EP setting, level 1, for the least aggressive power delivery with level 2 EB and ABS and 5 HSTC.
GRAVEL mode features level 2 EP, level 3 EB, and level 4 HSTC with level 1 ABS setting for confident travel on rougher terrain off road.
USER mode allows the rider to choose between settings 1-4 EP, 1-5 HSTC and 1-3 EB plus rear ABS switch off, and save them for future use.
Chassis
- Lightweight 18.3kg steel diamond frame with integrated subframe
- Showa 43mm SFF-CA USD forks and Pro-link rear shock; both spring preload adjustable
- Two-piston front calipers/310mm wave discs; single piston caliper/256mm rear disc
- 21/18-inch wheel combination wearing 90/90-21/150/70-18 front and rear tyres
The steel diamond mainframe is lightweight, at just 18.3kg – 10% lighter than the frame of the CB500X. A major R&D process of reducing the number of reinforcing parts, thinning of the main and down tubes, and optimisation of the upper shock mount and swingarm pivot shape has produced a hugely strong platform, with rigidity balanced to deliver feel to the rider across all conditions and geometry set to inspire confident handling agility. The integrated heavy-duty subframe employs high-tension steel pipework for strength and toughness.
Rake and trail are set at 27° and 111mm, with wheelbase of 1560mm and kerb weight of 208kg. Slow speed U-turns are easy thanks to a 42° steering angle and 2.6m minimum turning circle.
The suspension specifications have been selected with the all-round concept firmly in mind, with long travel and superb bump absorption to deliver smooth performance and comfort on-road, and reassuring control off-road. Showa 43mm SFF-CATM (Separate Function Fork-Cartridge) USD forks offer 200mm travel with spring preload adjustment, and mount by a forged aluminium bottom yoke and cast aluminium top yoke, for a perfect balance of strength and rigidity in wide-ranging riding situations.
With 190mm travel the remote reservoir Showa shock (with adjustable preload) operates through Pro-Link and the swingarm which, while employing the same castings as the CRF1100L Africa Twin’s, uses aluminium material exclusive to the Transalp. Ground clearance is 210mm.
Compact, two-piston calipers work dual 310mm ‘wave’ discs. The rear 256mm ‘wave’ disc is operated by a single-piston caliper. 21/18-inch front rear (stainless steel) spoked wheels wear (tubed) 90/90-21 and 150/70-18 tyres; Metzeler Karoo Street or Dunlop Mixtour.
Accessories
A full range of accessories are available for the XL750 Transalp, ready for personalisation to an owner’s preference and use, including a quickshifter and low seat option.
To make it easy there are 5 packs that group the accessories neatly together:
URBAN PACK
(practicality and storage)
50L top box, aluminium panel, mounting base, pillion pad and inner bag plus tall screen and main stand.
TOURING PACK
(comfort and storage)
Rear panniers (R26L / L33L), aluminium panels, support stays, inner bags and heated grips.
ADVENTURE PACK
(style and functionality)

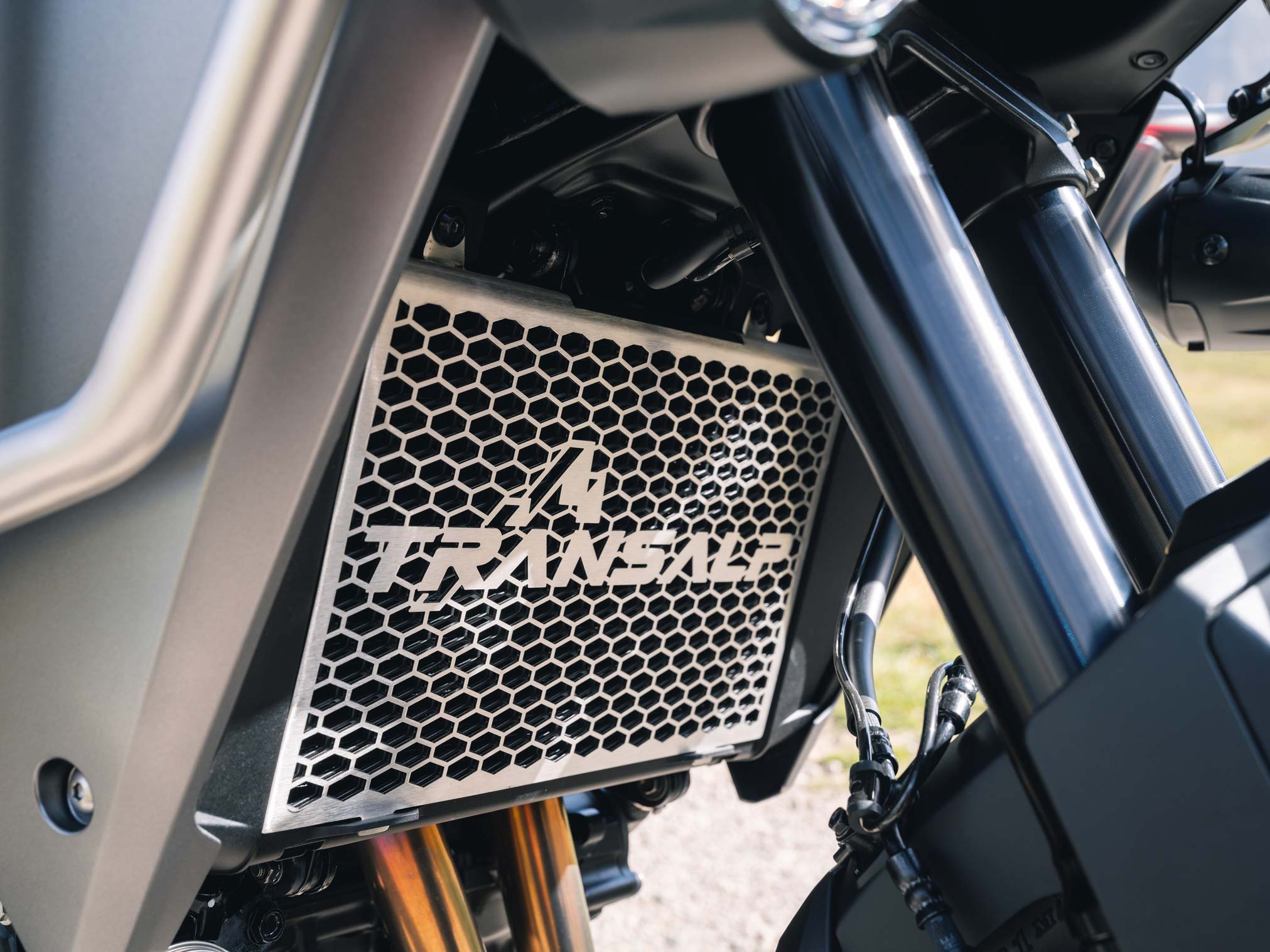

Side pipes, LED fog lights and radiator grill.
RALLY PACK
(style and functionality)
Quickshifter, engine guard, bash plate, off-road rally footpegs and knuckle guards with extensions.
COMFORT PACK
(comfort and practicality)
3L tank bag, wind deflectors, comfort pillion footpegs and AAC charging socket.
Additional accessories include side tank pads and colour matched wheel stripes and all accessories are also available separately.
2023 Honda XL750 Transalp – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ NA USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ See Dealer for pricing in GBP (On The Road inc 20% Vat)
NA
2023 Honda XL750 Transalp – Totalmotorcycle.com Canada Specifications/Technical Details
NA
2023 Honda XL750 Transalp – Totalmotorcycle.com European Specifications/Technical Details
ENGINE | |
Engine Type | Liquid-cooled OHC 4-stroke 8-valve parallel twin with 270° crank and Unicam |
Engine Displacement | 755cc |
Bore x Stroke (mm) | 87mm x 63.5mm |
Compression Ratio | 11.0:1 |
Max. Power Output | 67.5kW @ 9,500rpm |
Max. Torque | 75Nm @ 7,250rpm |
Noise Level (dB) | Lwot – 81.5; Lurban – 77.5 |
Oil Capacity | 3.9L |
Starter | Electric |
FUEL SYSTEM | |
Carburation | PGM-FI electronic injection |
Fuel Tank Capacity | 16.9L |
CO2 Emissions WMTC | 103g/km |
Fuel Consumption | 23km/l |
ELECTRICAL SYSTEM | |
Battery Capacity | 12v 8.6Ah |
DRIVETRAIN | |
Clutch Type | Wet multiple, assist slipper clutch |
Transmission Type | 6 speed Manual Transmission |
Final Drive | Chain |
FRAME | |
Frame Type | Steel diamond |
CHASSIS | |
Dimensions (L´W´H) | 2,325mm x 838mm x 1,450mm |
Wheelbase | 1560mm |
Caster Angle | 27° |
Trail | 111mm |
Seat Height | 850mm |
Ground Clearance | 210mm |
Kerb Weight | 208kg |
Turning radius | 2.6m |
SUSPENSION | |
Suspension Front | Showa 43mm SFF-CA – 200mm travel |
Suspension Rear | Monoshock damper, Pro-Link swingarm, 190mm travel |
WHEELS | |
Wheels Front | 21in (stainless steel) spoked wheels |
Wheels Rear | 18in (stainless steel) spoked wheels |
Tyres Front | 90/90-R21 M/C 54H |
Tyres Rear | 150/70-R18 M/C 70H |
BRAKES | |
ABS Type | 2 channel |
Brakes Front | Dual 310mm x 4.5mm ‘wave’ discs with axial mounted
2 piston calipers |
Brakes Rear | Single 256mm x 6.0mm ‘wave’ disc is operated by a single-piston caliper |
INSTRUMENTS & ELECTRICS | |
Instruments | TFT |
Headlight | LED |
Taillight | LED |
Connectivity | Honda Smartphone Voice Control |
USB | Type C (under the pillion seat) |
12V Socket | Optional |
Auto Winker Cancel | Yes |
Quickshifter | Optional |
Security System | HISS |
** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
