2023 Husqvarna TC50 Mini Guide

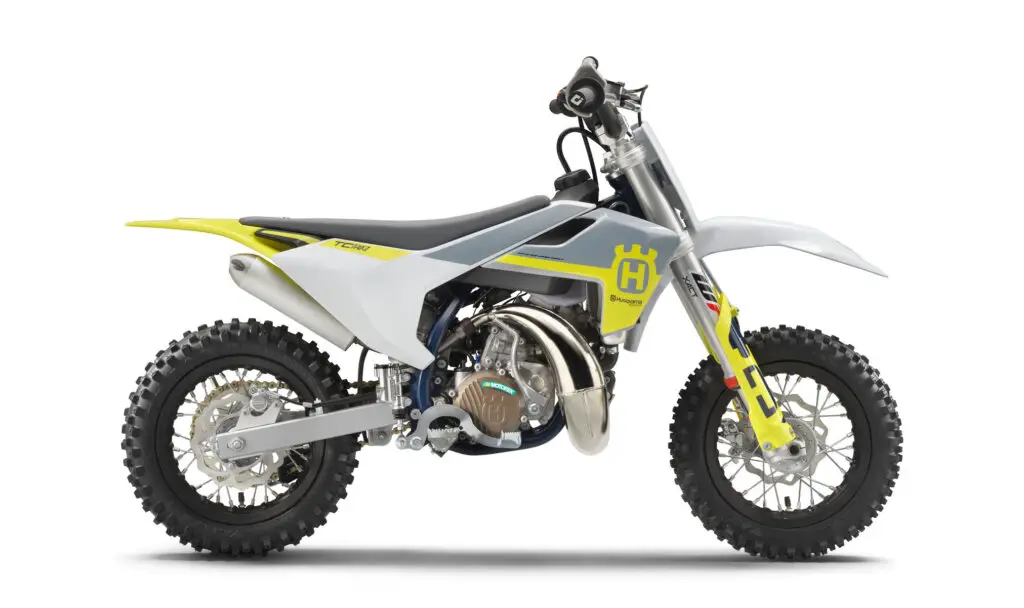

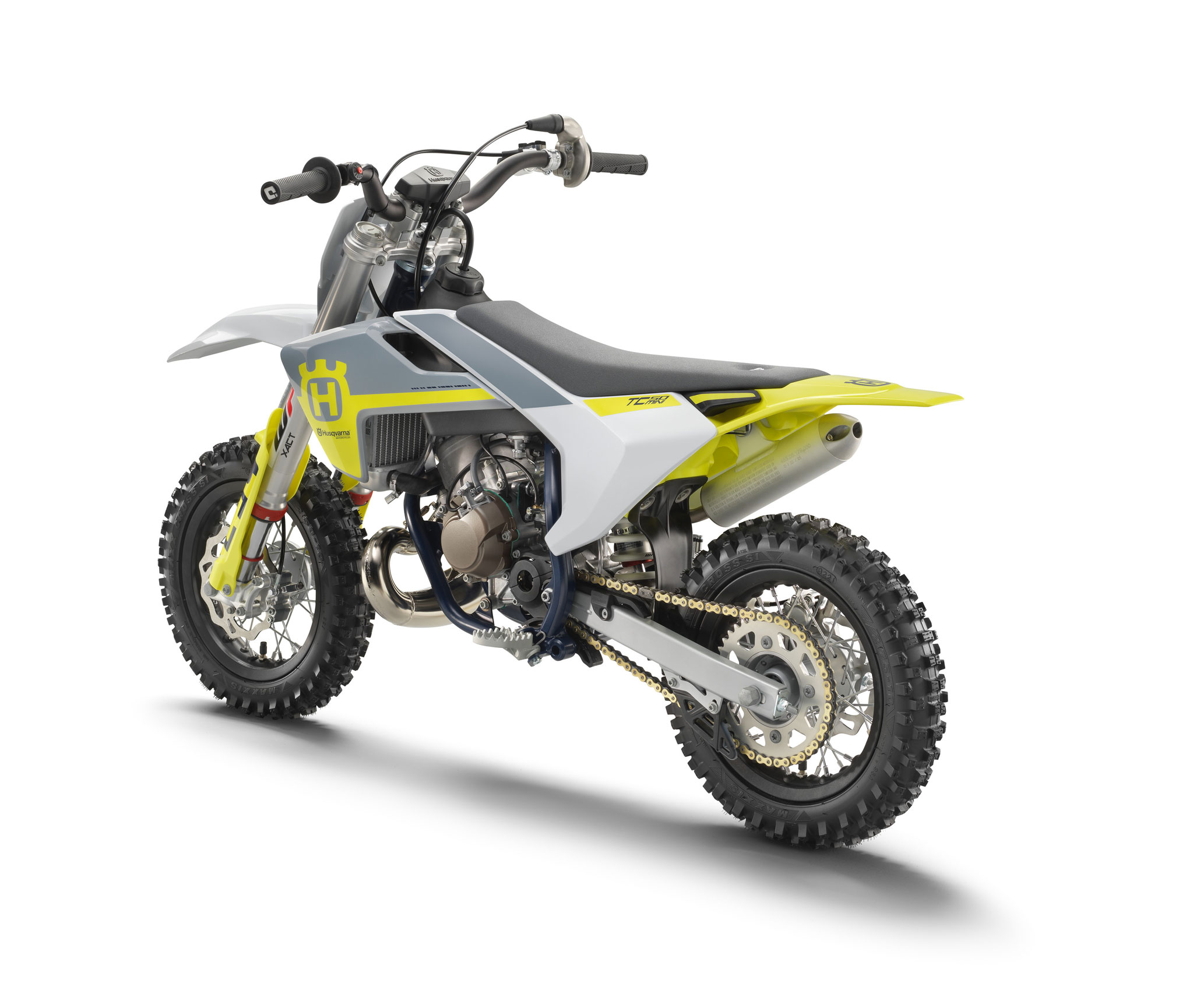

2023 Husqvarna TC50 Mini: LIGHTER AND SMALLER.

Introducing the 2023 Husqvarna TC50 Mini…

Utilising many of the same technologies found on the larger machines in the minicycles range, the TC 50 Mini offers future motocross superstars the highest level of performance. Manufactured with unrivalled attention to detail and assembled with high quality components, the TC 50 Mini is a premium motorcycle designed to perform out on the race track.

The TC 50 Mini features the same ergonomic feel as Husqvarna’s full-size motocross machines, just in a reduced size to suite the future stars of tomorrow. The similarities between the TC 50 Mini and the larger motocross range do not end there, as a superior level of quality and attention to detail are incorporated into the TC 50 Mini making it a premium 50cc motocross model. Top-level performance is critical in the competitive 50cc category and as a result the TC 50 Mini is built around an advanced steel frame, which houses the most powerful engine in its class and leading components such as the 35 mm WP XACT fork.

2023 Husqvarna TC50 Mini Totalmotorcycle.com Key Features

Husqvarna Motorcycles – Minicycles Model Year 2023

Designed for the highest levels of competition, Husqvarna Motorcycles’ TC 85, TC 65 and TC 50 Mini are fully equipped 2-stroke motocross machines that cater for youth racers of all ages and feature the very latest technology and high-quality components.

For 2023 the TC 85, TC 65, and TC 50 Mini models are stylishly adorned with a striking white, grey, and yellow color scheme.

Inspiring confidence with easily controllable power and unrestrictive ergonomics, youngsters can truly focus on riding to the best of their ability on any model from the Husqvarna Motorcycles minicycle range. With the TC 85, TC 65, and TC 50 Mini models setting the standard when it comes to top-level 2-stroke performance and durability on which they can safely enter the exciting world of offroad motorcycling.

2023 Technical Highlights:

• Striking new white, grey, and yellow TC 85, TC 65, and TC 50 Mini graphics – underline Husqvarna Motorcycles’ Swedish heritage
• New MAXXIS MAXXCROSS MX-ST tires for all models – exceptional straight-line stability and excellent traction
• All models deliver unrivalled engine performance and rideability
• Easily adjustable WP XACT forks with AER technology and XACT PDS monoshock – optimal performance and low weight
• Confidence-inspiring ergonomics and a high-grip seat cover for comfort and control
• New Formula clutch assembly on the TC 65 for improved action and durability
• New larger rear disc and brake components from Formula for enhanced TC 65 stopping power
• NEKEN tapered aluminum handlebars ensure optimized ergonomics
• Roller-actuated TC 85 throttle assembly for a smoother action in all conditions
• Black Excel rims and CNC-machined hubs for TC 85 – low unsprung weight and greater stability

2023 Husqvarna TC50 Mini Totalmotorcycle.com Features and Benefits

Engine

The modern and compact engine features the latest in 2-stroke technology, offering class-leading performance and rideability. By using a three-shaft design, the crankshaft is positioned near the center of gravity, which not only benefits mass centralization but also creates the ideal intake angle into the reed valve for top-level performance. Additionally, the engine is fitted with an automatic centrifugal clutch that reduces riding complexity for younger riders.

Exhaust

The exhaust is designed to specifically match the character of the TC 50 Mini engine and is manufactured using a three-dimensional stamping process. Once the components are shaped, they are robot welded to ensure high levels of quality and durability.

Clutch

A key feature of the TC 50 Mini is the automatic centrifugal clutch. This allows youngsters to ride without the complexity of operating a manual clutch and gearbox. The multi-disc clutch delivers a precise and predictable power delivery across the RPM range. Furthermore, it can easily be set to suit rider preferences or track conditions without the use of any special tools.

Power reduction kit

For absolute beginners the engine power can be reduced to a moderate 5.5 hp using a kit from Husqvarna Motorcycles Technical Accessories.

Bodywork

The progressive bodywork is scaled down to precisely fit the proportions of younger riders. The contact points and overall feeling of the machine allow riders to feel the perfect control and comfort as found on the larger models.

The ergonomics instill confidence while leaving room for free and unrestricted movement, thus allowing riders to perform at their peak for extended periods of time.

Frame

The high-strength chromium-molybdenum steel frame integrates carefully calculated parameters of longitudinal flex and torsional rigidity to benefit handling and suspension functionality. It guarantees easy handling and precise cornering, along with outstanding stability.

Swingarm

Made from lightweight cast aluminum, the hollow swingarm is designed using sophisticated simulation data and calculated to improve rigidity while minimizing wall thickness. As a result, the swingarm features the ideal rigidity at the least possible weight.

WP XACT front suspension

Featuring the latest in suspension technology, the TC 50 Mini is fitted with a set of WP XACT forks with AER technology. Besides being very light weight, the 35 mm USD forks feature exceptional damping and comfort characteristics, allowing the rider to push their limits with complete confidence. With 205 mm of wheel travel, the air unit in the left fork leg can be easily adjusted with the use of an air pump for rider preference, weight, or track conditions, leaving the rider with more riding time and less time spent setting up the suspension.

WP XACT rear suspension

Linked directly to the swingarm, the WP XACT PDS monoshock features a setting that is matched perfectly to the front forks for the perfect balance and damping characteristics. Additionally, the rear shock offers 185 mm of suspension travel and is fully adjustable allowing it to be tailored to rider preferences or track conditions.

Brakes

Featuring the same level of technology offered on the full-size motocross range, the TC 50 Mini is fitted with hydraulic brake calipers and waved front and rear brake discs. The system ensures advanced brake feeling and stopping performance in all conditions.

Wheels and tires

Mirroring the full-size motocross range, the TC 50 Mini uses lightweight, black anodized, aluminum rims providing the highest strength and reliability. The new MAXXIS MX-ST tires deliver outstanding performance on a variety of terrain. The pattern design and rubber compound deliver exceptional straight-line stability and excellent traction and predictability.

• New MAXXIS MAXXCROSS MX-ST tires – exceptional straight-line stability and excellent traction and predictability

Radiator

The TC 50 Mini features a liquid cooling system for the cylinder and crankcases. The large radiators work together with the shrouds to channel air through the cooling fins, ensuring sufficient cooling in all conditions.

Handlebars

The tapered NEKEN handlebar is made of high-quality aluminum alloy ensuring both strength and comfort. Its diameter shrinks from a central 28 mm area to 22 mm in the bends to cylindrical ends of 18 mm in the grip mounting position. A thin lock-on ODI grip is mounted on the left side while a vulcanized ODI grip is mounted on the right-side throttle assembly. The thin diameter is a major benefit for youth riders, ensuring a better grasp while riding, increasing control, and drastically reducing fatigue. Additionally, a bar pad on the handlebar protects the rider from unexpected impacts.

Graphics

Striking new graphics in white, grey and yellow are fitted to the TC 50 Mini, which represent the Swedish heritage of the Husqvarna brand. Additionally, the graphics are applied using an in-mold process to ensure the best durability and quality.

Technical Accessories

Ensuring younger riders have the technical products needed to perform and look their very best, Husqvarna Motorcycles’ Technical Accessories for minicycles provide numerous options for increased performance, protection, and style. Manufactured to the same high standards as all Husqvarna Motorcycles products, all parts support customization and performance improvements.

FMF Powercore 2 Silencer and FMF Fatty Expansion Chamber

Developed to improve overall engine performance, the FMF Fatty Expansion Chamber and FMF Powercore 2 Silencer work together to unlock further power from the engine. Made from extra-strong sheet steel and nickel plated for easy maintenance, the expansion chamber creates a controllable power delivery while the lightweight silencer delivers a factory look and a rich exhaust note.

Factory Triple Clamp

Improving handling and enhancing rider feedback, the Factory Triple Clamp is made from CNC-milled aluminum then anodized black for a factory racing team inspired look. Ensuring 100% alignment of the front suspension and guaranteeing no opalization to the outer fork leg, performance from the WP Suspension is uncompromised for precise front wheel stability and rider feedback. Complete with the steering bearing installed, the clamps are ready to fit.

Factory Chain Guide

Manufactured using high-strength plastic and featuring a replaceable chain track pad, the Factory Chain Guide is a high quality and incredibly long-lasting upgrade designed to withstand the toughest of offroad conditions.

Rear Sprocket

Lightweight and strong, the Rear Sprocket is durable and manufactured to be vibration free and transmit maximum power to the rear wheel. The blue anodized finish improves overall aesthetics and provides a factory racing team appearance.

Lock-on Grip Set ‘Jeff Emig’

Install new grips in minutes with the Lock-on Grip Set. The clever design features a throttle side grip pre-fitted to a throttle tube while the left side grip is mounted to a thin sleeve, which requires the tightening of a small aluminum clamping ring for easy installation.

Factory Fuel Cap / Factory Fuel Cap Vent

CNC-milled from high strength aluminum and anodized black for a sleek and effective appearance, the Factory Fuel Cap, together with the blue anodized Factory Fuel Cap Vent, enhances the overall look of any bike in the Husqvarna Motorcycles minicycles range.

2023 Husqvarna TC50 Mini – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ See Dealer USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
