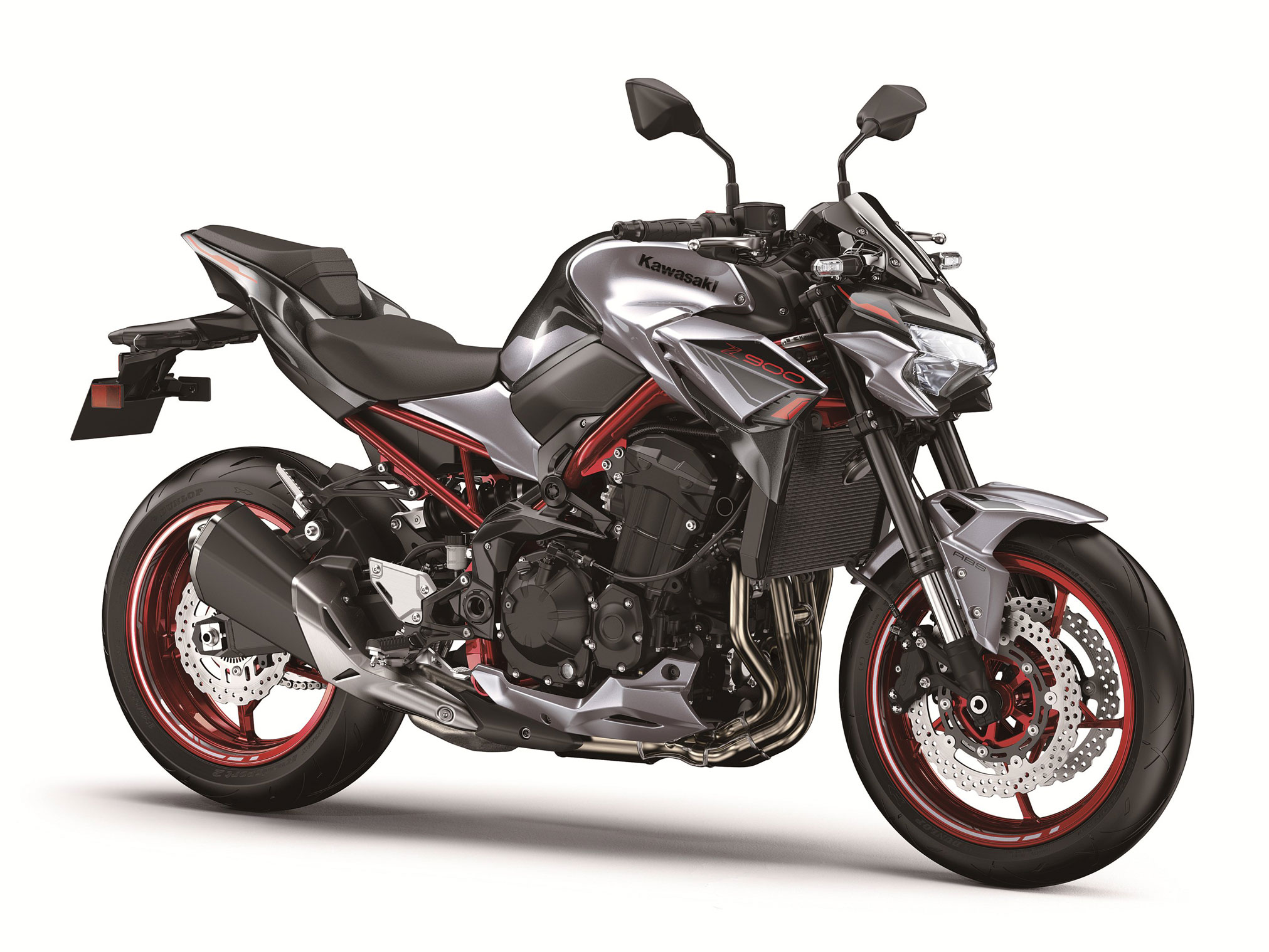

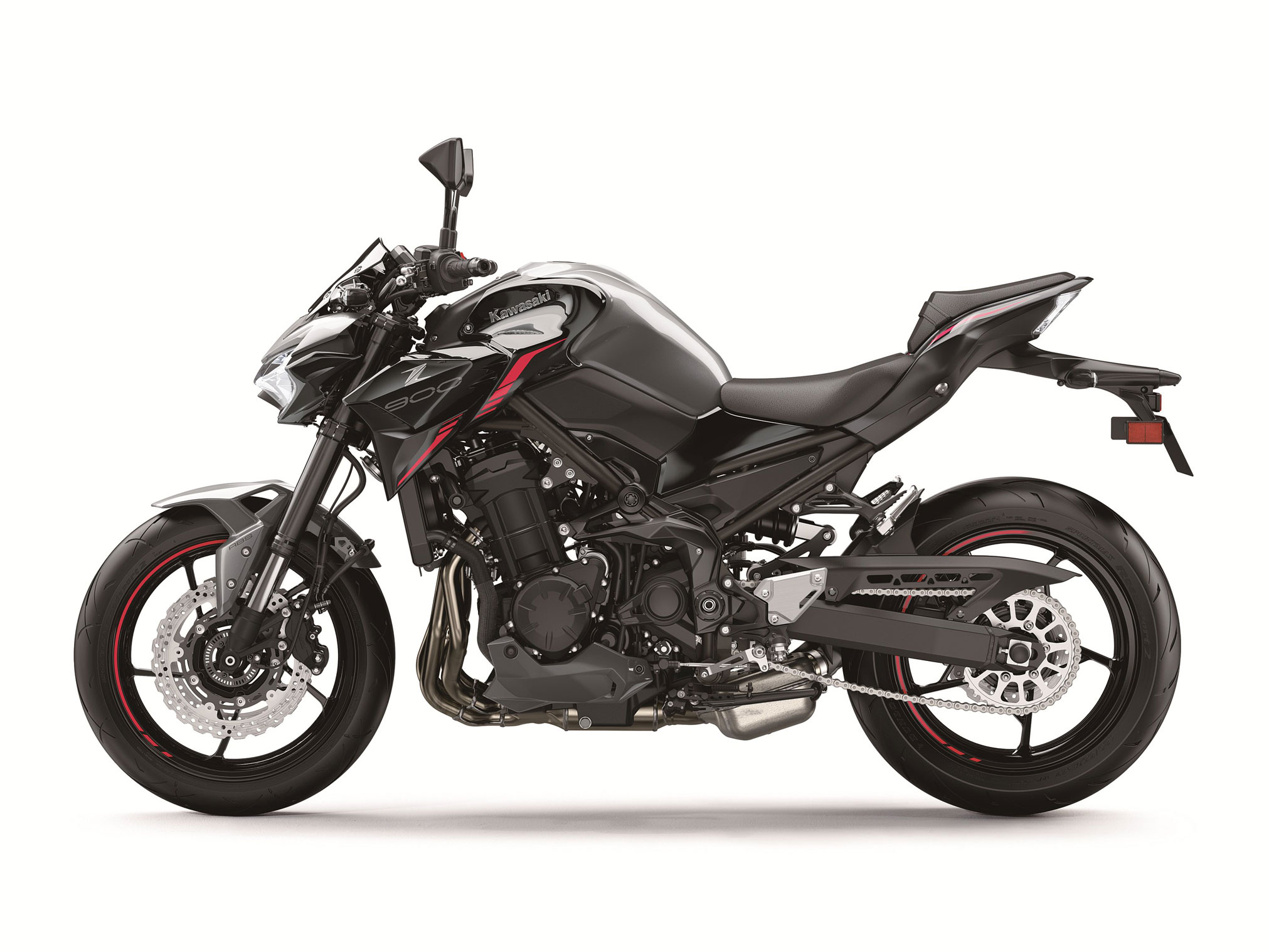

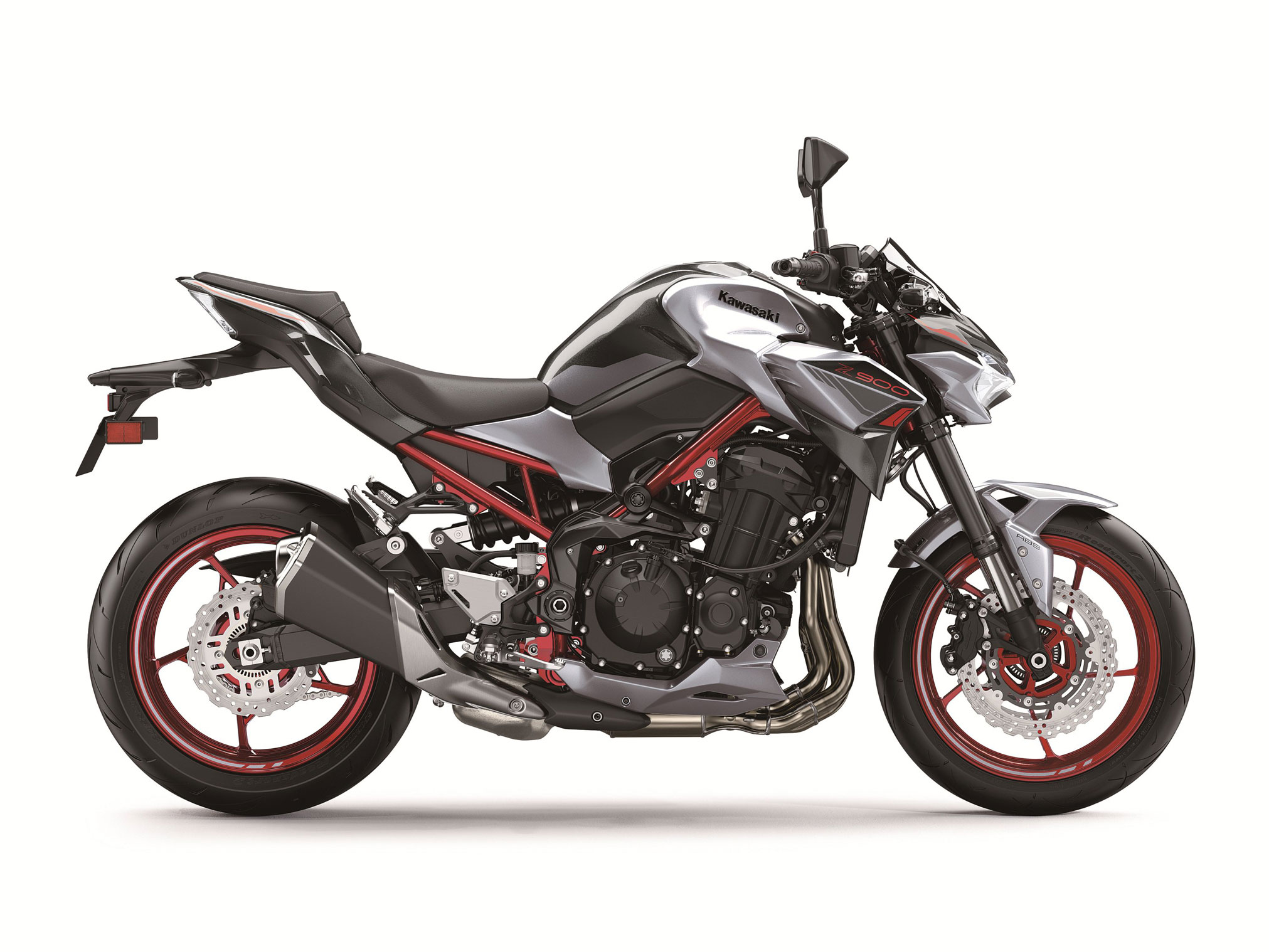

2023 Kawasaki Z900 ABS: 900cc KAWASAKI LEGACY.
Introducing the 2023 Kawasaki Z900 ABS…
The Z900 ABS naked sportbike features a host of advanced features and epitomizes Kawasaki’s belief of what the ideal supernaked should be. At 948cc with an ultra-lightweight chassis, every ride is met with exceptional power, responsiveness and excitement. The Z900 ABS features a 948cc liquid-cooled, in-line four-cylinder engine, trellis frame, Sugomi™-inspired Z styling, Kawasaki Traction Control (KTRC), Power Mode and Integrated Riding Modes selection, Smartphone Connectivity via RIDEOLOGY THE APP, TFT Color Instrumentation, LED headlamp, position lamp & license plate lamp, and Dunlop Sportmax Roadsport 2 Tires.
The Z spirit finds its latest expression in the Sugomi styled Z900. Power to the max, instinctive handling and traction control redefine the supernaked experience. LED lights and a TFT display bring the newest tech. Push boundaries and dominate your ride.
With a smooth powerband that becomes more exciting as the revs rise, a light and nimble chassis, and distinctive Sugomi-inspired styling, the Z900 continues the Kawasaki legacy of creating legendary 900cc-class machines whose performance surpasses that of many full liter-class motorcycles.
2023 Kawasaki Z900 ABS KRT Totalmotorcycle.com Key Features
- Kawasaki TRaction Control
- Power Mode Selection
- Integrated Riding Modes
- Premium Brembo front brake package
- Higher-grade suspension including Öhlins rear shock
- TFT Colour Instrumentation
- LED headlamp, position lamps, taillight & license plate lamp
- Kawasaki TRaction Control (KTRC)
- Smartphone Connectivity via RIDEOLOGY THE APP
- Aggressive styling with LED headlamp, position lamp & license plate lamp
- Dunlop Sportmax Roadsport 2 tires
2023 KAWASAKI Z FAMILY MOTORCYCLE LINEUP
A TRUE SUPERNAKED EXPERIENCE
For 2023, Kawasaki welcomes the return of its iconic Z Family line of naked motorcycles, which includes several supernaked, retro sport, and mini naked models. Z models set to hit dealerships this fall include an updated Z650 and Z650 ABS with Kawasaki TRaction Control (KTRC) as well as the Z650RS, Z900 ABS, Z900 SE, and Z125 PRO
2023 Kawasaki Z900 ABS KRT Totalmotorcycle.com Features and Benefits
ENGINE
The 948cc engine has a smooth, linear power delivery that is easy to control and contributes to rider comfort and confidence, yet the strong mid-range hit that pulls hard to redline provides plenty of exhilaration. Responsive liquidcooled engine with efficient 4-valve, DOHC cylinder provides smooth performance at all rpm.
• Lightweight crankshaft design augments the engine’s quick-revving character.
• A secondary engine balancer eliminates excess vibration, although a desirable amount is left in to add to the bike’s character and acceleration feeling.
• Die-cast cylinder block is rigid while its open deck design helps save weight.
• Connecting passageways between the cylinders relieve pressure to help reduce pumping loss, improving high-rpm performance.
• The pistons are formed using the same unique casting process that is used for making those found in the Ninja H2™/H2™R. The process creates hollow areas to achieve idealized thickness for reduced weight without sacrificing strength.
• Downdraft intake design provides the fuel mixture with the straightest, shortest path to the combustion chamber for increased performance.
• 29mm intake and 24mm exhaust valves complement the port designs and boost the hard-hitting mid-range to highrpm power feeling.
TFT Colour Instrumentation
The new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
Latest Evolution of Z Sugomi Styling
While the Z900’s distinctive sugomi design elements (crouching stance, low-positioned head and upswept tail) remain unchanged, its eye-catching styling benefits from a number of updates that make its aggressive design even sharper.
Power Mode Selection
A choice of Full Power or Low Power modes allows riders to set power delivery to suit preference and conditions. Low Power mode limits output to approximately 55% of Full Power. (The reduced power, which varies according to engine speed (rpm) and throttle position, offers enhanced manageability.)
All-LED Lighting
New LED headlamp, position lamps, licence plate lamp and turn signals† add to the Z900’s sharper new styling.
KTRC (Kawasaki Traction Control)
Kawasaki’s advanced traction control system provides both enhanced sport riding performance and the peace of mind to negotiate low-traction surfaces with confidence. Three riderselectable modes offer progressively greater levels of intrusion to suit the riding situation and rider preference.
Integrated Riding Modes
All-inclusive Riding modes that link KTRC and Power Mode allow riders to easily set traction control and power delivery to suit a given riding situation. Riders can choose from three settings (Sport, Road, Rain) or a manual setting (Rider). In the manual Rider mode, each of the systems can be set independently
Smartphone Connectivity
A Bluetooth technology built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
New Tyres
New Dunlop Sportmax Roadsport 2 tyres contribute to the Z900’s superb handling character.
2023 Kawasaki Z900 ABS KRT – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9300 – $9699 USD
Canada MSRP Price: $11599 CDN
Europe/UK MSRP Price: £9,699 – 9,799 GBP (On The Road inc 20% Vat)
POWER
Engine 4-stroke, 4-cylinder, DOHC, 16-valve, liquid-cooled
Displacement 948cc
Bore x Stroke 73.4 x 56.0mm
Compression Ratio 11.8:1
Fuel System DFI® with 36mm Keihin throttle bodies
Ignition TCBI with electronic advance
Transmission 6-speed, return shift
Final Drive Sealed chain
Electronic Rider Aids Integrated Riding Modes, Kawasaki Traction Control (KTRC), Power Modes (2)
Maximum Torque 73.1 lb-ft @ 7,700 rpm
PERFORMANCE
Front Suspension / Wheel Travel 41mm inverted fork with rebound damping adjustability/4.7 in
Rear Suspension / Wheel Travel Horizontal back-link, stepless rebound damping, adjustable spring preload/5.5 in
Front Tire 120/70 ZR17
Rear Tire 180/55 ZR17
Front Brakes Dual 300mm petal-style discs with four-piston calipers, ABS
Rear Brakes Single 250mm petal-style disc with single-piston caliper, ABS
DETAILS
Frame Type Trellis, high tensile steel
Rake/Trail 24.9°/4.3 in
Overall Length 81.5 in
Overall Width 32.5 in
Overall Height 42.5 in
Ground Clearance 5.7 in
Seat Height 31.5 in
Curb Weight 467.5 lb*
Fuel Capacity 4.5 gal
Wheelbase 57.3 in
Special Features Rideology the App Smartphone Connectivity, TFT Instrumentation
Color Choices Metallic Spark Black/Metallic Graphite Gray/Metallic Flat Spark Black, Metallic Phantom Silver/Metallic Carbon Gray
Warranty 12 Month Limited Warranty
Kawasaki Protection Plus™ (optional) 12, 24, 36 or 48 months
2023 Kawasaki Z900 ABS KRT – Totalmotorcycle.com Canadian Specifications/Technical Details
POWER
Engine 948cc, liquid-cooled, 4-stroke, DOHC 16-valve in-line four
Bore x Stroke 73.4 x 56.0 mm
Compression Ratio 11.8:1
Fuel System Fuel injection: ø36 mm x 4 with sub-throttles
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain
PERFORMANCE
Frame Trellis, high-tensile steel
Front Suspension / Wheel Travel ø41 mm inverted fork with rebound damping and spring preload adjustability / 120 mm (4.7 in)
Rear Suspension / Wheel Travel Horizontal Back-link with rebound damping and spring preload adjustability / 140 mm (5.5 in)
Rake / Trail 24.9° / 110 mm
Steering Angle (L/R) 33° / 33°
Front Tire 120/70ZR17M/C (58W)
Rear Tire 180/55ZR17M/C (73W)
Front Brakes Dual semi-floating ø300 mm petal discs with opposed 4-piston calipers
Rear Brake ø250 mm petal disc with single-piston caliper
DETAILS
Dimensions (L x W x H) 2,070 x 825 x 1,080 mm (81.5 x 32.5 x 42.5 in)
Wheelbase 1,455 mm (57.3 in)
Road Clearance 145 mm (5.7 in)
Seat Height 820 mm (32.3 in)
Curb Mass** 212 kg (467 lb)
Fuel Capacity 17 litres
Instrumentation Full-colour TFT screen with digital speedometer, digital bar-style tachometer, gear position indicator, shift lamp, fuel gauge, odometer, dual trip meters, current and average fuel consumption, remaining range, average speed, total time, coolant temperature, clock, battery voltage, Kawasaki service reminder, oil change reminder, Riding Mode indicator, smartphone call and mail notices, Bluetooth indicator, and Economical Riding Indicator
Warranty 12 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months
2023 Kawasaki Z900 ABS KRT – Totalmotorcycle.com European Specifications/Technical Details
Engine
Engine typeLiquid-cooled, 4-stroke In-Line Four
Displacement948 cm³
Bore x stroke73.4 x 56 mm
Compression ratio11.8:1
Valve systemDOHC, 16 valves
Fuel systemFuel injection: Ø 36 mm x 4 with sub-throttle
Starting SystemElectric
LubricationForced lubrication, wet sump
Gear Performance & Transmission
Maximum power92.2 kW {125 PS} / 9,500 rpm
Fuel consumption5.7 l/100 km
Power down kit 85 kWAvailable
CO2 emission132 g/km
Maximum torque98.6 N•m {10.1 kgf•m} / 7,700 rpm
Transmission6-speed
Final driveSealed chain
Primary Reduction Ratio1.627 (83/51)
Gear Ratios 1st2.692 (35/13)
Gear Ratios 2nd2.059 (35/17)
Gear Ratios 3rd1.650 (33/20)
Gear Ratios 4th1.409 (31/22)
Gear Ratios 5th1.222 (33/27)
Gear Ratios 6th1.034 (30/29)
Final reduction ratio2.933 (44/15)
ClutchWet multi-disc, manual
Suspensions Brakes & Suspension
Brakes, frontDual semi-floating 300 mm petal discs. Caliper: Dual opposed 4-piston
Brakes, rearSingle 250 mm petal disc. Caliper: Single-piston
Suspension, front41 mm inverted fork with rebound damping and spring preload adjustability
Suspension, rearHorizontal Back-link with rebound damping and spring preload adjustability
Dimensions Frame & Dimensions
Frame typeTrellis, high-tensile steel
Trail110 mm
Wheel travel front120 mm
Wheel travel rear140 mm
Tyre, front120/70ZR17M/C (58W)
Tyre, rear180/55ZR17M/C (73W)
L x W x H2,070 x 825 x 1,080 mm
Wheelbase1,455 mm
Ground clearance145 mm
Fuel capacity17 litres
Seat height820 mm
Curb mass212 kg
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
