2023 KTM 890 Adventure R Guide

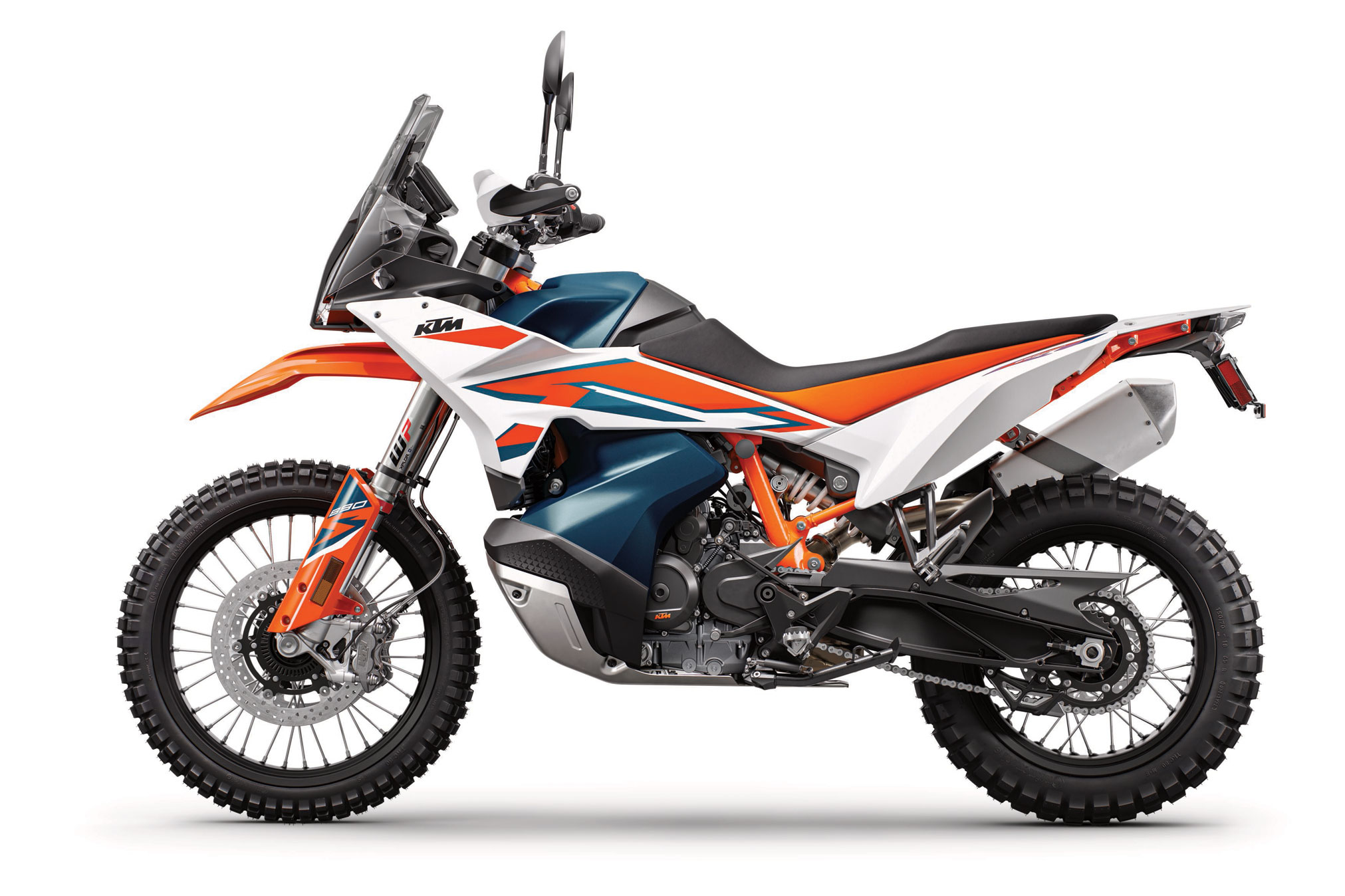

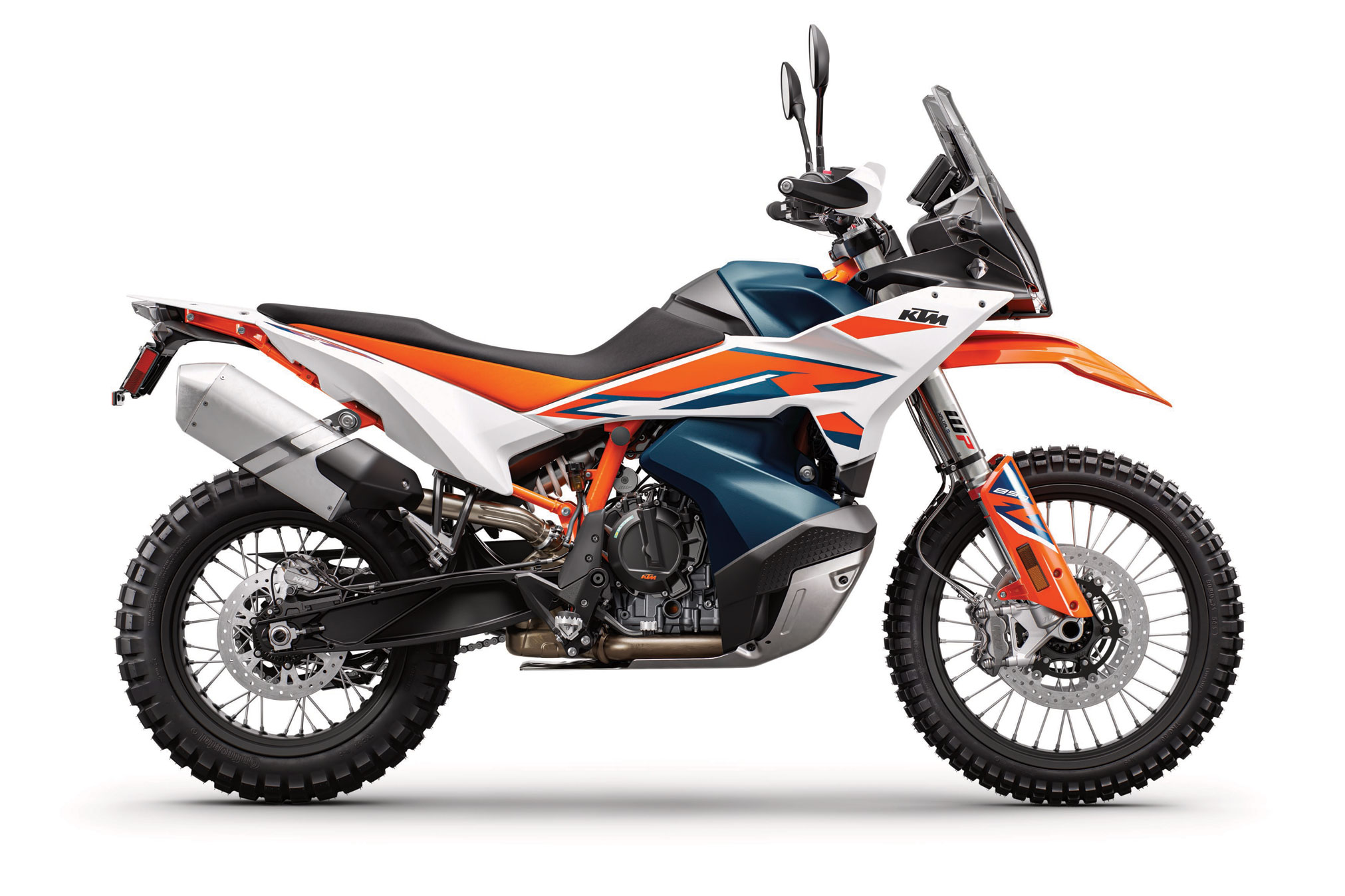

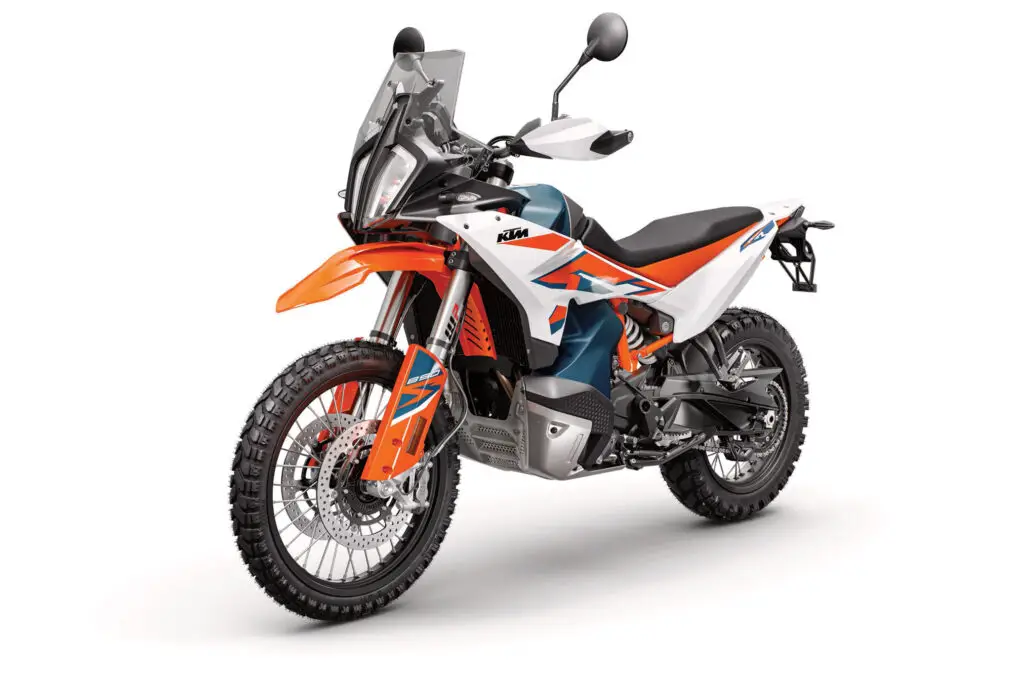

2023 KTM 890 Adventure R
Contents: ReviewKey FeaturesFeatures & BenefitsSpecifications

2023 KTM 890 Adventure R 2023 KTM 890 Adventure R 2023 KTM 890 Adventure R 2023 KTM 890 Adventure R 2023 KTM 890 Adventure R

Contents: ReviewKey FeaturesFeatures & BenefitsSpecifications

2023 KTM 890 Adventure R: DO YOU DARE?

Introducing the 2023 KTM 890 Adventure R…

Harnessing attributes of KTM’s pure READY TO RACE legacy, the hyper-focused KTM 890 ADVENTURE R new development aims to further offroad excellence, dependability, and suitability for whatever the road ahead holds. To prove the point, the bike was launched in the diverse topography of western Idaho, USA, in the presence of adventurers attending the 2022 KTM Adventure Rider Rally. The next-level capability and mettle of the reshaped KTM 890 ADVENTURE R came to the fore in the heart of the Idaho mountains.

The updated KTM 890 ADVENTURE R proves that the destination comes second. With its unmatched ability to dispatch everything from highways to rocky gravel switchbacks, to single goat tracks, the KTM 890 ADVENTURE R boasts serious travel capabilities. Thanks to its incredibly responsive powerplant, pin-sharp offroad handling, and all-day comfort, its all about the journey.











2023 KTM 890 Adventure R Totalmotorcycle.com Key Features

  • Reworked bodywork & fairing inspired by the KTM 450 RALLY
  • New windshield offering improved airflow
  • Reworked suspension settings for reduced long-distance fatigue
  • Upgraded 5” TFT display with USB connection & new pictograms
  • Improved ABS components with new modulator (9.3 MP)
  • OFFROAD ABS linked with OFFROAD MODE & (optional) RALLY MODE
  • New & more offroad oriented tires (INT models)
  • Updated turn-by-turn plus navigation system
  • Introducing the DEMO MODE functionality
  • Handlebar switch with hazard warning
  • LED indicators (US models)
  • New engine protector









2023 KTM 890 Adventure R Totalmotorcycle.com Features and Benefits

Taking cues from the KTM 450 RALLY setup, the WP suspension package on the KTM 890 ADVENTURE R, with fully adjustable WP XPLOR forks and a WP XPLOR PDS rear shock, was re-tuned to provide improved feeling to ensure riders reach the end of each stage with reduced fatigue. Further influence from the KTM 450 RALLY is evident in the redesigned bodywork with a new fairing, fuel tank, and cowling, improving aerodynamics and ergonomics, respectively enhancing protection from the elements and the bike’s already phenomenal agility. The fact that the 2023 KTM 890 ADVENTURE R is ready for action is also made clear through the new and lower windshield, high front fender and engine protector, for those tricky technical terrains.

The new 5” TFT display — equipped with USB-C connecters — features a completely new appearance with colored pictograms and intuitive graphics that allow for easy navigation through the menus. In addition, the latest upgrades provide a developed turn-by-turn plus navigation system that allows the rider to select the preferred destination out of their last selections. A new call-out function also allows a favorites call option, with a maximum of 10 numbers, or the option to call one of the 10 last numbers called.

To take the software and hardware potential of the electronics suite to new levels, KTM has also included the next generation of ABS control unit that takes readings from the 6D sensor — which continually informs the CMU on the angle, pitch, speed and general behavior of the motorcycle — to apply the correct amount of braking force for any given situation. Riders opting to try the bike’s potential off the beaten tracks can count on OFFROAD ABS as an integrated element of OFFROAD MODE, or the optional RALLY MODE, without the need to select the OFFROAD ABS separately.

When the trail widens and the KTM 890 ADVENTURE R wants to clock the miles, the 2023 edition provides comfort through the single piece seat with is new colors, which still emphasizes mobility and grip. Count on extra wear resistance thanks to the new Mitas ENDURO TRAIL+ tires combo for the International and European versions. American adventurers can also be seen with LED style indicators to complement the revitalized graphic set for 2023 model.

KTM has taken advantage of the growing electronic capacity of the KTM 890 ADVENTURE R to install a new DEMO MODE, seen for the first time on this 2023 model. The new KTM 890 ADVENTURE R will allow riders to take advantage of all the specs and options for the first 1,500 kilometers, before the rider decides which pack or features to acquire. Thanks to the DEMO MODE setting, adventurers can feel and experience the areas of the bike they prefer, while in the thick of throttle-wringing action.



KEEEPING YOU MOVING

Rider aids

No, the KTM 890 ADVENTURE R hasn’t gone soft. On the contrary, KTM rider aids are developed to enhance the overall rider experience by providing more control in different riding scenarios. More so, ABS, MTC, and RIDE MODES allow you to get the most out of your machine when barreling down the tarmac on your way to the rough stuff.

UNMATCHED TRACTION

MTC (Motorcycle Traction Control)

Making use of the latest generation of KTM MTC, on-road traction is improved by using an advanced 6D Inertial Measurement Unit. This not only regulates and controls any slip at the rear wheel but also prevents uncontrolled lifting of the front wheel. With these two forces combined, the motorcycle is guaranteed the best possible acceleration. And when further combined with the data collected from the lean angle sensor, the system detects and controls power wheelies and ensures stability as well as smooth wheel landing and acceleration.

FULL CONFIDENCE IN THE CORNERS

Cornering ABS

Grab a handful of brakes with total confidence thanks to a new 9.3 MP ABS unit. This allows riders to use full braking power mid-corner with the 6D-sensor doing all the hard work. The 6D-sensor works by continuously monitoring and evaluating the current dynamic state of the motorcycle, enhancing control and stability during braking. Also, this level of ABS technology is unmatched, providing precise and efficient stopping power.

DOMINATE THE DIRT

Offroad ABS

For the 2023 KTM 890 ADVENTURE R, Offroad ABS is automatically toggled when you’ve selected Offroad or Rally Mode. This means ABS functionality is reduced on the front wheel, and completely deactivated on the rear, allowing riders to slide the back-end into a corner. Simply put – more braking power and control in the dirt when you need it, with the ability to shred the trail when you don’t.

READY TO SHRED

Tires

The 2023 KTM 890 ADVENTURE R is fitted with Continental TKC 80 rubber, specifically optimized for riders looking for durability, handling, and mileage on road, but with the added benefit of being able to conquer difficult offroad tracks and trails with ease.

TUNED TO TRAVEL

Reworked Suspension

Reworked fork and shock settings mean the KTM 890 ADVENTURE R provides improved riding comfort, combined with excellent overall suspension performance. This, on top of already boasting the absolute best suspension currently offered on any adventure bike, means riders can tackle the harshest terrain with complete confidence. Oh, and did we mention both fork and shock are easily adjustable too?

RALLY INSPIRED

Bodywork

Inspired by the Dakar-winning KTM 450 RALLY, a completely reworked and striking front end gives the KTM 890 ADVENTURE R true READY TO RACE looks. In addition, the structure below the fairing makes use of 2 forged aluminum brackets that provide maximum stiffness to the front mask, windshield, and instrument tower. This, along with using in-mold graphics for durability and a high front fender to keep the front wheel rotating freely in heavy dirt, makes the KTM 890 ADVENTURE R ready for any adventure.

UNDENIABLY ‘R’

CTG

For 2023, the KTM 890 ADVENTURE R flies its undeniable KTM R and READY TO RACE colors with all-new white, orange, and blue graphics. The graphics are produced with in-mold technology instead of stickers raising the level of finish and durability.

PLAIN SAILING

Aerodynamics

Despite its shorter windshield, the aerodynamics of the KTM 890 ADVENTURE R serve a dual function. On the one hand, the lower profile allows the rider to move around the bike freely when standing on the pegs – and offers an unobstructed view ahead. On the other, and together with the reworked bodywork, it provides optimized protection from windblast while barrelling down the highway to the next trail.

COMMAND CONTROL

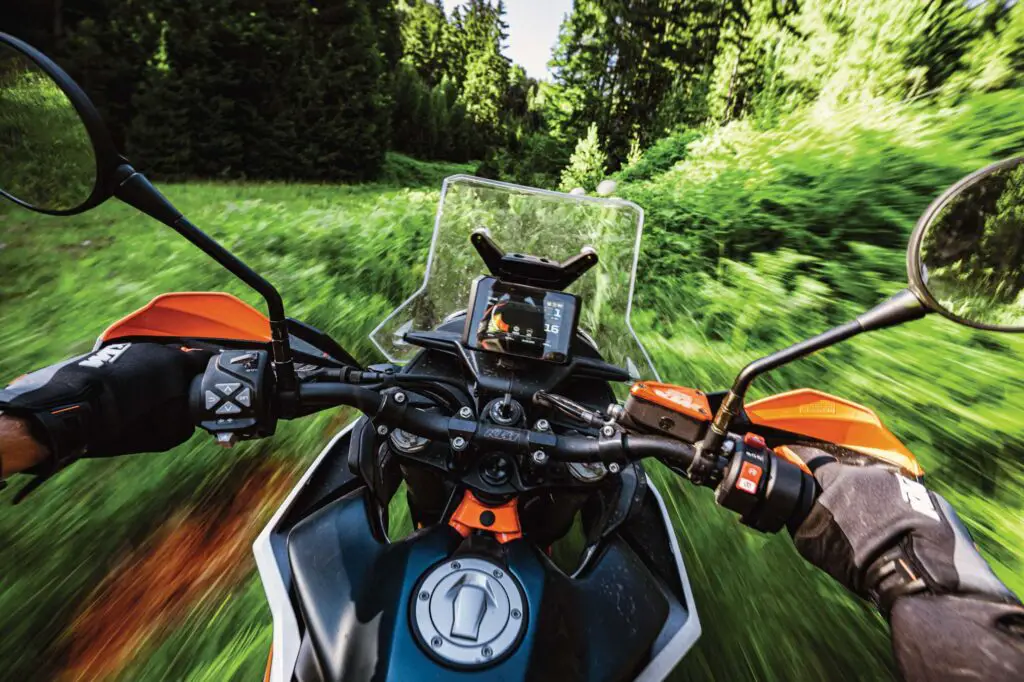

Upgraded TFT Display

A new state-of-the-art full 5″ TFT display keeps you informed with everything you need to know about the machine below you. Featuring improved functionality, each function is illustrated by an infographic of the motorcycle to directly show the user the relevant field of adjustment. An optically bonded mineral glass display ensures optimum scratch and glare resistance. Additionally, an optional Connectivity Unit allows the connection between the KTMconnect app and the TFT via Bluetooth for Turn-by-Turn+ navigation, music, incoming calls, and quick access to KTM roadside assistance.

FREEDOM OF MOVEMENT

Ergonomics

With tank spoilers and rear side panels slightly wider than the seat, hardcore offroad riding is easier thanks to improved rider movement. This also helps with reduced wear and tear on the seat, while the slim shape of the fuel tank is optimized for precise handling and control when standing on the pegs.

TECH FEST

Technology

The 2023 KTM 890 ADVENTURE R brings unmatched technology to the trail. Boasting an arsenal of rider aids, ride modes, ABS and traction control features – as well as smartphone connectivity – it rules the mid-weight adventure bike roost. The riding experience can be further enhanced with optional additions like Quickshifter+ and Cruise Control, with the introduction of a Demo Mode, that allows you to test the tech on the first 1500kms.

ENGINEERED TO RIDE

Frame

The overall geometry of the KTM 890 ADVENTURE R was developed for light handling, and comfort on long distance exploration missions – with unchallenged offroad capability. Strength was a big consideration in the design, so a tubular Chromoly steel frame is used with the engine acting as a stressed member to reduce weight and overall size. All design and engineering innovations are focused on being compact and light.

FULLY-LOADED

Subframe

Featuring a lightweight and solid construction, the subframe is fully-loaded for adventure. The motorcycle beneath you needs to be built to last. The steel trellis subframe was developed to be compact, lightweight and also strong enough to carry a full load of luggage as well as a passenger under the hardest conditions while extreme adventure riding.

ROCK SOLID

Stability

The 2023 KTM 890 ADVENTURE R is rock solid at any speed, thanks to a high-end steering damper. Engineered to provide unflappable composure at all times, the steering damper works to keep the front end stable when flicking through tight turns, or hauling over corrugated surfaces.











2023 KTM 890 Adventure R – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer (On The Road inc 20% Vat)

ENGINE
TRANSMISSION 6-speed
COOLING Liquid cooled with water/oil heat exchanger
POWER IN KW 77 kW
STARTER Electric starter
STROKE 68.8 mm
BORE 90.7 mm
CLUTCH PASC™ antihopping clutch, mechanically operated
DISPLACEMENT 889 cm³
EMS Bosch EMS with RBW
DESIGN 2-cylinder, 4-stroke, parallel twin
LUBRICATION Forced oil lubrication with 2 oil pumps
CHASSIS
CHAIN 520 X-Ring
FRAME DESIGN Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
