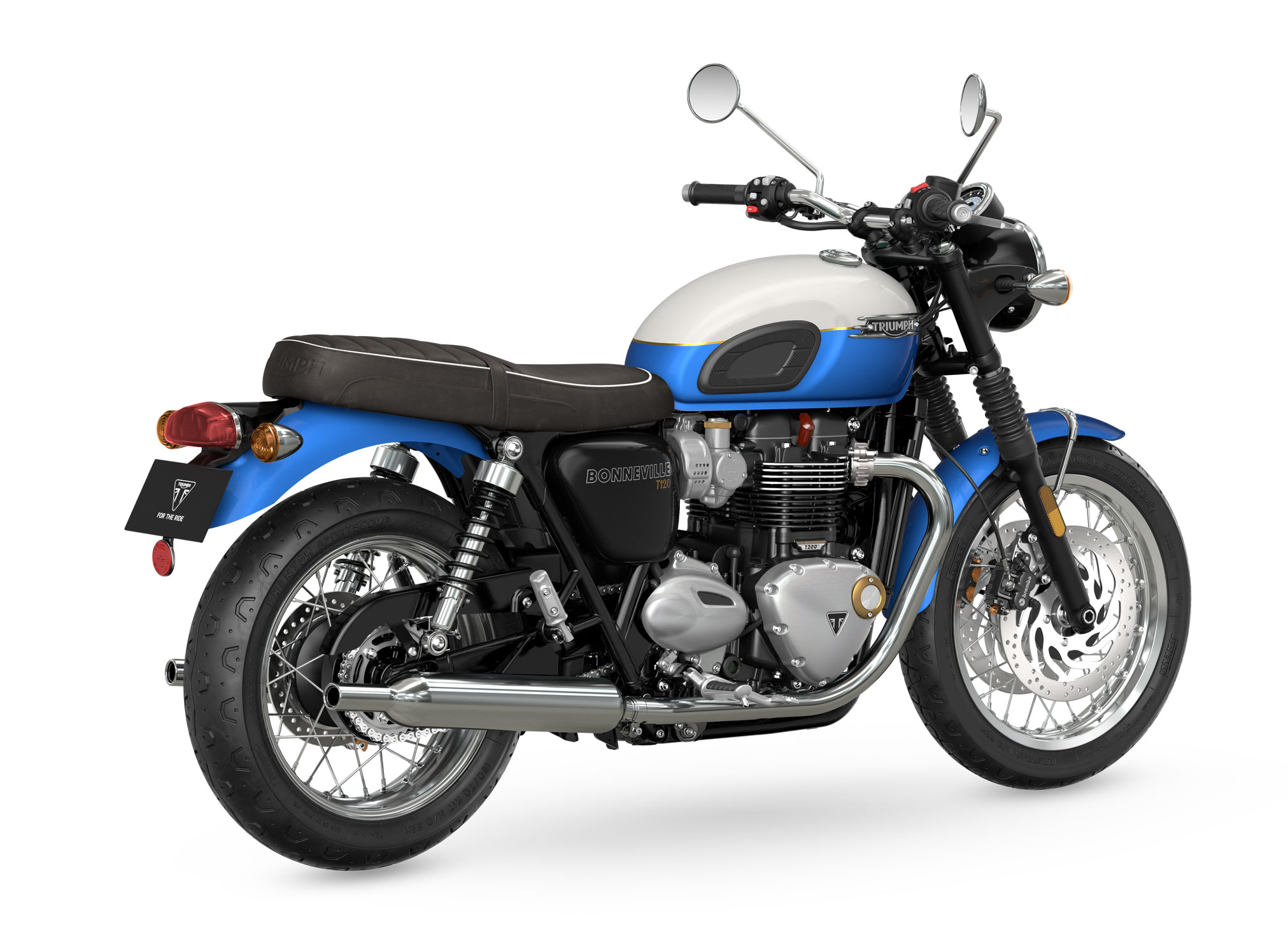

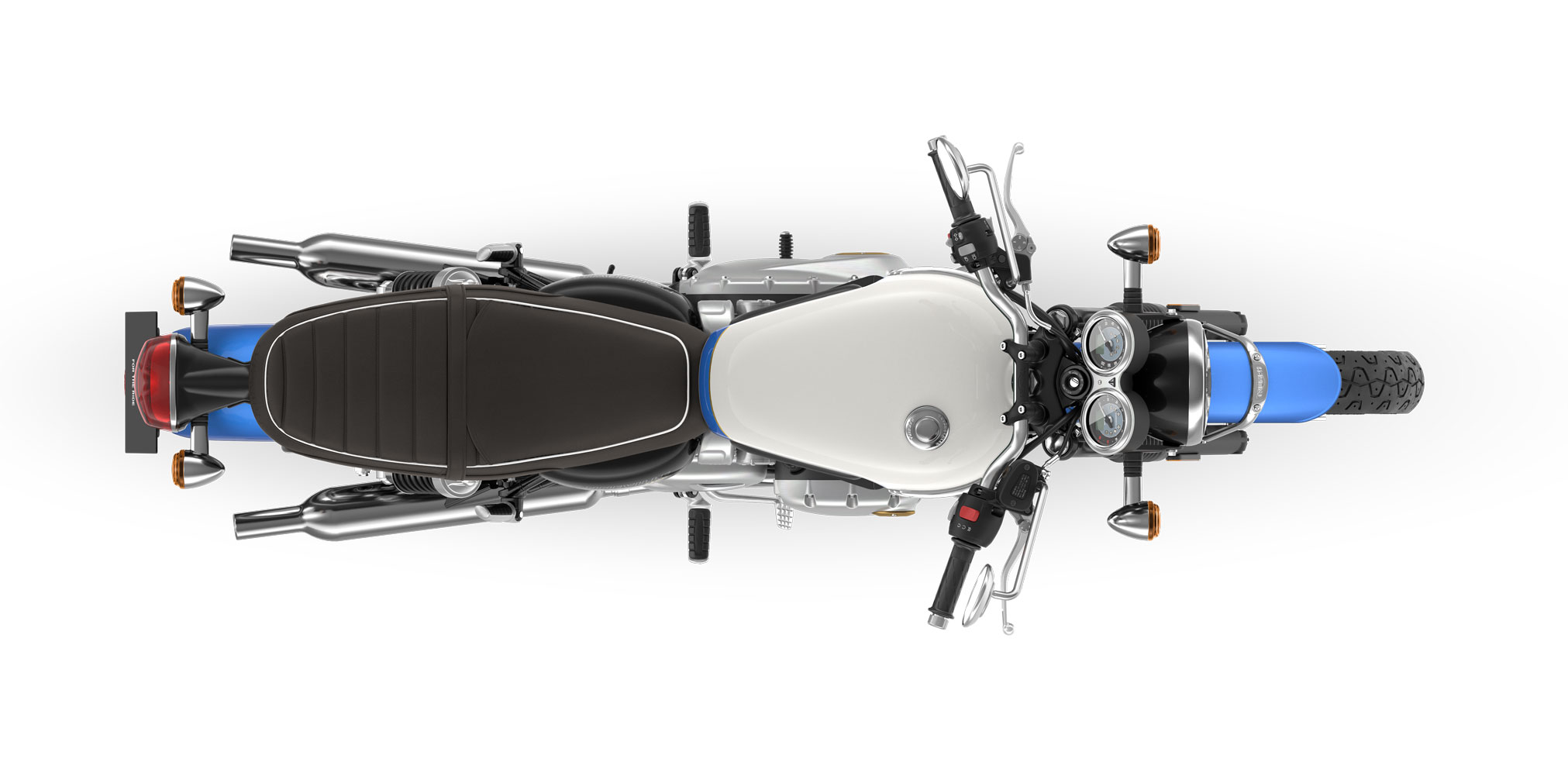

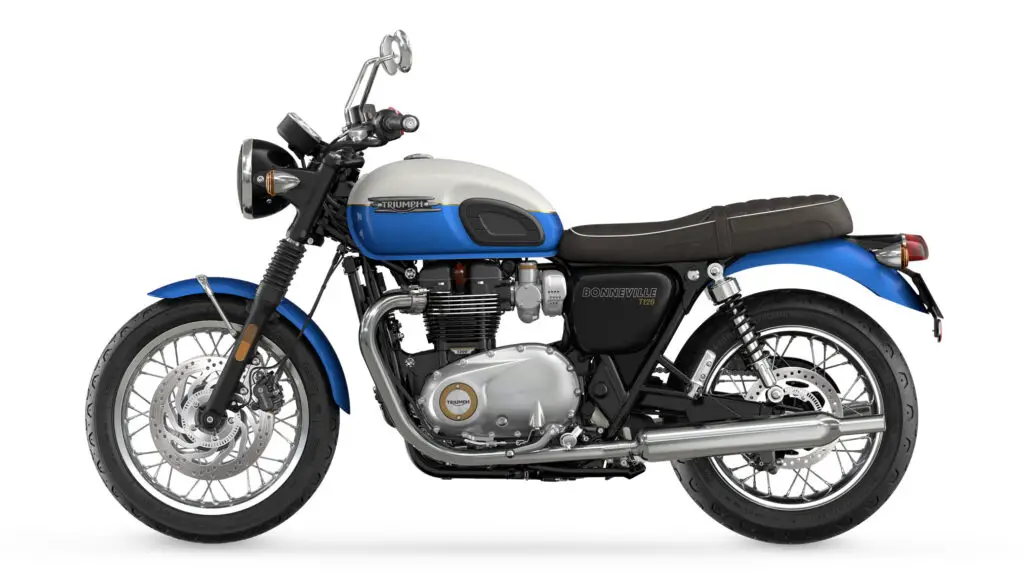

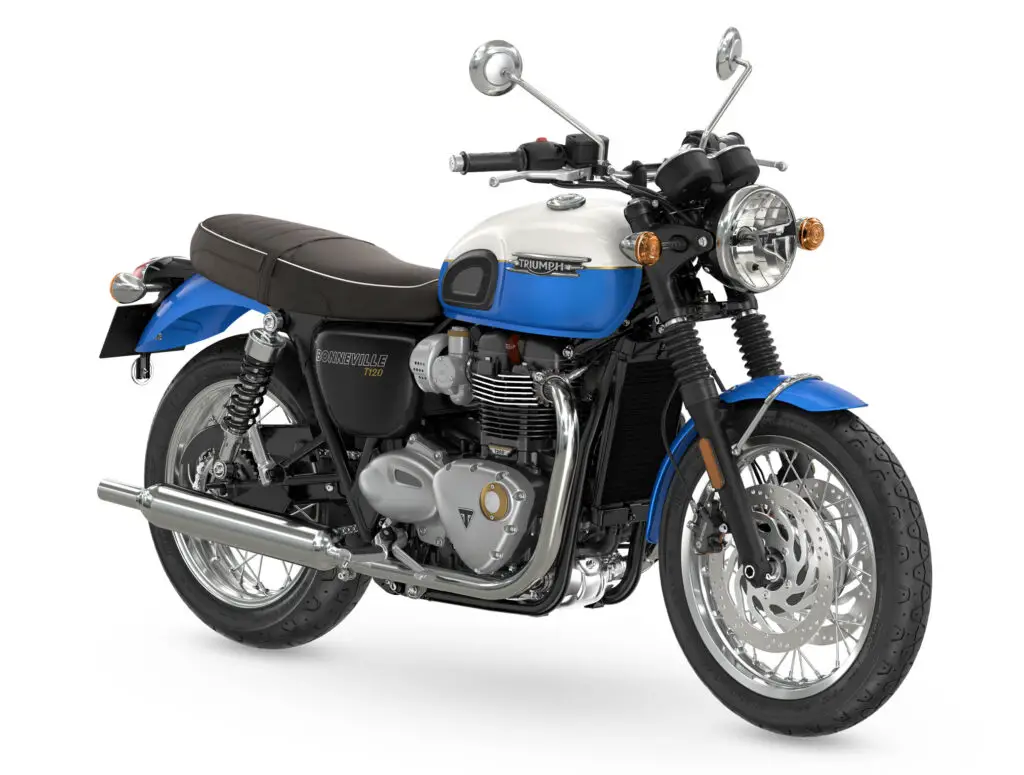

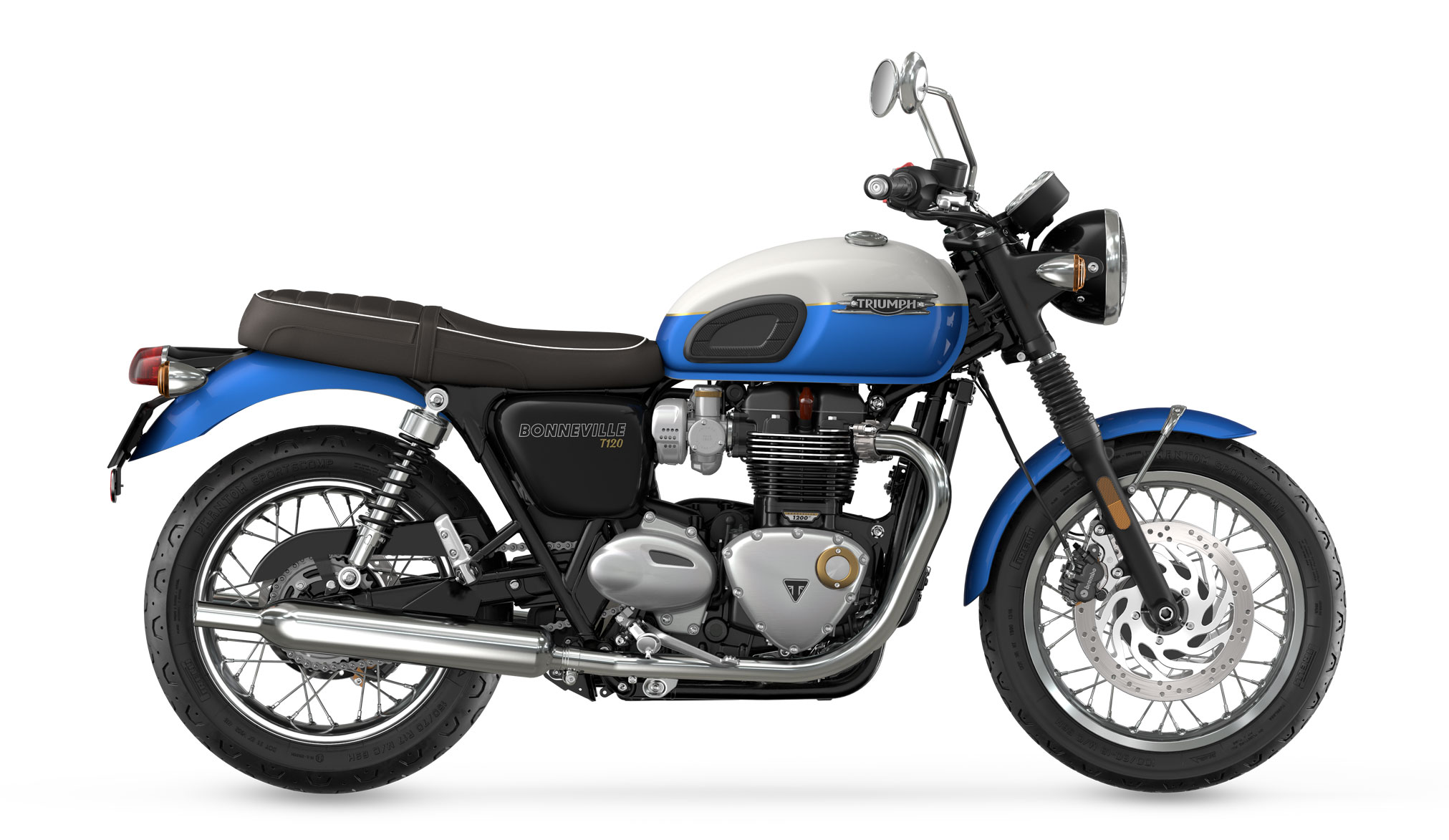

2023 Triumph Bonneville T120 Guide

2023 Triumph Bonneville T120
ReviewKey FeaturesFeatures & BenefitsSpecifications

2023 Triumph Bonneville T120 2023 Triumph Bonneville T120 2023 Triumph Bonneville T120 2023 Triumph Bonneville T120 2023 Triumph Bonneville T120

2023 Triumph Bonneville T120: UNCOMPROMISED CHARACTER.

Introducing the 2023 Triumph Bonneville T120…

Capability with character, the T120 is lighter, better handling, and more responsive than ever. A genuine motorcycle icon, beautifully evolved.

The original silhouette and style of the legendary Bonneville, with a premium modern finish. Enhanced capability. Uncompromised character.

Enhanced performance, handling and technology, timeless Bonneville design DNA: The definitive British motorcycle icon, beautifully evolved.

For model year 2023, the legendary Bonneville T120 comes in three colours, with a stylish Triumph Jet Black, and a sophisticated Cordovan Red and Silver Ice scheme, plus a stunning new Aegean Blue and Fusion White option, with hand-painted gold line detailing on the tank. The new heritage-inspired colour scheme also features Aegean Blue mudguards, and Jet Black side panels and headlight bowl.









2023 Triumph Bonneville T120 Totalmotorcycle.com Key Features









2023 Triumph Bonneville T120 Totalmotorcycle.com Features and Benefits

CHROME FINISHES

Styled and engineered to perfection, the rich, high-quality chrome finish applied to carefully selected parts, including the sweeping twin skin exhaust, adds lustrous detail to this iconic modern classic.

1200CC HT TWIN ENGINE

The 1200cc parallel twin retains all of its power, torque-rich performance, and trademark sound and charismatic 270° firing interval, while gaining a sharper, more responsive delivery.

ENHANCED HANDLING SET-UP

Weight savings totalling 7kg include lighter aluminium wheel rims to deliver improved agility and acceleration. High-quality suspension ensures modern handling and rider comfort.

HIGHER SPECIFICATION TECHNOLOGY

Beautifully integrated modern technology includes cruise control, ride-by-wire, switchable traction control, ABS and two riding modes, improving your ride without compromising your style.

BEAUTIFUL TWIN DIAL INSTRUMENTS

Striking, yet easy-to-read in all light conditions, the premium new 3D dial faces deliver all of the key information with precision and clarity.

BRAKES

The latest generation ABS with twin-piston Brembo floating front calipers and 310mm discs give superb feel and power for confident braking.

CRUISE CONTROL

Simple, single-button cruise control is now fitted as standard, enhancing comfort and reducing fatigue on longer journeys.

ENHANCED RIDING MODES

The T120’s incredible versatility is enhanced by Rain and Road riding modes that now adjust both throttle response and traction control settings, to suit the riding conditions.

DEDICATED CHASSIS AND SUSPENSION

The Bonneville’s legendary chassis and suspension set-up blends easy, confident handling with a relaxed riding position and low 31.1 in seat height. Now 15.5 lb lighter, it’s more agile and maneuverable than ever.

PRACTICALITY AND COMFORT

The relaxed riding position makes the T120 as perfect for commuting as it is for weekends spent exploring. And with a dual seat that offers all-day comfort, it’s just as much for fun for two-up riding and touring.

TIMELESS BONNEVILLE DESIGN DNA
Beautifully evolved for a new generation, today’s Bonneville T120 and T120 Black are modern icons, with all the spirit of the 1959 original.

1200CC HT ENGINE
The famously torque-rich Bonneville motor features a new, lighter crank for improved response.

ENHANCED HANDLING
A total 15 lb weight saving with lighter wheels and improved Brembo brakes deliver even more spirited agility and surefooted confidence.

HIGH SPECIFICATION TECHNOLOGY
Beautifully integrated technology includes enhanced riding modes, advanced ABS, switchable traction control and new standard fit cruise control.

ICONIC STYLING
Premium hand-finished paintwork with new tank badges provide a class-leading finish, while new instrument faces add to the beautiful touches.

ACCESSORIES
With 116 Genuine Triumph Accessories to personlize your ride; all designed and tested to the same high standards as our bikes, including the same 2 year, unlimited mileage warranty.

BEAUTIFUL DETAILS
Crafted and refined details such as the new 3-bar classic tank badge and classic machined engine fins, plus hand-painted coach lining on the twin color scheme options, are faithful to the iconic 1959 Bonneville.

BONNEVILLE T120 RANGE IN NUMBERS
1959 GENESIS
1200 CC BONNEVILLE TWIN
77.4 LB-FT PEAK TORQUE
116 ACCESSORIES













2023 Triumph Bonneville T120 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $12,395  USD
Canada MSRP Price: from $13,845 CDN
Europe/UK MSRP Price: from £11,295 (On The Road inc 20% Vat)

ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 10.0:1
Max Power EC 79 HP @ 6550 RPM
Max Torque EC 77.4 LB-FT @ 3500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Chromed 2 into 2 exhaust system with twin chrome silencers
Final Drive Chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel, with twin cradles
Swingarm Twin sided fabrication
Front Wheel Aluminium rimmed 32 spoke 2.75” x 18”
Rear Wheel Aluminium rimmed 32 spoke, 4.25” x 17”
Front Tire 100/90-18
Rear Tire 150/70 R17
Front Suspension Ø41mm cartridge forks
Rear Suspension Twin RSU’s, with pre-load adjustment
Front Brakes Twin 310mm discs, Brembo 2 piston floating caliper, ABS
Rear Brakes Single 255mm disc, Nissin 2 piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 30.7 in (780 mm)
Height Without Mirror 43.7 in (1100 mm)
Seat Height 31.1 in (790 mm)
Wheelbase 57.1 in (1450 mm)
Rake 25.5 º
Trail 4.1 in (105.2 mm)
Tank Capacity 3.8 US gal (14.5 litres)
Wet Weight 520 lb (236 kg)
FUEL CONSUMPTION
Fuel Consumption 60.1 mpg (4.7 L / 100km)
CO2 Figures EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.









2023 Triumph Bonneville T120 – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6
Stroke 80
Compression 10.0:1
Max Power EC 79 HP @ 6550 RPM
Max Torque EC 77.4 LB-FT @ 3500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Chromed 2 into 2 exhaust system with twin chrome silencers
Final Drive Chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel, with twin cradles
Swingarm Twin sided fabrication
Front Wheel Aluminium rimmed 32 spoke 2.75” x 18”
Rear Wheel Aluminium rimmed 32 spoke, 4.25” x 17”
Front Tire 100/90-18
Rear Tire 150/70 R17
Front Suspension Ø41mm cartridge forks
Rear Suspension Twin RSU’s, with pre-load adjustment
Front Brakes Twin 310mm discs, Brembo 2 piston floating caliper, ABS
Rear Brakes Single 255mm disc, Nissin 2 piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 30.7 in (780 mm)
Height Without Mirror 43.7 in (1100 mm)
Seat Height 31.1 in (790 mm)
Wheelbase 57.1 in (1450 mm)
Rake 25.5 º
Trail 4.1 in (105.2 mm)
Tank Capacity 3.8 US gal (14.5 litres)
Wet Weight 520 lb (236 kg)
FUEL CONSUMPTION
Fuel Consumption 60.1 mpg (4.7 L / 100km)
CO2 Figures EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE
Service Interval 10,000 miles/12 months service interval, whichever comes first









2023 Triumph Bonneville T120 – Totalmotorcycle.com European Specifications/Technical Details

ENGINE & TRANSMISSION
Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 10.0:1
Max Power EC 80 PS / 78.9 bhp (58.8 kW) @ 6550 rpm
Max Torque EC 105 Nm @ 3500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Chromed 2 into 2 exhaust system with twin chrome silencers
Final Drive Chain
Clutch Wet, multi-plate torque assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel, twin cradle frame
Swingarm Twin sided fabrication
Front Wheel Aluminium rimmed 32 spoke 18 x 2.75 inches
Rear Wheel Aluminium rimmed 32 spoke, 17 x 4.25 inches
Front Tyre 100/90-18
Rear Tyre 150/70 R17
Front Suspension Ø41mm cartridge forks
Rear Suspension Twin RSU’s, with pre-load adjustment
Front Brakes Twin 310mm discs, Brembo 2 piston floating caliper, ABS
Rear Brakes Single 255mm disc, Nissin 2 piston floating caliper, ABS
Instrument Display and Functions Twin dial analogue speedometer and tachometer with LCD multi-functional displays
DIMENSIONS & WEIGHTS
Width Handlebars 780 mm
Height Without Mirror 1100 mm
Seat Height 790 mm
Wheelbase 1450 mm
Rake 25.5 º
Trail 105.2 mm
Tank Capacity 14.5 L
Wet Weight 236 kg
FUEL CONSUMPTION
Fuel Consumption 60.1 mpg (4.7 l/100km)
CO2 Figures 107 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
SERVICE
Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first











Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
