Binging the Braaap! Thanks to the KTM 150 XC-W’s compact engine, the header pipe is designed with the target of achieving more ground clearance and reducing the risk of damage when riding over deep roots, ruts, or climbing steep rocks.
Review – Key Features – Features & Benefits – Specifications

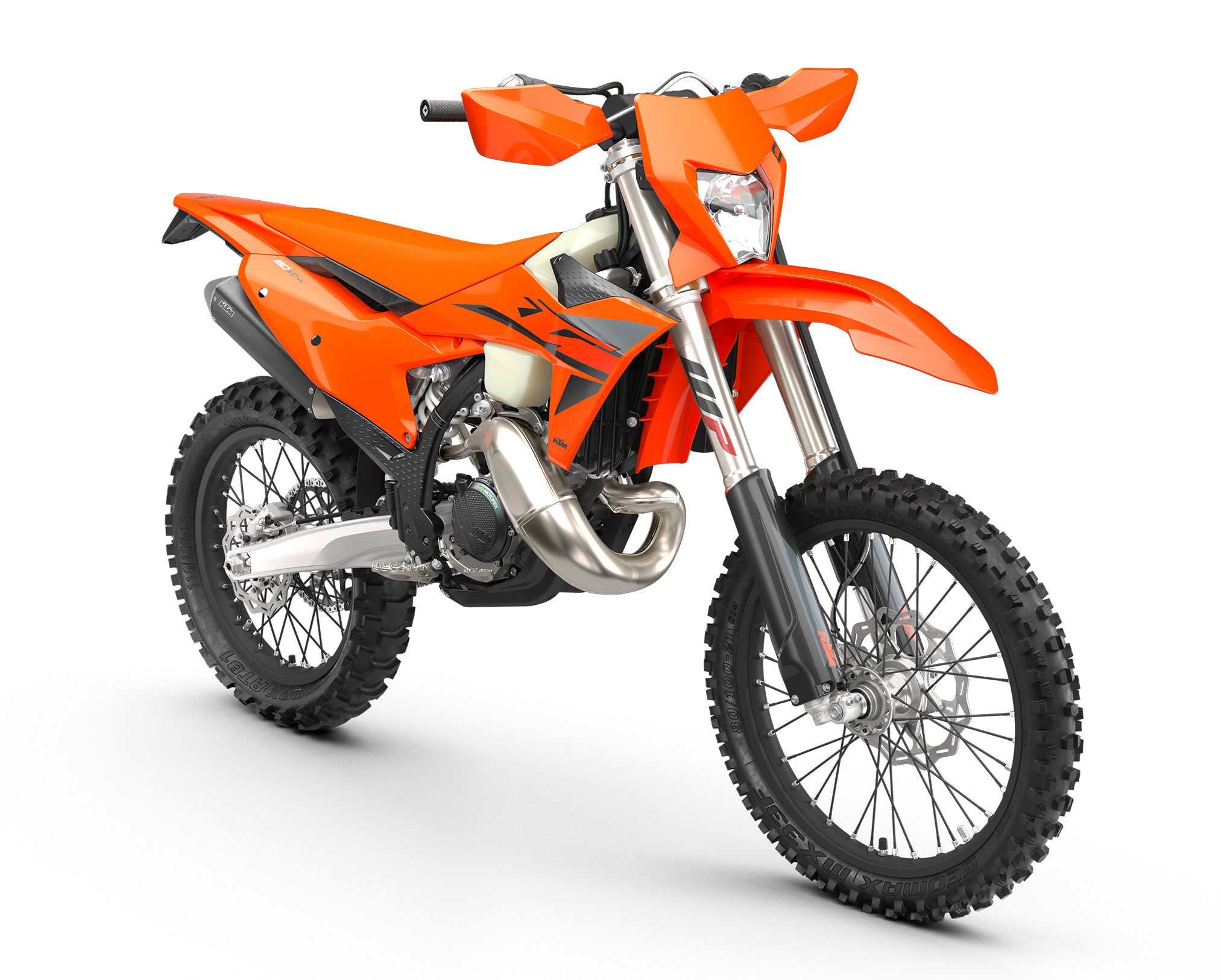

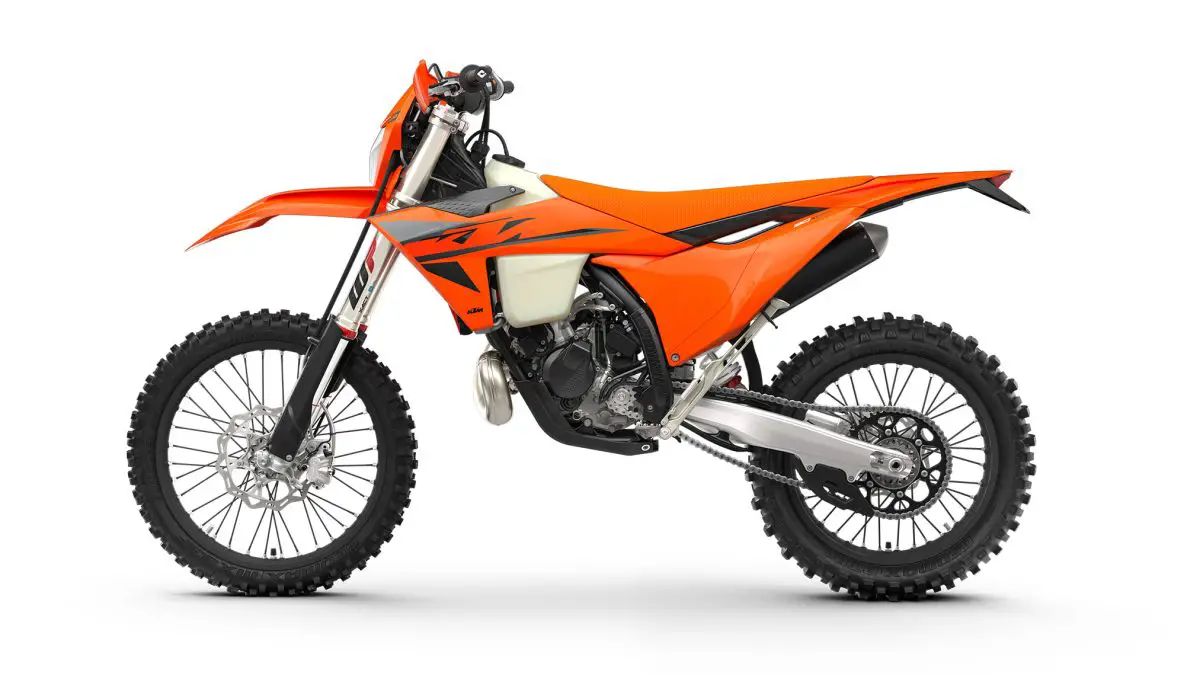

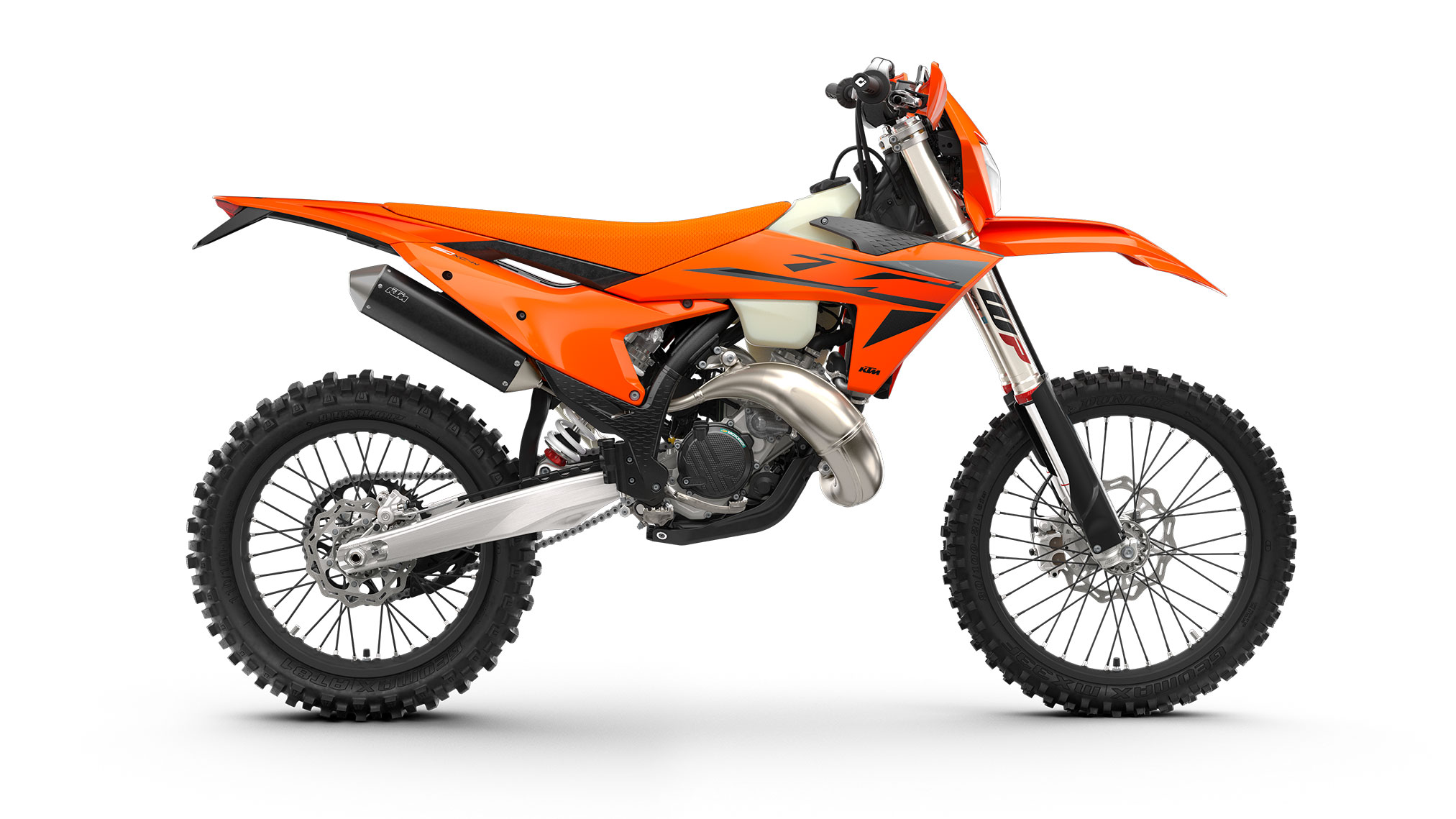

2025 KTM 150 XC-W: LIMITLESS.
Introducing the 2025 KTM 150 XC-W…
The 2025 KTM 150 XC-W has earned its place on the hallowed XC-W rostrum. Featuring the same level of equipment as the rest of the KTM XC-W range, it packs enough punch to hang with the big boys while dominating them in the technical bits. With a fiery motor, lightning-fast response, and agile handling, the 2025 KTM 150 XC-W remains a worthy competitor on any enduro stage.
2025 KTM 150 XC-W Totalmotorcycle.com Key Features
THE 2025 KTM EXC LINE-UP MOVES THE GOALPOSTS EVEN FURTHER
The 2025 KTM EXC range introduces a series of refinements and key touches to the Enduro lineup, bringing over thirty years of race-bred performance, cutting-edge technology, and a fan favorite to the trails.
With over three decades at the sharp end of World Enduro Championships – and countless regional titles – the 2025 KTM EXC lineup is set to maintain its domination of enduro competition.
Following 2024s significant 95% overhaul, the 2025 range continues to use revolutionary closed-cartridge suspension, refined frame and bodywork, and industry-defining technology.
The most notable change is the ‘orange’ makeover. Here, the previous 1990s-inspired purple highlights are replaced by a timeless silver-gray graphic over predominantly orange bodywork and a black frame. The seat remains orange, featuring a high-grip seat cover and textured grip strips, which can also be found on the frame protectors, tank shrouds, and bar pad.
At the rear, handling is further refined, thanks to new settings for the WP XPLOR PDS shock, resulting in an improved pressure balance and a lower risk of cavitation. The swingarm also gets an update, with a machined unit to improve the durability of the chain glider.
Upfront, a new and updated fuel tank roll now secures the tank more firmly in place while keeping the frame protected against scrubbing. At the handlebars, a new on/off switch gear is carried over from the KTM SX range.
The biggest news of 2025 is the reintroduction of a dedicated 125 cc KTM Enduro model to the lineup. After a decade of absence (2016 was the last EU model to be exact) the 2025 KTM 125 XC-W has returned to reclaim its dominance in the 125 cc Junior Enduro category.
The KTM 125 XC-W, is designed specifically for competition purposes. It stands out from other KTM 2-stroke models with several distinct features. It utilizes the engine of the 2025 KTM 125 SX, but it incorporates Enduro Transmission and Stator components from the KTM 150 EXC. Unlike other models in the KTM 2-stroke Enduro range., the KTM 125 XC-W doesn’t include an extra oil tank between the fuel tank and steering head, making it the sole pre-mix model in this regard. Additionally, it comes standard with a map select switch. All other main components are identical to the KTM EXC range.
All models in the range keep the hydro-formed, laser-cut, and robot-welded frame, which is renowned for its flex parameters, rider feedback, and straight-line stability, with a 48 mm WP XACT Closed Cartridge spring fork and WP XPLORE PDS taking care of suspension duties.
The 2025 KTM EXC 2-stroke range will consist of the KTM 125 XC-W, KTM 150 EXC, KTM 250 EXC, and KTM 300 EXC. The 4-stroke range remains unchanged, with the dirt ripping KTM 250 EXC-F, KTM 350 EXC-F, KTM 450 EXC-F, and KTM 500 EXC-F filling the ranks.
The 2025 KTM EXC range is the culmination of years of R&D fighting at the sharp end of Enduro competition worldwide. With dynamic race-bred performance, focused ergonomics, and leading technology, the 2025 KTM Enduro range is primed and ready to challenge any terrain and redefine the limit.
As always, a dedicated collection of KTM PowerWear and KTM PowerParts are designed to provide the highest levels of performance and protection, with collections ready to meet the needs of hobby riders and pro racers alike.
The new 2025 KTM EXC range will be rolling off the Austrian production line in June and available at authorized KTM dealers from July.
2025 KTM 150 XC-W Totalmotorcycle.com Features and Benefits
SETTING THE SAG
Adjustability
Getting READY TO RACE has never been easier. The KTM XC-W range boasts a tool-free suspension setup at both ends. At the rear, our legendary, race-winning PDS technology features hand-adjustable dual compression controls, allowing riders to adjust high- and low-speed settings in a matter of seconds. On the front, the forks are also easily adjusted thanks to hand-adjustable clickers on the bottom of the fork shoe and on the fork top cap, making changing settings on the fly as easy as twisting the throttle.
DEEP BREATH
Air filter box
The air filter box is designed to ensure maximum airflow with minimal water intrusion. Precision in how the inlet ducts are positioned is aimed at preventing air deformation and maintaining filter protection. An enduro-specific splash protector under the airbox prevents water or dirt from splashing up from the rear wheel, while the Twin Air filter and air filter support design features a simple fail-proof mounting system for a secure and accurate filter installation. All this ensures the air filter is easily accessed, without tools, for fast trail-side maintenance.
FULLY FUELED
Fuel Tank
The transparent, polythene (XPE) fuel tank is a signature element of the KTM Enduro lineup. Having undergone thorough race testing in everything from the GNCC to the hardest of FIM hard enduros, these tanks are built, well, like tanks! For 2024, a one-piece fuel pump and filter improves the fuel supply, while making servicing easier with easy fuel filter access, so you can hit the trail or trackwith utmost confidence.
SWITCH IT UP
Switchgear
On the right side of the handlebar, you’ll find a sleek start/stop switch taken directly from our motocross machines, and on the left, an optional Map Select switch can be installed that allows riders to choose between Map 1 or Map 2.
TORQUE ABOUT IT
Engine
Quite literally in a class of its own, the 2025 KTM 150 XC-W has an impressive powerplant for its size boasting an impressive power delivery, with an overall weight of just 41.4 lb (18.8 kg), setting the benchmark for youngsters, beginners, and experienced enduro riders looking for an ultra-lightweight, agile 2-stroke off-roader.
FUELING SPEED
Throttle Body Injection
The KTM 2-stroke Enduro models feature electronically-controlled Throttle Body Injection – or TBI. The ECU, together with a Keihin 39 mm throttle body,calculates the ideal air-fuel mixture by constantly analyzing water temperature, air temperature, ambient pressure, and pressure within the crankcase, the rpm, and the throttle position to ensure the smoothest and most consistent power delivery in the most gnarly of enduro conditions.
SMARTER ELECTRONICS
Offroad Control Unit
The Offroad Control Unit – or OCU – is located under the seat and replaces all the electronic fuses and relays. All outputs are switched depending on signals from the voltage regulator and the ECU continuously. In the event of over-current, outputs are deactivated individually. This makes for easy error detection as the status of each output is indicated by a red or green LED light. This means diagnosing an electrical issue out on the trail is as easy as lifting the seat, and there’s no more need to carry fiddly fuses.
PICK YOUR POWER
Selectable Engine Maps
Designed for easy operation, the map select switch is available as an optional extra on all KTM XC-W models and allows for the easy selection of 2 unique engine maps. Map 1 is the standard, more linear, and predictable power map, while map 2 is a more aggressive map for added throttle response and more crisp, explosive power output.
LITHIUM POWERED
Battery & Wiring Harness
As with the rest of the 2-stroke KTM XC-W range, the KTM 150 XC-W is fitted with a proven and reliable electric start system. Powered by an ultra-lightweight 2 Ah lithium-ion starter battery, it provides a safe, reliable starting time and time again, while the wiring harness has most of the electrical components carefully positioned under the seat for easy accessibility.
FLUID RIDER MOTION
Ergonomics
The KTM XC-W range features a rider-focussed body-position triangle, providing improved knee contact – especially when standing on the pegs – with improved gripping surfaces all around. With the plastics working to expel mud buildup in wet, muddy conditions, a flat seat profile with a high grip seat cover providing exceptional rider movement and control, and a polyamide-reinforced aluminum subframe providing unmatched rider feel and feedback, your only concern is navigating the terrain ahead of you.
UNMATCHED PERFORMANCE
Exhaust
Binging the Braaap! Thanks to the KTM 150 XC-W’s compact engine, the header pipe is designed with the target of achieving more ground clearance and reducing the risk of damage when riding over deep roots, ruts, or climbing steep rocks. The silencer is crafted from lightweight aluminum.
BUILT TO BE THE BACKBONE
Frame
Specifically engineered for longitudinal rigidity, the 2025 KTM XC-W range is engineered around a black powder coated frame providing exceptional rider feedback, energy absorption, and high-speed stability. This is achieved by repositioning the rotating masses in the frame along with a forged steering head connection. The footrest mounts also feature a slim design for less risk of hooking up. And when the ride comes to an end, a forged one-piece side stand ensures your enduro weapon stands proud.
MORE THAN A SUBFRAME
Subframe
An ultra-light lightweight subframe takes charge at the rear of the main frame, featuring a 2-part polyamide and reinforced aluminum construction. With the help of computational dynamics, a specific rigidity was engineered into the subframe, to deliver outstanding handling and rider feedback. This compact subframe design also boasts the the ability to bend and flex in the event of a crash, rather than break, with the subframe fully integrating electronic components, without any extra need for brackets, holders, or unnecessary fixtures.
UNFLAPPABLE FRONT END
WP XACT Closed-cartidge Fork
A 48 mm WP XACT Closed Cartridge spring fork provides fast and consistent damping, with optimized oil flow. This means these forks ensure unmatched performance at every level. Fork protection rings also protect against dirt intrusion. But, best of all, the fork allows for full adjustment of compression and rebound without the need for any tools.
GET THE POWER DOWN
WP XPLOR Shock
Remaining a hallmark of KTM Enduro weaponry, a PDS rear shock concept improves the anti-squat behaviors of the chassis. This remains the most reliable and maintenance-friendly option for competitive enduro racing. Moreover, a lightweight WP XPLOR PDS rear shock takes charge at the rear. For 2025 the rear shock received updated settings, resulting in improved pressure balance within the shock. With consistent damping, as well as full adjustability thanks to easy-to-use hand clickers for adjustments on the fly, it remains the setup to beat.
WHERE RUBBER MEETS DIRT
Wheels and Tires
The KTM XC-W range rolls on a set of high-strength GIANT alloy wheels coupled to CNC-machined hubs and aluminum nipples. These are wrapped in a set of ultra-grippy Dunlop tires providing excptional traction in all conditions.
HOLD THE LINE
Stability
The KTM XC-W range maintains stability at any speed thanks to its forged steering head connection and triple clamps providing riders with a forgiving feeling. Crafted from high-grade aluminum, they offer a more flexible steering stem, precise alignment of fork tubes, and accurate geometry of fork clamps. This setup ensures highly responsive and smooth fork action, as well as unwavering stability during ultra-fast flat-out special stages.
SEE INTO THE FUTURE
LED headlight
Lighting the way forward, the KTM XC-W range features an LED headlight unit and light mask. The mask itself features triple clamp protection against roost and does away with the rubber mounting straps for improved fitment. Most importantly, the LED lighting unit provides serious illumination, making riding in the dark a completely new experience.
2025 KTM 150 XC-W – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer for pricing in USD
Canada MSRP Price: $ See Dealer for pricing in CDN
Europe/UK MSRP Price: £ See Dealer for pricing in GBP (On The Road inc 20% Vat)
Engine
Primary drive 23:73
Secondary gear ratio 13:50
Starter Electric starter
Stroke 54.5mm
Bore 58mm
Clutch Wet, DDS multi-disc clutch, Brembo hydraulics
Displacement 143.99cm³
EMS Vitesco Technologies EMS
Design 1-cylinder, 2-stroke engine
Fuel-mixture generation Keihin EFI, throttle body 39 mm
Chassis
Weight (without fuel) 97.8kg
Wheelbase 1.489mm
Front brake disc diameter 260mm
Rear brake disc diameter 220mm
Front brake Disc brake
Rear brake Disc brake
Chain 520 X-Ring
Frame design Central double-cradle-type 25CrMo4 steel
Front suspension WP XACT-USD, Ø 48 mm
Handlebar Neken, aluminium Ø 28/22 mm
Rear suspension WP XPLOR shock absorber with PDS
Silencer Aluminium
Steering head angle 63.9°
Rear subframe design Aluminum-reinforced polyamide
Tyre dimensions (front/rear) 80/100; 110/100
Wheels 21 x 1.60″; 18 x 2.15″
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
