- Air-cooled, 110 cc, SOHC, 2-valve, 4-stroke engine produces smooth, reliable, novice-friendly power.
Review – Key Features – Features & Benefits – Specifications

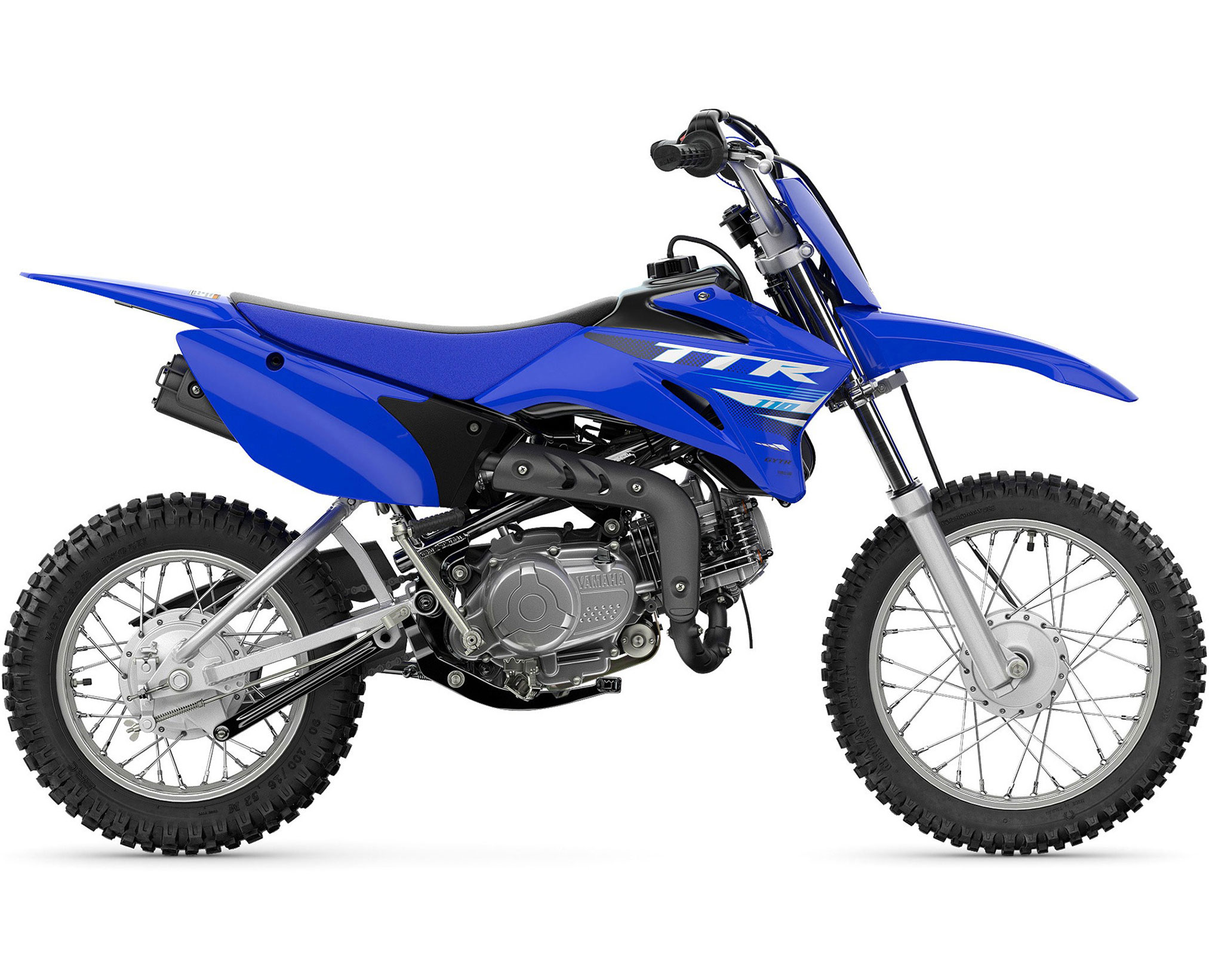

2025 Yamaha TT-R110: SMOOTH RIDE.
Introducing the new 2025 Yamaha TT-R110…
Spark yours or family’s two-wheel passion with a TT-R 110! A versatile starter bike for both young and older riders and everyone in between. Learning is a snap with electric start, smooth power delivery and automatic clutch design for easy shifting.
2025 Yamaha TT-R110 Totalmotorcycle.com Key Features
- Air-cooled, 110 cc, SOHC, 2-valve, 4-stroke engine produces smooth, reliable, novice-friendly power.
- Push-button electric starting backed up by a manual kick starter too.
- Lightweight aluminum cylinder features a cast iron liner.
- Single overhead camshaft
- Flat top piston and lightweight crankshaft
- Automatic cam chain adjuster
The TT-R110’s air-cooled, 110 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice-friendly power.
The mid-size, steel, backbone-type frame features a compact 1,080 mm (42.5″) wheelbase for easy, agile handling with a low, confidence-inspiring seat height. The convenient push-button electric start makes it easier to get going!
2025 Yamaha TT-R110 Totalmotorcycle.com Features and Benefits
ENGINE
- Air-cooled, 110 cc, SOHC, 2-valve, 4-stroke engine produces smooth, reliable, novice-friendly power.
- Push-button electric starting backed up by a manual kick starter too.
- electric starting makes learning to ride more fun
- Lightweight aluminum cylinder features a cast iron liner.
- cylinder can be “bored out” in the event of a problem
- Single overhead camshaft
- utilizes easy to adjust conventional rocker arms & screw type tappet adjusters
- Flat top piston and lightweight crankshaft
- 3:1 compression ratio
- proven, reliable design
- lightweight means faster engine response
- Automatic cam chain adjuster
- reduces maintenance & mechanical engine noise
- 16mm Mikuni carburetor
- crisp throttle response
- good fuel economy
- carburetor features nickel silver needle valve assembly & chromate treatment on the inner float bowl to counter act the negative effects of E10 (10% ethanol) fuels
- easy access “paddle-style” choke
- 4-speed, semi-automatic transmission
- eases beginners into the basics of shifting, without the complications of a hand-operated clutch
- allows rider to concentrate on developing riding skills and balance
- easier & more fun learning experience
- Maintenance-free capacitor discharge ignition (CDI).
- produces a strong spark for fast starts
- provides precise ignition timing/mapping for optimum engine performance at all rpm
- Easy-access washable foam air filter
- re-usable design reduces maintenance costs
- Lightweight exhaust system with heat shields
- quiet design
- “cleanable” screen-type spark arrestor
- heat shields protect young riders from hot components
- Rugged steel engine protector plate for those rough trails.
DETAILS
- Handlebar with reinforcing crossbar & protective foam pad
- Upper and lower plastic chain guards reduce chain splatter and help protect young riders
- Front and rear reflectors for added visibility
- E10 compatible fuel system components
- Low maintenance, sealed battery won’t leak in the event of a tip-over (battery should be charged during winter storage)
IMPORTANT NOTE: Adult supervision, a helmet & proper protective riding gear are a must when a youngster is operating a TT-R110
2025 Yamaha TT-R110 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ NA USD
Canada MSRP Price: $3,099 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
NA
2025 Yamaha TT-R110 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
ENGINE 4-stroke, air-cooled, SOHC, 2-valve, single
DISPLACEMENT 110cc
BORE AND STROKE 51 x 54mm
COMPRESSION RATIO 9.3:1
MAXIMUM TORQUE 0.8 kg-m (5.8 ft-lb) @ 4,000 rpm
FUEL DELIVERY Mikuni VM16
LUBRICATION Wet sump
IGNITION / STARTING CDI / Electric & kick
TRANSMISSION Constant mesh, 4-speed
FINAL DRIVE Chain
CHASSIS
SUSPENSION (FRONT) 31 mm fork / 115mm (4.5″) wheel travel
SUSPENSION (REAR) Monocross, single shock / 110 mm (4.3″) wheel travel
BRAKES (FRONT) Drum
BRAKES (REAR) Drum
TIRES (FRONT) 2.50-14 4PR
TIRES (REAR) 3.00-12 4PR
CRITICAL DATA
LENGTH 1,565 mm (61.6″)
WIDTH 680 mm (26.8″)
HEIGHT 920 mm (36.2″)
WHEELBASE 1,080 mm (42.5″)
GROUND CLEARANCE 180 mm (7.1″)
SEAT HEIGHT 670 mm (26.4″)
FUEL CAPACITY 3.8 litres (0.8 imp. gallons)
WET WEIGHT 72 kg (159 lb)
COLOUR(S) Yamaha Racing Blue
2025 Yamaha TT-R110 – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
