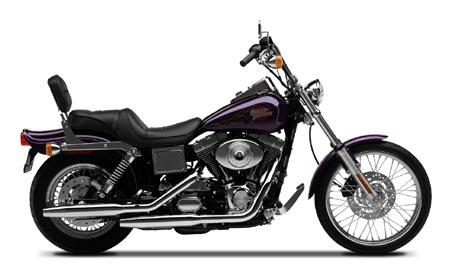

2001 Harley-Davidson FXDWG Dyna Wide Glide
2001 Harley-Davidson FXDWG Dyna Wide Glide


– 2001 Harley-Davidson FXDWG Dyna Wide Glide

The Dyna Wide Glide® represents a classic Harley-Davidson® chopper, with its laid-back attitude and traditional custom styling. Powered by the eye-catching black & chrome Twin Cam 88™ engine, the Wide Glide isn’t just a pretty face. The wide raked fork, skinny 21-inch wire laced front wheel, newly redesigned stepped seat, chrome headlight, factory ape hanger handlebar, forward-mount foot controls and passenger sissy bar provide plenty of style, and the rubber isolation-mounted, 88 cubic inch V-Twin powertrain adds some real attitude.

-Vibration-isolated, Black and Chrome Twin Cam 88™ Engine
-Wide, raked-out front fork
-21 in. laced front wheel
-Ape-hanger handlebar
-Bobtail fender
-Stepped, chopper seat
-Forward foot controls
-Chromed sissy bar and backrest
-Large, tank-mounted speedometer

Vehicle specifications and features may vary from country to country depending on local laws, and some models are not available in certain countries.


Length 94.5 in. (2398.4 mm)
Seat Height (measure laden w/ 180 lb. rider) 26.8 in. (680.2 mm)
Seat Height TUV (measure unladen; int’l measure) (705.6 mm)
Ground Clearance 5.4 in. (136.5 mm)
Rake 32.0 degrees
Trail 5.1 in. (129.4 mm)
Wheelbase 66.1 in. (1677.6 mm)
Tires: Dunlop Harley-Davidson Series D401
Front Type D402
Front Size MH90-21 56H
Rear Type D401
Rear Size 130/90B16 73H
Fuel Capacity (includes 1.1 gal. reserve tank) 5.2 gal. (19.7 L)
Reserve Fuel Capacity 1.1 gal. (4.2 L)
Oil Capacity 3.0 qts. (2.8 L)
Dry Weight 612.0 lbs. (277.8 kg)
Vehicle Weight In Running Order (int’l measure) (295.1 kg)
Gross Vehicle Weight Rating 1085.0 lbs. (492.6 kg)

Engine Twin Cam 88 (vibration isolation-mounted)
Valves Pushrod-operated overhead valves; with hydraulic
self-adjusting lifters; two valves per cylinder
Bore and Stroke 3.75 x 4.0 in. (95.25 x 101.6mm)
Displacement 88 cu. in.(1450 cc)
Compression Ratio 8.9:1
Fuel System Carburetion (40 mm constant velocity with enrichener and accelerator pump)
Air Cleaner/Filter Oval with spun aluminum insert; high-efficiency, pleated paper filtration
Ignition Single-fire, non-wasted, map-controlled spark ignition system;
electronic breakerless with multiple advance curve matrix
Lubrication System Dry sump, internally mounted, crank driven gerotor pressure
and dual scavenge pump with spin on 10ì pressurized oil filter

Primary Drive Double-row chain; oil bath; mechanical tensioner;
25/36-tooth sprockets (1.44:1)
Final Drive Gates aramid fiber reinforced Poly Chain belt;
32/70-tooth sprockets; 2.188:1
Clutch Multi-plate with diaphragm spring in oil bath
Transmission Five-speed,constant mesh
Gear Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

Frame Mild steel, rectangular section backbone with twin down-tubes
Swing Arm Mild steel, rectangular section
Front Fork Wide, 41.3 mm dia. forks with chrome fork triple clamp
Rear Shocks Chrome coil-over with adjustable spring preload
Wheels Wire laced front and rear
Caliper type Four-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension travel:
Front wheel 5.6 in. (142.5 mm)
Rear wheel 4.3 in. (109 mm)

Engine Torque 82.0 ft. lbs.@ 3500rpm (105.5 NM @ 3000 rpm)
Mileage (per E.P.A. test regulations):
City 42 mpg (17.9 Km/L)
Highway 50 mpg (21.3 Km/L)
Braking at 60 mph (96.6 kph):
Maximum load 165 ft. (49.5 m)
Lean Angle (per SAEJ1168):
Right 31 degrees
Left 32 degrees

Battery Sealed 12-volt, 19 amp-hour, 270cca (per Battery Council International rating)
Charging 32-amp permanent magnet alternator (360 watts @ 3,000 rpm, 416 watts peak)
with solid -state regulator
Starting 1.2 kw electric with Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w
Turn signal lights 28w, self-canceling
Running lights Integrated in front turn signals (except where prohibited by law)
Indicator lamps High beam, neutral, oil pressure, engine diagnostic light,
turn signals and security system (optional)

Engine Trim Black powdercoat with chrome covers
Exhaust System Staggered chrome shorty duals with low interconnect
Oil Tank Under-transmission
Front Fender Custom with painted brace
Rear Fender Custom sculpted Bobtail with chrome supports
Handlebars Mini Ape-hanger with chrome riser
Windshield none
Footpegs Rubber-isolated operator and rubber-covered passenger
Forward foot position Forward mounted brake and shift lever controls
Seat Custom, stepped chopper seat with tucked pillow-look
Passenger Backrest Chrome sideplates and sissy bar with H-D
Eagle emblem and padded backrest
Saddlebags none
Instruments Large, tank-mounted electronic speedometer with
odometer and resettable tripmeter in chrome tank console; fuel gauge
Fork Lock Barrel-key on steering head, key common with ignition

Vivid Black, Diamond Ice Pearl, Luxury Rich Red Pearl, Concord Purple Pearl
Chrome Yellow Pearl, Bronze Pearl,Two-Tone Luxury Rich Red/Black
Two-Tone Vivid Black/Chrome Yellow, New Two-Tone Luxury Blue/Diamond Ice
New Two-Tone Real Teal/Birch White

Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km); every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals –
