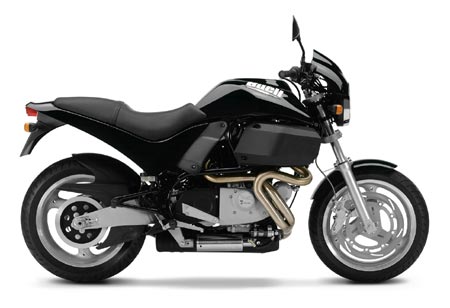

Click photo to enlarge.
It makes a great desktop image.

2002 Buell Cyclone M2

– 2002 Buell Cyclone M2

Body Color / Frame Color / Wheel / MSRP
Carbon Black / Black / Cast / $8,995
Blue Streak / Black / Cast / $8,995
Volcano Gray / Blazing Orange / Cast / $9,245
Carbon Black / Black / PM / $9,645
Blue Streak / Black / PM / $9,645
Volcano Gray / Blazing Orange / PM / $9,895

Specifications:

2002 BUELL™ SPECIFICATIONS: Cyclone M2®

ENGINE
Type Air cooled, Four-Stroke, 45° V-Twin
Displacement 1203 cc
Bore & Stroke 3.5 x 3.8 in. /88.8 x 96.8 mm
Compression Ratio 10:1
Valve Train OHV, two valves per cylinder, hydraulic adjusters
Valve Adjustment Self Adjusting
Fuel Delivery 40 mm Keihin CV Carburetor
Exhaust Free-Breathing 2 into 1 collector
Air Cleaner Helmholtz Volume Power System
HP/Torque 91 hp @ 6000 rpm; 85 ft-lbs @ 4900 rpm
Lubrication Dry sump, 2.0 qt (1890 cc)
Oil Filtration Screw-on disposable element
Battery 12-volt, 19 amp-hour, SLA (sealed lead acid)

DRIVE TRAIN
Transmission Five-speed, constant mesh
Ratio (1) 2.69, (2) 1.85, (3) 1.43, (4) 1.18, (5) 1.00
Primary Drive Triplex chain; ratio 1.6:1
Clutch Wet, multiplate
Final Drive Kevlar ® belt; ratio 2.26:1

CHASSIS
Frame Tubular perimeter chrome-moly with Uniplanar®
powertrain vibration isolation system; black finish
Wheelbase 55.0 in/139.7 cm
Rake/Trail 24.5 degree, 3.8 in/9.7 cm
Front Suspension Showa® forks with adjustable rebound damping and preload
Rear Suspension Aluminum arc swingarm; Showa extension type
damper with adjustable compression damping and spring preload.
Front Wheel Travel 4.7 in/11.9 cm
Rear Wheel Vertical Travel 4.6 in/11.7 cm
Front Brake Six piston caliper, 340 mm stainless steel floating rotor
Rear Brake Single piston caliper, 230 mm stainless steel rotor
Front Wheel 3-spoke cast, 3.5 x 17; Stardust Silver finish
Rear Wheel 3-spoke cast, 5.0 x 17; Stardust Silver finish
Front Tire Dunlop SportMax II Touring Radial, 120/70 ZR17 D205F
Rear Tire Dunlop SportMax II Touring Radial, 170/60 ZR17 D205
Seat Height 31 in/78.7 cm
Ground Clearance 5.2 in/13.2cm
Fuel Tank Capacity: 5.0 gal. (.6 gal. Reserve) 18.9L (2.2L reserve)
MPG – EPA2 45 City/53 Highway
Gross Vehicle Weight Rating 885 lbs/401 kg
Dry Weight 435 lbs/197 kg
Load Capacity 405 lbs/184 kg

INSTRUMENTS
Electronic speedometer, tachometer, odometer, tripmeter, warning light for low oil pressure, indicators for high beam, turn signals and neutral.

ELECTRICAL
Charging System 297 watt AC alternator; solid state regulator/rectifier
Headlight 60/55 watts
Tailight 5/21 watts
Turn Signals Manual canceling

COLORS
Carbon Black w/Black frame and Stardust Silver wheels
Blue Streak w/Black frame and Stardust Silver wheels
Volcano Grey w/Blazing Orange frame and Blazing Orange wheels

OPTIONAL FEATURES
Buell P/M 3.5 x 17 in. front and 5.5 x 17 in. rear; polished, spun aluminum wheels
