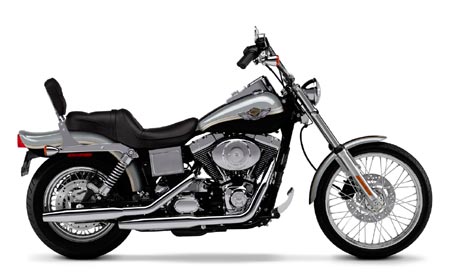

2003 Harley-Davidson FXDWG Dyna Wide Glide
2003 Harley-Davidson FXDWG Dyna Wide Glide



– 2003 Harley-Davidson FXDWG Dyna Wide Glide

The Dyna Wide Glide® represents a classic Harley-Davidson® chopper, with its laid-back attitude and traditional custom styling. Powered by the eye-catching black & chrome Twin Cam 88® engine, the Wide Glide® isnÕt just a pretty face.

Key FXDWG Dyna Wide Glide ® characteristics

-Vibration-isolated, Black and Chrome Twin Cam 88® Engine
-Wide, raked-out front fork
-21-inch laced front wheel
-Ape-hanger handlebar
-Bobtail fender
-Stepped, chopper seat
-Forward foot controls
-Chromed sissy bar and backrest
-Large, tank-mounted speedometer



SPECIFICATIONS:

2003 Specifications FXDWG Dyna Wide Glide®

DIMENSIONS
Length 94.5 in. (2400.3 mm)
Seat Height (measure laden w/ 180 lb. rider) 26.8 in. (680.7 mm)
Seat Height (unladen) 27.8 in. (706.1 mm)
Ground Clearance 5.4 in. (137.2 mm)
Rake 32.0 degrees
Trail 5.1 in. (129.5 mm)
Wheelbase 66.1 in. (1678.9 mm)
Tires: Dunlop Harley-Davidson Series
Front – D402F MH90-21 54H
Rear – D401 150/80B16 71H
Fuel Capacity (includes 1.1 gal. reserve tank) 5.2 gal. (19.7 L)
Reserve Fuel Capacity 1.1 gal. (4.2 L)
Oil Capacity 3.0 qts. (2.8 L)
Dry Weight 639.0 lbs. (290.0 kg)
Vehicle Weight In Running Order (unladen) 673.0 lbs. (306.0 kg)
Gross Vehicle Weight Rating 1085.0 lbs. (493.0 kg)

ENGINE
Engine 45º Air-cooled Twin Cam 88® (vibration isolation-mounted)
Valves Pushrod-operated overhead valves; w/ hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 x 4.0 in. (95.18 x 101.52)
Displacement 88 cu. in. (1450 cc)
Compression Ratio 8.9:1
Fuel System2 Carburetion

DRIVETRAIN
Primary Drive Double row chain, oil bath,
mechanical tensioner, 36/25 ratio
Final Drive Gates carbon fiber reinforced
polychain belt, 32/70 ratio
Clutch Multi-plate, wet
Transmission Five-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

CHASSIS
Frame Mild steel, rectangular section backbone w/ twin down-tubes
Swing Arm Mild steel, rectangular section
Front Fork Wide, 41.3 mm dia. forks w/ chrome fork triple clamp
Rear Shocks Chrome coil-over w/ adjustable spring preload
Wheels 21 in. front,
16 in. rear laced
Brakes:
Caliper type Dual-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (291.87 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (291.87 mm x 5.84 mm)
Suspension travel:
Front wheel 5.6 in. (142.2 mm)
Rear wheel 4.3 in. (109.2 mm)

PERFORMANCE
Engine Torque (per SAEJ607)3:
North America 85.0 ft. lbs.@ 3000 rpm (115.0 NM @ 3000 rpm)
International 81.0 ft. lbs.@ 3100 rpm (110.0 NM @ 3100 rpm)
Lean Angle (per SAEJ1168):
Right 31.0 degrees
Left 32.0 degrees

ELECTRIC
Battery Sealed 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging 28-amp permanent magnet alternator
w/ solid -state regulator (364 watts @ 3,000 rpm, 416 watts peak)
Starting 1.2 kw electric w/ Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w (int’l: 5w/21w)
Turn signal lights (self-canceling) 28w (int’l: 21w)
Indicator lamps High beam, neutral, oil pressure, engine diagnostic light,
turn signals and security system (optional)4

STYLING/CONVENIENCE
Engine Trim Black powdercoated w/ chrome covers
Exhaust System Staggered chrome shorty duals
Oil Tank Under-transmission
Foot Supports Forward controls
Ignition Tank console-mounted
Front Fender Custom w/ painted brace
Rear Fender Custom sculpted Bobtail w/ chrome supports
Seat Custom, stepped chopper seat w/ tucked pillow-look
Passenger Backrest Chrome sideplates and sissy bar w/ H-D
Eagle emblem and padded backrest
Instruments Large, tank-mounted electronic speedometer w/
odometer and resettable tripmeter in chrome tank console; fuel gauge
Fork Lock Barrel key, key common w/ ignition

COLORS
Two-Tone Sterling Silver and Vivid Black, Vivid Black, Gunmetal Pearl
Luxury Blue Pearl, Luxury Rich Red Pearl, White Pearl

WARRANTY
Warranty6 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km);
every 5,000 miles (8,000 Km) thereafter.
— Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals —
