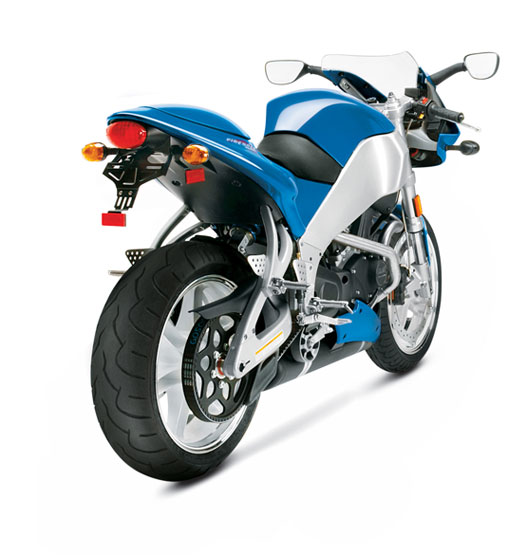

2004 Buell Firebolt XB9R

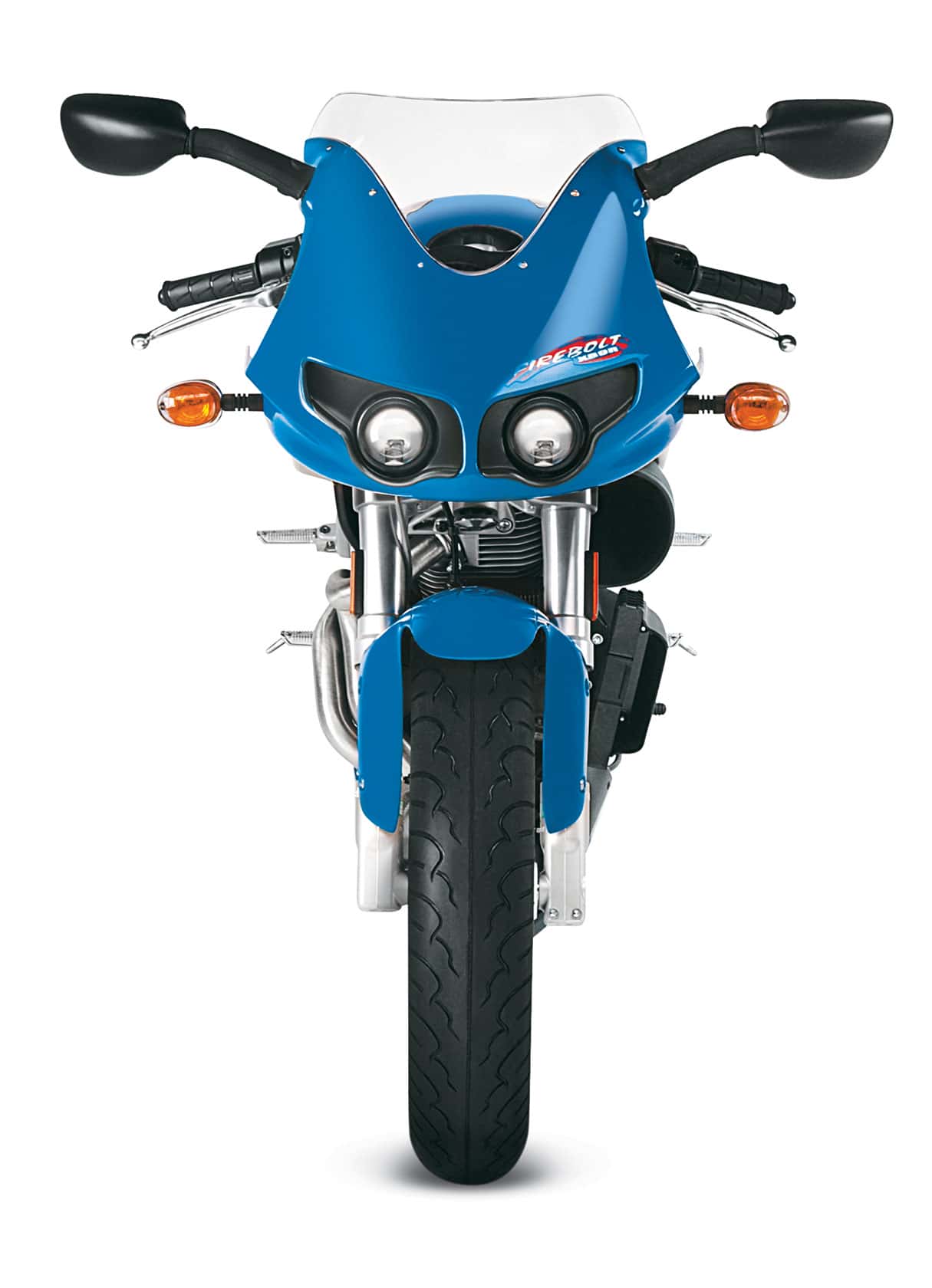

2004 Buell Firebolt XB9R

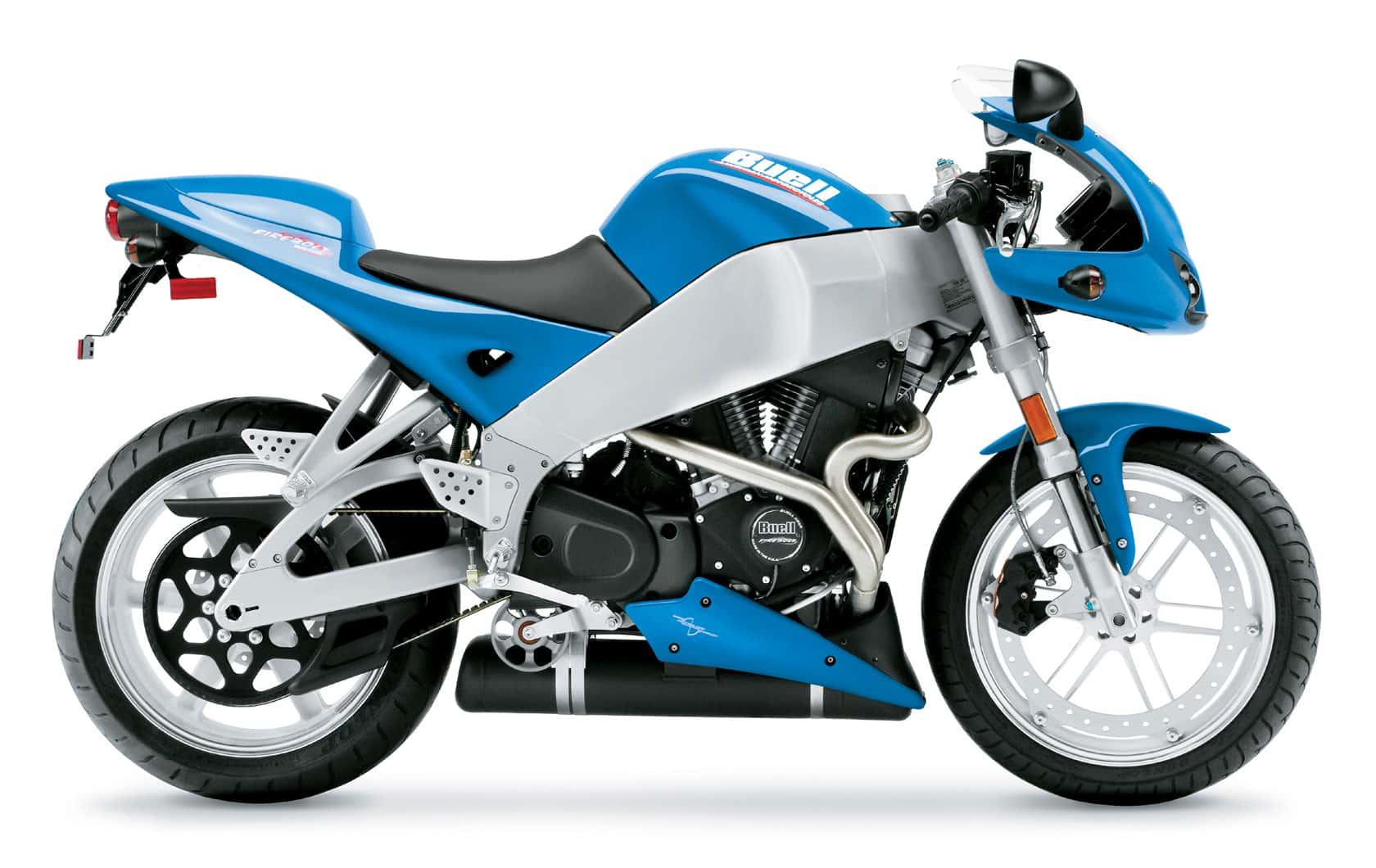

2004 Buell Firebolt XB9R

2004 Buell Firebolt XB9R

– 2004 Buell Firebolt XB9R

2004 Buell Firebolt XB9R

Its aggressive stance and tight geometry is more than styling, it’s intent. The Firebolt XB9R is a machine built to dominate the back roads. The seating position is part street, part track. A battle-ready stance perfectly suited for competitive riding.

Clip-ons, rearset pegs and ergonomic cutouts for your knees make you feel like a part of the bike. The removable rear seat cowling and passenger pegs let you share the experience with others. Launching the Firebolt XB9R to the top of its class in torque-to-weight ratio is our high revving middleweight, the potent 984cc Dynamic Digital Fuel Injected V-Twin. It’s a sport-tuned motor with crisp throttle response and a seamless torque curve.





2004 Buell Firebolt XB9R – Specifications
MSRP: Please see dealer for pricing

DIMENSIONS
Overall Length 76.2 in. (1935 mm)
Overall Width 28.2 in. (715 mm)
Seat Height 30.5 in. (775 mm)
Ground Clearance 4.35 in. (110 mm)
Rake 21 degrees
Trail 3.3 in. (83 mm)
Wheelbase 52.0 in. (1320 mm)
Front Tire Dunlop D207FY 120/70 ZR-17
Rear Tire Dunlop D207FU 180/55 ZR-17
Fuel Capacity 3.7 gal. (14 L)
Reserve Fuel Capacity (warning light at approx. 0.7 gal.) 0.7 gal. (2.6 L)
MPG – EPA Urban/Highway Test2 50/65 mpg (4.7/3.6 L/100 Km)
Dry Weight 385 lbs. (175 kg)
Gross Vehicle Weight Rating 850 lbs. (386 kg)
Load Capacity 400 lbs. (181 kg)

ENGINE
Engine Air/oil/fan-cooled, four-stroke, 45 degree V-Twin
Valve Train OHV, two valves per cylinder, self adjusting
Bore x Stroke 3.500 x 3.125 in. (88.90 x 79.38 mm)
Displacement 984 cc (60.0 ci)
Compression Ratio 10.0:1
Fuel Delivery 45 mm downdraft DDFI II fuel injection
Intake Zero resistance Air Box, Ram Air intake
Exhaust Tuned tri-pass resonance chamber
Torque (North America Per SAE J607) 70 ft-lb @ 5500 rpm
Horsepower (North America Per SAE J607) 92 hp @ 7500 rpm
Lubrication Dry Sump
Oil Capacity 2.5 qts. (2.4 L)
Oil Filtration Screw-on disposable element

DRIVETRAIN
Primary Drive Chain; 1.676:1 (57/34)
Final Drive3 Constant path; 14mm pitch aramid reinforced
Hibrex® belt w/ Flexten® Plus technology; 2.407:1 (65/27)
Clutch Wet, multi-plate, compensated
Transmission Five-speed, constant mesh
Transmission Ratios:
1st 2.688
2nd 1.850
3rd 1.433
4th 1.181
5th 1.000

CHASSIS4
Frame Aluminum frame w/ Uniplanar® powertrain
vibration isolation system – Fuel in Frame
Front Fork Showa® inverted fork w/ adjustable compression
damping, rebound damping and spring preload
Rear Shock Showa coil-over monoshock w/ remote,
underseat reservoir and adjustable compression
damping, rebound damping and spring preload
Wheels:
Front 6-spoke, ZTL™, cast aluminum, 3.5 x 17”, Sky White
Rear 6-spoke, cast aluminum, 5.5 x 17”, Sky White
Brakes:
Front ZTL type brake, 6-piston, fixed caliper,
375 mm single-sided, inside out,
stainless steel, floating rotor
Rear 240 mm stainless steel, single piston,
floating caliper, fixed rotor
Suspension Travel:
Front 4.72 in. (120 mm)
Rear 5.00 in. (127 mm)

ELECTRIC
Battery 12 volt, 12 amp-hour, 200 cca,
Sealed Lead Acid, maintenance-free
Charging 494 watts peak, 38-amp permanent magnet
3-phase alternator w/ solid state regulator
Starting 1.2 KW electric w/ Bendix-type engagement
Lights: (as per country regulation)
Headlight Twin projector beam (H3);
55-watt low beam, 55-watt high beam
Tail/stop lights 5/21 watts
Turn signals lights (manual canceling) 10 watts

INSTRUMENTS
Electronic speedometer, tachometer, odometer; dual resettable tripmeter; high
beam, neutral, oil, low fuel (plus, odometer shows miles traveled on reserve), turn
signal and engine diagnostic indicator lamps; clock

COLORS5
Battle Blue w/ Red/White decals

WARRANTY
Warranty 24 months (unlimited mileage)



1Specifications for non-U.S. markets might differ. Buell reserves the right to discontinue models
or change specifications at any time without incurring any obligations. Vehicle specifications
may vary from country to country depending on local laws, and some models are not available
in certain countries.
2Based on tests conducted under lab conditions per U.S. E.P.A. test procedures. Mileage will vary
depending on personal riding habits, weather conditions, trip length and vehicle condition.
3Hibrex and Flexten are registered trademarks of the Goodyear Tire & Rubber Company.
4SHOWA and DUNLOP are trademarks of their respective owners.
5Availability may vary from dealer to dealer, and is subject to change without notice.
