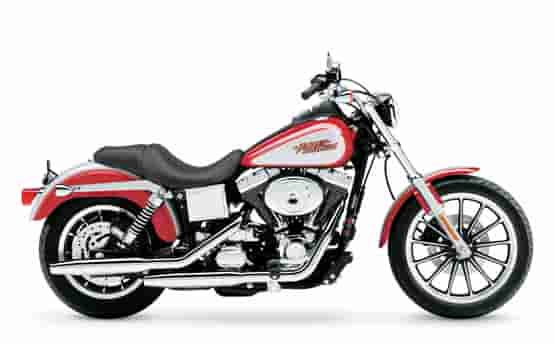

 2004 Harley-Davidson FXDL/I Dyna Low Rider
2004 Harley-Davidson FXDL/I Dyna Low Rider

– 2004 Harley-Davidson FXDL/I Dyna Low Rider

2004 Harley-Davidson FXDL/I Dyna Low Rider

FXDL/I Dyna Low Rider® Model Overview
A mere 25.2 inches off the ground, the Dyna Low Rider® model is the lowest Harley-Davidson® motorcycle in the line. The raked 32-degree front end, pull-back riser and low-rise handlebar, slammed suspension and low-slung custom seat are all features that help define the boulevard look of the Low Rider®. The graphics further define its bad-to-the-bone attitude. Right below the fuel tank is the isolation-mounted Twin Cam 88™ engine with plenty of torque. Top it all off with a laced wheel option and plenty of eye-catching color options and it’s no wonder the Low Rider® has been one of the best-known names in motorcycling for over 20 years. The Dyna Low Rider® model, with its long looks, low stance, and easy-reach handlebar and foot controls is a very popular choice for custom enthusiasts of all sizes…regardless of inseam.

Key FXDL/I Dyna Low Rider® Motorcycle Characteristics

Lowest Harley® seat height (25.2 inches)
Vibration-isolated, Black and Chrome Twin Cam 88® Engine
Low-profile suspension
Low-slung custom seat with tapered passenger pillion
Raked-out front fork
Easy-reach, low-rise handlebar
Easy-reach, mid-mount foot controls
Tank-mounted speedometer and tachometer
Highway pegs (not all destinations)
Available Options

Laced Wheel
Security System
Electronic Fuel Injection (New in 2004)
Color Options

Vivid Black
Brilliant Silver
Sierra Red
Impact Blue
Luxury Blue
Lava Red Sunglo
Glacier White Pearl
Two-Tone Luxury Blue and Impact Blue
Two-Tone Sierra Red and Brilliant Silver
Two-Tone Smokey Gold and Vivid Black



2004 Harley-Davidson FXDL/I Dyna Low Rider – Specifications
MSRP: Please see dealer for pricing

Length 94.0 in. (2387.6 mm)
Seat Height2 25.2 in. (640.1 mm)
Seat Height (unladen) 26.2 in. (665.5 mm)
Ground Clearance 4.6 in. (116.8 mm)
Rake 32.0 degrees
Trail 5.1 in. (129.5 mm)
Wheelbase 65.5 in. (1663.7 mm)
Tires: Dunlop Harley-Davidson Series
Front – D401F 100/90-19 57H
Rear – D401 150/80B16 71H
Fuel Capacity (includes 0.9 gal. reserve) 4.7 gal. (17.8 L)
Reserve Fuel Capacity
Carb 0.9 gal. (3.4 L)
EFI 1.0 gal. (3.8 L)
Oil Capacity 3.0 qts. (2.8 L)
Dry Weight 623 lbs. (283 kg)
Vehicle Weight In Running Order 656 lbs. (298 kg)
Gross Vehicle Weight Rating 1085 lbs. (493 kg)

Engine Air-cooled Twin Cam 88® (vibration isolation-mounted)
Valves Pushrod-operated overhead valves; w/ hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 x 4.0 in. (95.18 x 101.52 mm)
Displacement 88 cu. in. (1450 cc)
Compression Ratio 8.9:1
Fuel System3 Carburetion or
Electronic Sequential Port Fuel Injection (ESPFI)

Primary Drive Chain, 36/25 ratio
Final Drive Belt, 70/32 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

Frame Mild steel tubular frame, rectangular
section backbone, stamped,
cast and forged junctions,
forged fender support, MIG welded
Swing Arm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 39 mm w/ polished aluminum fork triple clamp
and dual-rate springs
Rear Shocks Coil-over shock
Wheels 13-spoke
black/silver cast aluminum alloy (laced option)
Caliper type Four-piston front and rear
Rotor type (diameter x width):
Patented, Uniform Expansion Rotors
Front (single) 11.5 in. x .20 in. (292.87 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.87 mm x 5.84 mm)
Suspension travel:
Front wheel 6.1 in. (154.9 mm)
Rear wheel 3.3 in. (83.8 mm)

Engine Torque (per SAE J607)4:
North America 85.0 ft. lbs.@ 3000rpm (115.0 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 29 degrees
Left 29 degrees

Battery Sealed, maintenance-free, 12-volt, 19 amp-hour,
270cca (per Battery Council International rating)
Charging Three phase, 38-amp system
(439 watts @ 13v, 2,000rpm, 489 watts max power @ 13v)
Starting 1.2 kw electric w/ Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen
55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w (5w/21w)
Turn signal lights (self-canceling) 28w (21w)
Indicator lamps High beam, neutral, oil pressure,
engine diagnostic light,
turn signals and security system (optional)5

Engine Trim Black powder-coated w/ chrome treatment
Exhaust System Staggered chrome shorty duals
Oil Tank Under-transmission
Front Fender Sport-style w/ painted brace
Rear Fender Sport wrap-around w/ chrome supports
Windshield none
Brake and Shift Levers Midmount controls
Handlebars Low-rise, stainless steel
Rider Foot Controls Footpegs
Seat Two-up
Passenger Backrest none
Instruments Electronic speedometer w/ odometer
and resettable tripmeter,
diagnostic readout, tachometer
Fork Lock Barrel-key on steering head,
key common w/ ignition

Vivid Black, Brilliant Silver Pearl, Sierra Red Pearl, Impact
Blue Pearl, Luxury Blue Pearl, Glacier White Pearl, Lava Red
Sunglo, Two-Tone Luxury Blue Pearl & Impact Blue Pearl,
Two-Tone Sierra Red Pearl & Brilliant Silver Pearl, Two-Tone
Smokey Gold Pearl & Vivid Black

Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km);
every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500
mile (4,000 Km) intervals –


1Harley-Davidson reserves the right to discontinue models or change
specifications at any time without incurring any obligations. Vehicle
specifications may vary from country to country depending on local
laws, and some models are not available in certain countries.
2Measurement reflects 180 lb/81.7 kg operator weight.
3Standard and optional fuel systems may vary by country.
4Values are nominal. Performance varies by country.
5North American security system includes immobilizer; outside North
America the security system includes immobilizer & siren.
6Availability may vary from dealer to dealer, and is subject to change
without notice.
7See motorcycle owner’s manual for complete details.
