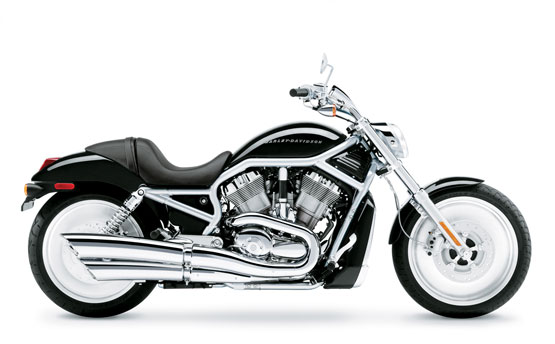

2004 Harley-Davidson VRSCA V-Rod

2004 Harley-Davidson VRSCA V-Rod

– 2004 Harley-Davidson VRSCA V-Rod

2004 Harley-Davidson VRSCA V-Rod

VRSCA V-Rod™ Model Overview
The styling of the V-Rod™ motorcycle is pure custom, inspired by long, low drag bikes. It combines two of our finest traditions – the V-Twin engine and Harley-Davidson racing, which has led us to the new, 115hp Revolution™ engine. The V-Rod™ is a new kind of production motorcycle. A mix of high performance and custom styling. It’s a theme that runs all the way to the steel bone of the V-Rod™ frame. With many technological and styling breakthroughs, the V-Rod™ motorcycle and the Revolution® engine establish a new benchmark in motorcycling.

Key VRSCA V-Rod™ Motorcycle Characteristics

Two-tone silver and charcoal powertrain with chrome covers
Silver leafed aluminum frame with with clear coat
Braided silver calipers and brake lines
Silver hand controls
Welded handlebars with clamshell instrumentation and chrome cover
Stylized rear shock covers
Silver shock springs
Color Options

Vivid Black
Impact Blue
Lava Red Sunglo
Two-tone Luxury Teal/Brilliant Silver
Two-tone Smokey Gold/Vivid Black





2004 Harley-Davidson VRSCA V-Rod – Specifications
MSRP: Please see dealer for pricing

DIMENSIONS
Length 93.6 in. (2377.4 mm)
Seat Height2 26.0 in. (660.4 mm)
Seat Height (unladen) 27.1 in. (688.3 mm)
Ground Clearance 5.6. in. (141.0 mm)
Rake (steering head) 34.0 degrees
Fork Angle 38.0 degrees
Trail 3.9 in. (99.1 mm)
Wheelbase 67.5 in. (1714.5 mm)
Tires: Radial
Front – D207 F 120/70ZR-19 60W
Rear – D207 F 180/55ZR-18 74W
Fuel Capacity 3.7 gal. (14.0 L)
Reserve Fuel Capacity No reserve due to fuel injection
Oil Capacity 4.5 qts. (4.3 L)
Dry Weight 596 lbs. (271 kg)
Vehicle Weight In Running Order 616 lbs. (280 kg)
Gross Vehicle Weight Rating 1022 lbs. (464 kg)

ENGINE
Engine 60º Liquid-cooled V-Twin Revolution™ engine
Bore x Stroke 3.94 x 2.84 in. (100 x 72 mm)
Displacement 69 cu. in. (1130 cc)
Compression Ratio 11.3:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Downdraft intake – hidden
Lubrication System Wet-sump, integrated
w/ powertrain crankcase

DRIVETRAIN
Primary Drive Gear, 117/64 ratio
Final Drive Belt, 72/28 ratio (72/30 ratio)
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 11.745 (10.969)
2nd 7.890 (7.371)
3rd 6.320 (5.900)
4th 5.450 (5.095)
5th 4.890 (4.563)

CHASSIS
Frame Steel perimeter upper frame
w/ hydroformed main rails and
bolt-on lower frame rails, MIG welded
Swing Arm Polished one piece cast aluminum
Front Fork Wide 49 mm custom fork
Wheels 19 in. (48.26 cm) x 3.0 in. (7.62 cm)
cast disc front;
18 in. (45.72 cm) x 5.5 in. (13.97 cm)
wide cast disc rear
Brakes:
Caliper type Four-piston front and rear
Rotor type (diameter x width):
Patented, One piece floating rotor (front)
Uniform Expansion Rotor (rear)
Front (Dual) 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 4.0 in. (101.60 mm)
Rear Wheel 4.0 in. (101.60 mm)

PERFORMANCE
Engine Torque (per SAE J607)3:
World 74 ft. lbs. @ 7000 rpm (100 NM @ 7000 rpm)
France (opt. Germany)
70 ft. lbs. @ 6100 rpm (95 NM @ 6100 rpm)
Lean Angle (per SAE J1168):
Right 32 degrees
Left 32 degrees

ELECTRIC
Battery Sealed, maintenance-free, 12-volt, 12 amp-hour
200 cca (per Battery Council International rating)
Charging Three-phase, 38-amp system
(439 watts @ 13v, 2000 rpm, 489 watts max power @ 13v)
Starting 0.8kw electric Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz Halogen 55-watt low beam,
60-watt high beam
Tail/stop lights 8w/28w reflector optics (5w/21w)
Turn signal lights (self-canceling) 28w (21w)
Indicator lamps High beam, neutral, oil, turn signals,
engine diagnostics, security system,
coolant temperature, low fuel

STYLING/CONVENIENCE
Engine Trim Two-Tone Silver and Charcoal engine
Exhaust System Chrome slash-cut duals
Ignition Barrel Keyed
Seat 2-up textured vinyl
w/ flip-up fuel fill access
Passenger Backrest Available Genuine Motor Accessories
Brake and Shift Lever Forward foot controls
Rear Fender Supports Internal to rear fender w/ included
P&A saddlebag mounting points
Instruments Electronic speedometer w/ odometer and
resettable tripmeter w/diagnostic capabilities and
solid state tell-tale indicator module; tachometer
Hazard warning Integrated into turn signal controls
Fork Lock Common w/ ignition key
Security System Standard

COLORS4
Vivid Black, Impact Blue Pearl, Lava Red Sunglo, Two-Tone
Luxury Teal Pearl & Brilliant Silver Pearl, Two-Tone Smokey
Gold Pearl & Vivid Black

WARRANTY
Warranty5 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km);
every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500
mile (4,000 Km) intervals –



1Harley-Davidson reserves the right to discontinue models or change
specifications at any time without incurring any obligations. Vehicle
specifications may vary from country to country depending on local
laws, and some models are not available in certain countries.
2Measurement reflects 180 lb/81.7 kg operator weight.
3Values are nominal. Performance varies by country.
4Availability may vary from dealer to dealer, and is subject to change
without notice.
5See motorcycle owner’s manual for complete details.
